◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51272 - NPS EURO5 AUST/NZ ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#77990) — 13 parça

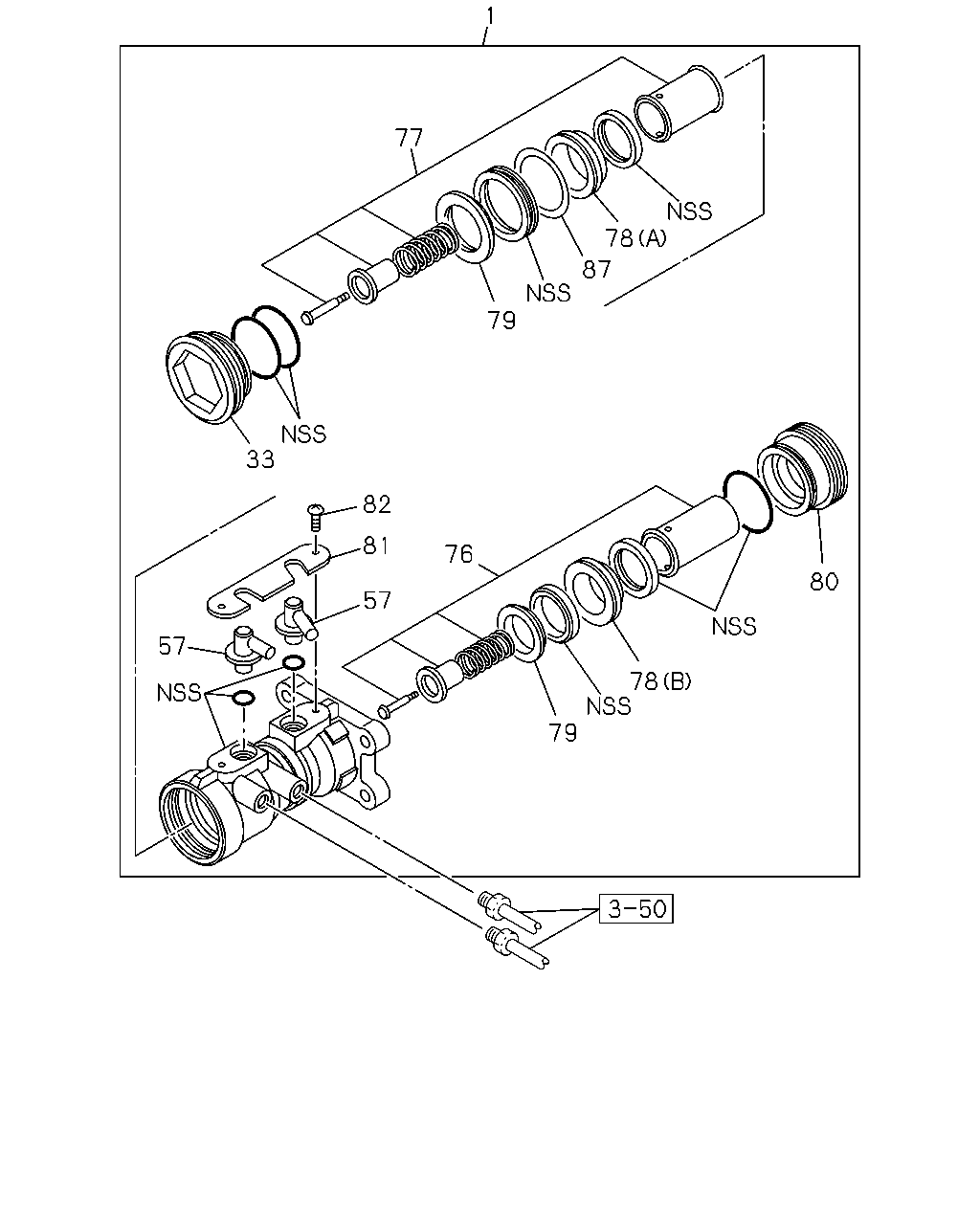

çizim 117095
80 78 79 76 57 81 82 33 57 77 1 79 87 78
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-600-0 01 1 1009- ● ●
33 04.661 PLUG; END,M/CYL 8-97186-697-0 01 1 1009- ● ●
57 04.651 NIPPLE; BRK M/CYL 8-97130-442-0 02 1 1009- ● ●
76 04.653 PISTON ASM; PRIMARY 8-97224-643-0 01 1 1009- ● ●
77 04.653 PISTON ASM; SECONDARY 8-97224-642-0 01 1 1009- ● ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 1009- ● ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-312-0 01 1 1009- ● ●
79 04.651 SUPPORTER; CUP 8-97130-463-0 02 1 1009- ● ●
80 04.651 COVER; MASTER CYL 8-97130-449-0 01 1 1009- ● ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 1009- ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 1009- ● ●
87 04.662 SPACER; CUP 8-97130-459-0 01 1 1009- ● ●

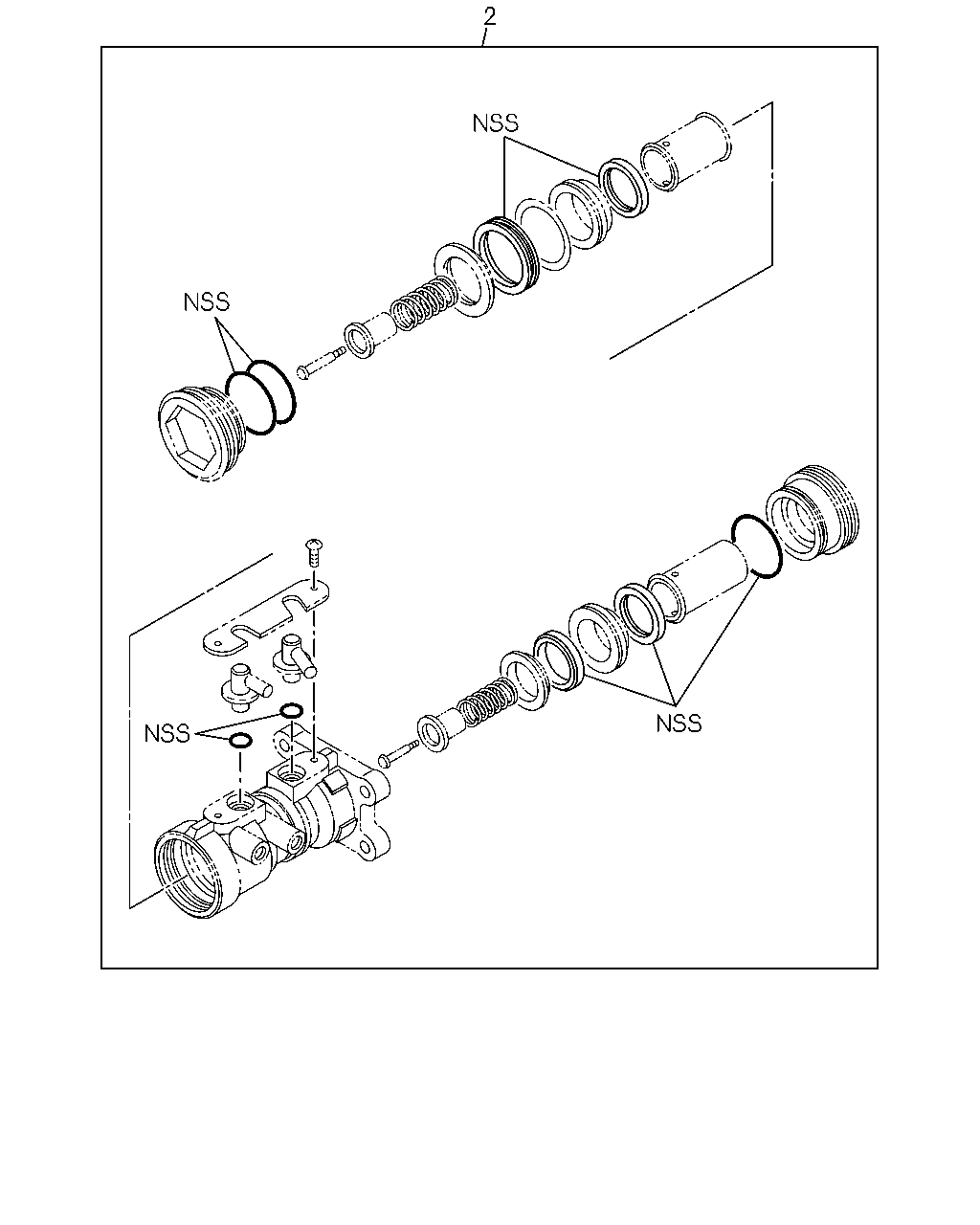

çizim 187068
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-471-0 01 1 1009- ● ●
