0-32 — WATER PIPING; ENGINE (#7799) — 23 parça

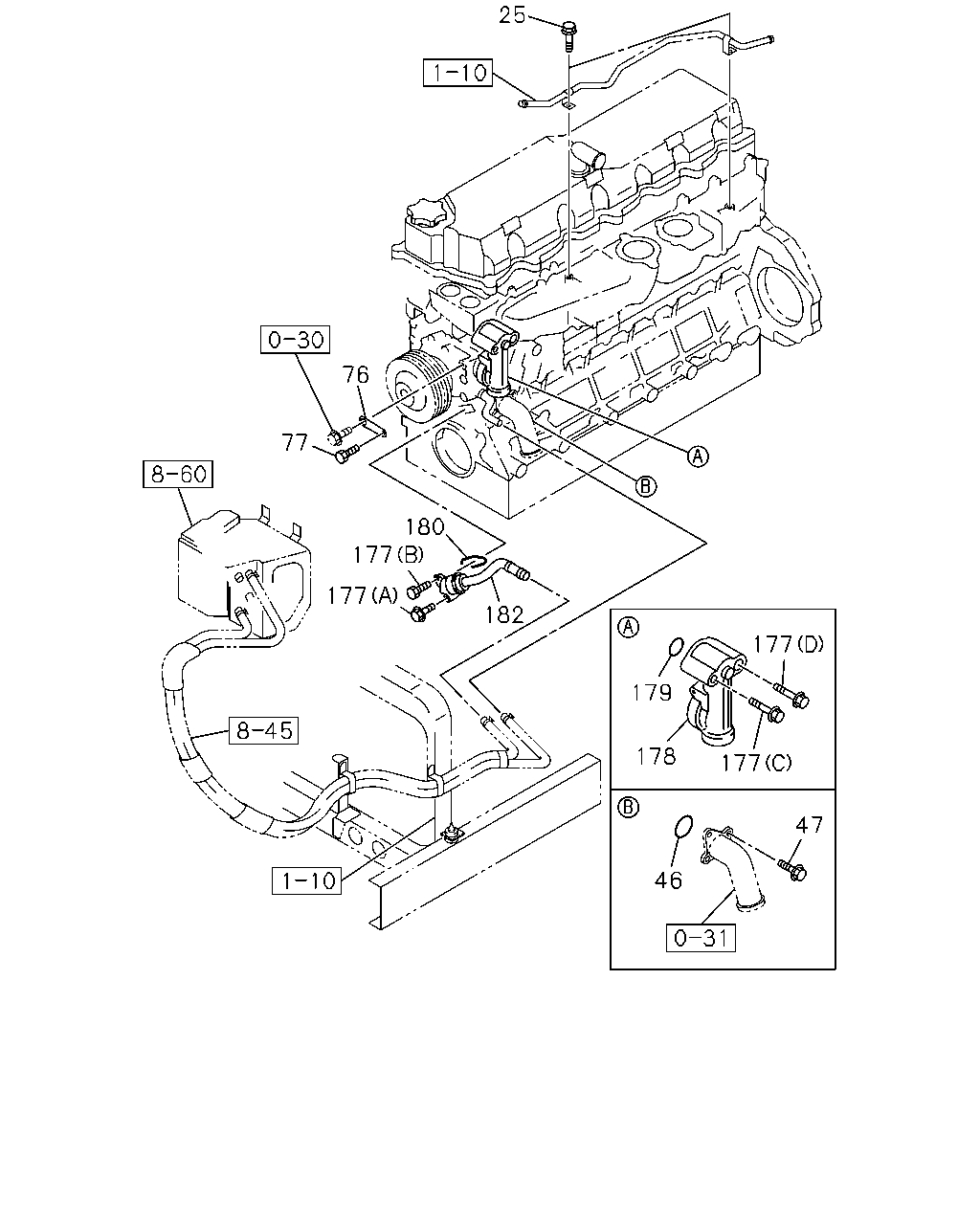

çizim 27004
25 76 77 180 177 177 182 177 179 178 177 47 46
BalonParca AdiParca NoAdetTipApplied Date A B
25 BOLT; WATER PIPE
M8X12 FLANGE 		0-28080-812-0 02 1 9905-0512 ● ●
25 BOLT; WATER PIPE
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ●
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 9905- ● ●
47 BOLT; DUCT,TO OIL COOLER
M8X45 FLANGE 		0-28080-845-0 03 1 9905-0512 ● ●
47 BOLT; DUCT,TO OIL COOLER
M8X45 FLANGE 		0-28050-845-0 03 1 0601- ● ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 9905- ● ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28080-850-0 01 1 9905-0512 ● ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28050-850-0 01 1 0601- ● ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28080-880-0 01 1 9905-0512 ● ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ● ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9905-0512 ● ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 9905- ● ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 9905- ● ●
178 DUCT; WATER,BYPASS 8-94396-627-3 01 1 9905- ● ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-94396-679-0 01 1 9905- ● ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 9905- ● ●
182 DUCT; WATER,HTR 8-94394-348-5 01 1 9905- ● ●

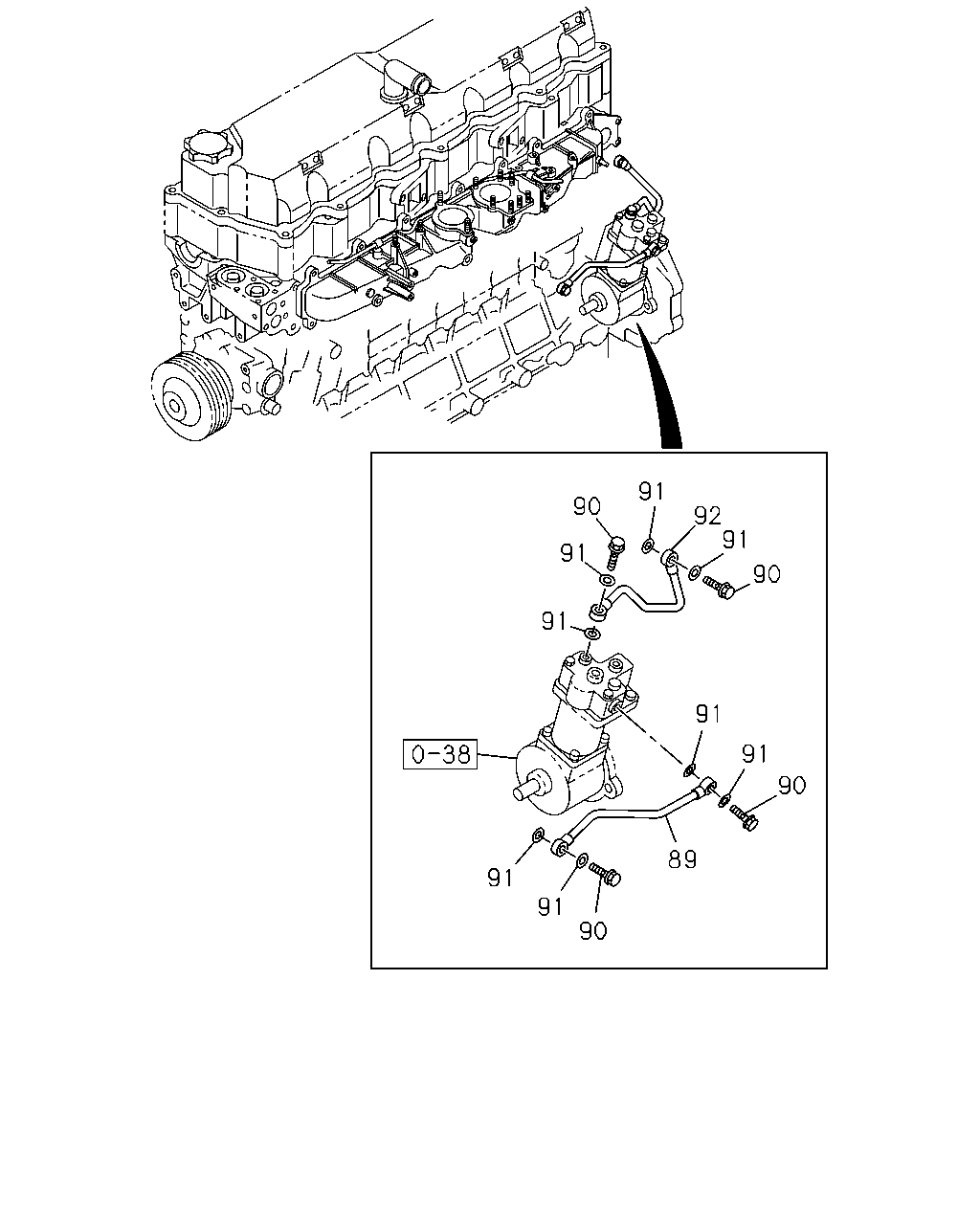

çizim 27018
91 90 92 91 91 90 91 91 91 90 89 91 91 90
BalonParca AdiParca NoAdetTipApplied Date A B
89 PIPE; WATER,AIR CMPR,IN
FTR(FT****) 		8-94391-114-0 01 1 0302- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
FTR(FT****) M14X27 EYE-BOLT 		1-09675-193-0 04 1 0302- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FTR(FT****) ID=14.2 OD=19.2 		1-09630-085-0 08 1 0302- ●
92 PIPE; WATER,AIR CMPR,OUT
FTR(FT****) 		8-94391-115-0 01 1 0302-0306 ●
92 PIPE; WATER,AIR CMPR,OUT
FTR(FT****) 		8-97603-477-0 01 1 0307- ●
