0-31 — THERMOSTAT AND HOUSING (#7798) — 20 parça

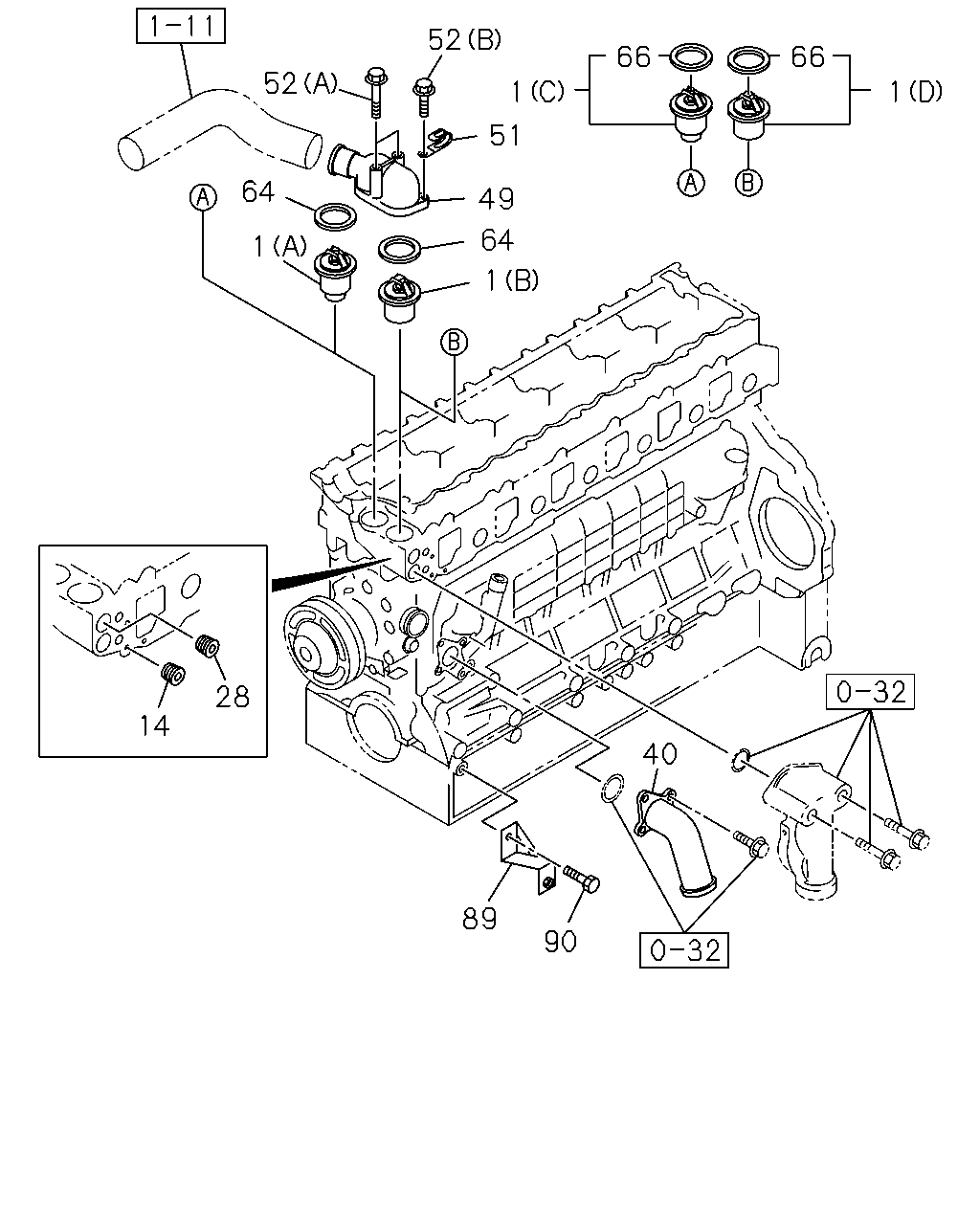

çizim 26696
52 66 66 52 1 1 51 64 49 64 1 1 28 14 40 89 90
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
(B) 82?C 		8-94392-817-0 01 1 9905-0105 ● ●
1 THERMOSTAT
(D) 82?C 		8-97602-037-0 01 1 0106-0112 ● ●
1 THERMOSTAT
(D) 82?C 		8-97602-393-1 01 1 0201- ● ●
1 THERMOSTAT
(A) 82?C 		8-94397-310-0 01 1 9905-0105 ● ●
1 THERMOSTAT
(C) 82?C 		8-97602-048-2 01 1 0106- ● ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 9905- ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 9905- ● ●
40 DUCT; WATER,SUCTION 8-94391-080-1 01 1 9905- ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9905-0105 ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0106- ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9905- ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X80 FLANGE 		0-28080-880-0 02 1 9905-0512 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 9905-0512 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9905-0105 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97300-793-0 02 1 0106- ● ●
89 BRACKET 8-94390-983-2 01 1 9905- ● ●
90 BOLT; BRKT
M10X16 FLANGE 		0-28181-016-0 01 1 9905-0512 ● ●
90 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 01 1 0601- ● ●
