Isuzu WW
▶
TRUCKS
▶
FRR
▶
10808 - FRR-G/FSR/FTR TAIWAN
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶

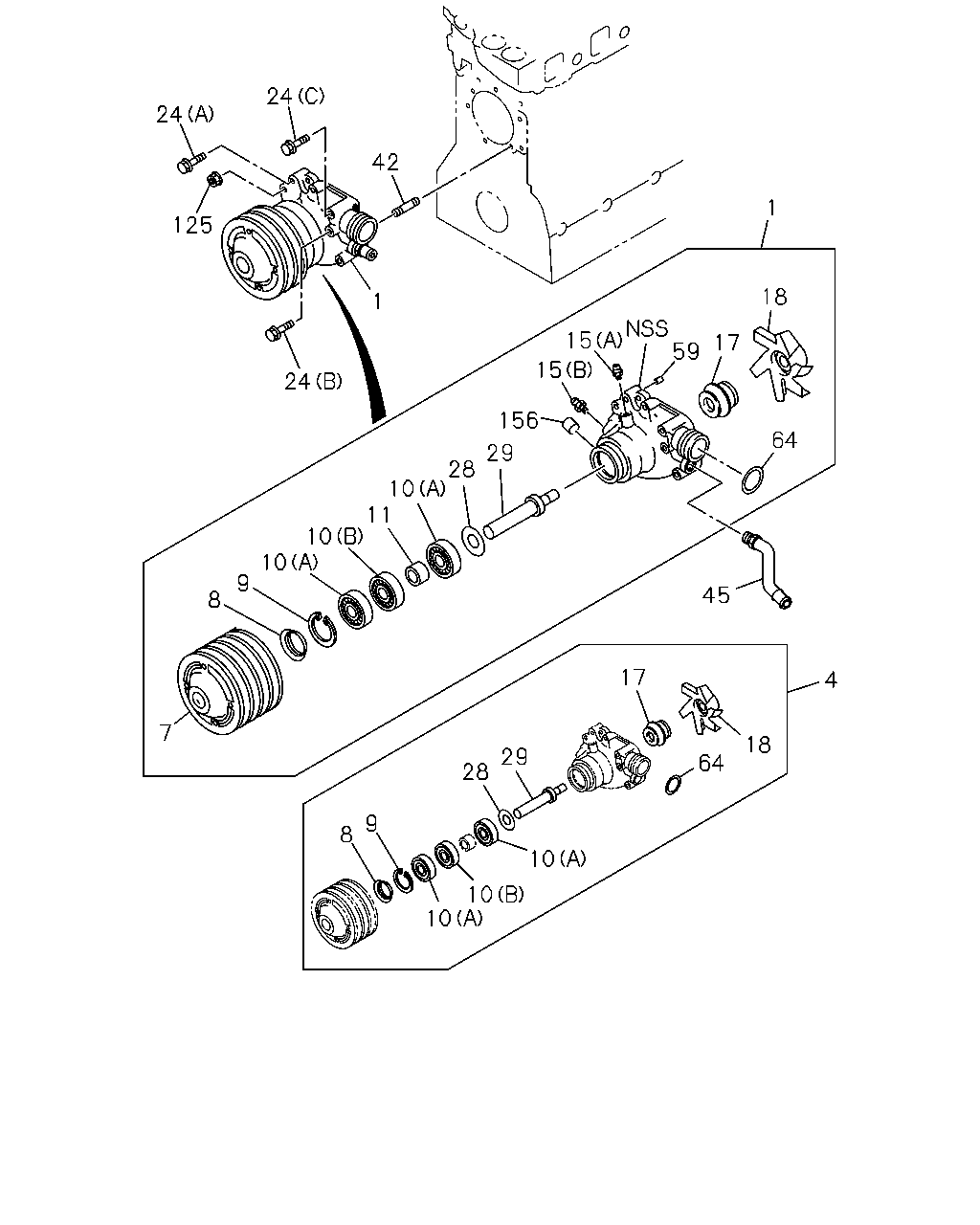

0-30 — WATER PUMP AND CORROSION RESISTOR
(#7797) — 30 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCN ENG
24
24
42
1
125
18
1
59
15
17
15
24
156
64
29
28
10
11
10
10
9
45
8
17
4
7
18
29
64
28
9
8
10
10
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; WATER,W/GASKET
8-94391-670-5
01
1
9905-0301
●
●
1
PUMP ASM; WATER,W/GASKET
8-97602-776-2
01
1
0302-
●
●
4
REPAIR KIT; WATER PUMP
1-87811-897-0
01
1
9905-9912
●
●
4
REPAIR KIT; WATER PUMP
1-87812-040-1
01
1
0001-
●
●
7
PULLEY; WATER PUMP
4-GROOVE
8-94394-927-0
01
1
9905-
●
●
8
THROWER; DUST,WATER PUMP
8-94399-457-0
01
1
9905-
●
●
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
9905-
●
●
10
BEARING; WATER PUMP
(A)
8-94391-298-0
02
1
9905-
●
●
10
BEARING; WATER PUMP
(B)
8-94391-299-0
01
1
9905-
●
●
11
SPACER; BRG,WATER PUMP
1-13634-040-0
01
1
9905-
●
●
15
NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT
1-09380-002-0
01
1
9905-
●
●
15
NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT
9-09031-010-0
01
1
9905-0512
●
●
15
NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT
0-90301-410-0
01
1
0601-
●
●
17
SEAL UNIT; WATER PUMP
8-94395-036-0
01
1
9905-9912
●
●
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
0001-
●
●
18
IMPELLER; WATER PUMP
8-94392-922-0
01
1
9905-
●
●
24
BOLT; WATER PUMP
(B) M8X80 FLANGE
0-28080-880-0
01
1
9905-0512
●
●
24
BOLT; WATER PUMP
(B) M8X80 FLANGE
0-28050-880-0
01
1
0601-
●
●
24
BOLT; WATER PUMP
(A) M8X58 FLANGE
8-94130-055-1
03
1
9905-
●
●
24
BOLT; WATER PUMP
(C) M10X85 FLANGE
8-94397-359-1
01
1
9905-
●
●
28
WASHER; WATER PUMP
ID=25.5 OD=50
8-94397-097-0
01
1
9905-
●
●
29
SHAFT; WATER PUMP
8-94396-130-1
01
1
9905-
●
●
42
STUD; WATER PUMP
M8X30 L=46
9-04010-830-0
01
1
9905-0604
●
●
42
STUD; WATER PUMP
M8X30 L=46
0-40110-830-0
01
1
0605-
●
●
45
JOINT; HTR HOSE,WATER PUMP
8-94394-389-0
01
1
9905-
●
●
59
DOWEL; WATER PUMP
OD=12 L=9
1-13119-003-0
02
1
9905-
●
●
64
GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7
1-09623-383-0
01
1
9905-
●
●
125
NUT; WATER PUMP
M8 FLANGE
0-91150-108-0
04
1
9905-0602
●
●
125
NUT; WATER PUMP
M8 FLANGE
0-91180-108-0
04
1
0603-
●
●
156
CUP; SEALING
OD=25
1-09600-016-0
01
1
0004-
●
●
