◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51272 - NPS EURO5 AUST/NZ ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#77963) — 123 parça

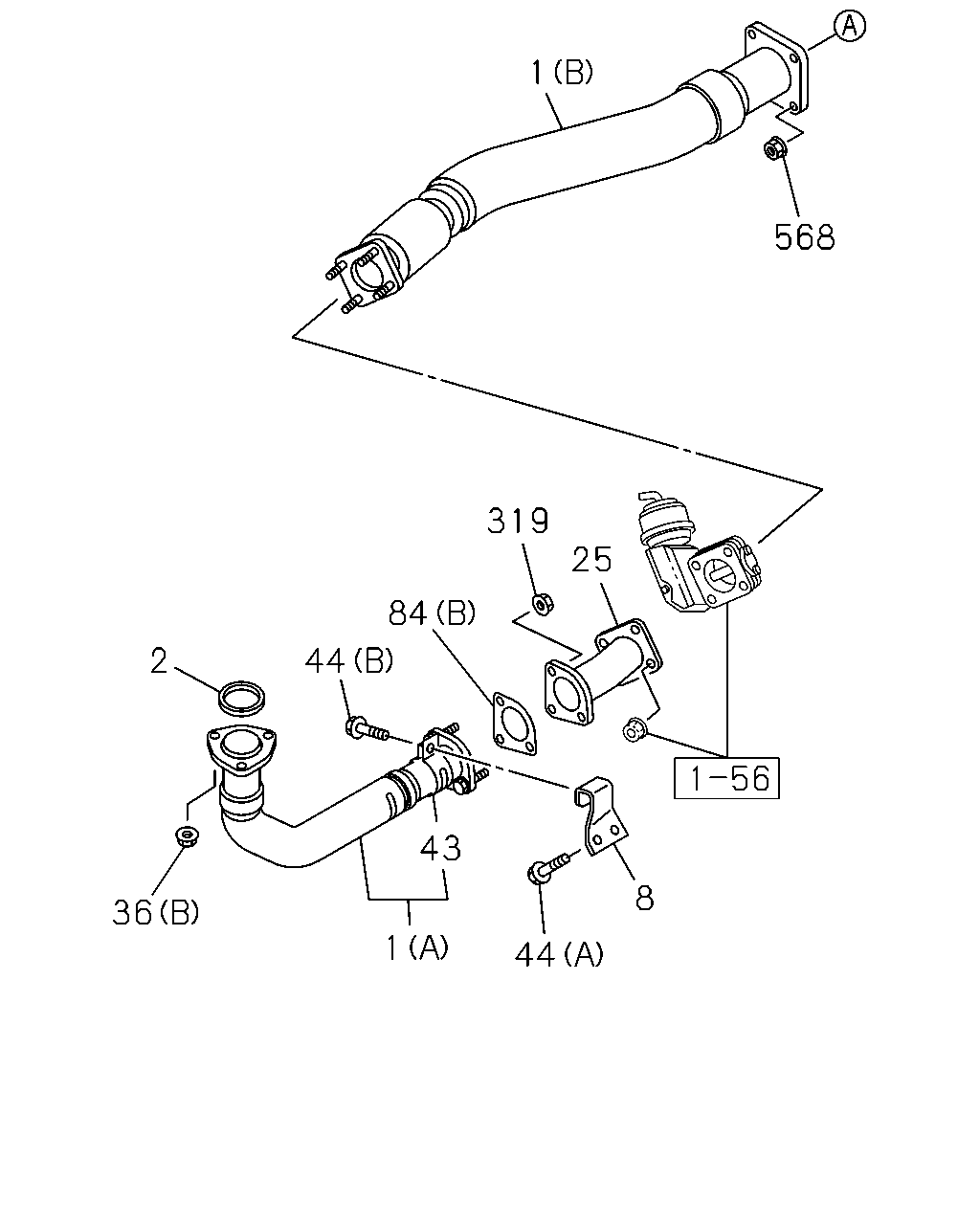

çizim 96597
44 1 36 2 44 84 319 25 8 43 1 568
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.609 PIPE; EXH
(A) 		8-98049-988-0 01 1 1009- ● ●
1 03.609 PIPE; EXH
(B) 		8-98160-243-1 01 1 1009- ● ●
2 03.611 GASKET; PIPE TO MANIF 8-97381-455-0 01 1 1009- ● ●
8 03.704 BRACKET; EXH PIPE 8-98072-165-0 01 1 1009- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER 8-98049-989-0 01 1 1009- ● ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 04 1 1009- ● ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1009- ● ●
43 03.611 CLAMP; EXH PIPE
03.708 		8-97373-158-0 01 1 1009- ● ●
44 03.613 BOLT; BRKT
09.171 (A) M10X25 FLANGE 		0-28051-025-0 02 1 1009- ● ●
44 03.613 BOLT; BRKT
00.685 (B) M10X40 FLANGE 		0-28051-040-0 01 1 1009- ● ●
44 03.613 BOLT; BRKT
02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 1009- ● ●
84 03.611 GASKET; EXH PIPE
03.704 (A) ID=85.8 		1-22116-043-0 01 1 1009- ● ●
84 03.611 GASKET; EXH PIPE
03.704 (A) ID=85.8 		1-22116-043-0 01 1 1009- ● ●
84 03.611 GASKET; EXH PIPE
(B) 		8-97384-590-0 01 1 1009- ● ●
319 03.602 NUT; PROTECTOR
03.162 M10 FLANGE 		0-91180-110-0 03 1 1009- ● ●
568 03.704 NUT; DPD
02.042 M12 FLANGE 		0-91180-112-0 04 1 1009- ● ●

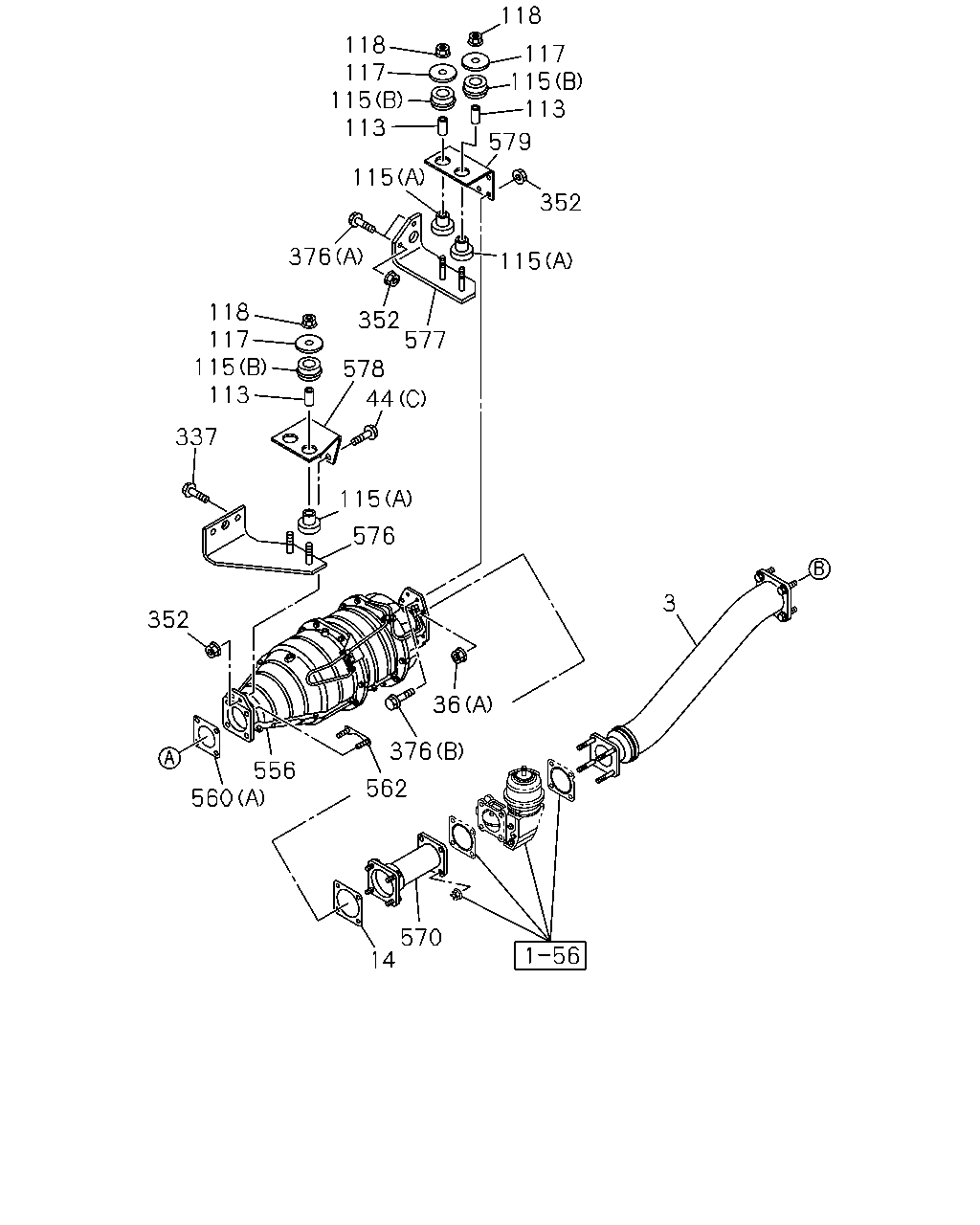

çizim 97259
3 562 570 14 376 556 560 36 352 576 115 44 578 577 352 337 113 115 117 118 376 115 579 113 115 117 118 118 115 117 113 352 115
BalonParca AdiParca NoAdetTipApplied Date A B
3 03.609 PIPE; EXH,CENTER 8-98097-777-1 01 1 1009- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=85.8 		1-22116-043-0 01 1 1009- ● ●
36 03.613 NUT; EXH PIPE
03.162 (A) M10 FLANGE 		0-91180-110-0 04 1 1009- ● ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1009- ● ●
44 03.613 BOLT; BRKT
09.171 (A) M10X25 FLANGE 		0-28051-025-0 02 1 1009- ● ●
44 03.613 BOLT; BRKT
00.685 (B) M10X40 FLANGE 		0-28051-040-0 01 1 1009- ● ●
44 03.613 BOLT; BRKT
02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 1009- ● ●
113 03.704 COLLAR; DIST,MTG BRKT
03.706 L=37.5 		9-22151-217-0 04 1 1009- ● ●
115 03.704 RUBBER; MTG,SILENCER
(A) 		8-94457-277-1 04 1 1009- ● ●
115 03.704 RUBBER; MTG,SILENCER
(B) 		8-94457-278-1 04 1 1009- ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 04 1 1009- ● ●
118 03.704 NUT; SILENCER MTG BRKT
07.874 M10 FLANGE 		5-09440-006-0 04 1 1009- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
02.277 M10X35 FLANGE 		0-28651-035-0 02 1 1009- ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1009- ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1009- ● ●
376 03.708 BOLT; BRKT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 1009- ● ●
376 03.708 BOLT; BRKT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 1009- ● ●
556 03.701 DPD ASM 8-98039-162-6 01 1 1009-1010 ● ●
556 03.701 DPD ASM 8-98084-602-4 01 1 1011- ● ●
560 03.611 GASKET; DPD
(A) 		1-22116-040-0 01 1 1009- ● ●
560 03.611 GASKET; DPD
(B) 		8-97611-080-0 02 1 1009- ● ●
562 03.690 PLATE; STUD,BOLT
03.685 M12X35 		1-22131-963-0 02 1 1009-1203 ● ●
562 03.690 PLATE; STUD,BOLT
03.613 		1-22131-962-0 02 1 1204- ● ●
570 03.704 ADAPTER; EXH PIPE 8-98073-373-0 01 1 1009- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME 8-98160-244-0 01 1 1009- ● ●
577 03.706 BRACKET; DPD RR TO FRAME 8-98160-245-1 01 1 1009- ● ●
578 03.706 BRACKET; DPD FRT 8-98160-246-0 01 1 1009- ● ●
579 03.704 BRACKET; DPD RR 8-98160-247-1 01 1 1009- ● ●

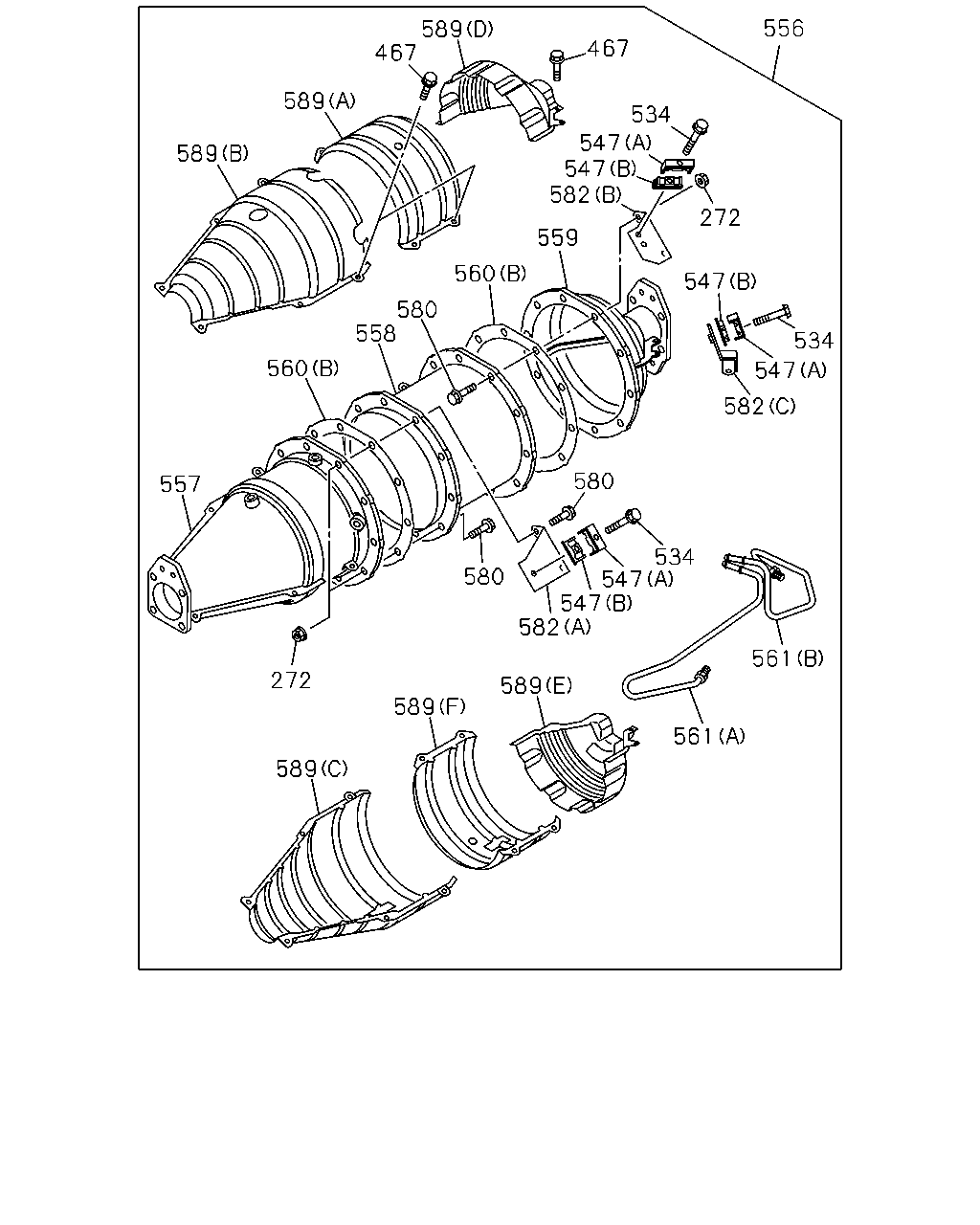

çizim 97266
589 589 467 589 467 556 534 547 547 582 559 272 547 534 547 582 560 580 558 560 557 272 589 589 589 561 561 580 580 582 534 547 547
BalonParca AdiParca NoAdetTipApplied Date A B
272 03.685 NUT; FLANGE
01.062 M8 FLANGE 		0-91180-108-0 20 1 1009- ● ●
467 03.685 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 1009- ● ●
534 03.704 BOLT; CLIP
03.162 M6X35 FLANGE 		0-28650-635-0 03 1 1009- ● ●
547 03.682 CLIP; PIPE
(A) 		8-97381-635-0 03 1 1009- ● ●
547 03.682 CLIP; PIPE
(B) 		8-97381-636-0 03 1 1009- ● ●
556 03.701 DPD ASM 8-98039-162-6 01 1 1009-1010 ● ●
556 03.701 DPD ASM 8-98084-602-4 01 1 1011- ● ●
557 03.701 CATALYST ASM 8-97608-055-8 01 1 1009- ● ●
558 03.634 FILTER ASM 8-97608-057-3 01 1 1009- ● ●
559 03.602 COVER; RR 8-97611-078-0 01 1 1009-1010 ● ●
559 03.602 COVER; RR 8-97622-887-0 01 1 1011- ● ●
560 03.611 GASKET; DPD
(A) 		1-22116-040-0 01 1 1009- ● ●
560 03.611 GASKET; DPD
(B) 		8-97611-080-0 02 1 1009- ● ●
561 03.609 PIPE; DPD
(A) 		8-98039-239-0 01 1 1009-1010 ● ●
561 03.609 PIPE; DPD
(A) 		8-98084-603-0 01 1 1011- ● ●
561 03.609 PIPE; DPD
(B) 		8-98039-241-0 01 1 1009-1010 ● ●
561 03.609 PIPE; DPD
(B) 		8-98084-604-0 01 1 1011- ● ●
580 03.704 BOLT; FLANGE
01.060 M8X35 FLANGE 		0-28650-835-0 20 1 1009- ● ●
582 03.706 BRACKET; PIPE
(A) 		8-97611-083-0 01 1 1009- ● ●
582 03.706 BRACKET; PIPE
(B) 		8-97611-084-0 01 1 1009- ● ●
582 03.706 BRACKET; PIPE
(C) 		8-97611-085-0 01 1 1009- ● ●
589 03.609 PROTECTOR; HEAT,DPD
(A) 		8-97605-172-0 01 1 1009- ● ●
589 03.609 PROTECTOR; HEAT,DPD
(B) 		8-97611-086-0 01 1 1009- ● ●
589 03.609 PROTECTOR; HEAT,DPD
(C) 		8-97611-087-0 01 1 1009- ● ●
589 03.609 PROTECTOR; HEAT,DPD
(D) 		8-97611-088-0 01 1 1009- ● ●
589 03.609 PROTECTOR; HEAT,DPD
(E) 		8-97611-089-0 01 1 1009- ● ●
589 03.609 PROTECTOR; HEAT,DPD
(F) 		8-97613-390-0 01 1 1009- ● ●

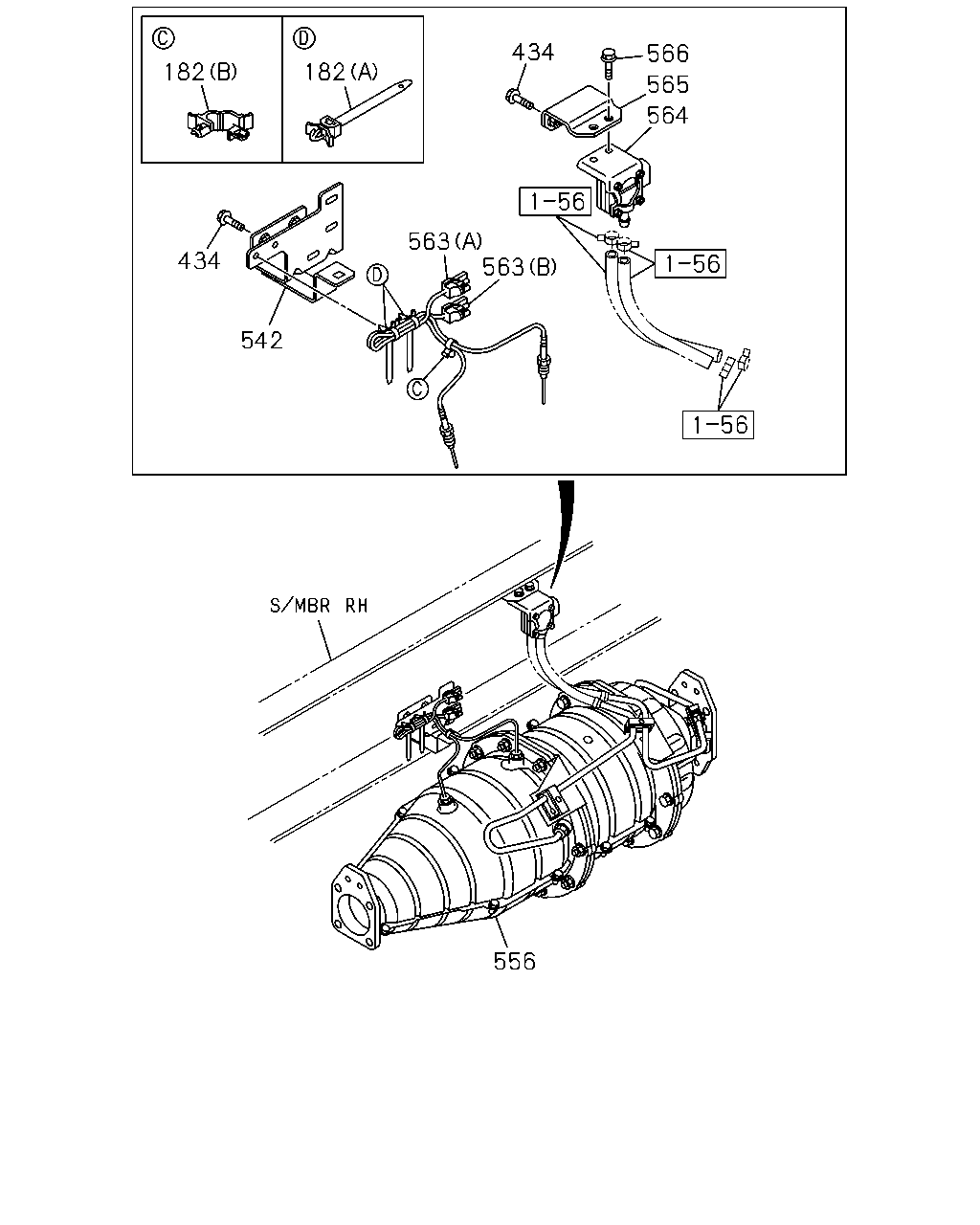

çizim 187055
182 182 434 566 564 565 563 434 542 563 556
BalonParca AdiParca NoAdetTipApplied Date A B
182 03.682 CLIP; HARNESS
02.587 (A) L=112 		8-94232-618-0 02 1 1009- ● ●
182 03.682 CLIP; HARNESS
(B) ID=7 L=7.5 		8-97369-561-0 01 1 1009- ● ●
434 03.613 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1009- ● ●
434 03.613 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1009- ● ●
542 03.704 BRACKET 8-98159-232-0 01 1 1009- ● ●
556 03.701 DPD ASM 8-98039-162-6 01 1 1009-1010 ● ●
556 03.701 DPD ASM 8-98084-602-4 01 1 1011- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
(A) 		8-98004-329-0 01 1 1009- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
(B) 		8-98004-330-0 01 1 1009- ● ●
564 01.150 SENSOR; PRESSURE,DPD 8-97359-985-2 01 1 1009- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE 8-98029-347-0 01 1 1009- ● ●
566 03.706 BOLT; SENSOR
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1009- ● ●

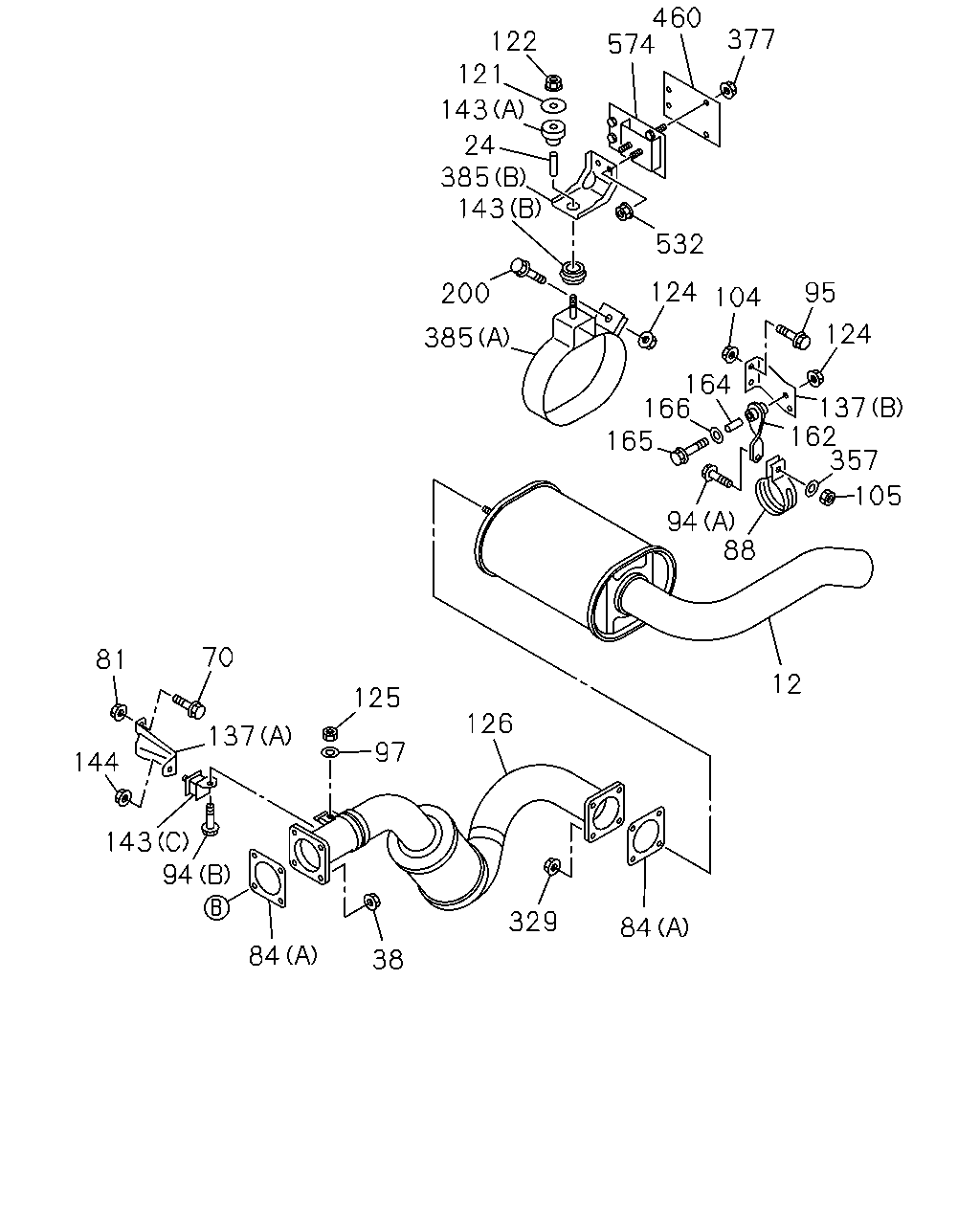

çizim 187056
377 460 574 122 121 143 24 385 532 200 385 124 104 95 124 137 162 357 105 88 94 165 166 164 12 84 329 38 84 94 143 144 81 70 137 125 97 126 143
BalonParca AdiParca NoAdetTipApplied Date A B
12 03.701 SILENCER ASM; EXH 8-98097-779-0 01 1 1009- ● ●
24 03.613 COLLAR; DIST,CLAMP
03.706 L=37.5 		9-22151-217-0 01 1 1009- ● ●
38 00.002 NUT; SILENCER
03.162 M10 FLANGE 		0-91180-110-0 04 1 1009- ● ●
70 03.706 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1009- ● ●
81 03.704 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1009- ● ●
84 03.611 GASKET; EXH PIPE
03.704 (A) ID=85.8 		1-22116-043-0 01 1 1009- ● ●
84 03.611 GASKET; EXH PIPE
03.704 (A) ID=85.8 		1-22116-043-0 01 1 1009- ● ●
84 03.611 GASKET; EXH PIPE
(B) 		8-97384-590-0 01 1 1009- ● ●
88 03.708 CLAMP; EXH PIPE 8-98034-766-0 01 1 1009- ● ●
94 03.704 BOLT; CLAMP
00.685 (A) M10X45 FLANGE 		0-28051-045-0 01 1 1009- ● ●
94 03.704 BOLT; CLAMP
03.023 (B) M10X50 FLANGE 		8-97301-165-0 01 1 1009- ● ●
95 03.708 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1009- ● ●
97 03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1009- ● ●
104 03.704 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1009- ● ●
105 03.704 NUT; CLAMP
00.833 M10 		0-91110-510-0 01 1 1009- ● ●
121 03.704 WASHER; PL,BRKT
OD=55 		9-09852-169-0 01 1 1009- ● ●
122 03.275 NUT; HANGER BRKT
07.874 M10 FLANGE 		5-09440-006-0 01 1 1009- ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 M10 FLANGE 		0-91180-110-0 01 1 1009- ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 M10 FLANGE 		0-91180-110-0 01 1 1009- ● ●
125 03.708 NUT; CLAMP
00.833 M10 		0-91110-510-0 01 1 1009- ● ●
126 03.705 PIPE; EXH,RR 8-98097-778-1 01 1 1009- ● ●
137 03.706 BRACKET; TAIL PIPE
03.613 (A) 		8-97096-651-0 01 1 1009- ● ●
137 03.706 BRACKET; TAIL PIPE
(B) 		8-97116-588-2 01 1 1009- ● ●
143 03.704 RUBBER; SUPPORT
(A) 		8-94457-277-1 01 1 1009- ● ●
143 03.704 RUBBER; SUPPORT
(B) 		8-94457-278-1 01 1 1009- ● ●
143 03.704 RUBBER; SUPPORT
(C) 		8-98034-767-0 01 1 1009- ● ●
144 03.613 NUT; MTG RUBBER
01.062 M8 FLANGE 		0-91180-108-0 01 1 1009- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
L=115 		8-98034-765-0 01 1 1009- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
L=37.5 		9-22151-217-0 01 1 1009- ● ●
165 03.706 BOLT; SUPPORT RUBBER
M10X70 FLANGE 		0-28051-070-0 01 1 1009- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1009- ● ●
200 03.704 BOLT; SUPPORT RUBBER
00.685 M10X40 FLANGE 		0-28051-040-0 01 1 1009- ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 04 1 1009- ● ●
357 03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1009- ● ●
377 03.704 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 04 1 1009- ● ●
385 03.704 BRACKET; SILENCER MTG
(A) 		8-98006-776-1 01 1 1009- ● ●
385 03.704 BRACKET; SILENCER MTG
(B) 		8-98122-620-0 01 1 1009- ● ●
460 03.609 PLATE; EXH PIPE 8-98122-619-0 01 1 1009- ● ●
532 03.704 NUT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1009- ● ●
574 03.706 SPACER; DPD 8-98122-618-0 01 1 1009- ● ●
