Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#77959) — 274 parça

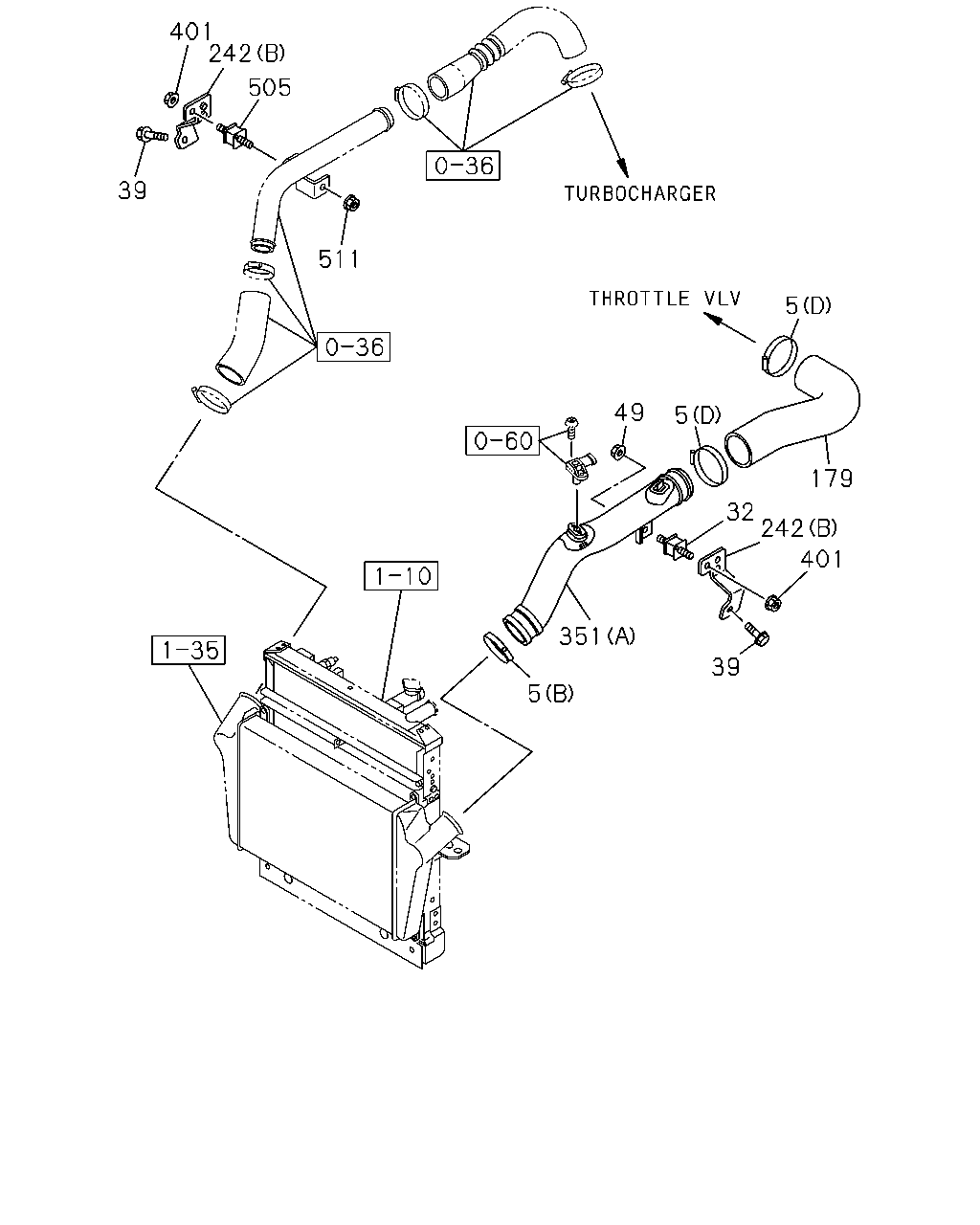

401 242 505 39 511 49 5 5 179 32 242 401 39 5 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	01	1	1009-1406		●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	02	1	1009-		●
5	03.407 CLIP; AIR DUCT (E) ID=112	9-09915-074-1	01	1	1009-		●
32	03.417 RUBBER; AIR DUCT MTG	8-98036-826-0	01	1	1009-1106	●	●
32	03.417 RUBBER; AIR DUCT MTG	8-97081-886-0	01	1	1107-	●	●
39	03.417 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
179	03.417 HOSE; AIR INT	8-98117-928-2	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98080-412-0	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98049-012-1	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-243-1	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-246-2	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1009-		●
351	03.407 DUCT; AIR AIR CLEANER DUST INDICATOR<YD1> 03.417 (C)	8-98021-485-1	01	1	1009-		●
351	03.407 DUCT; AIR 03.417 (A)	8-98059-995-2	01	1	1009-	●	●
351	03.407 DUCT; AIR (B)	8-98021-487-2	01	1	1009-1402		●
351	03.407 DUCT; AIR (B)	8-98272-699-0	01	1	1403-1406		●
351	03.407 DUCT; AIR (D)	8-98281-177-0	01	1	1407-		●
351	03.407 DUCT; AIR EXC. AIR CLEANER DUST INDICATOR<YD1> (C)	8-98070-862-1	01	1	1009-		●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
505	03.406 RUBBER; MTG 03.417	8-98036-826-0	01	1	1009-1106	●	●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1107-	●	●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●

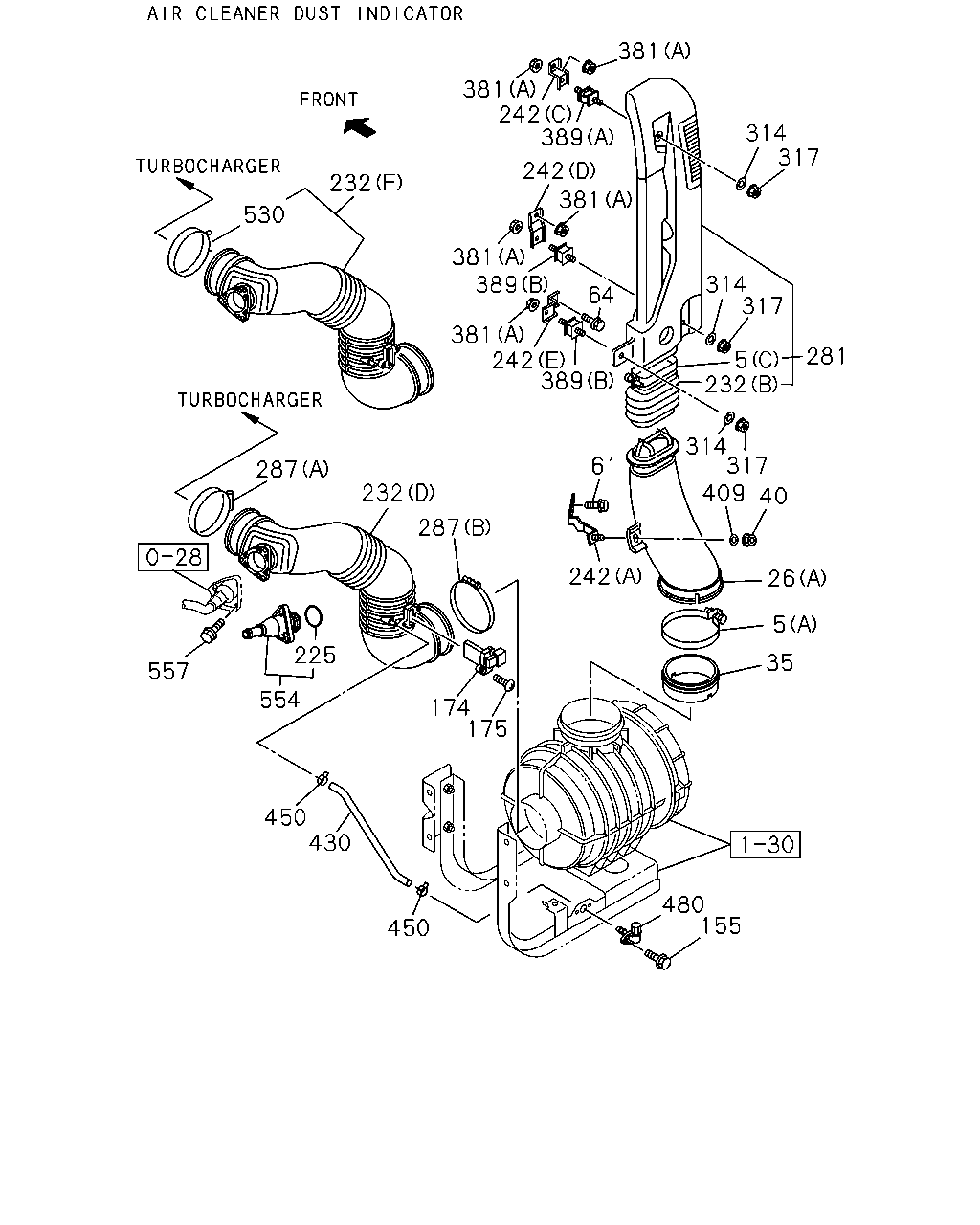

381 314 317 381 389 242 242 381 381 232 381 389 242 64 389 314 281 5 317 232 314 409 40 317 26 5 35 175 174 287 232 287 557 225 554 242 61 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	01	1	1009-1406		●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	02	1	1009-		●
5	03.407 CLIP; AIR DUCT (E) ID=112	9-09915-074-1	01	1	1009-		●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1009-	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1009-		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1009-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1009-		●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1009-	●
174	03.682 SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1009-	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1009-	●	●
225	03.417 GASKET; AIR PIPE FRIGID ZONE(YL3) 01.097 ID=43.7	9-09561-344-0	01	1	1508-	●	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (D)	8-98000-233-3	01	1	1009-1402	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (D)	8-98272-694-0	01	1	1403-1406	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (F)	8-98281-173-0	01	1	1407-	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1> (A)	8-98059-989-2	01	1	1009-1402	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1> (A)	8-98272-698-0	01	1	1403-1406	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1> (E)	8-98281-176-0	01	1	1407-	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1009-1309	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●
232	03.417 HOSE; CONN (C)	8-98094-582-2	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98080-412-0	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98049-012-1	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-243-1	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-246-2	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1009-		●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1009-	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1009-		●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=77-99	1-09707-141-0	01	1	1009-1406	●
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=112	9-09915-074-1	01	1	1009-	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1009-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1009-	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-		●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1009-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1009-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1009-	●	●
530	03.407 CLAMP; AIR DUCT ID=77-99	1-09707-141-0	01	1	1407-	●	●
554	04.439 FLANGE; PIPE,PCV FRIGID ZONE(YL3)	8-98038-208-0	01	1	1508-	●	●
557	03.403 BOLT; HOSE CLIP 00.386 M6X20 FLANGE	0-28050-620-0	03	1	1009-	●	●

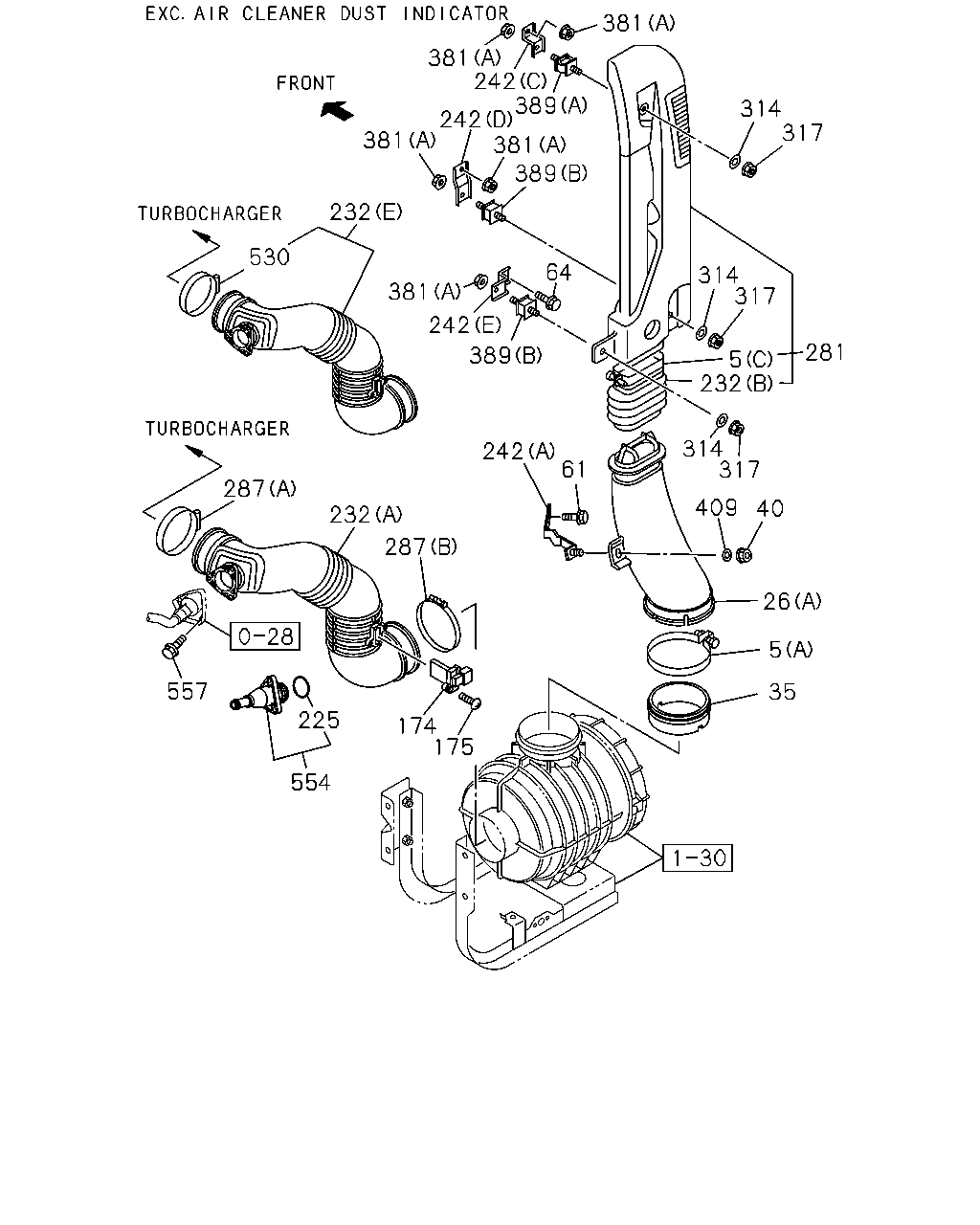

530 232 381 381 242 242 389 314 317 381 381 381 289 242 64 314 5 281 232 314 389 232 287 287 242 26 5 35 480 155 450 175 174 554 225 557 450 430 317 409 40 61 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	01	1	1009-1406		●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	02	1	1009-		●
5	03.407 CLIP; AIR DUCT (E) ID=112	9-09915-074-1	01	1	1009-		●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1009-	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1009-		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1009-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1009-		●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1009-	●
155	03.417 BOLT; BRKT AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1009-	●	●
174	03.682 SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1009-	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1009-	●	●
225	03.417 GASKET; AIR PIPE FRIGID ZONE(YL3) 01.097 ID=43.7	9-09561-344-0	01	1	1508-	●	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (D)	8-98000-233-3	01	1	1009-1402	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (D)	8-98272-694-0	01	1	1403-1406	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (F)	8-98281-173-0	01	1	1407-	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1> (A)	8-98059-989-2	01	1	1009-1402	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1> (A)	8-98272-698-0	01	1	1403-1406	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1> (E)	8-98281-176-0	01	1	1407-	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1009-1309	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●
232	03.417 HOSE; CONN (C)	8-98094-582-2	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98080-412-0	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98049-012-1	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-243-1	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-246-2	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1009-		●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1009-	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1009-		●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=77-99	1-09707-141-0	01	1	1009-1406	●
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=112	9-09915-074-1	01	1	1009-	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1009-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1009-	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-		●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1009-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1009-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1009-	●	●
430	03.417 HOSE; INDICATOR AIR CLEANER DUST INDICATOR<YD1> 08.962 L=350 SERVICED BY L=3000	0-04770-300-0	01	1	1009-	●
430	03.417 HOSE; INDICATOR AIR CLEANER DUST INDICATOR<YD1> 08.962 L=250 SERVICED BY L=3000	0-04770-300-0	01	1	1009-		●
450	03.417 CLAMP; HOSE AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12	8-98150-358-0	02	1	1009-	●	●
480	03.417 ADAPTER AIR CLEANER DUST INDICATOR<YD1>	8-98013-425-0	01	1	1009-	●	●
530	03.407 CLAMP; AIR DUCT ID=77-99	1-09707-141-0	01	1	1407-	●	●
554	04.439 FLANGE; PIPE,PCV FRIGID ZONE(YL3)	8-98038-208-0	01	1	1508-	●	●
557	03.403 BOLT; HOSE CLIP 00.386 M6X20 FLANGE	0-28050-620-0	03	1	1009-	●	●

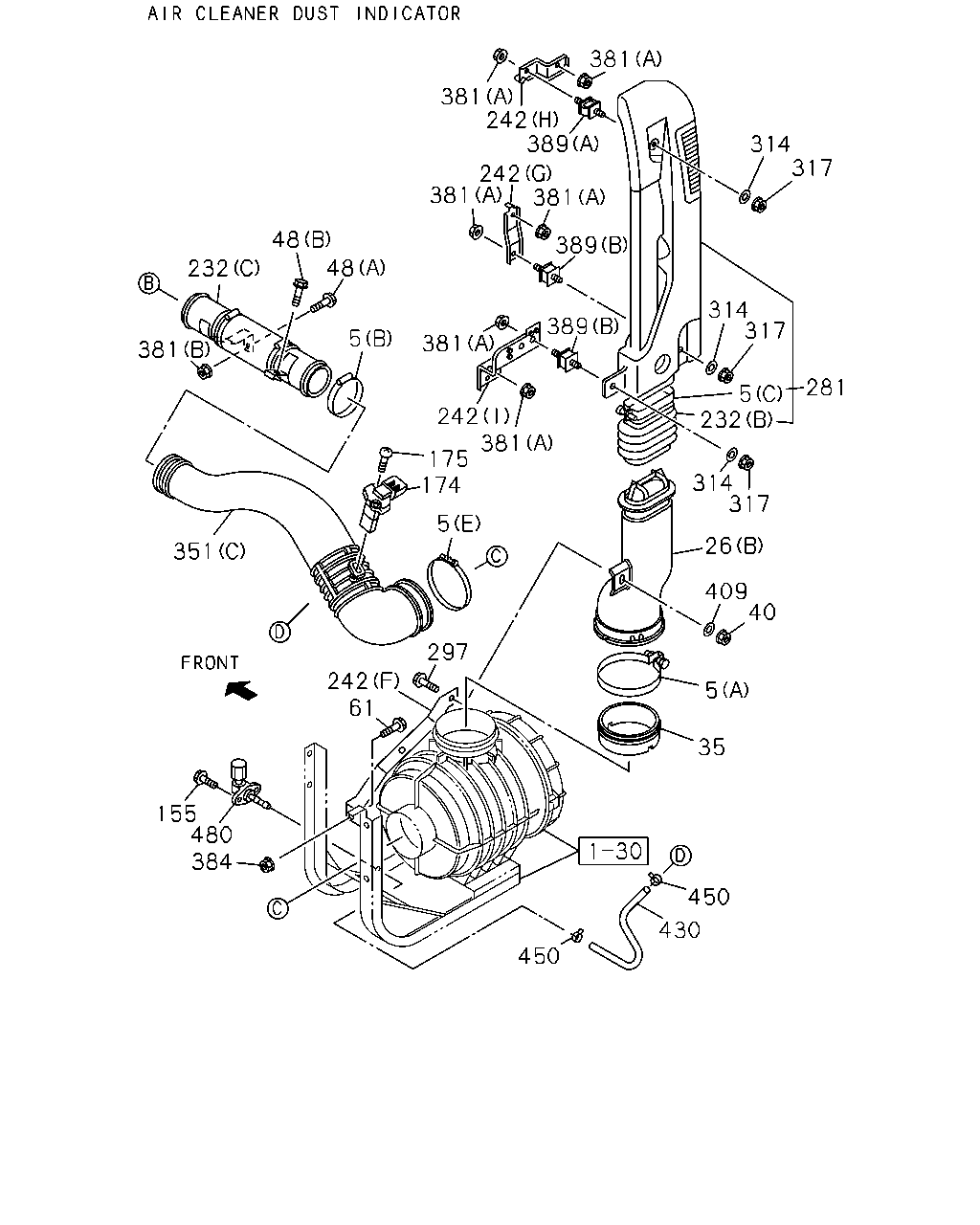

381 381 242 389 314 317 381 242 381 389 389 314 317 281 5 232 314 317 26 409 40 5 35 450 430 450 61 242 297 5 174 175 381 242 381 5 48 48 232 381 351 155 480 384

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	01	1	1009-1406		●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	02	1	1009-		●
5	03.407 CLIP; AIR DUCT (E) ID=112	9-09915-074-1	01	1	1009-		●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1009-	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1009-		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1009-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-	●	●
48	03.417 BOLT; AIR DUCT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-		●
48	03.417 BOLT; AIR DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1009-		●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1009-		●
155	03.417 BOLT; BRKT AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1009-	●	●
174	03.682 SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1009-	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1009-	●	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (D)	8-98000-233-3	01	1	1009-1402	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (D)	8-98272-694-0	01	1	1403-1406	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (F)	8-98281-173-0	01	1	1407-	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1> (A)	8-98059-989-2	01	1	1009-1402	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1> (A)	8-98272-698-0	01	1	1403-1406	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1> (E)	8-98281-176-0	01	1	1407-	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1009-1309	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●
232	03.417 HOSE; CONN (C)	8-98094-582-2	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98080-412-0	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98049-012-1	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-243-1	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-246-2	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1009-		●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1009-	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1009-		●
297	03.417 BOLT; DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1009-		●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1009-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●
351	03.407 DUCT; AIR AIR CLEANER DUST INDICATOR<YD1> 03.417 (C)	8-98021-485-1	01	1	1009-		●
351	03.407 DUCT; AIR 03.417 (A)	8-98059-995-2	01	1	1009-	●	●
351	03.407 DUCT; AIR (B)	8-98021-487-2	01	1	1009-1402		●
351	03.407 DUCT; AIR (B)	8-98272-699-0	01	1	1403-1406		●
351	03.407 DUCT; AIR (D)	8-98281-177-0	01	1	1407-		●
351	03.407 DUCT; AIR EXC. AIR CLEANER DUST INDICATOR<YD1> (C)	8-98070-862-1	01	1	1009-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1009-	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-		●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-		●
384	03.417 NUT; AIR INT DUCT BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1009-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1009-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1009-	●	●
430	03.417 HOSE; INDICATOR AIR CLEANER DUST INDICATOR<YD1> 08.962 L=350 SERVICED BY L=3000	0-04770-300-0	01	1	1009-	●
430	03.417 HOSE; INDICATOR AIR CLEANER DUST INDICATOR<YD1> 08.962 L=250 SERVICED BY L=3000	0-04770-300-0	01	1	1009-		●
450	03.417 CLAMP; HOSE AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12	8-98150-358-0	02	1	1009-	●	●
480	03.417 ADAPTER AIR CLEANER DUST INDICATOR<YD1>	8-98013-425-0	01	1	1009-	●	●

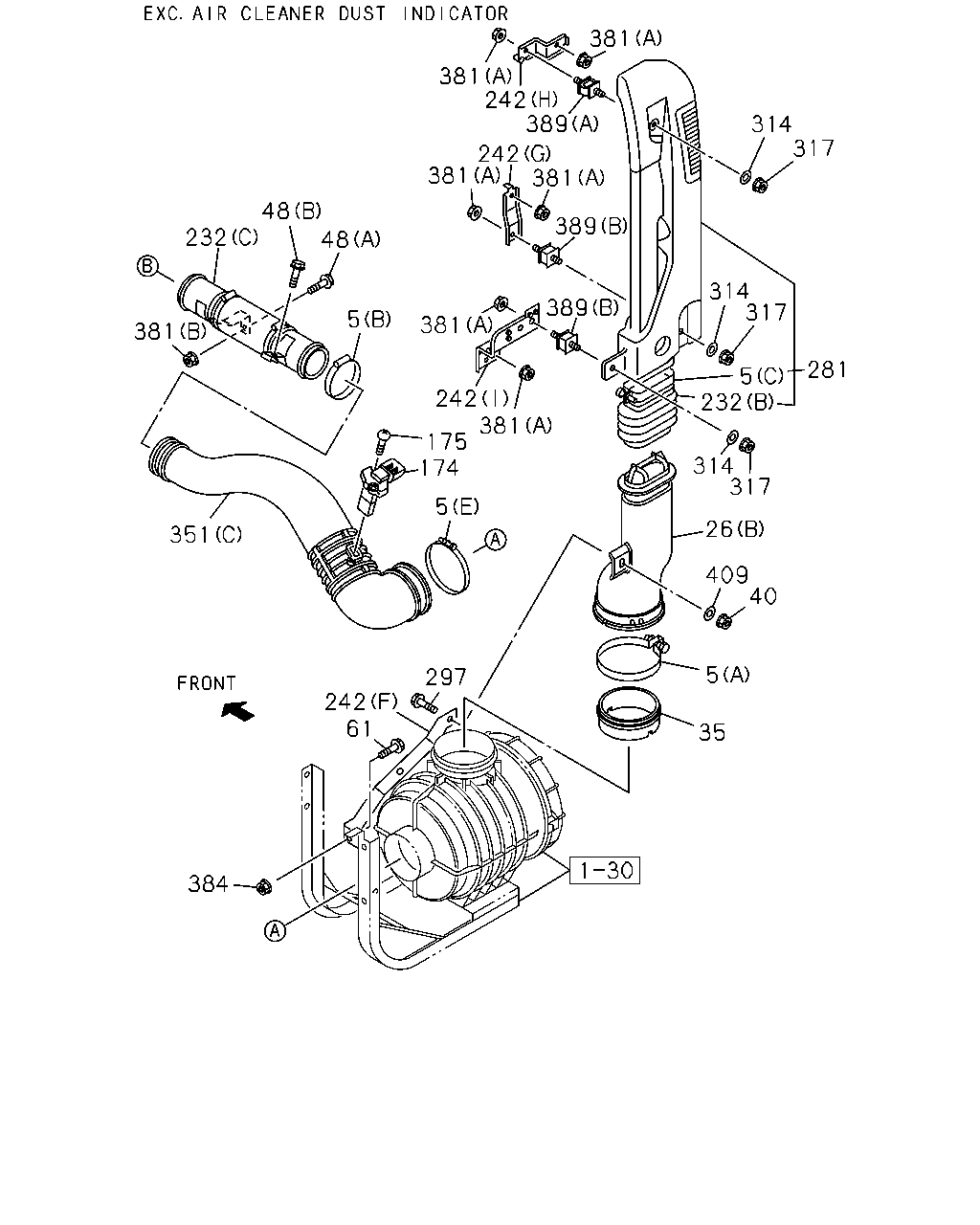

381 381 242 389 314 317 381 242 381 48 232 48 5 381 389 314 317 281 5 232 314 317 26 409 40 5 35 297 242 61 384 351 5 174 175 381 242 389 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	01	1	1009-1406		●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	02	1	1009-		●
5	03.407 CLIP; AIR DUCT (E) ID=112	9-09915-074-1	01	1	1009-		●
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1009-	●
26	03.417 DUCT; AIR INT (B)	8-98025-627-0	01	1	1009-		●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1009-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-	●	●
48	03.417 BOLT; AIR DUCT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-		●
48	03.417 BOLT; AIR DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1009-		●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1009-		●
174	03.682 SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1009-	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1009-	●	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (D)	8-98000-233-3	01	1	1009-1402	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (D)	8-98272-694-0	01	1	1403-1406	●
232	03.417 HOSE; CONN AIR CLEANER DUST INDICATOR<YD1> (F)	8-98281-173-0	01	1	1407-	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1> (A)	8-98059-989-2	01	1	1009-1402	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1> (A)	8-98272-698-0	01	1	1403-1406	●
232	03.417 HOSE; CONN EXC. AIR CLEANER DUST INDICATOR<YD1> (E)	8-98281-176-0	01	1	1407-	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1009-1309	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●
232	03.417 HOSE; CONN (C)	8-98094-582-2	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1009-	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98080-412-0	01	1	1009-	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98049-012-1	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-243-1	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-246-2	01	1	1009-		●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	1009-		●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1009-	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98061-757-2	01	1	1009-		●
297	03.417 BOLT; DUCT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1009-		●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1009-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●
351	03.407 DUCT; AIR AIR CLEANER DUST INDICATOR<YD1> 03.417 (C)	8-98021-485-1	01	1	1009-		●
351	03.407 DUCT; AIR 03.417 (A)	8-98059-995-2	01	1	1009-	●	●
351	03.407 DUCT; AIR (B)	8-98021-487-2	01	1	1009-1402		●
351	03.407 DUCT; AIR (B)	8-98272-699-0	01	1	1403-1406		●
351	03.407 DUCT; AIR (D)	8-98281-177-0	01	1	1407-		●
351	03.407 DUCT; AIR EXC. AIR CLEANER DUST INDICATOR<YD1> (C)	8-98070-862-1	01	1	1009-		●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1009-	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-	●	●
381	03.417 NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1009-		●
381	03.417 NUT; BRKT,AIR DUCT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-		●
384	03.417 NUT; AIR INT DUCT BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1009-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1009-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1009-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1009-	●	●

554 225 5 557 351 530 351 5 225 554 557 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	02	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1009-	●	●
5	03.407 CLIP; AIR DUCT (D) ID=77-99	1-09707-141-0	01	1	1009-1406		●
5	03.407 CLIP; AIR DUCT (B) ID=70-90	8-98122-372-0	02	1	1009-		●
5	03.407 CLIP; AIR DUCT (E) ID=112	9-09915-074-1	01	1	1009-		●
225	03.417 GASKET; AIR PIPE FRIGID ZONE(YL3) 01.097 ID=43.7	9-09561-344-0	01	1	1508-	●	●
351	03.407 DUCT; AIR AIR CLEANER DUST INDICATOR<YD1> 03.417 (C)	8-98021-485-1	01	1	1009-		●
351	03.407 DUCT; AIR 03.417 (A)	8-98059-995-2	01	1	1009-	●	●
351	03.407 DUCT; AIR (B)	8-98021-487-2	01	1	1009-1402		●
351	03.407 DUCT; AIR (B)	8-98272-699-0	01	1	1403-1406		●
351	03.407 DUCT; AIR (D)	8-98281-177-0	01	1	1407-		●
351	03.407 DUCT; AIR EXC. AIR CLEANER DUST INDICATOR<YD1> (C)	8-98070-862-1	01	1	1009-		●
530	03.407 CLAMP; AIR DUCT ID=77-99	1-09707-141-0	01	1	1407-	●	●
554	04.439 FLANGE; PIPE,PCV FRIGID ZONE(YL3)	8-98038-208-0	01	1	1508-	●	●
557	03.403 BOLT; HOSE CLIP 00.386 M6X20 FLANGE	0-28050-620-0	03	1	1009-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
