◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51272 - NPS EURO5 AUST/NZ ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#77950) — 48 parça

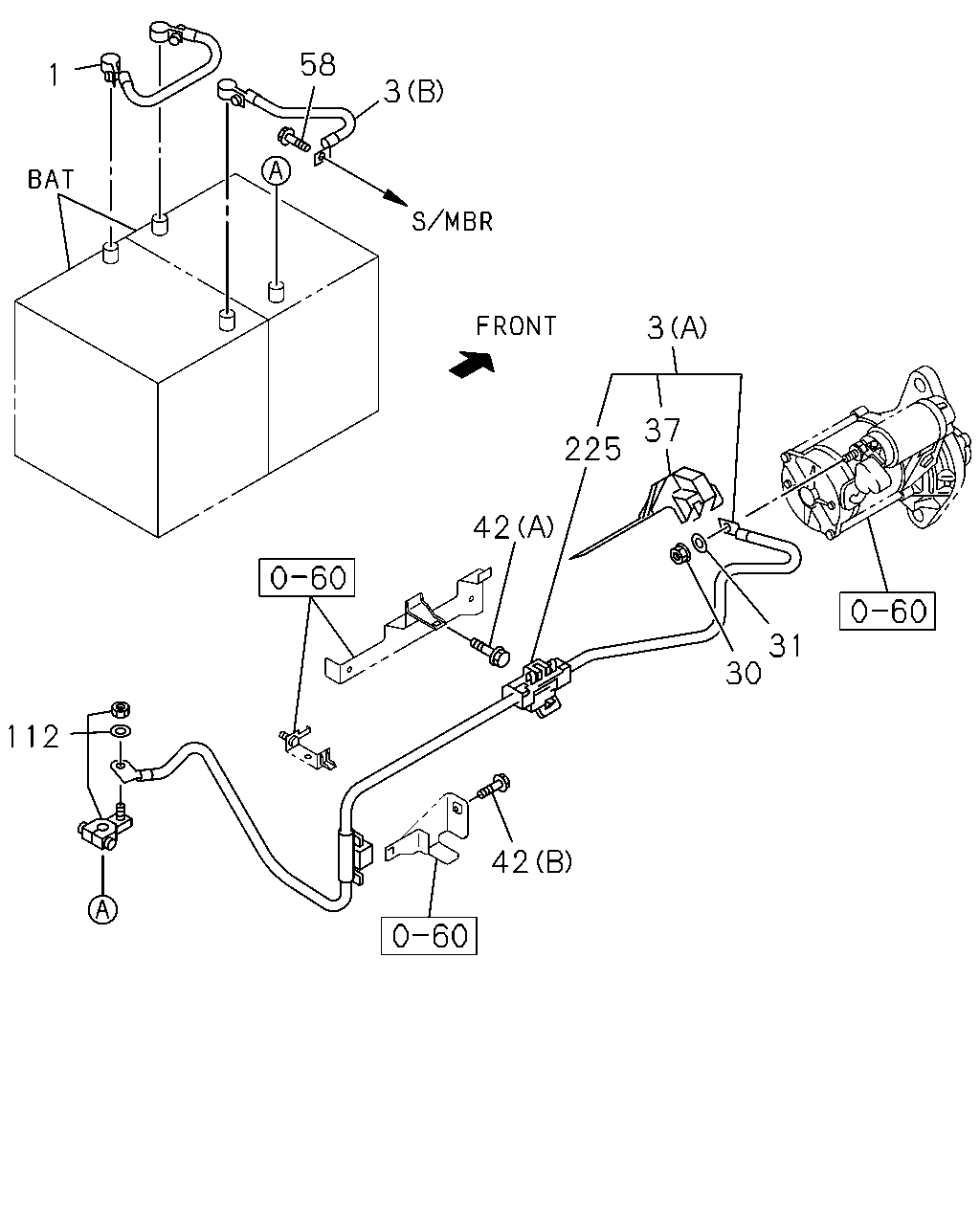

çizim 73591
1 58 3 3 37 31 30 225 42 42 112
BalonParca AdiParca NoAdetTipApplied Date
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1009-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 		8-98056-339-1 01 1 1009-1203
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1204-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> (C) 		8-98070-230-2 01 1 1009-1409
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> (C) 		8-98294-721-0 01 1 1410-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1009-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1009-1409
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) BATTERY 115E41L<8MA> (E) 		8-98154-298-0 01 1 1009-1409
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) BATTERY 115E41L<8MA> (E) 		8-98294-749-0 01 1 1410-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) BATTERY 115E41L<8MA> (F) 		8-98162-661-0 01 1 1009-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (A) 		8-98154-297-0 01 1 1009-1409
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-748-0 01 1 1410-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (B) 		8-98169-761-0 01 1 1009-
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1009-
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1009-
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1009-
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 01 1 1009-
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1009-
42 02.343 BOLT; BRKT,BATTERY CABLE
NPS DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1009-
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1009-
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1009-
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1009-1409
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410-

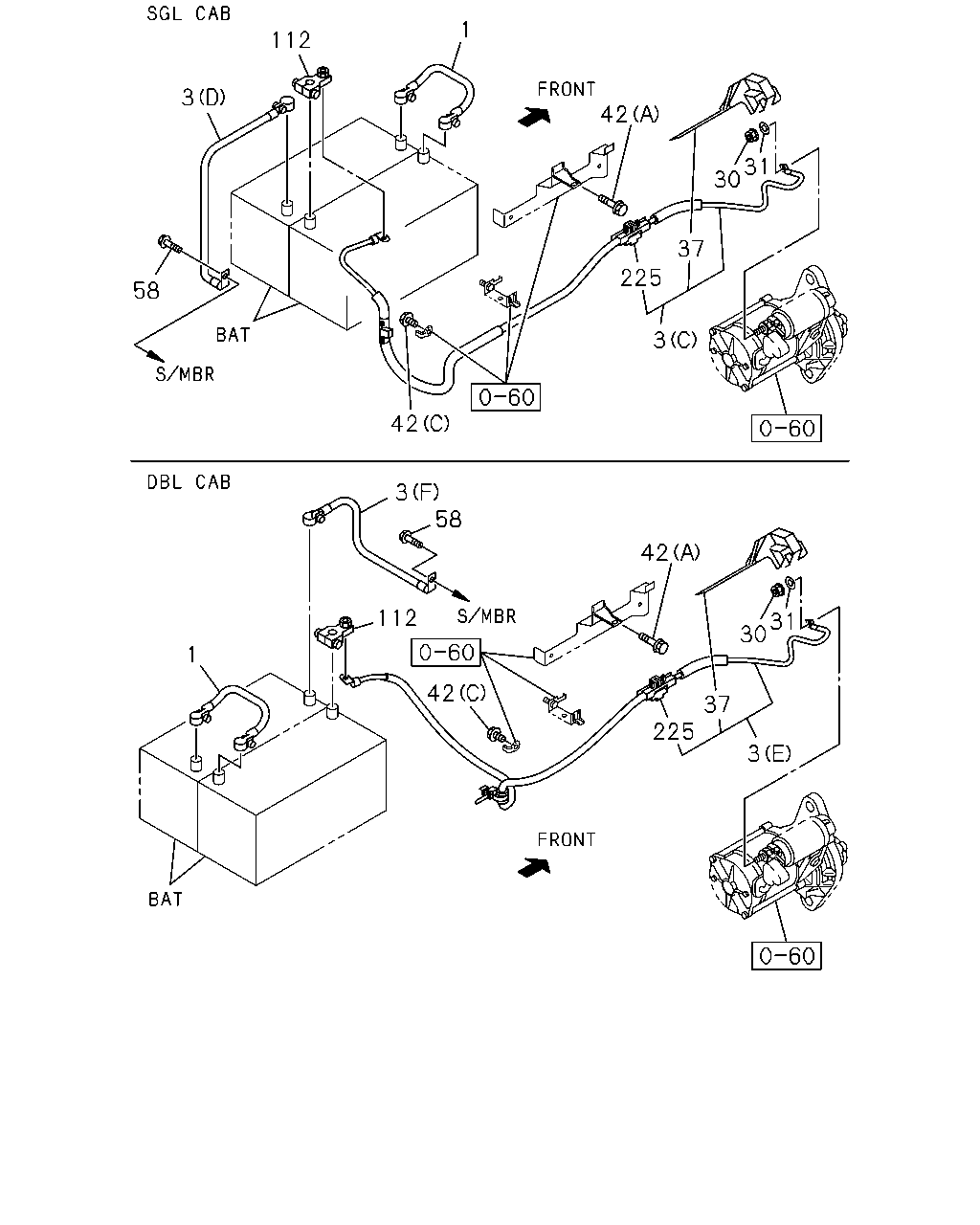

çizim 73779
58 3 112 1 42 31 30 37 225 3 42 3 58 112 1 42 42 31 30 37 225 3
BalonParca AdiParca NoAdetTipApplied Date
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1009-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 		8-98056-339-1 01 1 1009-1203
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1204-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> (C) 		8-98070-230-2 01 1 1009-1409
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) BATTERY 115E41L<8MA> (C) 		8-98294-721-0 01 1 1410-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1009-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1009-1409
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) BATTERY 115E41L<8MA> (E) 		8-98154-298-0 01 1 1009-1409
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) BATTERY 115E41L<8MA> (E) 		8-98294-749-0 01 1 1410-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) BATTERY 115E41L<8MA> (F) 		8-98162-661-0 01 1 1009-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (A) 		8-98154-297-0 01 1 1009-1409
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-748-0 01 1 1410-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPS DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (B) 		8-98169-761-0 01 1 1009-
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1009-
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1009-
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1009-
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 01 1 1009-
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1009-
42 02.343 BOLT; BRKT,BATTERY CABLE
NPS DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1009-
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1009-
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1009-
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1009-1409
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410-
