◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51272 - NPS EURO5 AUST/NZ ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#77942) — 122 parça

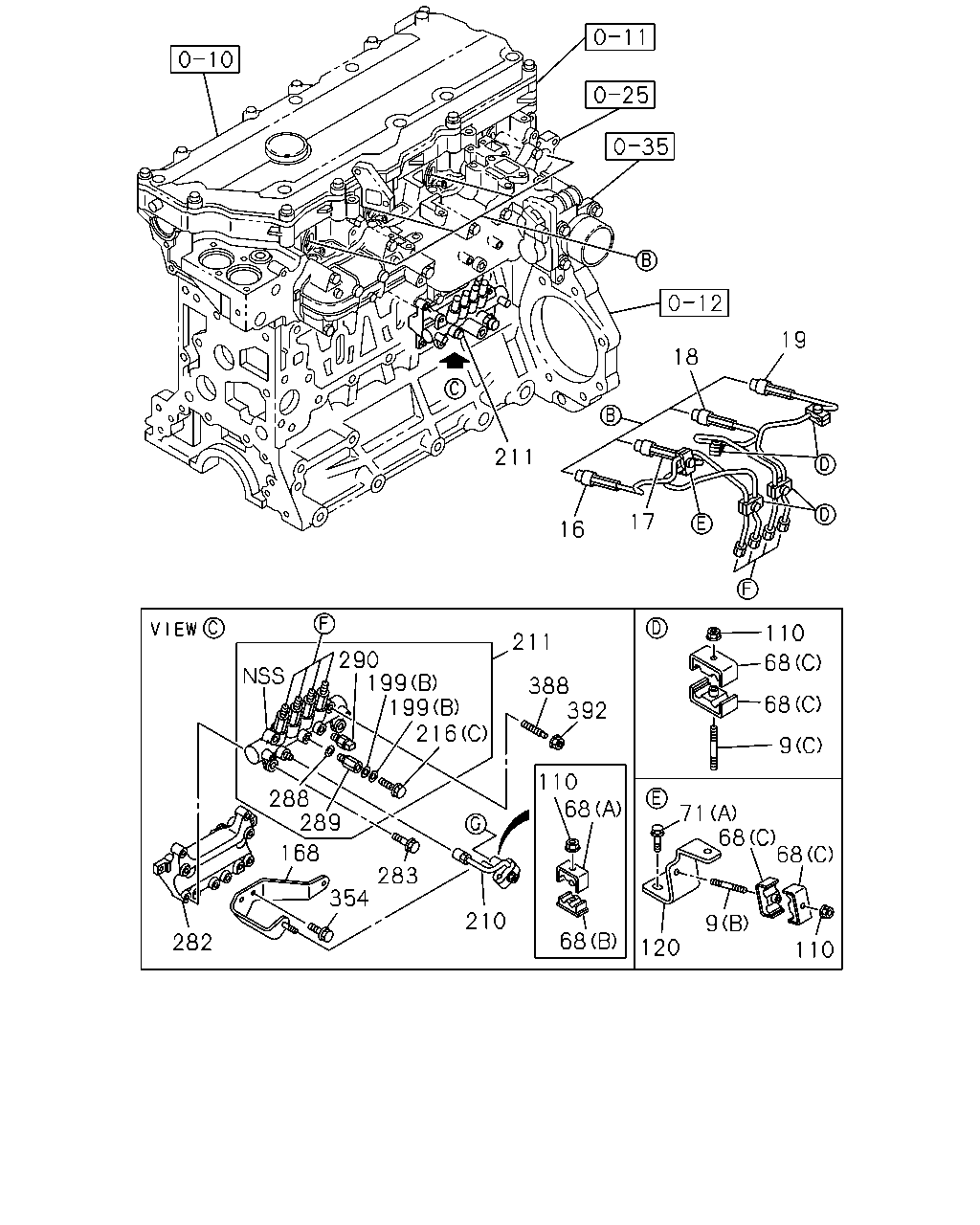

çizim 63185
211 18 19 17 16 110 68 68 9 71 68 68 110 9 120 68 68 110 392 388 211 210 283 354 282 168 289 288 216 199 199 290
BalonParca AdiParca NoAdetTipApplied Date
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 04 1 1009-
9 03.340 STUD; CLIP
03.278 (A) M6X40 L=50 		0-41010-640-0 02 1 1009-
9 03.340 STUD; CLIP
00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 1009-
16 03.330 PIPE; INJ NO.1 8-98086-354-0 01 1 1009-1102
16 03.330 PIPE; INJ NO.1 8-98185-352-0 01 1 1103-1404
16 03.330 PIPE; INJ NO.1 8-98271-218-0 01 1 1405-1502
16 03.330 PIPE; INJ NO.1 8-98298-628-0 01 1 1503-
17 03.330 PIPE; INJ NO.2 8-98086-355-0 01 1 1009-1102
17 03.330 PIPE; INJ NO.2 8-98185-353-0 01 1 1103-1404
17 03.330 PIPE; INJ NO.2 8-98271-219-0 01 1 1405-1502
17 03.330 PIPE; INJ NO.2 8-98298-629-0 01 1 1503-
18 03.330 PIPE; INJ NO.3 8-98086-356-0 01 1 1009-1102
18 03.330 PIPE; INJ NO.3 8-98185-354-0 01 1 1103-1404
18 03.330 PIPE; INJ NO.3 8-98271-220-0 01 1 1405-1502
18 03.330 PIPE; INJ NO.3 8-98298-630-0 01 1 1503-
19 03.330 PIPE; INJ NO.4 8-98086-357-0 01 1 1009-1102
19 03.330 PIPE; INJ NO.4 8-98185-355-0 01 1 1103-1404
19 03.330 PIPE; INJ NO.4 8-98271-221-0 01 1 1405-1502
19 03.330 PIPE; INJ NO.4 8-98298-631-0 01 1 1503-
68 03.162 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 01 1 1009-
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 01 1 1009-
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 10 1 1009-1405
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 10 1 1406-
71 03.162 BOLT; BRKT
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1009-
71 03.162 BOLT; BRKT
09.242 (D) M6X16 FLANGE 		0-28050-616-0 02 1 1009-
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1009-
71 03.162 BOLT; BRKT
04.686 (C) M8X60 FLANGE 		0-28050-860-0 02 1 1009-
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 08 1 1009-
120 03.330 BRACKET; INJ PIPE 8-98041-601-0 01 1 1009-
168 03.890 BRACKET; FUEL PIPE 8-98096-204-0 01 1 1009-
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1009-
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1009-
210 03.330 PIPE; INJ,C/R 8-98096-496-0 01 1 1009-
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1009-
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 1009-
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1009-
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 1009-
282 03.163 BRACKET; COMMON RAIL 8-98106-661-1 01 1 1009-
283 03.330 BOLT; COMMON RAIL
04.338 M8X20 FLANGE 		0-28050-820-0 02 1 1009-
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1009-
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1009-
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 1009-
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1009-
388 03.332 STUD; RAIL
03.278 M8X35 L=53 		0-49140-835-0 02 1 1009-
392 03.330 NUT; RAIL ASM
01.062 M8 FLANGE 		0-91180-108-0 02 1 1009-

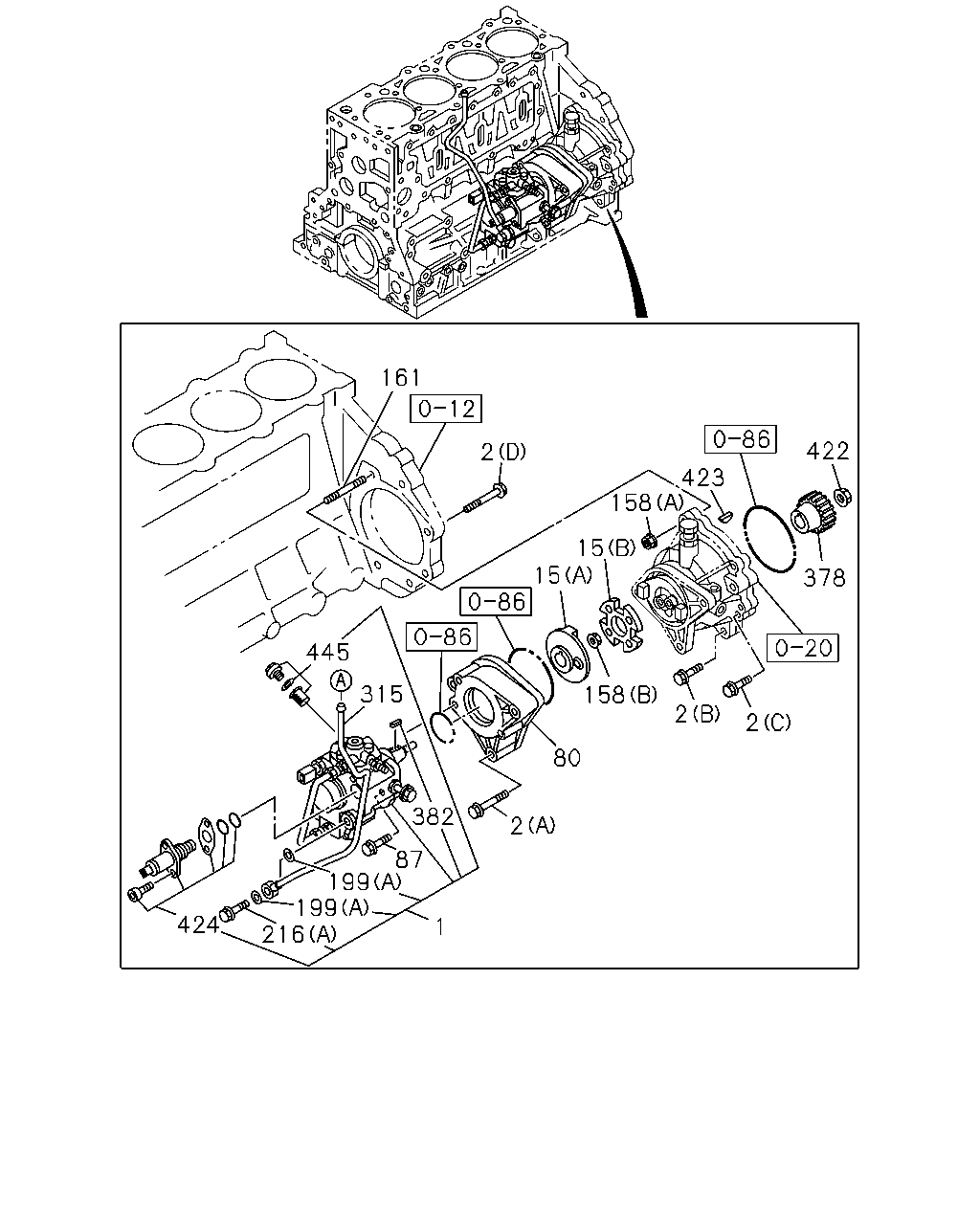

çizim 63233
161 2 422 378 423 158 15 15 2 2 158 80 2 1 424 216 199 199 87 382 315 445
BalonParca AdiParca NoAdetTipApplied Date
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 1009-
2 03.330 BOLT; INJ PUMP
00.685 (A) M10X60 FLANGE 		0-28051-060-0 03 1 1009-
2 03.330 BOLT; INJ PUMP
02.277 (B) M10X70 FLANGE 		0-28151-070-0 01 1 1009-
2 03.330 BOLT; INJ PUMP
00.206 (C) M12X70 FLANGE 		0-28151-270-0 01 1 1009-
2 03.330 BOLT; INJ PUMP
(D) M12X95 FLANGE 		8-94396-485-1 01 1 1009-
15 03.340 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1009-
15 03.340 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1009-
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 1009-
87 03.330 BOLT; PUMP
03.403 M8X30 FLANGE 		0-28650-830-0 03 1 1009-
158 03.330 NUT; INJ PUMP
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1009-
158 03.330 NUT; INJ PUMP
07.529 (B) M14 FLANGE 		0-91180-114-0 01 1 1009-
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 1009-
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1009-
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1009-
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 1009-
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1009-
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 1009-
315 03.163 PIPE; FUEL,SUCTION 8-98126-334-0 01 1 1009-
378 03.330 GEAR; PUMP
Z=35 		8-98017-915-0 01 1 1009-
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1009-1201
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202-
422 03.330 NUT; GEAR
06.172 M18 		8-97141-154-0 01 1 1009-
423 03.162 KEY; GEAR
08.960 		9-08055-519-0 01 1 1009-
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1009-
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1009-

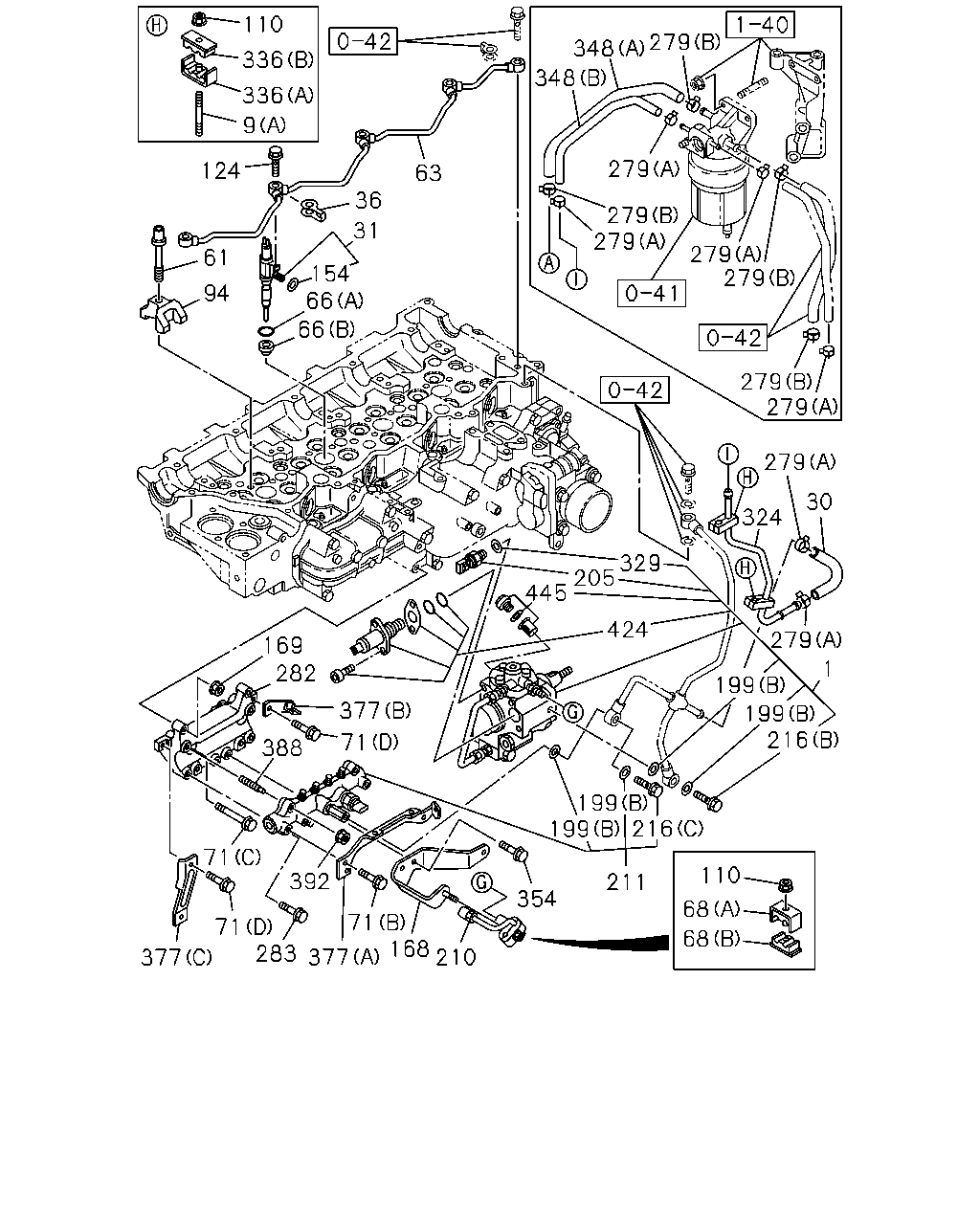

çizim 187039
110 336 336 9 124 61 36 63 31 154 66 94 66 169 282 377 71 388 71 71 392 71 354 211 199 216 199 110 68 68 445 424 205 329 199 199 216 1 279 324 279 30 279 279 279 279 279 279 279 348 348 279 377 283 377 168 210
BalonParca AdiParca NoAdetTipApplied Date
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 1009-
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 04 1 1009-
9 03.340 STUD; CLIP
03.278 (A) M6X40 L=50 		0-41010-640-0 02 1 1009-
9 03.340 STUD; CLIP
00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 1009-
30 03.163 HOSE; RUBBER,FUEL LEAK 8-98025-994-2 01 1 1009-
31 03.332 NOZZLE ASM; INJ 8-97609-788-6 04 1 1009-
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1009-
61 03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1009-
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1009-
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (A) ID=23.3 		8-94173-412-0 04 1 1009-
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=9.2 T=8.1 		8-98079-248-0 04 1 1009-
68 03.162 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 01 1 1009-
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 01 1 1009-
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 10 1 1009-1405
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 10 1 1406-
71 03.162 BOLT; BRKT
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1009-
71 03.162 BOLT; BRKT
09.242 (D) M6X16 FLANGE 		0-28050-616-0 02 1 1009-
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1009-
71 03.162 BOLT; BRKT
04.686 (C) M8X60 FLANGE 		0-28050-860-0 02 1 1009-
94 03.330 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1009-
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 08 1 1009-
124 03.162 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1009-
154 03.332 GASKET; CONNECTOR
06.609 ID=11.0 		9-09561-111-0 04 1 1009-1106
154 03.332 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1107-
168 03.890 BRACKET; FUEL PIPE 8-98096-204-0 01 1 1009-
169 03.890 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1009-
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1009-
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1009-
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1009-
210 03.330 PIPE; INJ,C/R 8-98096-496-0 01 1 1009-
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1009-
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 1009-
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1009-
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 1009-
279 03.162 CLIP; FUEL HOSE
01.097 (B) ID=16 		8-97329-628-0 04 1 1009-
279 03.162 CLIP; FUEL HOSE
01.153 (A) ID=11.5 		8-97375-638-0 06 1 1009-
282 03.163 BRACKET; COMMON RAIL 8-98106-661-1 01 1 1009-
283 03.330 BOLT; COMMON RAIL
04.338 M8X20 FLANGE 		0-28050-820-0 02 1 1009-
324 03.330 PIPE; FUEL RETURN 8-98025-858-0 01 1 1009-
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1009-1201
336 03.163 CLIP; FUEL PIPE
01.531 (A) ID=8 & 9 L=25 		8-97603-522-0 02 1 1009-
336 03.163 CLIP; FUEL PIPE
01.531 (B) ID=8 & 9 L=25 		8-97603-523-0 02 1 1009-
348 03.163 HOSE; FUEL
(B) 		8-98087-960-0 01 1 1009-
348 03.163 HOSE; FUEL
(A) 		8-98126-629-0 01 1 1009-
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1009-
377 03.332 BRACKET; HARNESS
(A) 		8-98113-835-0 01 1 1009-
377 03.332 BRACKET; HARNESS
(B) 		8-98114-440-0 01 1 1009-
377 03.332 BRACKET; HARNESS
(C) 		8-98114-730-0 01 1 1009-
388 03.332 STUD; RAIL
03.278 M8X35 L=53 		0-49140-835-0 02 1 1009-
392 03.330 NUT; RAIL ASM
01.062 M8 FLANGE 		0-91180-108-0 02 1 1009-
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1009-
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1009-
