0-22 — ENGINE MOUNTING (#77932) — 21 parça

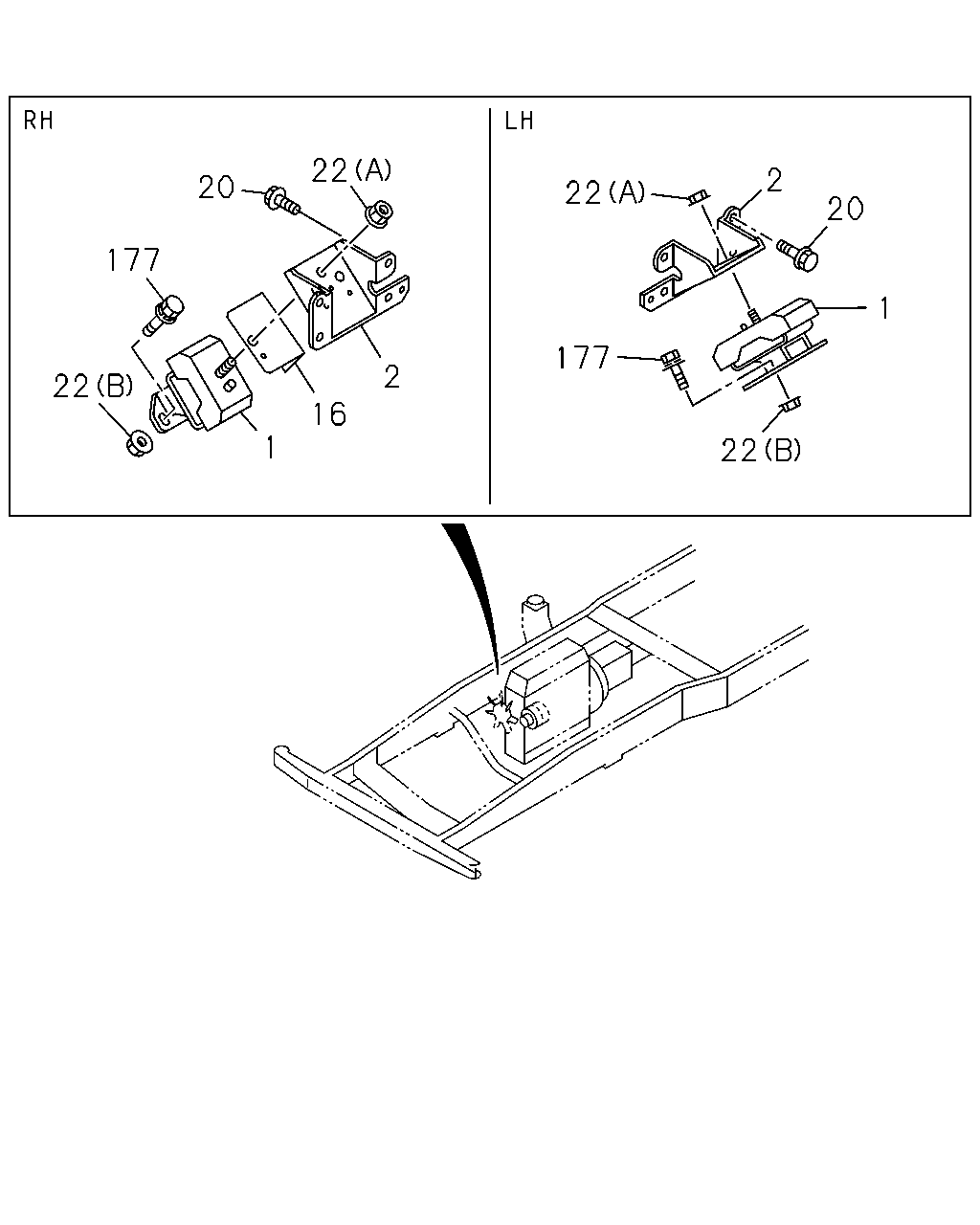

çizim 38562
22 177 1 20 2 22 2 16 1 22 20 177 22
BalonParca AdiParca NoAdetTipApplied Date
1 00.027 RUBBER; ENG FOOT,FRT 8-97387-250-2 01 1 1009-1112
1 00.027 RUBBER; ENG FOOT,FRT 8-98203-633-0 01 1 1201-
1 00.027 RUBBER; ENG FOOT,FRT 8-98061-232-0 01 1 1009-1112
1 00.027 RUBBER; ENG FOOT,FRT 8-98203-634-0 01 1 1201-
2 00.029 FOOT; ENG 8-97228-669-2 02 1 1009-
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-97209-564-0 01 1 1009-
20 00.029 BOLT; ENG FOOT
M10X20 FLANGE 		0-28161-020-0 08 1 1009-
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE 		0-91180-112-0 02 1 1009-
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (B) M10 FLANGE 		0-91180-210-0 04 1 1009-
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 1009-

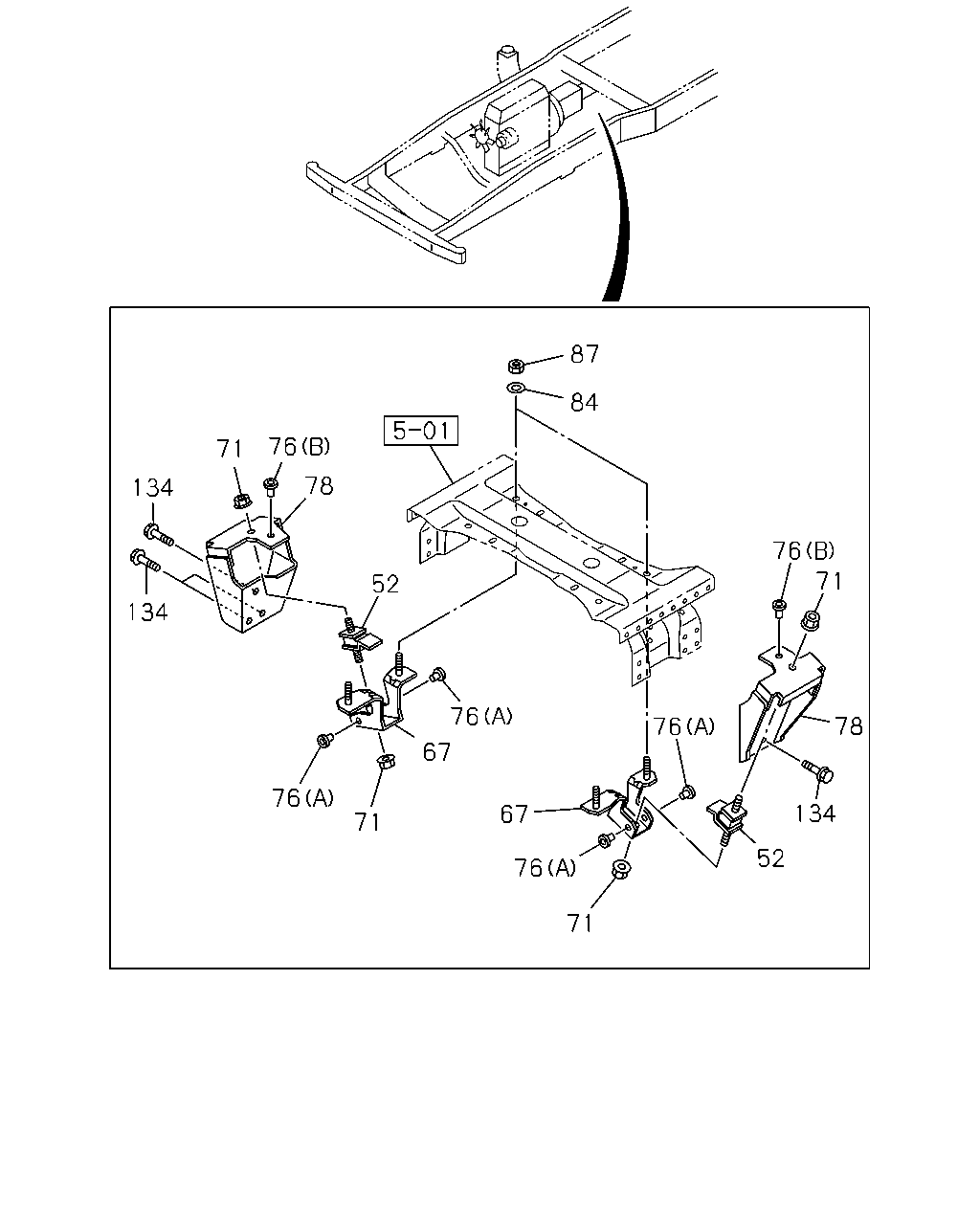

çizim 39185
87 84 76 71 78 134 52 76 76 71 67 67 76 71 76 52 78 76 71 134 134
BalonParca AdiParca NoAdetTipApplied Date
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-97176-994-0 02 1 1009-
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97303-863-0 01 1 1009-
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97303-864-0 01 1 1009-
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1009-
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 1009-
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 1009-
78 00.029 BRACKET; ENG MTG,RR 8-98098-900-0 01 1 1009-
78 00.029 BRACKET; ENG MTG,RR 8-98098-901-0 01 1 1009-
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1009-
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 1009-
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 1009-
