◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#77922) — 113 parça

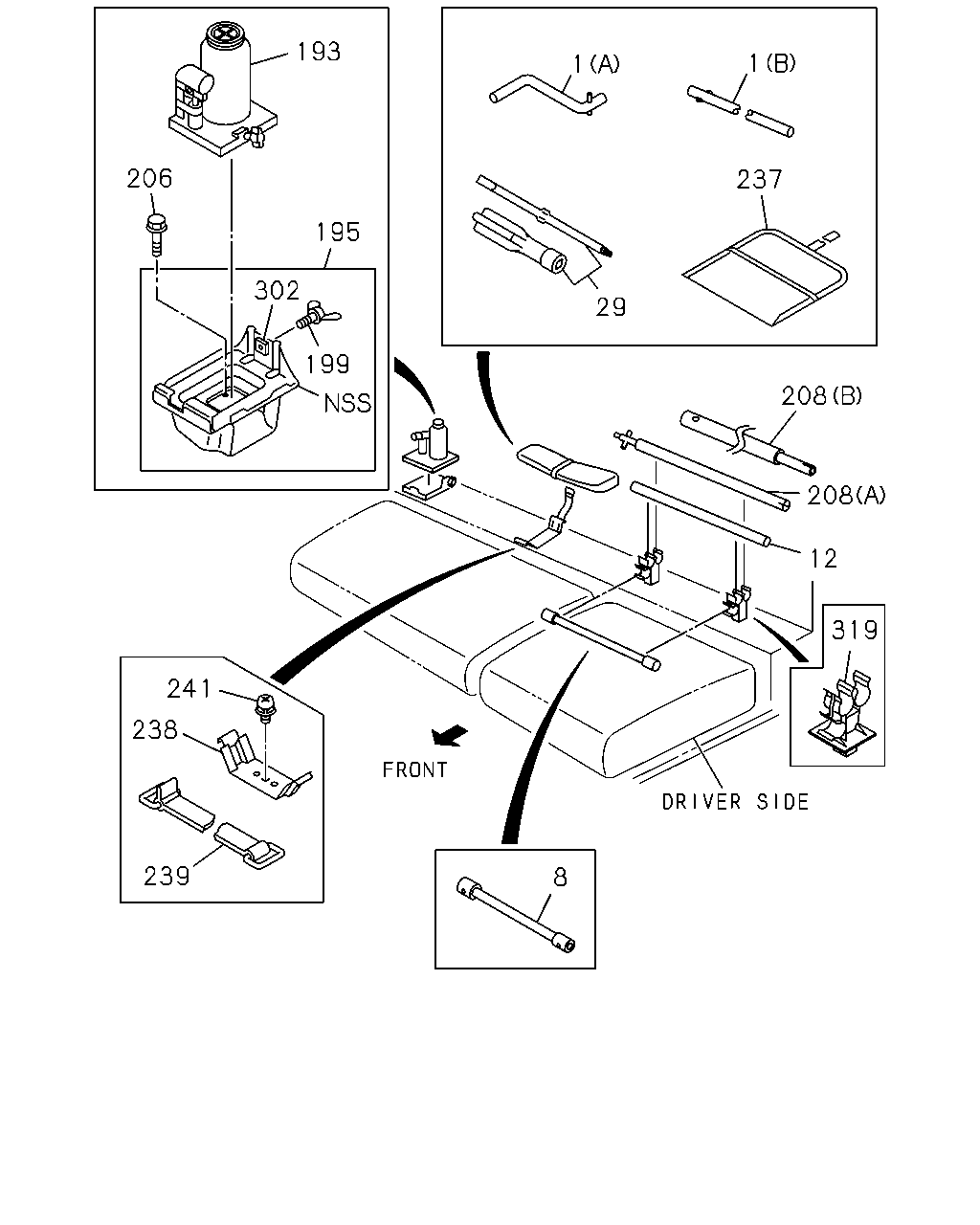

çizim 14444
8 319 12 239 238 241 199 302 206 193 29 237 208 1 1 208 195
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3800MM(38W) 08.821 (B) L=280 		1-85515-007-0 01 1 1103-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3800MM(38W) (B) L=280 		8-98181-251-0 01 1 1109-1205 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=280 		8-98181-251-0 01 1 1206-1208 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) L=280 		8-98181-251-0 01 1 1209-1510 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=280 		8-98181-251-0 01 1 1209-1510 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=280 		8-98181-251-0 01 1 1511- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 1010-1108 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) 		8-97218-985-0 01 1 1109-1208 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97218-985-0 01 1 1209- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) 		8-97218-985-0 01 1 1209- ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7R-16-10 16X5.5F-115(07H) B=41X19 L=330 		8-94386-490-1 01 1 1209- ●
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 1010-1108 ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127B LACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X 6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-14 D ISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&R R 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) B=41X21 L=440 		1-85113-015-1 01 1 1109-1510 ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-1276-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX1 6-127 6-WHL/NUT(83V) B=41X21 L=440 		1-85113-015-1 01 1 1109-1510 ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127B LACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X 6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-14 D ISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&R R 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) B=41X21 L=440 		1-85113-015-1 01 1 1511- ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-1276-WHL/NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR 7.5R-16-12 6 GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) B=41X21 L=440 		1-85113-015-1 01 1 1511- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480 		1-85116-011-0 01 1 1010-1108 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1109-1208 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1209-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1209-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) OD=25 L=480 		8-98257-407-0 01 1 1408- ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1010- ● ●
193 08.820 JACK ASM
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NU T(CUZ) PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 5TON 		8-98114-045-0 01 1 1511- ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) 4TON 		8-98012-285-0 01 1 1010-1102 ● ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127B LACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X 6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) 4TON 		8-98012-285-0 01 1 1103-1108 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) 4TON 		8-98012-285-0 01 1 1103-1108 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127B LACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X 6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16 16X6K-128(CSC) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 4TON 		8-98012-285-0 01 1 1109-1208 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 4TON 		8-98012-285-0 01 1 1109-1208 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127B LACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X 6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&R R TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7R-16-10 16X5.5F-115(07H) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 4TON 		8-98012-285-0 01 1 1209-1408 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 4TON 		8-98012-285-0 01 1 1209-1408 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127B LACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X 6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&R R TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7R-16-10 16X5.5F-115(07H) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) 4TON 		8-98012-285-0 01 1 1409-1410 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 4TON 		8-98012-285-0 01 1 1409-1410 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127B LACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X 6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&R R TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7R-16-10 16X5.5F-115(07H) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 4TON 		8-98012-285-0 01 1 1411-1510 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 4TON 		8-98012-285-0 01 1 1411-1510 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127B LACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X 6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&R R TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7R-16-10 16X5.5F-115(07H) RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) 4TON 		8-98012-285-0 01 1 1511- ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 4TON 		8-98012-285-0 01 1 1511- ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 5TON 		8-98114-047-0 01 1 1010-1102 ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) 5TON 		8-98114-047-0 01 1 1010-1102 ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) 5TON 		8-98114-047-0 01 1 1103-1108 ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) 5TON 		8-98114-047-0 01 1 1103-1108 ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 5TON 		8-98114-047-0 01 1 1109-1208 ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL /NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 5TON 		8-98114-047-0 01 1 1109-1208 ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 5TON 		8-98114-047-0 01 1 1209-1408 ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL /NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 5TON 		8-98114-047-0 01 1 1209-1408 ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) 5TON 		8-98114-047-0 01 1 1409-1410 ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL /NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 5TON 		8-98114-047-0 01 1 1409-1410 ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 5TON 		8-98114-047-0 01 1 1411-1510 ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL /NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 5TON 		8-98114-047-0 01 1 1411-1510 ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) 5TON 		8-98114-047-0 01 1 1511- ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL /NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 5TON 		8-98114-047-0 01 1 1511- ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) 		8-98033-737-2 01 1 1010-1102 ● ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127B LACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X 6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) 		8-98033-737-2 01 1 1103-1108 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) 		8-98033-737-2 01 1 1103-1108 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127B LACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X 6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16 16X6K-128(CSC) 		8-98033-737-2 01 1 1109-1208 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) 		8-98033-737-2 01 1 1109-1208 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127B LACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X 6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&R R TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7R-16-10 16X5.5F-115(07H) 		8-98033-737-2 01 1 1209- ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) 		8-98033-737-2 01 1 1209- ●
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 		8-97589-376-2 01 1 1010-1108 ●
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) 		8-97589-376-2 01 1 1010-1108 ●
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 		8-97589-376-2 01 1 1109-1208 ● ●
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 		8-97589-376-2 01 1 1209-1510 ●
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL /NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 		8-97589-376-2 01 1 1209-1510 ●
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 		8-97589-376-2 01 1 1511- ●
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL /NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GS X16-127 6-WHL/NUT(83V) 		8-97589-376-2 01 1 1511- ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) M8X50 WING 		8-98005-537-0 01 1 1010-1102 ● ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127B LACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X 6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) M8X50 WING 		8-98005-537-0 01 1 1103-1108 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) M8X50 WING 		8-98005-537-0 01 1 1103-1108 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127B LACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X 6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16 16X6K-128(CSC) M8X50 WING 		8-98005-537-0 01 1 1109-1208 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) M8X50 WING 		8-98005-537-0 01 1 1109-1208 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127B LACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X 6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&R R TIRE 205/85R16 DISC 16-5.5J-116.5(CSB), FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7R-16-10 16X5.5F-115(07H) M8X50 WING 		8-98005-537-0 01 1 1209- ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) M8X50 WING 		8-98005-537-0 01 1 1209- ●
199 08.820 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M8X30 WING 		8-98005-536-0 01 1 1010-1108 ●
199 08.820 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) M8X30 WING 		8-98005-536-0 01 1 1010-1108 ●
199 08.820 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M8X30 WING 		8-98005-536-0 01 1 1109-1208 ● ●
199 08.820 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M8X30 WING 		8-98005-536-0 01 1 1209-1510 ●
199 08.820 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL /NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M8X30 WING 		8-98005-536-0 01 1 1209-1510 ●
199 08.820 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M8X30 WING 		8-98005-536-0 01 1 1511- ●
199 08.820 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL /NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GS X16-127 6-WHL/NUT(83V) M8X30 WING 		8-98005-536-0 01 1 1511- ●
206 08.820 SCREW; OIL JACK BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1010- ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 3800MM(38W) (B) L=580 		1-85515-005-1 01 1 1103-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3800MM(38W) (B) L=580 		8-98181-249-0 01 1 1109-1205 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580 		8-98181-249-0 01 1 1206-1208 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) L=580 		8-98181-249-0 01 1 1209-1510 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=580 		8-98181-249-0 01 1 1209-1510 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580 		8-98181-249-0 01 1 1511- ●
208 08.820 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 1010-1108 ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) L=642 		8-97217-800-0 01 1 1109-1109 ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) L=642 		8-98181-477-0 01 1 1109-1208 ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-98181-477-0 01 1 1209- ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) L=642 		8-98181-477-0 01 1 1209- ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 1010- ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1010- ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1010- ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 1010- ● ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 1010- ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 1010- ● ●

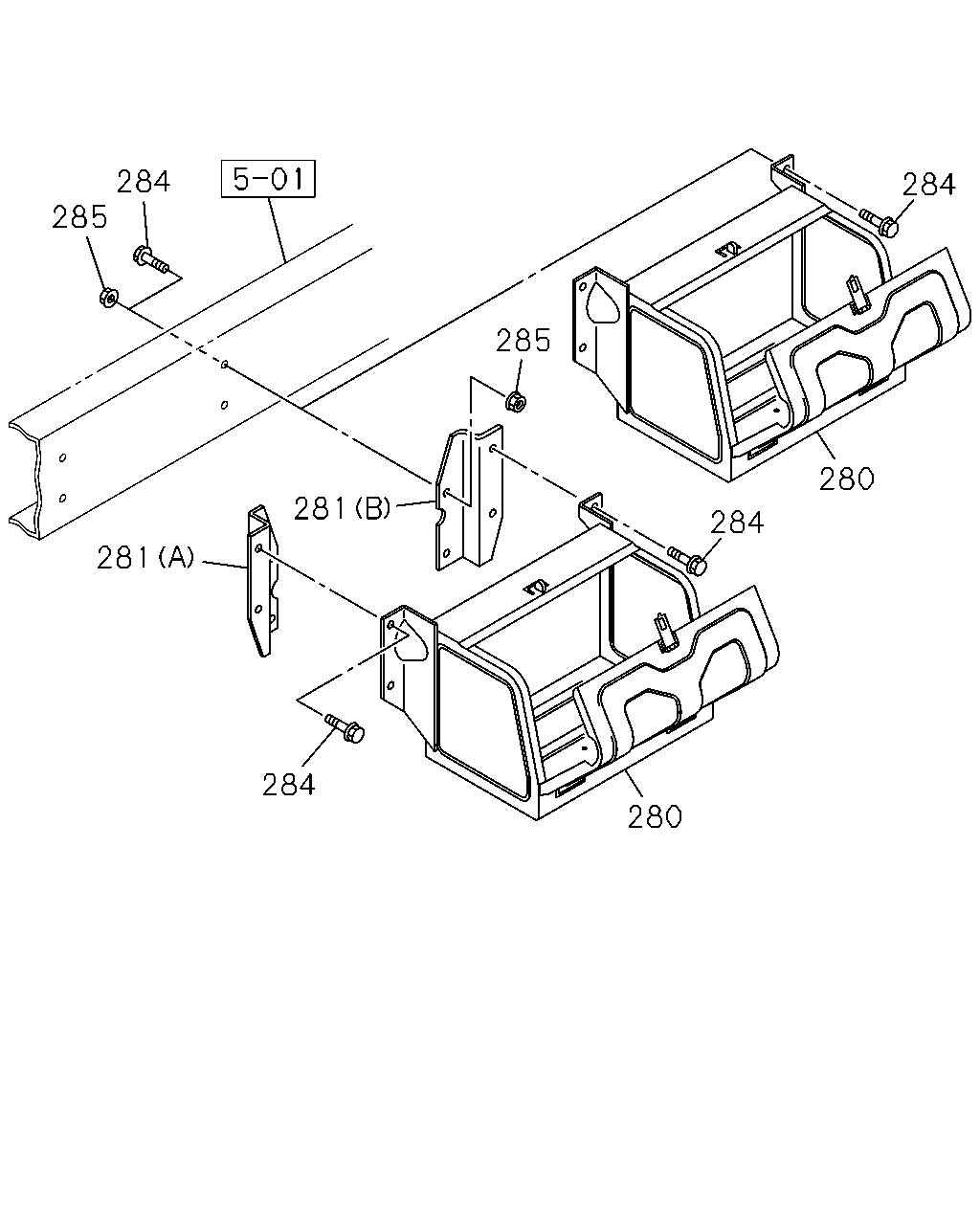

çizim 186924
285 284 281 281 284 280 284 285 284 280
BalonParca AdiParca NoAdetTipApplied Date A B
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 1103-1108 ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 1109- ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHTTYPE<7KJ> (B) 		8-98045-642-1 01 1 1209- ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHTTYPE<7KJ> (A) 		8-98130-709-0 01 1 1209- ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1103-1108 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1109-1208 ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1209- ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHTTYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1209- ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1103-1108 ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1109-1205 ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1109-1205 ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1206-1208 ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1206-1208 ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1209- ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHTTYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1209- ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1209- ●
