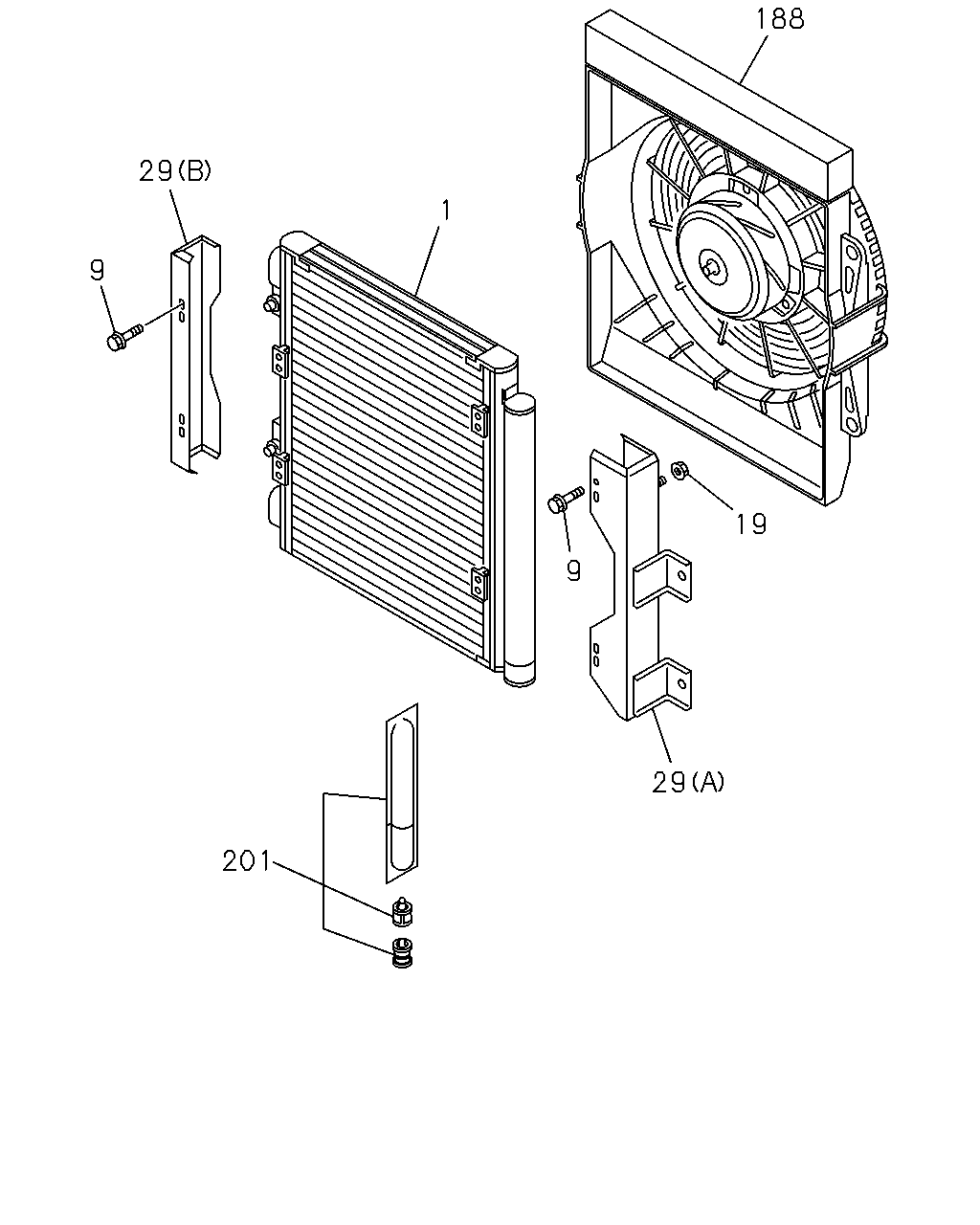

8-75 — CONDENSER (#77919) — 17 parça

9 29 188 1 19 9 29 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98090-682-0	01	1	1103-1108	●
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98090-682-0	01	1	1109-1409	●	●
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98051-817-1	01	1	1410-	●	●
9	09.190 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) M6X14	1-83539-382-0	08	1	1103-1108	●
9	09.190 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) M6X14	1-83539-382-0	08	1	1109-	●	●
19	09.190 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) M6	1-83539-354-0	04	1	1103-1108	●
19	09.190 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) M6	1-83539-354-0	04	1	1109-	●	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98090-685-0	01	1	1103-1108	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98090-685-0	01	1	1109-	●	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98090-686-0	01	1	1103-1108	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98090-686-0	01	1	1109-1409	●	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98051-820-0	01	1	1410-	●	●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60)	8-98090-684-0	01	1	1103-1108	●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60)	8-98090-684-0	01	1	1109-	●	●
201	09.195 DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	1-83535-097-0	01	1	1103-1108	●
201	09.195 DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	1-83535-097-0	01	1	1109-1409	●	●
201	09.195 DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-98282-482-0	01	1	1410-	●	●
