◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#77917) — 14 parça

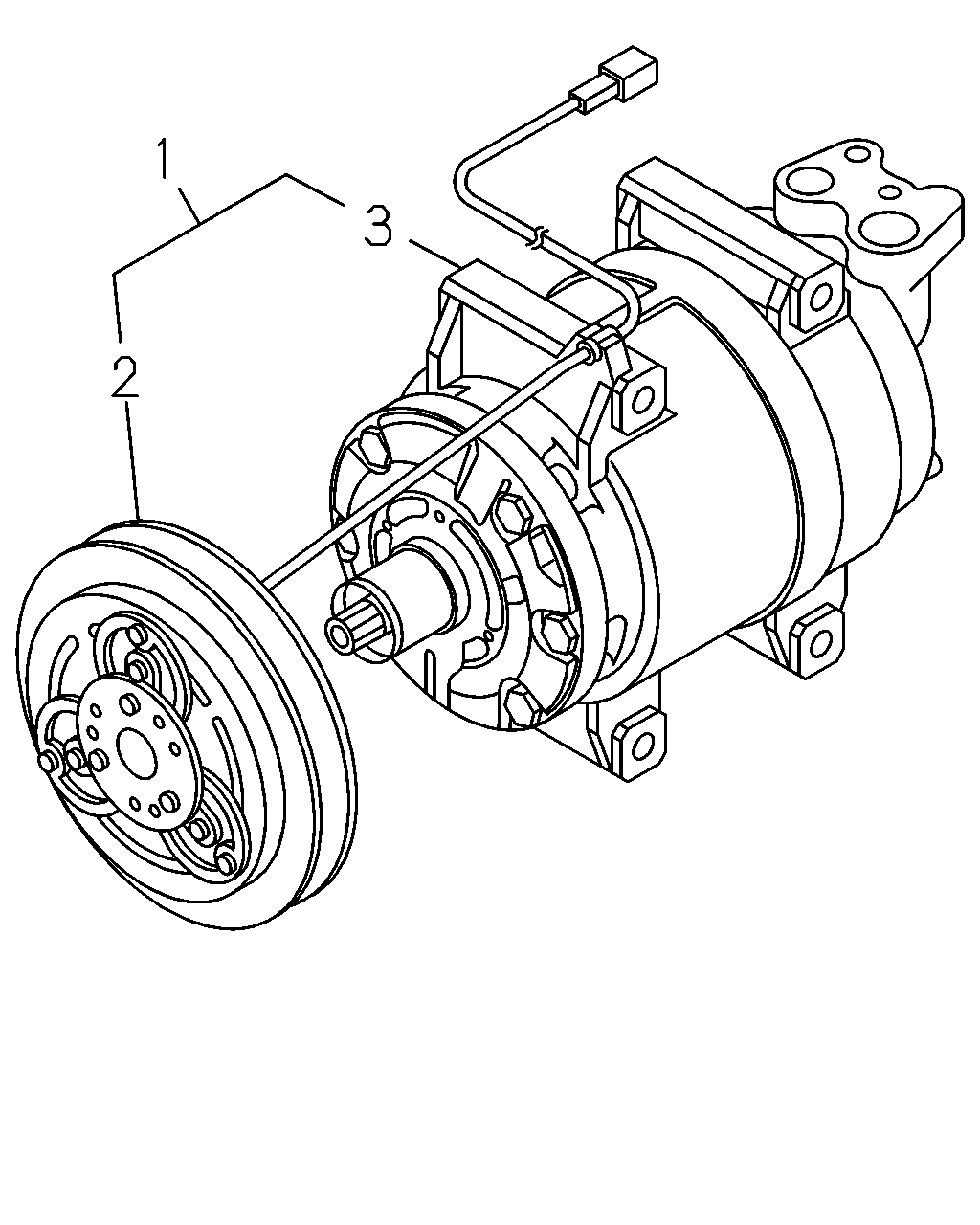

çizim 186932
2 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98000-988-2 01 1 1209-1211 ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98214-324-0 01 1 1212-1410 ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98286-199-0 01 1 1411- ●
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98037-146-2 01 1 1103-1108 ●
1 09.170 COMPRESSOR ASM; A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98037-146-2 01 1 1109-1211 ● ●
1 09.170 COMPRESSOR ASM; A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98214-321-0 01 1 1212-1410 ● ●
1 09.170 COMPRESSOR ASM; A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98286-197-0 01 1 1411- ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 		8-98208-772-1 01 1 1209- ●
2 09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98208-773-1 01 1 1103-1108 ●
2 09.188 CLUTCH; MAGNET,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-98208-773-1 01 1 1109- ● ●
3 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98042-531-1 01 1 1103-1108 ●
3 09.170 COMPRESSOR ASM; A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-98042-531-1 01 1 1109-1208 ● ●
3 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98042-531-1 01 1 1209- ●
3 09.170 COMPRESSOR ASM; A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-98042-531-1 01 1 1209- ●
