◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#77915) — 321 parça
çizim 144375
234 207 41 235 235 236
BalonParca AdiParca NoAdetTipApplied Date A B
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-412-0 01 1 1103-1108 ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-412-0 01 1 1109- ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 1103-1108 ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 1109- ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98047-493-0 01 1 1010-1102 ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 1103- ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 1103-1108 ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 1109- ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7 		8-97095-907-0 01 1 1103-1108 ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7 		8-97095-907-0 01 1 1109- ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 1103-1108 ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 1109- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41) (A) 		8-98047-420-0 01 1 1010-1102 ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1103-1510 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1511- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41) (B) 		8-98047-421-0 01 1 1010-1102 ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1103-1510 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1511- ● ●

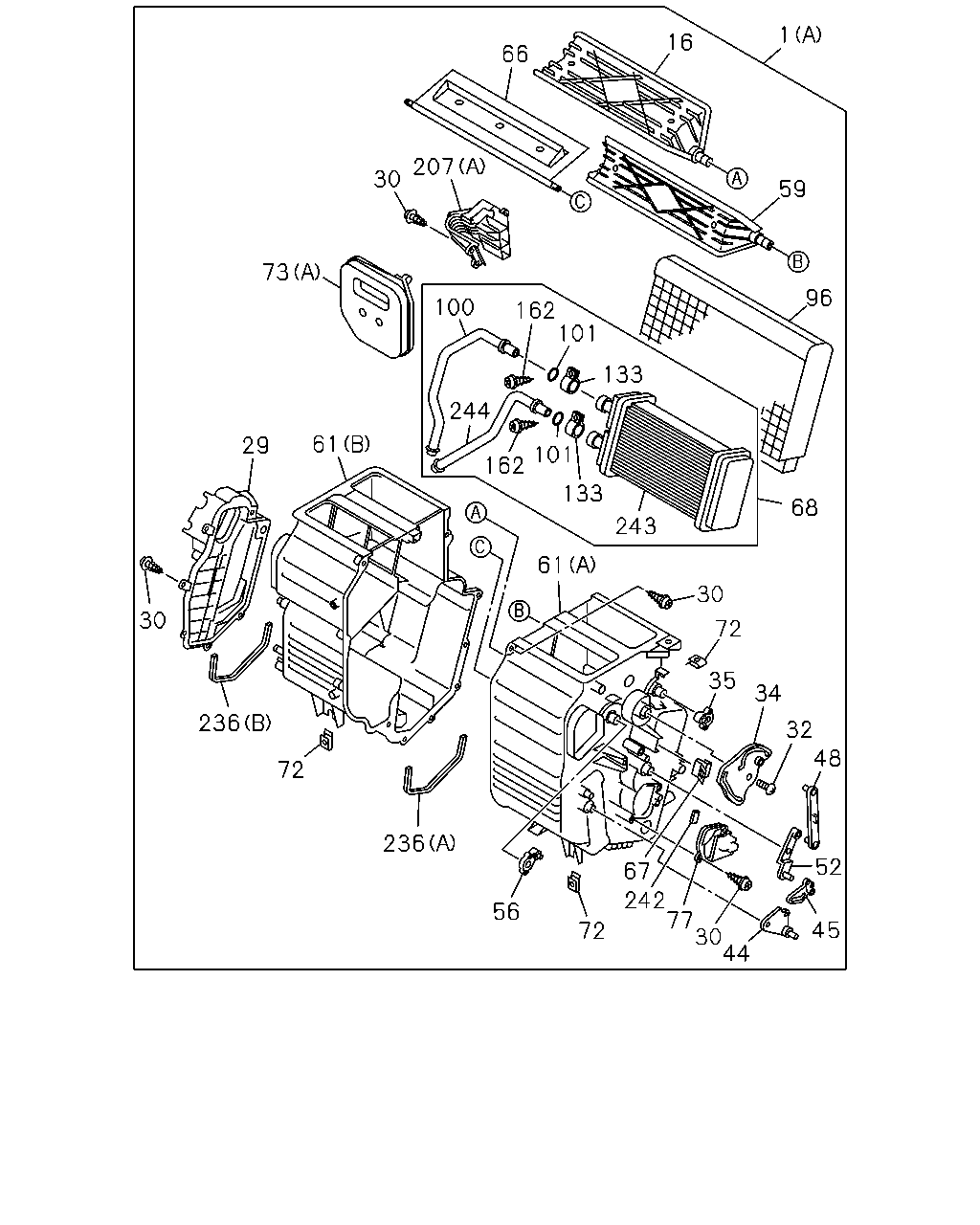

çizim 186908
1 16 66 207 30 73 100 162 133 101 68 243 133 162 101 244 61 29 30 236 72 236 56 72 67 242 77 30 44 45 52 48 32 34 35 72 30 61 96 59
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98214-401-1 01 1 1511- ● ●
1 08.845 HEATER UNIT
RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41) EXC. ARGENTINA COUNTRY(CX1) (A) 		8-98175-726-0 01 1 1103- ●
1 08.845 HEATER UNIT
RUSSIA EQUIPMENT(B12) AIR CONDITIONER MANUAL CONT(C60) EXC. ARGENTINA COUNTRY(CX1) (B) 		8-98174-913-0 01 1 1103- ●
1 08.845 HEATER UNIT
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 1103-1108 ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. RUSSIA EQUIPMENT(B12) (B) 		8-98034-145-3 01 1 1103-1108 ●
1 08.845 HEATER UNIT
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 1109- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. RUSSIA EQUIPMENT(B12) (B) 		8-98034-145-3 01 1 1109- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 1109- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1010-1102 ● ●
1 08.845 HEATER UNIT
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1103- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98031-740-3 01 1 1103- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1103- ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41) 		8-98047-387-0 01 1 1010-1102 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1103-1510 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1511- ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-368-0 01 1 1511- ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-480-0 01 1 1010-1102 ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 1103- ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 20 1 1511- ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 1103-1108 ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 1109- ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 1010- ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-98047-416-0 02 1 1511- ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1010-1102 ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 1103- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. ARGENTINA COUNTRY(CX1) 		8-98196-569-0 01 1 1103- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-497-0 01 1 1010-1102 ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1103-1108 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. RUSSIA EQUIPMENT(B12) 		8-98047-497-0 01 1 1103-1108 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-497-0 01 1 1103-1108 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1109-1510 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. RUSSIA EQUIPMENT(B12) 		8-98047-497-0 01 1 1109-1510 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1109-1510 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-497-0 01 1 1511- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1511- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. RUSSIA EQUIPMENT(B12) 		8-98047-497-0 01 1 1511- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1511- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-500-0 01 1 1010-1102 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1103-1510 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1511- ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-502-0 01 1 1010-1102 ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-502-0 01 1 1103- ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-503-0 01 1 1010-1102 ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-503-0 01 1 1103- ● ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-499-0 01 1 1511- ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-391-0 01 1 1010-1102 ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1103- ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-498-0 01 1 1010-1102 ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1103-1510 ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1511- ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-501-0 01 1 1010-1102 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1103-1510 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1511- ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41) 		8-98047-386-0 01 1 1010-1102 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1103-1510 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1511- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-424-0 01 1 1511- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-425-0 01 1 1511- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98047-478-0 01 1 1010-1102 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-478-0 01 1 1103- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		8-98047-479-0 01 1 1010-1102 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-479-0 01 1 1103- ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41) 		8-98047-385-0 01 1 1010-1102 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1103- ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 1511- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-417-0 02 1 1010-1102 ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1103- ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98074-122-0 01 1 1010-1102 ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-122-0 01 1 1103- ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41) M6 		8-98047-428-0 03 1 1010-1102 ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1103-1510 ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1511- ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-491-0 01 1 1103-1108 ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-491-0 01 1 1109- ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 1010- ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41) 		8-98047-482-0 01 1 1010-1102 ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1103-1510 ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1511- ● ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1010- ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-532-0 01 1 1010-1102 ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-532-0 01 1 1103- ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-531-0 02 1 1010-1102 ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1103- ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41) 		8-98072-530-0 02 1 1010-1102 ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1103- ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41) 		8-98072-529-0 02 1 1010-1102 ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1103- ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 1103-1108 ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 1109- ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98047-493-0 01 1 1010-1102 ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 1103- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41) (A) 		8-98047-420-0 01 1 1010-1102 ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1103-1510 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1511- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41) (B) 		8-98047-421-0 01 1 1010-1102 ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1103-1510 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1511- ● ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1010- ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41) 01.656 		8-98048-508-0 01 1 1010-1102 ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 1103- ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41) 		8-98048-511-0 01 1 1010-1102 ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-511-0 01 1 1103- ● ●

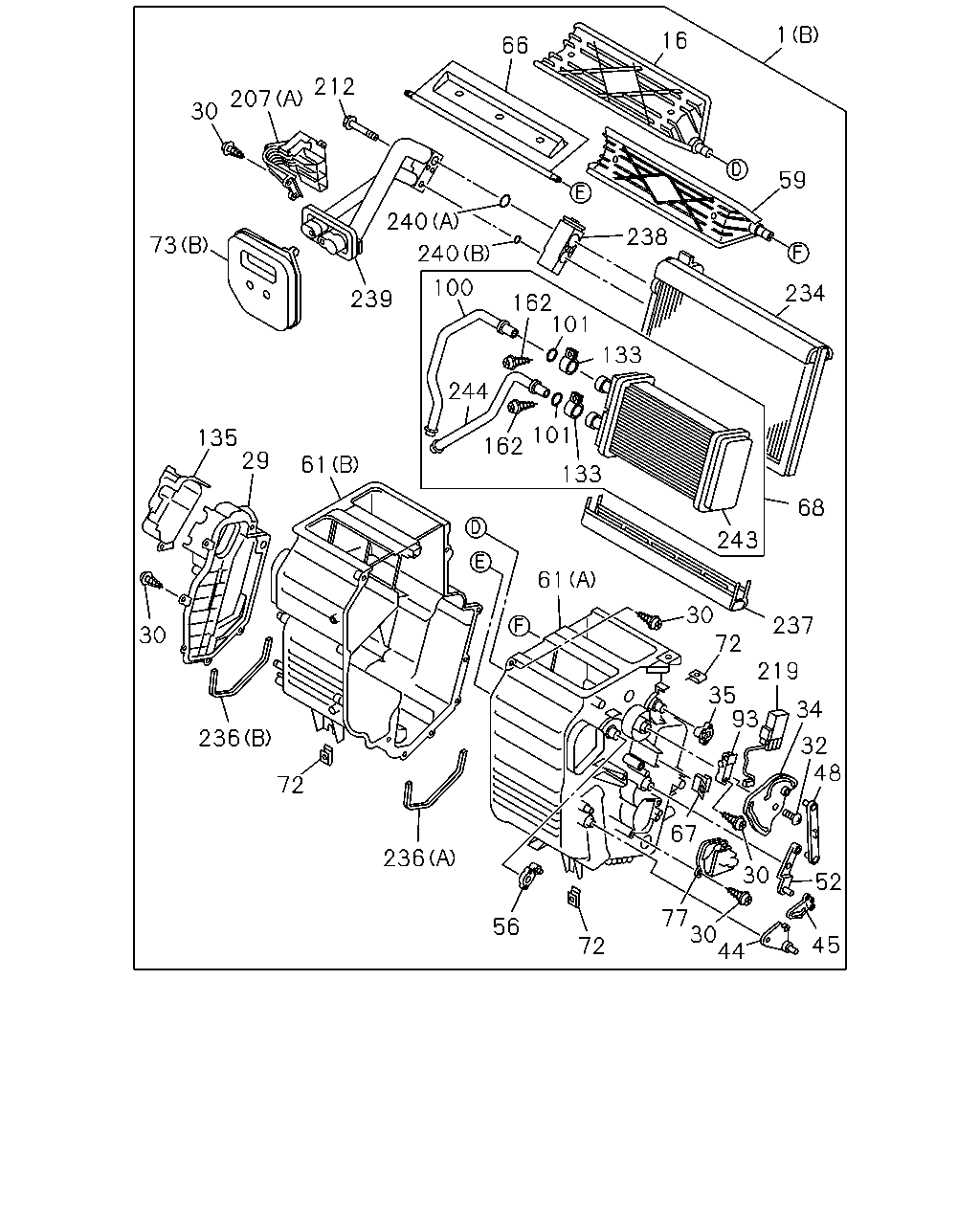

çizim 186933
1 16 66 212 207 30 73 239 240 240 162 100 101 244 133 101 162 243 234 59 68 61 29 135 30 236 72 236 56 72 30 44 67 93 35 72 61 133 30 237 219 34 32 48 52 30 45 238 77
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98214-401-1 01 1 1511- ● ●
1 08.845 HEATER UNIT
RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41) EXC. ARGENTINA COUNTRY(CX1) (A) 		8-98175-726-0 01 1 1103- ●
1 08.845 HEATER UNIT
RUSSIA EQUIPMENT(B12) AIR CONDITIONER MANUAL CONT(C60) EXC. ARGENTINA COUNTRY(CX1) (B) 		8-98174-913-0 01 1 1103- ●
1 08.845 HEATER UNIT
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 1103-1108 ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. RUSSIA EQUIPMENT(B12) (B) 		8-98034-145-3 01 1 1103-1108 ●
1 08.845 HEATER UNIT
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 1109- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. RUSSIA EQUIPMENT(B12) (B) 		8-98034-145-3 01 1 1109- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 1109- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1010-1102 ● ●
1 08.845 HEATER UNIT
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1103- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98031-740-3 01 1 1103- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1103- ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41) 		8-98047-387-0 01 1 1010-1102 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1103-1510 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1511- ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-368-0 01 1 1511- ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-480-0 01 1 1010-1102 ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 1103- ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 20 1 1511- ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 1103-1108 ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 1109- ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 1010- ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-98047-416-0 02 1 1511- ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1010-1102 ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 1103- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. ARGENTINA COUNTRY(CX1) 		8-98196-569-0 01 1 1103- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-497-0 01 1 1010-1102 ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1103-1108 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. RUSSIA EQUIPMENT(B12) 		8-98047-497-0 01 1 1103-1108 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-497-0 01 1 1103-1108 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1109-1510 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. RUSSIA EQUIPMENT(B12) 		8-98047-497-0 01 1 1109-1510 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1109-1510 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-497-0 01 1 1511- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1511- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. RUSSIA EQUIPMENT(B12) 		8-98047-497-0 01 1 1511- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1511- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-500-0 01 1 1010-1102 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1103-1510 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1511- ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-502-0 01 1 1010-1102 ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-502-0 01 1 1103- ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-503-0 01 1 1010-1102 ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-503-0 01 1 1103- ● ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-499-0 01 1 1511- ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-391-0 01 1 1010-1102 ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1103- ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-498-0 01 1 1010-1102 ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1103-1510 ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1511- ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-501-0 01 1 1010-1102 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1103-1510 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1511- ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41) 		8-98047-386-0 01 1 1010-1102 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1103-1510 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1511- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-424-0 01 1 1511- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-425-0 01 1 1511- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98047-478-0 01 1 1010-1102 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-478-0 01 1 1103- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		8-98047-479-0 01 1 1010-1102 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-479-0 01 1 1103- ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41) 		8-98047-385-0 01 1 1010-1102 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1103- ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 1511- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-417-0 02 1 1010-1102 ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1103- ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98074-122-0 01 1 1010-1102 ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-122-0 01 1 1103- ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41) M6 		8-98047-428-0 03 1 1010-1102 ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1103-1510 ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1511- ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-491-0 01 1 1103-1108 ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-491-0 01 1 1109- ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 1010- ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41) 		8-98047-482-0 01 1 1010-1102 ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1103-1510 ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1511- ● ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 1103-1108 ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 1109- ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-532-0 01 1 1010-1102 ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-532-0 01 1 1103- ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-531-0 02 1 1010-1102 ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1103- ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41) 		8-98072-530-0 02 1 1010-1102 ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1103- ● ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-481-0 01 1 1103-1108 ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-481-0 01 1 1109- ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41) 		8-98072-529-0 02 1 1010-1102 ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1103- ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 1103-1108 ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 1109- ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98047-493-0 01 1 1010-1102 ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 1103- ● ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M5X61 		8-98047-415-0 02 1 1103-1108 ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M5X61 		8-98047-415-0 02 1 1109- ● ●
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 1103-1108 ●
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 1109- ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 1103-1108 ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 1109- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41) (A) 		8-98047-420-0 01 1 1010-1102 ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1103-1510 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1511- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41) (B) 		8-98047-421-0 01 1 1010-1102 ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1103-1510 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1511- ● ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-382-0 01 1 1103-1108 ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-382-0 01 1 1109- ● ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-383-0 01 1 1103-1108 ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-383-0 01 1 1109- ● ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-504-0 01 1 1103-1108 ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-504-0 01 1 1109- ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4 		8-97095-906-0 01 1 1103-1108 ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4 		8-97095-906-0 01 1 1109- ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5 		8-97095-908-0 01 1 1103-1108 ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5 		8-97095-908-0 01 1 1109- ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41) 01.656 		8-98048-508-0 01 1 1010-1102 ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 1103- ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41) 		8-98048-511-0 01 1 1010-1102 ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-511-0 01 1 1103- ● ●

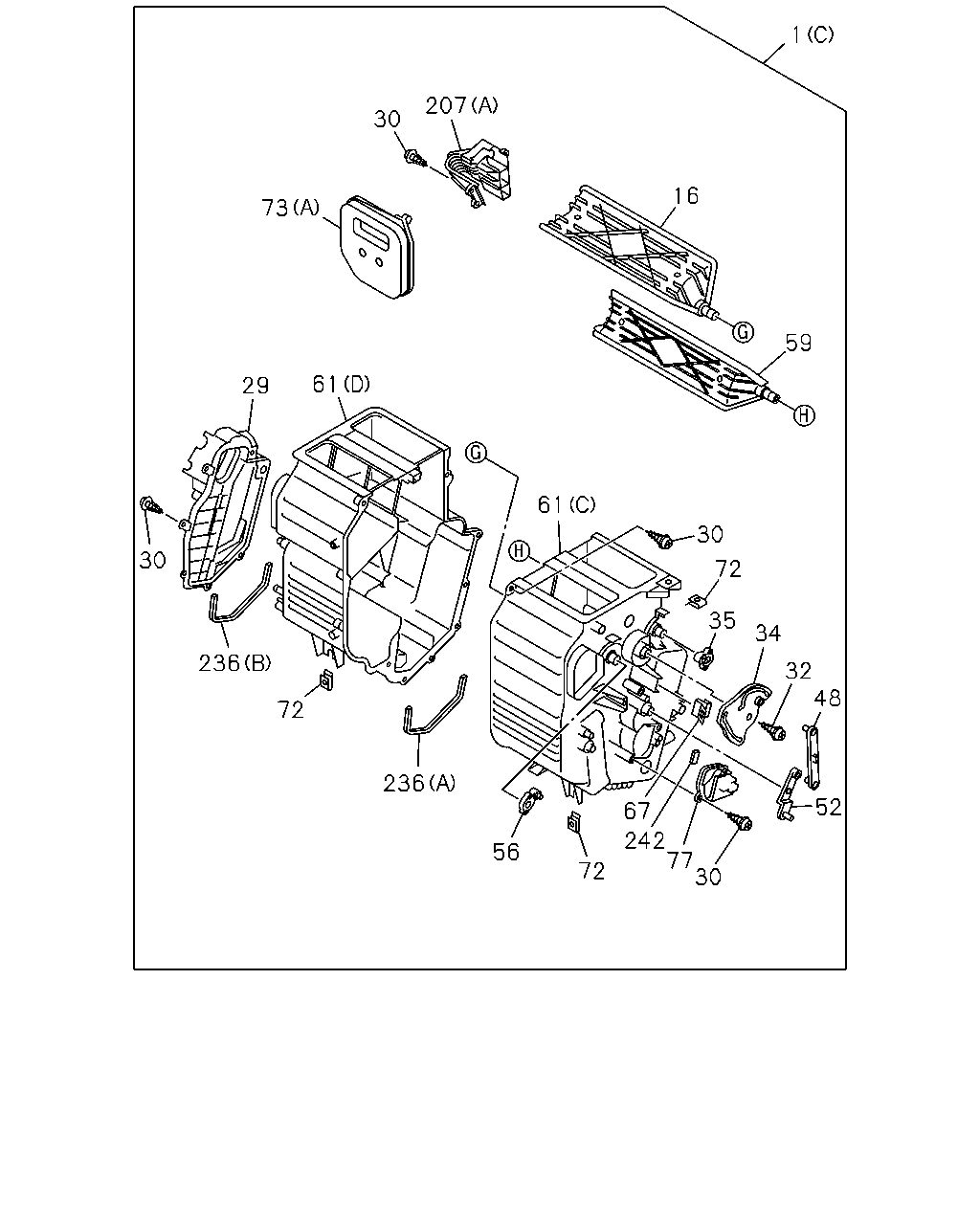

çizim 507832
1 16 59 207 30 73 61 29 30 236 72 236 56 72 67 242 77 30 52 48 32 34 35 72 30 61
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98214-401-1 01 1 1511- ● ●
1 08.845 HEATER UNIT
RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41) EXC. ARGENTINA COUNTRY(CX1) (A) 		8-98175-726-0 01 1 1103- ●
1 08.845 HEATER UNIT
RUSSIA EQUIPMENT(B12) AIR CONDITIONER MANUAL CONT(C60) EXC. ARGENTINA COUNTRY(CX1) (B) 		8-98174-913-0 01 1 1103- ●
1 08.845 HEATER UNIT
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 1103-1108 ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. RUSSIA EQUIPMENT(B12) (B) 		8-98034-145-3 01 1 1103-1108 ●
1 08.845 HEATER UNIT
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 1109- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. RUSSIA EQUIPMENT(B12) (B) 		8-98034-145-3 01 1 1109- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 1109- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1010-1102 ● ●
1 08.845 HEATER UNIT
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1103- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98031-740-3 01 1 1103- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1103- ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41) 		8-98047-387-0 01 1 1010-1102 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1103-1510 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1511- ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-368-0 01 1 1511- ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-480-0 01 1 1010-1102 ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 1103- ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 20 1 1511- ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 1103-1108 ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 1109- ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 1010- ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-98047-416-0 02 1 1511- ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1010-1102 ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 1103- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. ARGENTINA COUNTRY(CX1) 		8-98196-569-0 01 1 1103- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-497-0 01 1 1010-1102 ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1103-1108 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. RUSSIA EQUIPMENT(B12) 		8-98047-497-0 01 1 1103-1108 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-497-0 01 1 1103-1108 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1109-1510 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. RUSSIA EQUIPMENT(B12) 		8-98047-497-0 01 1 1109-1510 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1109-1510 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-497-0 01 1 1511- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
RUSSIA EQUIPMENT(B12) ARGENTINA COUNTRY(CX1) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1511- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. RUSSIA EQUIPMENT(B12) 		8-98047-497-0 01 1 1511- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1511- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-500-0 01 1 1010-1102 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1103-1510 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1511- ● ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-499-0 01 1 1511- ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-391-0 01 1 1010-1102 ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1103- ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-498-0 01 1 1010-1102 ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1103-1510 ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1511- ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-501-0 01 1 1010-1102 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1103-1510 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1511- ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41) 		8-98047-386-0 01 1 1010-1102 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1103-1510 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1511- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-424-0 01 1 1511- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-425-0 01 1 1511- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98047-478-0 01 1 1010-1102 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-478-0 01 1 1103- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		8-98047-479-0 01 1 1010-1102 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-479-0 01 1 1103- ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 1511- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-417-0 02 1 1010-1102 ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1103- ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41) M6 		8-98047-428-0 03 1 1010-1102 ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1103-1510 ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1511- ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-491-0 01 1 1103-1108 ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-491-0 01 1 1109- ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 1010- ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41) 		8-98047-482-0 01 1 1010-1102 ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1103-1510 ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1511- ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 1103-1108 ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 1109- ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98047-493-0 01 1 1010-1102 ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 1103- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41) (A) 		8-98047-420-0 01 1 1010-1102 ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1103-1510 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1511- ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41) (B) 		8-98047-421-0 01 1 1010-1102 ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1103-1510 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1511- ● ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
