8-40 — HEATER SYSTEM (#77911) — 123 parça

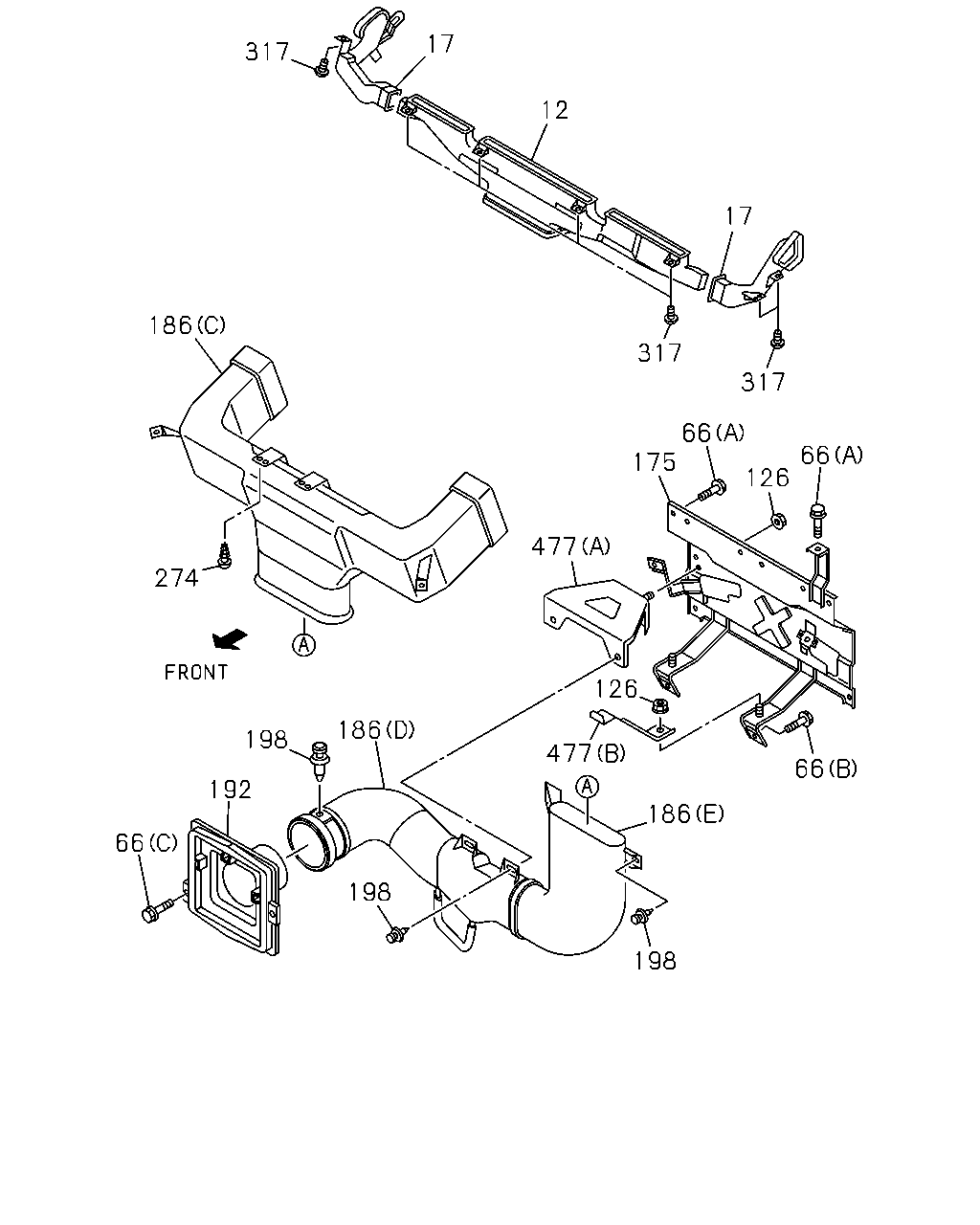

317 17 12 17 317 317 66 126 66 175 477 186 274 66 126 477 186 198 198 186 198 192 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	09.779 NOZZLE; DEFROSTER	8-98040-490-3	01	1	1010-	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41)	8-98040-497-1	01	1	1010-1102	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-497-1	01	1	1103-	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41)	8-98040-498-4	01	1	1010-1102	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-498-4	01	1	1103-	●	●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1010-1102	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1103-	●	●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1010-1102	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1103-	●	●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1010-1102	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1103-	●	●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41) 01.062 M6 FLANGE	0-91180-106-0	01	1	1010-1102	●	●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41),KD PREPARATORY PACK VAR.4<7TV> 01.062 M6 FLANGE	0-91180-106-0	01	1	1010-1102	●	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1103-1108	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),KD PREPARATORY PACK VAR.4<7TV> 01.062 M6 FLANGE	0-91180-106-0	01	1	1103-1108	●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41) 01.062 M6 FLANGE	0-91180-106-0	01	1	1103-1108		●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41),KD PREPARATORY PACK VAR.4<7TV> 01.062 M6 FLANGE	0-91180-106-0	01	1	1103-1108		●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1109-	●	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),KD PREPARATORY PACK VAR.4<7TV> 01.062 M6 FLANGE	0-91180-106-0	01	1	1109-	●	●
175	09.262 BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41)	8-98091-543-5	01	1	1010-1102	●	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60)	8-98091-543-5	01	1	1103-	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41) (A)	8-98042-899-6	01	1	1010-1102	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98042-899-6	01	1	1103-1410	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98285-584-0	01	1	1411-	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41) (B)	8-98042-900-5	01	1	1010-1102	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98042-900-5	01	1	1103-1410	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98285-586-0	01	1	1411-	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41) (C)	8-98054-362-0	01	1	1010-1102	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (C)	8-98054-362-0	01	1	1103-	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41) (E)	8-98054-369-0	01	1	1010-1102	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (E)	8-98054-369-0	01	1	1103-	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41) (D)	8-98054-378-2	01	1	1010-1102	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (D)	8-98054-378-2	01	1	1103-	●	●
192	09.262 DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41)	8-98054-385-4	01	1	1010-1102	●	●
192	09.262 DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60)	8-98054-385-4	01	1	1103-	●	●
198	09.787 CLIP; DUCT EXC. HEATER & DEFROSTER(C41) 09.264	1-09987-144-0	05	1	1010-1102	●	●
198	09.787 CLIP; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 09.264	1-09987-144-0	05	1	1103-	●	●
274	08.852 SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1010-1101	●	●
274	08.852 SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1102	●	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1103-1212	●	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1010-1101	●	●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1102	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1103-1212	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1010-1101	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41) (A)	8-98091-304-0	01	1	1010-1102	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (A)	8-98091-304-0	01	1	1103-	●	●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98164-456-0	01	1	1010-1102	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98164-456-0	01	1	1103-	●	●

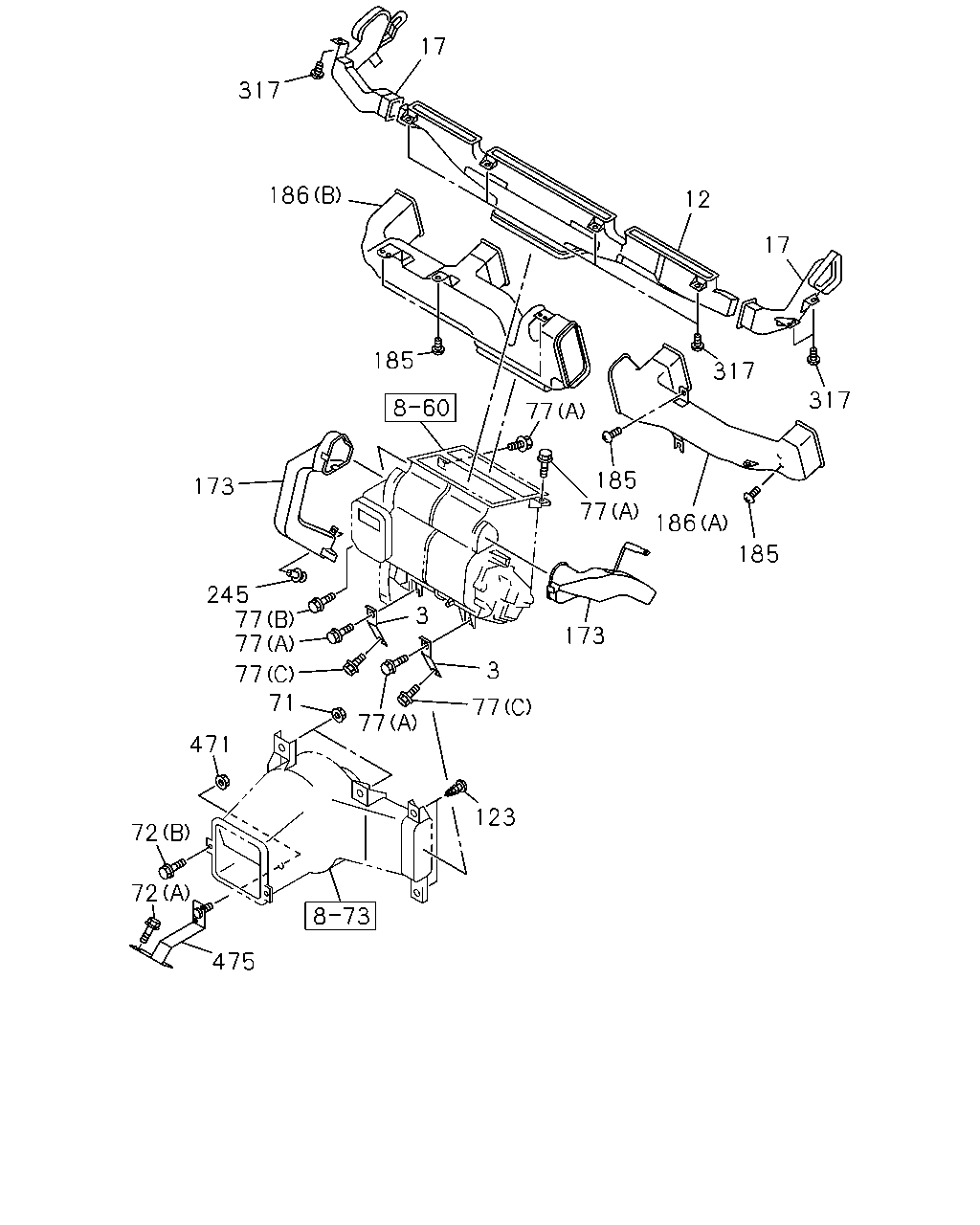

475 72 72 471 123 77 71 77 77 77 245 77 3 3 173 185 186 77 185 317 317 17 12 77 185 173 186 17 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	08.854 BRACKET; HTR UNIT HEATER & DEFROSTER(C41)	8-98082-473-1	02	1	1010-1102	●	●
3	08.854 BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98082-473-1	02	1	1103-	●	●
12	09.779 NOZZLE; DEFROSTER	8-98040-490-3	01	1	1010-	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41)	8-98040-497-1	01	1	1010-1102	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-497-1	01	1	1103-	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41)	8-98040-498-4	01	1	1010-1102	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-498-4	01	1	1103-	●	●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41) 01.062 M6 FLANGE	0-91180-106-0	02	1	1010-1102	●	●
71	08.845 NUT; BLOWER UNIT TO DASH FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1103-	●	●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1010-1102	●	●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1103-	●	●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1010-1102	●	●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1103-	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	1010-1102	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	1103-	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1010-1102	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1103-1301	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1302-	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1010-1102	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1103-	●	●
123	09.786 SCREW; DUCT HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1010-1101	●	●
123	09.786 SCREW; DUCT HEATER & DEFROSTER(C41) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1102	●	●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1103-1212	●	●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41)	8-98163-183-0	01	1	1010-1102	●	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98163-183-0	01	1	1103-	●	●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41)	8-98163-188-0	01	1	1010-1102	●	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98163-188-0	01	1	1103-	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1010-1101	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1102	●	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1103-1212	●	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41) (A)	8-98042-899-6	01	1	1010-1102	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98042-899-6	01	1	1103-1410	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98285-584-0	01	1	1411-	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41) (B)	8-98042-900-5	01	1	1010-1102	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98042-900-5	01	1	1103-1410	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98285-586-0	01	1	1411-	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41) (C)	8-98054-362-0	01	1	1010-1102	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (C)	8-98054-362-0	01	1	1103-	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41) (E)	8-98054-369-0	01	1	1010-1102	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (E)	8-98054-369-0	01	1	1103-	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41) (D)	8-98054-378-2	01	1	1010-1102	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (D)	8-98054-378-2	01	1	1103-	●	●
245	09.786 CLIP; FOOT DUCT HEATER & DEFROSTER(C41) 09.264	1-09987-144-0	02	1	1010-1102	●	●
245	09.786 CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.264	1-09987-144-0	02	1	1103-	●	●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1010-1101	●	●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1102	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1103-1212	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1010-1101	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●
471	08.866 NUT; BLOWER HEATER & DEFROSTER(C41) 01.062 M6 FLANGE	0-91180-106-0	01	1	1010-1102	●	●
471	08.866 NUT; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1103-	●	●
475	09.277 BRACKET; BLOWER HEATER & DEFROSTER(C41)	8-98005-980-2	01	1	1010-1102	●	●
475	09.277 BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98005-980-2	01	1	1103-1510	●	●
475	09.277 BRACKET; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98005-980-2	01	1	1511-	●	●

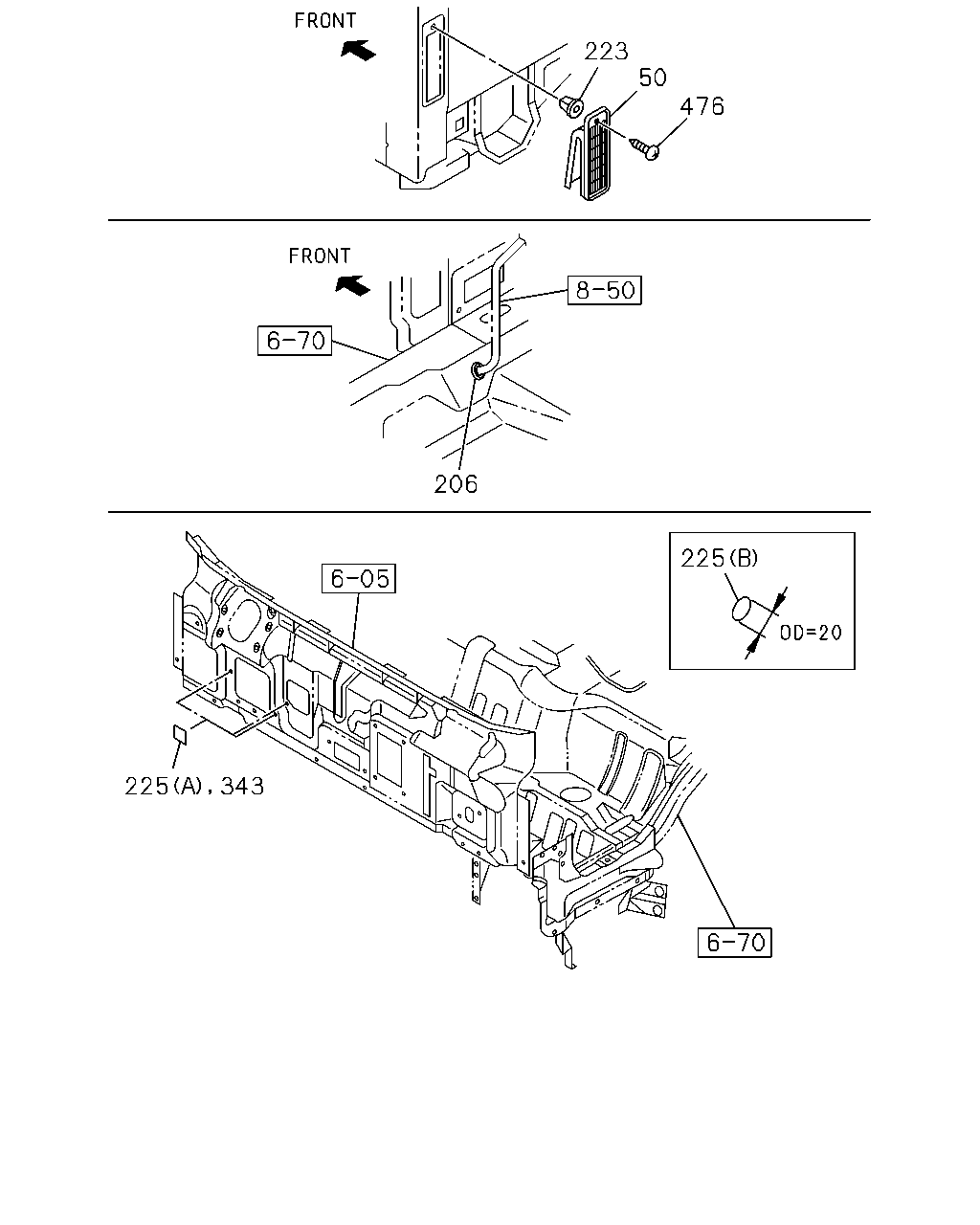

343 225 225 206 476 50 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	08.845 VALVE ASM; HTR	8-98080-998-1	01	1	1010-	●	●
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	1010-	●	●
223	08.845 GROMMET; SCREW 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	1010-	●	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	01	1	1303-	●	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41) (A)	8-97856-616-0	03	1	1010-1102	●	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	03	1	1103-1302	●	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	02	1	1303-	●	●
225	08.845 SEAL; WATER EXC. HEATER & DEFROSTER(C41) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1010-1102	●	●
225	08.845 SEAL; WATER EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1103-1301	●	●
225	08.845 SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1302-	●	●
343	08.845 SEAL; AIR DUCT EXC. HEATER & DEFROSTER(C41)	8-97856-616-0	02	1	1010-1102	●	●
343	08.845 SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60)	8-97856-616-0	02	1	1103-	●	●
476	09.222 SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	1010-	●	●
