◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#77910) — 36 parça
çizim 143867
666 333 531
BalonParca AdiParca NoAdetTipApplied Date A B
333 09.277 RELAY; MARKER LAMP
RR FOG LAMP<T79> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1103- ●
531 02.769 RELAY; MAIN
02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1010-1402 ● ●
531 02.769 RELAY; MAIN
02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
666 02.173 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1010- ● ●

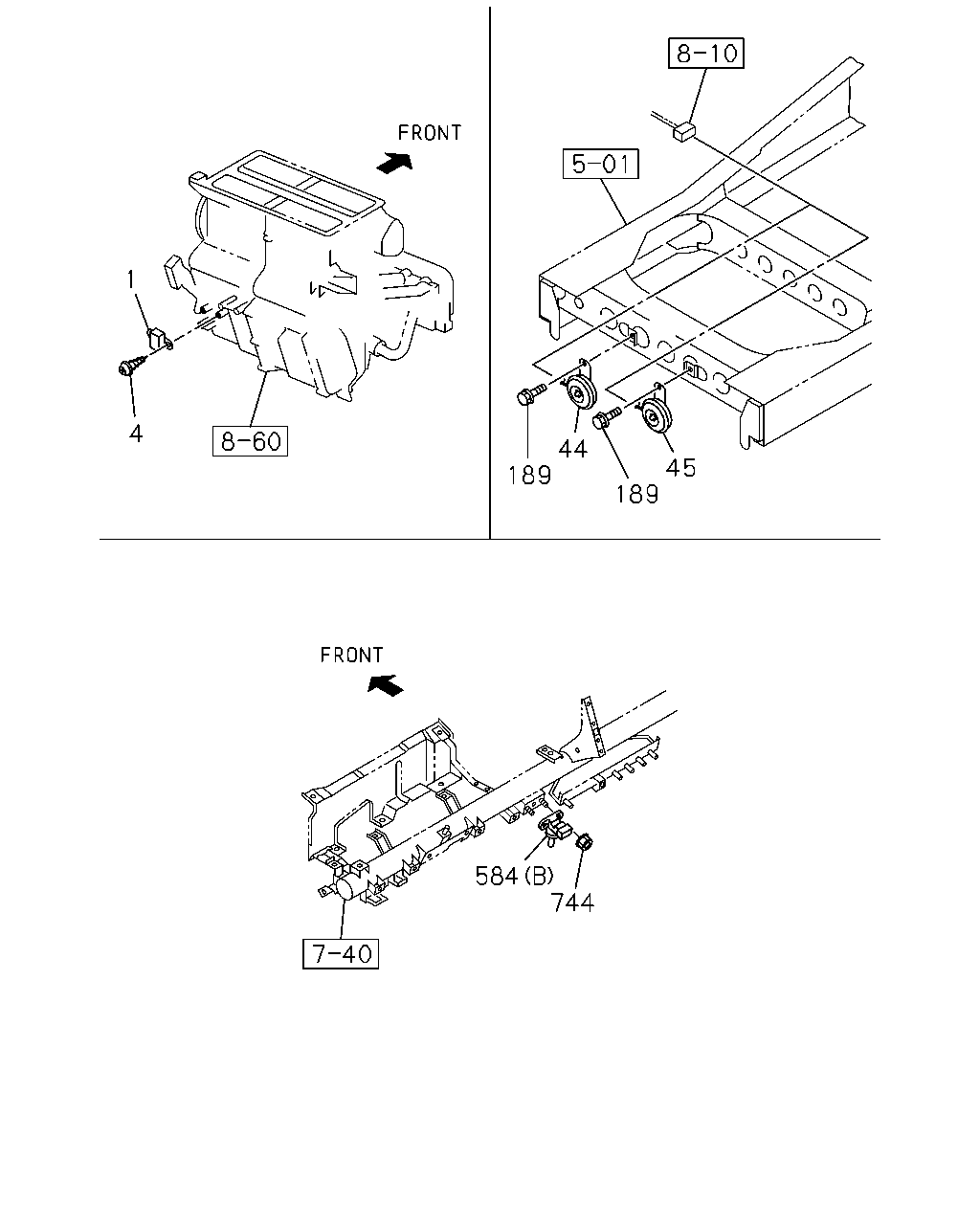

çizim 143994
1 4 189 44 189 45 584 744
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.575 UNIT; FLASHER 8-98025-533-1 01 1 1010- ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1010-1101 ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-98070-080-0 01 1 1103-1108 ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-98070-080-0 01 1 1109- ● ●
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 1010- ● ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1010-1102 ● ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1103-1108 ● ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1103-1108 ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1109- ● ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1109- ● ●
584 02.440 SENSOR; PRESSURE
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97387-682-0 01 1 1103-1507 ●
584 02.440 SENSOR; PRESSURE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7) (A) 		8-97387-682-0 01 1 1508- ●
584 02.440 SENSOR; PRESSURE
03.331 (B) 		8-98020-514-0 01 1 1010-1108 ● ●
584 02.440 SENSOR; PRESSURE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.331 (B) 		8-98020-514-0 01 1 1109-1208 ● ●
584 02.440 SENSOR; PRESSURE
03.331 (B) 		8-98020-514-0 01 1 1209- ●
584 02.440 SENSOR; PRESSURE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.331 (B) 		8-98020-514-0 01 1 1209- ●
744 09.277 NUT; SENSOR
01.062 M6 FLANGE 		0-91180-106-0 02 1 1010- ● ●

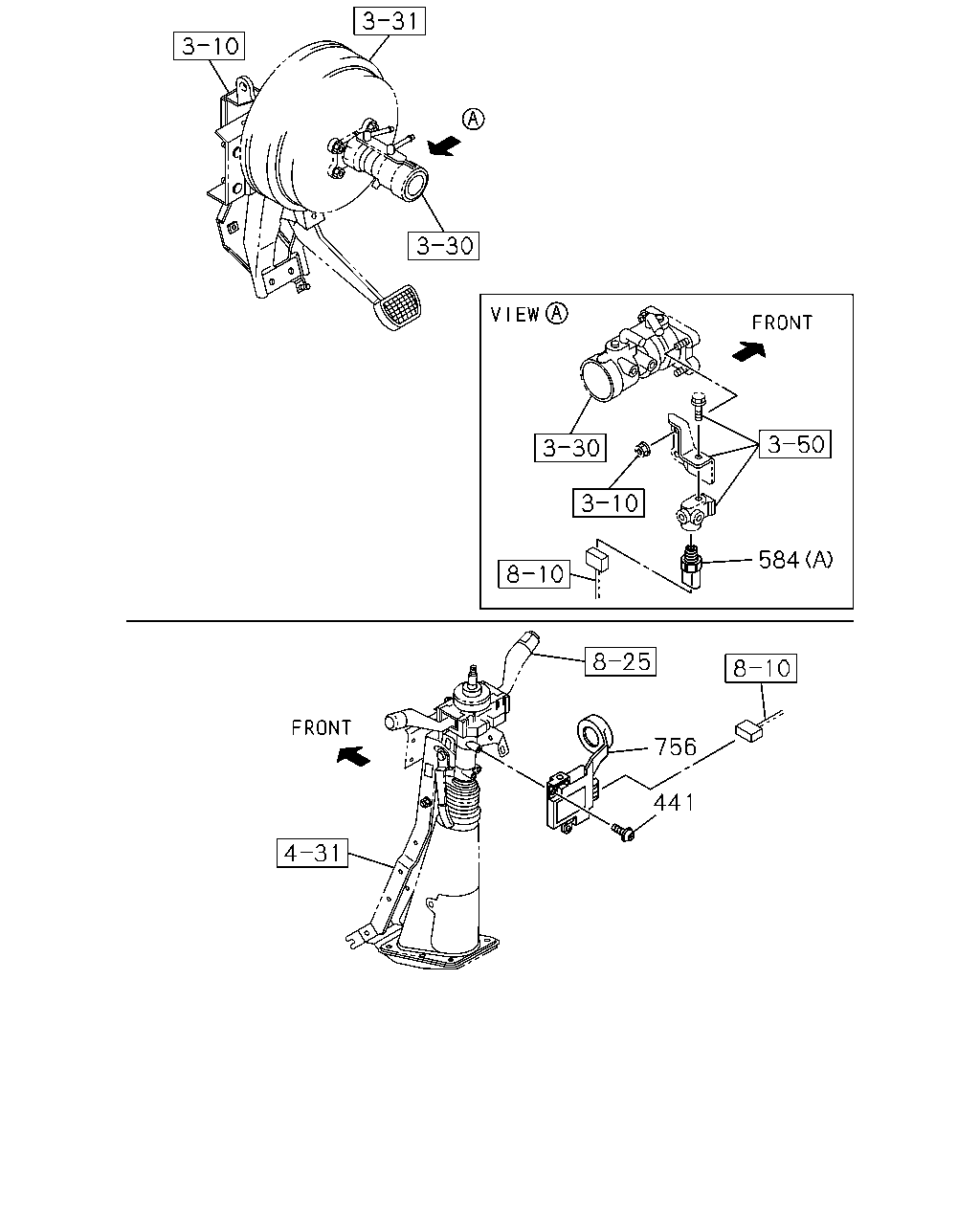

çizim 186902
756 441 584
BalonParca AdiParca NoAdetTipApplied Date A B
441 02.575 SCREW; CONT UNIT
IMMOBILIZER SYSTEM(7KC) 09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1103-1109 ●
584 02.440 SENSOR; PRESSURE
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97387-682-0 01 1 1103-1507 ●
584 02.440 SENSOR; PRESSURE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7) (A) 		8-97387-682-0 01 1 1508- ●
584 02.440 SENSOR; PRESSURE
03.331 (B) 		8-98020-514-0 01 1 1010-1108 ● ●
584 02.440 SENSOR; PRESSURE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.331 (B) 		8-98020-514-0 01 1 1109-1208 ● ●
584 02.440 SENSOR; PRESSURE
03.331 (B) 		8-98020-514-0 01 1 1209- ●
584 02.440 SENSOR; PRESSURE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.331 (B) 		8-98020-514-0 01 1 1209- ●
756 16.263 CONTROL UNIT; IMMOBILIZER
IMMOBILIZER SYSTEM(7KC) 		8-98158-127-0 01 1 1103-1109 ●

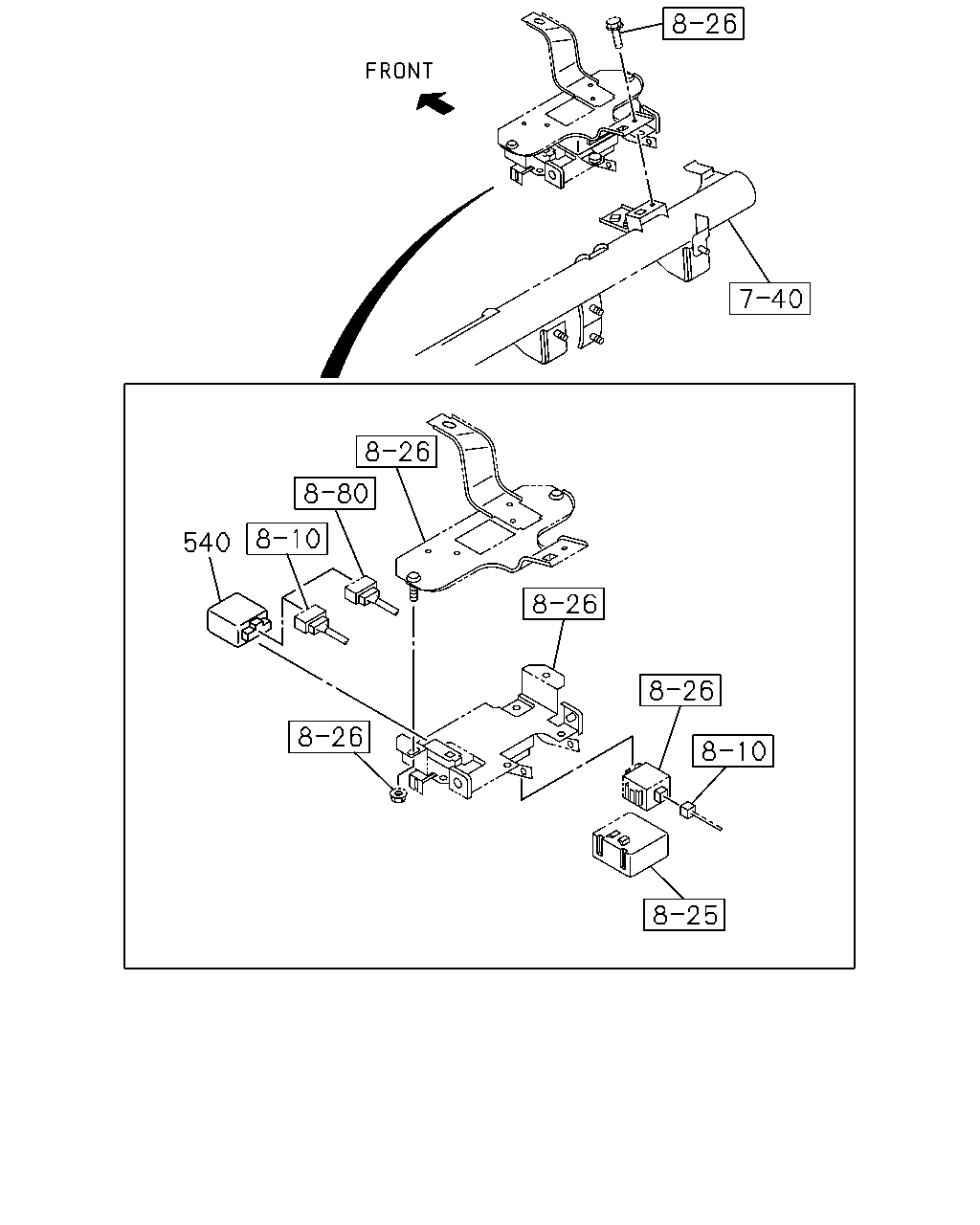

çizim 186906
540
BalonParca AdiParca NoAdetTipApplied Date A B
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98060-388-0 01 1 1103-1108 ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98060-388-0 01 1 1109-1308 ● ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98233-976-0 01 1 1309- ● ●

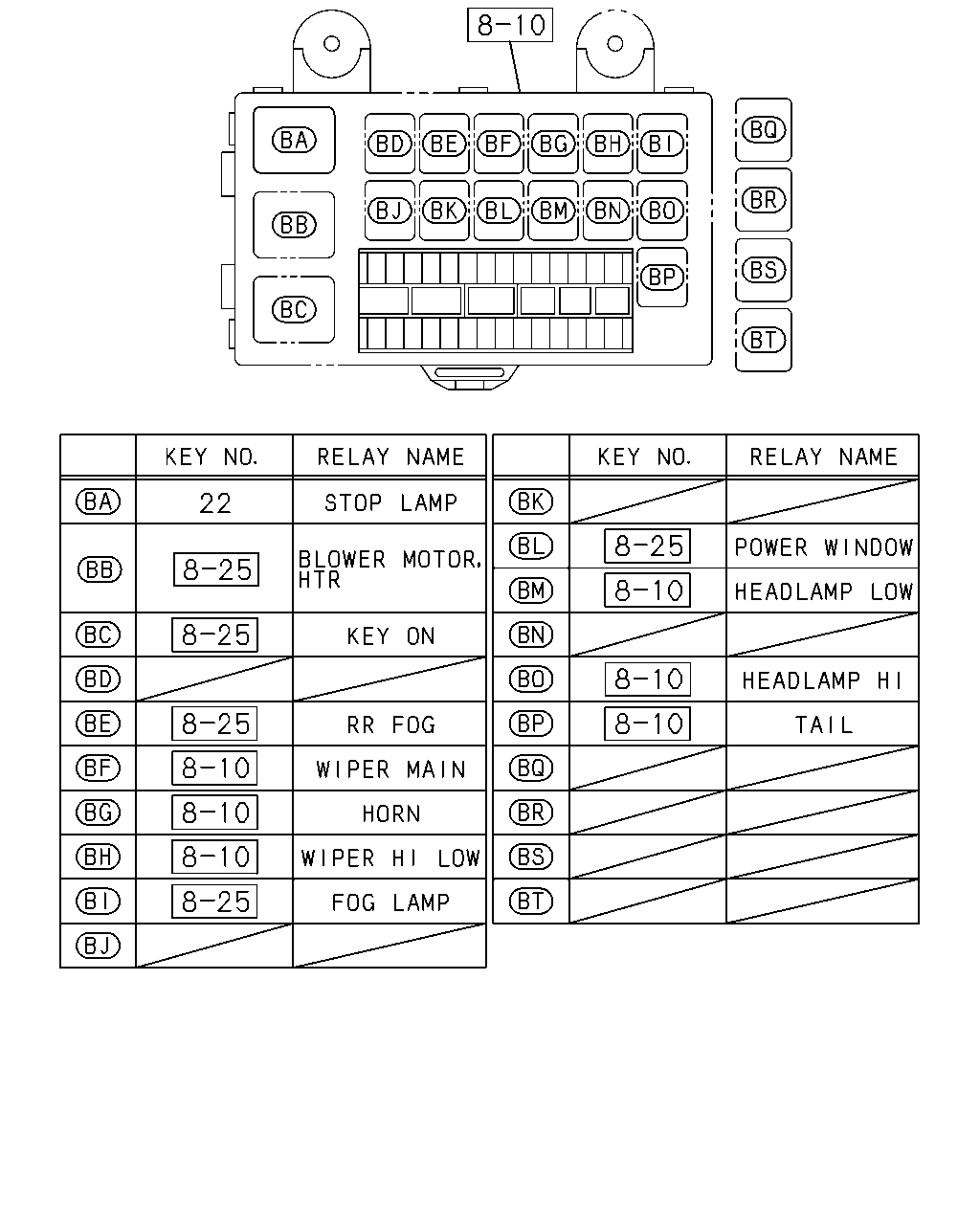

çizim 186923
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1010- ● ●

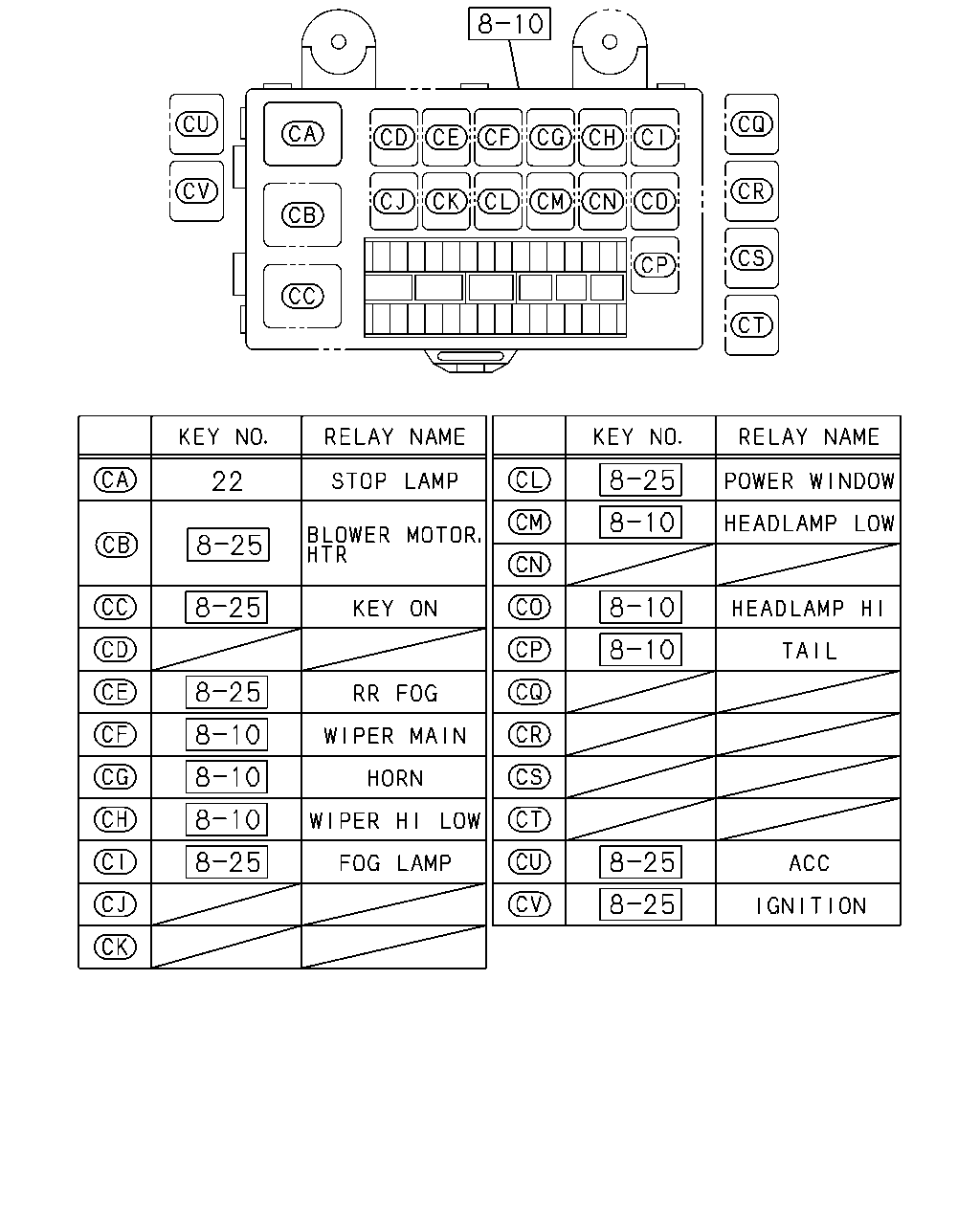

çizim 186931
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1010- ● ●
