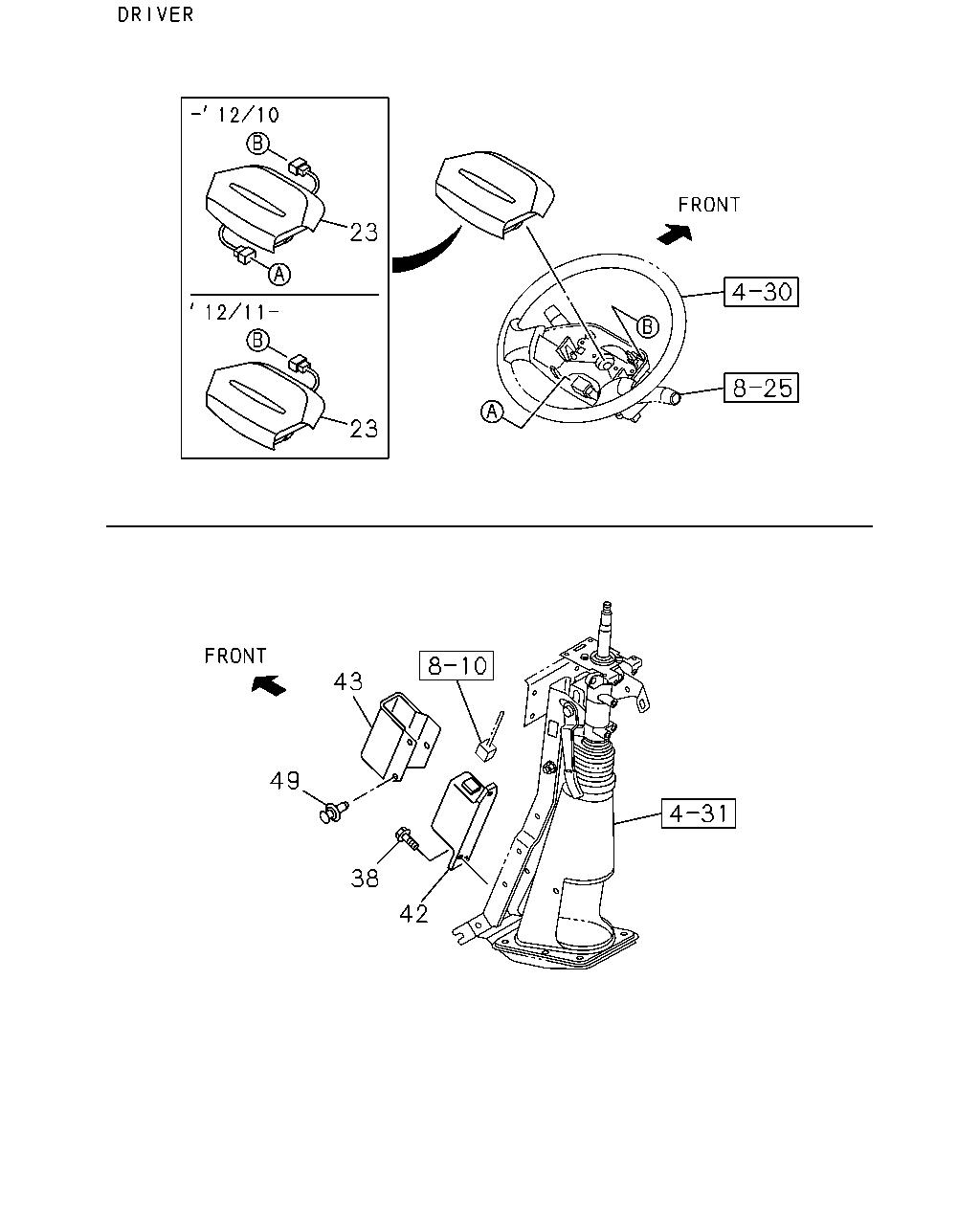

8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#77909) — 7 parça

23 23 43 49 38 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	02.559 AIR BAG UNIT AIR BAG DRIVER<AJ3> EXC. ISUZU BRAND<7WL> DARK GRAY	8-97424-576-1	01	1	1211-	●	●
23	02.559 AIR BAG UNIT AIR BAG DRIVER<AJ3> DARK GRAY	8-97418-100-0	01	1	1204-1210	●	●
23	02.559 AIR BAG UNIT AIR BAG DRIVER<AJ3> ISUZU BRAND<7WL> DARK GRAY	8-97423-999-1	01	1	1211-	●	●
38	06.870 BOLT; CONT UNIT AIR BAG DRIVER<AJ3> M6X18 W/PL WASHER	8-97105-796-1	03	1	1204-	●	●
42	02.510 CONTROL UNIT; SRS AIR BAG DRIVER<AJ3>	8-98120-057-2	01	1	1204-	●	●
43	02.559 PROTECTOR; CONTROL UNIT AIR BAG DRIVER<AJ3>	8-98083-536-0	01	1	1204-	●	●
49	02.559 CLIP; PROTECTOR AIR BAG DRIVER<AJ3> 16.320 OD=8.3	8-97997-832-0	03	1	1204-	●	●
