◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#77908) — 89 parça

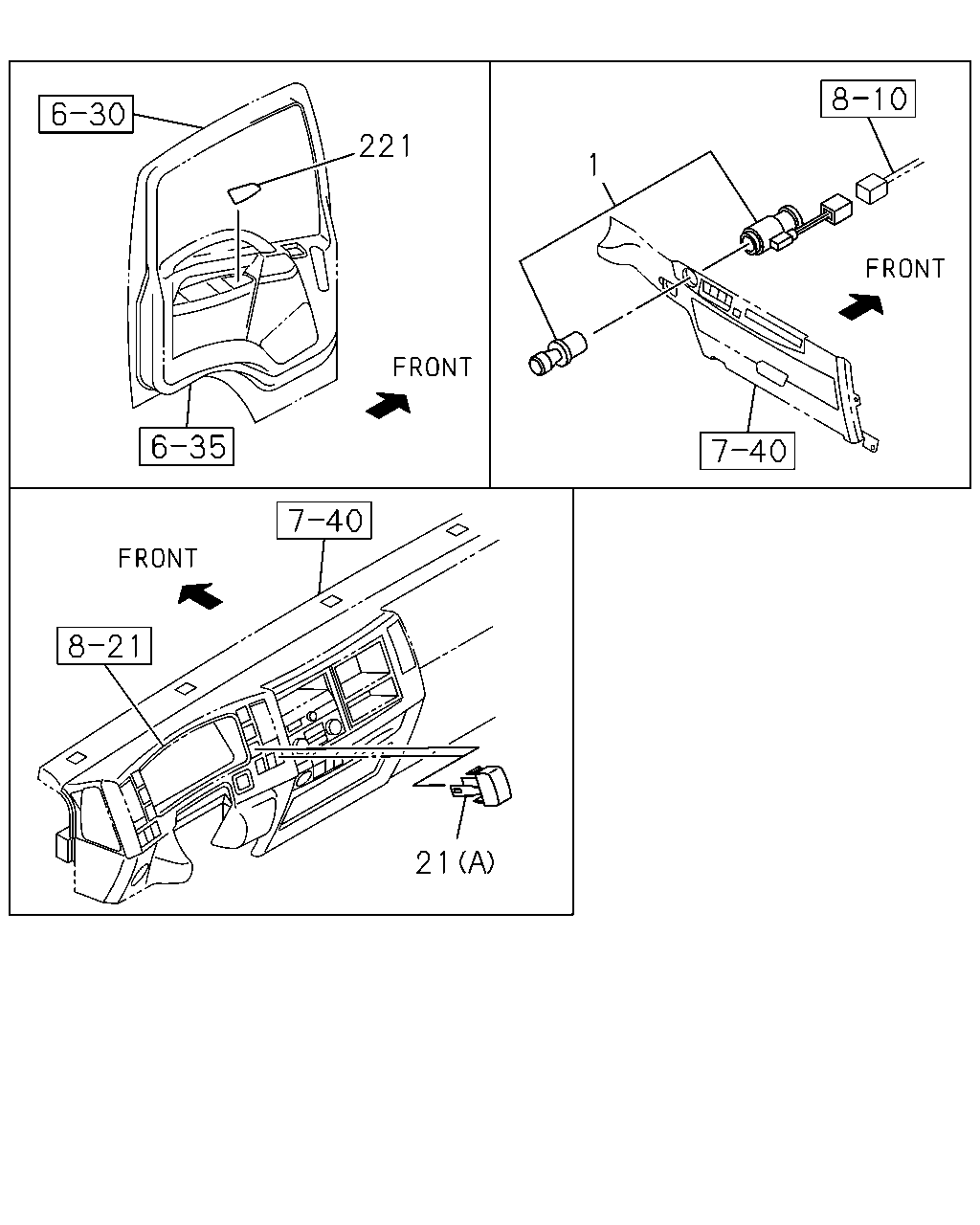

çizim 138060
1 21 221
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 1010- ● ●
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.748 (B) 		8-97101-974-0 01 1 1010- ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1010-1102 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1010-1102 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1010-1102 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1103-1108 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1103-1108 ● ●
21 09.744 COVER; HOLE
EXC. RUSSIA EQUIPMENT(B12) 16.081 (A) 		8-98025-954-1 01 1 1103-1108 ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1103-1108 ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1109-1109 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1109-1109 ● ●
21 09.744 COVER; HOLE
EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.081 (A) 		8-98025-954-1 01 1 1109-1109 ●
21 09.744 COVER; HOLE
EXC. CHILE EQUIPMENT(KE1) 16.081 (A) 		8-98025-954-1 01 1 1109-1109 ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1110-1410 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1110-1410 ● ●
21 09.744 COVER; HOLE
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) ARGENTINA COUNTRY(CX1) 16.081 (A) 		8-98025-954-1 01 1 1110-1410 ●
21 09.744 COVER; HOLE
COLOMBIA EQUIPMENT(CB7) EXC. ARGENTINA COUNTRY(CX1) 16.081 (A) 		8-98025-954-1 01 1 1110-1410 ●
21 09.744 COVER; HOLE
COLOMBIA EQUIPMENT(CB7) 16.081 (A) 		8-98025-954-1 01 1 1110-1410 ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1411-1412 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1411-1412 ● ●
21 09.744 COVER; HOLE
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) ARGENTINA COUNTRY(CX1) 16.081 (A) 		8-98025-954-1 01 1 1411-1412 ●
21 09.744 COVER; HOLE
COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EXC. ARGENTINA COUNTRY(CX1) 16.081 (A) 		8-98025-954-1 01 1 1411-1412 ●
21 09.744 COVER; HOLE
COLOMBIA EQUIPMENT(CB7) 16.081 (A) 		8-98025-954-1 01 1 1411-1412 ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1501-1510 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1501-1510 ● ●
21 09.744 COVER; HOLE
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) ARGENTINA COUNTRY(CX1) 16.081 (A) 		8-98025-954-1 01 1 1501-1510 ●
21 09.744 COVER; HOLE
COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0) EXC. ARGENTINA COUNTRY(CX1) 16.081 (A) 		8-98025-954-1 01 1 1501-1510 ●
21 09.744 COVER; HOLE
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) 16.081 (A) 		8-98025-954-1 01 1 1501-1510 ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1511- ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1511- ● ●
21 09.744 COVER; HOLE
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) ARGENTINA COUNTRY(CX1) 16.081 (A) 		8-98025-954-1 01 1 1511- ●
21 09.744 COVER; HOLE
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) EXC. ARGENTINA COUNTRY(CX1) 16.081 (A) 		8-98025-954-1 01 1 1511- ●
21 09.744 COVER; HOLE
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) 16.081 (A) 		8-98025-954-1 01 1 1511- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1010- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1010- ● ●

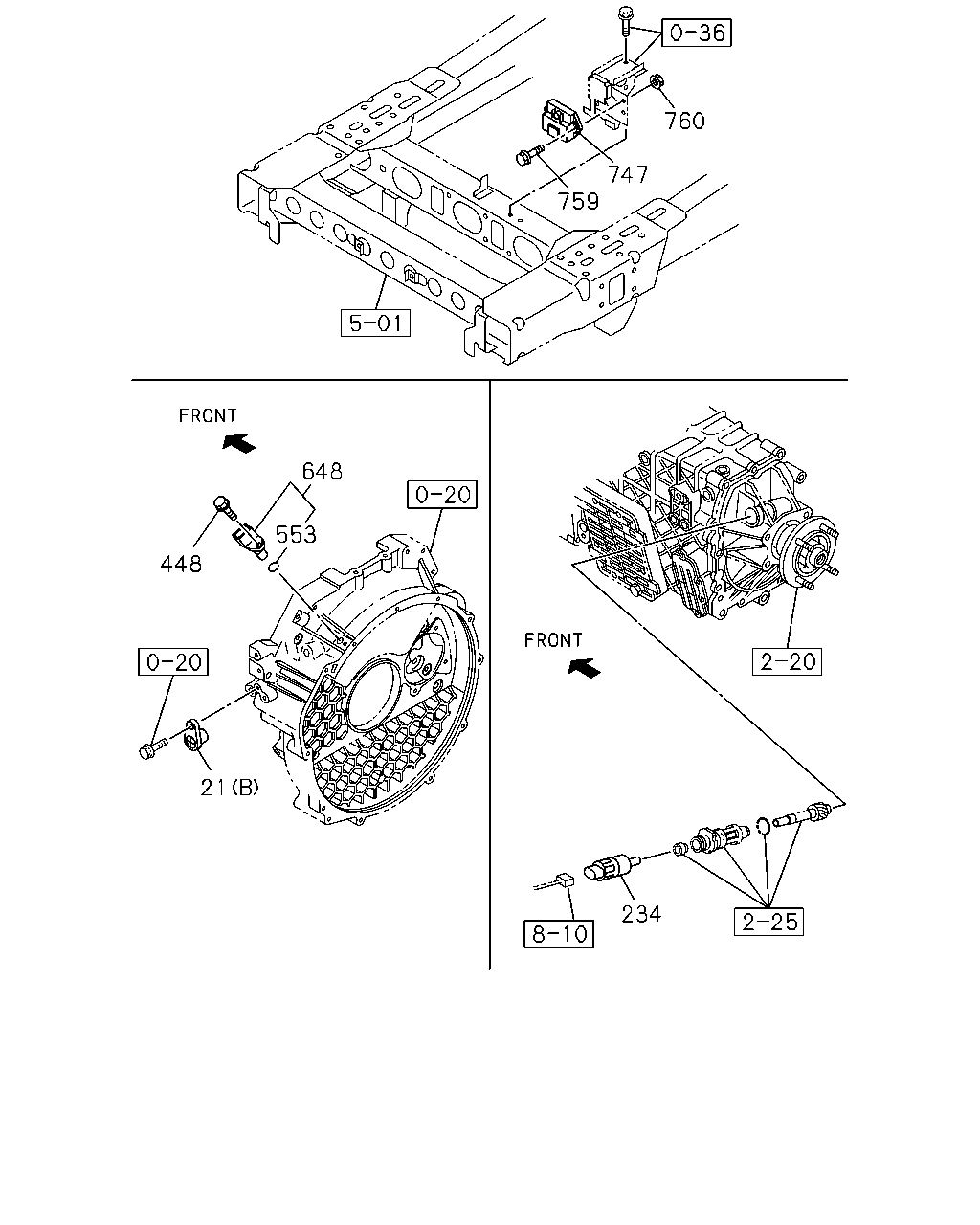

çizim 138490
648 553 448 21 234 759 747 760
BalonParca AdiParca NoAdetTipApplied Date A B
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.748 (B) 		8-97101-974-0 01 1 1010- ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1010-1102 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1010-1102 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1010-1102 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1103-1108 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1103-1108 ● ●
21 09.744 COVER; HOLE
EXC. RUSSIA EQUIPMENT(B12) 16.081 (A) 		8-98025-954-1 01 1 1103-1108 ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1103-1108 ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1109-1109 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1109-1109 ● ●
21 09.744 COVER; HOLE
EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.081 (A) 		8-98025-954-1 01 1 1109-1109 ●
21 09.744 COVER; HOLE
EXC. CHILE EQUIPMENT(KE1) 16.081 (A) 		8-98025-954-1 01 1 1109-1109 ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1110-1410 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1110-1410 ● ●
21 09.744 COVER; HOLE
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) ARGENTINA COUNTRY(CX1) 16.081 (A) 		8-98025-954-1 01 1 1110-1410 ●
21 09.744 COVER; HOLE
COLOMBIA EQUIPMENT(CB7) EXC. ARGENTINA COUNTRY(CX1) 16.081 (A) 		8-98025-954-1 01 1 1110-1410 ●
21 09.744 COVER; HOLE
COLOMBIA EQUIPMENT(CB7) 16.081 (A) 		8-98025-954-1 01 1 1110-1410 ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1411-1412 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1411-1412 ● ●
21 09.744 COVER; HOLE
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) ARGENTINA COUNTRY(CX1) 16.081 (A) 		8-98025-954-1 01 1 1411-1412 ●
21 09.744 COVER; HOLE
COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EXC. ARGENTINA COUNTRY(CX1) 16.081 (A) 		8-98025-954-1 01 1 1411-1412 ●
21 09.744 COVER; HOLE
COLOMBIA EQUIPMENT(CB7) 16.081 (A) 		8-98025-954-1 01 1 1411-1412 ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1501-1510 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1501-1510 ● ●
21 09.744 COVER; HOLE
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) ARGENTINA COUNTRY(CX1) 16.081 (A) 		8-98025-954-1 01 1 1501-1510 ●
21 09.744 COVER; HOLE
COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0) EXC. ARGENTINA COUNTRY(CX1) 16.081 (A) 		8-98025-954-1 01 1 1501-1510 ●
21 09.744 COVER; HOLE
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) 16.081 (A) 		8-98025-954-1 01 1 1501-1510 ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1511- ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1511- ● ●
21 09.744 COVER; HOLE
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) ARGENTINA COUNTRY(CX1) 16.081 (A) 		8-98025-954-1 01 1 1511- ●
21 09.744 COVER; HOLE
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) EXC. ARGENTINA COUNTRY(CX1) 16.081 (A) 		8-98025-954-1 01 1 1511- ●
21 09.744 COVER; HOLE
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) 16.081 (A) 		8-98025-954-1 01 1 1511- ●
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1010-1102 ● ●
234 03.682 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1103- ●
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1103- ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1010- ● ●
553 02.500 GASKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1010- ● ●
648 03.682 SENSOR; CRANK ANGLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97606-943-0 01 1 1010- ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER 8-98077-118-2 01 1 1010-1012 ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER 8-98162-807-0 01 1 1101-1108 ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98162-807-0 01 1 1109- ● ●
759 04.115 BOLT; CONT MODULE,TURBOCHARGER
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1010-1108 ● ●
759 04.115 BOLT; CONT MODULE,TURBOCHARGER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1109- ● ●
760 04.115 NUT; CONT MODULE,TURBOCHARGER
01.062 M6 FLANGE 		0-91180-106-0 02 1 1010-1108 ● ●
760 04.115 NUT; CONT MODULE,TURBOCHARGER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1109- ● ●

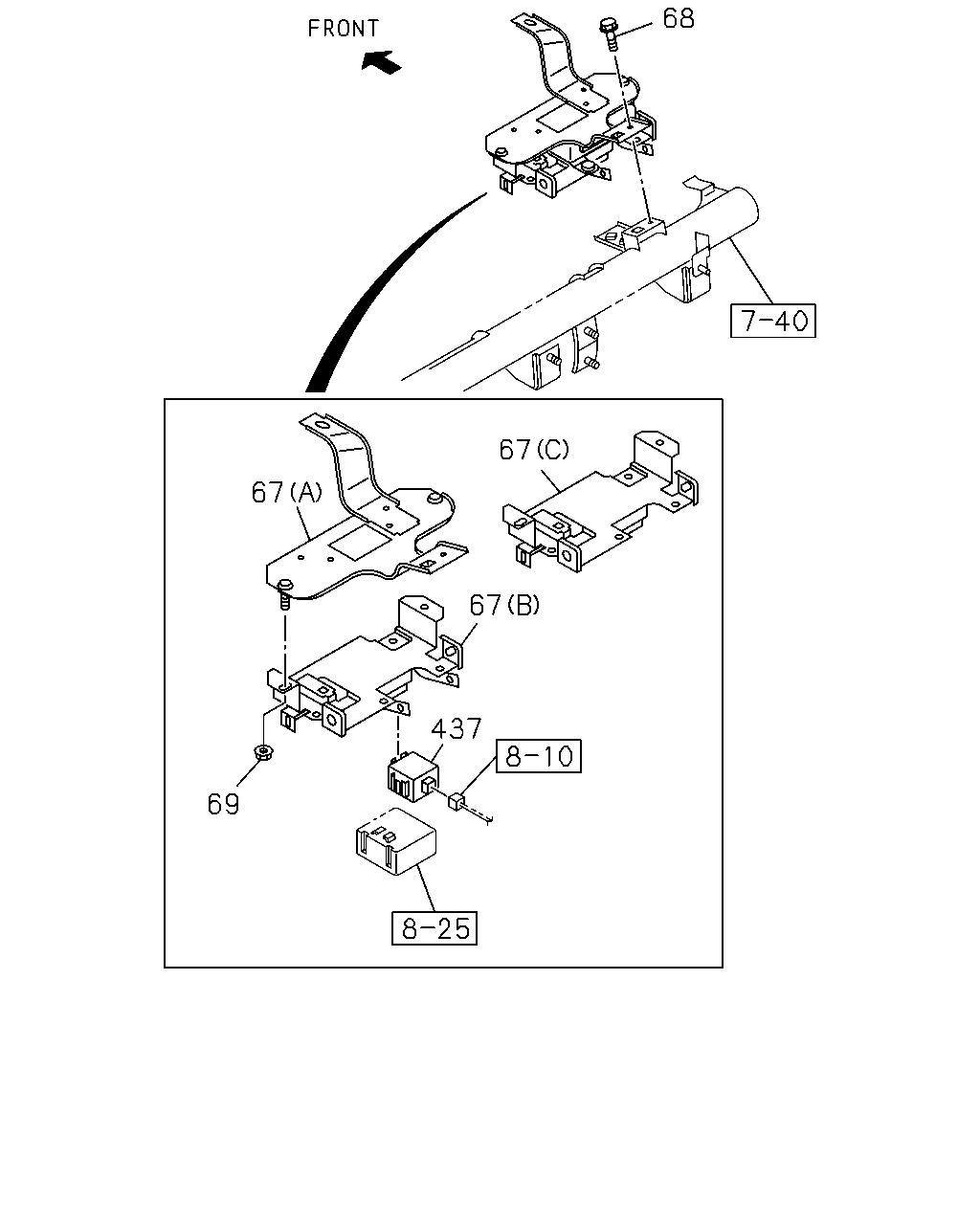

çizim 186905
68 67 67 67 69 437
BalonParca AdiParca NoAdetTipApplied Date A B
67 03.887 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 1010- ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 1010-1111 ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1405- ● ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 1010- ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1010- ● ●
437 10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> KOITO 		8-97359-129-0 01 1 1103- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
