◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#77907) — 278 parça

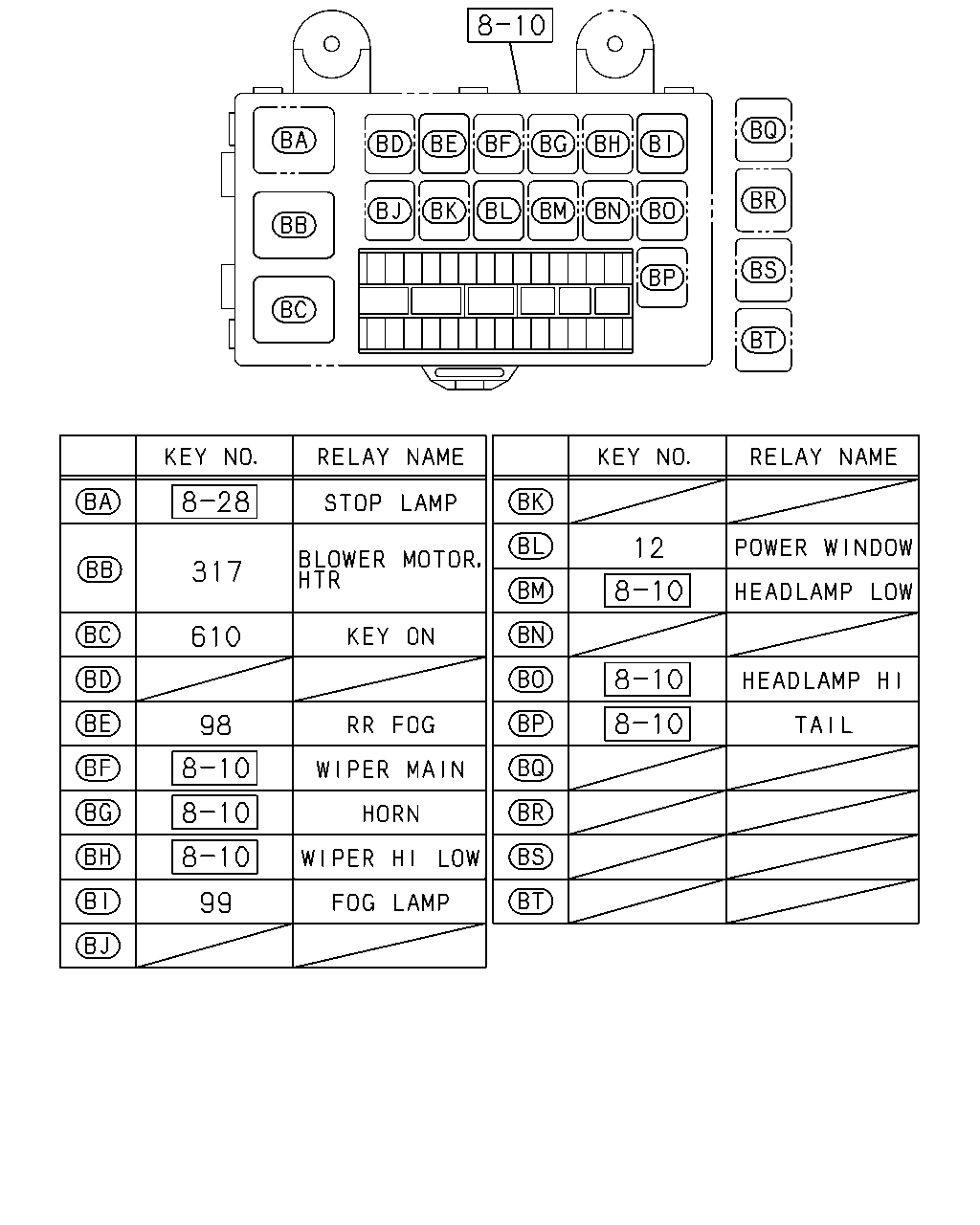

çizim 137345
317 610 98 99 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1010- ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1103- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1103-1108 ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1109-1111 ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1010-1102 ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1103- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1010-1204 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
çizim 137866
674 151 154
BalonParca AdiParca NoAdetTipApplied Date A B
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1103-1108 ●
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1109- ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1103-1108 ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1109- ● ●
674 02.510 RELAY; BATTERY
FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1103- ●

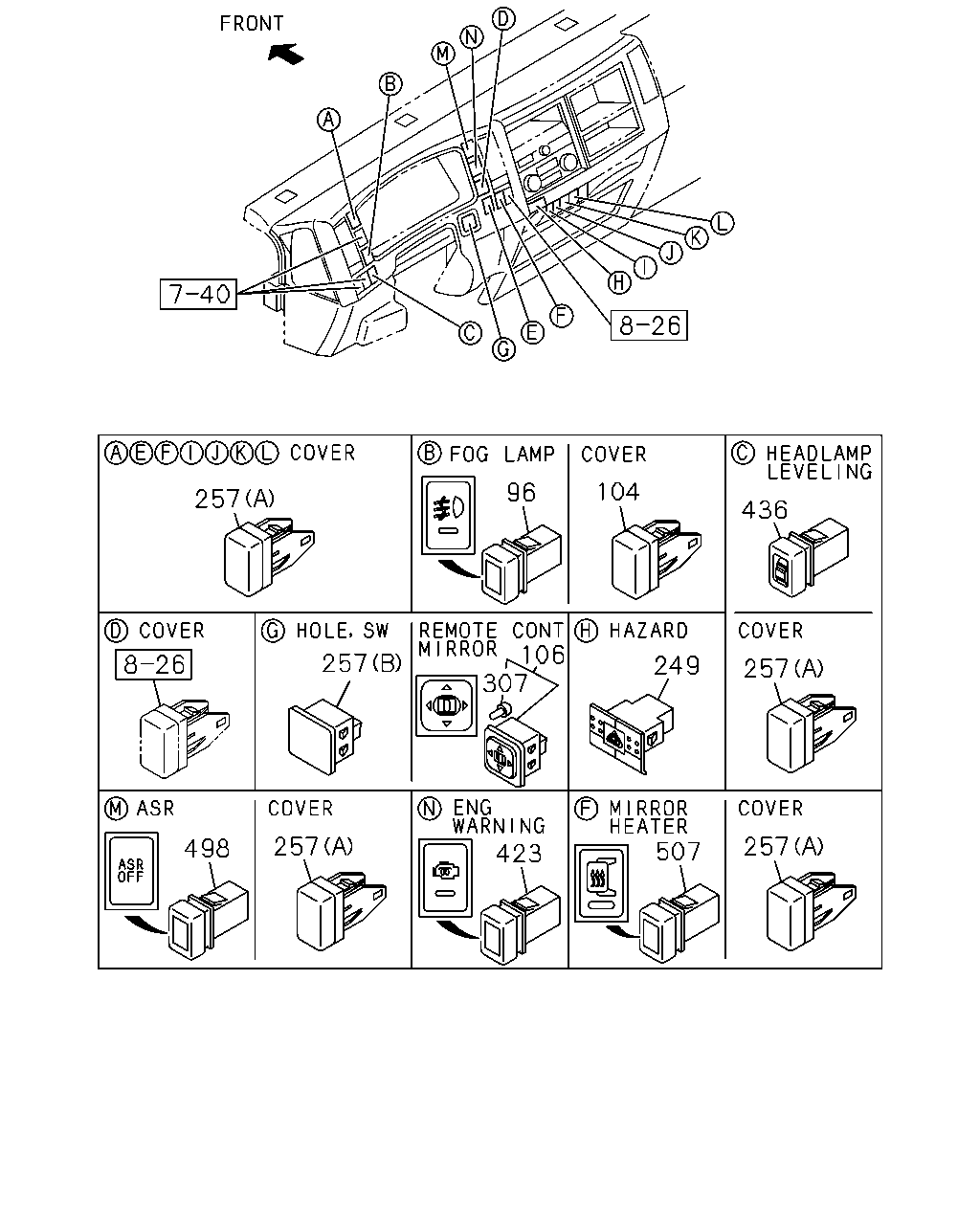

çizim 138146
257 507 423 257 498 257 249 307 106 257 436 104 96 257
BalonParca AdiParca NoAdetTipApplied Date A B
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-3 01 1 1103-1108 ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-3 01 1 1109-1111 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-97387-031-4 01 1 1112- ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
16.081 		8-98025-954-1 01 1 1010-1102 ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1103-1111 ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 16.081 		8-98025-954-1 01 1 1112- ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1103- ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1010- ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1103- ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1103- ●
257 16.081 COVER; HOLE,SW
(C) 		8-98029-917-0 01 1 1010-1203 ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C) 		8-98029-917-0 01 1 1204- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1103-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1103-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1103-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1103-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1103-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1103-1211 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1103-1211 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1103-1211 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1103-1211 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1103-1211 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1103-1211 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1103-1211 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212-1410 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212-1410 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212-1410 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212-1410 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212-1410 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1411-1412 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1411-1412 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1411-1412 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1411-1412 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1411-1412 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1501-1510 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1501-1510 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1501-1510 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1501-1510 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1501-1510 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1511- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1511- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1511- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1511- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1511- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) (A) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1511- ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 1103- ●
423 03.883 SWITCH; ENG WARMING
RUSSIA EQUIPMENT(B12) 		8-97387-010-1 01 1 1103-1108 ●
423 03.883 SWITCH; ENG WARMING
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-97387-010-1 01 1 1109-1109 ●
423 03.883 SWITCH; ENG WARMING
CHILE EQUIPMENT(KE1) 		8-97387-010-1 01 1 1109-1109 ●
423 03.883 SWITCH; ENG WARMING
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. ARGENTINA COUNTRY(CX1) 		8-97387-010-2 01 1 1110- ●
423 03.883 SWITCH; ENG WARMING
CHILE EQUIPMENT(KE1) 		8-97387-010-2 01 1 1110- ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97386-981-2 01 1 1103- ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97386-920-2 01 1 1103- ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-97386-924-3 01 1 1103- ●

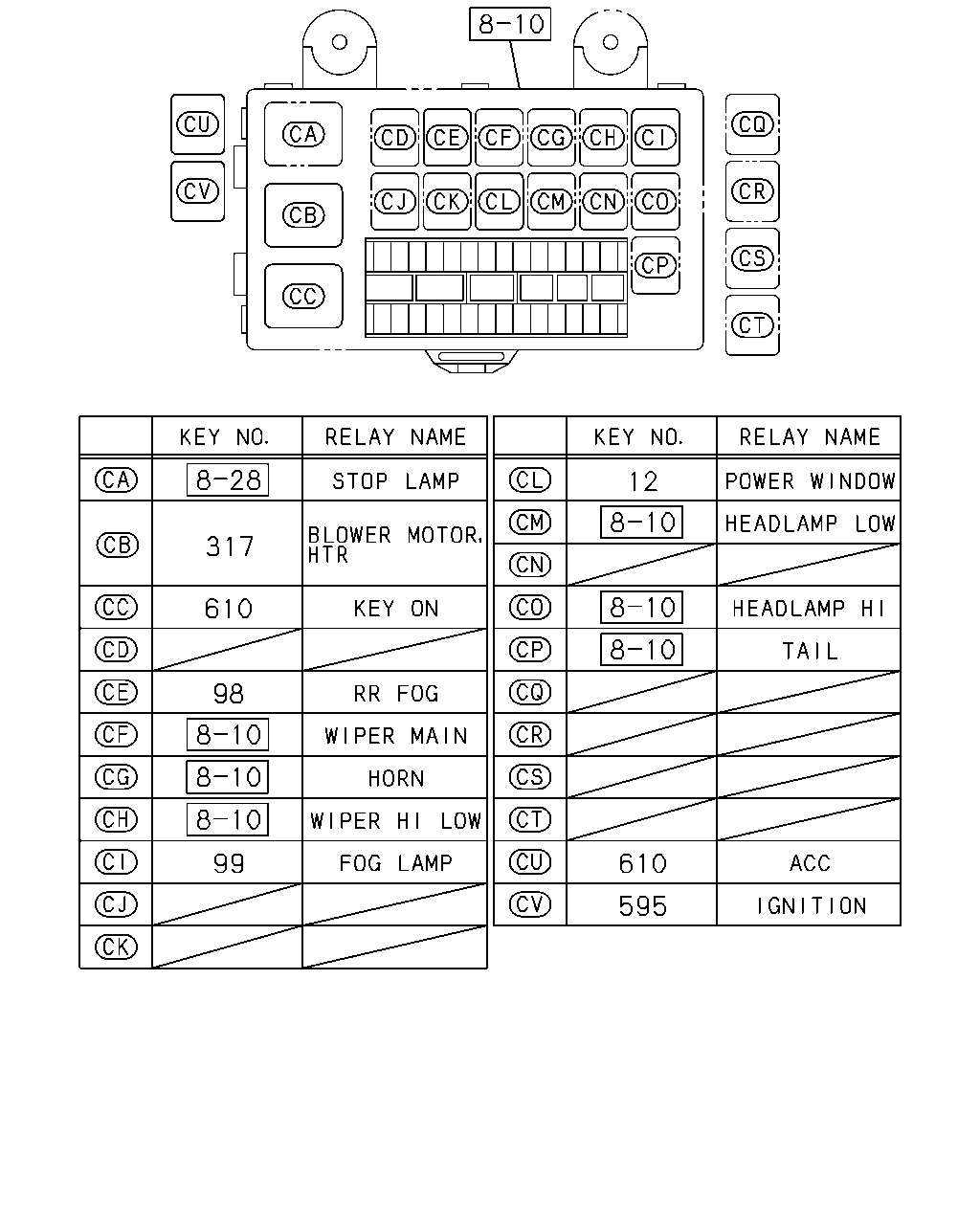

çizim 138194
317 610 98 99 12 610 595
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1010- ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1103- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1103-1108 ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1109-1111 ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1010-1102 ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1103- ● ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1010-1204 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●

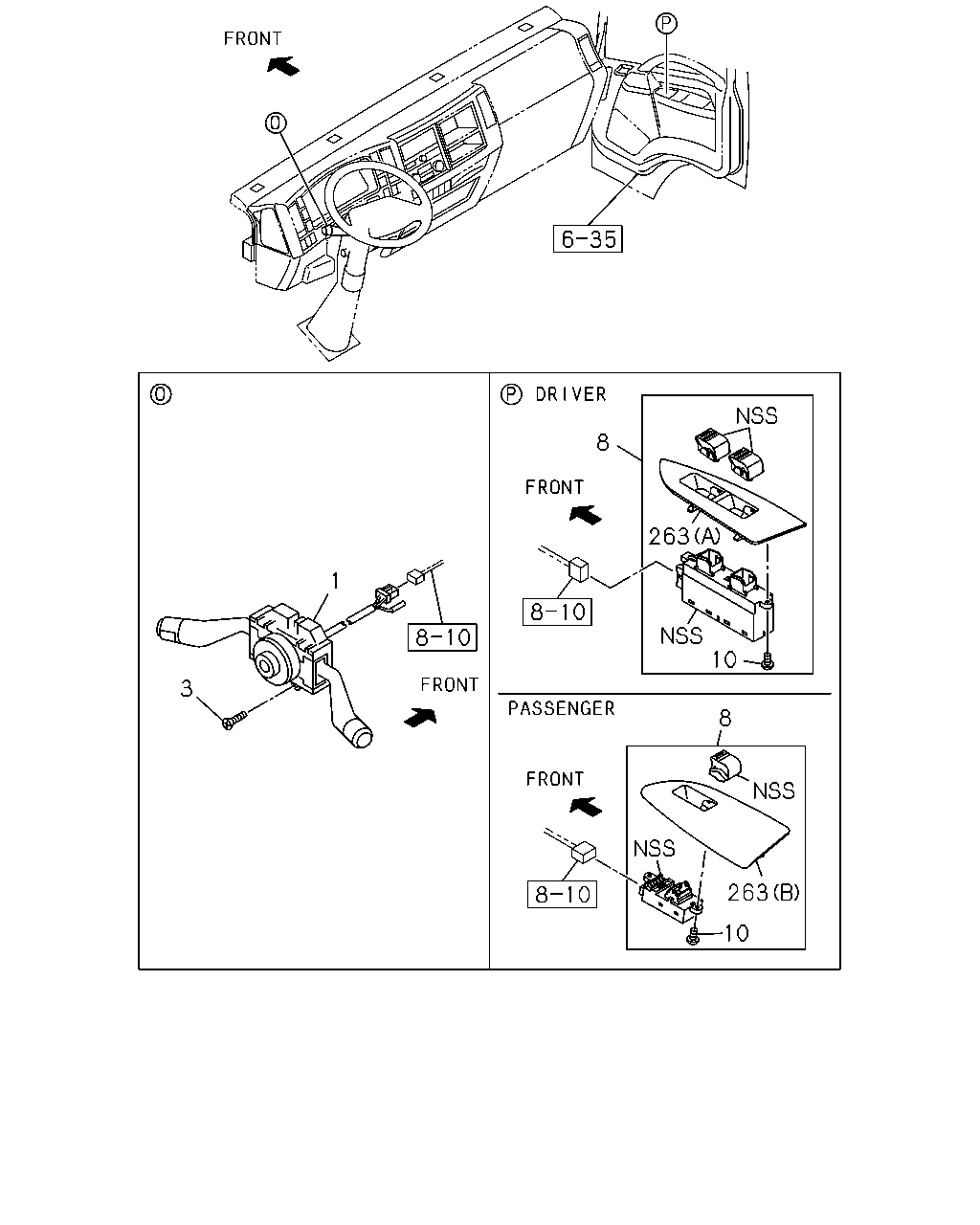

çizim 138270
10 263 8 10 263 8 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79> 		8-98146-640-0 01 1 1205-1210 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> 		8-98146-640-0 01 1 1205-1210 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79> 		8-98217-813-0 01 1 1211-1310 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> 		8-98217-813-0 01 1 1211-1310 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79> 		8-98243-739-0 01 1 1311-1510 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> 		8-98243-739-0 01 1 1311-1510 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> EXC. RR FOG LAMP<T79> 		8-98243-739-0 01 1 1511- ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> 		8-98243-739-0 01 1 1511- ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98146-638-0 01 1 1205-1210 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> EXC. INTERMITTENT WIPER<C13> 		8-98146-638-0 01 1 1205-1210 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98217-811-0 01 1 1211-1310 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> EXC. INTERMITTENT WIPER<C13> 		8-98217-811-0 01 1 1211-1310 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98243-738-0 01 1 1311-1510 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> EXC. INTERMITTENT WIPER<C13> 		8-98243-738-0 01 1 1311-1510 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98243-738-0 01 1 1511- ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13> 		8-98243-738-0 01 1 1511- ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-98146-639-0 01 1 1204-1210 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-98217-812-0 01 1 1211-1310 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-98243-740-0 01 1 1311-1510 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. CORNERING LAMP<T87> 		8-98243-740-0 01 1 1511- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79> 		8-98070-010-1 01 1 1109-1203 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98070-010-1 01 1 1109-1203 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,RR FOG LAMP<T79> 		8-98070-010-1 01 1 1204-1310 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3> 		8-98070-010-1 01 1 1204-1310 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,RR FOG LAMP<T79> 		8-98243-749-0 01 1 1311-1510 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3> 		8-98243-749-0 01 1 1311-1510 ●
1 02.895 SWITCH; COMB
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,RR FOG LAMP<T79> 		8-98243-749-0 01 1 1511- ●
1 02.895 SWITCH; COMB
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3> 		8-98243-749-0 01 1 1511- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-98073-850-1 01 1 1103-1203 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3> 		8-98073-850-1 01 1 1204-1310 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3> 		8-98243-757-0 01 1 1311-1510 ●
1 02.895 SWITCH; COMB
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,CORNERING LAMP<T87> 		8-98243-757-0 01 1 1511- ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> EXC. INTERMITTENT WIPER<C13> 		8-98070-007-2 01 1 1103-1203 ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13> 		8-98070-007-2 01 1 1204-1310 ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13> 		8-98243-750-0 01 1 1311-1510 ●
1 02.895 SWITCH; COMB
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13>,CORNERING LAMP<T87> 		8-98243-750-0 01 1 1511- ●
1 02.895 SWITCH; COMB 8-98070-008-2 01 1 1010-1102 ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98070-008-2 01 1 1103-1108 ●
1 02.895 SWITCH; COMB 8-98070-008-2 01 1 1103-1108 ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98070-008-2 01 1 1109-1203 ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98070-008-2 01 1 1109-1203 ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98070-008-2 01 1 1204-1310 ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13> 		8-98070-008-2 01 1 1204-1310 ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98243-748-0 01 1 1311-1510 ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13> 		8-98243-748-0 01 1 1311-1510 ●
1 02.895 SWITCH; COMB
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98243-748-0 01 1 1511- ●
1 02.895 SWITCH; COMB
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13> 		8-98243-748-0 01 1 1511- ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1010- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98001-737-2 01 1 1010-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98316-418-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 06.609 DRIVER SIDE 		8-98159-544-0 01 1 1010-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98298-751-0 01 1 1510- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 1010- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (A) 		8-98153-838-0 01 1 1010- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (B) 		8-98153-843-0 01 1 1010- ● ●

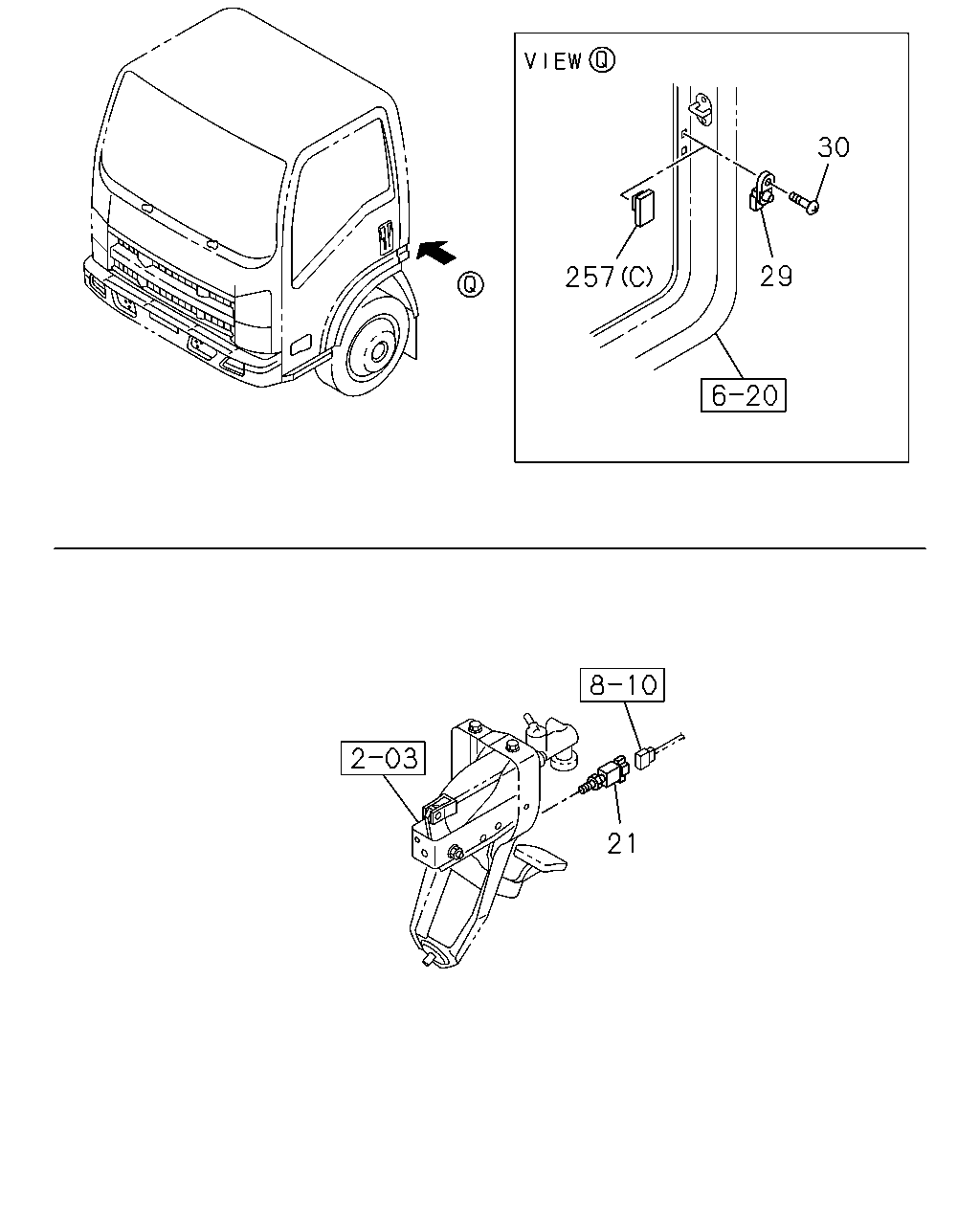

çizim 186920
21 29 30 257
BalonParca AdiParca NoAdetTipApplied Date A B
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1010- ● ●
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1010-1203 ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) BLACK 		8-98022-211-0 01 1 1204- ● ●
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1204- ● ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) M5X18 		8-98047-201-0 02 1 1204- ● ●
30 16.263 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1010-1203 ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) M5X18 		8-98047-201-0 01 1 1204- ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1103- ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1103- ●
257 16.081 COVER; HOLE,SW
(C) 		8-98029-917-0 01 1 1010-1203 ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C) 		8-98029-917-0 01 1 1204- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1010-1102 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1103-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1103-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1103-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1103-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1103-1211 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1103-1211 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1103-1211 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1103-1211 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1103-1211 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1103-1211 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1103-1211 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1103-1211 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212-1410 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212-1410 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212-1410 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212-1410 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212-1410 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212-1410 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1411-1412 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1411-1412 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1411-1412 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1411-1412 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1411-1412 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1411-1412 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1501-1510 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1501-1510 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1501-1510 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1501-1510 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1501-1510 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1501-1510 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1511- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1511- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1511- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1511- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1511- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) (A) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1511- ●
çizim 186928
39
BalonParca AdiParca NoAdetTipApplied Date A B
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
