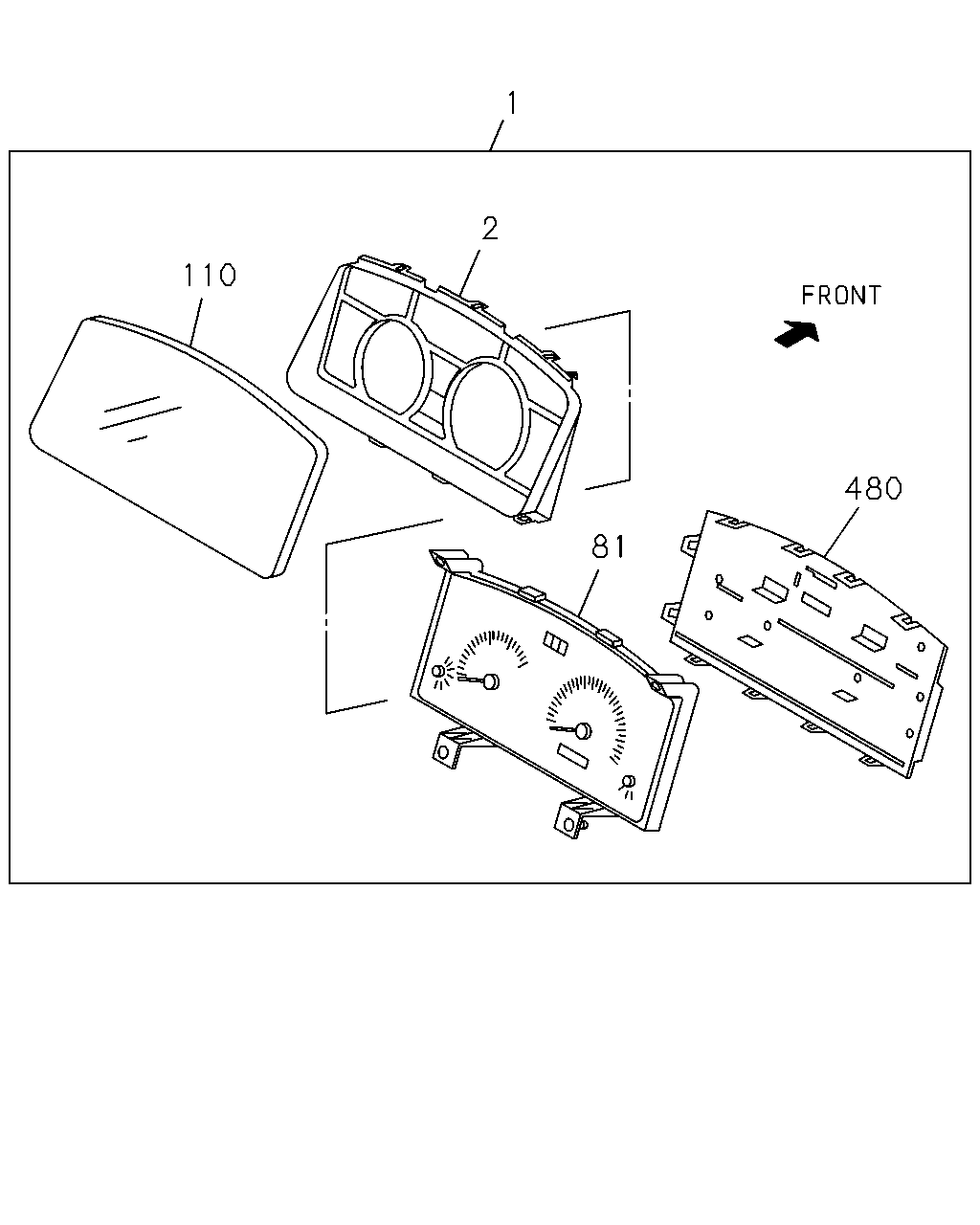

8-21 — METER ASM (#77906) — 98 parça

1 2 110 480 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.735 METER COMPL; CLUSTER 4JJ1-TCC ENG(RDU) EXC. SPEEDOMETER MILE<UC1>	8-98161-295-0	01	1	1209-1507	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7),SPEEDOMETER MILE<UC1>	8-98161-295-0	01	1	1508-	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEEDOMETER MILE<UC1>	8-98161-295-0	01	1	1508-	●
1	09.735 METER COMPL; CLUSTER SPEEDOMETER MILE<UC1>	8-98126-675-3	01	1	1103-1108	●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) SPEEDOMETER MILE<UC1>	8-98126-675-3	01	1	1109-1507	●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) SPEEDOMETER MILE<UC1> EXC. COLOMBIA EQUIPMENT(CB7)	8-98126-675-3	01	1	1508-	●	●
1	09.735 METER COMPL; CLUSTER	8-98021-249-4	01	1	1010-1102	●	●
1	09.735 METER COMPL; CLUSTER EXC. SPEEDOMETER MILE<UC1>	8-98021-249-4	01	1	1103-1108	●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. SPEEDOMETER MILE<UC1>	8-98021-249-4	01	1	1109-1507	●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7),SPEEDOMETER MILE<UC1>	8-98021-249-4	01	1	1508-	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEEDOMETER MILE<UC1>	8-98021-249-4	01	1	1508-	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. SPEEDOMETER MILE<UC1>	8-98021-249-4	01	1	1508-		●
2	09.735 PANEL; CLUSTER	8-98054-432-0	01	1	1010-1108	●	●
2	09.735 PANEL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98054-432-0	01	1	1109-1208	●	●
2	09.735 PANEL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98054-432-0	01	1	1209-1507	●	●
2	09.735 PANEL; CLUSTER 4JJ1-TCC ENG(RDU) EXC. SPEEDOMETER MILE<UC1>	8-98054-432-0	01	1	1209-1507	●
2	09.735 PANEL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) SPEEDOMETER MILE<UC1> EXC. COLOMBIA EQUIPMENT(CB7)	8-98054-432-0	01	1	1508-	●	●
2	09.735 PANEL; CLUSTER 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7),SPEEDOMETER MILE<UC1>	8-98054-432-0	01	1	1508-	●
2	09.735 PANEL; CLUSTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEEDOMETER MILE<UC1>	8-98054-432-0	01	1	1508-	●
2	09.735 PANEL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. SPEEDOMETER MILE<UC1>	8-98054-432-0	01	1	1508-		●
81	09.735 METER SUB ASM 4JJ1-TCC ENG(RDU) EXC. SPEEDOMETER MILE<UC1>	8-98176-353-0	01	1	1209-1507	●
81	09.735 METER SUB ASM 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7),SPEEDOMETER MILE<UC1>	8-98176-353-0	01	1	1508-	●
81	09.735 METER SUB ASM 4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEEDOMETER MILE<UC1>	8-98176-353-0	01	1	1508-	●
81	09.735 METER SUB ASM SPEEDOMETER MILE<UC1>	8-98126-832-0	01	1	1103-1108	●	●
81	09.735 METER SUB ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) SPEEDOMETER MILE<UC1>	8-98126-832-0	01	1	1109-1507	●	●
81	09.735 METER SUB ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) SPEEDOMETER MILE<UC1> EXC. COLOMBIA EQUIPMENT(CB7)	8-98126-832-0	01	1	1508-	●	●
81	09.735 METER SUB ASM	8-98073-677-0	01	1	1010-1102	●	●
81	09.735 METER SUB ASM EXC. SPEEDOMETER MILE<UC1>	8-98073-677-0	01	1	1103-1108	●	●
81	09.735 METER SUB ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. SPEEDOMETER MILE<UC1>	8-98073-677-0	01	1	1109-1507	●	●
81	09.735 METER SUB ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7),SPEEDOMETER MILE<UC1>	8-98073-677-0	01	1	1508-	●
81	09.735 METER SUB ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEEDOMETER MILE<UC1>	8-98073-677-0	01	1	1508-	●
81	09.735 METER SUB ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. SPEEDOMETER MILE<UC1>	8-98073-677-0	01	1	1508-		●
110	09.748 GLASS; CLUSTER METER	8-98054-431-0	01	1	1010-1108	●	●
110	09.748 GLASS; CLUSTER METER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98054-431-0	01	1	1109-1208	●	●
110	09.748 GLASS; CLUSTER METER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98054-431-0	01	1	1209-1507	●	●
110	09.748 GLASS; CLUSTER METER 4JJ1-TCC ENG(RDU) EXC. SPEEDOMETER MILE<UC1>	8-98054-431-0	01	1	1209-1507	●
110	09.748 GLASS; CLUSTER METER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) SPEEDOMETER MILE<UC1> EXC. COLOMBIA EQUIPMENT(CB7)	8-98054-431-0	01	1	1508-	●	●
110	09.748 GLASS; CLUSTER METER 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7),SPEEDOMETER MILE<UC1>	8-98054-431-0	01	1	1508-	●
110	09.748 GLASS; CLUSTER METER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEEDOMETER MILE<UC1>	8-98054-431-0	01	1	1508-	●
110	09.748 GLASS; CLUSTER METER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. SPEEDOMETER MILE<UC1>	8-98054-431-0	01	1	1508-		●
480	09.748 COVER; METER BLACK	8-98054-433-0	01	1	1010-1108	●	●
480	09.748 COVER; METER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) BLACK	8-98054-433-0	01	1	1109-1208	●	●
480	09.748 COVER; METER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) BLACK	8-98054-433-0	01	1	1209-1507	●	●
480	09.748 COVER; METER 4JJ1-TCC ENG(RDU) EXC. SPEEDOMETER MILE<UC1> BLACK	8-98054-433-0	01	1	1209-1507	●
480	09.748 COVER; METER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) SPEEDOMETER MILE<UC1> EXC. COLOMBIA EQUIPMENT(CB7) BLACK	8-98054-433-0	01	1	1508-	●	●
480	09.748 COVER; METER 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7),SPEEDOMETER MILE<UC1> BLACK	8-98054-433-0	01	1	1508-	●
480	09.748 COVER; METER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEEDOMETER MILE<UC1> BLACK	8-98054-433-0	01	1	1508-	●
480	09.748 COVER; METER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. SPEEDOMETER MILE<UC1> BLACK	8-98054-433-0	01	1	1508-		●

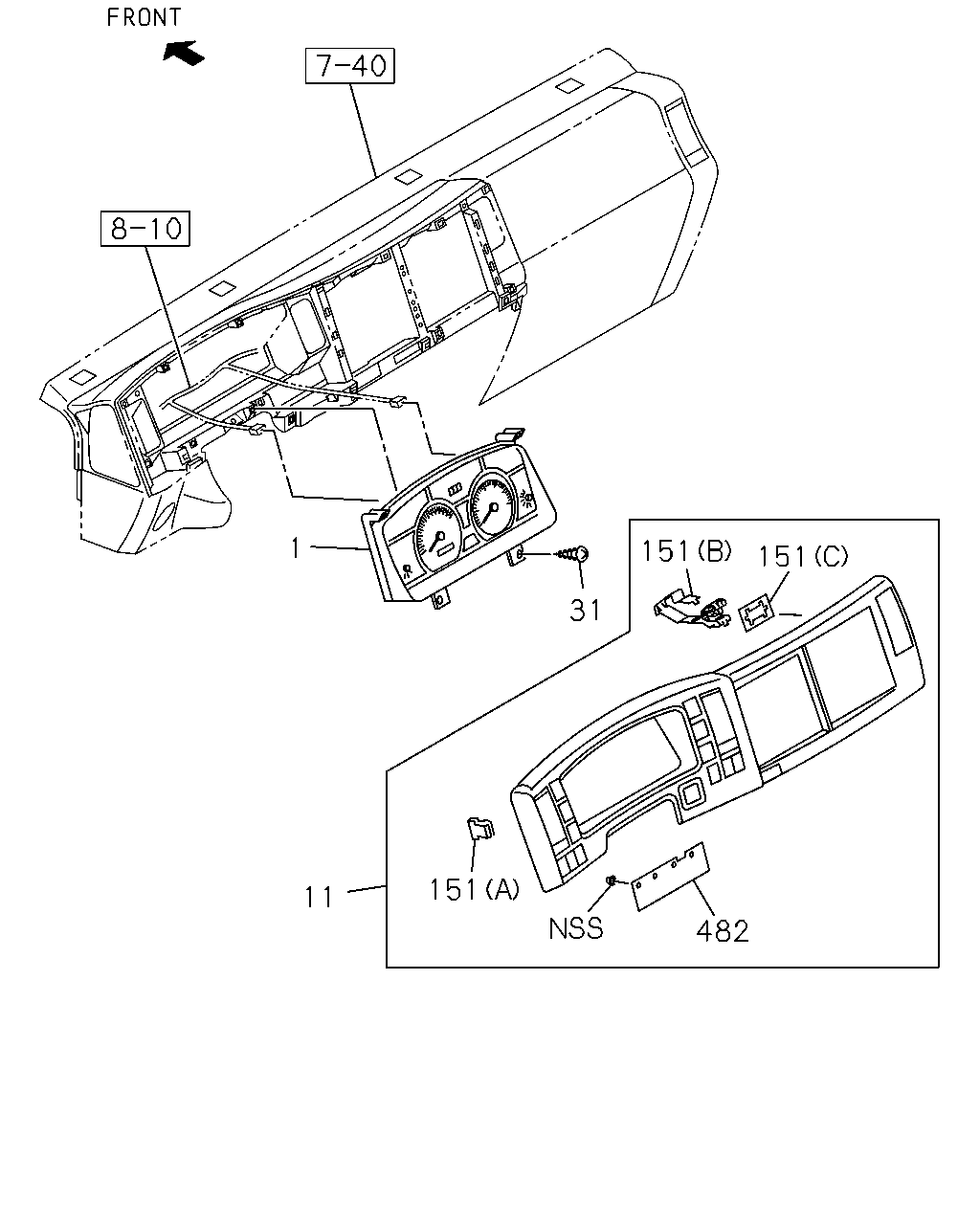

151 151 31 1 11 151 482

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.735 METER COMPL; CLUSTER 4JJ1-TCC ENG(RDU) EXC. SPEEDOMETER MILE<UC1>	8-98161-295-0	01	1	1209-1507	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7),SPEEDOMETER MILE<UC1>	8-98161-295-0	01	1	1508-	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEEDOMETER MILE<UC1>	8-98161-295-0	01	1	1508-	●
1	09.735 METER COMPL; CLUSTER SPEEDOMETER MILE<UC1>	8-98126-675-3	01	1	1103-1108	●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) SPEEDOMETER MILE<UC1>	8-98126-675-3	01	1	1109-1507	●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) SPEEDOMETER MILE<UC1> EXC. COLOMBIA EQUIPMENT(CB7)	8-98126-675-3	01	1	1508-	●	●
1	09.735 METER COMPL; CLUSTER	8-98021-249-4	01	1	1010-1102	●	●
1	09.735 METER COMPL; CLUSTER EXC. SPEEDOMETER MILE<UC1>	8-98021-249-4	01	1	1103-1108	●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. SPEEDOMETER MILE<UC1>	8-98021-249-4	01	1	1109-1507	●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7),SPEEDOMETER MILE<UC1>	8-98021-249-4	01	1	1508-	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEEDOMETER MILE<UC1>	8-98021-249-4	01	1	1508-	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. SPEEDOMETER MILE<UC1>	8-98021-249-4	01	1	1508-		●
11	09.743 CLUSTER ASM; METER RUSSIA EQUIPMENT(B12) DARK GRAY	8-97418-534-1	01	1	1103-1504	●
11	09.743 CLUSTER ASM; METER RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) DARK GRAY	8-97418-534-1	01	1	1505-	●
11	09.743 CLUSTER ASM; METER CHILE EQUIPMENT(KE1) DARK GRAY	8-97418-534-1	01	1	1505-		●
11	09.743 CLUSTER ASM; METER DARK GRAY	8-97406-005-6	01	1	1010-1102	●	●
11	09.743 CLUSTER ASM; METER COLOMBIA EQUIPMENT(CB7) DARK GRAY	8-97406-005-6	01	1	1103-1108	●
11	09.743 CLUSTER ASM; METER DARK GRAY	8-97406-005-6	01	1	1103-1108		●
11	09.743 CLUSTER ASM; METER COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) DARK GRAY	8-97406-005-6	01	1	1109-1501	●	●
11	09.743 CLUSTER ASM; METER COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) DARK GRAY	8-97406-005-6	01	1	1502-1504	●
11	09.743 CLUSTER ASM; METER COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) DARK GRAY	8-97406-005-6	01	1	1502-1504		●
11	09.743 CLUSTER ASM; METER EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) DARK GRAY	8-97406-005-6	01	1	1505-	●
11	09.743 CLUSTER ASM; METER EXC. CHILE EQUIPMENT(KE1) DARK GRAY	8-97406-005-6	01	1	1505-		●
31	09.761 SCREW; METER,INST PANEL 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1010-1101	●	●
31	09.761 SCREW; METER,INST PANEL 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●
31	09.761 SCREW; METER,INST PANEL 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●
151	09.747 CLIP; METER CLUSTER RUSSIA EQUIPMENT(B12) 16.090 (B)	8-98152-030-0	01	1	1103-1504	●
151	09.747 CLIP; METER CLUSTER RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.090 (B)	8-98152-030-0	01	1	1505-	●
151	09.747 CLIP; METER CLUSTER CHILE EQUIPMENT(KE1) 16.090 (B)	8-98152-030-0	01	1	1505-		●
151	09.747 CLIP; METER CLUSTER RUSSIA EQUIPMENT(B12) 16.090 (C)	8-98152-031-0	01	1	1103-1504	●
151	09.747 CLIP; METER CLUSTER RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.090 (C)	8-98152-031-0	01	1	1505-	●
151	09.747 CLIP; METER CLUSTER CHILE EQUIPMENT(KE1) 16.090 (C)	8-98152-031-0	01	1	1505-		●
151	09.747 CLIP; METER CLUSTER COLOMBIA EQUIPMENT(CB7) 16.085 (A)	8-98021-271-0	13	1	1103-1108	●
151	09.747 CLIP; METER CLUSTER 16.085 (A)	8-98021-271-0	13	1	1103-1108		●
151	09.747 CLIP; METER CLUSTER COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 16.085 (A)	8-98021-271-0	13	1	1109-1501	●	●
151	09.747 CLIP; METER CLUSTER COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 16.085 (A)	8-98021-271-0	13	1	1502-1504	●
151	09.747 CLIP; METER CLUSTER COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 16.085 (A)	8-98021-271-0	13	1	1502-1504		●
151	09.747 CLIP; METER CLUSTER EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.085 (A)	8-98021-271-0	13	1	1505-	●
151	09.747 CLIP; METER CLUSTER EXC. CHILE EQUIPMENT(KE1) 16.085 (A)	8-98021-271-0	13	1	1505-		●
151	09.747 CLIP; METER CLUSTER 16.085 (A)	8-98021-271-0	13	1	1010-1102	●	●
151	09.747 CLIP; METER CLUSTER RUSSIA EQUIPMENT(B12) 16.085 (A)	8-98021-271-0	12	1	1103-1504	●
151	09.747 CLIP; METER CLUSTER RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.085 (A)	8-98021-271-0	12	1	1505-	●
151	09.747 CLIP; METER CLUSTER CHILE EQUIPMENT(KE1) 16.085 (A)	8-98021-271-0	12	1	1505-		●
482	09.772 SEAL; CLUSTER METER	8-98116-843-0	01	1	1010-	●	●

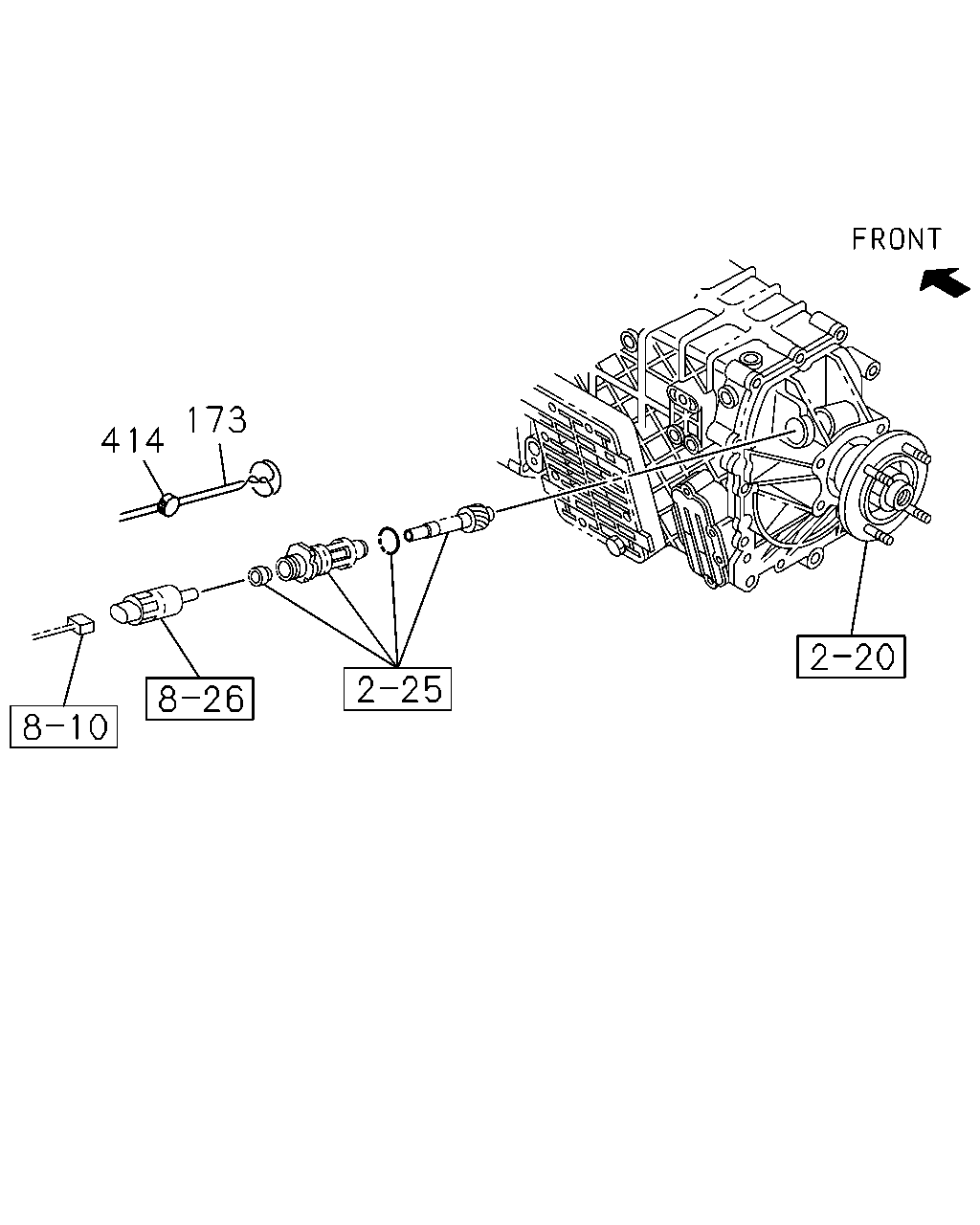

414 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
173	09.744 WIRE; LEAD SPEED LIMITER 90KM(NMJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	1-80249-010-0	01	1	1409-1507	●
173	09.744 WIRE; LEAD SPEED LIMITER 90KM(NMJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	1-80249-010-0	01	1	1508-	●
173	09.744 WIRE; LEAD SPEED LIMITER 90KM(NMJ)	1-80249-010-0	01	1	1508-		●
414	09.772 SEAL; LEAD SPEED LIMITER 90KM(NMJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	1-15739-008-0	01	1	1409-1507	●
414	09.772 SEAL; LEAD SPEED LIMITER 90KM(NMJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	1-15739-008-0	01	1	1508-	●
414	09.772 SEAL; LEAD SPEED LIMITER 90KM(NMJ)	1-15739-008-0	01	1	1508-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
