Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#77905) — 376 parça

24 515 577 219 294 515 524 552 24 515 552 139 516 139 313 481 38 139 150 516 139 480 480 529 304 480 377 377 386 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	02.559 NUT; HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1010-1108	●	●
24	02.559 NUT; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1109-	●	●
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1010-1409	●	●
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1209-	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1103-	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1010-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1010-	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1010-	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1010-1101	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1102	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1103-1212	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FRIGID ZONE(YL3) M8X12 FLANGE	0-28050-812-0	01	1	1307-	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M8X12 FLANGE	0-28050-812-0	01	1	1010-1306	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) M8X12 FLANGE	0-28050-812-0	02	1	1307-	●	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1010-1208	●	●
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1209-1402	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1209-1402		●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1010-1108	●	●
294	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-1208	●	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1209-	●
294	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1209-		●
304	02.483 BOLT; ENG HARNESS CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 M10X16 FLANGE	0-28151-016-0	01	1	1010-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1010-	●	●
377	02.559 BOLT; CAB EARTH 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1010-	●	●
377	02.559 BOLT; CAB EARTH (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1010-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1010-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1010-	●	●
480	02.483 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1103-	●
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1010-1208	●	●
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1209-	●
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1209-		●
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1010-	●	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1209-	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1010-1208	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1010-1208	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1209-	●	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1209-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1010-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1010-	●	●
516	02.559 BOLT; HARNESS 4JJ1-TCC ENG(RDU) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1209-	●
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1010-1102	●	●
516	02.559 BOLT; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1103-1109	●
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1103-1109		●
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1110-	●	●
524	02.559 NUT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1209-	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1010-	●	●

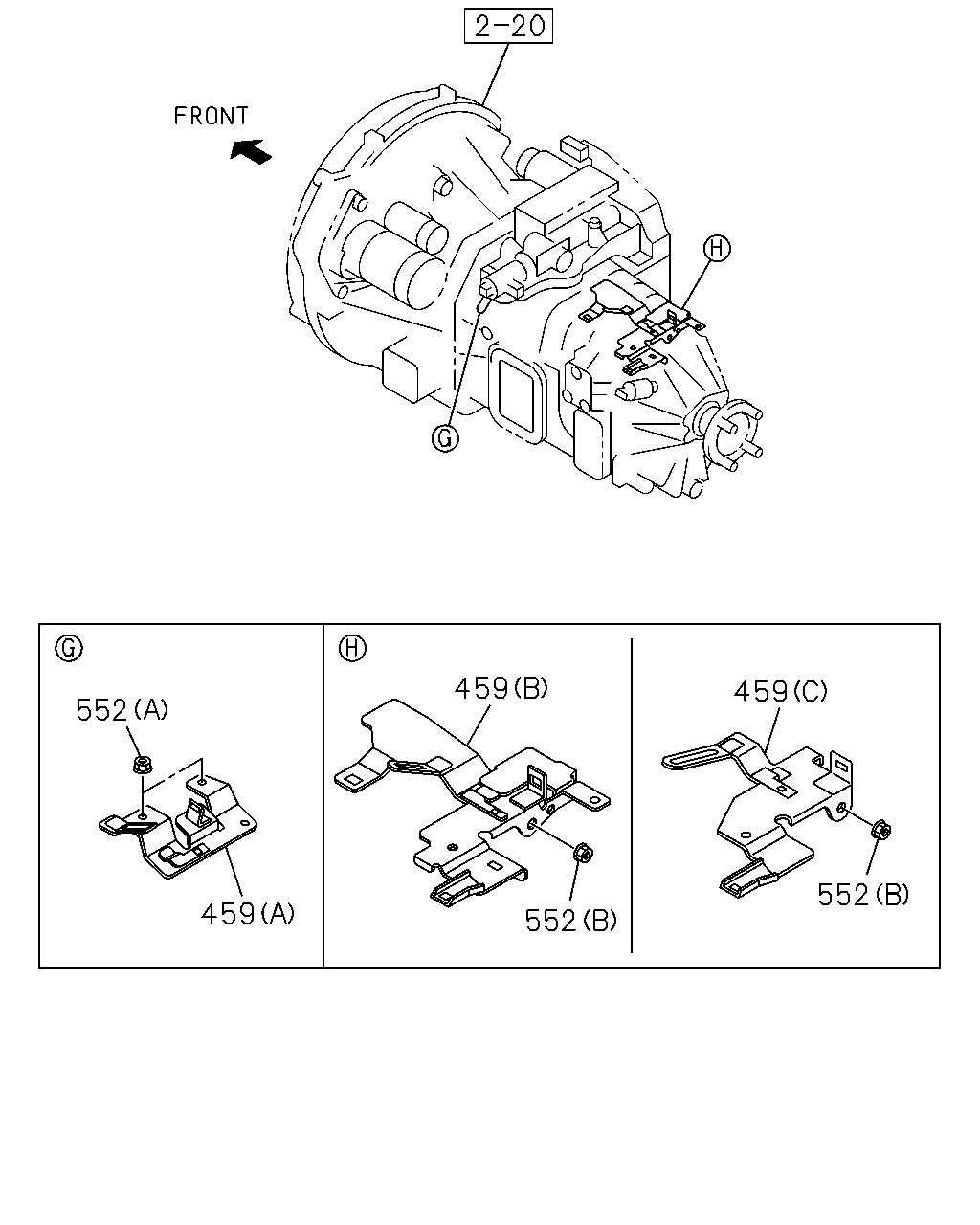

552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1010-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	1010-1204	●	●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	02	1	1205-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1205-	●	●

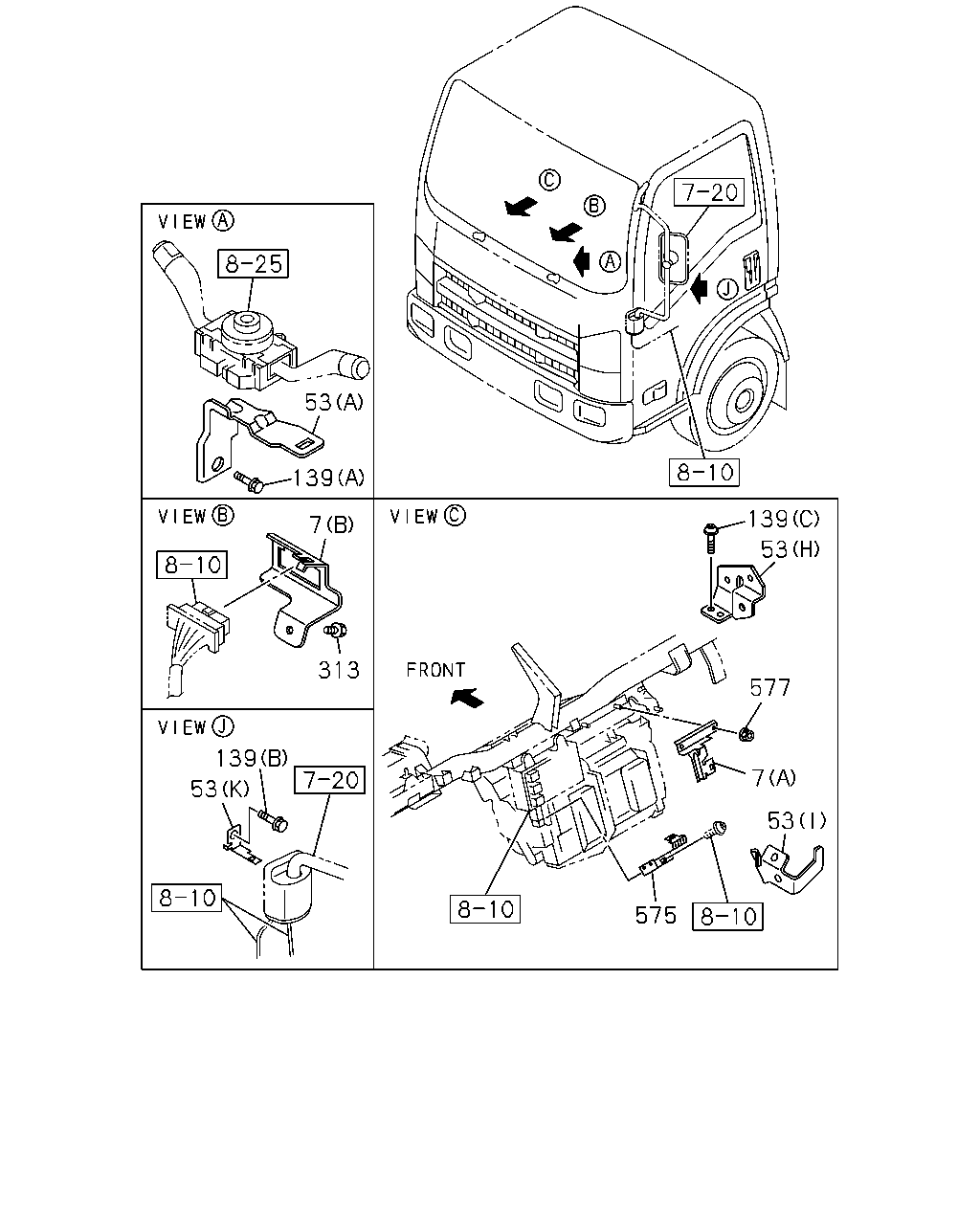

53 139 313 139 53 139 53 577 7 53 575 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR (B)	8-98043-070-1	01	1	1010-	●	●
7	02.559 BRACKET; CONNECTOR (A)	8-98056-073-2	01	1	1010-1204	●	●
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98056-073-3	01	1	1205-	●	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98083-225-1	01	1	1209-	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (K)	8-98039-277-2	02	1	1103-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	1010-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	1010-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1010-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1010-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1010-	●	●
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	1010-1102	●	●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (I)	8-98074-502-0	01	1	1103-1109	●
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	1103-1109		●
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	1110-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98077-504-0	01	1	1010-1208	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (B)	8-98077-504-0	01	1	1209-	●
53	02.483 BRACKET; HARNESS (B)	8-98077-504-0	01	1	1209-		●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1010-	●	●
53	02.483 BRACKET; HARNESS (J)	8-98130-669-1	01	1	1010-1208	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (J)	8-98130-669-1	01	1	1209-	●
53	02.483 BRACKET; HARNESS (J)	8-98130-669-1	01	1	1209-		●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41) (H)	8-98084-699-0	01	1	1010-1102	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (H)	8-98084-699-0	01	1	1103-	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1103-	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1010-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1010-	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1010-	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1010-1101	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1102	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1103-1212	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1010-	●	●
575	02.559 BRACKET; FUSE BOX HEATER & DEFROSTER(C41)	8-98054-320-2	01	1	1010-1102	●	●
575	02.559 BRACKET; FUSE BOX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-320-2	01	1	1103-	●	●
575	02.559 BRACKET; FUSE BOX EXC. HEATER & DEFROSTER(C41)	8-98132-932-1	01	1	1010-1102	●	●
575	02.559 BRACKET; FUSE BOX EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60)	8-98132-932-1	01	1	1103-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	1010-1204	●	●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	02	1	1205-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1205-	●	●

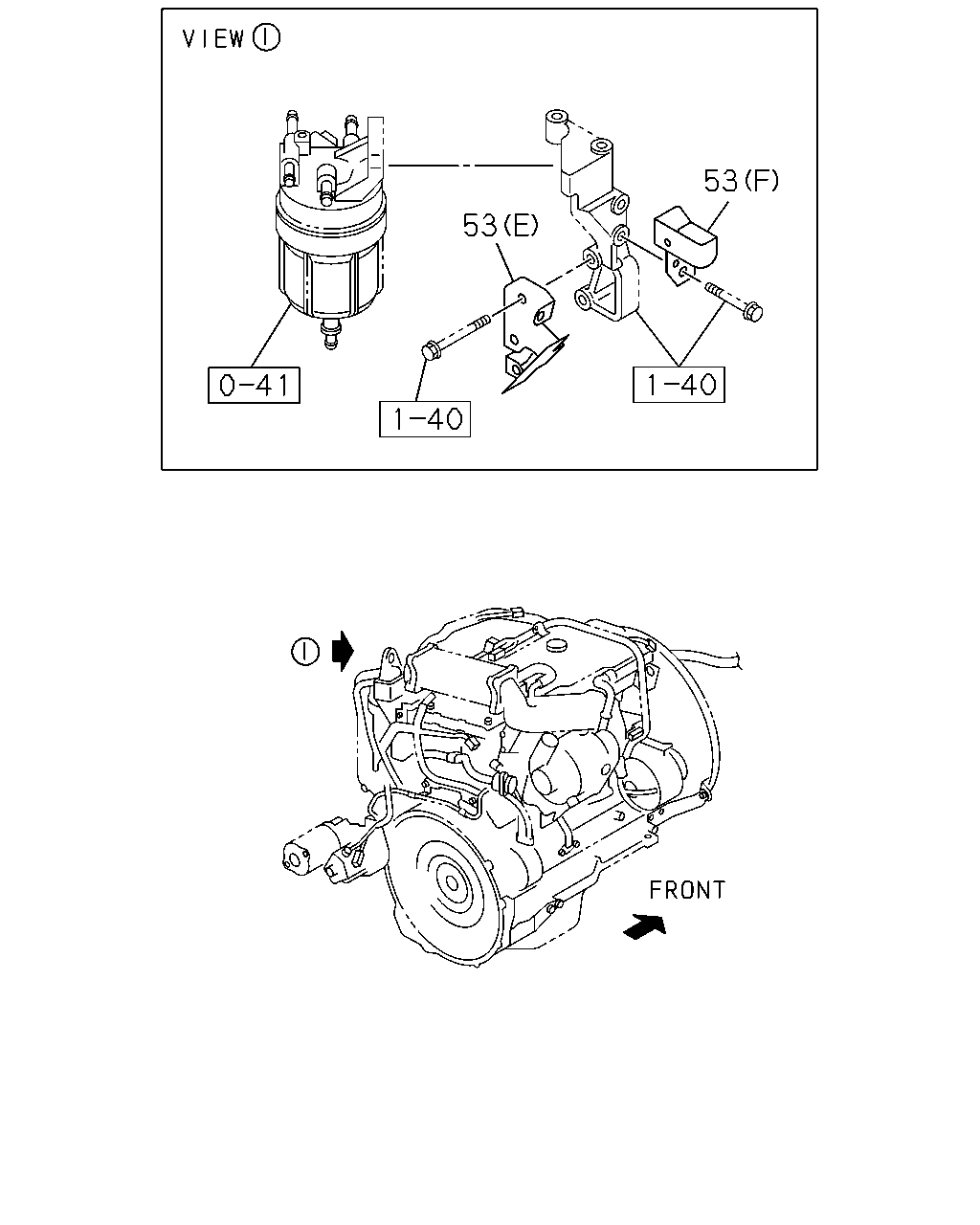

53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98083-225-1	01	1	1209-	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (K)	8-98039-277-2	02	1	1103-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	1010-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	1010-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1010-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1010-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1010-	●	●
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	1010-1102	●	●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (I)	8-98074-502-0	01	1	1103-1109	●
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	1103-1109		●
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	1110-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98077-504-0	01	1	1010-1208	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (B)	8-98077-504-0	01	1	1209-	●
53	02.483 BRACKET; HARNESS (B)	8-98077-504-0	01	1	1209-		●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1010-	●	●
53	02.483 BRACKET; HARNESS (J)	8-98130-669-1	01	1	1010-1208	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (J)	8-98130-669-1	01	1	1209-	●
53	02.483 BRACKET; HARNESS (J)	8-98130-669-1	01	1	1209-		●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41) (H)	8-98084-699-0	01	1	1010-1102	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (H)	8-98084-699-0	01	1	1103-	●	●

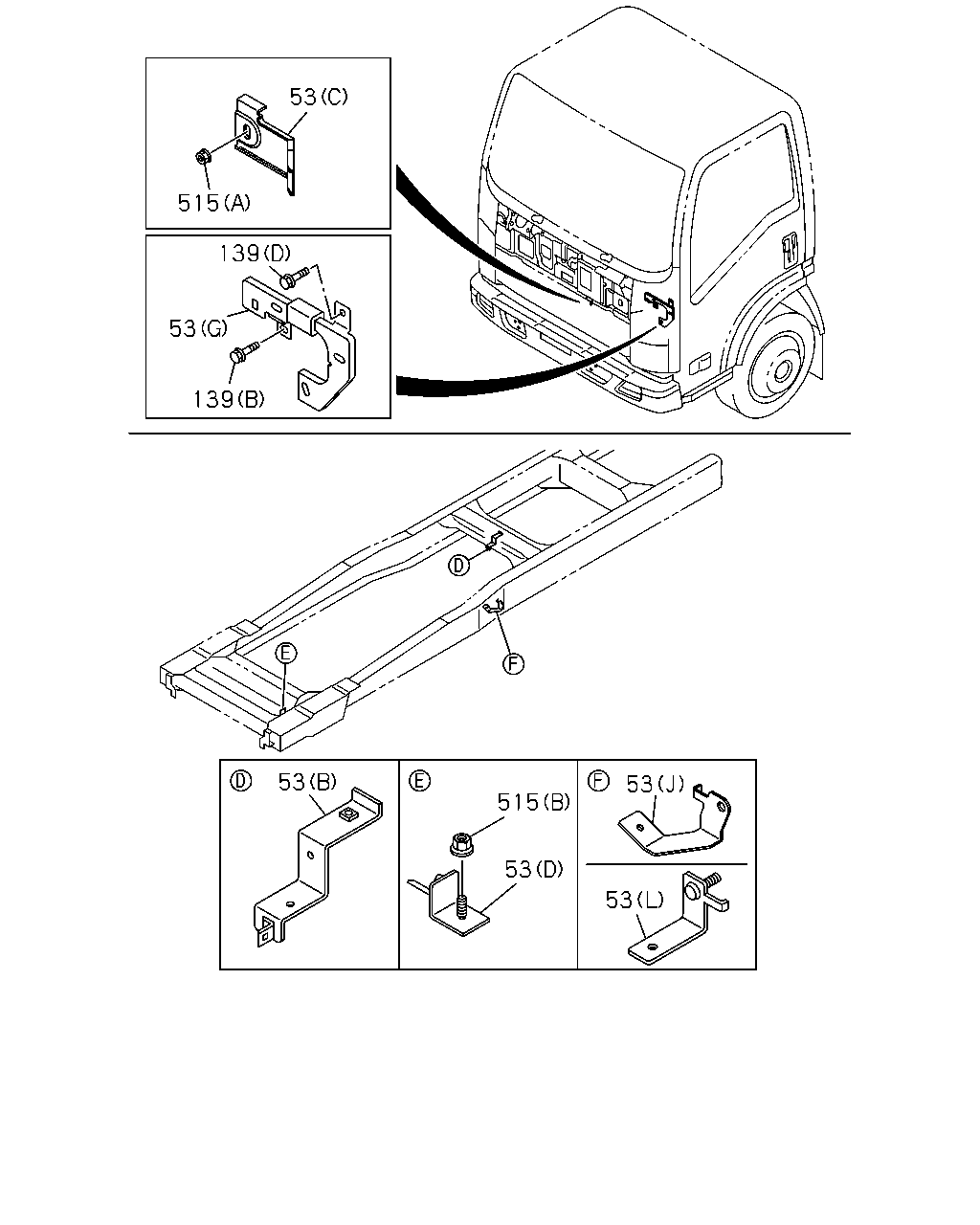

53 515 139 53 139 53 515 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98083-225-1	01	1	1209-	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (K)	8-98039-277-2	02	1	1103-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	1010-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	1010-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1010-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1010-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1010-	●	●
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	1010-1102	●	●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (I)	8-98074-502-0	01	1	1103-1109	●
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	1103-1109		●
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	1110-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98077-504-0	01	1	1010-1208	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (B)	8-98077-504-0	01	1	1209-	●
53	02.483 BRACKET; HARNESS (B)	8-98077-504-0	01	1	1209-		●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1010-	●	●
53	02.483 BRACKET; HARNESS (J)	8-98130-669-1	01	1	1010-1208	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (J)	8-98130-669-1	01	1	1209-	●
53	02.483 BRACKET; HARNESS (J)	8-98130-669-1	01	1	1209-		●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41) (H)	8-98084-699-0	01	1	1010-1102	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (H)	8-98084-699-0	01	1	1103-	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1103-	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1010-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1010-	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1010-	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1010-1101	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1102	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1103-1212	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1010-1208	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1010-1208	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1209-	●	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1209-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1010-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1010-	●	●

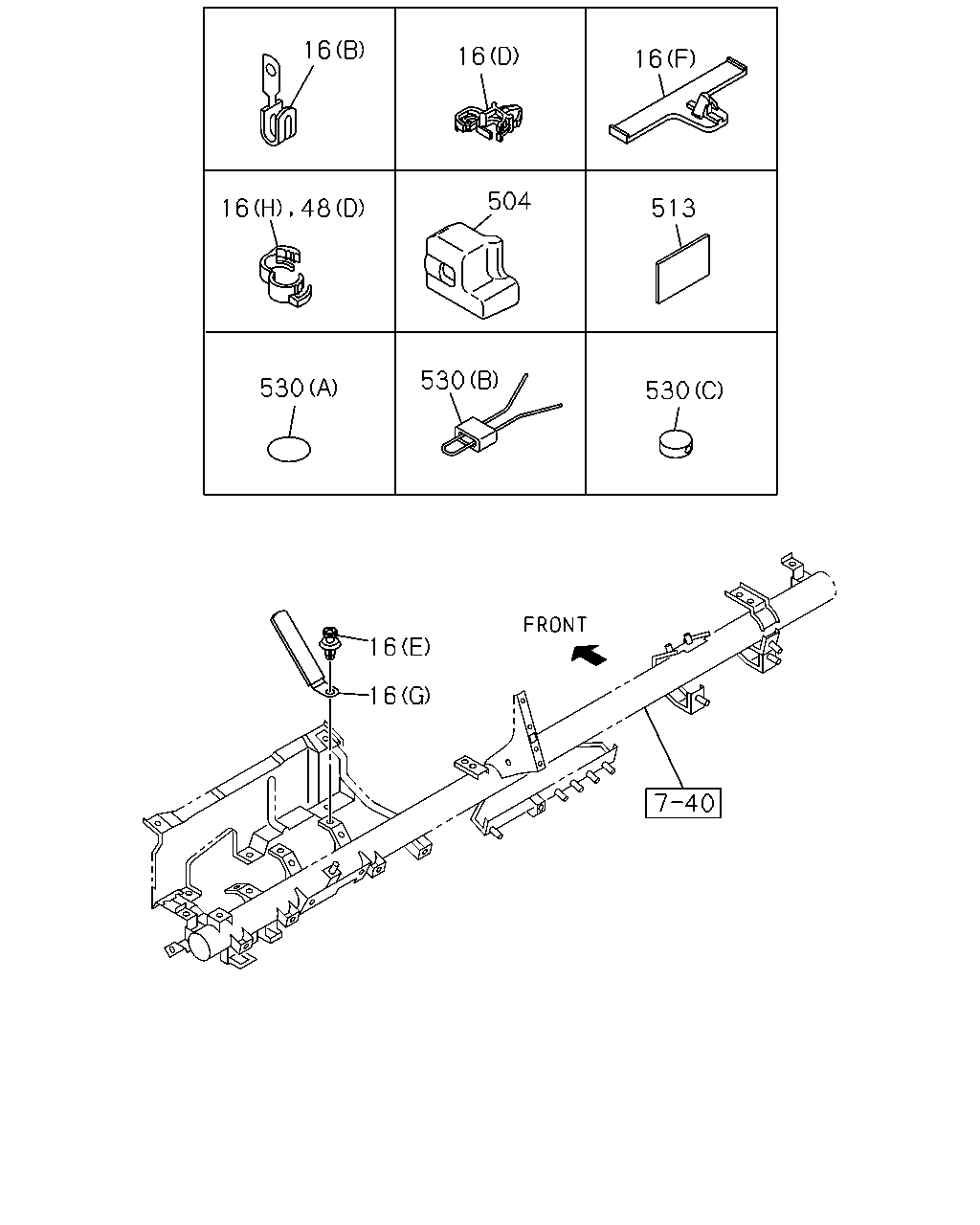

16 22 48 48 22 22 22 48 16 483 483 483 483 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=20	8-94241-972-0	01	1	1209-	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1209-	●
16	02.559 CLIP; HARNESS 03.483 (B)	8-97101-436-0	01	1	1010-1108	●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.483 (B)	8-97101-436-0	01	1	1109-	●	●
16	02.559 CLIP; HARNESS 04.930 (G) L=91 ID=8.5	8-94329-956-0	01	1	1010-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1010-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1010-1102	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	14	1	1103-	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	14	1	1103-	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1103-		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1010-1102	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) L=40.6	8-97229-357-0	02	1	1103-	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1103-	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1103-		●
16	02.559 CLIP; HARNESS 16.578 (E) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1010-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1010-1102	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F)	8-98052-679-0	02	1	1103-	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F)	8-98052-679-0	02	1	1103-	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1103-		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) L=119.5	1-09707-197-0	01	1	1209-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (E) L=100	5-09707-036-1	01	1	1209-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) L=140	5-09707-031-1	01	1	1209-1311	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) L=140	5-09707-031-1	01	1	1209-1311	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) L=140	5-09707-031-1	01	1	1312-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (G) ID=6 & 8.3	8-94167-742-0	01	1	1209-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (H) ID=13.2 & 14.5	8-94475-649-0	01	1	1209-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (I) ID=12 & 6.8	8-97125-842-0	01	1	1209-	●
22	02.559 CLIP; ENG HARNESS (A) L=250	5-09707-030-1	01	1	1010-1108	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) L=250	5-09707-030-1	01	1	1109-	●	●
22	02.559 CLIP; ENG HARNESS 08.852 (C) L=350	8-94152-256-1	02	1	1010-1108	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.852 (C) L=350	8-94152-256-1	02	1	1109-	●	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	02	1	1010-1108	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14-20	8-97061-603-0	02	1	1109-1505	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	03	1	1209-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (A) ID=14 L=47	5-09700-319-0	03	1	1209-		●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=20	8-94241-972-0	01	1	1209-	●
48	02.559 CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12) (C) ID=20	5-09700-321-0	01	1	1103-1208	●
48	02.559 CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. RUSSIA EQUIPMENT(B12) (C) ID=20	5-09700-321-0	01	1	1209-1507	●
48	02.559 CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) (C) ID=20	5-09700-321-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	1103-1205	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	1206-1208	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	1209-	●
48	02.559 CLIP; FRAME HARNESS EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1103-1108	●
48	02.559 CLIP; FRAME HARNESS EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1109-1204	●
48	02.559 CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1109-1204		●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1205-1205	●	●
48	02.559 CLIP; FRAME HARNESS EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1205-1205	●
48	02.559 CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1205-1205		●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1206-1208	●
48	02.559 CLIP; FRAME HARNESS EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1206-1208	●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1206-1208		●
48	02.559 CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1206-1208		●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1209-1507	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1209-1507	●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1209-1507		●
48	02.559 CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1209-1507		●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1508-1510	●
48	02.559 CLIP; FRAME HARNESS EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1508-1510	●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1508-1510		●
48	02.559 CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1508-1510		●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1511-	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07),4 WHEEL ANT I LOCK BRAKE<JE5> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1511-	●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1511-		●
48	02.559 CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1511-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (A) ID=14 L=47	5-09700-319-0	03	1	1010-1208	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	11	1	1209-1510	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	1511-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (A) ID=14 L=47	5-09700-319-0	04	1	1010-1208	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	04	1	1209-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (A) ID=14 L=47	5-09700-319-0	04	1	1209-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	1010-1102	●	●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	1103-1108	●
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	1103-1108		●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	1109-1205	●	●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	1206-1208	●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	1206-1208		●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	1209-	●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	1209-		●
48	02.559 CLIP; FRAME HARNESS 03.430 (B) ID=10 & 16.5	8-94424-440-0	01	1	1010-1208	●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (B) ID=10 & 16.5	8-94424-440-0	01	1	1209-	●
48	02.559 CLIP; FRAME HARNESS 03.430 (B) ID=10 & 16.5	8-94424-440-0	01	1	1209-		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FRIGID ZONE(YL3) 06.602 (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1307-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) (F) L=250	5-09707-030-1	02	1	1103-1306	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) (F) L=250	5-09707-030-1	01	1	1307-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.602 (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1010-1306	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) 06.602 (C) ID=15 H=24 L=20	1-09700-606-0	02	1	1307-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1010-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1010-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.152 (E) L=36	8-94224-891-1	01	1	1010-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=12	8-97329-630-0	01	1	1010-	●	●

14 22 16 16 22 22 102 617 22 483 488 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 L=150	8-97355-273-0	03	1	1010-	●	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=20	8-94241-972-0	01	1	1209-	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1209-	●
16	02.559 CLIP; HARNESS 03.483 (B)	8-97101-436-0	01	1	1010-1108	●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.483 (B)	8-97101-436-0	01	1	1109-	●	●
16	02.559 CLIP; HARNESS 04.930 (G) L=91 ID=8.5	8-94329-956-0	01	1	1010-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1010-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1010-1102	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	14	1	1103-	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	14	1	1103-	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1103-		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1010-1102	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) L=40.6	8-97229-357-0	02	1	1103-	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1103-	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1103-		●
16	02.559 CLIP; HARNESS 16.578 (E) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1010-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1010-1102	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F)	8-98052-679-0	02	1	1103-	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F)	8-98052-679-0	02	1	1103-	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1103-		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) L=119.5	1-09707-197-0	01	1	1209-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (E) L=100	5-09707-036-1	01	1	1209-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) L=140	5-09707-031-1	01	1	1209-1311	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) L=140	5-09707-031-1	01	1	1209-1311	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) L=140	5-09707-031-1	01	1	1312-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (G) ID=6 & 8.3	8-94167-742-0	01	1	1209-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (H) ID=13.2 & 14.5	8-94475-649-0	01	1	1209-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (I) ID=12 & 6.8	8-97125-842-0	01	1	1209-	●
22	02.559 CLIP; ENG HARNESS (A) L=250	5-09707-030-1	01	1	1010-1108	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) L=250	5-09707-030-1	01	1	1109-	●	●
22	02.559 CLIP; ENG HARNESS 08.852 (C) L=350	8-94152-256-1	02	1	1010-1108	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.852 (C) L=350	8-94152-256-1	02	1	1109-	●	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	02	1	1010-1108	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14-20	8-97061-603-0	02	1	1109-1505	●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 L=140	5-09707-031-1	07	1	1010-1010	●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 L=140	5-09707-031-1	08	1	1010-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FRIGID ZONE(YL3) 06.602 (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1307-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) (F) L=250	5-09707-030-1	02	1	1103-1306	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) (F) L=250	5-09707-030-1	01	1	1307-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.602 (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1010-1306	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) 06.602 (C) ID=15 H=24 L=20	1-09700-606-0	02	1	1307-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1010-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1010-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.152 (E) L=36	8-94224-891-1	01	1	1010-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=12	8-97329-630-0	01	1	1010-	●	●
488	02.559 CLIP; CABLE,TRAILER MOROCCO EQUIPMENT(CGA) L=250	5-09707-030-1	04	1	1409-	●
488	02.559 CLIP; CABLE,TRAILER RUSSIA EQUIPMENT(B12) L=250	5-09707-030-1	04	1	1103-1402	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	1403-1408	●	●
488	02.559 CLIP; CABLE,TRAILER EXC. MOROCCO EQUIPMENT(CGA) L=250	5-09707-030-1	01	1	1409-	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	1409-		●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	1010-1102	●	●
488	02.559 CLIP; CABLE,TRAILER EXC. RUSSIA EQUIPMENT(B12) L=250	5-09707-030-1	01	1	1103-1402	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	1103-1402		●
617	02.559 STRAP; BAND M/T MZZ6F(RSR) 03.162 L=140	5-09707-031-1	01	1	1109-1109	●
617	02.559 STRAP; BAND M/T MZZ6U(RSF) 03.162 L=140	5-09707-031-1	01	1	1109-1109		●
617	02.559 STRAP; BAND 03.162 L=140	5-09707-031-1	01	1	1012-1106	●	●

16 16 16 16 48 504 513 530 530 530 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=20	8-94241-972-0	01	1	1209-	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1209-	●
16	02.559 CLIP; HARNESS 03.483 (B)	8-97101-436-0	01	1	1010-1108	●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.483 (B)	8-97101-436-0	01	1	1109-	●	●
16	02.559 CLIP; HARNESS 04.930 (G) L=91 ID=8.5	8-94329-956-0	01	1	1010-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1010-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1010-1102	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	14	1	1103-	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	14	1	1103-	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1103-		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1010-1102	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) L=40.6	8-97229-357-0	02	1	1103-	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1103-	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1103-		●
16	02.559 CLIP; HARNESS 16.578 (E) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1010-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1010-1102	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F)	8-98052-679-0	02	1	1103-	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F)	8-98052-679-0	02	1	1103-	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1103-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	03	1	1209-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (A) ID=14 L=47	5-09700-319-0	03	1	1209-		●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=20	8-94241-972-0	01	1	1209-	●
48	02.559 CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12) (C) ID=20	5-09700-321-0	01	1	1103-1208	●
48	02.559 CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. RUSSIA EQUIPMENT(B12) (C) ID=20	5-09700-321-0	01	1	1209-1507	●
48	02.559 CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) (C) ID=20	5-09700-321-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	1103-1205	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	1206-1208	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	1209-	●
48	02.559 CLIP; FRAME HARNESS EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1103-1108	●
48	02.559 CLIP; FRAME HARNESS EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1109-1204	●
48	02.559 CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1109-1204		●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1205-1205	●	●
48	02.559 CLIP; FRAME HARNESS EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1205-1205	●
48	02.559 CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1205-1205		●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1206-1208	●
48	02.559 CLIP; FRAME HARNESS EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1206-1208	●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1206-1208		●
48	02.559 CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1206-1208		●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1209-1507	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1209-1507	●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1209-1507		●
48	02.559 CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1209-1507		●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1508-1510	●
48	02.559 CLIP; FRAME HARNESS EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1508-1510	●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1508-1510		●
48	02.559 CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1508-1510		●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1511-	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07),4 WHEEL ANT I LOCK BRAKE<JE5> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1511-	●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1511-		●
48	02.559 CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7) 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1511-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (A) ID=14 L=47	5-09700-319-0	03	1	1010-1208	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	11	1	1209-1510	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	1511-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (A) ID=14 L=47	5-09700-319-0	04	1	1010-1208	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	04	1	1209-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (A) ID=14 L=47	5-09700-319-0	04	1	1209-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	1010-1102	●	●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	1103-1108	●
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	1103-1108		●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	1109-1205	●	●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	1206-1208	●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	1206-1208		●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	1209-	●
48	02.559 CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	1209-		●
48	02.559 CLIP; FRAME HARNESS 03.430 (B) ID=10 & 16.5	8-94424-440-0	01	1	1010-1208	●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (B) ID=10 & 16.5	8-94424-440-0	01	1	1209-	●
48	02.559 CLIP; FRAME HARNESS 03.430 (B) ID=10 & 16.5	8-94424-440-0	01	1	1209-		●
504	02.559 PROTECTOR; HARNESS 4JJ1-TCC ENG(RDU)	8-98208-886-0	01	1	1209-	●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	1010-1309	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41) 130X80	8-97304-373-0	01	1	1010-1102	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 130X80	8-97304-373-0	01	1	1103-1204	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 130X80	8-97304-373-0	01	1	1205-	●	●
513	02.559 TAPE; SOFT,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) 130X80	8-97304-373-0	01	1	1205-	●
530	02.559 SEAL; HARNESS COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5> SPEED LIMITER 90KM(NMJ) 09.772 (C)	1-15739-008-0	01	1	1508-1508	●
530	02.559 SEAL; HARNESS 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	1010-	●	●
530	02.559 SEAL; HARNESS SPEED LIMITER 90KM(NMJ) 03.483 (B)	8-97382-876-0	02	1	1409-1505	●
530	02.559 SEAL; HARNESS SPEED LIMITER 90KM(NMJ) 03.483 (B)	8-97382-876-0	01	1	1506-1507	●
530	02.559 SEAL; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> SPEED LIMITER 90KM(NMJ) 03.483 (B)	8-97382-876-0	01	1	1506-1507	●
530	02.559 SEAL; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> SPEED LIMITER 90KM(NMJ) EXC. COLOMBIA EQUIPMENT(CB7) 03.483 (B)	8-97382-876-0	01	1	1508-	●

552 459 459 552 459 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	1010-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98030-990-2	01	1	1010-1109	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (C)	8-98196-974-0	01	1	1110-	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1010-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
