◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#77904) — 400 parça

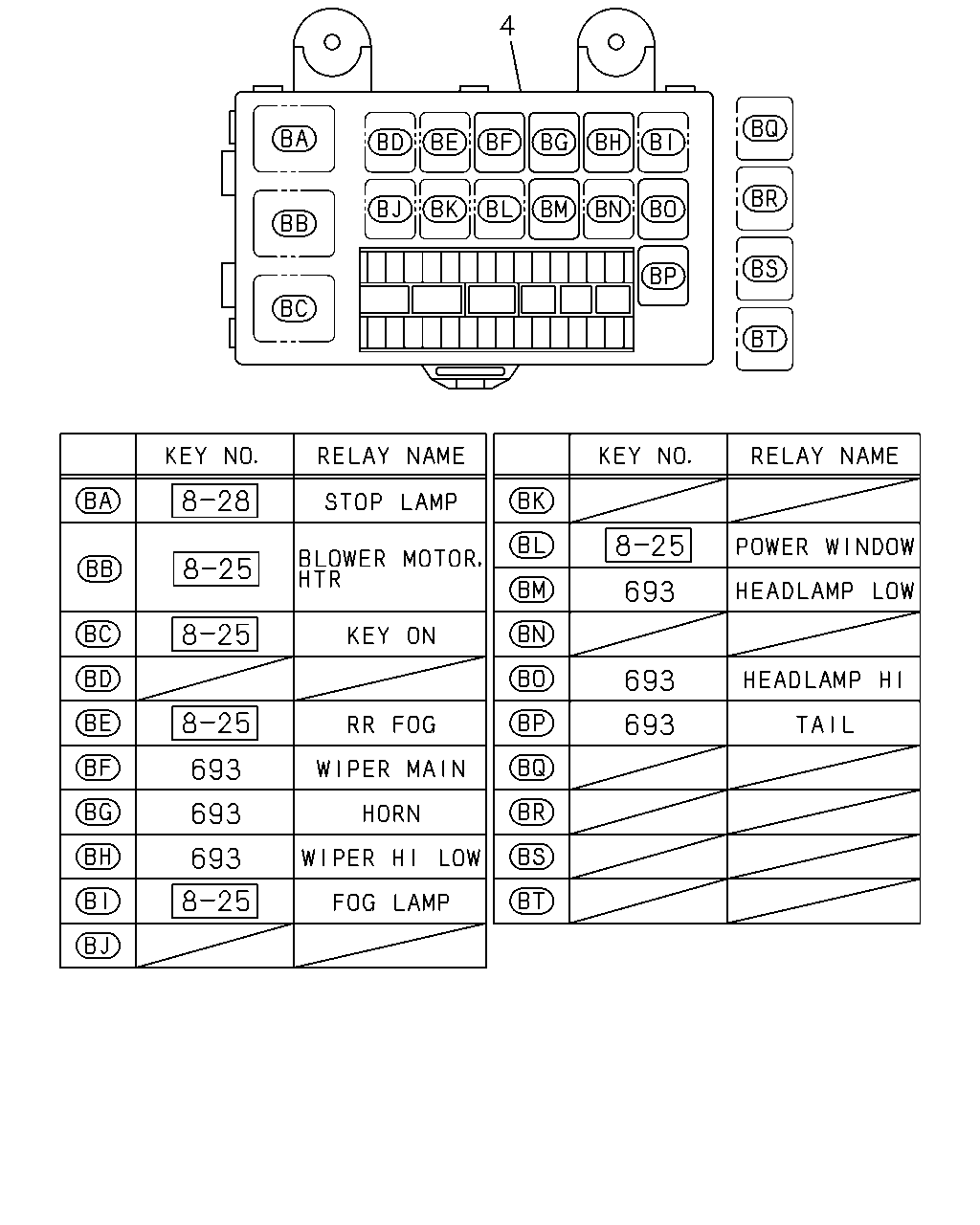

çizim 135979
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1010- ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1010- ● ●

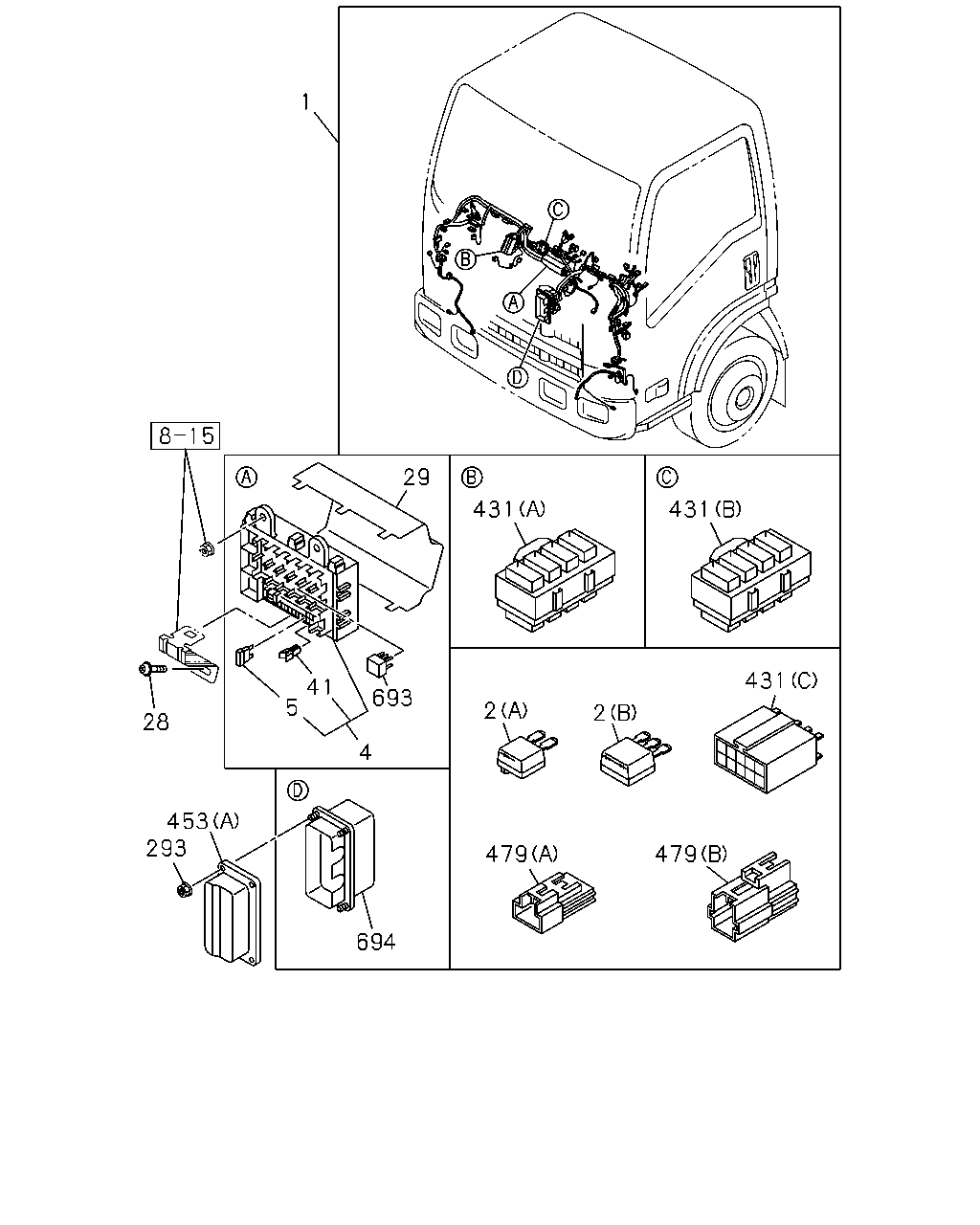

çizim 136200
1 29 41 693 4 5 28 453 293 694 479 479 431 2 2 431 431
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> 		8-98200-874-0 01 1 1206- ● ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3> 		8-98212-840-0 01 1 1209- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3> 		8-98212-839-0 01 1 1209-1410 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,MOROCCO EQUIPMENT(CGA) 		8-98212-839-0 01 1 1411- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) MOROCCO EQUIPMENT(CGA) 		8-98212-839-0 01 1 1411- ●
1 02.480 HARNESS; CAB 8-98204-639-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3> 		8-98204-639-0 01 1 1206-1410 ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,MOROCCO EQUIPMENT(CGA) 		8-98204-639-0 01 1 1411- ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) MOROCCO EQUIPMENT(CGA) 		8-98204-639-0 01 1 1411- ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3> 		8-98204-639-0 01 1 1411- ●
1 02.480 HARNESS; CAB 8-98158-767-1 01 1 1010-1204 ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1010- ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1010- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1010- ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1010- ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1010- ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1010- ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1010-1101 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 1010- ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1010- ● ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1010- ● ●
431 02.530 CONNECTOR; JOINT
(A) 		8-98046-205-0 01 1 1205-1205 ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98046-205-0 01 1 1206-1410 ● ●
431 02.530 CONNECTOR; JOINT
(A) 		8-98046-205-0 01 1 1411- ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 1205- ● ●
431 02.530 CONNECTOR; JOINT
(C) 10P 		8-97077-943-0 02 1 1010-1204 ● ●
431 02.530 CONNECTOR; JOINT
(A) 		8-98046-205-0 01 1 1010-1204 ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 1010-1204 ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-94417-716-0 01 1 1103-1108 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-94417-716-0 01 1 1109-1510 ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-94417-716-0 01 1 1511- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) MOROCCO EQUIPMENT(CGA) 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C) 		8-94417-716-0 01 1 1511- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) PERU EQUIPMENT(E07) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOG LAMP<T79>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C) 		8-94417-716-0 01 1 1511- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-94417-716-0 01 1 1511- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR),M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 01 1 1511- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) CHILE EQUIPMENT(KE1) (C) 		8-94417-716-0 01 1 1511- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) EXC. MINI BUS CHASSIS(V4B) (C) 		8-94417-716-0 01 1 1511- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1010- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1010- ● ●
479 02.530 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41) (A) 		8-98108-678-0 01 1 1010-1102 ● ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (A) 		8-98108-678-0 01 1 1103- ● ●
479 02.530 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41) (B) 		8-98108-679-0 01 1 1010-1102 ● ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (B) 		8-98108-679-0 01 1 1103- ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1010- ● ●
694 02.483 BOX ASM; CONNECTOR 8-98057-640-0 01 1 1010-1012 ● ●
694 02.483 BOX ASM; CONNECTOR 8-98190-772-0 01 1 1101- ● ●

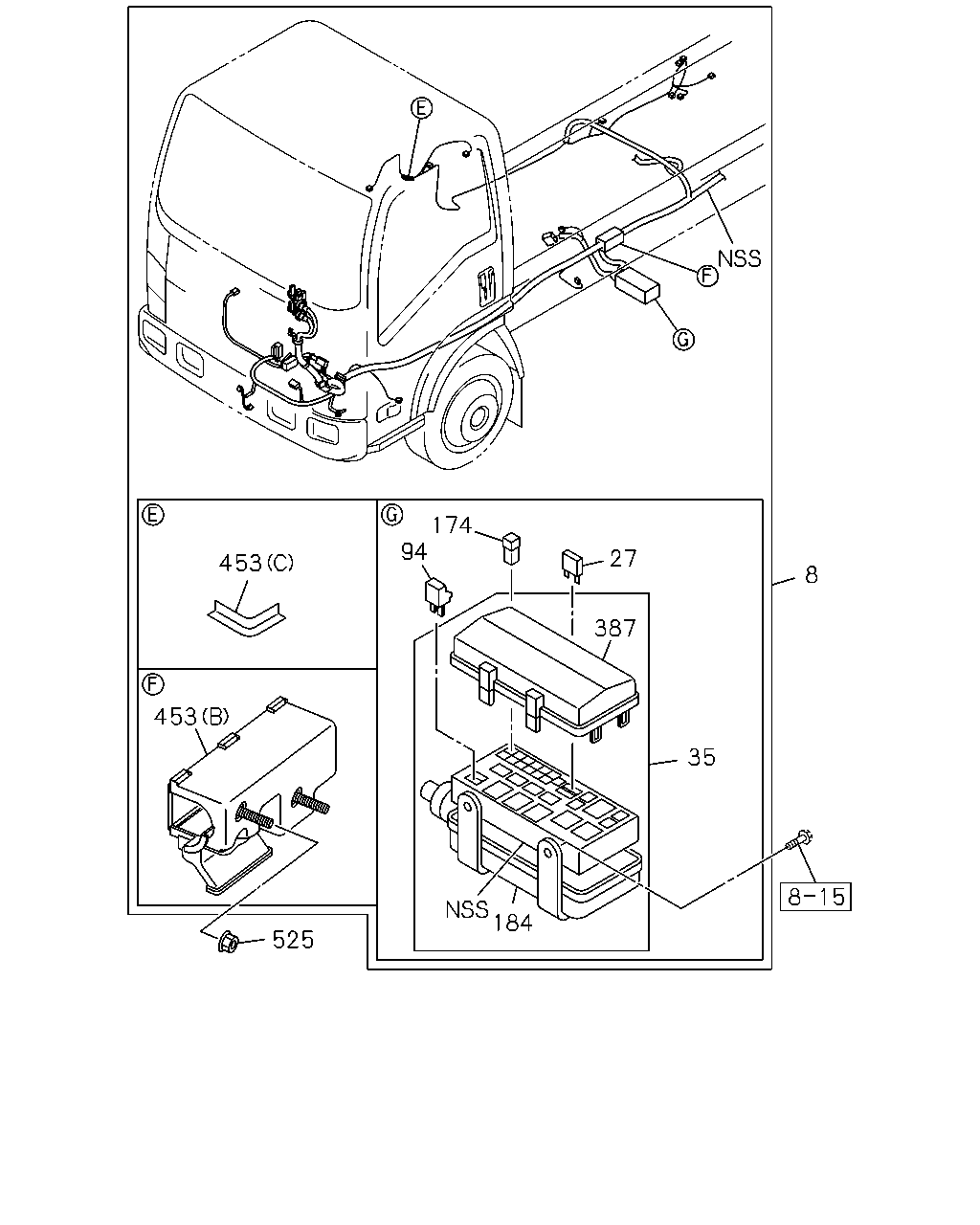

çizim 136719
525 184 35 387 27 8 174 94 453 453
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) PERU EQUIPMENT(E07) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOG LAMP<T79>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98329-812-0 01 1 1511- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3> RR FOG LAMP<T79> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 		8-98291-766-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3> RR FOG LAMP<T79> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 		8-98294-003-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) MOROCCO EQUIPMENT(CGA) 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98291-759-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) MOROCCO EQUIPMENT(CGA) 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98293-629-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 		8-98291-765-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 		8-98294-002-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98223-130-1 01 1 1207-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) 		8-98223-130-1 01 1 1207-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98223-130-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) 		8-98223-130-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98293-628-0 01 1 1410-1410 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) 		8-98293-628-0 01 1 1410-1410 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98293-628-0 01 1 1411-1510 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) EXC. MINI BUS CHASSIS(V4B) 		8-98293-628-0 01 1 1411-1510 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98293-628-0 01 1 1511- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) EXC. MINI BUS CHASSIS(V4B) 		8-98293-628-0 01 1 1511- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 		8-98212-203-1 01 1 1209-1408 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOG LAMP<T79>,FRAME STRAIGHT TYPE<7KJ> 		8-98212-203-1 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOG LAMP<T79>,FRAME STRAIGHT TYPE<7KJ> 		8-98294-001-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 		8-98212-202-1 01 1 1209-1408 ●
8 02.480 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOG LAMP<T79>,FRAME STRAIGHT TYPE<7KJ> 		8-98212-202-1 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOG LAMP<T79>,FRAME STRAIGHT TYPE<7KJ> 		8-98294-000-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 		8-98149-716-2 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 		8-98201-992-1 01 1 1110-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 		8-98201-992-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 		8-98293-627-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98148-143-2 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98201-991-1 01 1 1110-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98201-991-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98293-626-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC) 		8-98196-254-1 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) CHILE EQUIPMENT(KE1) 		8-98196-254-1 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98196-254-1 01 1 1110-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) CHILE EQUIPMENT(KE1) 		8-98196-254-1 01 1 1110-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98196-254-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) CHILE EQUIPMENT(KE1) 		8-98196-254-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98293-623-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) CHILE EQUIPMENT(KE1) 		8-98293-623-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC) 		8-98196-253-0 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) 		8-98196-253-0 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98196-253-0 01 1 1110-1204 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) 		8-98196-253-0 01 1 1110-1204 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B) 		8-98196-253-0 01 1 1205-1205 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. MINI BUS CHASSIS(V4B) 		8-98196-253-0 01 1 1205-1205 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98196-253-0 01 1 1206-1206 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. MINI BUS CHASSIS(V4B) 		8-98196-253-0 01 1 1206-1206 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98196-253-1 01 1 1207-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) EXC. MINI BUS CHASSIS(V4B) 		8-98196-253-1 01 1 1207-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98196-253-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) EXC. MINI BUS CHASSIS(V4B) 		8-98196-253-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98293-622-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) EXC. MINI BUS CHASSIS(V4B) 		8-98293-622-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 		8-98149-715-2 01 1 1103-1108 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 		8-98149-715-2 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 		8-98201-990-1 01 1 1110-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 		8-98201-990-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 		8-98293-625-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98148-142-2 01 1 1103-1108 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) ARGENTINA COUNTRY(CX1) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98148-142-2 01 1 1103-1108 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98148-142-2 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) ARGENTINA COUNTRY(CX1) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98148-142-2 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98201-989-1 01 1 1110-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98201-989-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98293-624-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT 8-98163-981-1 01 1 1010-1102 ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC) 		8-98163-981-1 01 1 1103-1108 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98163-981-1 01 1 1103-1108 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC) 		8-98163-981-1 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 		8-98163-981-1 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC) 		8-98201-836-0 01 1 1110-1110 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 		8-98201-836-0 01 1 1110-1110 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98201-836-1 01 1 1110-1205 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 		8-98201-836-1 01 1 1110-1205 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98201-836-1 01 1 1206-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 		8-98201-836-1 01 1 1206-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98201-836-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 		8-98201-836-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98293-964-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 		8-98293-964-0 01 1 1410- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1010- ● ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 1010- ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1010-1408 ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 1409- ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1010- ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1010- ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1010- ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1010- ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1010- ● ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 1010- ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-94417-716-0 01 1 1103-1108 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-94417-716-0 01 1 1109-1510 ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-94417-716-0 01 1 1511- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) MOROCCO EQUIPMENT(CGA) 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> (C) 		8-94417-716-0 01 1 1511- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) PERU EQUIPMENT(E07) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOG LAMP<T79>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C) 		8-94417-716-0 01 1 1511- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-94417-716-0 01 1 1511- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR),M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 01 1 1511- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) CHILE EQUIPMENT(KE1) (C) 		8-94417-716-0 01 1 1511- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) EXC. MINI BUS CHASSIS(V4B) (C) 		8-94417-716-0 01 1 1511- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1010- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1010- ● ●
525 08.919 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●

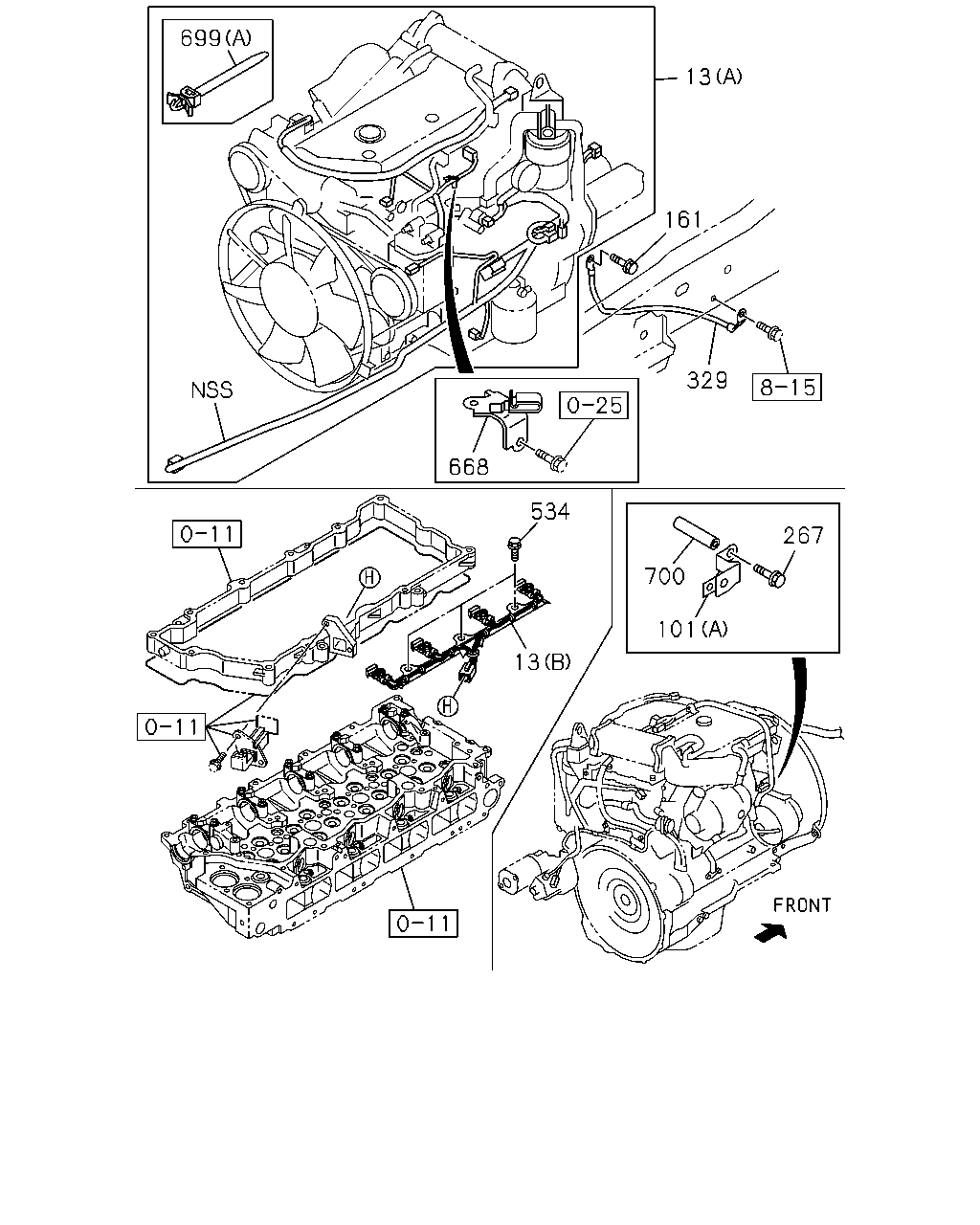

çizim 136810
699 13 161 329 267 700 101 13 534 668
BalonParca AdiParca NoAdetTipApplied Date A B
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (C) 		8-98212-179-1 01 1 1209-1310 ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (C) 		8-98244-738-0 01 1 1311- ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (A) 		8-98135-316-1 01 1 1010-1312 ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (A) 		8-98257-243-0 01 1 1401- ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98171-638-0 01 1 1010- ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (A) 		8-98135-317-1 01 1 1010-1312 ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (A) 		8-98257-244-0 01 1 1401- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) 02.183 (C) 		8-98030-725-1 01 1 1209- ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98032-447-1 01 1 1209- ●
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98052-805-0 01 1 1010-1108 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 1109- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98133-387-1 01 1 1010-1208 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98133-387-1 01 1 1209- ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98133-387-1 01 1 1209- ●
161 02.559 BOLT; GROUND,HARNESS
4JJ1-TCC ENG(RDU) 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 1209- ●
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1010-1108 ● ●
161 02.559 BOLT; GROUND,HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1109- ● ●
267 02.483 BOLT; BRKT
09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1010-1102 ● ●
267 02.483 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1103-1108 ● ●
267 02.483 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 1109- ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCC ENG(RDU) 		8-98030-126-1 01 1 1209- ●
329 02.480 CABLE; ENG TO FRAME 8-98102-465-0 01 1 1010-1108 ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98102-465-0 01 1 1109- ● ●
534 02.483 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.683 M10X55 FLANGE 		8-97365-449-0 03 1 1010- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98061-780-0 01 1 1010- ● ●
699 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) L=146.2 		8-98052-677-0 01 1 1010-1312 ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) 04.105 (B) L=140 		8-97122-360-0 02 1 1209-1310 ●
700 02.483 TUBE; DISTANCE
L=105 		8-98084-726-0 01 1 1010-1102 ● ●
700 02.483 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONT(C60) L=105 		8-98084-726-0 01 1 1103-1108 ● ●
700 02.483 TUBE; DISTANCE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105 		8-98084-726-0 01 1 1109- ● ●

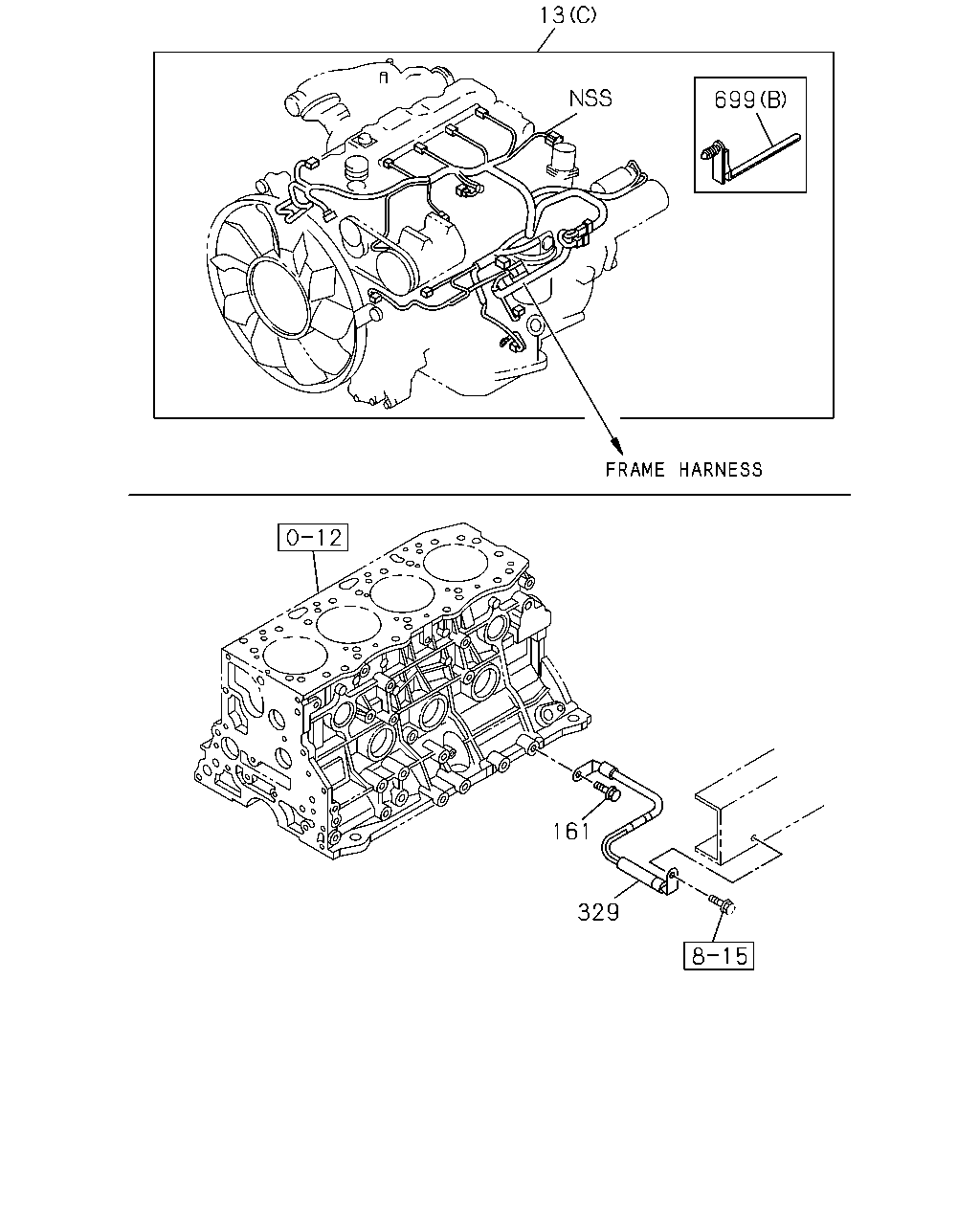

çizim 136860
13 699 161 329
BalonParca AdiParca NoAdetTipApplied Date A B
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (C) 		8-98212-179-1 01 1 1209-1310 ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (C) 		8-98244-738-0 01 1 1311- ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (A) 		8-98135-316-1 01 1 1010-1312 ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (A) 		8-98257-243-0 01 1 1401- ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98171-638-0 01 1 1010- ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (A) 		8-98135-317-1 01 1 1010-1312 ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (A) 		8-98257-244-0 01 1 1401- ● ●
161 02.559 BOLT; GROUND,HARNESS
4JJ1-TCC ENG(RDU) 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 1209- ●
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1010-1108 ● ●
161 02.559 BOLT; GROUND,HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1109- ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCC ENG(RDU) 		8-98030-126-1 01 1 1209- ●
329 02.480 CABLE; ENG TO FRAME 8-98102-465-0 01 1 1010-1108 ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98102-465-0 01 1 1109- ● ●
699 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) L=146.2 		8-98052-677-0 01 1 1010-1312 ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) 04.105 (B) L=140 		8-97122-360-0 02 1 1209-1310 ●

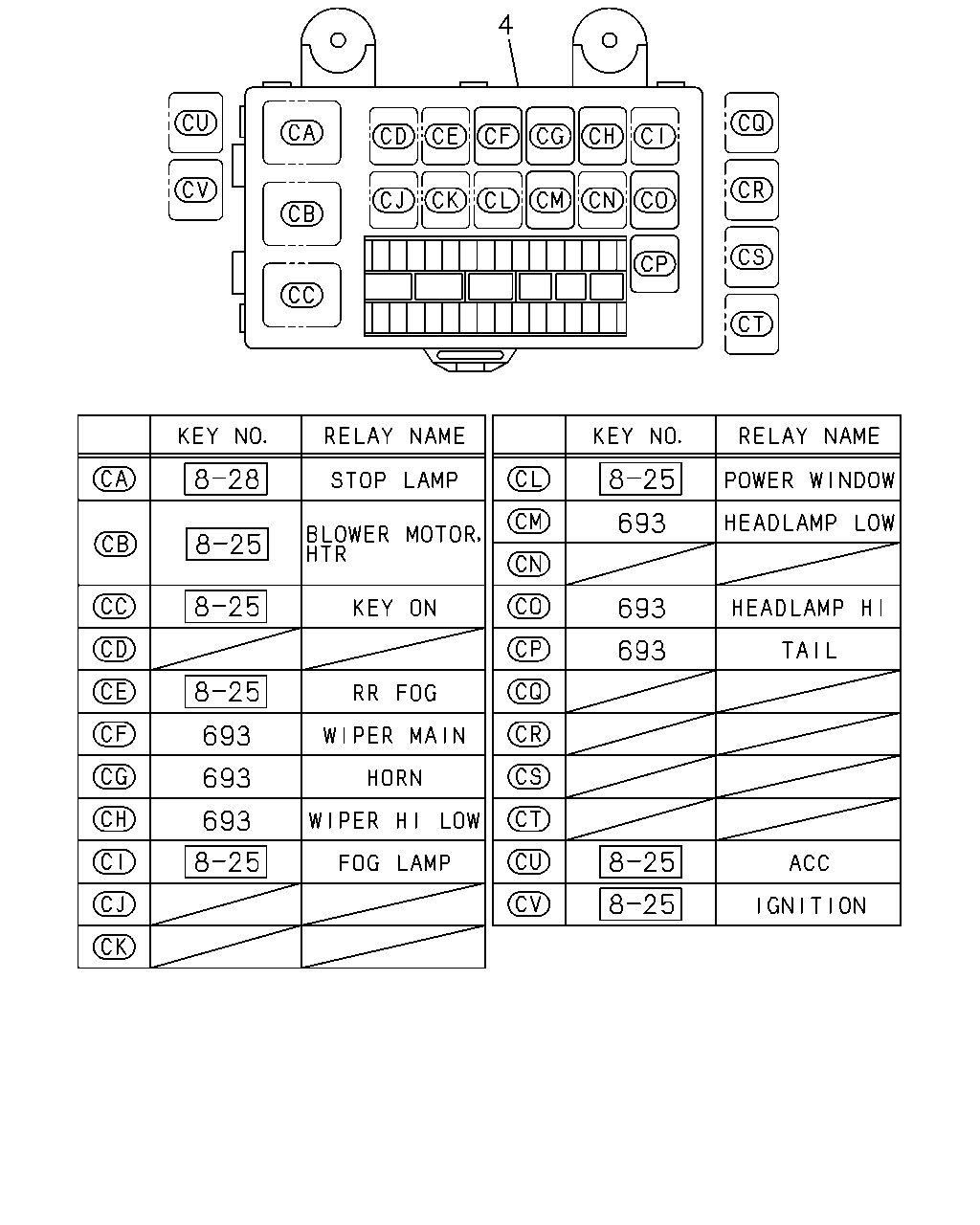

çizim 186899
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1010- ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1010- ● ●

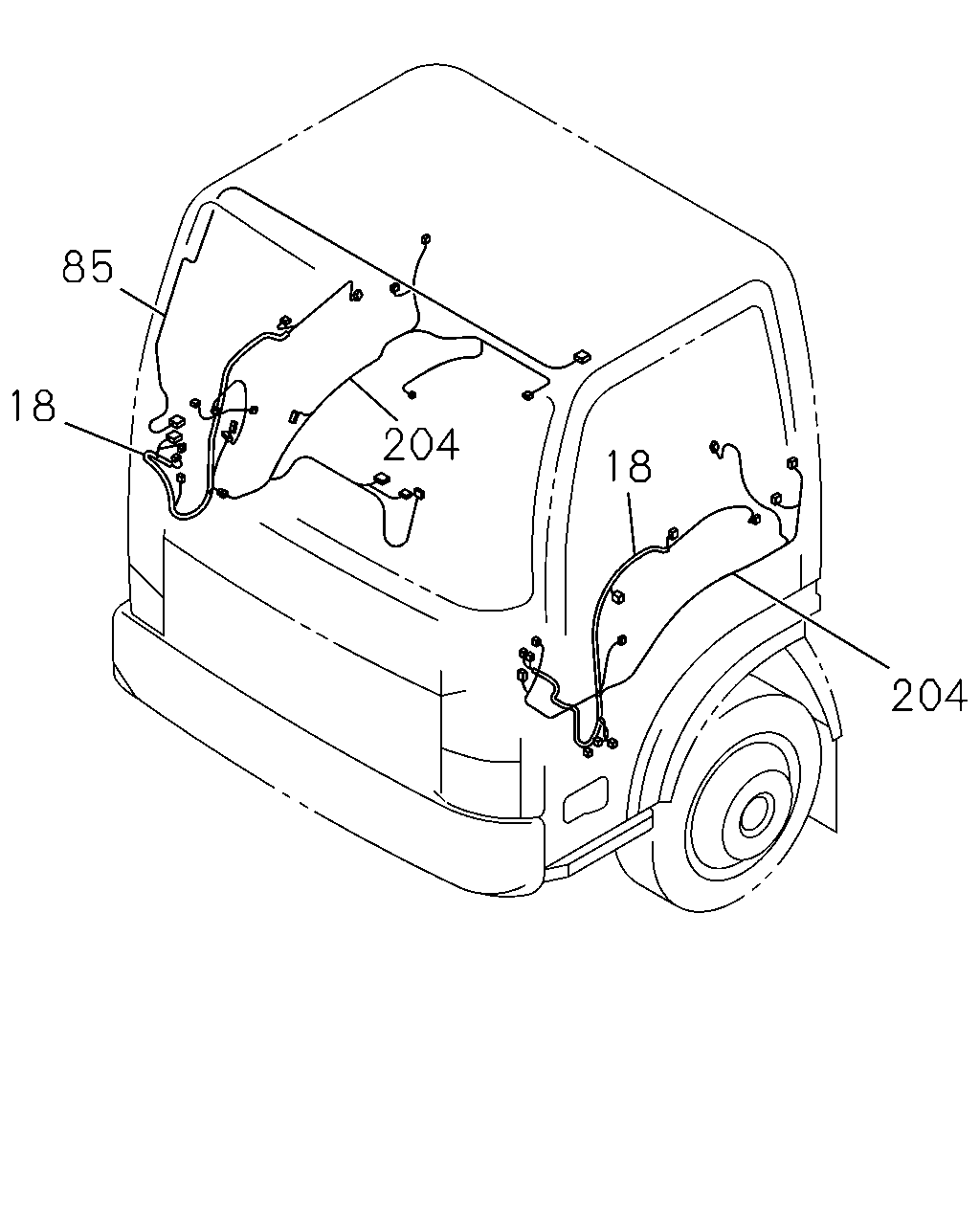

çizim 186921
204 18 204 85 18
BalonParca AdiParca NoAdetTipApplied Date A B
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> 		8-98071-082-3 01 1 1103- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> 		8-98071-090-3 01 1 1103- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE R R VIEW,HEATED<7SV> 		8-98071-080-3 01 1 1103-1108 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE R R VIEW,HEATED<7SV> 		8-98071-080-3 01 1 1109- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98071-080-3 01 1 1109- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE R R VIEW,HEATED<7SV> 		8-98071-088-3 01 1 1103-1108 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE R R VIEW,HEATED<7SV> 		8-98071-088-3 01 1 1109- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98071-088-3 01 1 1109- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>, CORNERINGLAMP<T87> 		8-98071-081-3 01 1 1103- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>, CORNERINGLAMP<T87> 		8-98071-089-3 01 1 1103- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98071-079-2 01 1 1103-1108 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98071-079-2 01 1 1109- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, CORNERINGLAMP<T87> 		8-98071-079-2 01 1 1109- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98071-087-2 01 1 1103-1108 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98071-087-2 01 1 1109- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, CORNERINGLAMP<T87> 		8-98071-087-2 01 1 1109- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98077-592-3 01 1 1010-1102 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98077-592-3 01 1 1103-1108 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98077-592-3 01 1 1103-1108 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98077-592-3 01 1 1109- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> 		8-98077-592-3 01 1 1109- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98077-600-3 01 1 1010-1102 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98077-600-3 01 1 1103-1108 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98077-600-3 01 1 1103-1108 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98077-600-3 01 1 1109- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> 		8-98077-600-3 01 1 1109- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-98077-591-2 01 1 1010-1102 ● ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O /SIDE RR VIEW,HEATED<7SV> 		8-98077-591-2 01 1 1103-1108 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-98077-591-2 01 1 1103-1108 ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O /SIDE RR VIEW,HEATED<7SV> 		8-98077-591-2 01 1 1109- ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> 		8-98077-591-2 01 1 1109- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-98077-599-2 01 1 1010-1102 ● ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O /SIDE RR VIEW,HEATED<7SV> 		8-98077-599-2 01 1 1103-1108 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-98077-599-2 01 1 1103-1108 ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O /SIDE RR VIEW,HEATED<7SV> 		8-98077-599-2 01 1 1109- ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> 		8-98077-599-2 01 1 1109- ●
85 06.495 HARNESS; ROOM LAMP
LAMPS TWO ROOF MARKER<TEC> 		8-98071-096-2 01 1 1103- ●
85 06.495 HARNESS; ROOM LAMP 8-98050-518-3 01 1 1010-1102 ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98050-518-3 01 1 1103- ●
85 06.495 HARNESS; ROOM LAMP 8-98050-518-3 01 1 1103- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3> 		8-98070-800-5 01 1 1204- ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-98071-070-2 01 1 1204- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-98070-799-5 01 1 1010-1203 ● ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER<AJ3> 		8-98070-799-5 01 1 1204- ● ●

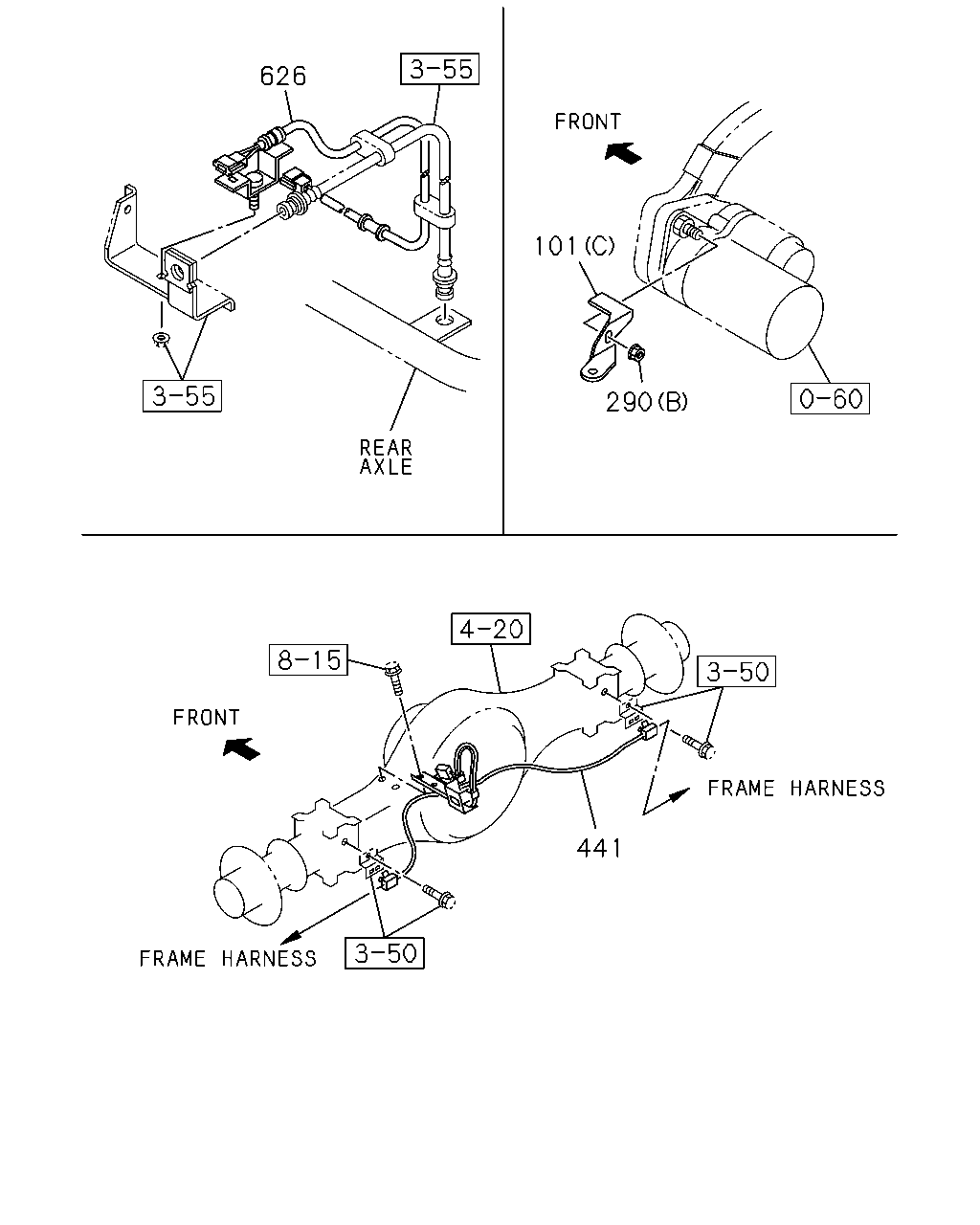

çizim 186934
101 290 626 441
BalonParca AdiParca NoAdetTipApplied Date A B
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) 02.183 (C) 		8-98030-725-1 01 1 1209- ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98032-447-1 01 1 1209- ●
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98052-805-0 01 1 1010-1108 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 1109- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98133-387-1 01 1 1010-1208 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98133-387-1 01 1 1209- ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98133-387-1 01 1 1209- ●
290 02.483 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1209- ●
290 02.483 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97308-225-4 01 1 1209- ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97253-968-1 01 1 1103-1208 ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97253-968-1 01 1 1209- ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97253-969-1 01 1 1103-1208 ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97253-969-1 01 1 1209- ●

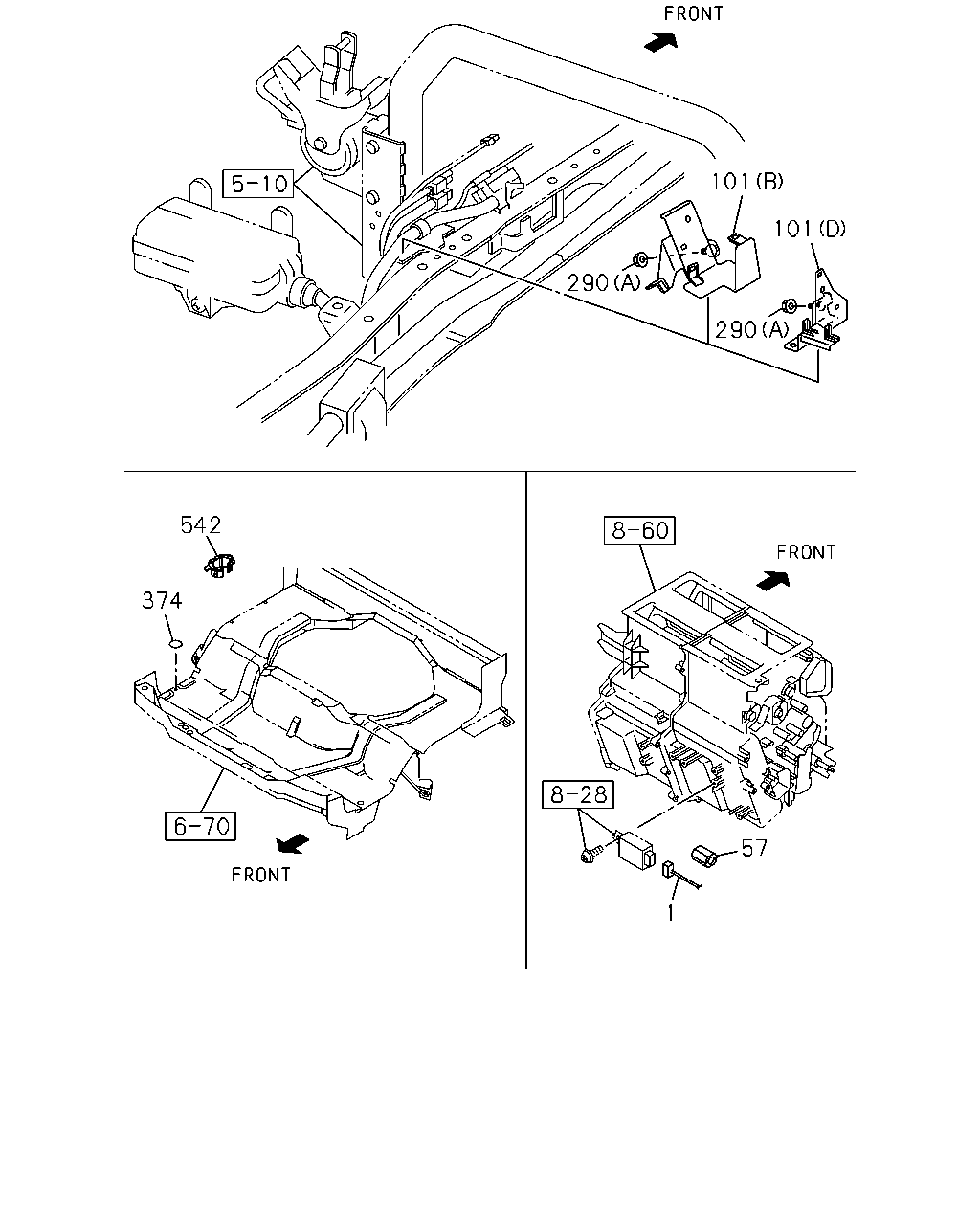

çizim 292116
101 101 290 290 57 1 542 374
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> 		8-98200-874-0 01 1 1206- ● ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3> 		8-98212-840-0 01 1 1209- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3> 		8-98212-839-0 01 1 1209-1410 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,MOROCCO EQUIPMENT(CGA) 		8-98212-839-0 01 1 1411- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) MOROCCO EQUIPMENT(CGA) 		8-98212-839-0 01 1 1411- ●
1 02.480 HARNESS; CAB 8-98204-639-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3> 		8-98204-639-0 01 1 1206-1410 ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,MOROCCO EQUIPMENT(CGA) 		8-98204-639-0 01 1 1411- ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) MOROCCO EQUIPMENT(CGA) 		8-98204-639-0 01 1 1411- ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3> 		8-98204-639-0 01 1 1411- ●
1 02.480 HARNESS; CAB 8-98158-767-1 01 1 1010-1204 ● ●
57 02.483 FILTER; FUSE BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) 		8-98211-338-0 01 1 1205- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) 02.183 (C) 		8-98030-725-1 01 1 1209- ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98032-447-1 01 1 1209- ●
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98052-805-0 01 1 1010-1108 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 1109- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98133-387-1 01 1 1010-1208 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98133-387-1 01 1 1209- ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98133-387-1 01 1 1209- ●
290 02.483 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1209- ●
290 02.483 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK 		8-98031-126-0 01 1 1010-1203 ● ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.545 OD=32 BLACK 		8-98031-126-0 01 1 1204- ● ●
542 02.483 GROMMET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 01 1 1209- ●

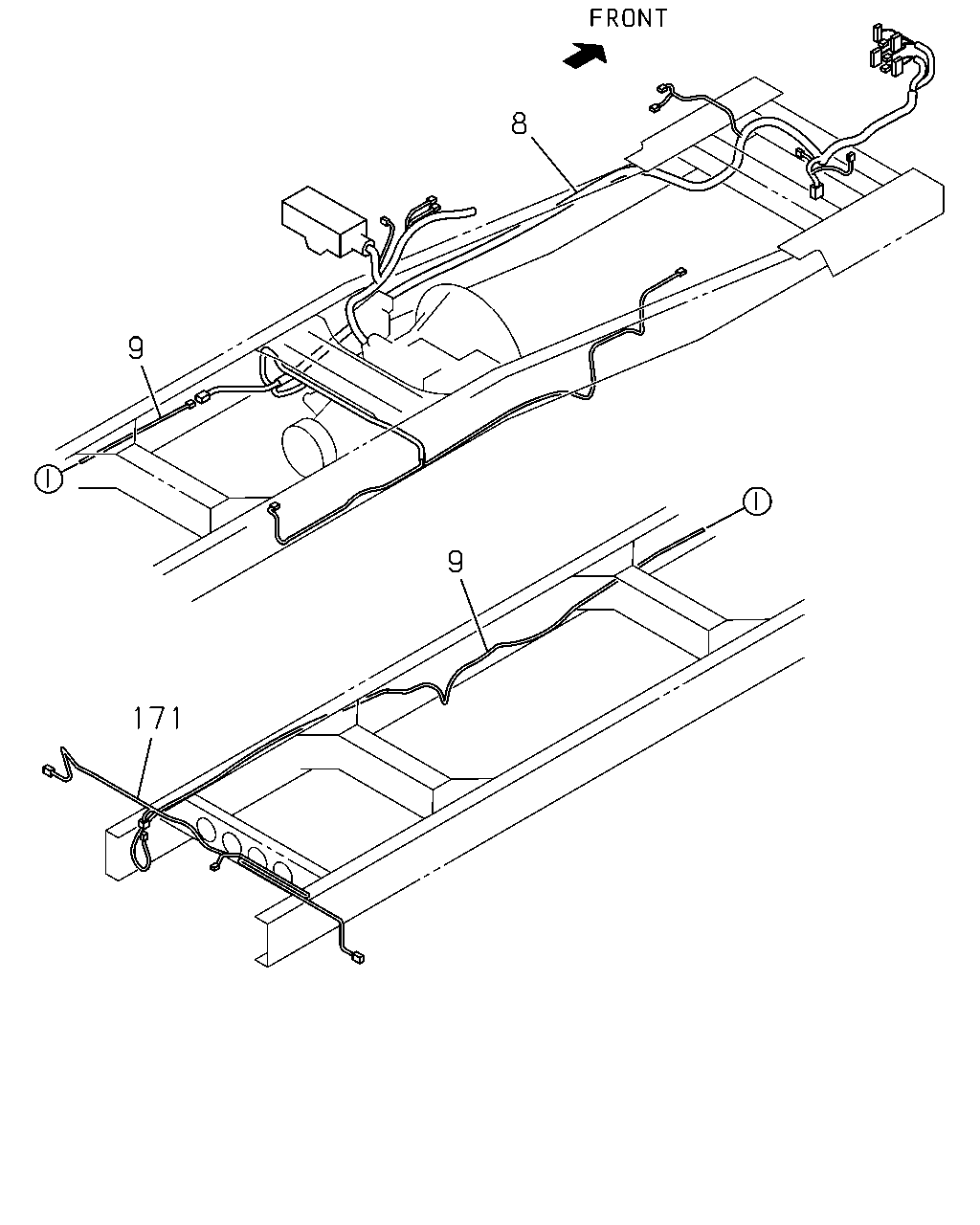

çizim 292167
8 9 9 171
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) PERU EQUIPMENT(E07) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOG LAMP<T79>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98329-812-0 01 1 1511- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3> RR FOG LAMP<T79> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 		8-98291-766-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3> RR FOG LAMP<T79> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 		8-98294-003-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) MOROCCO EQUIPMENT(CGA) 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98291-759-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) MOROCCO EQUIPMENT(CGA) 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98293-629-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 		8-98291-765-0 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 		8-98294-002-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98223-130-1 01 1 1207-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) 		8-98223-130-1 01 1 1207-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98223-130-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) 		8-98223-130-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98293-628-0 01 1 1410-1410 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) 		8-98293-628-0 01 1 1410-1410 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98293-628-0 01 1 1411-1510 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) EXC. MINI BUS CHASSIS(V4B) 		8-98293-628-0 01 1 1411-1510 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98293-628-0 01 1 1511- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) EXC. MINI BUS CHASSIS(V4B) 		8-98293-628-0 01 1 1511- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 		8-98212-203-1 01 1 1209-1408 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOG LAMP<T79>,FRAME STRAIGHT TYPE<7KJ> 		8-98212-203-1 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOG LAMP<T79>,FRAME STRAIGHT TYPE<7KJ> 		8-98294-001-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 		8-98212-202-1 01 1 1209-1408 ●
8 02.480 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOG LAMP<T79>,FRAME STRAIGHT TYPE<7KJ> 		8-98212-202-1 01 1 1409-1409 ●
8 02.480 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOG LAMP<T79>,FRAME STRAIGHT TYPE<7KJ> 		8-98294-000-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 		8-98149-716-2 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 		8-98201-992-1 01 1 1110-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 		8-98201-992-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 		8-98293-627-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98148-143-2 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98201-991-1 01 1 1110-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98201-991-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98293-626-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC) 		8-98196-254-1 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) CHILE EQUIPMENT(KE1) 		8-98196-254-1 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98196-254-1 01 1 1110-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) CHILE EQUIPMENT(KE1) 		8-98196-254-1 01 1 1110-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98196-254-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) CHILE EQUIPMENT(KE1) 		8-98196-254-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98293-623-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) CHILE EQUIPMENT(KE1) 		8-98293-623-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC) 		8-98196-253-0 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) 		8-98196-253-0 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98196-253-0 01 1 1110-1204 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) 		8-98196-253-0 01 1 1110-1204 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B) 		8-98196-253-0 01 1 1205-1205 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. MINI BUS CHASSIS(V4B) 		8-98196-253-0 01 1 1205-1205 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98196-253-0 01 1 1206-1206 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. MINI BUS CHASSIS(V4B) 		8-98196-253-0 01 1 1206-1206 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98196-253-1 01 1 1207-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) EXC. MINI BUS CHASSIS(V4B) 		8-98196-253-1 01 1 1207-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98196-253-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) EXC. MINI BUS CHASSIS(V4B) 		8-98196-253-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98293-622-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) CHILE EQUIPMENT(KE1) EXC. MINI BUS CHASSIS(V4B) 		8-98293-622-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 		8-98149-715-2 01 1 1103-1108 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 		8-98149-715-2 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 		8-98201-990-1 01 1 1110-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 		8-98201-990-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 		8-98293-625-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98148-142-2 01 1 1103-1108 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) ARGENTINA COUNTRY(CX1) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98148-142-2 01 1 1103-1108 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98148-142-2 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) ARGENTINA COUNTRY(CX1) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98148-142-2 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98201-989-1 01 1 1110-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98201-989-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK> 		8-98293-624-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT 8-98163-981-1 01 1 1010-1102 ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC) 		8-98163-981-1 01 1 1103-1108 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98163-981-1 01 1 1103-1108 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC) 		8-98163-981-1 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 		8-98163-981-1 01 1 1109-1109 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC) 		8-98201-836-0 01 1 1110-1110 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 		8-98201-836-0 01 1 1110-1110 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98201-836-1 01 1 1110-1205 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 		8-98201-836-1 01 1 1110-1205 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98201-836-1 01 1 1206-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 		8-98201-836-1 01 1 1206-1208 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98201-836-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 		8-98201-836-1 01 1 1209-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98293-964-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 		8-98293-964-0 01 1 1410- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 		8-98047-001-2 01 1 1209- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 		8-98047-009-2 01 1 1209- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98047-002-1 01 1 1209- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98047-010-1 01 1 1209- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-253-0 01 1 1206-1208 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98117-253-0 01 1 1209- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-248-0 01 1 1206-1208 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-248-0 01 1 1209- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-254-0 01 1 1103-1208 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98117-254-0 01 1 1209- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-249-0 01 1 1103-1208 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-249-0 01 1 1209- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-255-0 01 1 1103-1208 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98117-255-0 01 1 1209- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-256-0 01 1 1103-1208 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98117-256-0 01 1 1209- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) 		8-98117-250-0 01 1 1010-1102 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-250-0 01 1 1103-1108 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-250-0 01 1 1109-1208 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) 		8-98117-250-0 01 1 1109-1208 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-250-0 01 1 1209- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) 		8-98117-250-0 01 1 1209- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4400MM(44W) 		8-98117-251-0 01 1 1010-1102 ●
9 02.480 HARNESS; FRAME,RR 8-98117-251-0 01 1 1010-1102 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4400MM(44W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-251-0 01 1 1103-1108 ●
9 02.480 HARNESS; FRAME,RR 8-98117-251-0 01 1 1103-1108 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4400MM(44W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-251-0 01 1 1109-1208 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4400MM(44W) 		8-98117-251-0 01 1 1109-1208 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-251-0 01 1 1209- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4400MM(44W) 		8-98117-251-0 01 1 1209- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RUSSIA EQUIPMENT(B12) RR FOG LAMP<T79> 		8-98156-025-0 01 1 1103-1408 ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) RR FOG LAMP<T79> 		8-98156-025-0 01 1 1409- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RUSSIA EQUIPMENT(B12) EXC. RR FOG LAMP<T79> 		8-98156-027-0 01 1 1103-1408 ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) EXC. RR FOG LAMP<T79> 		8-98156-027-0 01 1 1409- ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-028-0 01 1 1010-1102 ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. RUSSIA EQUIPMENT(B12) 		8-98156-028-0 01 1 1103-1408 ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-028-0 01 1 1103-1408 ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) 		8-98156-028-0 01 1 1409- ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-028-0 01 1 1409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
