Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#77901) — 209 parça

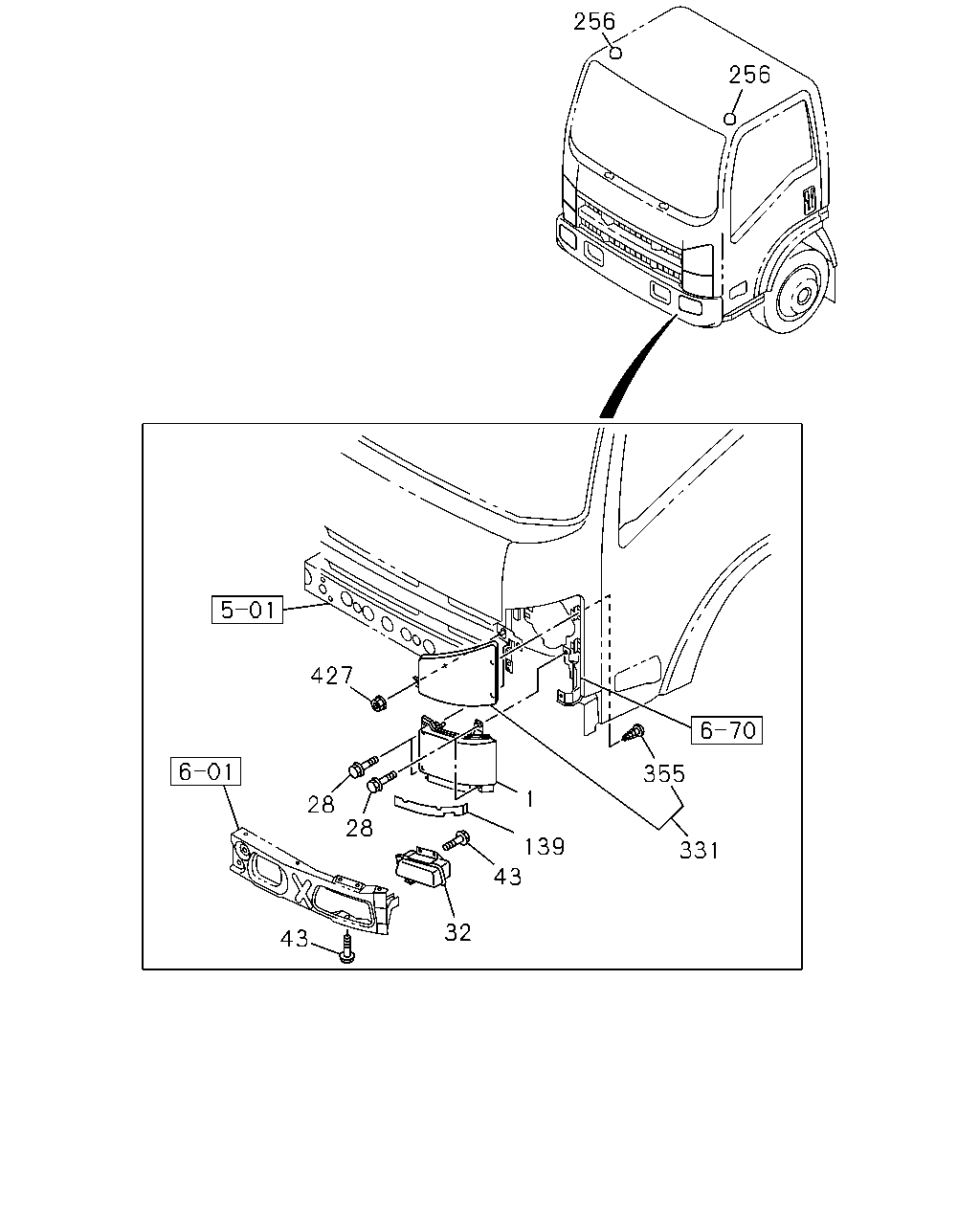

427 28 28 43 32 43 139 1 355 331 256 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.725 LAMP ASM; HEAD HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98098-481-2	01	1	1103-1208	●
1	02.725 LAMP ASM; HEAD HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98225-597-0	01	1	1209-1301	●
1	02.725 LAMP ASM; HEAD HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98225-638-0	01	1	1302-1305	●
1	02.725 LAMP ASM; HEAD HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98241-323-0	01	1	1306-	●
1	02.725 LAMP ASM; HEAD HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98098-482-2	01	1	1103-1208	●
1	02.725 LAMP ASM; HEAD HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98225-598-0	01	1	1209-1301	●
1	02.725 LAMP ASM; HEAD HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98225-639-0	01	1	1302-1305	●
1	02.725 LAMP ASM; HEAD HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98241-324-0	01	1	1306-	●
1	02.725 LAMP ASM; HEAD	8-98098-483-2	01	1	1010-1102	●	●
1	02.725 LAMP ASM; HEAD EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98098-483-2	01	1	1103-1208	●
1	02.725 LAMP ASM; HEAD	8-98098-483-2	01	1	1103-1208		●
1	02.725 LAMP ASM; HEAD EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98225-601-0	01	1	1209-1301	●
1	02.725 LAMP ASM; HEAD	8-98225-601-0	01	1	1209-1301		●
1	02.725 LAMP ASM; HEAD EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98225-642-0	01	1	1302-1305	●
1	02.725 LAMP ASM; HEAD	8-98225-642-0	01	1	1302-1305		●
1	02.725 LAMP ASM; HEAD EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98241-327-0	01	1	1306-	●
1	02.725 LAMP ASM; HEAD	8-98241-327-0	01	1	1306-		●
1	02.725 LAMP ASM; HEAD	8-98098-484-2	01	1	1010-1102	●	●
1	02.725 LAMP ASM; HEAD EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98098-484-2	01	1	1103-1208	●
1	02.725 LAMP ASM; HEAD	8-98098-484-2	01	1	1103-1208		●
1	02.725 LAMP ASM; HEAD EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98225-602-0	01	1	1209-1301	●
1	02.725 LAMP ASM; HEAD	8-98225-602-0	01	1	1209-1301		●
1	02.725 LAMP ASM; HEAD EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98225-643-0	01	1	1302-1305	●
1	02.725 LAMP ASM; HEAD	8-98225-643-0	01	1	1302-1305		●
1	02.725 LAMP ASM; HEAD EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98241-328-0	01	1	1306-	●
1	02.725 LAMP ASM; HEAD	8-98241-328-0	01	1	1306-		●
28	02.762 BOLT; HEADLAMP M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1010-	●	●
32	02.725 LAMP ASM; FOG FOG LAMP FRONT VAR2<X99>	8-98186-094-1	01	1	1202-1301	●
32	02.725 LAMP ASM; FOG FOG LAMP FRONT VAR2<X99>	8-98232-070-0	01	1	1302-	●
32	02.725 LAMP ASM; FOG FOG LAMP FRONT VAR2<X99>	8-98186-095-1	01	1	1202-1301	●
32	02.725 LAMP ASM; FOG FOG LAMP FRONT VAR2<X99>	8-98232-071-0	01	1	1302-	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98149-143-0	01	1	1103-1108	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98149-143-1	01	1	1109-1301	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98232-058-0	01	1	1302-	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98149-144-0	01	1	1103-1108	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98149-144-1	01	1	1109-1301	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98232-059-0	01	1	1302-	●	●
43	02.736 BOLT; FOG LAMP FOG LAMP<T96> 01.531 M6X20 W/LK&PL WASHER	0-50640-620-0	06	1	1103-1108	●
43	02.736 BOLT; FOG LAMP FOG LAMP<T96> 01.531 M6X20 W/LK&PL WASHER	0-50640-620-0	06	1	1109-1201	●	●
43	02.736 BOLT; FOG LAMP FOG LAMP<T96> FOG LAMP FRONT VAR2<X99> 01.531 M6X20 W/LK&PL WASHER	0-50640-620-0	06	1	1202-	●	●
139	02.726 COVER; HEADLAMP	8-98034-056-1	02	1	1010-	●	●
256	02.589 LAMP; MARKER LAMPS TWO ROOF MARKER<TEC>	8-97587-596-4	01	1	1103-	●
256	02.589 LAMP; MARKER LAMPS TWO ROOF MARKER<TEC>	8-97587-597-4	01	1	1103-	●
331	02.585 LAMP; TURN SIGNAL	8-98155-458-0	01	1	1010-	●	●
331	02.585 LAMP; TURN SIGNAL	8-98155-459-0	01	1	1010-	●	●
355	02.726 SCREW; TURN SIGNAL	8-98051-428-0	04	1	1010-	●	●
427	02.587 NUT; TURN SIGNAL LAMP 01.062 M6 FLANGE	0-91180-106-0	02	1	1010-	●	●

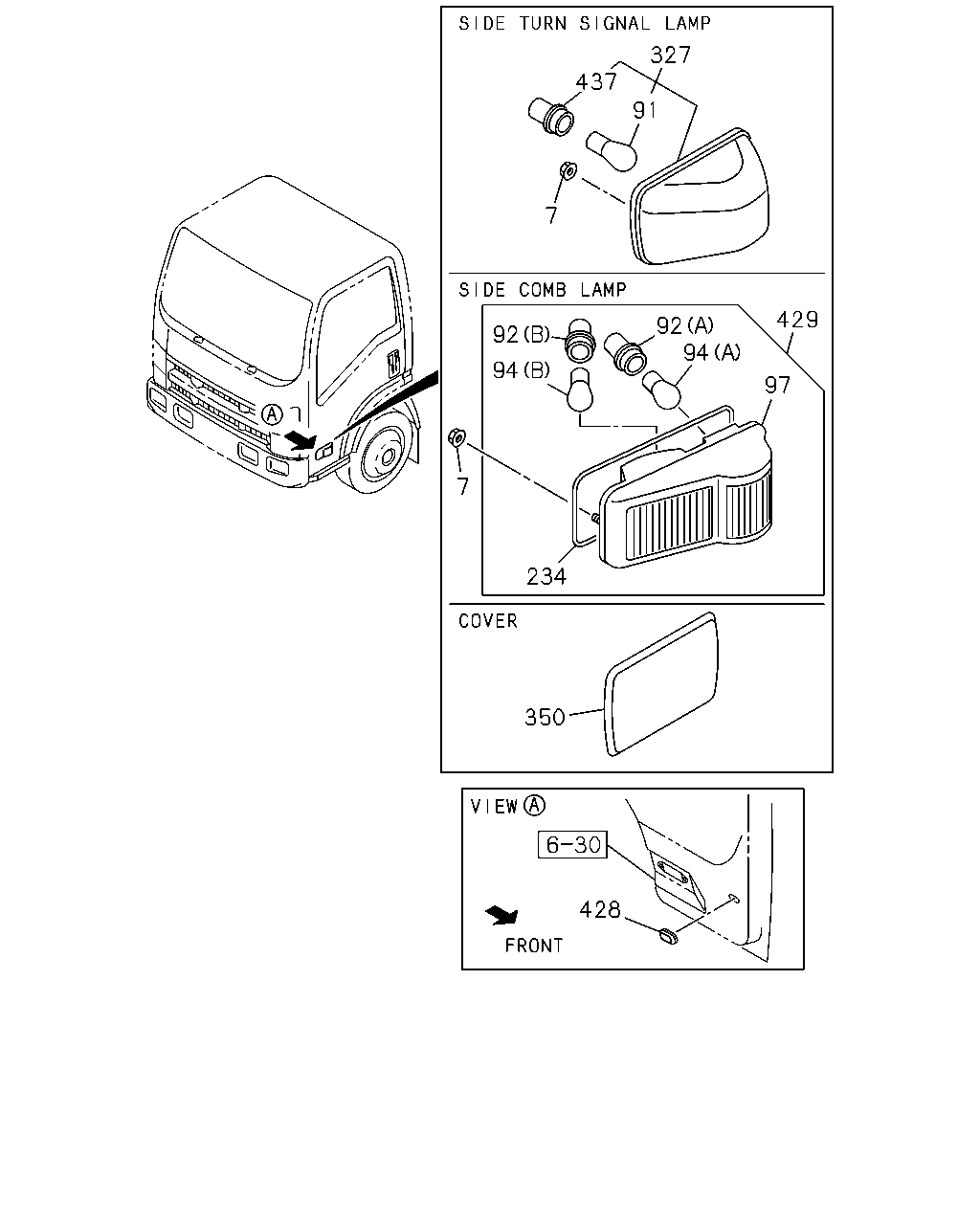

327 437 7 91 429 97 94 92 94 92 7 234 350 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.587 NUT; FRT COMB LAMP 01.062 M6 FLANGE	0-91180-106-0	02	1	1010-	●	●
91	08.991 BULB; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87> 24V 21W	8-98051-495-0	02	1	1103-1108	●
91	08.991 BULB; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87> 24V 21W	8-98051-495-0	02	1	1109-	●	●
92	02.596 SOCKET ASM; SIDE COMB LAMP 02.575 (B)	8-97172-959-0	02	1	1010-1102	●	●
92	02.596 SOCKET ASM; SIDE COMB LAMP CORNERING LAMP<T87> 02.575 (B)	8-97172-959-0	02	1	1103-	●	●
92	02.596 SOCKET ASM; SIDE COMB LAMP (A)	8-98051-390-0	02	1	1010-1102	●	●
92	02.596 SOCKET ASM; SIDE COMB LAMP CORNERING LAMP<T87> (A)	8-98051-390-0	02	1	1103-	●	●
94	08.991 BULB; SIDE COMB LAMP (A) 24V 21W	8-98051-495-0	02	1	1010-1102	●	●
94	08.991 BULB; SIDE COMB LAMP CORNERING LAMP<T87> (A) 24V 21W	8-98051-495-0	02	1	1103-	●	●
94	08.991 BULB; SIDE COMB LAMP (B) 24V 21W	8-98051-496-0	02	1	1010-1102	●	●
94	08.991 BULB; SIDE COMB LAMP CORNERING LAMP<T87> (B) 24V 21W	8-98051-496-0	02	1	1103-	●	●
97	02.895 LAMP UNIT; COMB	8-98051-419-0	01	1	1010-1102	●	●
97	02.895 LAMP UNIT; COMB CORNERING LAMP<T87>	8-98051-419-0	01	1	1103-	●	●
97	02.895 LAMP UNIT; COMB	8-98051-420-0	01	1	1010-1102	●	●
97	02.895 LAMP UNIT; COMB CORNERING LAMP<T87>	8-98051-420-0	01	1	1103-	●	●
234	02.590 GASKET; SIDE COMB LAMP	8-98051-432-0	02	1	1010-1102	●	●
234	02.590 GASKET; SIDE COMB LAMP CORNERING LAMP<T87>	8-98051-432-0	02	1	1103-	●	●
327	02.585 LAMP ASM; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87>	8-97410-180-4	01	1	1103-1108	●
327	02.585 LAMP ASM; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87>	8-97410-180-4	01	1	1109-	●	●
327	02.585 LAMP ASM; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87>	8-97410-181-3	01	1	1103-1108	●
327	02.585 LAMP ASM; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87>	8-97410-181-3	01	1	1109-	●	●
350	02.596 COVER; SIDE TURN HOLE RUSSIA EQUIPMENT(B12)	8-98061-390-0	02	1	1103-1211	●
350	02.596 COVER; SIDE TURN HOLE RUSSIA EQUIPMENT(B12) EXC. CORNERING LAMP<T87>	8-98061-390-0	02	1	1212-	●
428	02.587 GROMMET; SIDE COMB LAMP 17.447	8-94430-184-1	02	1	1010-	●	●
429	02.585 LAMP ASM; SIDE COMB	8-98039-776-2	01	1	1010-1102	●	●
429	02.585 LAMP ASM; SIDE COMB CORNERING LAMP<T87>	8-98039-776-2	01	1	1103-	●	●
429	02.585 LAMP ASM; SIDE COMB	8-98039-777-2	01	1	1010-1102	●	●
429	02.585 LAMP ASM; SIDE COMB CORNERING LAMP<T87>	8-98039-777-2	01	1	1103-	●	●
437	02.596 SOCKET; SIDE,TURN EXC. CORNERING LAMP<T87>	8-98051-390-0	02	1	1103-1108	●
437	02.596 SOCKET; SIDE,TURN EXC. CORNERING LAMP<T87>	8-98051-390-0	02	1	1109-	●	●

457 382 5 5 23 20 420 338 408 339 4 1 432 355 399 357 331 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.725 LAMP ASM; HEAD HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98098-481-2	01	1	1103-1208	●
1	02.725 LAMP ASM; HEAD HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98225-597-0	01	1	1209-1301	●
1	02.725 LAMP ASM; HEAD HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98225-638-0	01	1	1302-1305	●
1	02.725 LAMP ASM; HEAD HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98241-323-0	01	1	1306-	●
1	02.725 LAMP ASM; HEAD HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98098-482-2	01	1	1103-1208	●
1	02.725 LAMP ASM; HEAD HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98225-598-0	01	1	1209-1301	●
1	02.725 LAMP ASM; HEAD HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98225-639-0	01	1	1302-1305	●
1	02.725 LAMP ASM; HEAD HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98241-324-0	01	1	1306-	●
1	02.725 LAMP ASM; HEAD	8-98098-483-2	01	1	1010-1102	●	●
1	02.725 LAMP ASM; HEAD EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98098-483-2	01	1	1103-1208	●
1	02.725 LAMP ASM; HEAD	8-98098-483-2	01	1	1103-1208		●
1	02.725 LAMP ASM; HEAD EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98225-601-0	01	1	1209-1301	●
1	02.725 LAMP ASM; HEAD	8-98225-601-0	01	1	1209-1301		●
1	02.725 LAMP ASM; HEAD EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98225-642-0	01	1	1302-1305	●
1	02.725 LAMP ASM; HEAD	8-98225-642-0	01	1	1302-1305		●
1	02.725 LAMP ASM; HEAD EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98241-327-0	01	1	1306-	●
1	02.725 LAMP ASM; HEAD	8-98241-327-0	01	1	1306-		●
1	02.725 LAMP ASM; HEAD	8-98098-484-2	01	1	1010-1102	●	●
1	02.725 LAMP ASM; HEAD EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98098-484-2	01	1	1103-1208	●
1	02.725 LAMP ASM; HEAD	8-98098-484-2	01	1	1103-1208		●
1	02.725 LAMP ASM; HEAD EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98225-602-0	01	1	1209-1301	●
1	02.725 LAMP ASM; HEAD	8-98225-602-0	01	1	1209-1301		●
1	02.725 LAMP ASM; HEAD EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98225-643-0	01	1	1302-1305	●
1	02.725 LAMP ASM; HEAD	8-98225-643-0	01	1	1302-1305		●
1	02.725 LAMP ASM; HEAD EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98241-328-0	01	1	1306-	●
1	02.725 LAMP ASM; HEAD	8-98241-328-0	01	1	1306-		●
4	02.727 HEADLAMP UNIT HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98051-404-0	01	1	1103-1301	●
4	02.727 HEADLAMP UNIT HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98226-184-0	01	1	1302-	●
4	02.727 HEADLAMP UNIT HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98051-405-0	01	1	1103-1301	●
4	02.727 HEADLAMP UNIT HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98226-185-0	01	1	1302-	●
4	02.727 HEADLAMP UNIT	8-98051-406-0	01	1	1010-1102	●	●
4	02.727 HEADLAMP UNIT EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98051-406-0	01	1	1103-1301	●
4	02.727 HEADLAMP UNIT	8-98051-406-0	01	1	1103-1301		●
4	02.727 HEADLAMP UNIT EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98226-188-0	01	1	1302-	●
4	02.727 HEADLAMP UNIT	8-98226-188-0	01	1	1302-		●
4	02.727 HEADLAMP UNIT	8-98051-407-0	01	1	1010-1102	●	●
4	02.727 HEADLAMP UNIT EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98051-407-0	01	1	1103-1301	●
4	02.727 HEADLAMP UNIT	8-98051-407-0	01	1	1103-1301		●
4	02.727 HEADLAMP UNIT EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98226-189-0	01	1	1302-	●
4	02.727 HEADLAMP UNIT	8-98226-189-0	01	1	1302-		●
5	02.727 BULB; HEADLAMP (B) 24V 5W	1-82194-042-0	02	1	1010-	●	●
5	02.727 BULB; HEADLAMP (A) 24V 75/70W	1-82194-063-0	02	1	1010-	●	●
20	02.736 SCREW; HEADLAMP	8-97378-871-0	06	1	1010-	●	●
23	02.727 COVER; BULB,HEADLAMP	8-97232-491-0	02	1	1010-	●	●
331	02.585 LAMP; TURN SIGNAL	8-98155-458-0	01	1	1010-	●	●
331	02.585 LAMP; TURN SIGNAL	8-98155-459-0	01	1	1010-	●	●
338	02.727 LEVELING; HEADLAMP HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98010-256-0	02	1	1209-	●
339	02.587 GASKET; LEVELING HEADLAMP LEVELING MANUAL CONTROL<TR6>	1-86830-158-0	02	1	1209-	●
355	02.726 SCREW; TURN SIGNAL	8-98051-428-0	04	1	1010-	●	●
357	08.991 BULB; TURN SIGNAL 24V 21W AMBER	8-97323-806-0	02	1	1010-	●	●
382	02.575 PLUG; SOCKET,HEADLAMP	8-98069-364-0	02	1	1010-1208	●	●
382	02.575 PLUG; SOCKET,HEADLAMP	8-98225-685-0	02	1	1209-	●	●
399	02.596 SOCKET; TURN SIGNAL	8-98051-387-0	02	1	1010-	●	●
408	02.727 CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	1010-	●	●
420	02.737 SPRING; BULB,HEADLAMP	8-97378-875-0	02	1	1010-1301	●	●
420	02.737 SPRING; BULB,HEADLAMP	8-98218-601-0	02	1	1302-	●	●
431	02.727 CAP; TURN SIGNAL,LAMP	8-97378-874-0	02	1	1010-	●	●
432	02.726 FASTENER; TURN SIGNAL,LAMP	8-98051-431-0	04	1	1010-	●	●
457	16.450 GRIP; HEADLAMP	8-98241-354-0	02	1	1306-	●	●

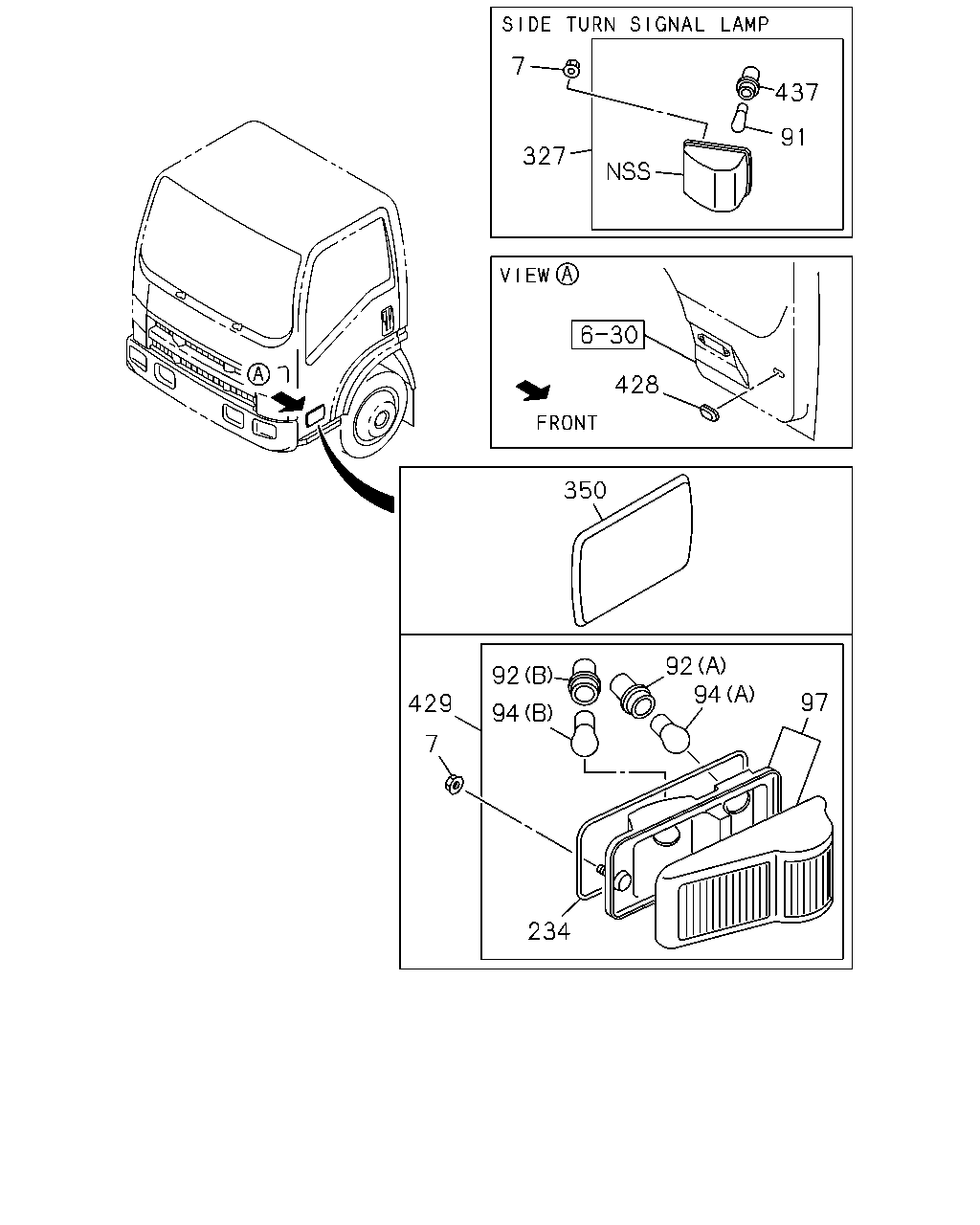

7 327 437 91 428 350 429 7 92 94 92 94 97 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.587 NUT; FRT COMB LAMP 01.062 M6 FLANGE	0-91180-106-0	02	1	1010-	●	●
91	08.991 BULB; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87> 24V 21W	8-98051-495-0	02	1	1103-1108	●
91	08.991 BULB; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87> 24V 21W	8-98051-495-0	02	1	1109-	●	●
92	02.596 SOCKET ASM; SIDE COMB LAMP 02.575 (B)	8-97172-959-0	02	1	1010-1102	●	●
92	02.596 SOCKET ASM; SIDE COMB LAMP CORNERING LAMP<T87> 02.575 (B)	8-97172-959-0	02	1	1103-	●	●
92	02.596 SOCKET ASM; SIDE COMB LAMP (A)	8-98051-390-0	02	1	1010-1102	●	●
92	02.596 SOCKET ASM; SIDE COMB LAMP CORNERING LAMP<T87> (A)	8-98051-390-0	02	1	1103-	●	●
94	08.991 BULB; SIDE COMB LAMP (A) 24V 21W	8-98051-495-0	02	1	1010-1102	●	●
94	08.991 BULB; SIDE COMB LAMP CORNERING LAMP<T87> (A) 24V 21W	8-98051-495-0	02	1	1103-	●	●
94	08.991 BULB; SIDE COMB LAMP (B) 24V 21W	8-98051-496-0	02	1	1010-1102	●	●
94	08.991 BULB; SIDE COMB LAMP CORNERING LAMP<T87> (B) 24V 21W	8-98051-496-0	02	1	1103-	●	●
97	02.895 LAMP UNIT; COMB	8-98051-419-0	01	1	1010-1102	●	●
97	02.895 LAMP UNIT; COMB CORNERING LAMP<T87>	8-98051-419-0	01	1	1103-	●	●
97	02.895 LAMP UNIT; COMB	8-98051-420-0	01	1	1010-1102	●	●
97	02.895 LAMP UNIT; COMB CORNERING LAMP<T87>	8-98051-420-0	01	1	1103-	●	●
234	02.590 GASKET; SIDE COMB LAMP	8-98051-432-0	02	1	1010-1102	●	●
234	02.590 GASKET; SIDE COMB LAMP CORNERING LAMP<T87>	8-98051-432-0	02	1	1103-	●	●
327	02.585 LAMP ASM; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87>	8-97410-180-4	01	1	1103-1108	●
327	02.585 LAMP ASM; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87>	8-97410-180-4	01	1	1109-	●	●
327	02.585 LAMP ASM; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87>	8-97410-181-3	01	1	1103-1108	●
327	02.585 LAMP ASM; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87>	8-97410-181-3	01	1	1109-	●	●
350	02.596 COVER; SIDE TURN HOLE RUSSIA EQUIPMENT(B12)	8-98061-390-0	02	1	1103-1211	●
350	02.596 COVER; SIDE TURN HOLE RUSSIA EQUIPMENT(B12) EXC. CORNERING LAMP<T87>	8-98061-390-0	02	1	1212-	●
428	02.587 GROMMET; SIDE COMB LAMP 17.447	8-94430-184-1	02	1	1010-	●	●
429	02.585 LAMP ASM; SIDE COMB	8-98039-776-2	01	1	1010-1102	●	●
429	02.585 LAMP ASM; SIDE COMB CORNERING LAMP<T87>	8-98039-776-2	01	1	1103-	●	●
429	02.585 LAMP ASM; SIDE COMB	8-98039-777-2	01	1	1010-1102	●	●
429	02.585 LAMP ASM; SIDE COMB CORNERING LAMP<T87>	8-98039-777-2	01	1	1103-	●	●
437	02.596 SOCKET; SIDE,TURN EXC. CORNERING LAMP<T87>	8-98051-390-0	02	1	1103-1108	●
437	02.596 SOCKET; SIDE,TURN EXC. CORNERING LAMP<T87>	8-98051-390-0	02	1	1109-	●	●

256 82 292 83 80 86 32 44 47 36 49 448 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	08.991 BULB; FOG LAMP FOG LAMP<T96> 24V 70W	1-82194-106-0	02	1	1103-1108	●
15	08.991 BULB; FOG LAMP FOG LAMP<T96> 24V 70W	1-82194-106-0	02	1	1109-1201	●	●
15	08.991 BULB; FOG LAMP FOG LAMP<T96> FOG LAMP FRONT VAR2<X99> 24V 70W	1-82194-106-0	02	1	1202-	●	●
32	02.725 LAMP ASM; FOG FOG LAMP FRONT VAR2<X99>	8-98186-094-1	01	1	1202-1301	●
32	02.725 LAMP ASM; FOG FOG LAMP FRONT VAR2<X99>	8-98232-070-0	01	1	1302-	●
32	02.725 LAMP ASM; FOG FOG LAMP FRONT VAR2<X99>	8-98186-095-1	01	1	1202-1301	●
32	02.725 LAMP ASM; FOG FOG LAMP FRONT VAR2<X99>	8-98232-071-0	01	1	1302-	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98149-143-0	01	1	1103-1108	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98149-143-1	01	1	1109-1301	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98232-058-0	01	1	1302-	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98149-144-0	01	1	1103-1108	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98149-144-1	01	1	1109-1301	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98232-059-0	01	1	1302-	●	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96>	1-82118-015-0	01	1	1103-1108	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96>	1-82118-015-0	01	1	1109-1201	●	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96> FOG LAMP FRONT VAR2<X99>	1-82118-015-0	01	1	1202-1510	●	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96> FOG LAMP FRONT VAR2<X99>	1-82118-015-0	01	1	1511-	●	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96>	1-82118-016-0	01	1	1103-1108	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96>	1-82118-016-0	01	1	1109-1201	●	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96> FOG LAMP FRONT VAR2<X99>	1-82118-016-0	01	1	1202-1510	●	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96> FOG LAMP FRONT VAR2<X99>	1-82118-016-0	01	1	1511-	●	●
44	02.737 NUT; FOG LAMP FOG LAMP FRONT VAR2<X99>	8-98203-259-0	02	1	1202-1204	●
44	02.737 NUT; FOG LAMP FOG LAMP<T96> FOG LAMP FRONT VAR2<X99> M6	8-98217-430-0	02	1	1205-	●	●
47	02.737 WASHER; PL,FOG LAMP FOG LAMP FRONT VAR2<X99>	8-98203-258-0	02	1	1202-1204	●
47	02.737 WASHER; PL,FOG LAMP FOG LAMP<T96> FOG LAMP FRONT VAR2<X99>	8-98217-429-0	02	1	1205-	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-98051-435-0	01	1	1103-1108	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-98051-435-0	01	1	1109-1201	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96> FOG LAMP FRONT VAR2<X99>	8-98051-435-0	01	1	1202-1510	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96> FOG LAMP FRONT VAR2<X99>	8-98051-435-0	01	1	1511-	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-98051-436-0	01	1	1103-1108	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-98051-436-0	01	1	1109-1201	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96> FOG LAMP FRONT VAR2<X99>	8-98051-436-0	01	1	1202-1510	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96> FOG LAMP FRONT VAR2<X99>	8-98051-436-0	01	1	1511-	●	●
80	08.991 BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> 24V 5W	8-94135-397-0	02	1	1103-	●
82	02.587 SCREW; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-011-0	04	1	1103-	●
83	02.589 LENS; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	8-98057-958-0	02	1	1103-	●
86	02.587 NUT; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> 01.062 M6 FLANGE	0-91180-106-0	04	1	1103-	●
256	02.589 LAMP; MARKER LAMPS TWO ROOF MARKER<TEC>	8-97587-596-4	01	1	1103-	●
256	02.589 LAMP; MARKER LAMPS TWO ROOF MARKER<TEC>	8-97587-597-4	01	1	1103-	●
292	02.587 WASHER; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-012-0	04	1	1103-	●
448	02.727 CAP ASM; LAMP FOG LAMP<T96>	8-97378-874-0	02	1	1103-1108	●
448	02.727 CAP ASM; LAMP FOG LAMP<T96>	8-97378-874-0	02	1	1109-1201	●	●
448	02.727 CAP ASM; LAMP FOG LAMP<T96> FOG LAMP FRONT VAR2<X99>	8-97378-874-0	02	1	1202-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
