7-60 — SEAT BELT (#77900) — 55 parça

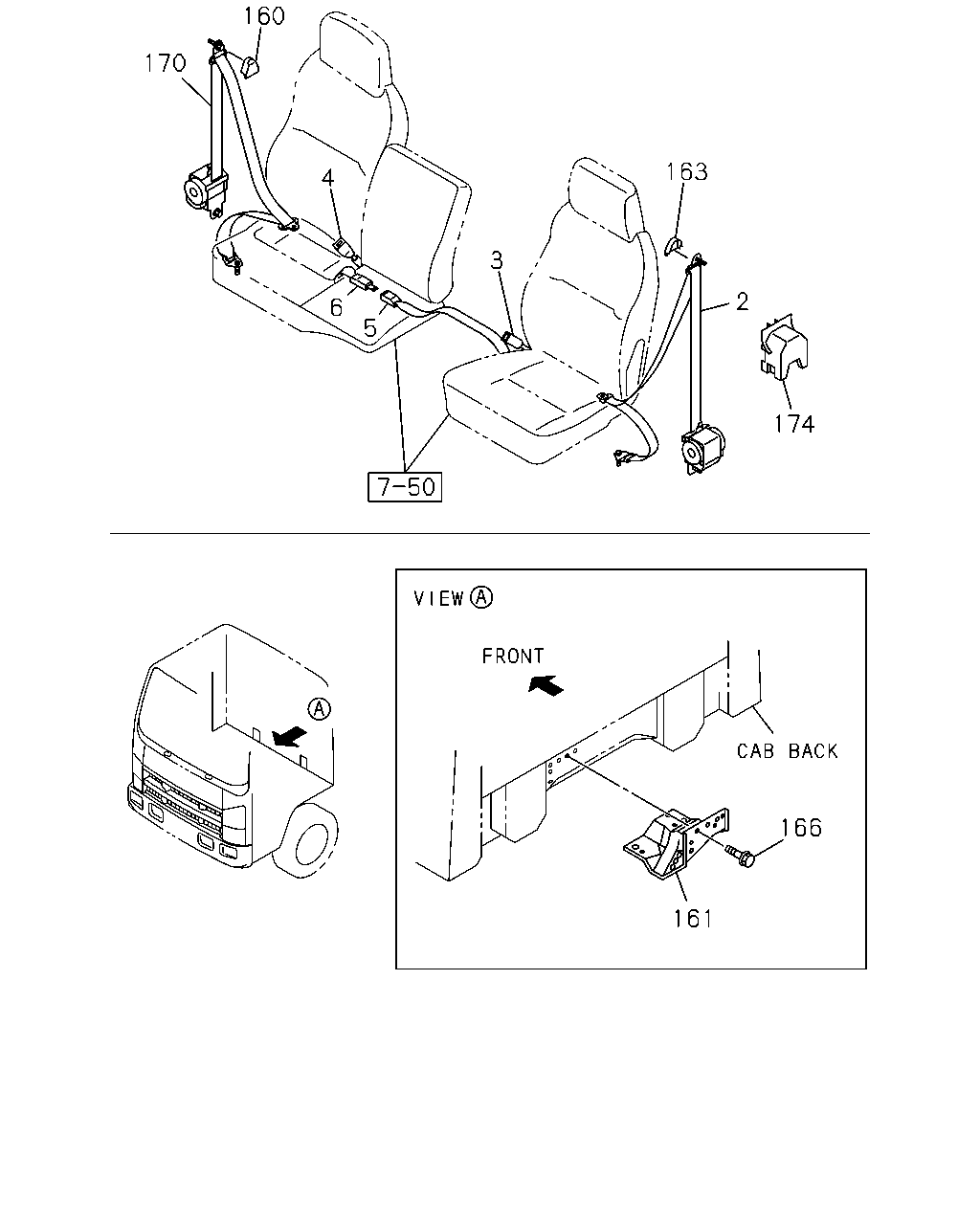

161 166 174 2 163 3 5 6 4 160 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.714 BELT; SEAT,TONGUE SIDE AIR BAG DRIVER<AJ3> GRAY	8-97405-179-9	01	1	1204-1406	●	●
2	16.714 BELT; SEAT,TONGUE SIDE AIR BAG DRIVER<AJ3> GRAY	8-97428-456-0	01	1	1407-	●	●
2	16.714 BELT; SEAT,TONGUE SIDE GRAY	8-97405-180-7	01	1	1010-1203	●	●
2	16.714 BELT; SEAT,TONGUE SIDE EXC. AIR BAG DRIVER<AJ3> GRAY	8-97405-180-7	01	1	1204-1406	●	●
2	16.714 BELT; SEAT,TONGUE SIDE EXC. AIR BAG DRIVER<AJ3> GRAY	8-97428-457-1	01	1	1407-	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE GRAY	8-97405-175-2	01	1	1010-1108	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE GRAY	8-97405-175-2	01	1	1109-	●	●
4	16.714 BELT; PASSENGER SEAT,BUCKLE SIDE GRAY	8-97405-178-0	01	1	1010-1108	●	●
4	16.714 BELT; PASSENGER SEAT,BUCKLE SIDE GRAY	8-97405-178-0	01	1	1109-	●	●
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE GRAY	8-97405-182-1	01	1	1010-1108	●	●
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE GRAY	8-97405-182-1	01	1	1109-	●	●
6	16.714 BELT; CENTER SEAT,TONGUE SIDE GRAY	8-97411-507-2	01	1	1010-	●	●
160	16.714 COVER; THROUGH ANCHOR GRAY	8-97405-991-0	01	1	1010-1108	●	●
160	16.714 COVER; THROUGH ANCHOR GRAY	8-97405-991-0	01	1	1109-	●	●
161	16.714 REINFORCEMENT; SEAT BELT ANCHOR 16.545	8-98017-005-2	01	1	1010-1102	●	●
161	16.714 REINFORCEMENT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 16.545	8-98017-005-2	01	1	1103-1108	●
161	16.714 REINFORCEMENT; SEAT BELT ANCHOR 16.545	8-98017-005-2	01	1	1103-1108		●
161	16.714 REINFORCEMENT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 16.545	8-98017-005-2	01	1	1109-	●	●
163	16.714 COVER; ADJUSTER GRAY	8-97405-991-0	01	1	1010-1108	●	●
163	16.714 COVER; ADJUSTER GRAY	8-97405-991-0	01	1	1109-	●	●
166	16.714 BOLT; SEAT BELT ANCHOR EXC. INSPECTION ENGINE COVER<8GA> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1103-1108	●
166	16.714 BOLT; SEAT BELT ANCHOR EXC. INSPECTION ENGINE COVER<8GA> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1109-	●	●
166	16.714 BOLT; SEAT BELT ANCHOR 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1010-1102	●	●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1103-1108	●
166	16.714 BOLT; SEAT BELT ANCHOR 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1103-1108		●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1109-	●	●
166	16.714 BOLT; SEAT BELT ANCHOR 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1010-1102	●	●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1103-1108	●
166	16.714 BOLT; SEAT BELT ANCHOR 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1103-1108		●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1109-	●	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE GRAY	8-97405-180-7	01	1	1010-1406	●	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE GRAY	8-97428-457-1	01	1	1407-	●	●
174	16.714 COVER; RETRACTOR,SEAT BELT	8-98039-376-1	01	1	1010-	●	●

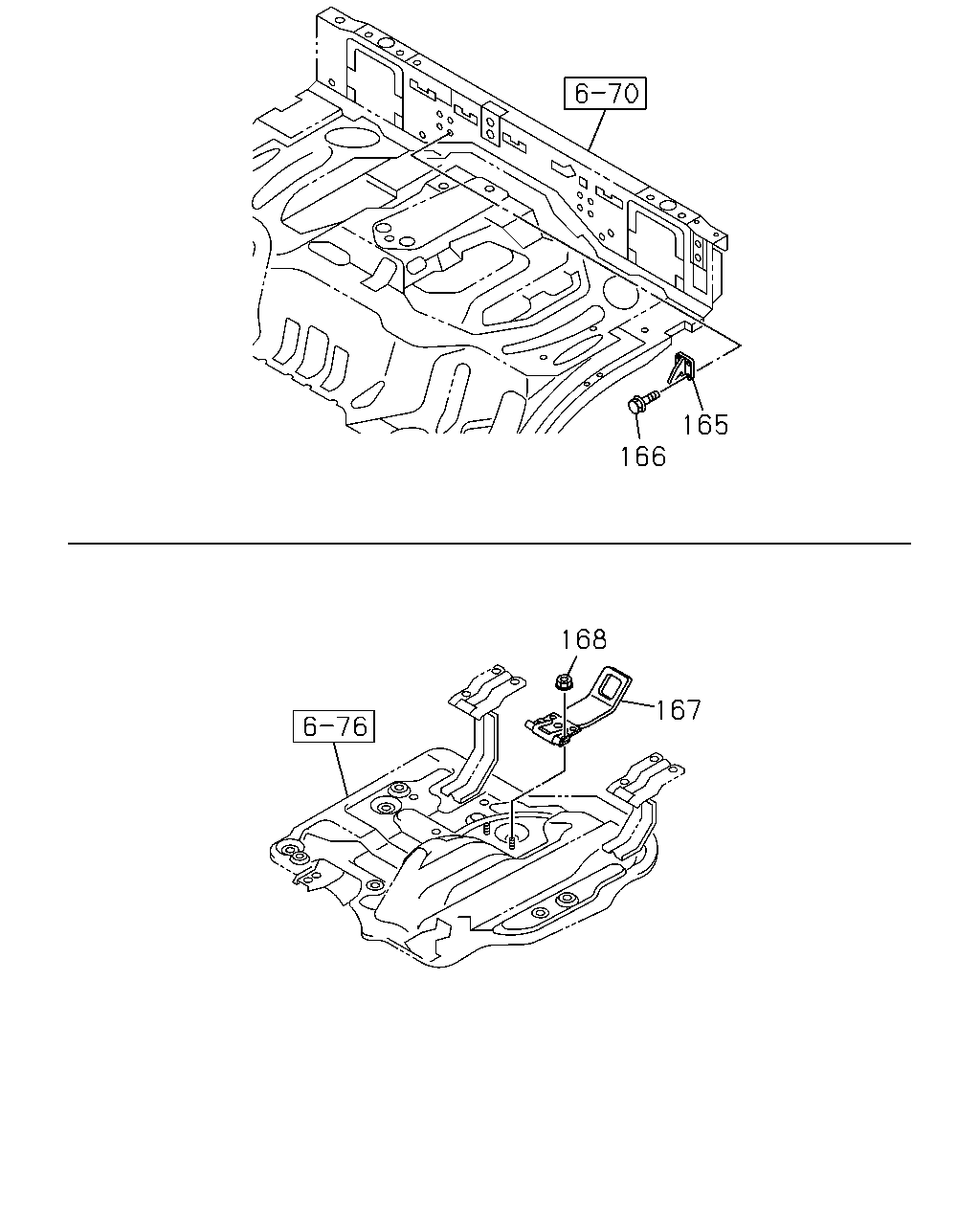

165 166 167 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
165	16.714 HOOK; SEAT BELT ANCHOR	8-98040-143-0	01	1	1010-1102	●	●
165	16.714 HOOK; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA>	8-98040-143-0	01	1	1103-1108	●
165	16.714 HOOK; SEAT BELT ANCHOR	8-98040-143-0	01	1	1103-1108		●
165	16.714 HOOK; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA>	8-98040-143-0	01	1	1109-	●	●
166	16.714 BOLT; SEAT BELT ANCHOR EXC. INSPECTION ENGINE COVER<8GA> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1103-1108	●
166	16.714 BOLT; SEAT BELT ANCHOR EXC. INSPECTION ENGINE COVER<8GA> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1109-	●	●
166	16.714 BOLT; SEAT BELT ANCHOR 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1010-1102	●	●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1103-1108	●
166	16.714 BOLT; SEAT BELT ANCHOR 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1103-1108		●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1109-	●	●
166	16.714 BOLT; SEAT BELT ANCHOR 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1010-1102	●	●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1103-1108	●
166	16.714 BOLT; SEAT BELT ANCHOR 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1103-1108		●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1109-	●	●
167	16.714 PLATE; ANCHOR	8-97589-140-0	01	1	1010-1102	●	●
167	16.714 PLATE; ANCHOR INSPECTION ENGINE COVER<8GA>	8-97589-140-0	01	1	1103-1108	●
167	16.714 PLATE; ANCHOR	8-97589-140-0	01	1	1103-1108		●
167	16.714 PLATE; ANCHOR INSPECTION ENGINE COVER<8GA>	8-97589-140-0	01	1	1109-	●	●
168	16.714 NUT; ANCHOR PLATE 01.062 M8 FLANGE	0-91180-108-0	02	1	1010-1102	●	●
168	16.714 NUT; ANCHOR PLATE INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE	0-91180-108-0	02	1	1103-1108	●
168	16.714 NUT; ANCHOR PLATE 01.062 M8 FLANGE	0-91180-108-0	02	1	1103-1108		●
168	16.714 NUT; ANCHOR PLATE INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●	●
