◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14 - CAMSHAFT AND VALVE ▶
0-14 — CAMSHAFT AND VALVE (#7790) — 74 parça

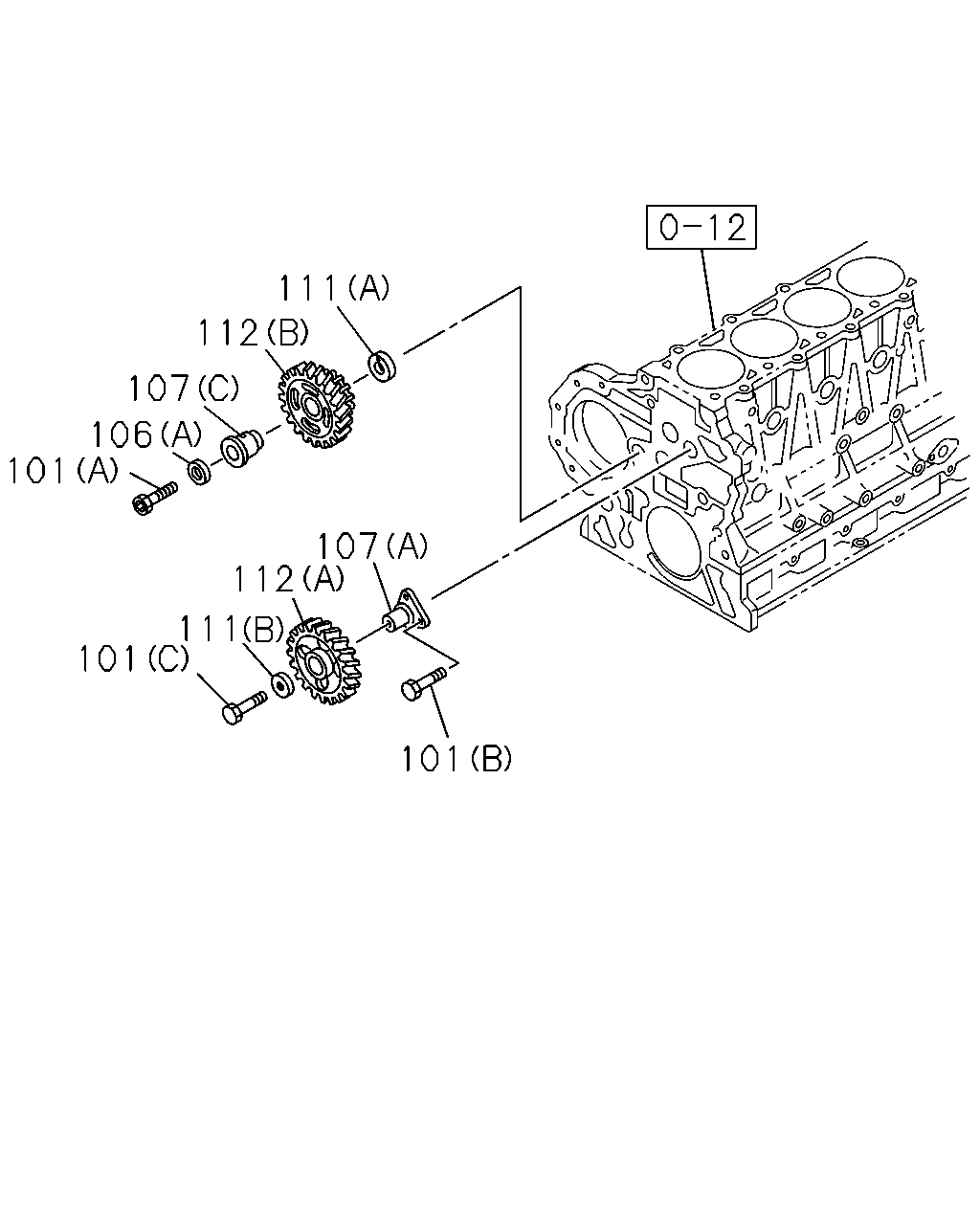

çizim 26704
111 112 107 106 101 107 112 101 101
BalonParca AdiParca NoAdetTipApplied Date A B
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9905-0512 ● ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0601- ● ●
101 BOLT; THRUST COLLAR
(A) M14X67 HEX SOCKET 		8-94394-779-2 01 1 9905- ● ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9905-0512 ● ●
101 BOLT; THRUST COLLAR
(C) M14X30 		0-23951-430-0 01 1 0601- ● ●
106 WASHER; IDLE GEAR SHAFT
(A) ID=14.2 OD=23 		1-09503-031-0 01 1 9905- ● ●
106 WASHER; IDLE GEAR SHAFT
(B) ID=14.5 OD=46 		8-94370-688-0 01 1 9905-0306 ● ●
106 WASHER; IDLE GEAR SHAFT
(B) ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ● ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-073-2 01 1 9905-0205 ● ●
107 SHAFT; IDLE GEAR
(C) 		8-97602-588-0 01 1 0206- ● ●
107 SHAFT; IDLE GEAR
(B) 		8-94395-096-0 01 1 9905-0304 ● ●
107 SHAFT; IDLE GEAR
(B) 		8-94334-682-0 01 1 0305- ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 9905-0204 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205- ● ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-94370-688-0 01 1 9905-0306 ● ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=24 OD=70 		8-94394-097-1 01 1 9905- ● ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-4 01 1 9905- ● ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 9905- ● ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-3 01 1 9905- ● ●

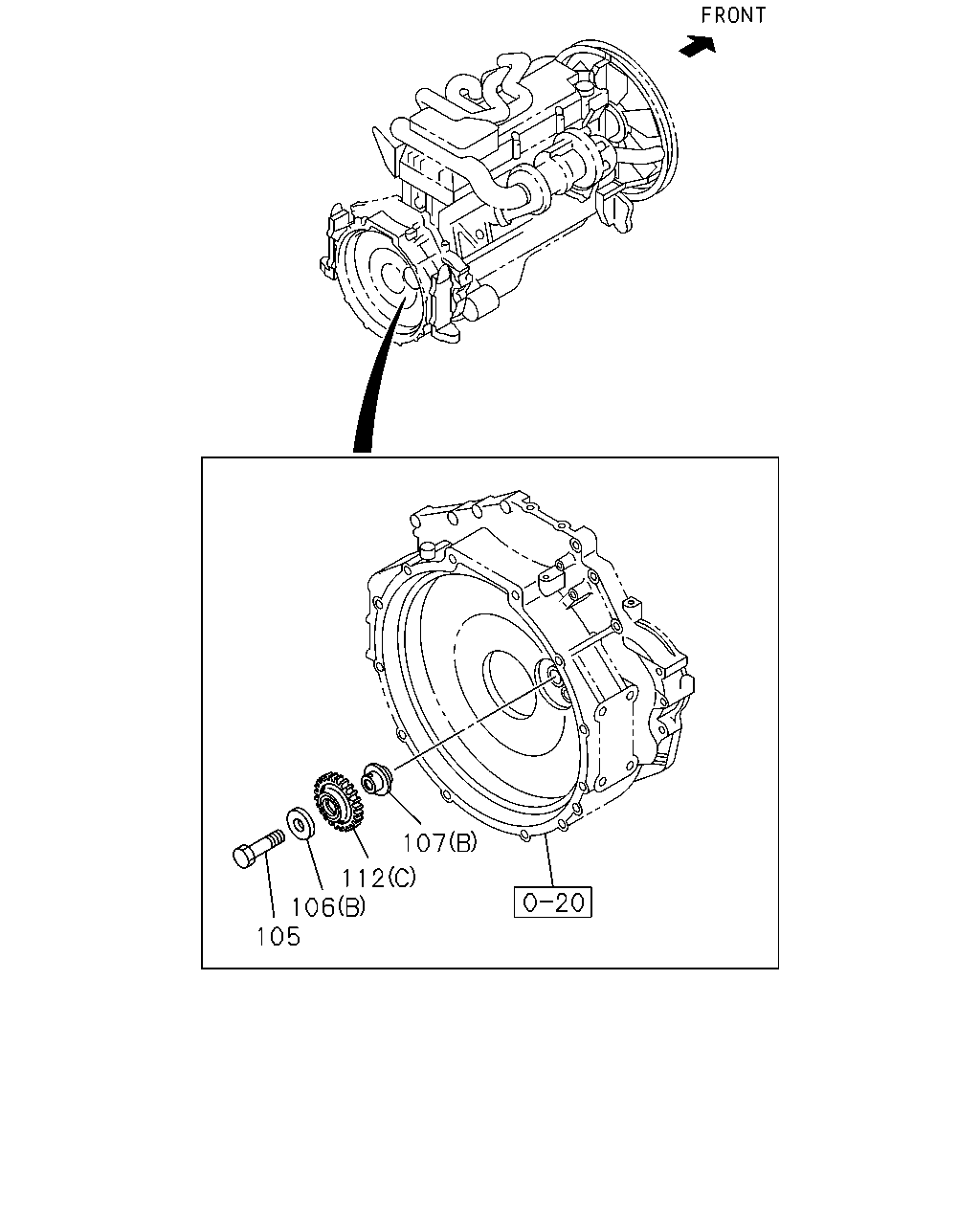

çizim 98742
107 112 106 105
BalonParca AdiParca NoAdetTipApplied Date A B
105 BOLT; IDLE GEAR SHAFT
M14X65 		8-97066-798-0 01 1 9905- ● ●
106 WASHER; IDLE GEAR SHAFT
(A) ID=14.2 OD=23 		1-09503-031-0 01 1 9905- ● ●
106 WASHER; IDLE GEAR SHAFT
(B) ID=14.5 OD=46 		8-94370-688-0 01 1 9905-0306 ● ●
106 WASHER; IDLE GEAR SHAFT
(B) ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ● ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-073-2 01 1 9905-0205 ● ●
107 SHAFT; IDLE GEAR
(C) 		8-97602-588-0 01 1 0206- ● ●
107 SHAFT; IDLE GEAR
(B) 		8-94395-096-0 01 1 9905-0304 ● ●
107 SHAFT; IDLE GEAR
(B) 		8-94334-682-0 01 1 0305- ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 9905-0204 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205- ● ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-4 01 1 9905- ● ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 9905- ● ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-3 01 1 9905- ● ●

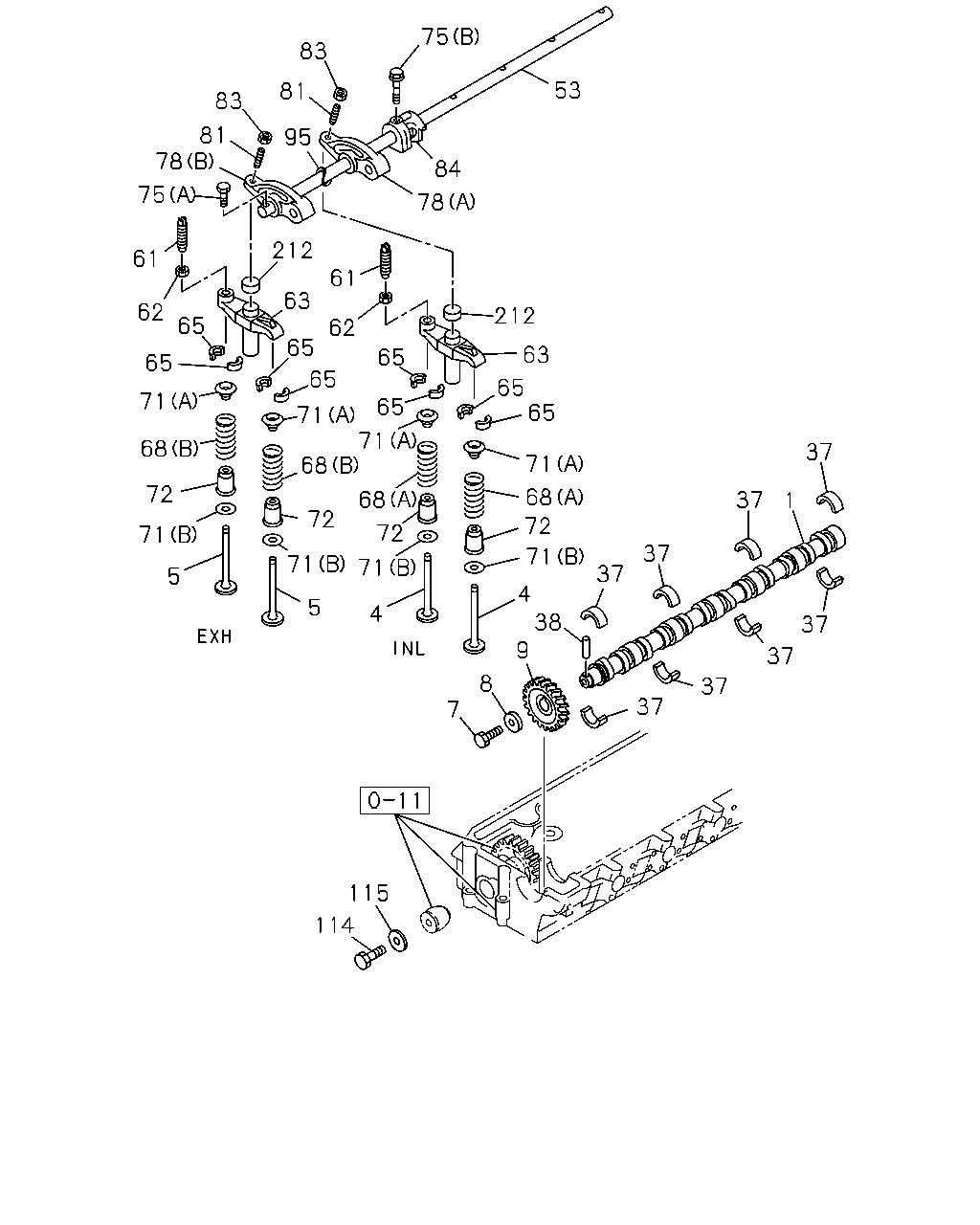

çizim 98744
75 83 53 81 83 81 78 95 84 75 78 212 61 61 63 62 212 65 62 65 63 65 65 65 65 65 71 65 71 71 68 68 37 71 72 68 68 37 1 72 72 72 71 37 71 71 71 37 5 4 38 9 5 4 37 37 8 37 37 7 115 114
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAMSHAFT 8-94390-469-1 01 1 9905- ● ●
4 VALVE; INL 8-94395-882-2 12 1 9905- ● ●
5 VALVE; EXH 8-94395-883-2 12 1 9905-0402 ● ●
5 VALVE; EXH 8-97209-876-3 12 1 0403- ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9905- ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9905- ● ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9905- ● ●
37 METAL; CM/SHF
UPPER B=16 		8-97356-939-0 04 1 0307- ● ●
37 METAL; CM/SHF 8-94390-311-1 08 1 9905-0206 ● ●
37 METAL; CM/SHF
B=26 		8-97602-699-0 08 1 0207-0306 ● ●
37 METAL; CM/SHF
LOWER B=26 		8-97602-699-0 04 1 0307- ● ●
38 PIN; CAM BRG SET 8-94399-487-0 01 1 9905- ● ●
53 SHAFT; ROCKER ARM 8-94392-996-1 01 1 9905-0610 ● ●
53 SHAFT; ROCKER ARM 8-97389-918-0 01 1 0611- ● ●
61 SCREW; ADJ,BRIDGE
M8X21 		8-94394-803-0 12 1 9905- ● ●
62 NUT; ADJ SCREW LK BRIDGE
M8 FLANGE 		9-09844-574-0 12 1 9905- ● ●
63 BRIDGE 8-94392-002-3 12 1 9905- ● ●
65 COLLAR; SPLIT 5-12565-004-0 48 1 9905- ● ●
68 SPRING; VLV
(A) INLET MARK BLUE 		8-94395-884-0 12 1 9905- ● ●
68 SPRING; VLV
(B) EXHAUST MARK WHITE 		8-94395-885-1 12 1 9905- ● ●
71 SEAT; SPR
(A) UPPER OD=32.8 T=12.75 		8-94390-783-2 24 1 9905- ● ●
71 SEAT; SPR
(B) LOWER ID=14.3 T=1.0 		8-94391-468-0 24 1 9905- ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97120-307-0 24 1 9905- ● ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 04 1 9905-0006 ● ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0007-0512 ● ●
75 BOLT; BRKT
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ● ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9905- ● ●
78 ARM; ROCKER
(B) EXHAUST 		8-94392-992-0 06 1 9905-0211 ● ●
78 ARM; ROCKER
(B) EXHAUST 		8-97306-424-3 06 1 0212- ● ●
78 ARM; ROCKER
(A) INLET 		8-94392-993-0 06 1 9905-0211 ● ●
78 ARM; ROCKER
(A) INLET 		8-97306-421-3 06 1 0212- ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9905- ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 24 1 9905-0006 ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0007-0512 ● ●
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 12 1 0601- ● ●
84 BRACKET; ROCKER SHAFT,INTER 8-94395-836-2 05 1 9905- ● ●
95 SPRING; ROCKER SHAFT 8-94392-999-0 06 1 9905- ● ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9905- ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9905-0306 ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ● ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 9905- ● ●
