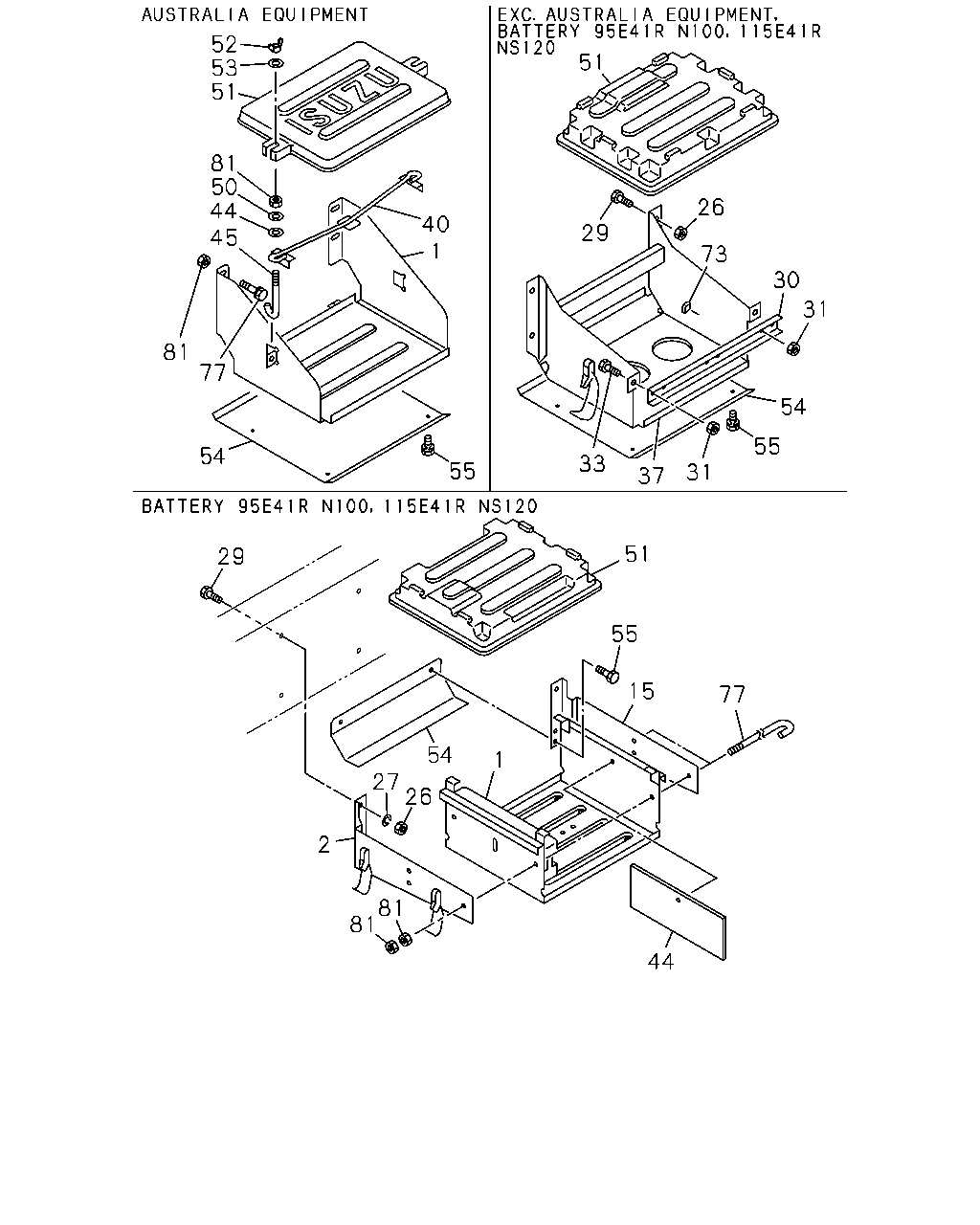

5-20 — BATTERY CARRIER (#779) — 43 parça

51 29 26 30 31 54 55 31 37 33 40 1 55 52 53 51 81 50 44 45 81 77 54 29 51 55 15 77 44 1 54 27 26 2 81 81 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CARRIER; BATTERY AUSTRALIA EQUIPMENT(RR3)	1-53610-101-3	01	1	9204-
1	CARRIER; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	9-53613-584-3	01	1	9204-
2	BRACKET; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53613-340-1	01	1	9204-
15	BRACKET; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53613-339-1	01	1	9204-
26	NUT; BRKT EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10	9-09110-410-0	04	1	9204-
26	NUT; BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14	9-99110-414-0	04	1	9204-
27	WASHER; LK,BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2	9-09150-514-0	04	1	9204-
29	BOLT; BRKT TO FRAME EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X30 W/LK WASHER	0-50041-030-0	04	1	9204-9307
29	BOLT; BRKT TO FRAME EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X30 FLANGE	0-28081-030-0	04	1	9308-
29	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X35	0-20801-435-0	04	1	9204-
30	PLATE; BATTERY EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53616-046-3	01	1	9204-
31	NUT; PLATE EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	02	1	9204-
33	BOLT; PLATE TO BRKT EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 FLANGE	0-28010-820-0	02	1	9204-9204
33	BOLT; PLATE TO BRKT EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 FLANGE	0-28080-820-0	02	1	9205-
37	BRACKET; BATTERY EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53613-354-3	01	1	9204-9504
37	BRACKET; BATTERY EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,PAKISTAN EQUIPMENT(WN3),BATTERY 115E41R NS120<W73>	1-53613-354-3	01	1	9505-
37	BRACKET; BATTERY PAKISTAN EQUIPMENT(WN3) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53613-356-0	01	1	9505-
40	CLAMP; BATTERY AUSTRALIA EQUIPMENT(RR3)	5-53615-004-1	01	1	9204-
44	SPACER; BATTERY AUSTRALIA EQUIPMENT(RR3) OD=22 T=7	9-53319-024-0	02	1	9204-
44	SPACER; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53619-006-0	02	1	9204-
45	ROD; TENSION,BATTERY AUSTRALIA EQUIPMENT(RR3)	1-53616-076-0	02	1	9204-
50	WASHER; PL,ROD,BATTERY AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=22	9-09164-708-0	02	1	9204-
51	COVER; BATTERY AUSTRALIA EQUIPMENT(RR3)	9-53612-606-0	01	1	9204-9410
51	COVER; BATTERY AUSTRALIA EQUIPMENT(RR3)	8-97120-747-0	01	1	9411-
51	COVER; BATTERY EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53612-019-1	01	1	9204-
51	COVER; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53612-029-0	01	1	9204-
52	NUT; WING,COVER FIX AUSTRALIA EQUIPMENT(RR3) M8 WING NUT	9-09118-408-0	02	1	9204-
53	WASHER; PL,COVER FIX AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=18	9-09160-608-0	02	1	9204-
54	PROTECTOR; HEAT,BATTERY AUSTRALIA EQUIPMENT(RR3)	1-53619-016-1	01	1	9204-9205
54	PROTECTOR; HEAT,BATTERY AUSTRALIA EQUIPMENT(RR3)	1-53619-019-0	01	1	9206-
54	PROTECTOR; HEAT,BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53619-075-1	01	1	9204-
54	PROTECTOR; HEAT,BATTERY PAKISTAN EQUIPMENT(WN3) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53619-016-1	01	1	9505-
55	BOLT; HEAT PROTECTOR AUSTRALIA EQUIPMENT(RR3) M6X12 FLANGE	0-28080-612-0	04	1	9204-
55	BOLT; HEAT PROTECTOR BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X16 FLANGE	0-28210-816-0	02	1	9204-9204
55	BOLT; HEAT PROTECTOR BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X16 FLANGE	0-28280-816-0	02	1	9205-
55	BOLT; HEAT PROTECTOR PAKISTAN EQUIPMENT(WN3) EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X16 FLANGE	0-28080-816-0	04	1	9505-
73	RUBBER; CUSHION,PLATE EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-09337-002-0	04	1	9204-
77	BOLT; BATTERY BRKT,FRT TO RR AUSTRALIA EQUIPMENT(RR3) M10X35 W/LK&PL WASHER	0-50141-035-0	04	1	9204-9307
77	BOLT; BATTERY BRKT,FRT TO RR AUSTRALIA EQUIPMENT(RR3) M10X35 FLANGE	0-28081-035-0	04	1	9308-
77	BOLT; BATTERY BRKT,FRT TO RR BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53616-101-0	02	1	9204-
81	NUT; BATTERY AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9204-
81	NUT; BATTERY AUSTRALIA EQUIPMENT(RR3) M10	9-09110-410-0	04	1	9204-
81	NUT; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	04	1	9204-
