Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#77899) — 181 parça

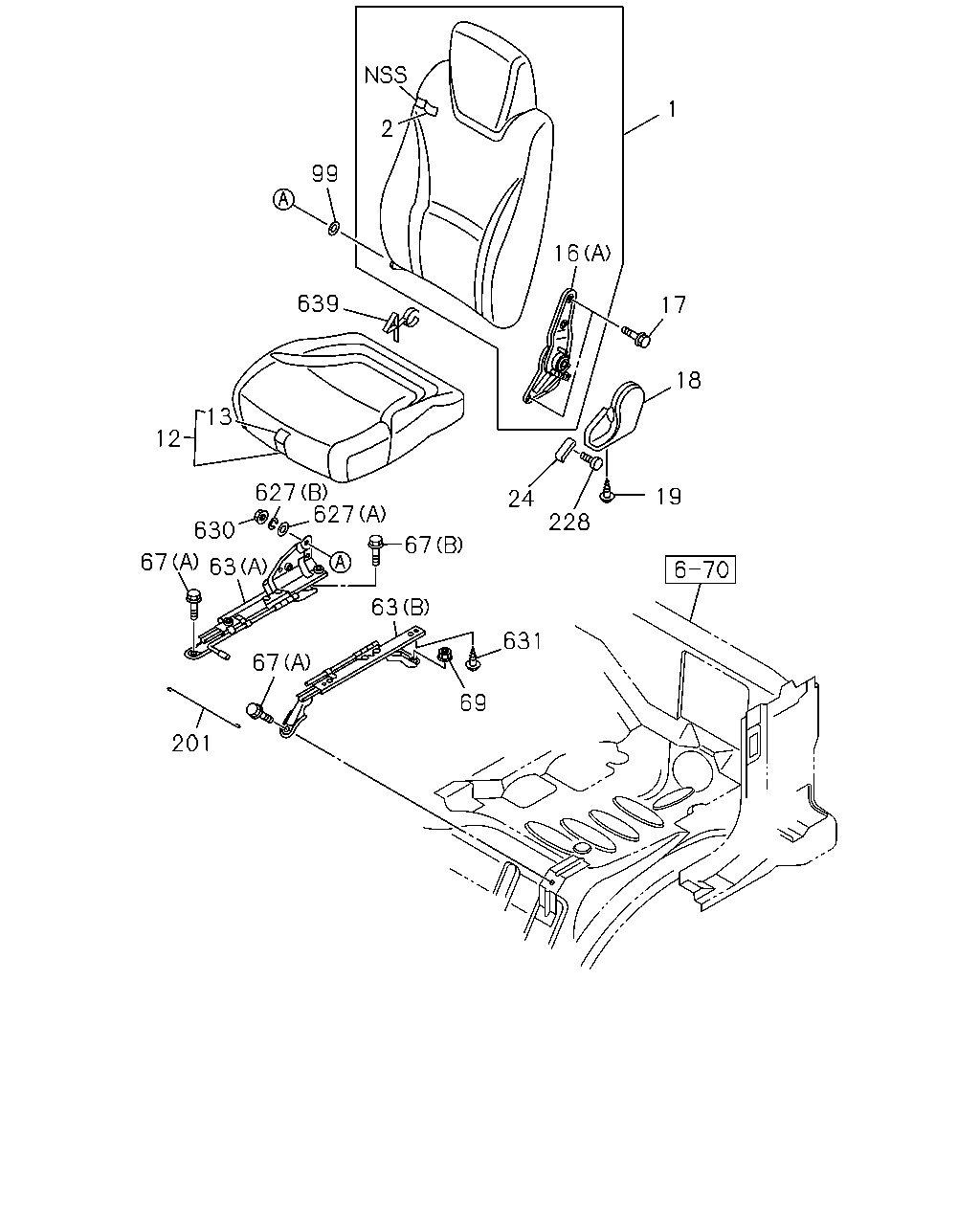

1 17 18 19 228 24 631 69 63 67 627 627 630 63 67 12 13 639 67 201 16 2 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-237-1	01	1	1103-1108	●
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-237-1	01	1	1109-	●	●
1	16.720 BACK ASM; SEAT SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-160-7	01	1	1103-1108	●
1	16.720 BACK ASM; SEAT SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-160-7	01	1	1109-	●	●
1	16.720 BACK ASM; SEAT EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-155-4	01	1	1010-1102	●	●
1	16.720 BACK ASM; SEAT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-155-5	01	1	1103-1108	●
1	16.720 BACK ASM; SEAT EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-155-5	01	1	1103-1108		●
1	16.720 BACK ASM; SEAT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-155-5	01	1	1109-	●	●
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97414-156-3	01	1	1010-1010	●	●
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-236-0	01	1	1010-1102	●	●
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-236-1	01	1	1103-1108	●
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-236-1	01	1	1103-1108		●
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-236-1	01	1	1109-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-256-0	01	1	1103-1108	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-256-0	01	1	1109-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-038-2	01	1	1103-1108	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-038-2	01	1	1109-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-152-2	01	1	1010-1102	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-152-2	01	1	1103-1108	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-152-2	01	1	1103-1108		●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-152-2	01	1	1109-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97414-157-1	01	1	1010-1010	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-255-0	01	1	1010-1102	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-255-0	01	1	1103-1108	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-255-0	01	1	1103-1108		●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-255-0	01	1	1109-	●	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-250-1	01	1	1103-1108	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-250-1	01	1	1109-	●	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-243-1	01	1	1103-1108	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-243-1	01	1	1109-	●	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-242-1	01	1	1103-1108	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-242-1	01	1	1109-	●	●
12	16.670 CUSHION; SEAT,FRT SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-165-0	01	1	1103-1108	●
12	16.670 CUSHION; SEAT,FRT SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-165-0	01	1	1109-	●	●
12	16.670 CUSHION; SEAT,FRT SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-163-3	01	1	1103-1108	●
12	16.670 CUSHION; SEAT,FRT SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-163-3	01	1	1109-	●	●
12	16.670 CUSHION; SEAT,FRT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-153-3	01	1	1103-1108	●
12	16.670 CUSHION; SEAT,FRT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-153-3	01	1	1109-	●	●
12	16.670 CUSHION; SEAT,FRT EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-710-0	01	1	1010-1102	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-710-0	01	1	1103-1108	●
12	16.670 CUSHION; SEAT,FRT EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-710-0	01	1	1103-1108		●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-710-0	01	1	1109-	●	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97414-712-1	01	1	1010-1010	●	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97421-249-1	01	1	1010-1102	●	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-249-1	01	1	1103-1108	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97421-249-1	01	1	1103-1108		●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-249-1	01	1	1109-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-270-1	01	1	1103-1108	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-270-1	01	1	1109-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-262-1	01	1	1103-1108	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-262-1	01	1	1109-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-261-1	01	1	1103-1108	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-261-1	01	1	1109-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-166-0	01	1	1103-1108	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-166-0	01	1	1109-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-164-2	01	1	1103-1108	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-164-2	01	1	1109-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-154-2	01	1	1103-1108	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-154-2	01	1	1109-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-711-0	01	1	1010-1102	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-711-0	01	1	1103-1108	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-711-0	01	1	1103-1108		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-711-0	01	1	1109-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97414-713-1	01	1	1010-1010	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-269-1	01	1	1010-1102	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-269-1	01	1	1103-1108	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-269-1	01	1	1103-1108		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-269-1	01	1	1109-	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-273-3	01	1	1010-	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	1010-	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1010-	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1010-	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	1010-	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	1010-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1010-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	1010-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	1010-	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1010-	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1010-	●	●
69	16.682 NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	1010-	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1010-	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1010-	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1010-	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1010-	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1010-	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1010-	●	●
631	16.682 BOLT; ADJ,SEAT OUTER M8X25 W/LK WASHER	8-98062-658-0	02	1	1010-	●	●
631	16.682 BOLT; ADJ,SEAT INNER M8X32 W/LK WASHER	8-98062-659-0	02	1	1010-	●	●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	1010-1102	●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA>	8-98097-693-0	01	1	1103-1108	●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	1103-1108		●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA>	8-98097-693-0	01	1	1109-	●	●

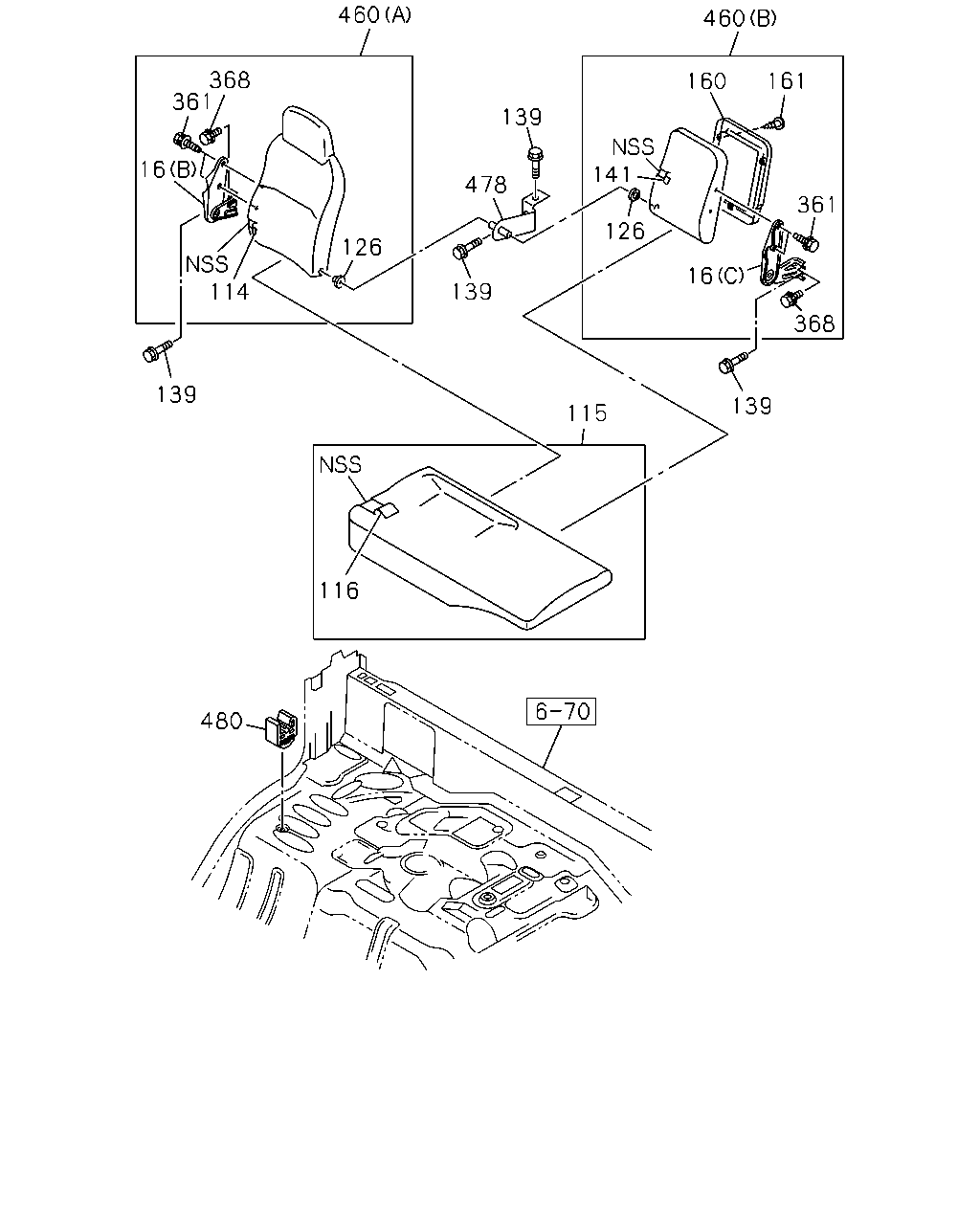

480 116 115 139 126 114 139 16 361 368 460 478 139 141 126 16 139 368 361 161 160 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-273-3	01	1	1010-	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	1010-	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	1010-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-296-0	01	1	1103-1108	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-296-0	01	1	1109-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-724-0	01	1	1103-1108	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-724-0	01	1	1109-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-169-1	01	1	1010-1102	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-169-1	01	1	1103-1108	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-169-1	01	1	1103-1108		●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-169-1	01	1	1109-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97409-364-1	01	1	1010-1010	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-295-0	01	1	1010-1102	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-295-0	01	1	1103-1108	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-295-0	01	1	1103-1108		●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-295-0	01	1	1109-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-326-1	01	1	1103-1108	●
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-326-2	01	1	1109-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-709-2	01	1	1103-1108	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-709-2	01	1	1109-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> DARK GRAY	8-97411-537-5	01	1	1010-1102	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97411-537-5	01	1	1103-1108	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> DARK GRAY	8-97411-537-5	01	1	1103-1108		●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97411-537-5	01	1	1109-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97416-278-0	01	1	1010-1010	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-327-1	01	1	1010-1102	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-327-1	01	1	1103-1108	●
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-327-1	01	1	1103-1108		●
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-327-2	01	1	1109-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-346-0	01	1	1103-1108	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-346-1	01	1	1109-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-738-1	01	1	1103-1108	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-738-1	01	1	1109-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-168-3	01	1	1010-1102	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-168-3	01	1	1103-1108	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-168-3	01	1	1103-1108		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-168-3	01	1	1109-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> DARK GRAY	8-97416-293-0	01	1	1010-1010	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> DARK GRAY	8-97421-347-0	01	1	1010-1102	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-347-0	01	1	1103-1108	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> DARK GRAY	8-97421-347-0	01	1	1103-1108		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-347-1	01	1	1109-	●	●
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	02	1	1010-	●	●
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	04	1	1010-	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-308-0	01	1	1103-1108	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-308-0	01	1	1109-	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-728-0	01	1	1103-1108	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-728-0	01	1	1109-	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97409-368-1	01	1	1010-1010	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-307-1	01	1	1010-1102	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-307-1	01	1	1103-1108	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-307-1	01	1	1103-1108		●
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-307-1	01	1	1109-	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-171-2	01	1	1010-1102	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-171-2	01	1	1103-1108	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-171-2	01	1	1103-1108		●
141	16.724 COVER; TRIM,BENCH SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-171-2	01	1	1109-	●	●
160	16.650 CONSOLE; UPR,BACK CENTER GRAY	8-97405-361-1	01	1	1010-	●	●
161	16.650 SCREW; CONSOLE M4X12	8-94279-351-0	04	1	1010-	●	●
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	04	1	1010-	●	●
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	1010-	●	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-283-0	01	1	1103-1108	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-283-0	01	1	1109-	●	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-302-1	01	1	1103-1108	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-302-1	01	1	1109-	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97418-695-0	01	1	1103-1108	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97418-695-0	01	1	1109-	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> 16.770 (B) DARK GRAY	8-97418-699-2	01	1	1103-1108	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> 16.770 (B) DARK GRAY	8-97418-699-2	01	1	1109-	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> (A) DARK GRAY	8-97411-538-4	01	1	1010-1102	●	●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (A) DARK GRAY	8-97411-538-4	01	1	1103-1108	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> (A) DARK GRAY	8-97411-538-4	01	1	1103-1108		●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (A) DARK GRAY	8-97411-538-4	01	1	1109-	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> (B) DARK GRAY	8-97411-539-4	01	1	1010-1102	●	●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (B) DARK GRAY	8-97411-539-4	01	1	1103-1108	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> (B) DARK GRAY	8-97411-539-4	01	1	1103-1108		●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (B) DARK GRAY	8-97411-539-4	01	1	1109-	●	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (A) DARK GRAY	8-97406-045-4	01	1	1010-1010	●	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (A) DARK GRAY	8-97421-282-0	01	1	1010-1102	●	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-282-0	01	1	1103-1108	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (A) DARK GRAY	8-97421-282-0	01	1	1103-1108		●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-282-0	01	1	1109-	●	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (B) DARK GRAY	8-97406-046-3	01	1	1010-1010	●	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-301-1	01	1	1010-1102	●	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-301-1	01	1	1103-1108	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-301-1	01	1	1103-1108		●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-301-1	01	1	1109-	●	●
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-98002-092-0	01	1	1010-	●	●
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	1010-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
