7-40 — INSTRUMENT PANEL AND BOX (#77895) — 223 parça

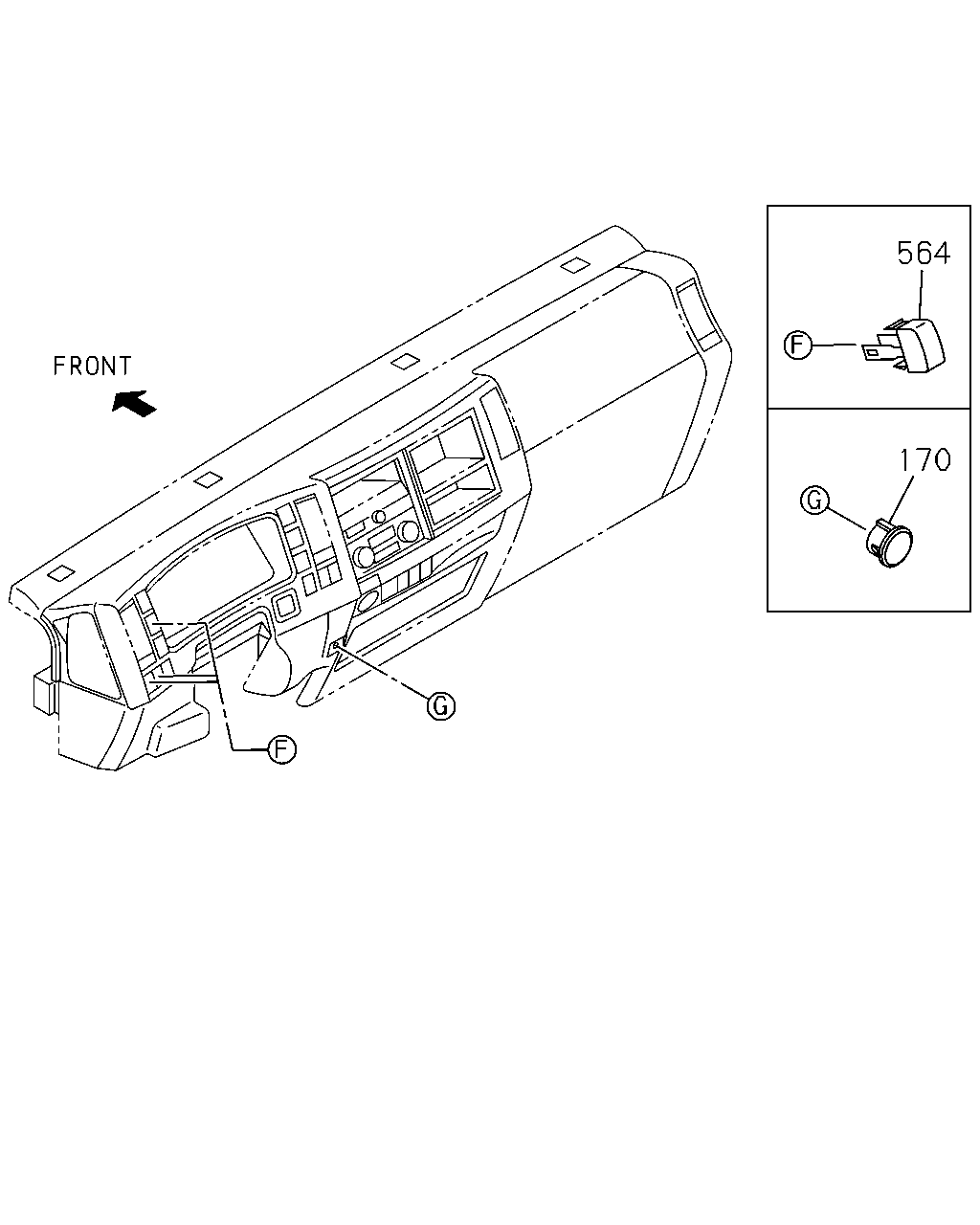

çizim 186893
170 564
BalonParca AdiParca NoAdetTipApplied Date A B
170 16.165 COVER; HOLE 8-98070-401-2 01 1 1010- ● ●
564 16.081 COVER; SW 8-98025-954-1 03 1 1010- ● ●

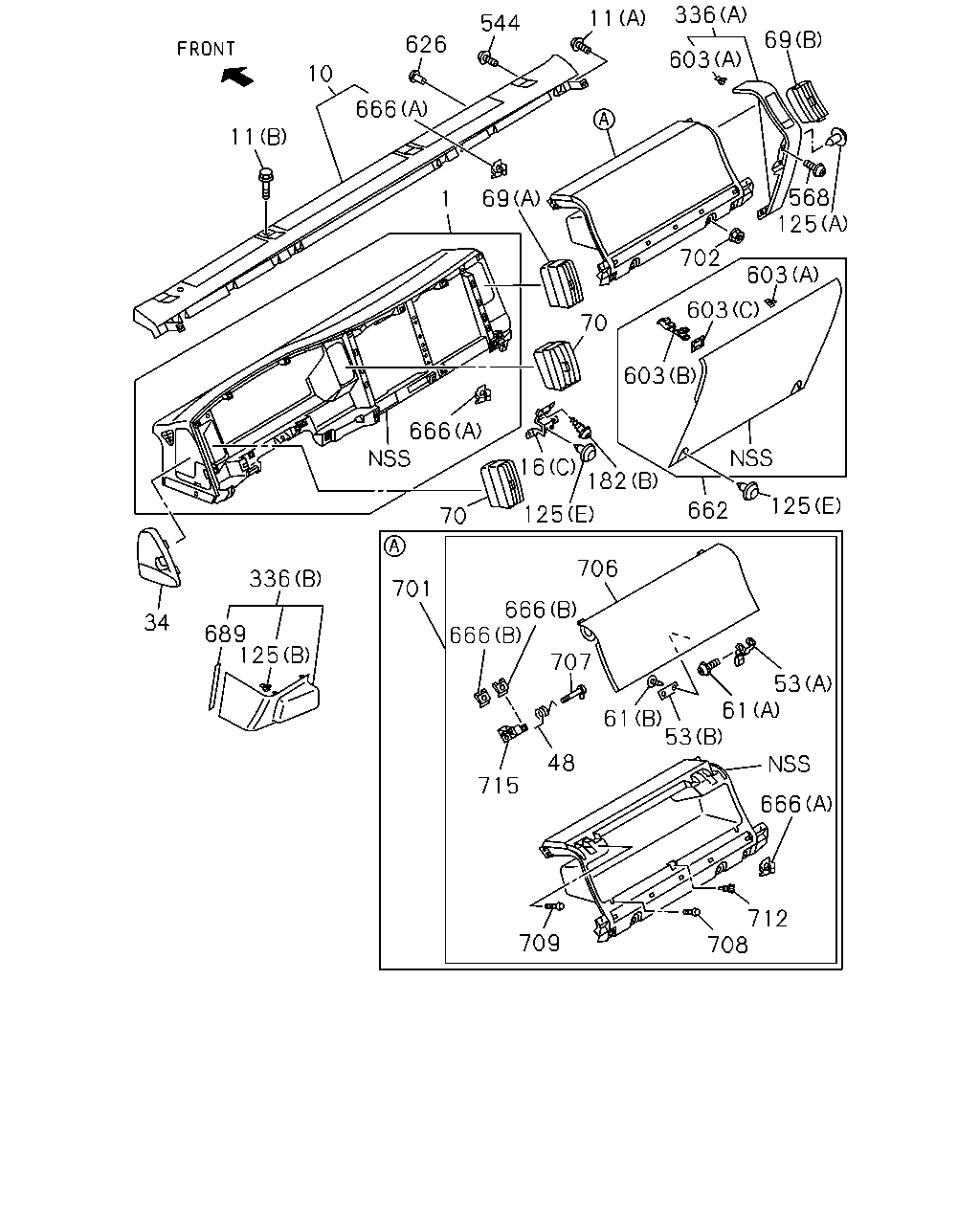

çizim 186896
11 10 626 666 544 11 336 603 69 568 125 603 603 603 125 662 182 125 16 70 666 1 69 70 702 336 689 125 34 701 666 666 706 707 61 48 715 709 53 61 53 666 712 708
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.080 PANEL; INST
GRAY 		8-97406-004-4 01 1 1010- ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1010- ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1010-1101 ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1102-1212 ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301- ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1010- ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1103-1108 ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1109- ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41) (B) 		8-97585-532-0 01 1 1010-1102 ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1103- ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41) (C) 		8-97585-612-2 01 1 1010-1102 ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1103- ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-98081-718-1 01 1 1010-1102 ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1103-1108 ●
16 16.085 BRACKET; INST PNL
(A) 		8-98081-718-1 01 1 1103-1108 ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1109- ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 1010- ● ●
48 16.110 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1010-1311 ● ●
48 16.110 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405 ● ●
48 16.110 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406- ● ●
48 16.110 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1010-1311 ● ●
48 16.110 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405 ● ●
48 16.110 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406- ● ●
53 16.115 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1010-1405 ● ●
53 16.115 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406- ● ●
61 16.100 SCREW; GLOVE BOX
(A) 		8-98108-915-0 01 1 1010-1405 ● ●
61 16.100 SCREW; GLOVE BOX
(B) M4X85 		8-97926-404-0 02 1 1406- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 1010- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1010- ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 1010- ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1010- ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1010- ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1010-1108 ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1109- ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1010- ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1010- ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1010- ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1010-1101 ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1102 ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1103-1212 ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1010-1101 ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ●
182 16.085 BOLT; BRKT,INST PANEL
(C) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1010- ● ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 1103-1108 ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 1109- ● ●
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97406-000-4 01 1 1010-1102 ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 1103-1108 ●
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97406-000-4 01 1 1103-1108 ●
336 16.081 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 1109- ● ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1010- ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1010-1101 ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1010-1101 ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
603 16.090 CLIP; COVER
RUSSIA EQUIPMENT(B12) (B) 		8-98152-030-0 02 1 1103-1504 ●
603 16.090 CLIP; COVER
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98152-030-0 02 1 1505- ●
603 16.090 CLIP; COVER
CHILE EQUIPMENT(KE1) (B) 		8-98152-030-0 02 1 1505- ●
603 16.090 CLIP; COVER
RUSSIA EQUIPMENT(B12) (C) 		8-98152-031-0 02 1 1103-1504 ●
603 16.090 CLIP; COVER
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) 		8-98152-031-0 02 1 1505- ●
603 16.090 CLIP; COVER
CHILE EQUIPMENT(KE1) (C) 		8-98152-031-0 02 1 1505- ●
603 16.090 CLIP; COVER
COLOMBIA EQUIPMENT(CB7) 16.085 (A) 		8-98021-271-0 05 1 1103-1108 ●
603 16.090 CLIP; COVER
16.085 (A) 		8-98021-271-0 05 1 1103-1108 ●
603 16.090 CLIP; COVER
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 16.085 (A) 		8-98021-271-0 05 1 1109-1501 ● ●
603 16.090 CLIP; COVER
COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 16.085 (A) 		8-98021-271-0 05 1 1502-1504 ●
603 16.090 CLIP; COVER
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 16.085 (A) 		8-98021-271-0 05 1 1502-1504 ●
603 16.090 CLIP; COVER
EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.085 (A) 		8-98021-271-0 05 1 1505- ●
603 16.090 CLIP; COVER
EXC. CHILE EQUIPMENT(KE1) 16.085 (A) 		8-98021-271-0 05 1 1505- ●
603 16.090 CLIP; COVER
16.085 (A) 		8-98021-271-0 01 1 1010- ● ●
603 16.090 CLIP; COVER
16.085 (A) 		8-98021-271-0 05 1 1010-1102 ● ●
603 16.090 CLIP; COVER
RUSSIA EQUIPMENT(B12) 16.085 (A) 		8-98021-271-0 03 1 1103-1504 ●
603 16.090 CLIP; COVER
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.085 (A) 		8-98021-271-0 03 1 1505- ●
603 16.090 CLIP; COVER
CHILE EQUIPMENT(KE1) 16.085 (A) 		8-98021-271-0 03 1 1505- ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1010- ● ●
662 16.081 COVER; LWR,INST PANEL
RUSSIA EQUIPMENT(B12) GRAY 		8-97418-533-2 01 1 1103-1504 ●
662 16.081 COVER; LWR,INST PANEL
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) GRAY 		8-97418-533-2 01 1 1505- ●
662 16.081 COVER; LWR,INST PANEL
CHILE EQUIPMENT(KE1) GRAY 		8-97418-533-2 01 1 1505- ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 1010-1102 ● ●
662 16.081 COVER; LWR,INST PANEL
COLOMBIA EQUIPMENT(CB7) GRAY 		8-97405-258-2 01 1 1103-1108 ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 1103-1108 ●
662 16.081 COVER; LWR,INST PANEL
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) GRAY 		8-97405-258-2 01 1 1109-1501 ● ●
662 16.081 COVER; LWR,INST PANEL
COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) GRAY 		8-97405-258-2 01 1 1502-1504 ●
662 16.081 COVER; LWR,INST PANEL
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) GRAY 		8-97405-258-2 01 1 1502-1504 ●
662 16.081 COVER; LWR,INST PANEL
EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) GRAY 		8-97405-258-2 01 1 1505- ●
662 16.081 COVER; LWR,INST PANEL
EXC. CHILE EQUIPMENT(KE1) GRAY 		8-97405-258-2 01 1 1505- ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 02 1 1010- ● ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1010- ● ●
666 16.085 INSERT; INST PANEL
(B) 		8-98038-450-0 04 1 1010-1311 ● ●
666 16.085 INSERT; INST PANEL
(B) M5 		8-97926-400-0 04 1 1312- ● ●
689 09.743 SEAL; INST 8-98068-244-0 01 1 1010-1102 ● ●
689 09.743 SEAL; INST
EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 1103-1108 ●
689 09.743 SEAL; INST 8-98068-244-0 01 1 1103-1108 ●
689 09.743 SEAL; INST
EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 1109- ● ●
701 16.100 TRAY; INST
GRAY 		8-97415-542-6 01 1 1010-1405 ● ●
701 16.100 TRAY; INST
GRAY 		8-97429-702-1 01 1 1406- ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1010- ● ●
706 16.081 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1010-1405 ● ●
706 16.081 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406- ● ●
707 09.744 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1010-1311 ● ●
707 09.744 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312- ● ●
708 16.100 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1010- ● ●
709 16.085 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1010- ● ●
712 16.110 LOCK; TRAY INST LID 8-98031-846-0 01 1 1010- ● ●
715 16.081 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1010-1311 ● ●
715 16.081 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1312- ● ●
715 16.081 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1010-1311 ● ●
715 16.081 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1312- ● ●

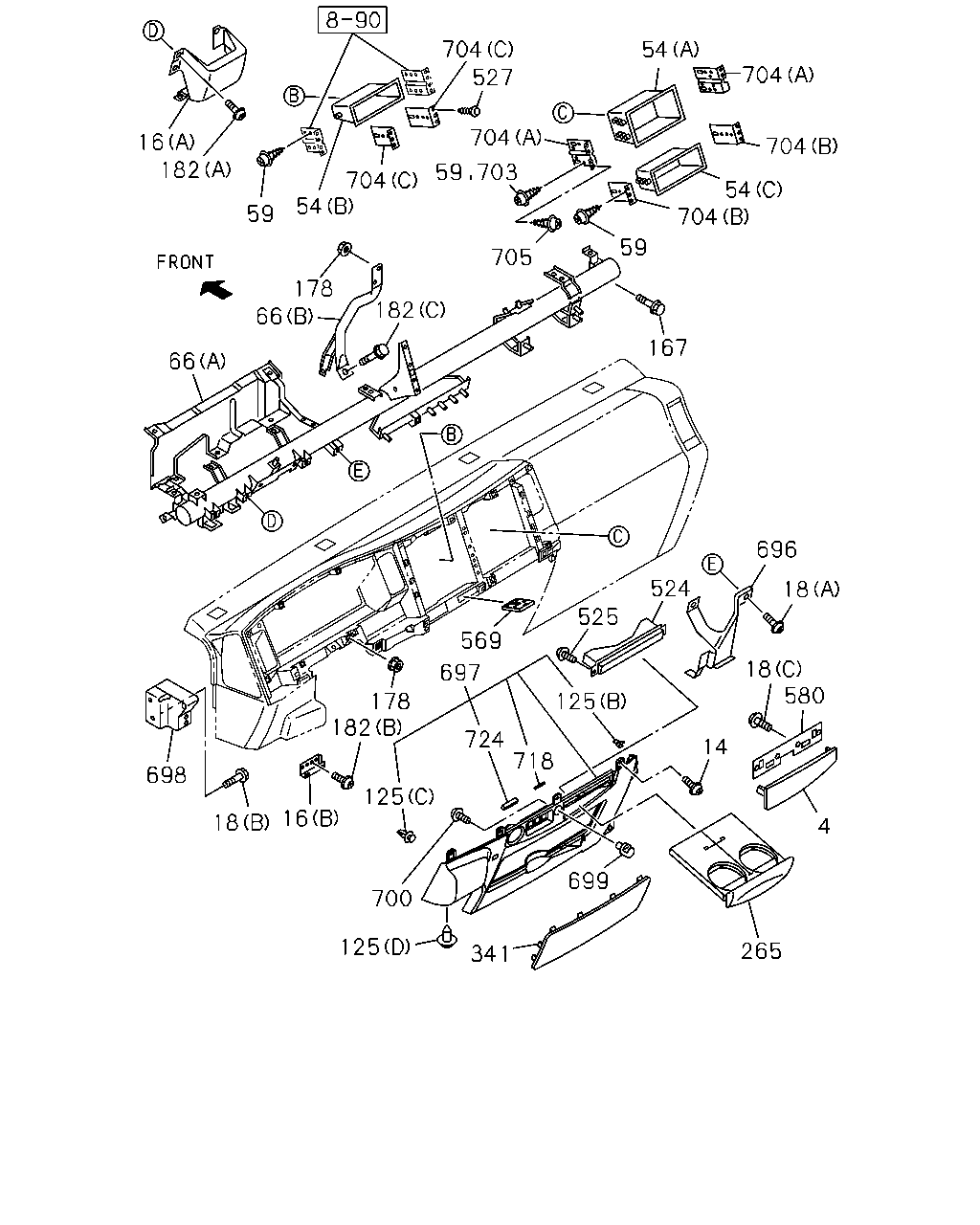

çizim 186898
265 699 341 700 125 18 16 125 698 182 724 718 178 569 697 125 14 4 580 18 525 524 696 18 66 66 178 182 705 59 167 704 54 704 704 54 704 59 703 704 54 59 182 16 704 527
BalonParca AdiParca NoAdetTipApplied Date A B
4 16.080 COVER; INST PNL
GRAY 		8-97407-898-1 01 1 1010-1102 ● ●
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1103-1108 ●
4 16.080 COVER; INST PNL
GRAY 		8-97407-898-1 01 1 1103-1108 ●
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1109- ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1010-1101 ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1103-1108 ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1109- ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41) (B) 		8-97585-532-0 01 1 1010-1102 ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1103- ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41) (C) 		8-97585-612-2 01 1 1010-1102 ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1103- ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-98081-718-1 01 1 1010-1102 ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1103-1108 ●
16 16.085 BRACKET; INST PNL
(A) 		8-98081-718-1 01 1 1103-1108 ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1109- ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1010- ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1010-1101 ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ●
18 16.085 BOLT; BRKT
16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1010-1102 ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1103-1108 ●
18 16.085 BOLT; BRKT
16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1103-1108 ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1109- ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 1010-1102 ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41) (C) H=69.8 BLACK 		8-97408-865-2 01 1 1010-1102 ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 1103-1108 ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (C) H=69.8 BLACK 		8-97408-865-2 01 1 1103-1108 ●
54 16.100 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41) (C) H=69.8 BLACK 		8-97408-865-2 01 1 1103-1108 ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1109- ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1109- ● ●
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1010- ● ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1010- ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1010-1102 ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1010-1102 ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1010-1102 ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1103-1108 ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1103-1108 ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1103-1108 ●
59 16.100 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1103-1108 ●
59 16.100 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1109- ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1109- ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1109- ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98192-944-0 01 1 1310- ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-579-1 01 1 1010- ● ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98089-365-3 01 1 1010-1309 ● ●
66 16.085 REINFORCEMENT; INST PANEL
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98089-365-3 01 1 1310- ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1010- ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1010- ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1010-1108 ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1109- ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1010- ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1010- ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1010- ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1010- ● ●
178 16.085 NUT; INST PANEL
01.062 M6 FLANGE 		0-91180-106-0 03 1 1010- ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1010-1101 ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1102 ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1103-1212 ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1010-1101 ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ●
182 16.085 BOLT; BRKT,INST PANEL
(C) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1010- ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1103-1108 ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1109- ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97406-043-1 01 1 1010-1205 ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1206- ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1103-1108 ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1109- ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1103-1108 ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1109-1212 ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ●
527 16.100 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41) 16.742 DARK GRAY 		8-97098-326-0 01 1 1010-1102 ● ●
527 16.100 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1103- ● ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1010- ● ●
580 16.080 BRACKET; COVER 8-98091-546-0 01 1 1010-1102 ● ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1103-1108 ●
580 16.080 BRACKET; COVER 8-98091-546-0 01 1 1103-1108 ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1109- ● ●
696 16.085 BRACKET; KNEE 8-98098-126-0 01 1 1010-1109 ● ●
696 16.085 BRACKET; KNEE 8-98071-234-0 01 1 1110-1211 ● ●
696 16.085 BRACKET; KNEE 8-98201-847-0 01 1 1212- ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-999-8 01 1 1010-1205 ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1206- ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1010- ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1010- ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1010- ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1010-1101 ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1010- ● ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1010- ● ●
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1010- ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41) (C) 		8-98107-549-0 02 1 1010-1102 ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (C) 		8-98107-549-0 02 1 1103- ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1010-1101 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1010-1101 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1010-1101 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1102 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1103-1212 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ● ●
718 16.100 SEAL; COVER
5X30 		8-98176-199-0 01 1 1206- ● ●
718 16.100 SEAL; COVER
8X80 		8-98200-040-0 01 1 1110- ● ●
718 16.100 SEAL; COVER
4X35 		8-98200-041-0 01 1 1110- ● ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
