7 |

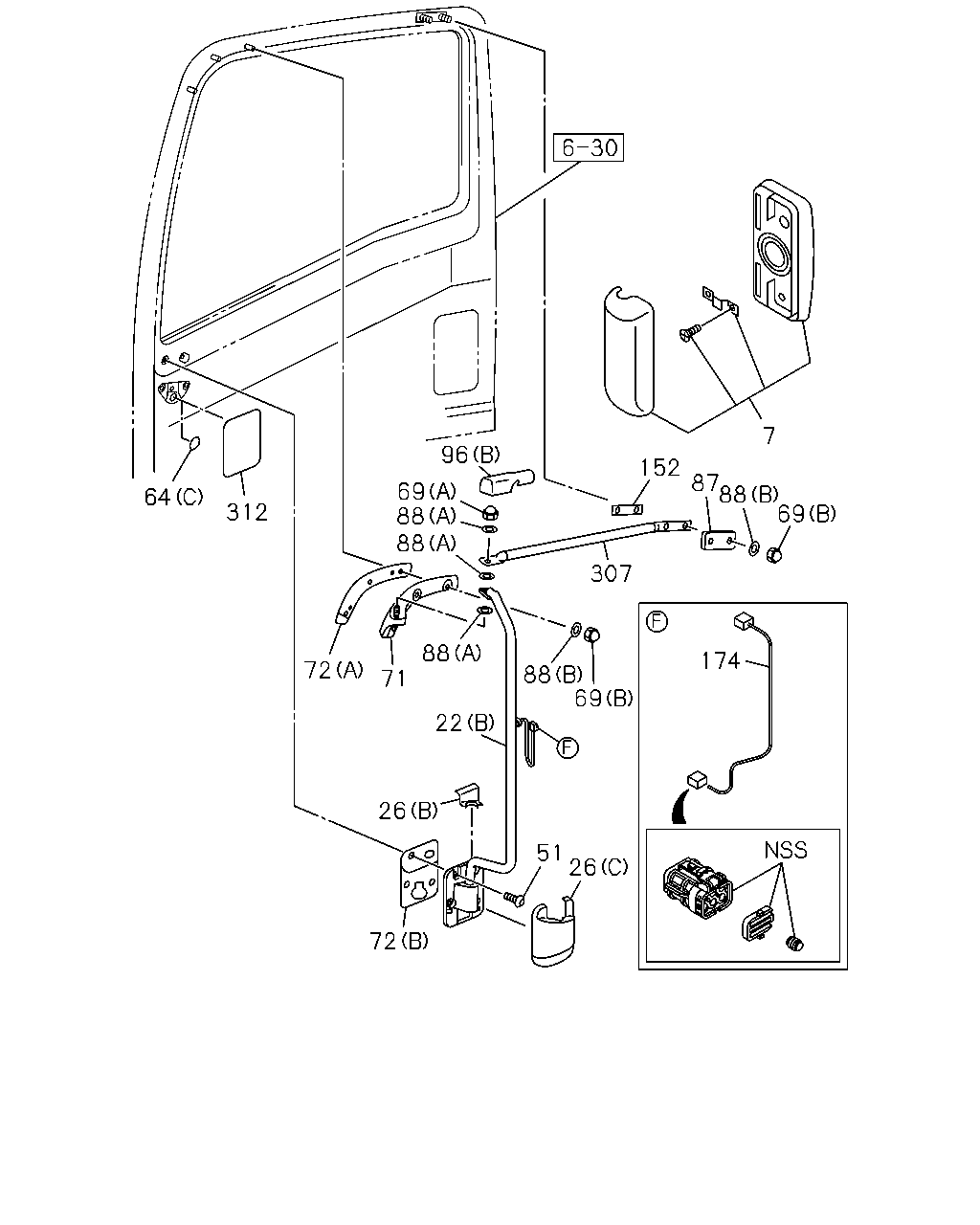

16.068 MIRROR ASM; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98043-060-1 |
01 |
1 |
1103- |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
|
8-98043-176-1 |
01 |
1 |
1103- |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
|
8-98043-058-1 |
01 |
1 |
1103- |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
|
8-98043-174-1 |
01 |
1 |
1103- |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
|
8-98055-991-1 |
01 |
1 |
1103- |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
|
8-98055-992-1 |
01 |
1 |
1103- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
UNDER MIRROR<RR9>
(C)
|
8-98081-403-0 |
01 |
1 |
1111- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98075-044-1 |
01 |
1 |
1103-1202 |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98188-201-0 |
01 |
1 |
1203- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98075-045-1 |
01 |
1 |
1103-1202 |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98188-202-0 |
01 |
1 |
1203- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98067-514-1 |
01 |
1 |
1103-1202 |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98166-180-0 |
01 |
1 |
1203- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98067-515-1 |
01 |
1 |
1103-1202 |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98166-181-0 |
01 |
1 |
1203- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
DOOR MIRROR<6VE>
(B)
|
8-98075-030-0 |
01 |
1 |
1103-1204 |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
DOOR MIRROR<6VE>
(B)
|
8-98166-176-0 |
01 |
1 |
1205- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
DOOR MIRROR<6VE>
(B)
|
8-98075-031-0 |
01 |
1 |
1103-1204 |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
DOOR MIRROR<6VE>
(B)
|
8-98166-177-0 |
01 |
1 |
1205- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
|
8-98075-037-0 |
01 |
1 |
1103-1202 |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
|
8-98166-178-0 |
01 |
1 |
1203- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
|
8-98075-038-0 |
01 |
1 |
1103-1202 |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
|
8-98166-179-0 |
01 |
1 |
1203- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98067-510-0 |
01 |
1 |
1103-1204 |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98158-846-0 |
01 |
1 |
1205- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98067-511-0 |
01 |
1 |
1103-1204 |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98158-847-0 |
01 |
1 |
1205- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98067-512-0 |
01 |
1 |
1103-1202 |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98158-848-0 |
01 |
1 |
1203- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98067-513-0 |
01 |
1 |
1103-1202 |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98158-849-0 |
01 |
1 |
1203- |
● |
|
| |
22 |

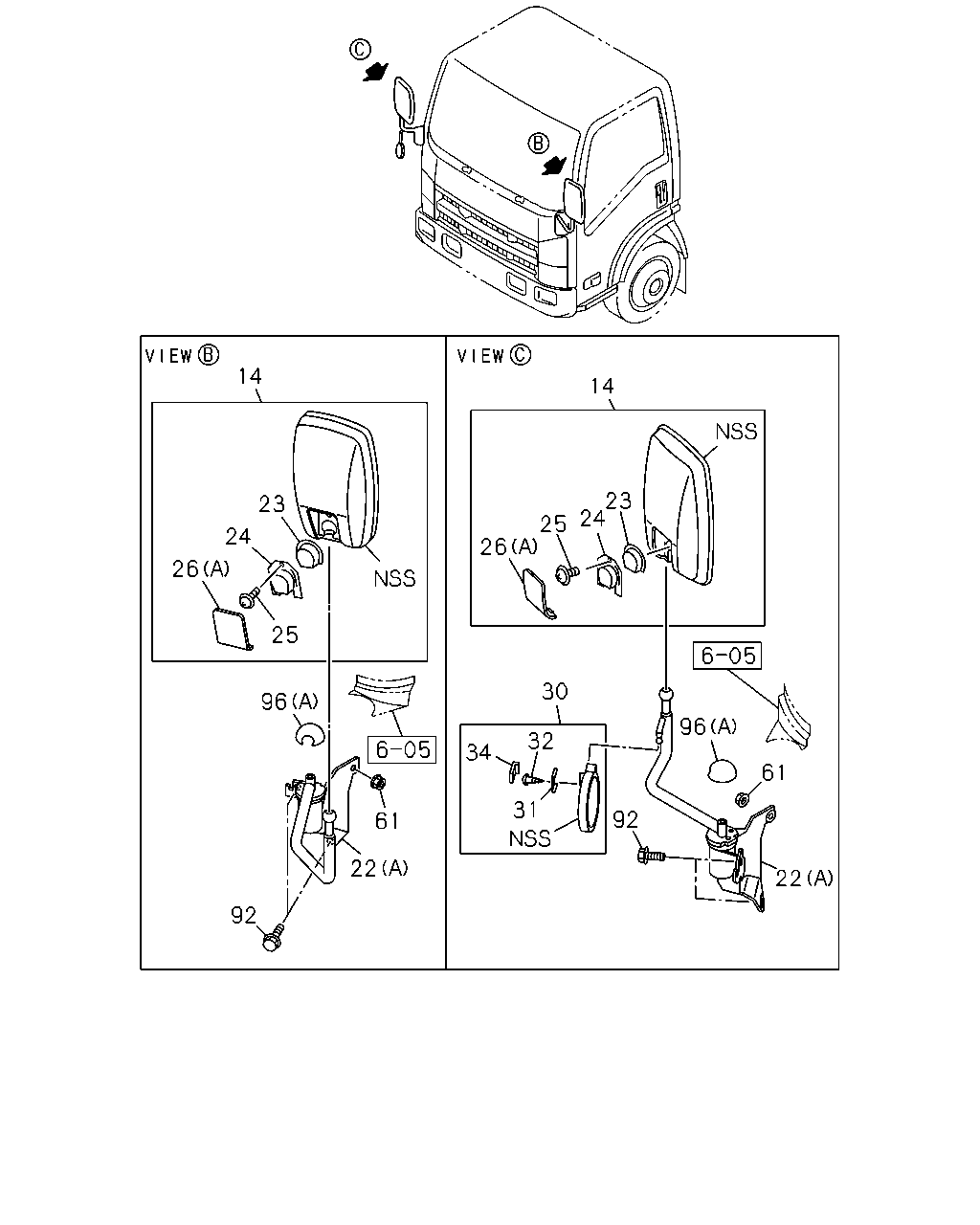

16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9>
(A)
|
8-98070-510-0 |
01 |
1 |
1010-1102 |
● |
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9>
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA
Y<6TF>
(A)
|
8-98070-510-0 |
01 |
1 |
1103- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9>
(A)
|
8-98070-510-0 |
01 |
1 |
1103- |
|
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
(A)
|
8-98070-503-0 |
01 |
1 |
1010-1102 |
● |
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA
Y<6TF>
(A)
|
8-98070-503-0 |
01 |
1 |
1103- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
(A)
|
8-98070-503-0 |
01 |
1 |
1103- |
|
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9>
(A)
|
8-98070-508-0 |
01 |
1 |
1010-1102 |
● |
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA
Y<6TF>
EXC. UNDER MIRROR<RR9>
(A)
|
8-98070-508-0 |
01 |
1 |
1103- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9>
(A)
|
8-98070-508-0 |
01 |
1 |
1103- |
|
● |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(C)
|
8-98031-802-2 |
01 |
1 |
1103- |
● |
|
| |
26 |
16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(C)
|
8-98031-803-2 |
01 |
1 |
1103- |
● |
|
| |
26 |
16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(B)
|
8-98031-805-0 |
01 |
1 |
1103- |
● |
|
| |
26 |
16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(B)
|
8-98031-806-0 |
01 |
1 |
1103- |
● |
|
| |
26 |
16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA
Y<6TF>
(A)
T=2.3
|
8-94262-547-2 |
01 |
1 |
1010- |
● |
● |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA
Y<6TF>
(A)
T=2.3
|
8-94262-547-2 |
01 |
1 |
1010- |
● |
● |
| |
51 |
16.069 SCREW; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
16.323
M8X23
|
8-97310-216-1 |
08 |
1 |
1103- |
● |
|
| |
64 |
16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
UNDER MIRROR<RR9>
16.165
(B)
OD=25 BLACK
|
1-76798-019-0 |
01 |
1 |
1111- |
● |
|
| |
64 |
16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
16.165
(B)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1103-1202 |
● |
|
| |
64 |
16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
EXC. UNDER MIRROR<RR9>
16.165
(B)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1203- |
● |
|
| |
64 |
16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
16.332
(C)
OD=52 BLACK
|
1-76798-041-0 |
02 |
1 |
1103-1108 |
● |
|
| |
64 |
16.069 SEAL; MIRROR
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
16.332
(C)
OD=52 BLACK
|
1-76798-041-0 |
02 |
1 |
1109- |
● |
|
| |

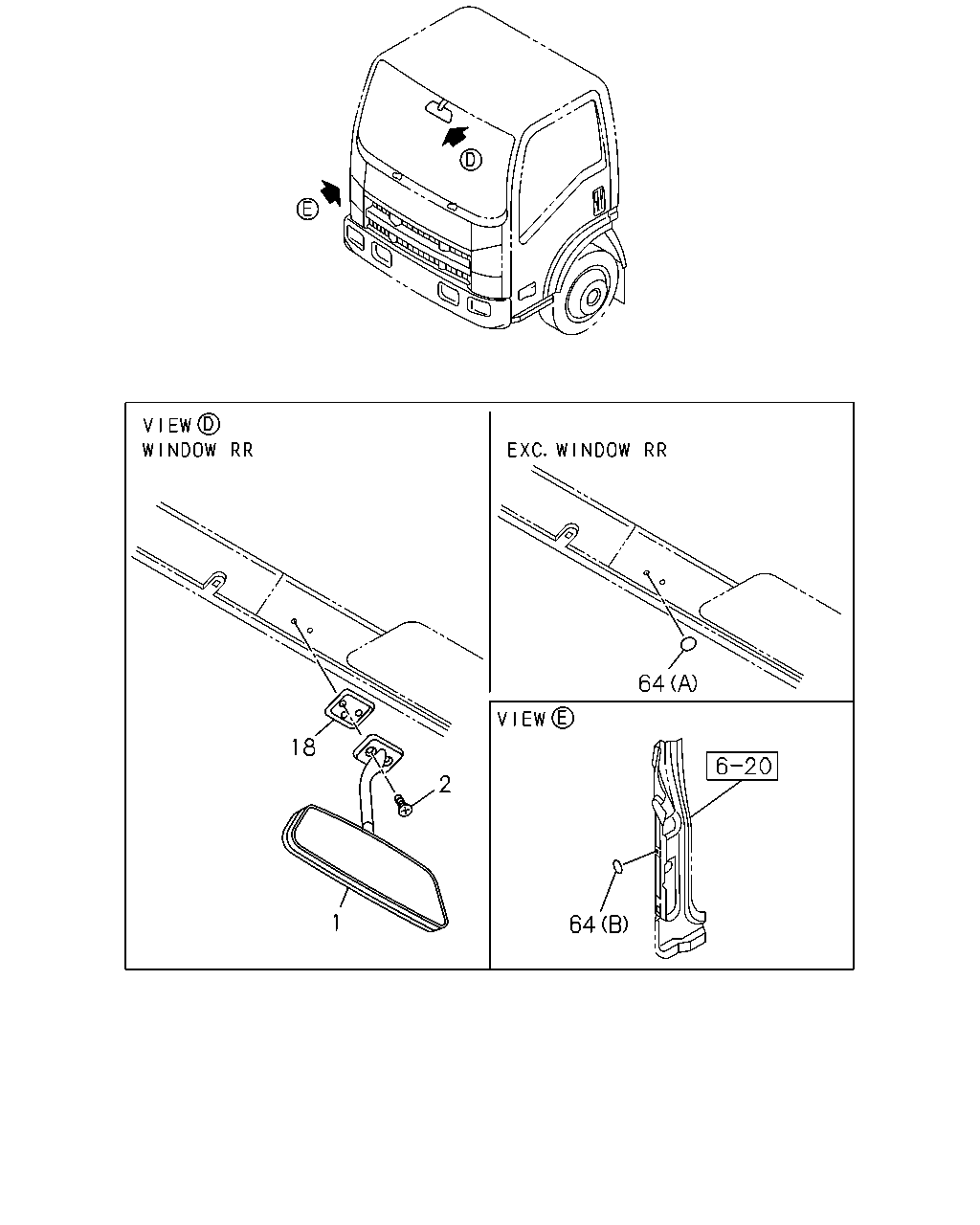

64 |
16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR
ALGRAY(517),BODY COLOR PURPLISH BLUE(668),
BODY COLOR GERANIUM RED(681),BODY COLOR
DARK BLUE(695),BODY COLOR CARDINAL
RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL
OR WHEATLAND YELLOW(812),BODY COLOR
SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),
BODY COLOR HIGHWAY ORANGE(944),BODY
COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV
ER MET(998),BODY COLOR TRANS BLUE(999)
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,
WINDOW RR<8LF>
16.165
(A)
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
02 |
1 |
1103-1108 |
● |
|
| |
64 |
16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR
ALGRAY(517),BODY COLOR PURPLISH BLUE(668),
BODY COLOR GERANIUM RED(681),BODY COLOR
DARK BLUE(695),BODY COLOR CARDINAL
RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL
OR WHEATLAND YELLOW(812),BODY COLOR
SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),
BODY COLOR HIGHWAY ORANGE(944),BODY
COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV
ER MET(998),BODY COLOR TRANS BLUE(999)
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,
WINDOW RR<8LF>
16.165
(A)
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
02 |
1 |
1109-1510 |
● |
|
| |
64 |
16.069 SEAL; MIRROR
BODY COLOR MARINE BLUE(890),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS
BLUE(999)
EXC. WINDOW RR<8LF>
16.165
(A)
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
02 |
1 |
1109-1510 |
|
● |
| |
64 |
16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR
ALGRAY(517),BODY COLOR PURPLISH BLUE(668),
BODY COLOR GERANIUM RED(681),BODY COLOR
DARK BLUE(695),BODY COLOR CARDINAL
RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL
OR WHEATLAND YELLOW(812),BODY COLOR
SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),
BODY COLOR FIRE RED(915),BODY COLOR
HIGHWAY ORANGE(944),BODY COLOR SUNBELT
GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY
COLOR TRANS BLUE(999)
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,
WINDOW RR<8LF>
16.165
(A)
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
02 |
1 |
1511- |
● |
|
| |
64 |
16.069 SEAL; MIRROR
BODY COLOR MARINE BLUE(890),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS
BLUE(999)
EXC. WINDOW RR<8LF>
16.165
(A)
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
02 |
1 |
1511- |
|
● |
| |
64 |
16.069 SEAL; MIRROR
BODY COLOR POLAR WHITE(534),BODY COLOR
ARC WHITE(729)
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,
WINDOW RR<8LF>
16.570
(A)
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
02 |
1 |
1103-1108 |
● |
|
| |
64 |
16.069 SEAL; MIRROR
BODY COLOR POLAR WHITE(534),BODY COLOR
ARC WHITE(729)
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,
WINDOW RR<8LF>
16.570
(A)
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
02 |
1 |
1109- |
● |
|
| |
64 |
16.069 SEAL; MIRROR
BODY COLOR ARC WHITE(729)
EXC. WINDOW RR<8LF>
16.570
(A)
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
02 |
1 |
1109- |
|
● |
| |
69 |
16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(A)
M10 CAP NUT
|
8-98059-913-0 |
02 |
1 |
1103-1404 |
● |
|
| |
69 |
16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(A)
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
1405- |
● |
|
| |
69 |
16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(B)
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
1103- |
● |
|
| |
71 |
16.069 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
|
8-98031-793-2 |
01 |
1 |
1103- |
● |
|
| |
71 |
16.069 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
|
8-98031-794-2 |
01 |
1 |
1103- |
● |
|
| |
72 |
16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(A)
|
8-98031-796-0 |
01 |
1 |
1103- |
● |
|
| |
72 |
16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(A)
|
8-98031-797-0 |
01 |
1 |
1103- |
● |
|
| |
72 |
16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(B)
|
8-98080-418-0 |
02 |
1 |
1103- |
● |
|
| |
87 |
16.069 SPACER
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
|
8-98063-789-0 |
02 |
1 |
1103- |
● |
|
| |
88 |
16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(B)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
1103- |
● |
|
| |
88 |
16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(A)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
1103- |
● |
|
| |
96 |
16.069 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
UNDER MIRROR<RR9>
(C)
|
8-98027-552-2 |
01 |
1 |
1111- |
● |
|
| |
96 |
16.069 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
(B)
|
8-98080-173-0 |
02 |
1 |
1103- |
● |
|
| |
96 |
16.069 CAP; MIRROR STAY
(A)
|
8-98027-552-2 |
02 |
1 |
1010-1102 |
● |
● |
| |
96 |
16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA
Y<6TF>
(A)
|
8-98027-552-2 |
02 |
1 |
1103- |
● |
|
| |
96 |
16.069 CAP; MIRROR STAY
(A)
|
8-98027-552-2 |
02 |
1 |
1103- |
|
● |
| |
152 |
16.069 SHEET; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
|
8-98063-786-0 |
02 |
1 |
1103- |
● |
|
| |
174 |
16.068 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
02.480
|
8-98079-660-0 |
02 |
1 |
1103- |
● |
|
| |
307 |
16.069 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
|
8-98063-784-2 |
01 |
1 |
1103- |
● |
|
| |
307 |
16.069 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
|
8-98063-785-2 |
01 |
1 |
1103- |
● |
|
| |
312 |
16.081 TAPE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE
ARM<8ML>
|
8-98164-812-0 |
02 |
1 |
1103- |
● |
|
