◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#77891) — 46 parça

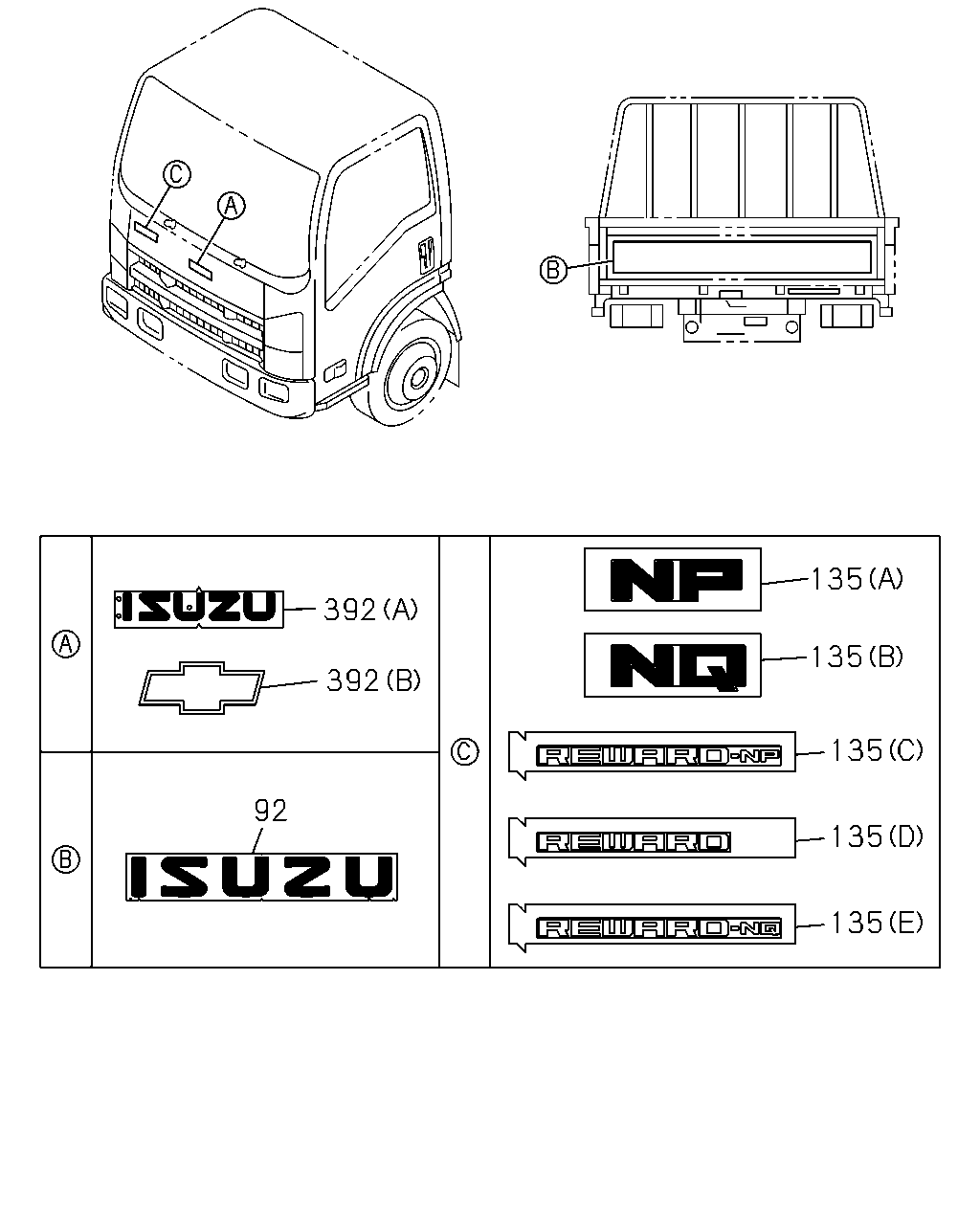

çizim 131877
135 135 135 135 135 92 392 392
BalonParca AdiParca NoAdetTipApplied Date A B
92 08.147 DECAL; RR END
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR POLAR WHITE(534),BO DY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695) ,BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BOD Y COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) DECAL-ISUZU TAIL GATE<EX9> 01.303 BLACK 		8-94350-624-1 01 1 1103-1108 ●
92 08.147 DECAL; RR END
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR POLAR WHITE(534),BO DY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695) ,BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BOD Y COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) DECAL-ISUZU TAIL GATE<EX9> 01.303 BLACK 		8-94350-624-1 01 1 1109-1510 ●
92 08.147 DECAL; RR END
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) DECAL-ISUZU TAIL GATE<EX9> 01.303 BLACK 		8-94350-624-1 01 1 1109-1510 ●
92 08.147 DECAL; RR END
DECAL-ISUZU TAIL GATE<EX9> 01.303 BLACK 		8-94350-624-1 01 1 1511- ●
92 08.147 DECAL; RR END
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) DECAL-ISUZU TAIL GATE<EX9> 01.303 BLACK 		8-94350-624-1 01 1 1511- ●
135 01.303 DECAL; CAB FRT
AZERBAIJAN EQUIPMENT(CX0) DECAL REWARD/VEHICLE NAME<8NG> (E) 		8-98136-969-0 01 1 1411-1510 ●
135 01.303 DECAL; CAB FRT
PHILIPPINE ISLANDS EQUIPMENT(B15), AZERBAIJAN EQUIPMENT(CX0) DECAL REWARD/VEHICLE NAME<8NG> (E) 		8-98136-969-0 01 1 1511- ●
135 01.303 DECAL; CAB FRT
(A) 		8-98103-914-0 01 1 1010-1102 ●
135 01.303 DECAL; CAB FRT
EXC. DECAL REWARD/VEHICLE NAME<8NG>, DECALREWARD<8NH> (A) 		8-98103-914-0 01 1 1103-1104 ●
135 01.303 DECAL; CAB FRT
RUSSIA EQUIPMENT(B12) EXC. DECAL REWARD/VEHICLE NAME<8NG>, DECALREWARD<8NH> (A) 		8-98103-914-0 01 1 1105-1105 ●
135 01.303 DECAL; CAB FRT
EXC. DECAL REWARD/VEHICLE NAME<8NG>, DECALREWARD<8NH> (A) 		8-98103-914-0 01 1 1105-1208 ●
135 01.303 DECAL; CAB FRT
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. DECAL REWARD/VEHICLE NAME<8NG>, DECALREWARD<8NH> (A) 		8-98103-914-0 01 1 1209-1301 ●
135 01.303 DECAL; CAB FRT
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) EXC. DECAL REWARD/VEHICLE NAME<8NG>, DECALREWARD<8NH> (A) 		8-98103-914-0 01 1 1302-1410 ●
135 01.303 DECAL; CAB FRT
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) EXC. DECAL REWARD/VEHICLE NAME<8NG>, DECALREWARD<8NH> (A) 		8-98103-914-0 01 1 1411-1510 ●
135 01.303 DECAL; CAB FRT
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0) EXC. DECAL REWARD/VEHICLE NAME<8NG>, DECALREWARD<8NH> (A) 		8-98103-914-0 01 1 1511- ●
135 01.303 DECAL; CAB FRT
(B) 		8-98103-915-0 01 1 1010-1104 ●
135 01.303 DECAL; CAB FRT
(B) 		8-98103-915-0 01 1 1105-1108 ●
135 01.303 DECAL; CAB FRT
EXC. DECAL REWARD/VEHICLE NAME<8NG>, DECALREWARD<8NH> (B) 		8-98103-915-0 01 1 1109-1301 ●
135 01.303 DECAL; CAB FRT
COLOMBIA EQUIPMENT(CB7) EXC. DECAL REWARD/VEHICLE NAME<8NG>, DECALREWARD<8NH> (B) 		8-98103-915-0 01 1 1302-1410 ●
135 01.303 DECAL; CAB FRT
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) EXC. DECAL REWARD/VEHICLE NAME<8NG>, DECALREWARD<8NH> (B) 		8-98103-915-0 01 1 1411-1510 ●
135 01.303 DECAL; CAB FRT
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) EXC. DECAL REWARD/VEHICLE NAME<8NG>, DECALREWARD<8NH> (B) 		8-98103-915-0 01 1 1511- ●
135 01.303 DECAL; CAB FRT
DECAL REWARD/VEHICLE NAME<8NG> (C) 		8-98136-968-0 01 1 1103-1104 ●
135 01.303 DECAL; CAB FRT
RUSSIA EQUIPMENT(B12) DECAL REWARD/VEHICLE NAME<8NG> (C) 		8-98136-968-0 01 1 1105-1108 ●
135 01.303 DECAL; CAB FRT
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) DECAL REWARD/VEHICLE NAME<8NG> (C) 		8-98136-968-0 01 1 1109-1204 ●
135 01.303 DECAL; CAB FRT
DECAL REWARD/VEHICLE NAME<8NG> (C) 		8-98136-968-0 01 1 1205-1208 ●
135 01.303 DECAL; CAB FRT
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) DECAL REWARD/VEHICLE NAME<8NG> (C) 		8-98136-968-0 01 1 1209-1301 ●
135 01.303 DECAL; CAB FRT
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) DECAL REWARD/VEHICLE NAME<8NG> (C) 		8-98136-968-0 01 1 1302-1410 ●
135 01.303 DECAL; CAB FRT
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) DECAL REWARD/VEHICLE NAME<8NG> (C) 		8-98136-968-0 01 1 1411-1510 ●
135 01.303 DECAL; CAB FRT
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07) DECAL REWARD/VEHICLE NAME<8NG> (C) 		8-98136-968-0 01 1 1511- ●
135 01.303 DECAL; CAB FRT
CHILE EQUIPMENT(KE1) DECAL REWARD/VEHICLE NAME<8NG> (E) 		8-98136-969-0 01 1 1109-1301 ●
135 01.303 DECAL; CAB FRT
DECAL REWARD<8NH> (D) 		8-98136-971-0 01 1 1103-1104 ●
135 01.303 DECAL; CAB FRT
RUSSIA EQUIPMENT(B12) DECAL REWARD<8NH> (D) 		8-98136-971-0 01 1 1105-1108 ●
135 01.303 DECAL; CAB FRT
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) DECAL REWARD<8NH> (D) 		8-98136-971-0 01 1 1109-1204 ●
135 01.303 DECAL; CAB FRT
CHILE EQUIPMENT(KE1) DECAL REWARD<8NH> (D) 		8-98136-971-0 01 1 1109-1204 ●
135 01.303 DECAL; CAB FRT
DECAL REWARD<8NH> (D) 		8-98136-971-0 01 1 1205-1208 ● ●
135 01.303 DECAL; CAB FRT
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) DECAL REWARD<8NH> (D) 		8-98136-971-0 01 1 1209-1301 ● ●
135 01.303 DECAL; CAB FRT
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) DECAL REWARD<8NH> (D) 		8-98136-971-0 01 1 1302-1410 ● ●
135 01.303 DECAL; CAB FRT
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0) DECAL REWARD<8NH> (D) 		8-98136-971-0 01 1 1411-1510 ● ●
135 01.303 DECAL; CAB FRT
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07) DECAL REWARD<8NH> (D) 		8-98136-971-0 01 1 1511- ● ●
392 01.303 EMBLEM; CAB FRT
ISUZU BRAND<7WL> (A) 		8-98097-380-0 01 1 1103-1108 ●
392 01.303 EMBLEM; CAB FRT
ISUZU BRAND<7WL> (A) 		8-98097-380-0 01 1 1109- ● ●
392 01.303 EMBLEM; CAB FRT
(B) 		8-98023-103-1 01 1 1010-1102 ● ●
392 01.303 EMBLEM; CAB FRT
CHEVROLET BRAND<RWE> (B) 		8-98023-103-1 01 1 1103-1108 ●
392 01.303 EMBLEM; CAB FRT
(B) 		8-98023-103-1 01 1 1103-1108 ●
392 01.303 EMBLEM; CAB FRT
CHEVROLET BRAND<RWE> (B) 		8-98023-103-1 01 1 1109-1405 ● ●
392 01.303 EMBLEM; CAB FRT
CHEVROLET BRAND<RWE> (B) 		8-98273-186-0 01 1 1406- ● ●
