Sayfa 6-90 - Isuzu EPC

6-90 — REAR BUMPER (#77890) — 179 parça

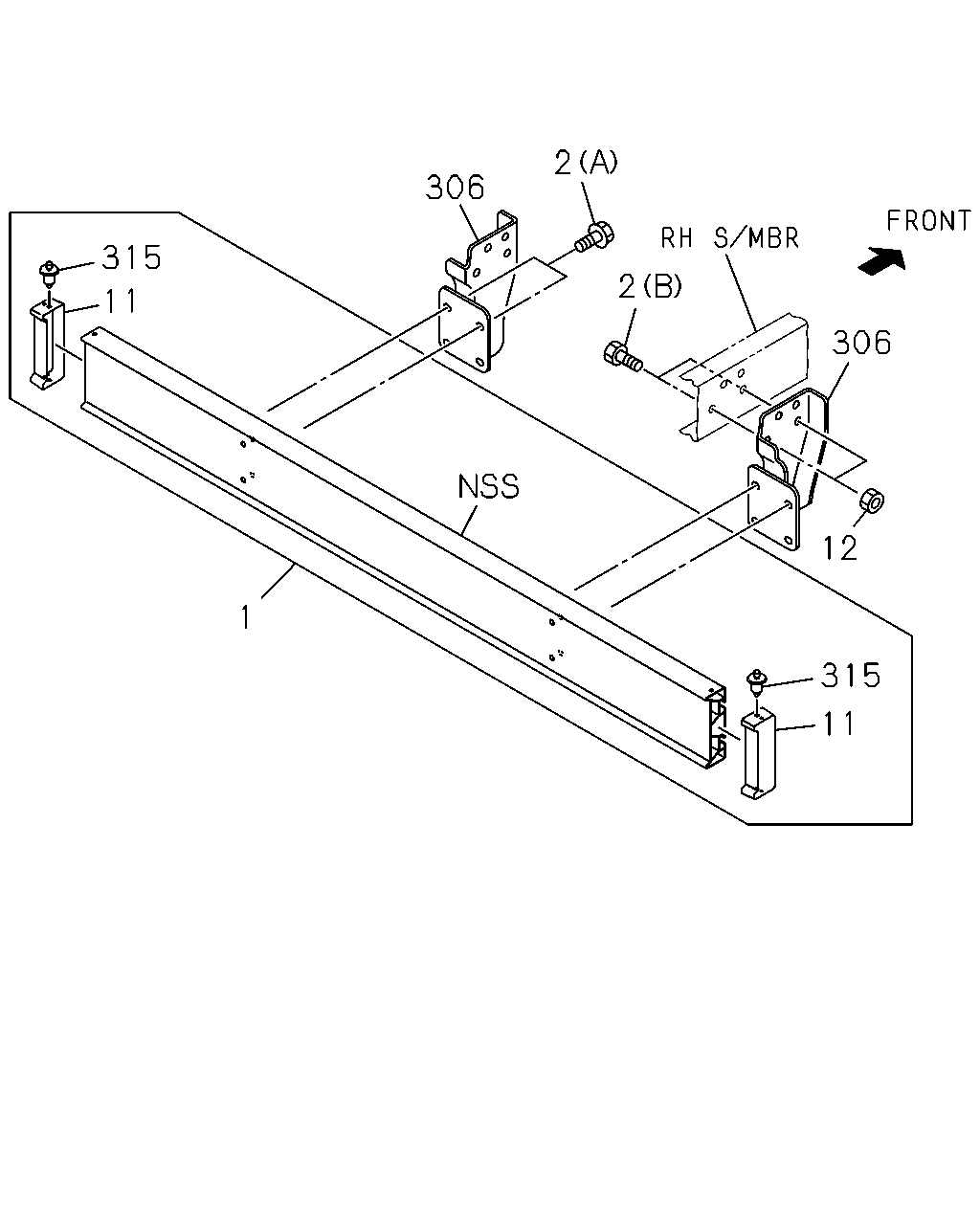

11 315 1 12 306 2 2 306 11 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	07.070 BUMPER; RR WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> STAMP D8P	8-98088-674-0	01	1	1209-1503	●
1	07.070 BUMPER; RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> STAMP D8P	8-98088-674-0	01	1	1504-	●
1	07.070 BUMPER; RR WIDE ALUMINUM REAR BUMPER<7HZ> STAMP D8Q	8-98088-675-0	01	1	1103-1208	●
1	07.070 BUMPER; RR WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP D8Q	8-98088-675-0	01	1	1209-	●
2	07.874 BOLT; BACK BAR WIDE ALUMINUM REAR BUMPER<7HZ> (B) M14X30	0-20851-430-0	06	1	1103-1205	●
2	07.874 BOLT; BACK BAR RUSSIA EQUIPMENT(B12) WIDE ALUMINUM REAR BUMPER<7HZ> (B) M14X30	0-20851-430-0	06	1	1206-1208	●
2	07.874 BOLT; BACK BAR RUSSIA EQUIPMENT(B12) WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) M14X30	0-20851-430-0	06	1	1209-1505	●
2	07.874 BOLT; BACK BAR WIDE ALUMINUM REAR BUMPER<7HZ> (B) M14X30	0-20851-430-0	06	1	1506-	●
2	07.874 BOLT; BACK BAR WIDE ALUMINUM REAR BUMPER<7HZ> 07.395 (A) M12X30 FLANGE	0-28651-230-0	08	1	1103-	●
11	07.829 CAP; RR BUMPER WIDE ALUMINUM REAR BUMPER<7HZ>	8-98070-331-0	02	1	1103-	●
12	07.833 NUT; BRKT WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE	0-91180-214-0	04	1	1103-1205	●
12	07.833 NUT; BRKT WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) MINI BUS CHASSIS(V4B) WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE	0-91180-214-0	04	1	1103-1205	●
12	07.833 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE	0-91180-214-0	04	1	1206-	●
12	07.833 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) MINI BUS CHASSIS(V4B) WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE	0-91180-214-0	04	1	1206-	●
12	07.833 NUT; BRKT WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) WIDE ALUMINUM REAR BUMPER<7HZ> EXC. MINI BUS CHASSIS(V4B) 00.429 M14 FLANGE	0-91180-214-0	02	1	1103-1205	●
12	07.833 NUT; BRKT WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE	0-91180-214-0	02	1	1206-	●
12	07.833 NUT; BRKT WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE	0-91180-214-0	06	1	1506-	●
306	07.836 BAR; BACK,RR WIDE ALUMINUM REAR BUMPER<7HZ> STAMP IA3	8-98039-408-0	01	1	1103-	●
306	07.836 BAR; BACK,RR WIDE ALUMINUM REAR BUMPER<7HZ> STAMP IA3	8-98039-409-0	01	1	1103-	●
315	07.829 RIVET; CAP WIDE ALUMINUM REAR BUMPER<7HZ>	1-71290-062-0	04	1	1103-	●

134 133 136 114 113 128 128 128 128 114 113 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
113	07.800 BRACKET; LICENSE PLATE MOROCCO EQUIPMENT(CGA) (D)	8-98100-014-0	01	1	1411-	●
113	07.800 BRACKET; LICENSE PLATE MOROCCO EQUIPMENT(CGA) (D)	8-98100-015-0	01	1	1411-	●
113	07.800 BRACKET; LICENSE PLATE MOROCCO EQUIPMENT(CGA) O/SIDE MIRROR RR VIEW LONG ARM<DH2> FRAME STRAIGHT TYPE<7KJ> (C)	8-98070-523-0	01	1	1411-	●
113	07.800 BRACKET; LICENSE PLATE MOROCCO EQUIPMENT(CGA) O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98079-732-0	01	1	1411-	●
113	07.800 BRACKET; LICENSE PLATE MOROCCO EQUIPMENT(CGA) DOOR MIRROR<6VE> FRAME STRAIGHT TYPE<7KJ> (C)	8-98079-733-0	01	1	1411-	●
113	07.800 BRACKET; LICENSE PLATE MOROCCO EQUIPMENT(CGA) DOOR MIRROR<6VE> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98079-146-0	01	1	1411-	●
113	07.800 BRACKET; LICENSE PLATE MOROCCO EQUIPMENT(CGA) FRAME STRAIGHT TYPE<7KJ> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98079-734-0	01	1	1411-	●
113	07.800 BRACKET; LICENSE PLATE MOROCCO EQUIPMENT(CGA) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98079-147-0	01	1	1411-	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) DOOR MIRROR<6VE> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98079-146-0	01	1	1209-1402	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98079-147-0	01	1	1209-1402	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) EXC. DOOR MIRROR<6VE>,FRAME STRAIGHT TYPE<7KJ>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98079-732-0	01	1	1209-1402	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) (D)	8-98100-014-0	01	1	1103-1402	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) (D)	8-98100-015-0	01	1	1103-1402	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) DOOR MIRROR<6VE> (C)	8-98079-733-0	01	1	1103-1208	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) DOOR MIRROR<6VE> FRAME STRAIGHT TYPE<7KJ> (C)	8-98079-733-0	01	1	1209-1402	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98079-734-0	01	1	1103-1208	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) FRAME STRAIGHT TYPE<7KJ> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98079-734-0	01	1	1209-1402	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98070-523-0	01	1	1103-1208	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) FRAME STRAIGHT TYPE<7KJ> EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98070-523-0	01	1	1209-1402	●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-98091-681-0	02	1	1010-1108	●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98091-681-0	02	1	1010-1108		●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-98091-681-0	02	1	1109-	●	●
113	07.800 BRACKET; LICENSE PLATE (A)	8-98029-390-3	01	1	1010-1102	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. RUSSIA EQUIPMENT(B12) (A)	8-98029-390-3	01	1	1103-1402	●
113	07.800 BRACKET; LICENSE PLATE (A)	8-98029-390-3	01	1	1103-1402		●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A)	8-98029-390-3	01	1	1403-1412	●
113	07.800 BRACKET; LICENSE PLATE COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A)	8-98029-390-3	01	1	1403-1412		●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) (A)	8-98029-390-3	01	1	1501-1510	●
113	07.800 BRACKET; LICENSE PLATE COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) (A)	8-98029-390-3	01	1	1501-1510		●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (A)	8-98029-390-3	01	1	1511-	●
113	07.800 BRACKET; LICENSE PLATE PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) (A)	8-98029-390-3	01	1	1511-		●
114	07.800 BOLT; BRKT,LICENSE PLATE MOROCCO EQUIPMENT(CGA) 07.874 (D) M14X30	0-20851-430-0	04	1	1411-	●
114	07.800 BOLT; BRKT,LICENSE PLATE MOROCCO EQUIPMENT(CGA) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	1411-	●
114	07.800 BOLT; BRKT,LICENSE PLATE RUSSIA EQUIPMENT(B12) 07.874 (D) M14X30	0-20851-430-0	04	1	1103-1402	●
114	07.800 BOLT; BRKT,LICENSE PLATE RUSSIA EQUIPMENT(B12) 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	1103-1402	●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.833 (B) M10X25 FLANGE	0-28661-025-0	04	1	1010-1108	●
114	07.800 BOLT; BRKT,LICENSE PLATE 07.833 (B) M10X25 FLANGE	0-28661-025-0	04	1	1010-1108		●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.833 (B) M10X25 FLANGE	0-28661-025-0	04	1	1109-	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1010-1102	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1103-1402	●
114	07.800 BOLT; BRKT,LICENSE PLATE EXC. RUSSIA EQUIPMENT(B12) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1103-1402	●
114	07.800 BOLT; BRKT,LICENSE PLATE 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1103-1402		●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1403-1412	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1403-1412	●
114	07.800 BOLT; BRKT,LICENSE PLATE COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1403-1412		●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1501-1510	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1501-1510	●
114	07.800 BOLT; BRKT,LICENSE PLATE COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1501-1510		●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1511-	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1511-	●
114	07.800 BOLT; BRKT,LICENSE PLATE PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1511-		●
128	02.662 NUT; CROSS PLATE MOROCCO EQUIPMENT(CGA) 00.429 (C) M14 FLANGE	0-91180-214-0	04	1	1411-	●
128	02.662 NUT; CROSS PLATE RUSSIA EQUIPMENT(B12) 00.429 (C) M14 FLANGE	0-91180-214-0	04	1	1103-1402	●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1010-1108	●
128	02.662 NUT; CROSS PLATE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1010-1108		●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1109-	●	●
128	02.662 NUT; CROSS PLATE 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1010-1102	●	●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1103-1402	●
128	02.662 NUT; CROSS PLATE EXC. RUSSIA EQUIPMENT(B12) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1103-1402	●
128	02.662 NUT; CROSS PLATE 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1103-1402		●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1403-1412	●	●
128	02.662 NUT; CROSS PLATE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1403-1412	●
128	02.662 NUT; CROSS PLATE COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1403-1412		●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1501-1510	●	●
128	02.662 NUT; CROSS PLATE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1501-1510	●
128	02.662 NUT; CROSS PLATE COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1501-1510		●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
128	02.662 NUT; CROSS PLATE RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●
128	02.662 NUT; CROSS PLATE PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1511-		●
133	07.112 HOOK EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHTTYPE<7KJ> 07.068	8-97387-665-0	01	1	1209-	●
133	07.112 HOOK EXC. MINI BUS CHASSIS(V4B) 07.068	8-94249-270-2	01	1	1103-1108	●
133	07.112 HOOK EXC. MINI BUS CHASSIS(V4B) 07.068	8-94249-270-2	01	1	1109-1208	●	●
133	07.112 HOOK FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 07.068	8-94249-270-2	01	1	1209-	●
133	07.112 HOOK EXC. MINI BUS CHASSIS(V4B) 07.068	8-94249-270-2	01	1	1209-		●
134	07.068 BOLT; HOOK IDENTIFICATION LABEL FOR KD<6UT> EXC. MINI BUS CHASSIS(V4B) 07.039 M14X50	0-10856-450-0	02	1	1103-1108	●
134	07.068 BOLT; HOOK IDENTIFICATION LABEL FOR KD<6UT> EXC. MINI BUS CHASSIS(V4B) 07.039 M14X50	0-10856-450-0	02	1	1109-1205	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10856-450-0	02	1	1109-1205		●
134	07.068 BOLT; HOOK IDENTIFICATION LABEL FOR KD<6UT> EXC. MINI BUS CHASSIS(V4B) 07.039 M14X50	0-10856-450-0	02	1	1206-1208	●
134	07.068 BOLT; HOOK EXC. MINI BUS CHASSIS(V4B) 07.039 M14X50	0-10856-450-0	02	1	1206-1208		●
134	07.068 BOLT; HOOK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) IDENTIFICATION LABEL FOR KD<6UT> EXC. MINI BUS CHASSIS(V4B) 07.039 M14X50	0-10856-450-0	02	1	1209-	●
134	07.068 BOLT; HOOK WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 07.039 M14X50	0-10856-450-0	02	1	1209-	●
134	07.068 BOLT; HOOK WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. MINI BUS CHASSIS(V4B) 07.039 M14X50	0-10856-450-0	02	1	1209-		●
134	07.068 BOLT; HOOK EXC. MINI BUS CHASSIS(V4B), IDENTIFICATIONLABEL FOR KD<6UT> M14X60	0-10861-460-0	02	1	1103-1208	●
134	07.068 BOLT; HOOK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. MINI BUS CHASSIS(V4B), IDENTIFICATIONLABEL FOR KD<6UT> M14X60	0-10861-460-0	02	1	1209-	●
134	07.068 BOLT; HOOK WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B), IDENTIFICATIONLABEL FOR KD<6UT> M14X60	0-10861-460-0	02	1	1209-	●
136	07.068 NUT; HOOK EXC. MINI BUS CHASSIS(V4B) 00.429 M14 FLANGE	0-91180-214-0	02	1	1103-1108	●
136	07.068 NUT; HOOK EXC. MINI BUS CHASSIS(V4B) 00.429 M14 FLANGE	0-91180-214-0	02	1	1109-1208	●	●
136	07.068 NUT; HOOK WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 00.429 M14 FLANGE	0-91180-214-0	02	1	1209-	●
136	07.068 NUT; HOOK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. MINI BUS CHASSIS(V4B) 00.429 M14 FLANGE	0-91180-214-0	02	1	1209-	●
136	07.068 NUT; HOOK WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. MINI BUS CHASSIS(V4B) 00.429 M14 FLANGE	0-91180-214-0	02	1	1209-		●

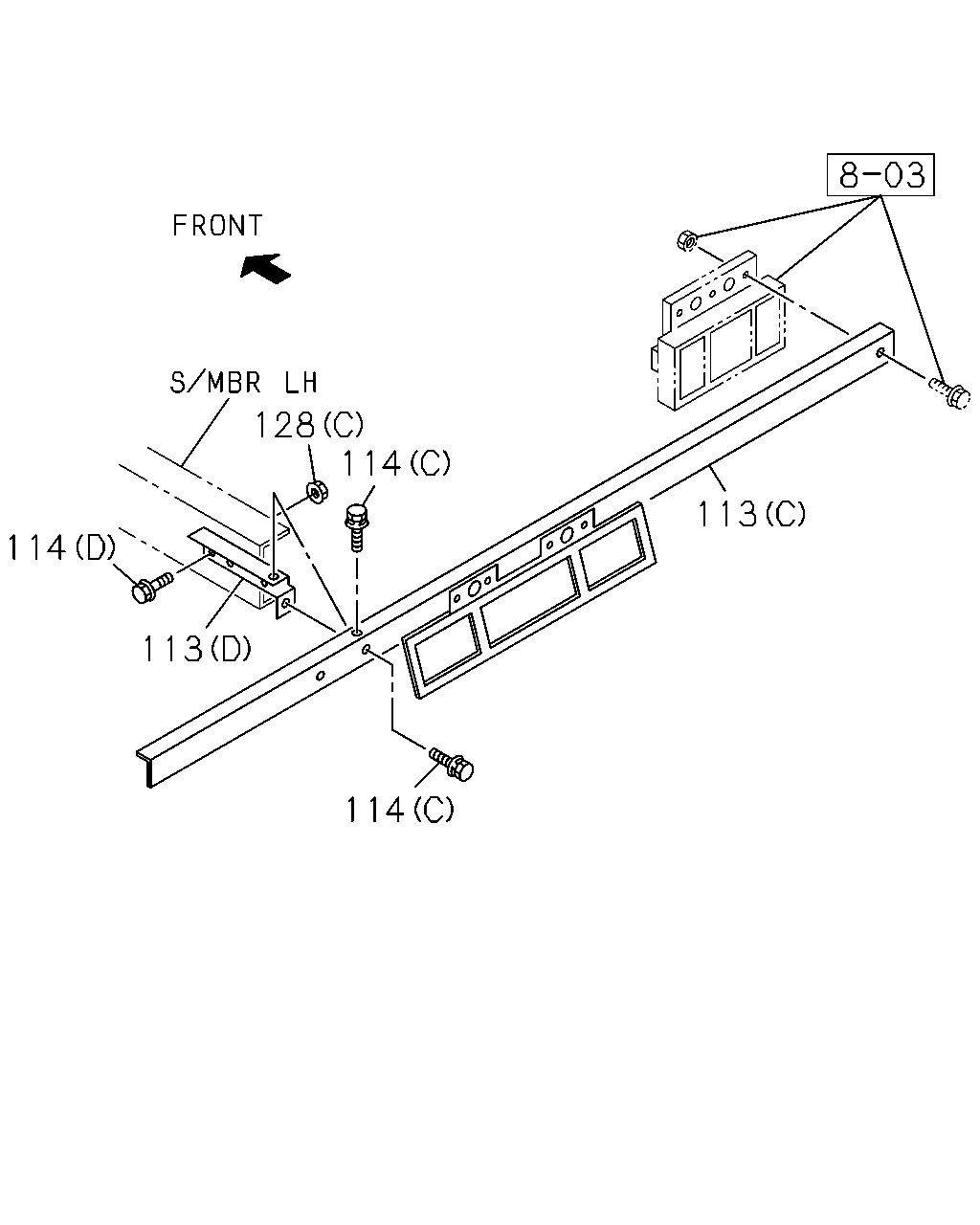

114 113 114 128 113 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
113	07.800 BRACKET; LICENSE PLATE MOROCCO EQUIPMENT(CGA) (D)	8-98100-014-0	01	1	1411-	●
113	07.800 BRACKET; LICENSE PLATE MOROCCO EQUIPMENT(CGA) (D)	8-98100-015-0	01	1	1411-	●
113	07.800 BRACKET; LICENSE PLATE MOROCCO EQUIPMENT(CGA) O/SIDE MIRROR RR VIEW LONG ARM<DH2> FRAME STRAIGHT TYPE<7KJ> (C)	8-98070-523-0	01	1	1411-	●
113	07.800 BRACKET; LICENSE PLATE MOROCCO EQUIPMENT(CGA) O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98079-732-0	01	1	1411-	●
113	07.800 BRACKET; LICENSE PLATE MOROCCO EQUIPMENT(CGA) DOOR MIRROR<6VE> FRAME STRAIGHT TYPE<7KJ> (C)	8-98079-733-0	01	1	1411-	●
113	07.800 BRACKET; LICENSE PLATE MOROCCO EQUIPMENT(CGA) DOOR MIRROR<6VE> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98079-146-0	01	1	1411-	●
113	07.800 BRACKET; LICENSE PLATE MOROCCO EQUIPMENT(CGA) FRAME STRAIGHT TYPE<7KJ> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98079-734-0	01	1	1411-	●
113	07.800 BRACKET; LICENSE PLATE MOROCCO EQUIPMENT(CGA) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98079-147-0	01	1	1411-	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) DOOR MIRROR<6VE> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98079-146-0	01	1	1209-1402	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98079-147-0	01	1	1209-1402	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) EXC. DOOR MIRROR<6VE>,FRAME STRAIGHT TYPE<7KJ>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98079-732-0	01	1	1209-1402	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) (D)	8-98100-014-0	01	1	1103-1402	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) (D)	8-98100-015-0	01	1	1103-1402	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) DOOR MIRROR<6VE> (C)	8-98079-733-0	01	1	1103-1208	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) DOOR MIRROR<6VE> FRAME STRAIGHT TYPE<7KJ> (C)	8-98079-733-0	01	1	1209-1402	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98079-734-0	01	1	1103-1208	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) FRAME STRAIGHT TYPE<7KJ> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98079-734-0	01	1	1209-1402	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98070-523-0	01	1	1103-1208	●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12) FRAME STRAIGHT TYPE<7KJ> EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C)	8-98070-523-0	01	1	1209-1402	●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-98091-681-0	02	1	1010-1108	●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98091-681-0	02	1	1010-1108		●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-98091-681-0	02	1	1109-	●	●
113	07.800 BRACKET; LICENSE PLATE (A)	8-98029-390-3	01	1	1010-1102	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. RUSSIA EQUIPMENT(B12) (A)	8-98029-390-3	01	1	1103-1402	●
113	07.800 BRACKET; LICENSE PLATE (A)	8-98029-390-3	01	1	1103-1402		●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A)	8-98029-390-3	01	1	1403-1412	●
113	07.800 BRACKET; LICENSE PLATE COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A)	8-98029-390-3	01	1	1403-1412		●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) (A)	8-98029-390-3	01	1	1501-1510	●
113	07.800 BRACKET; LICENSE PLATE COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) (A)	8-98029-390-3	01	1	1501-1510		●
113	07.800 BRACKET; LICENSE PLATE RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (A)	8-98029-390-3	01	1	1511-	●
113	07.800 BRACKET; LICENSE PLATE PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) (A)	8-98029-390-3	01	1	1511-		●
114	07.800 BOLT; BRKT,LICENSE PLATE MOROCCO EQUIPMENT(CGA) 07.874 (D) M14X30	0-20851-430-0	04	1	1411-	●
114	07.800 BOLT; BRKT,LICENSE PLATE MOROCCO EQUIPMENT(CGA) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	1411-	●
114	07.800 BOLT; BRKT,LICENSE PLATE RUSSIA EQUIPMENT(B12) 07.874 (D) M14X30	0-20851-430-0	04	1	1103-1402	●
114	07.800 BOLT; BRKT,LICENSE PLATE RUSSIA EQUIPMENT(B12) 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	1103-1402	●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.833 (B) M10X25 FLANGE	0-28661-025-0	04	1	1010-1108	●
114	07.800 BOLT; BRKT,LICENSE PLATE 07.833 (B) M10X25 FLANGE	0-28661-025-0	04	1	1010-1108		●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.833 (B) M10X25 FLANGE	0-28661-025-0	04	1	1109-	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1010-1102	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1103-1402	●
114	07.800 BOLT; BRKT,LICENSE PLATE EXC. RUSSIA EQUIPMENT(B12) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1103-1402	●
114	07.800 BOLT; BRKT,LICENSE PLATE 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1103-1402		●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1403-1412	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1403-1412	●
114	07.800 BOLT; BRKT,LICENSE PLATE COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1403-1412		●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1501-1510	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1501-1510	●
114	07.800 BOLT; BRKT,LICENSE PLATE COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1501-1510		●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1511-	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1511-	●
114	07.800 BOLT; BRKT,LICENSE PLATE PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1511-		●
128	02.662 NUT; CROSS PLATE MOROCCO EQUIPMENT(CGA) 00.429 (C) M14 FLANGE	0-91180-214-0	04	1	1411-	●
128	02.662 NUT; CROSS PLATE RUSSIA EQUIPMENT(B12) 00.429 (C) M14 FLANGE	0-91180-214-0	04	1	1103-1402	●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1010-1108	●
128	02.662 NUT; CROSS PLATE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1010-1108		●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1109-	●	●
128	02.662 NUT; CROSS PLATE 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1010-1102	●	●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1103-1402	●
128	02.662 NUT; CROSS PLATE EXC. RUSSIA EQUIPMENT(B12) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1103-1402	●
128	02.662 NUT; CROSS PLATE 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1103-1402		●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1403-1412	●	●
128	02.662 NUT; CROSS PLATE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1403-1412	●
128	02.662 NUT; CROSS PLATE COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1403-1412		●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1501-1510	●	●
128	02.662 NUT; CROSS PLATE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1501-1510	●
128	02.662 NUT; CROSS PLATE COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1501-1510		●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
128	02.662 NUT; CROSS PLATE RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●
128	02.662 NUT; CROSS PLATE PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1511-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
