◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#77887) — 63 parça

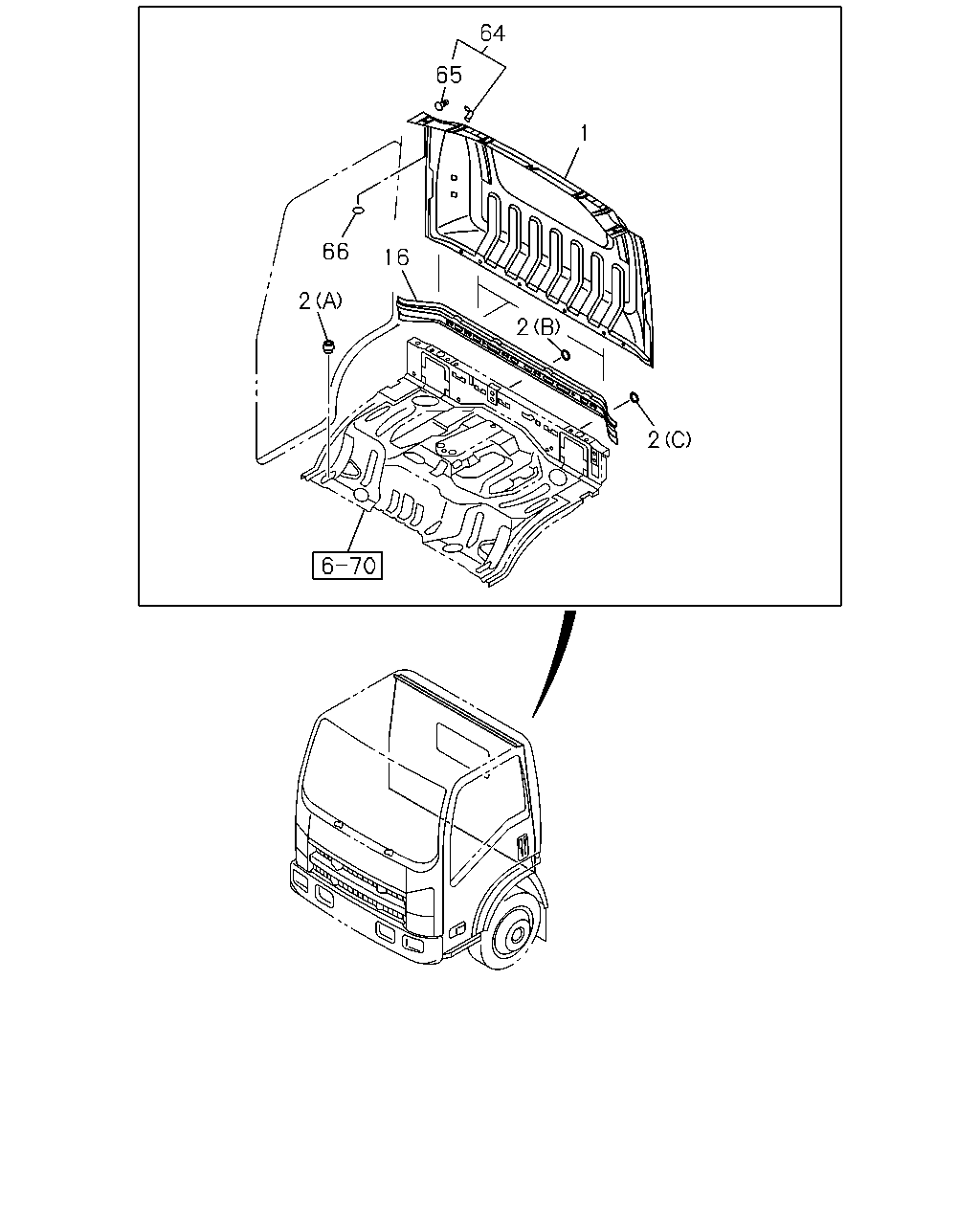

çizim 132238
64 65 1 16 66 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.587 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> 		8-97584-311-4 01 1 1103-1108 ●
1 16.587 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> 		8-97584-311-4 01 1 1109- ● ●
1 16.587 PANEL; BACK OUTER 8-97584-304-3 01 1 1010-1102 ● ●
1 16.587 PANEL; BACK OUTER
WINDOW RR<8LF> 		8-97584-304-3 01 1 1103-1108 ●
1 16.587 PANEL; BACK OUTER 8-97584-304-3 01 1 1103-1108 ●
1 16.587 PANEL; BACK OUTER
WINDOW RR<8LF> 		8-97584-304-3 01 1 1109- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.165 (C) OD=25 BLACK 		1-76798-019-0 02 1 1103-1108 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.165 (C) OD=25 BLACK 		1-76798-019-0 02 1 1109-1110 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (C) OD=25 BLACK 		1-76798-019-0 02 1 1111- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 1103-1108 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 1109-1110 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 1111- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (B) OD=32 BLACK 		8-98031-126-0 06 1 1103-1108 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (B) OD=32 BLACK 		8-98031-126-0 06 1 1109- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (A) OD=12.1 		8-97898-423-0 04 1 1010- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (B) OD=32 BLACK 		8-98031-126-0 10 1 1010-1102 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (B) OD=32 BLACK 		8-98031-126-0 10 1 1103-1108 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (B) OD=32 BLACK 		8-98031-126-0 10 1 1103-1108 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (B) OD=32 BLACK 		8-98031-126-0 10 1 1109- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL 8-97584-608-2 01 1 1010- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 		8-97584-611-1 01 1 1010- ● ●
65 17.198 STUD; BACK PANEL 8-94389-701-0 01 1 1010- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV ER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1103-1108 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV ER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1109-1510 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1109-1510 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1511- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1511- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1103-1108 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1109- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1109- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 1010-1102 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 1103-1108 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 1103-1108 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 1109- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 1109- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1010-1102 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV ER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1103-1108 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1103-1108 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV ER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1109-1510 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1109-1510 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1511- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1511- ●

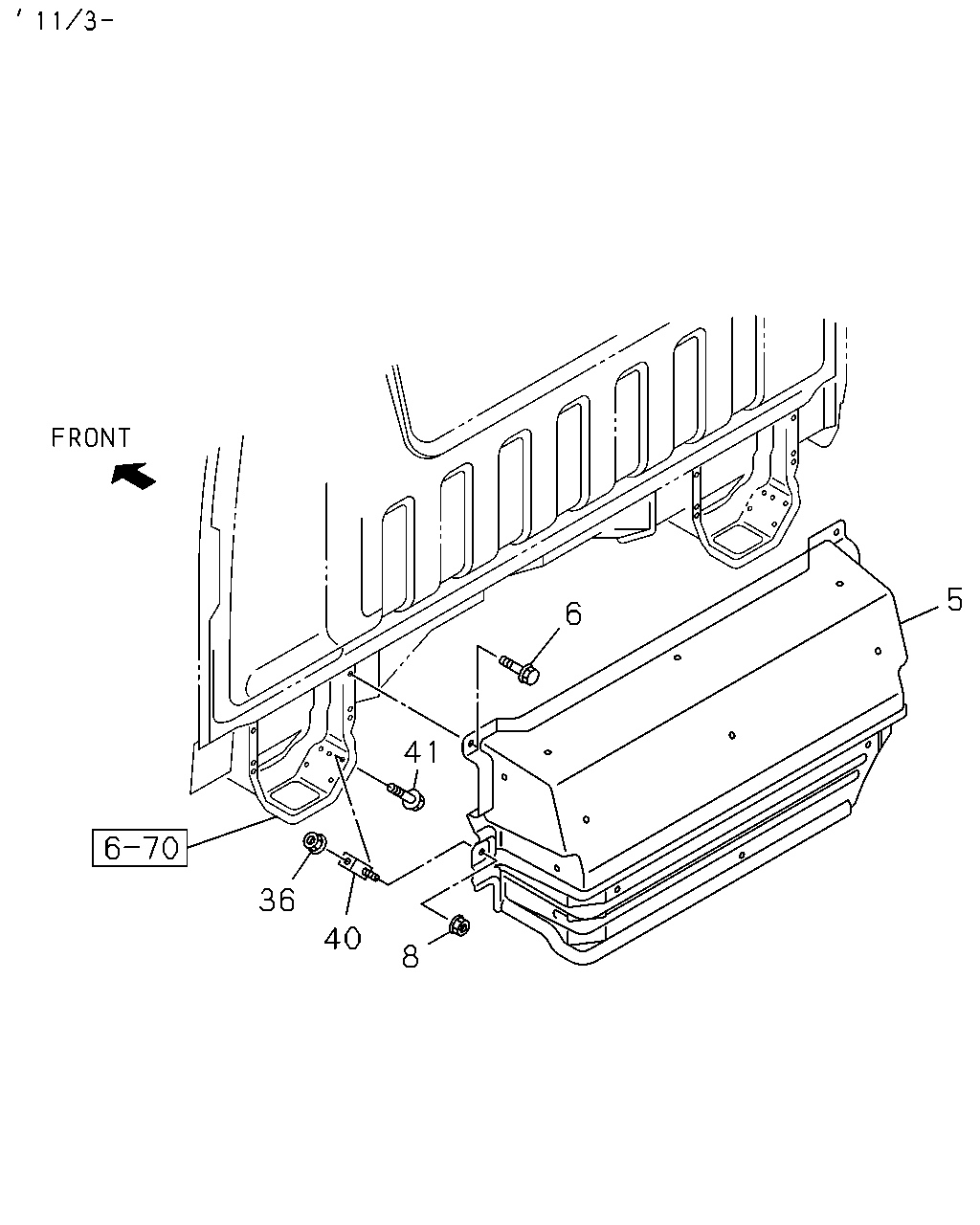

çizim 132577
6 5 41 36 40 8
BalonParca AdiParca NoAdetTipApplied Date A B
5 16.587 PANEL; CAB BACK
4HK1-TCN ENG(RDQ) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 		8-98011-595-0 01 1 1103-1108 ●
5 16.587 PANEL; CAB BACK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 		8-98011-595-0 01 1 1109-1205 ●
5 16.587 PANEL; CAB BACK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98011-595-0 01 1 1206- ●
6 16.587 BOLT; BACK PANEL
4HK1-TCN ENG(RDQ) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1103-1108 ●
6 16.587 BOLT; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1109-1205 ●
6 16.587 BOLT; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1206- ●
8 16.587 NUT; BACK PANEL
4HK1-TCN ENG(RDQ) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1103-1108 ●
8 16.587 NUT; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1109-1205 ●
8 16.587 NUT; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1206- ●
36 16.587 NUT; BRKT
4HK1-TCN ENG(RDQ) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. RUSSIA EQUIPMENT(B12),ARGENTINA COUNTRY(CX1),MINI BUS CHASSIS(V4B) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1103-1108 ●
36 16.587 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. RUSSIA EQUIPMENT(B12),ARGENTINA COUNTRY(CX1),MINI BUS CHASSIS(V4B) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1109-1205 ●
36 16.587 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. RUSSIA EQUIPMENT(B12),ARGENTINA COUNTRY(CX1),MINI BUS CHASSIS(V4B),MINI BUS C HASSIS VAR.2(6GQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1206-1408 ●
36 16.587 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),ARGENTINA COUNTRY(CX1),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1409- ●
40 16.587 BRACKET; BACK PANEL
4HK1-TCN ENG(RDQ) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. RUSSIA EQUIPMENT(B12),ARGENTINA COUNTRY(CX1),MINI BUS CHASSIS(V4B) 		8-97322-264-0 02 1 1103-1108 ●
40 16.587 BRACKET; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. RUSSIA EQUIPMENT(B12),ARGENTINA COUNTRY(CX1),MINI BUS CHASSIS(V4B) 		8-97322-264-0 02 1 1109-1205 ●
40 16.587 BRACKET; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. RUSSIA EQUIPMENT(B12),ARGENTINA COUNTRY(CX1),MINI BUS CHASSIS(V4B),MINI BUS C HASSIS VAR.2(6GQ) 		8-97322-264-0 02 1 1206-1408 ●
40 16.587 BRACKET; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),ARGENTINA COUNTRY(CX1),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-97322-264-0 02 1 1409- ●
41 16.587 BOLT
4HK1-TCN ENG(RDQ) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. RUSSIA EQUIPMENT(B12),ARGENTINA COUNTRY(CX1),MINI BUS CHASSIS(V4B) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1103-1108 ●
41 16.587 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. RUSSIA EQUIPMENT(B12),ARGENTINA COUNTRY(CX1),MINI BUS CHASSIS(V4B) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1109-1205 ●
41 16.587 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. RUSSIA EQUIPMENT(B12),ARGENTINA COUNTRY(CX1),MINI BUS CHASSIS(V4B),MINI BUS C HASSIS VAR.2(6GQ) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1206-1408 ●
41 16.587 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),ARGENTINA COUNTRY(CX1),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1409- ●
