Sayfa 6-75 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

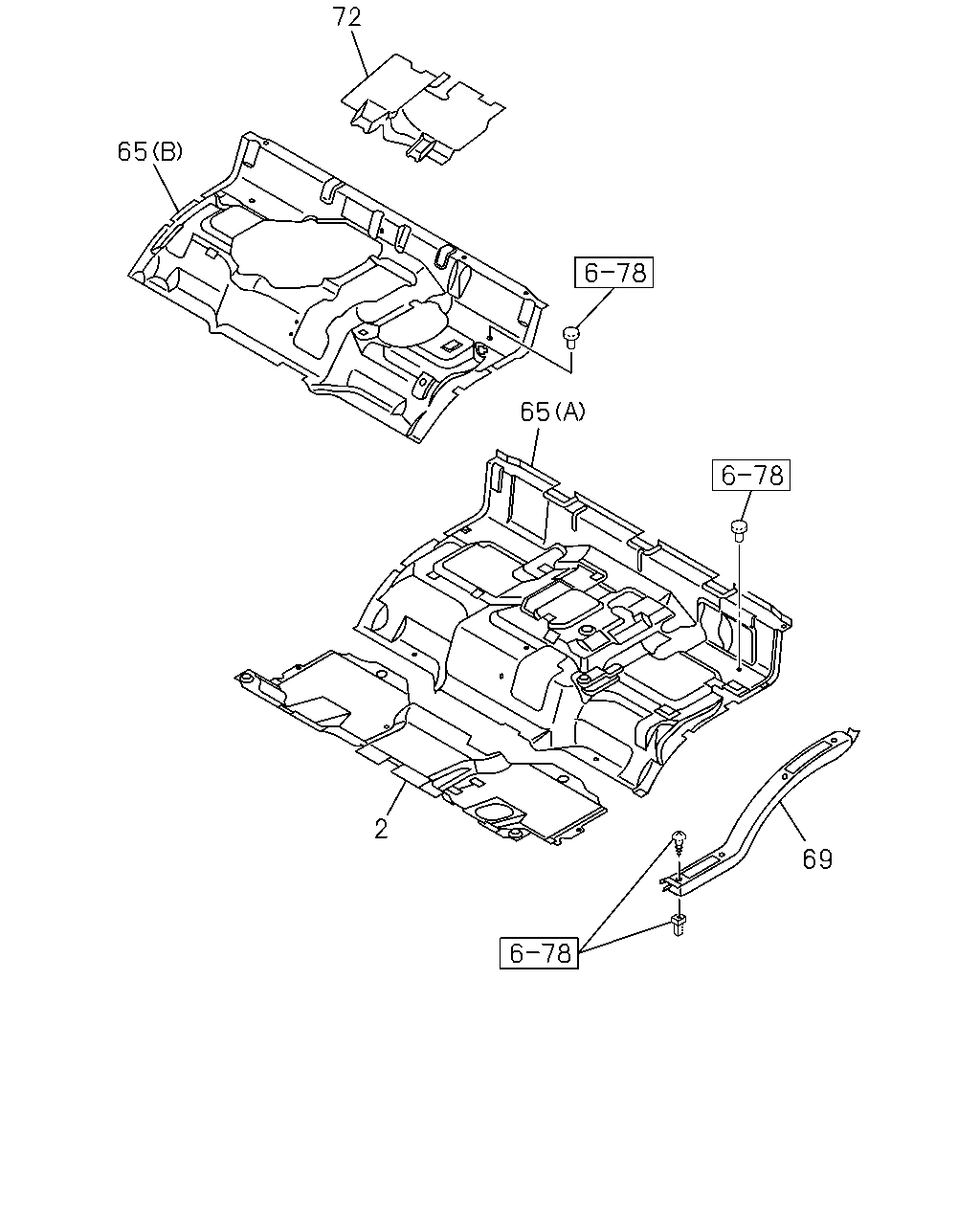

6-75 — MAT AND CARPET (#77884) — 17 parça

72 65 65 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.800 MAT; FLOOR GRAY	8-97405-979-4	01	1	1010-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-889-4	01	1	1103-1108	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-889-4	01	1	1109-1303	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-127-0	01	1	1304-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (B) GRAY	8-98112-607-4	01	1	1010-1102	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-98112-607-4	01	1	1103-1108	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (B) GRAY	8-98112-607-4	01	1	1103-1108		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-98112-607-4	01	1	1109-1303	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97425-115-0	01	1	1304-	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1010-1108	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1109-	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1010-1108	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1109-	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97417-599-1	01	1	1010-1102	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97417-599-1	01	1	1103-1108	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97417-599-1	01	1	1103-1108		●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97417-599-1	01	1	1109-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
