◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#77883) — 88 parça

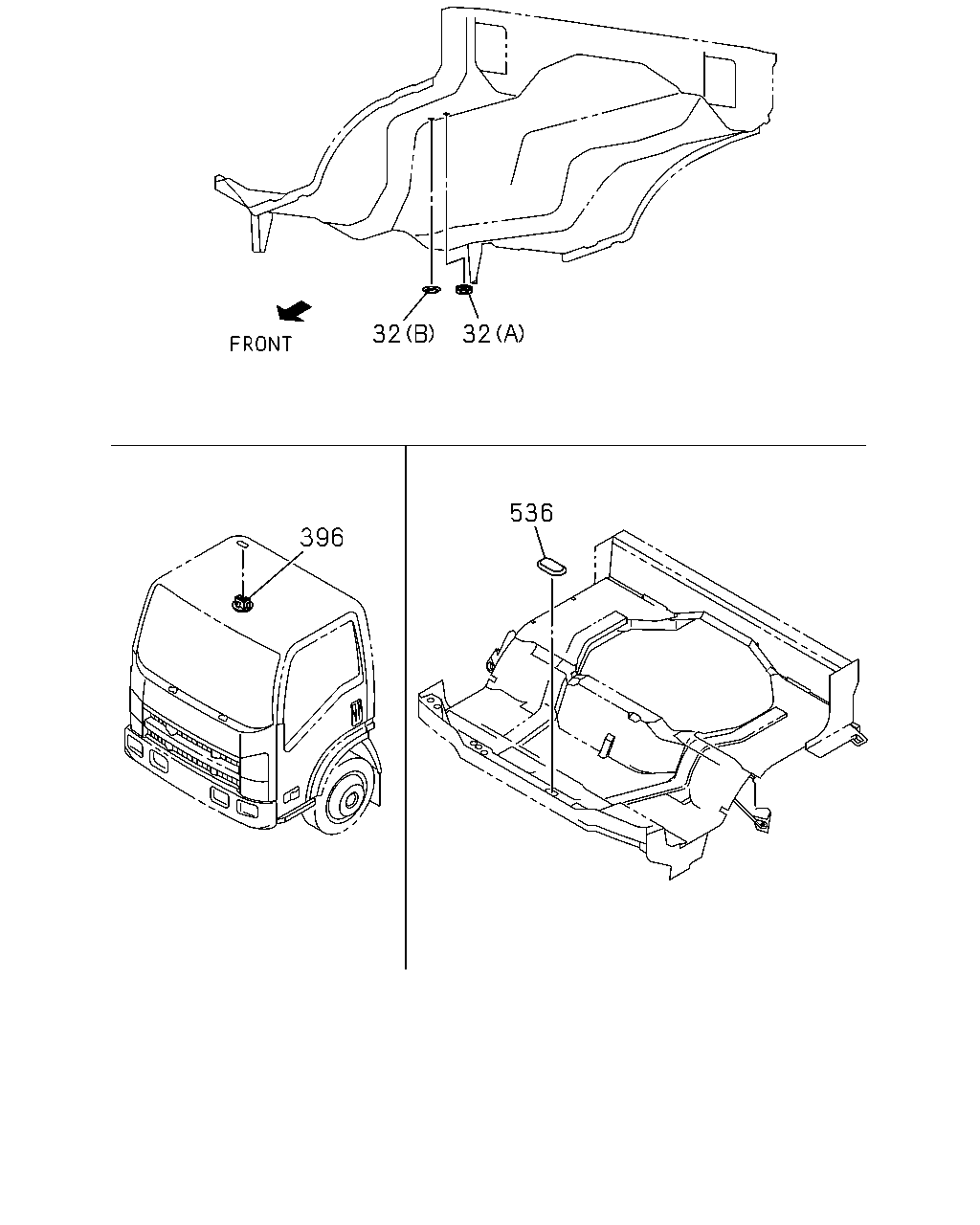

çizim 132118
32 32 536 396
BalonParca AdiParca NoAdetTipApplied Date A B
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 1010- ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 1010- ● ●
396 16.547 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 1010-1102 ● ●
396 16.547 GROMMET; LOCATION HOLE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98054-990-0 02 1 1103- ●
396 16.547 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 1103- ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 1010- ● ●

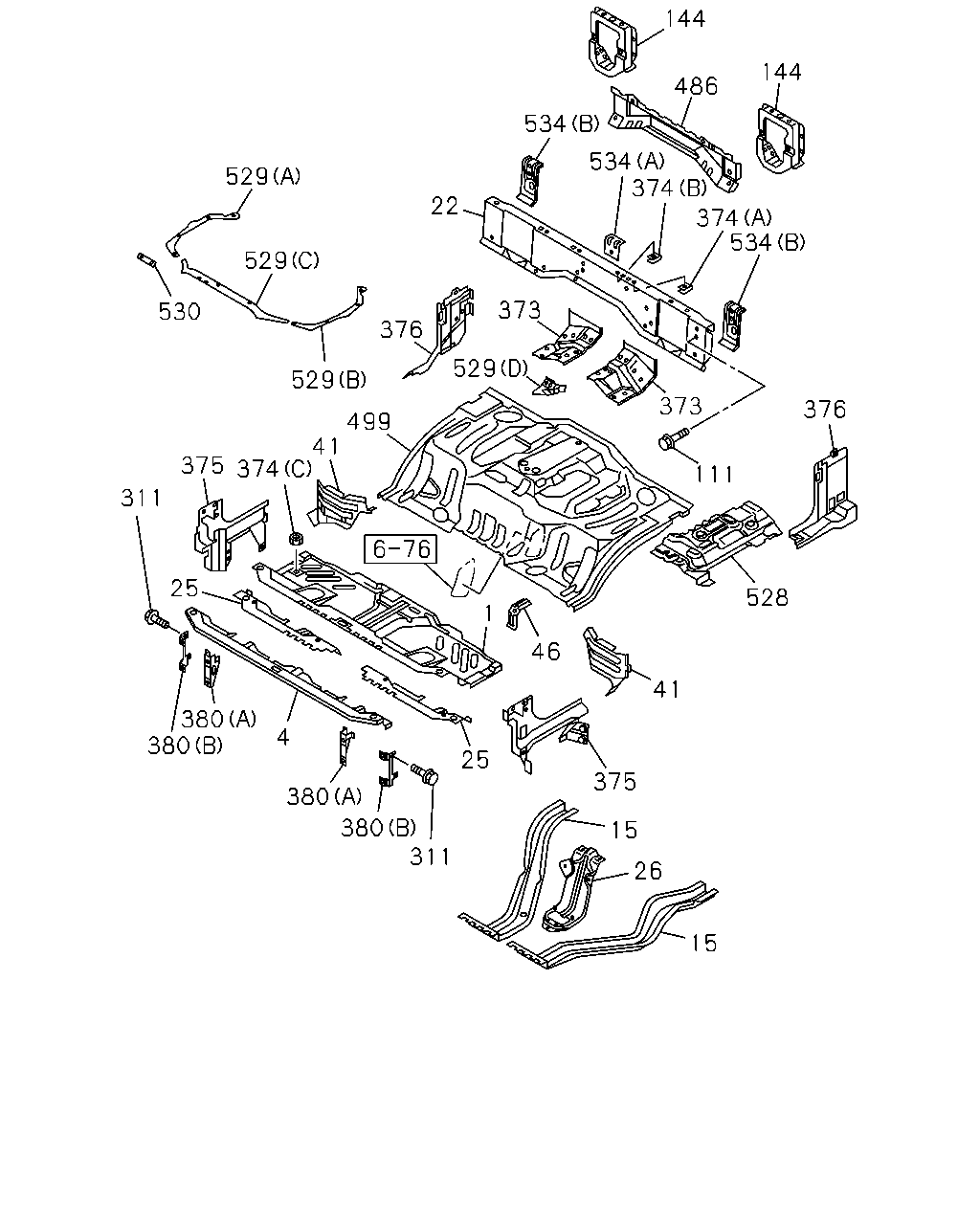

çizim 186891
144 144 486 534 534 374 374 534 22 373 376 529 373 376 111 528 41 375 15 26 15 311 380 380 380 380 25 311 375 374 46 25 41 499 529 530 529 529 1 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.545 PANEL; FLOOR 8-97589-407-4 01 1 1010- ● ●
4 16.545 FRAME; FLOOR,FRT 8-98107-595-0 01 1 1010- ● ●
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 1010- ● ●
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 1010- ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97589-418-4 01 1 1103-1108 ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97589-418-4 01 1 1109- ● ●
22 16.545 FRAME; FLOOR REAR 8-97589-430-4 01 1 1010-1102 ● ●
22 16.545 FRAME; FLOOR REAR
INSPECTION ENGINE COVER<8GA> 		8-97589-430-4 01 1 1103-1108 ●
22 16.545 FRAME; FLOOR REAR 8-97589-430-4 01 1 1103-1108 ●
22 16.545 FRAME; FLOOR REAR
INSPECTION ENGINE COVER<8GA> 		8-97589-430-4 01 1 1109- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 1010- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 1010- ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-517-1 01 1 1010- ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-880-1 01 1 1010- ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-881-1 01 1 1010- ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1010- ● ●
111 16.549 BOLT; PANEL
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1010- ● ●
144 16.545 BRACKET; MTG,RR
MANUAL TILT CAB<RWZ> 		8-97589-544-2 02 1 1103-1108 ●
144 16.545 BRACKET; MTG,RR
MANUAL TILT CAB<RWZ> 		8-97589-544-3 02 1 1109- ● ●
144 16.545 BRACKET; MTG,RR 8-98112-244-1 02 1 1010-1102 ● ●
144 16.545 BRACKET; MTG,RR
INSPECTION ENGINE COVER<8GA> 		8-98112-244-1 02 1 1103-1108 ●
144 16.545 BRACKET; MTG,RR 8-98112-244-1 02 1 1103-1108 ●
144 16.545 BRACKET; MTG,RR
INSPECTION ENGINE COVER<8GA> 		8-98112-244-2 02 1 1109- ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1010- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> 		8-98014-525-2 01 1 1103-1108 ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> 		8-98014-525-2 01 1 1109- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> 		8-98014-526-2 01 1 1103-1108 ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> 		8-98014-526-2 01 1 1109- ● ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> (A) M8 		1-09984-111-0 01 1 1103-1108 ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> (A) M8 		1-09984-111-0 01 1 1109- ● ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1010-1102 ● ●
374 16.545 NUT; FLOOR
INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 04 1 1103-1108 ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1103-1108 ●
374 16.545 NUT; FLOOR
INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 04 1 1109- ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1010- ● ●
374 16.545 NUT; FLOOR
(C) M8 		9-09114-068-0 03 1 1010- ● ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1010- ● ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1010- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97583-888-2 01 1 1010- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97584-618-2 01 1 1010- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1010- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1010- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1010- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1010- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
MANUAL TILT CAB<RWZ> 		8-98030-613-2 01 1 1103-1108 ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
MANUAL TILT CAB<RWZ> 		8-98030-613-2 01 1 1109- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-615-2 01 1 1010-1102 ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
INSPECTION ENGINE COVER<8GA> 		8-98030-615-2 01 1 1103-1108 ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-615-2 01 1 1103-1108 ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
INSPECTION ENGINE COVER<8GA> 		8-98030-615-2 01 1 1109- ● ●
499 16.545 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> 		8-97589-409-5 01 1 1103-1108 ●
499 16.545 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> 		8-97589-409-5 01 1 1109-1207 ● ●
499 16.545 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> 		8-98204-799-0 01 1 1208- ● ●
499 16.545 PANEL; FLOOR,RR 8-97589-426-4 01 1 1010-1102 ● ●
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> 		8-97589-426-4 01 1 1103-1108 ●
499 16.545 PANEL; FLOOR,RR 8-97589-426-4 01 1 1103-1108 ●
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> 		8-97589-426-4 01 1 1109-1207 ● ●
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> 		8-98207-188-0 01 1 1208- ● ●
528 16.545 REINFORCEMENT; PARKING BRAKE
MANUAL TILT CAB<RWZ> 		8-97589-410-2 01 1 1103-1108 ●
528 16.545 REINFORCEMENT; PARKING BRAKE
MANUAL TILT CAB<RWZ> 		8-97589-410-2 01 1 1109- ● ●
529 16.545 RETAINER; FLOOR PANEL
(A) 		8-97589-467-1 01 1 1010-1102 ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) 		8-97589-467-1 01 1 1103-1108 ●
529 16.545 RETAINER; FLOOR PANEL
(A) 		8-97589-467-1 01 1 1103-1108 ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) 		8-97589-467-1 01 1 1109- ● ●
529 16.545 RETAINER; FLOOR PANEL
(B) 		8-97589-468-1 01 1 1010-1102 ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (B) 		8-97589-468-1 01 1 1103-1108 ●
529 16.545 RETAINER; FLOOR PANEL
(B) 		8-97589-468-1 01 1 1103-1108 ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (B) 		8-97589-468-1 01 1 1109- ● ●
529 16.545 RETAINER; FLOOR PANEL
(C) 		8-98006-715-0 01 1 1010-1102 ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (C) 		8-98006-715-0 01 1 1103-1108 ●
529 16.545 RETAINER; FLOOR PANEL
(C) 		8-98006-715-0 01 1 1103-1108 ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (C) 		8-98006-715-0 01 1 1109- ● ●
529 16.545 RETAINER; FLOOR PANEL
(D) 		8-98031-663-0 01 1 1010-1102 ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (D) 		8-98031-663-0 01 1 1103-1108 ●
529 16.545 RETAINER; FLOOR PANEL
(D) 		8-98031-663-0 01 1 1103-1108 ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (D) 		8-98031-663-0 01 1 1109- ● ●
530 16.565 BRACKET; COVER 8-97589-255-0 01 1 1010-1102 ● ●
530 16.565 BRACKET; COVER
INSPECTION ENGINE COVER<8GA> 		8-97589-255-0 01 1 1103-1108 ●
530 16.565 BRACKET; COVER 8-97589-255-0 01 1 1103-1108 ●
530 16.565 BRACKET; COVER
INSPECTION ENGINE COVER<8GA> 		8-97589-255-0 01 1 1109- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 02 1 1010- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
