6-47 — MUD GUARD AND INSULATOR (#77880) — 112 parça

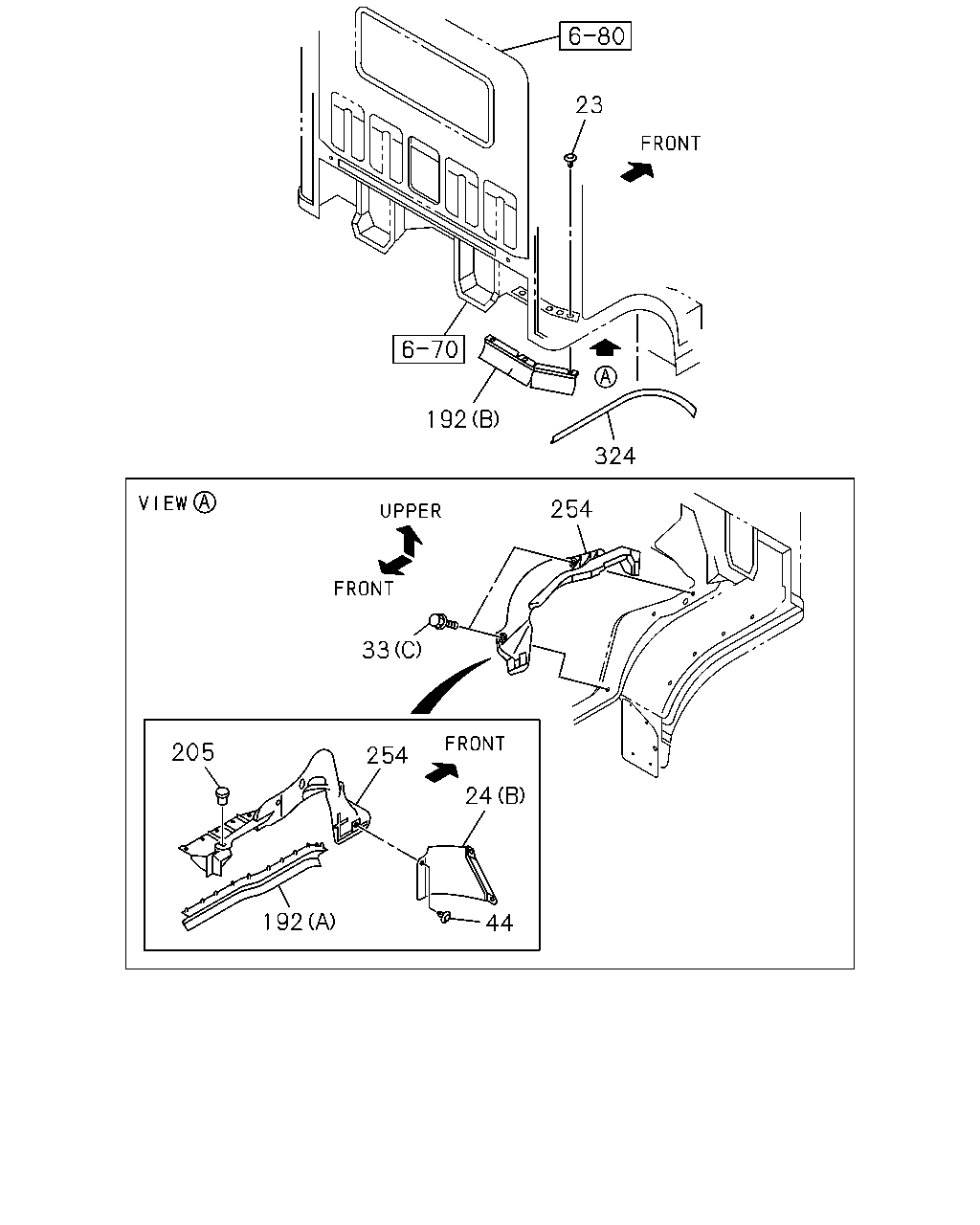

23 192 324 254 33 205 254 24 192 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	1010-	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1010-	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	1010-	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	1010-1209	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1010-	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1010-	●	●
44	08.154 CLIP; ANCHOR 08.155 OD=16 L=11	1-76378-155-0	06	1	1010-	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	1010-	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	1010-	●	●
192	08.153 SEAL; MUD COVER (B)	8-98022-782-3	02	1	1010-	●	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	1010-	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-750-3	01	1	1010-	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-751-3	01	1	1010-	●	●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1010-	●	●

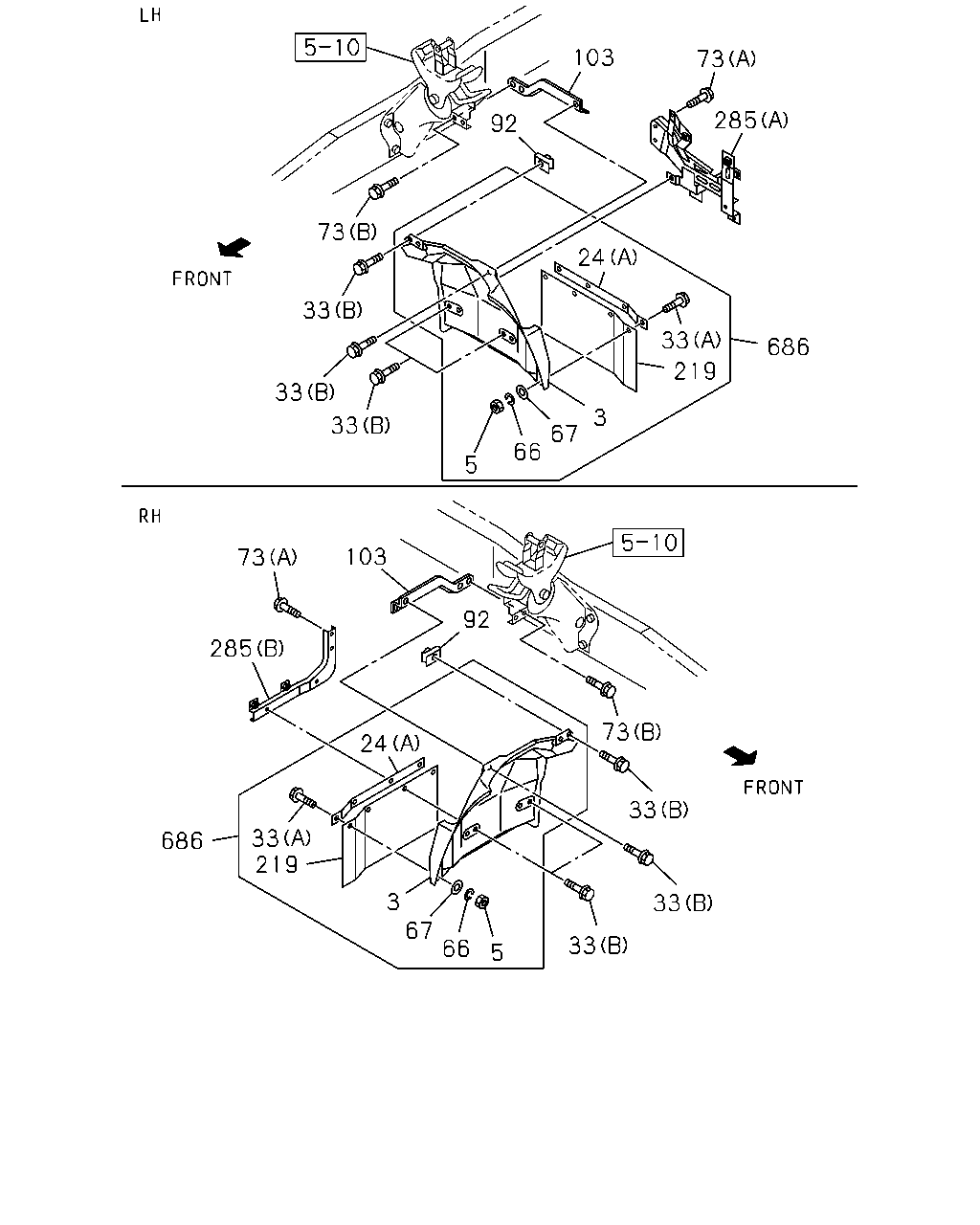

103 73 285 686 219 33 24 92 73 33 33 33 3 67 66 5 73 92 103 73 285 686 33 219 24 3 67 66 5 33 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	08.153 GUARD; MUD,RR	8-98004-029-5	01	1	1010-	●	●
3	08.153 GUARD; MUD,RR	8-98004-030-4	01	1	1010-	●	●
5	08.155 NUT; FLAP RUBBER 03.330 M6	0-91110-506-0	08	1	1010-1209	●	●
5	08.155 NUT; FLAP RUBBER M6	8-98227-380-0	08	1	1210-	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1010-	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	1010-	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	1010-1209	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1010-	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1010-	●	●
66	08.155 WASHER; LK ID=6.1	0-91510-606-0	08	1	1010-1209	●	●
67	08.155 WASHER; PL 00.413 ID=6.4	0-91610-606-0	08	1	1010-1209	●	●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1010-	●	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	1010-	●	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	1010-	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-315-2	01	1	1010-	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-319-2	01	1	1010-	●	●
219	08.155 FLAP; MUD GUARD G.V.W. 6.0-6.5TON(RPV)	8-98004-032-1	02	1	1209-1510	●
219	08.155 FLAP; MUD GUARD G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW)	8-98004-032-1	02	1	1511-	●
219	08.155 FLAP; MUD GUARD	8-98004-033-1	02	1	1010-1108	●	●
219	08.155 FLAP; MUD GUARD G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-98004-033-1	02	1	1109-	●
219	08.155 FLAP; MUD GUARD	8-98004-033-1	02	1	1109-		●
285	08.155 BRACKET; MUD COVER (B)	8-98001-314-2	01	1	1010-	●	●
285	08.155 BRACKET; MUD COVER (A)	8-98001-320-3	01	1	1010-	●	●
686	08.155 FLAP ASM; MUD G.V.W. 6.0-6.5TON(RPV)	8-97387-746-7	01	1	1209-1510	●
686	08.155 FLAP ASM; MUD G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW)	8-97387-746-7	01	1	1511-	●
686	08.155 FLAP ASM; MUD G.V.W. 6.0-6.5TON(RPV)	8-97387-747-6	01	1	1209-1510	●
686	08.155 FLAP ASM; MUD G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW)	8-97387-747-6	01	1	1511-	●
686	08.155 FLAP ASM; MUD	8-97387-750-6	01	1	1010-1108	●	●
686	08.155 FLAP ASM; MUD G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97387-750-7	01	1	1109-	●
686	08.155 FLAP ASM; MUD	8-97387-750-7	01	1	1109-		●
686	08.155 FLAP ASM; MUD	8-97387-751-5	01	1	1010-1108	●	●
686	08.155 FLAP ASM; MUD G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97387-751-6	01	1	1109-	●
686	08.155 FLAP ASM; MUD	8-97387-751-6	01	1	1109-		●

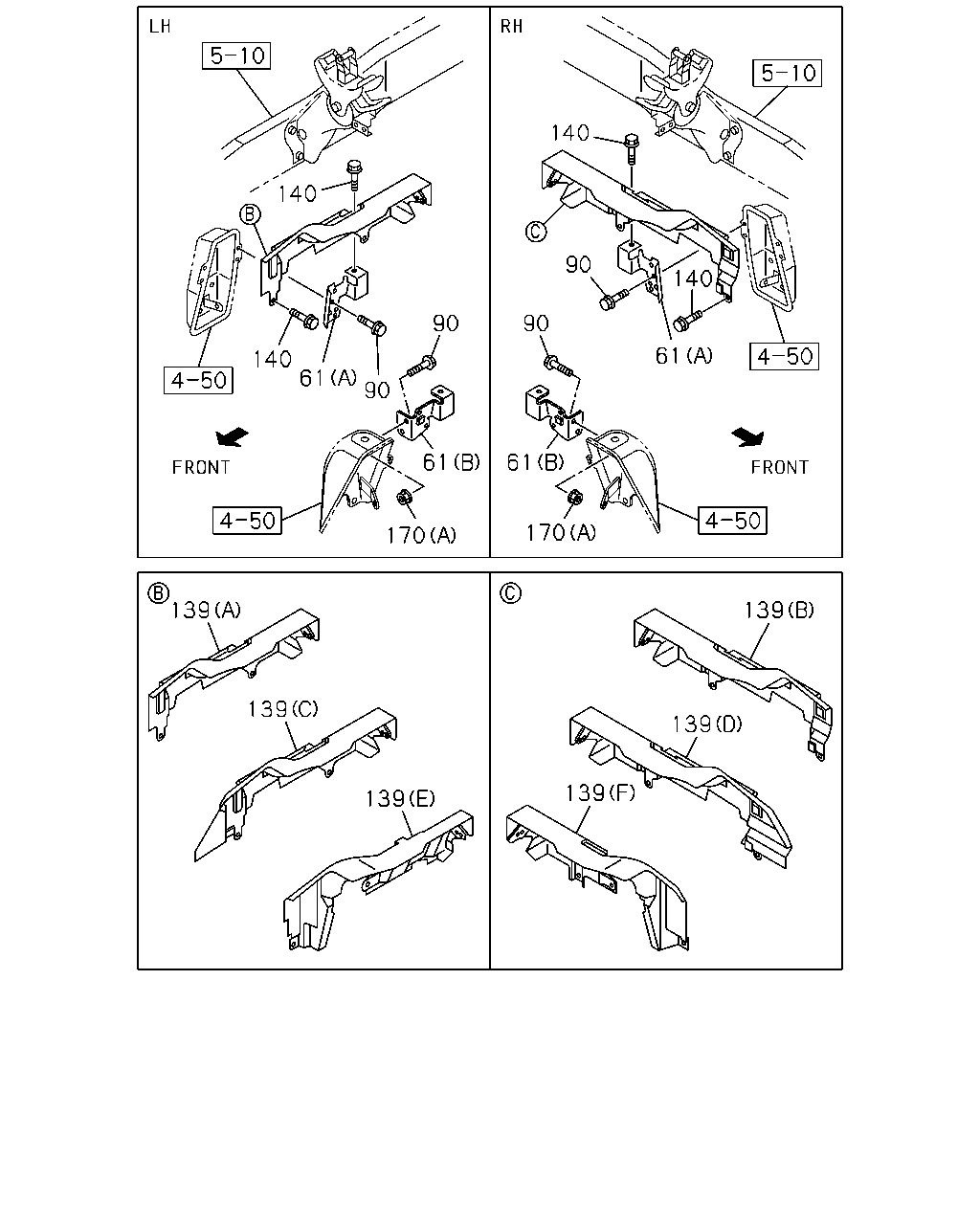

140 140 90 90 61 61 170 140 140 61 90 90 61 170 139 139 139 139 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	08.155 BRACKET; COVER FRONT WIDE TREAD<7GV> (B)	8-98135-993-0	01	1	1010-1204	●	●
61	08.155 BRACKET; COVER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> (B)	8-98135-993-0	01	1	1205-	●	●
61	08.155 BRACKET; COVER FRONT WIDE TREAD<7GV> (B)	8-98135-994-0	01	1	1010-1204	●	●
61	08.155 BRACKET; COVER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> (B)	8-98135-994-0	01	1	1205-	●	●
61	08.155 BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (A)	8-98040-466-1	01	1	1010-1204	●	●
61	08.155 BRACKET; COVER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FRONT WIDE TREAD<7GV> (A)	8-98040-466-1	01	1	1205-	●	●
61	08.155 BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (A)	8-98040-465-1	01	1	1010-1204	●	●
61	08.155 BRACKET; COVER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FRONT WIDE TREAD<7GV> (A)	8-98040-465-1	01	1	1205-	●	●
90	08.153 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1010-1204	●	●
90	08.153 BOLT; COVER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1205-	●	●
139	08.153 PANEL; SIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97387-727-4	01	1	1209-1507	●
139	08.153 PANEL; SIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-728-7	01	1	1209-1507	●
139	08.153 PANEL; SIDE 4JJ1-TCC ENG(RDU) (F)	8-98109-500-2	01	1	1209-	●
139	08.153 PANEL; SIDE 4JJ1-TCC ENG(RDU) (E)	8-98150-233-1	01	1	1209-	●
139	08.153 PANEL; SIDE (B)	8-98043-920-2	01	1	1010-1204	●	●
139	08.153 PANEL; SIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98043-920-2	01	1	1205-1208	●	●
139	08.153 PANEL; SIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98043-920-2	01	1	1209-	●
139	08.153 PANEL; SIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98043-920-2	01	1	1209-		●
139	08.153 PANEL; SIDE (A)	8-98115-458-0	01	1	1010-1204	●	●
139	08.153 PANEL; SIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98115-458-0	01	1	1205-1208	●	●
139	08.153 PANEL; SIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-98115-458-1	01	1	1209-	●
139	08.153 PANEL; SIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98115-458-1	01	1	1209-		●
140	08.155 BOLT; SIDE PANEL 4JJ1-TCC ENG(RDU) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	1209-	●
140	08.155 BOLT; SIDE PANEL 4JJ1-TCC ENG(RDU) M8X35 W/LK&PL WASHER	1-09030-094-0	05	1	1209-	●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1010-1204	●	●
140	08.155 BOLT; SIDE PANEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1205-	●	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	08	1	1109-1205	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	08	1	1206-1208	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	08	1	1209-	●
170	08.155 NUT; COVER FRONT WIDE TREAD<7GV> 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	1010-1204	●	●
170	08.155 NUT; COVER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	1205-	●	●

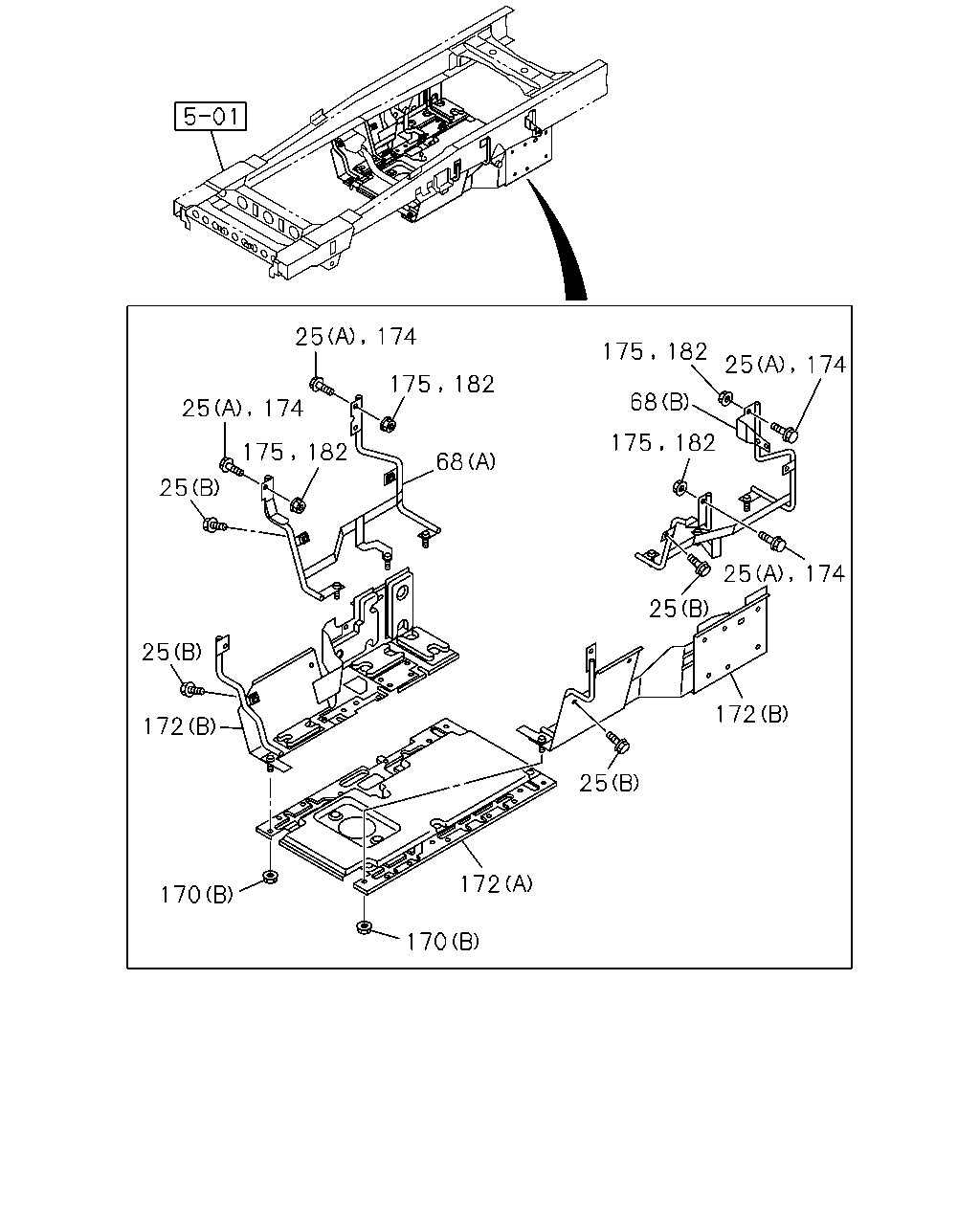

170 172 25 172 174 25 25 175 182 68 175 182 25 174 170 172 25 25 175 182 68 182 175 174 25 25 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 00.029 (A) M10X30 FLANGE	0-28651-030-0	06	1	1109-1205	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	06	1	1206-1208	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 00.029 (A) M10X30 FLANGE	0-28651-030-0	06	1	1209-1312	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1109-1205	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1206-1208	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1209-	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) (A)	8-98080-386-2	01	1	1109-1205	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A)	8-98080-386-2	01	1	1206-1208	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A)	8-98080-386-2	01	1	1209-	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) (B)	8-98150-453-0	01	1	1109-1205	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98150-453-0	01	1	1206-1208	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98150-453-0	01	1	1209-	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	08	1	1109-1205	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	08	1	1206-1208	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	08	1	1209-	●
170	08.155 NUT; COVER FRONT WIDE TREAD<7GV> 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	1010-1204	●	●
170	08.155 NUT; COVER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRONT WIDE TREAD<7GV> 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	1205-	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) (A)	8-98024-942-1	01	1	1109-1205	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A)	8-98024-942-1	01	1	1206-1208	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A)	8-98024-942-1	01	1	1209-	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) (B)	8-98079-016-3	01	1	1109-1205	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98079-016-3	01	1	1206-1208	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98079-016-3	01	1	1209-1312	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98225-680-0	01	1	1401-	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) (B)	8-98079-017-4	01	1	1109-1205	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98079-017-4	01	1	1206-1208	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98079-017-4	01	1	1209-	●
174	08.155 BOLT; STAY FIX 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 00.029 M10X30 FLANGE	0-28651-030-0	06	1	1401-	●
175	08.155 NUT; STAY FIX 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 03.162 M10 FLANGE	0-91180-110-0	04	1	1401-	●
182	08.155 NUT; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE	0-91180-110-0	04	1	1109-1205	●
182	08.155 NUT; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 03.162 M10 FLANGE	0-91180-110-0	04	1	1206-1208	●
182	08.155 NUT; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 03.162 M10 FLANGE	0-91180-110-0	04	1	1209-1312	●
