◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#7788) — 51 parça
çizim 98680
2 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-763-1 06 1 9905-0108 ● ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-246-2 06 1 0109-0305 ● ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-763-3 06 1 0306- ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-764-1 06 1 9905-0108 ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-247-2 06 1 0109-0305 ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-764-3 06 1 0306- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-1 06 1 9905- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-1 06 1 9905- ● ●

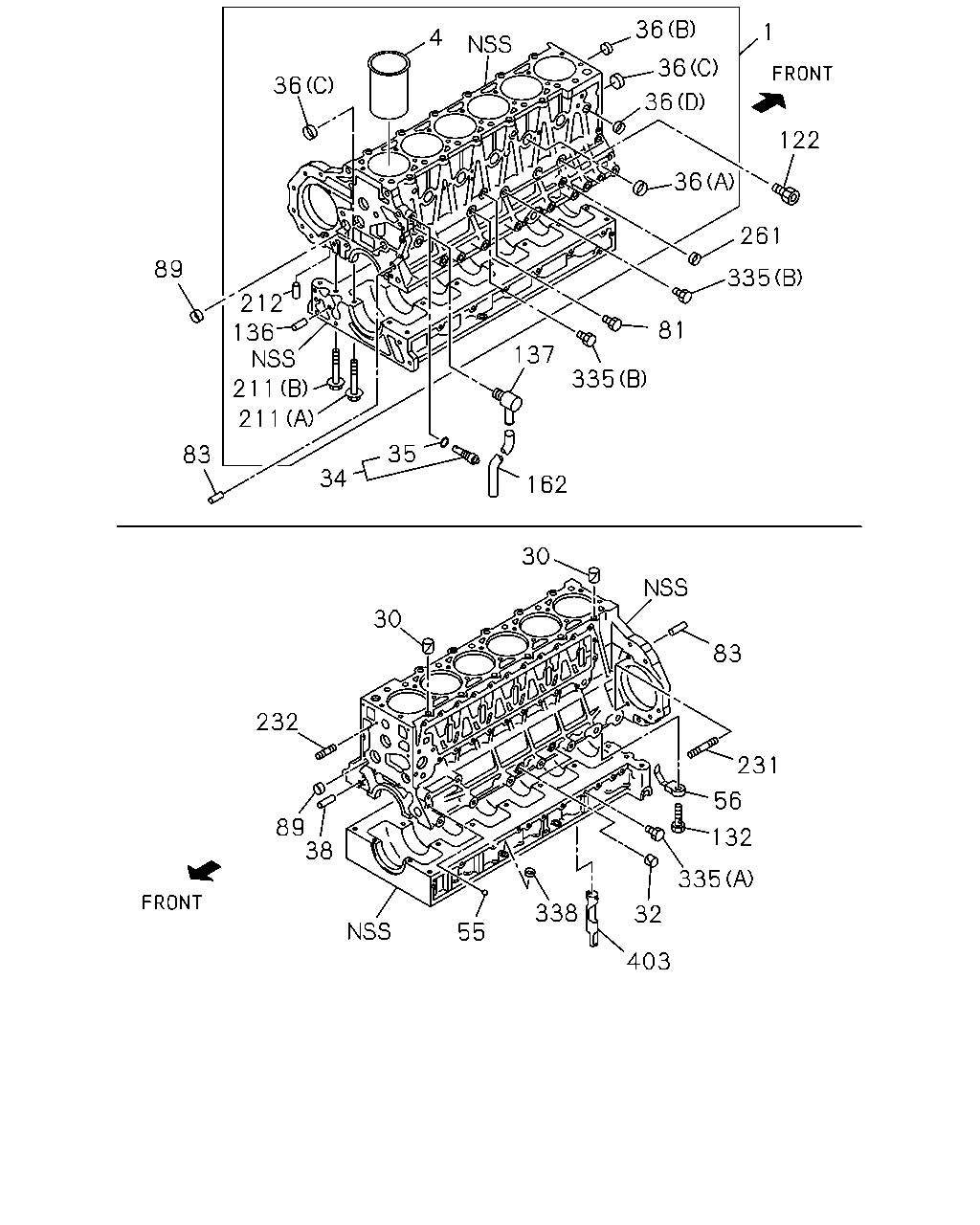

çizim 98685
36 1 4 36 36 36 122 36 261 89 335 212 136 81 137 335 211 211 35 83 34 162 30 30 83 232 231 56 89 38 132 335 338 32 55 403
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 8-97600-119-0 01 1 9905-0103 ● ●
1 BLOCK ASM; CYL 8-97602-024-2 01 1 0104-0504 ● ●
1 BLOCK ASM; CYL 8-98005-410-2 01 1 0505- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-1 06 1 9905- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-1 06 1 9905- ● ●
30 PIN; CYL HD GASKET SETTING
OD=18.15 		8-94399-688-1 02 1 9905- ● ●
32 PIN; INJ PUMP BRKT 8-94453-344-0 02 1 9905- ● ●
34 VALVE; OIL RELIEF 8-94393-077-1 01 1 9905- ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 9905- ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 05 1 9905- ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=25 		1-09600-016-0 01 1 9905- ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		8-94399-005-0 01 1 9905- ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94399-639-0 04 1 9905-0502 ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-97096-824-0 04 1 0503- ● ●
38 PIN; TIMING GEAR CASE
L=22 		8-94483-674-0 02 1 9905- ● ●
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 01 1 9905- ● ●
56 JET; OIL,PISTON COOLING 8-94395-194-0 06 1 9905- ● ●
81 PLUG; WATER JACKET
M14 		8-94399-225-0 01 1 9905- ● ●
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 9905-0306 ● ●
83 PIN; FLYWHEEL HSG
OD=10 L=20 		8-97135-423-0 02 1 0307-0307 ● ●
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 0308- ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11219-192-0 03 1 9905- ● ●
122 ADAPTER; OIL PRESSURE SWITCH 8-94399-858-2 01 1 9905- ● ●
132 VALVE; CHECK,OIL
M12X18.5 		8-94394-419-1 06 1 9905- ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 9905- ● ●
137 COCK; DRAIN,WATER 1-09680-024-0 01 1 9905- ● ●
162 HOSE; WATER DRAIN,C/BL
L=310 SERVICED BY L=3000 		0-03259-300-0 01 1 9905-0206 ● ●
162 HOSE; WATER DRAIN,C/BL
L=310 SERVICED BY L=3000 		0-03559-300-0 01 1 0207- ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-94396-207-3 14 1 9905- ● ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 9905- ● ●
212 PIN; CRANKCASE
L=22 		8-94483-674-0 02 1 9905-0306 ● ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 0307- ● ●
231 STUD; AIR CMPR
M10X46.5 L=58.5 		8-97066-386-1 02 1 9905-0301 ● ●
231 STUD; AIR CMPR
M10X46.5 L=58.5 		8-97363-237-0 02 1 0302- ● ●
232 STUD; WATER PUMP
M8X55 L=67 		9-04110-855-0 03 1 9905-0604 ● ●
232 STUD; WATER PUMP
M8X55 L=67 		0-41010-855-0 03 1 0605- ● ●
261 PLUG; OIL PRESS UNIT
OD=12.3 		5-09600-013-0 01 1 9905-0307 ● ●
335 PLUG; C/BL,SIDE
(B) M14 		8-94399-225-0 03 1 9905- ● ●
335 PLUG; C/BL,SIDE
(A) M8X6 		8-94399-421-0 01 1 9905-0501 ● ●
335 PLUG; C/BL,SIDE
(A) M8X10 		8-98003-416-0 01 1 0502- ● ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 01 1 9905-0607 ● ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 02 1 0608- ● ●
403 GUIDE; GALLERY 8-94395-351-1 01 1 9905- ● ●
