◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#77879) — 16 parça

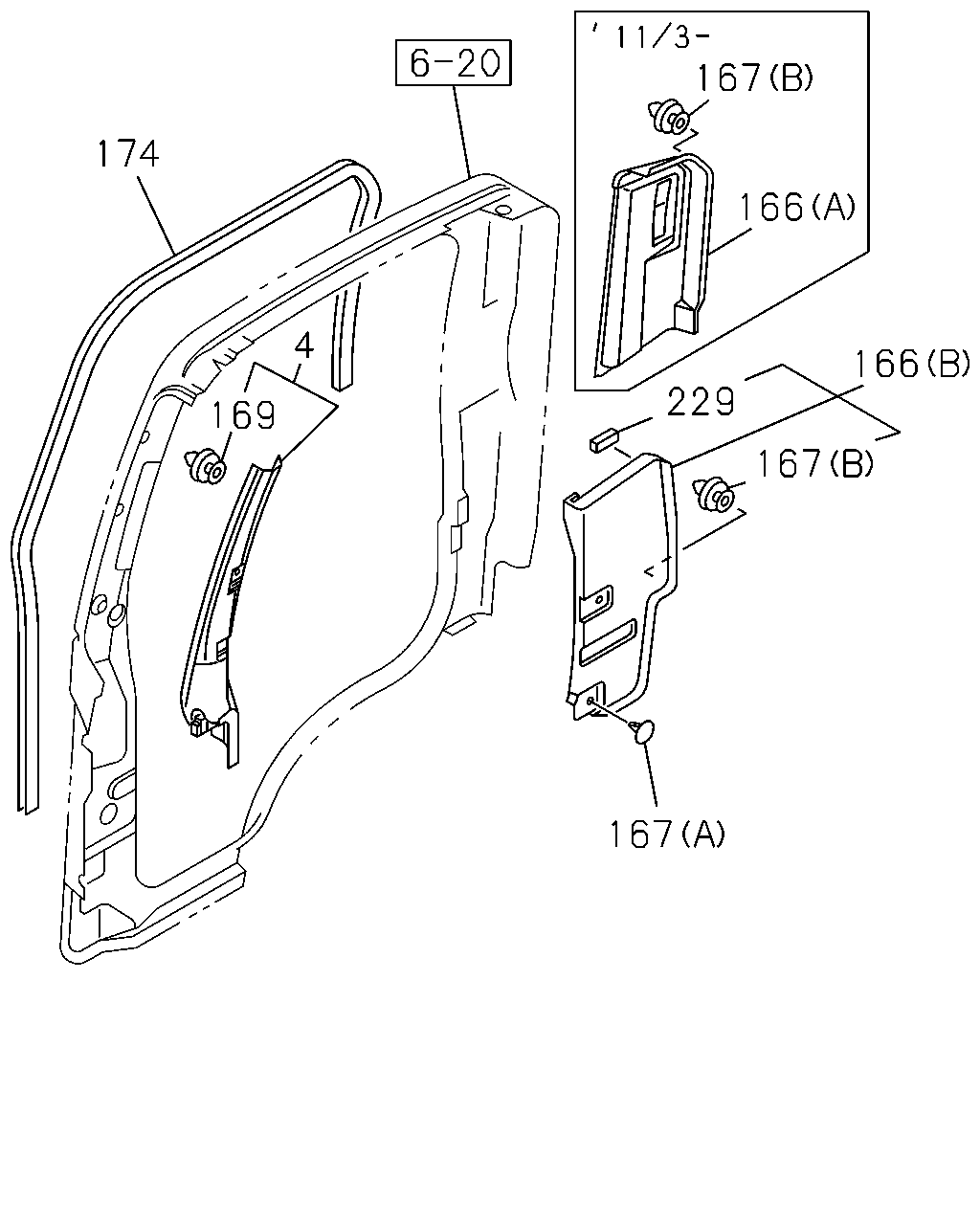

çizim 186887
174 167 166 166 229 167 167 4 169
BalonParca AdiParca NoAdetTipApplied Date A B
4 16.165 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 1010-1108 ● ●
4 16.165 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 1109- ● ●
4 16.165 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 1010-1108 ● ●
4 16.165 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 1109- ● ●
166 16.578 TRIM; RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97406-796-1 01 1 1103- ●
166 16.578 TRIM; RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-900-0 01 1 1103- ●
166 16.578 TRIM; RR PILLAR
(B) GRAY 		8-97405-297-2 01 1 1010- ● ●
166 16.578 TRIM; RR PILLAR
(B) GRAY 		8-97412-727-0 01 1 1010- ● ●
167 16.578 CLIP; TRIM,RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98059-610-0 04 1 1103- ●
167 16.578 CLIP; TRIM,RR PILLAR
(A) GRAY 		8-97406-421-0 04 1 1010- ● ●
167 16.578 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 06 1 1010- ● ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
16.165 OD=7.9 BLACK 		8-94279-974-1 04 1 1010-1108 ● ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
16.165 OD=7.9 BLACK 		8-94279-974-1 04 1 1109- ● ●
174 16.507 FINISHER; BODY SIDE
L=2609 		8-98154-665-0 01 1 1010- ● ●
174 16.507 FINISHER; BODY SIDE
L=2609 		8-98154-666-0 01 1 1010- ● ●
229 16.585 SEAL 8-98081-818-0 01 1 1010- ● ●
