6-05 — FRONT PANEL (#77872) — 257 parça

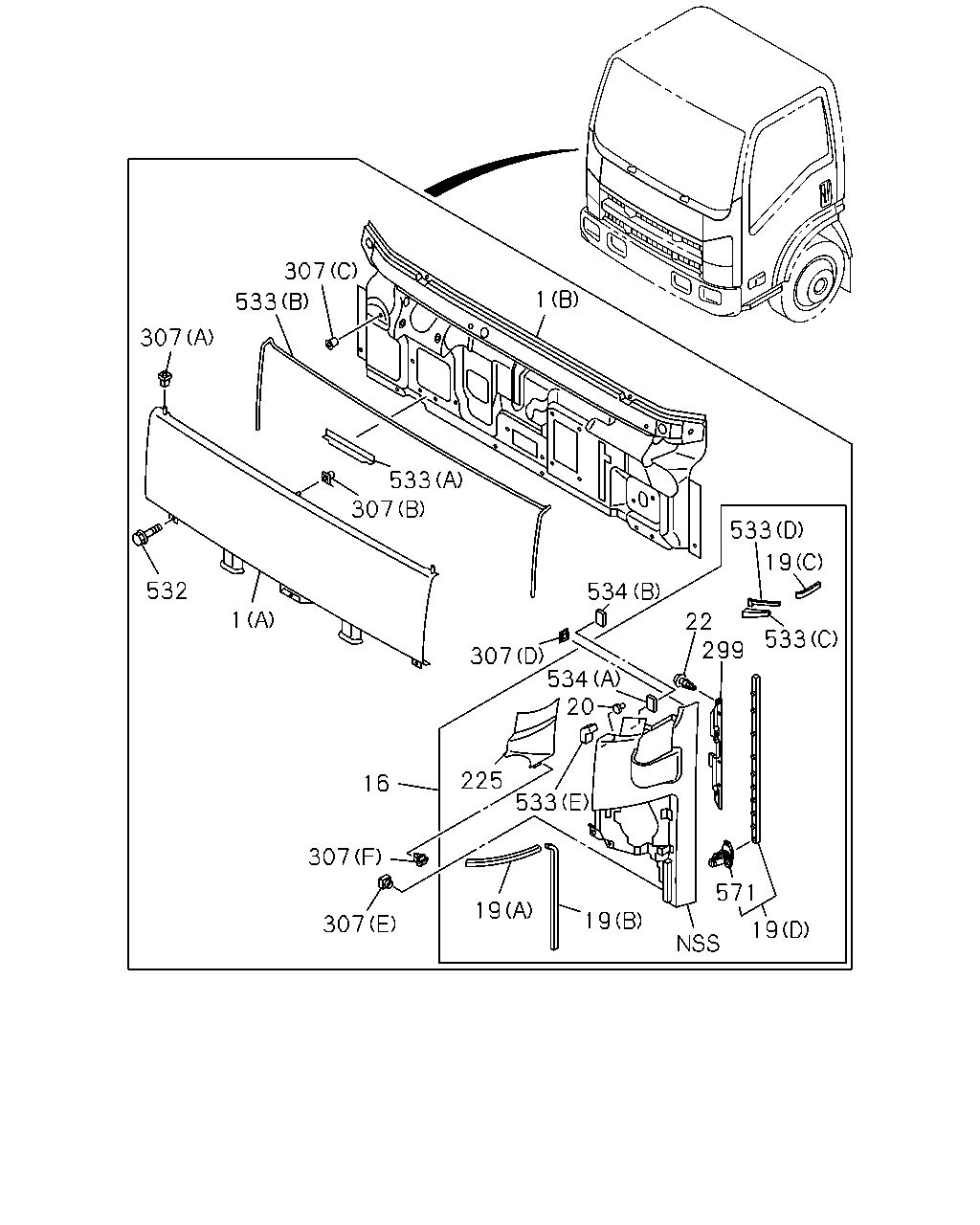

çizim 126537
1 307 533 307 533 307 1 532 534 307 16 307 307 19 533 225 20 534 22 299 533 19 533 19 571 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98182-393-0 01 1 1103-1108 ●
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98182-393-0 01 1 1109- ● ●
1 16.550 PANEL ASM; FRT
(B) 		8-97585-955-2 01 1 1010-1012 ● ●
1 16.550 PANEL ASM; FRT
(B) 		8-98182-391-0 01 1 1101-1102 ● ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98182-391-0 01 1 1103-1108 ●
1 16.550 PANEL ASM; FRT
(B) 		8-98182-391-0 01 1 1103-1108 ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98182-391-0 01 1 1109- ● ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1010- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> RED 		8-97425-526-8 01 1 1511- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> RED 		8-97425-526-8 01 1 1511- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> RED 		8-97425-525-9 01 1 1511- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> BLACK 		8-97417-315-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> BLACK 		8-97417-315-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> BLACK 		8-97417-315-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> BLACK 		8-97417-316-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> BLACK 		8-97407-904-9 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> BLACK 		8-97407-904-9 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> BLACK 		8-97407-909-9 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> GRAY 		8-97412-096-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> GRAY 		8-97412-096-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> GRAY 		8-97412-096-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> GRAY 		8-97412-107-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> GRAY 		8-97417-302-9 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> GRAY 		8-97417-302-9 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> GRAY 		8-97417-308-9 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> WHITE 		8-97412-105-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> WHITE 		8-97412-105-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> WHITE 		8-97412-105-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> WHITE 		8-97412-116-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> WHITE 		8-97417-303-9 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> WHITE 		8-97417-303-9 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> WHITE 		8-97417-310-9 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> BLUE 		8-97412-097-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> BLUE 		8-97412-097-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> BLUE 		8-97412-097-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> BLUE 		8-97412-108-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> BLUE 		8-97417-304-9 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> BLUE 		8-97417-304-9 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> BLUE 		8-97417-311-9 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> RED 		8-97409-579-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> RED 		8-97409-579-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> RED 		8-97409-579-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> RED 		8-97409-588-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> RED 		8-97417-305-9 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> RED 		8-97417-305-9 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> RED 		8-97417-312-9 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> BLUE 		8-97412-098-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> BLUE 		8-97412-098-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> BLUE 		8-97412-098-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> BLUE 		8-97412-109-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> BLUE 		8-97407-905-9 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> BLUE 		8-97407-905-9 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> BLUE 		8-97407-910-9 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> WHITE 		8-97406-039-9 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> WHITE 		8-97406-039-9 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> WHITE 		8-97406-040-9 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> RED 		8-97412-099-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> RED 		8-97412-099-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> RED 		8-97412-099-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> RED 		8-97412-110-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> RED 		8-97407-342-9 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> RED 		8-97407-342-9 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> RED 		8-97407-343-9 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> DARK GREEN 		8-97412-100-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> DARK GREEN 		8-97412-100-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> DARK GREEN 		8-97412-100-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> DARK GREEN 		8-97412-111-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> DARK GREEN 		8-97407-906-9 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> DARK GREEN 		8-97407-906-9 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> DARK GREEN 		8-97407-911-9 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> YELLOW 		8-97412-101-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> YELLOW 		8-97412-101-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> YELLOW 		8-97412-101-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> YELLOW 		8-97412-112-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> YELLOW 		8-97407-907-9 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> YELLOW 		8-97407-907-9 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> YELLOW 		8-97407-912-9 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> BEIGE 		8-97412-102-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> BEIGE 		8-97412-102-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> BEIGE 		8-97412-102-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> BEIGE 		8-97412-113-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> BEIGE 		8-97417-306-9 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> BEIGE 		8-97417-306-9 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> BEIGE 		8-97417-314-9 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> BLUE 		8-97415-715-9 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> BLUE 		8-97415-715-9 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> BLUE 		8-97415-716-9 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> DARK YELLOW 		8-97412-104-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> DARK YELLOW 		8-97412-104-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> DARK YELLOW 		8-97412-104-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> DARK YELLOW 		8-97412-115-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> ORANGE 		8-97417-307-9 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> ORANGE 		8-97417-307-9 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> ORANGE 		8-97417-313-9 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> GREEN 		8-97412-106-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> GREEN 		8-97412-106-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> GREEN 		8-97412-106-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> GREEN 		8-97412-117-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> GREEN 		8-97412-842-9 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> GREEN 		8-97412-842-9 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> GREEN 		8-97412-843-9 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> LIGHT GRAY 		8-97414-635-9 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> LIGHT GRAY 		8-97414-635-9 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> LIGHT GRAY 		8-97414-636-9 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> BLUE 		8-97409-870-9 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> BLUE 		8-97409-870-9 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> BLUE 		8-97409-872-9 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-621-8 01 1 1010-1102 ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> WHITE 		8-97405-621-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-621-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> WHITE 		8-97405-621-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> WHITE 		8-97405-621-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-621-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-625-8 01 1 1010-1102 ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> WHITE 		8-97405-625-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-625-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-103-8 01 1 1010-1102 ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> BLUE 		8-97412-103-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-103-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> BLUE 		8-97412-103-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> BLUE 		8-97412-103-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-103-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-114-8 01 1 1010-1102 ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> BLUE 		8-97412-114-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-114-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-619-8 01 1 1010-1102 ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> LIGHT GRAY 		8-97405-619-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-619-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> LIGHT GRAY 		8-97405-619-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> LIGHT GRAY 		8-97405-619-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-619-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-623-8 01 1 1010-1102 ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> LIGHT GRAY 		8-97405-623-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-623-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-620-8 01 1 1010-1102 ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> BLUE 		8-97405-620-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-620-8 01 1 1103-1110 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> BLUE 		8-97405-620-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> BLUE 		8-97405-620-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-620-8 01 1 1111- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-624-8 01 1 1010-1102 ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> BLUE 		8-97405-624-8 01 1 1103- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-624-8 01 1 1103- ●
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 1010-1110 ● ●
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 01 1 1111- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 01 1 1111- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 1010-1110 ● ●
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 01 1 1111- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 01 1 1111- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 1010-1110 ● ●
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 01 1 1111- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 01 1 1111- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 1010- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 1010- ● ●
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-0 04 1 1010-1110 ● ●
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 02 1 1111- ● ●
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 02 1 1111- ● ●
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1010-1110 ● ●
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1111- ● ●
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1111- ● ●
57 02.333 TRAY; BATTERY
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA), AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97384-068-2 01 1 1511- ●
57 02.333 TRAY; BATTERY
RUSSIA EQUIPMENT(B12),PERU EQUIPMENT(E07) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 		8-98062-723-0 01 1 1511- ●
57 02.333 TRAY; BATTERY
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA), AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) BATTERY 80D26L<TM1> 		8-97384-067-2 01 1 1511- ●
57 02.333 TRAY; BATTERY
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) BATTERY 80D26L<TM1> 		8-97384-067-2 01 1 1511- ●
57 02.333 TRAY; BATTERY
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> 		8-98091-497-0 01 1 1511- ●
57 02.333 TRAY; BATTERY
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) BATTERY 115E41L<8MA> 		8-98091-497-0 01 1 1511- ●
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-520-3 01 1 1010-1102 ● ●
225 16.069 COVER; SIDE,FRT
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> PLEASE PAINT TO MATCH BODY COLOR 		8-98036-520-3 01 1 1103- ● ●
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 1010-1102 ● ●
225 16.069 COVER; SIDE,FRT
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 1103-1110 ● ●
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 1111- ● ●
225 16.069 COVER; SIDE,FRT
EXC. UNDER MIRROR<RR9> PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 1111- ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 1010- ● ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 1010- ● ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 1010- ● ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 1010- ● ●
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 1010- ● ●
307 16.125 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 1010- ● ●
307 16.125 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 1010- ● ●
307 16.125 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 1010- ● ●
307 16.125 GROMMET; FRT PANEL
(F) 		8-98028-743-0 02 1 1010-1102 ● ●
307 16.125 GROMMET; FRT PANEL
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (F) 		8-98028-743-0 02 1 1103- ●
307 16.125 GROMMET; FRT PANEL
(F) 		8-98028-743-0 02 1 1103- ●
307 16.125 GROMMET; FRT PANEL
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> (F) 		8-98028-743-0 01 1 1112- ●
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1010- ● ●
533 08.143 SEAL; FRT PANEL
(A) 		8-98049-007-0 01 1 1010- ● ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98021-964-4 01 1 1010-1506 ● ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98309-764-0 01 1 1507- ● ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 1010- ● ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 1010- ● ●
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 1010-1110 ● ●
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 01 1 1111- ● ●
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 01 1 1111- ● ●
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 1010-1110 ● ●
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 01 1 1111- ● ●
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 01 1 1111- ● ●
534 16.550 FASTENER
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> (A) 40X25 		8-98089-412-1 02 1 1103-1110 ●
534 16.550 FASTENER
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 40X25 		8-98089-412-1 01 1 1111- ●
534 16.550 FASTENER
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> (A) 40X25 		8-98089-412-1 01 1 1111- ●
534 16.550 FASTENER
(A) 20X30 		8-98059-208-1 02 1 1010-1102 ● ●
534 16.550 FASTENER
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (A) 20X30 		8-98059-208-1 02 1 1103-1110 ● ●
534 16.550 FASTENER
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (A) 20X30 		8-98059-208-1 01 1 1111- ● ●
534 16.550 FASTENER
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (A) 20X30 		8-98059-208-1 01 1 1111- ● ●
534 16.550 FASTENER
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> (B) 40X25 		8-98089-411-1 02 1 1103-1111 ●
534 16.550 FASTENER
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> UNDER MIRROR<RR9> (B) 40X25 		8-98089-411-1 01 1 1112- ●
534 16.550 FASTENER
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> (B) 40X25 		8-98089-411-1 02 1 1112- ●
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 20 1 1010-1110 ● ●
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 10 1 1111- ● ●
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 10 1 1111- ● ●

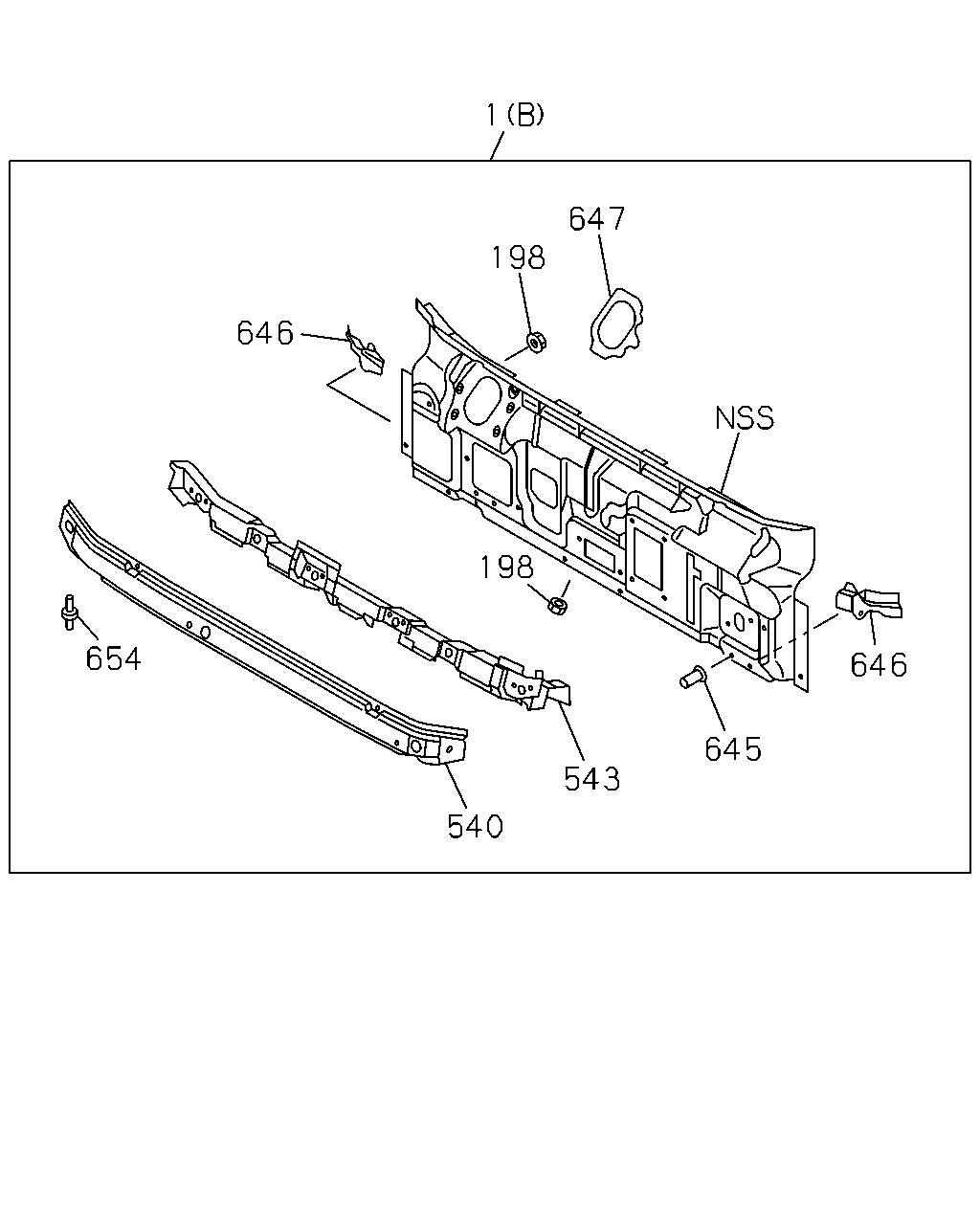

çizim 186883
1 647 198 646 654 540 543 645 198 646
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98182-393-0 01 1 1103-1108 ●
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98182-393-0 01 1 1109- ● ●
1 16.550 PANEL ASM; FRT
(B) 		8-97585-955-2 01 1 1010-1012 ● ●
1 16.550 PANEL ASM; FRT
(B) 		8-98182-391-0 01 1 1101-1102 ● ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98182-391-0 01 1 1103-1108 ●
1 16.550 PANEL ASM; FRT
(B) 		8-98182-391-0 01 1 1103-1108 ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98182-391-0 01 1 1109- ● ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1010- ● ●
57 02.333 TRAY; BATTERY
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA), AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97384-068-2 01 1 1511- ●
57 02.333 TRAY; BATTERY
RUSSIA EQUIPMENT(B12),PERU EQUIPMENT(E07) BATTERY 80D26L<TM1> FRAME STRAIGHT TYPE<7KJ> 		8-98062-723-0 01 1 1511- ●
57 02.333 TRAY; BATTERY
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA), AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) BATTERY 80D26L<TM1> 		8-97384-067-2 01 1 1511- ●
57 02.333 TRAY; BATTERY
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) BATTERY 80D26L<TM1> 		8-97384-067-2 01 1 1511- ●
57 02.333 TRAY; BATTERY
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> BATTERY 115E41L<8MA> 		8-98091-497-0 01 1 1511- ●
57 02.333 TRAY; BATTERY
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) BATTERY 115E41L<8MA> 		8-98091-497-0 01 1 1511- ●
198 16.125 NUT; PANEL
PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 08 1 1103-1108 ●
198 16.125 NUT; PANEL
PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 08 1 1109- ● ●
198 16.125 NUT; PANEL
16.545 M6 		9-09114-086-0 06 1 1010-1102 ● ●
198 16.125 NUT; PANEL
EXC. PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 06 1 1103-1108 ●
198 16.125 NUT; PANEL
16.545 M6 		9-09114-086-0 06 1 1103-1108 ●
198 16.125 NUT; PANEL
EXC. PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 06 1 1109- ● ●
540 16.588 PANEL; FRONT,OUTER 8-97585-964-0 01 1 1010-1204 ● ●
540 16.588 PANEL; FRONT,OUTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97585-964-0 01 1 1205-1208 ● ●
540 16.588 PANEL; FRONT,OUTER 8-97585-964-0 01 1 1209- ●
540 16.588 PANEL; FRONT,OUTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97585-964-0 01 1 1209- ●
543 16.570 CLOSING; FRT MTG RAIL 8-98008-131-4 01 1 1010-1204 ● ●
543 16.570 CLOSING; FRT MTG RAIL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98008-131-4 01 1 1205-1208 ● ●
543 16.570 CLOSING; FRT MTG RAIL 8-98008-131-4 01 1 1209- ●
543 16.570 CLOSING; FRT MTG RAIL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98008-131-4 01 1 1209- ●
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1010-1204 ● ●
645 16.588 STUD; FRT PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M6X12 		8-98013-112-0 06 1 1205-1208 ● ●
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1209- ●
645 16.588 STUD; FRT PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M6X12 		8-98013-112-0 06 1 1209- ●
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 1010-1204 ● ●
646 08.155 REINFORCEMENT; DASH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98023-098-1 01 1 1205-1208 ● ●
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 1209- ●
646 08.155 REINFORCEMENT; DASH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98023-098-1 01 1 1209- ●
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 1010-1204 ● ●
646 08.155 REINFORCEMENT; DASH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98023-099-1 01 1 1205-1208 ● ●
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 1209- ●
646 08.155 REINFORCEMENT; DASH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98023-099-1 01 1 1209- ●
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1010-1204 ● ●
647 08.155 REINFORCEMENT; WIPER MOTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98006-327-0 01 1 1205-1208 ● ●
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1209- ●
647 08.155 REINFORCEMENT; WIPER MOTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98006-327-0 01 1 1209- ●
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 1010-1204 ● ●
654 16.125 PIN; FRT PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98021-967-2 02 1 1205-1208 ● ●
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 1209- ●
654 16.125 PIN; FRT PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98021-967-2 02 1 1209- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
