◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#7787) — 68 parça

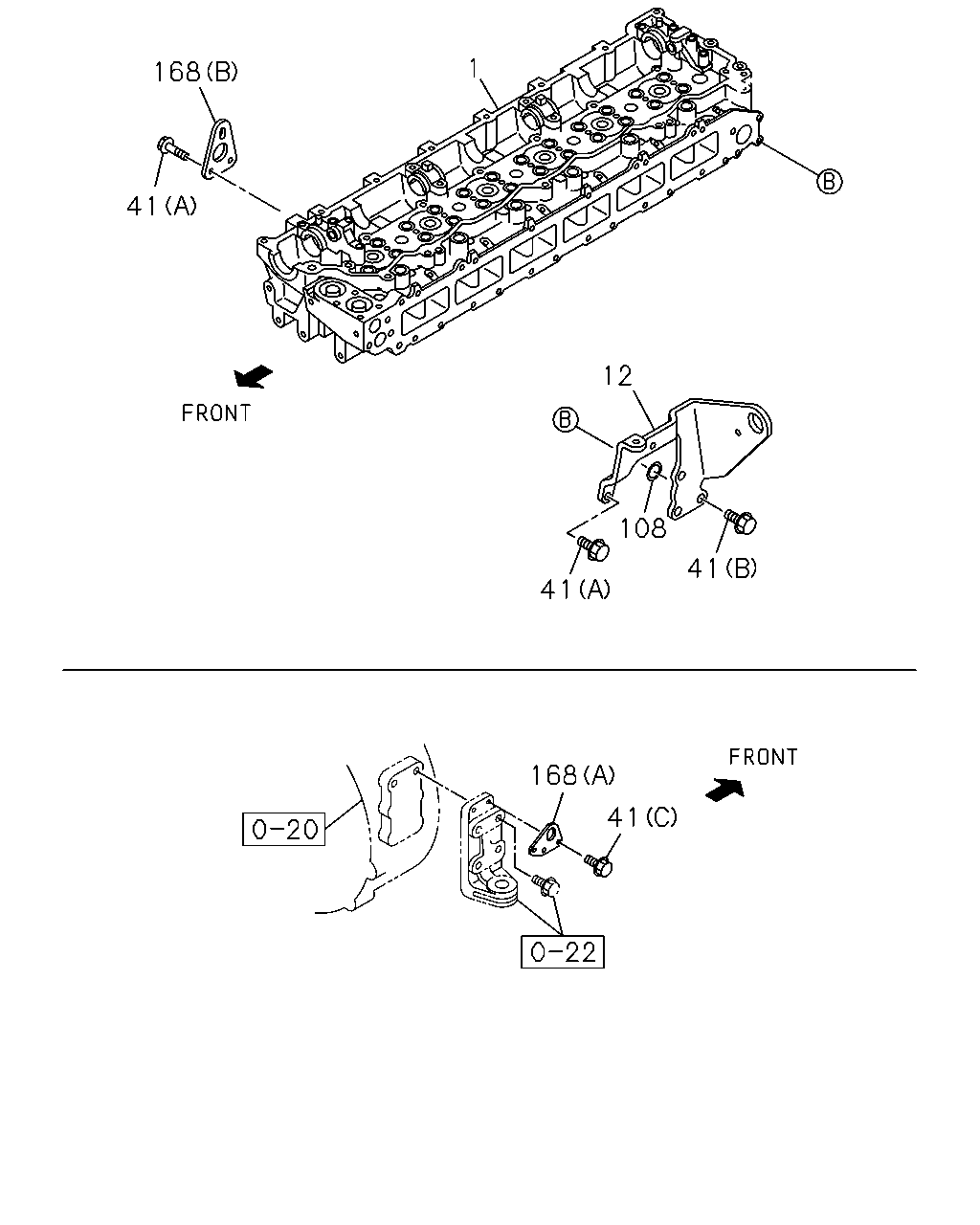

çizim 26750
1 168 41 12 108 41 41 168 41
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-94392-449-9 01 1 9905-0211 ● ●
1 HEAD ASM; CYL 8-97602-686-1 01 1 0212-0406 ● ●
1 HEAD ASM; CYL 8-97605-004-2 01 1 0407-0507 ● ●
1 HEAD ASM; CYL 8-97606-991-6 01 1 0508- ● ●
12 HANGER; ENG,RR
FTR(FT****) 		8-94390-417-2 01 1 0302- ●
12 HANGER; ENG,RR 8-94391-640-2 01 1 9905-0301 ● ●
12 HANGER; ENG,RR
FRR(FR****) FSR(FS****) 		8-94391-640-2 01 1 0302- ●
12 HANGER; ENG,RR 8-94391-640-2 01 1 0302- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9905-0512 ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0601- ● ●
41 BOLT; ENG HANGER
(B) M12X22 FLANGE 		0-28181-222-0 03 1 9905- ● ●
41 BOLT; ENG HANGER
(C) M10X25 FLANGE 		0-28781-025-0 02 1 9905-0512 ● ●
41 BOLT; ENG HANGER
(C) M10X25 FLANGE 		0-28751-025-0 02 1 0601- ● ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 9905- ● ●
168 HANGER; ENG,FRT
(A) 		8-94392-799-0 01 1 9905- ● ●
168 HANGER; ENG,FRT
(B) 		8-94399-403-1 01 1 9905- ● ●

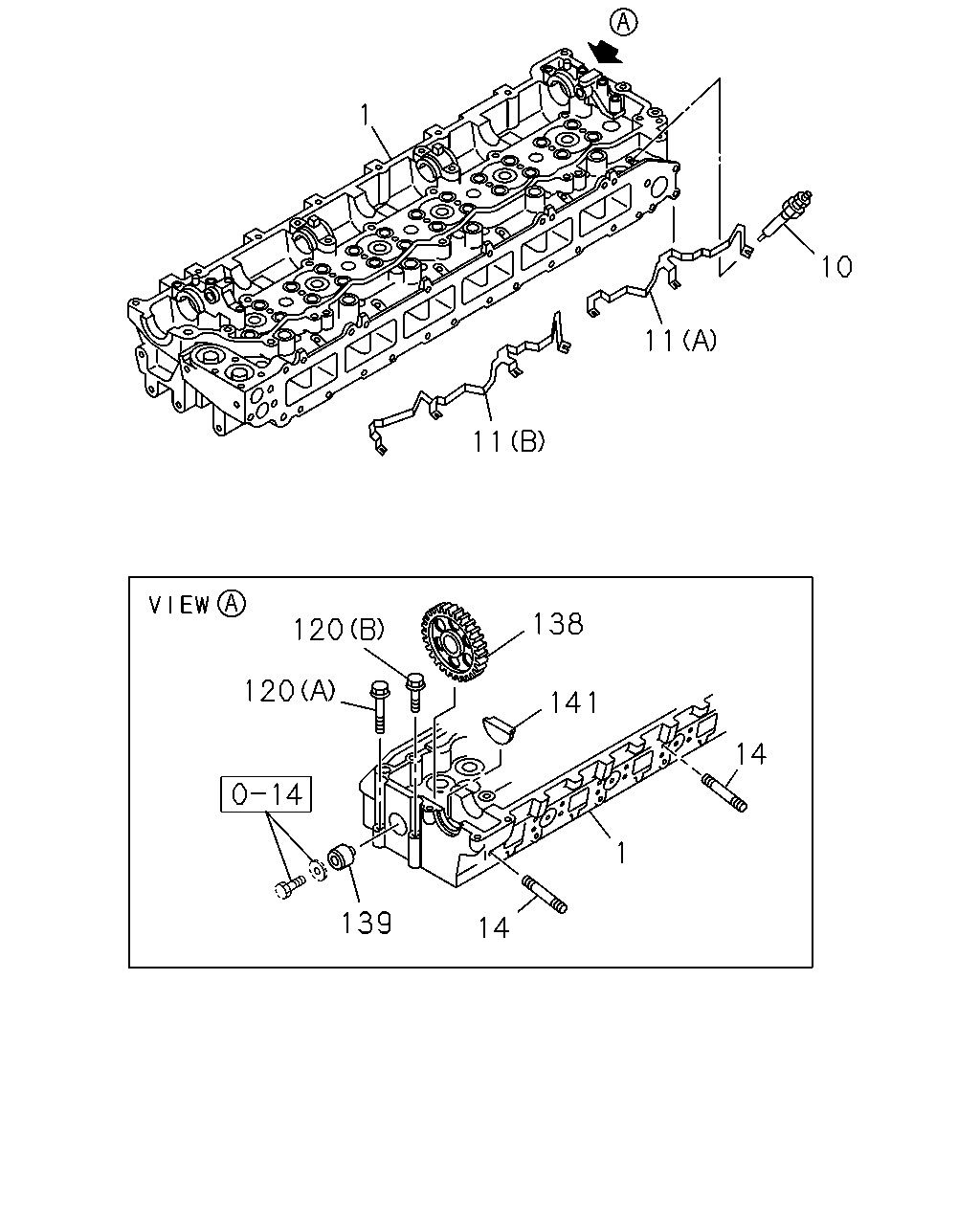

çizim 26849
1 10 11 11 138 120 120 141 14 1 139 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-94392-449-9 01 1 9905-0211 ● ●
1 HEAD ASM; CYL 8-97602-686-1 01 1 0212-0406 ● ●
1 HEAD ASM; CYL 8-97605-004-2 01 1 0407-0507 ● ●
1 HEAD ASM; CYL 8-97606-991-6 01 1 0508- ● ●
10 PLUG; GLOW 8-94392-815-4 06 1 9905- ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94391-925-3 01 1 9905- ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94392-843-1 01 1 9905- ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 9905- ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9905- ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9905- ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 9905- ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 9905- ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9905- ● ●

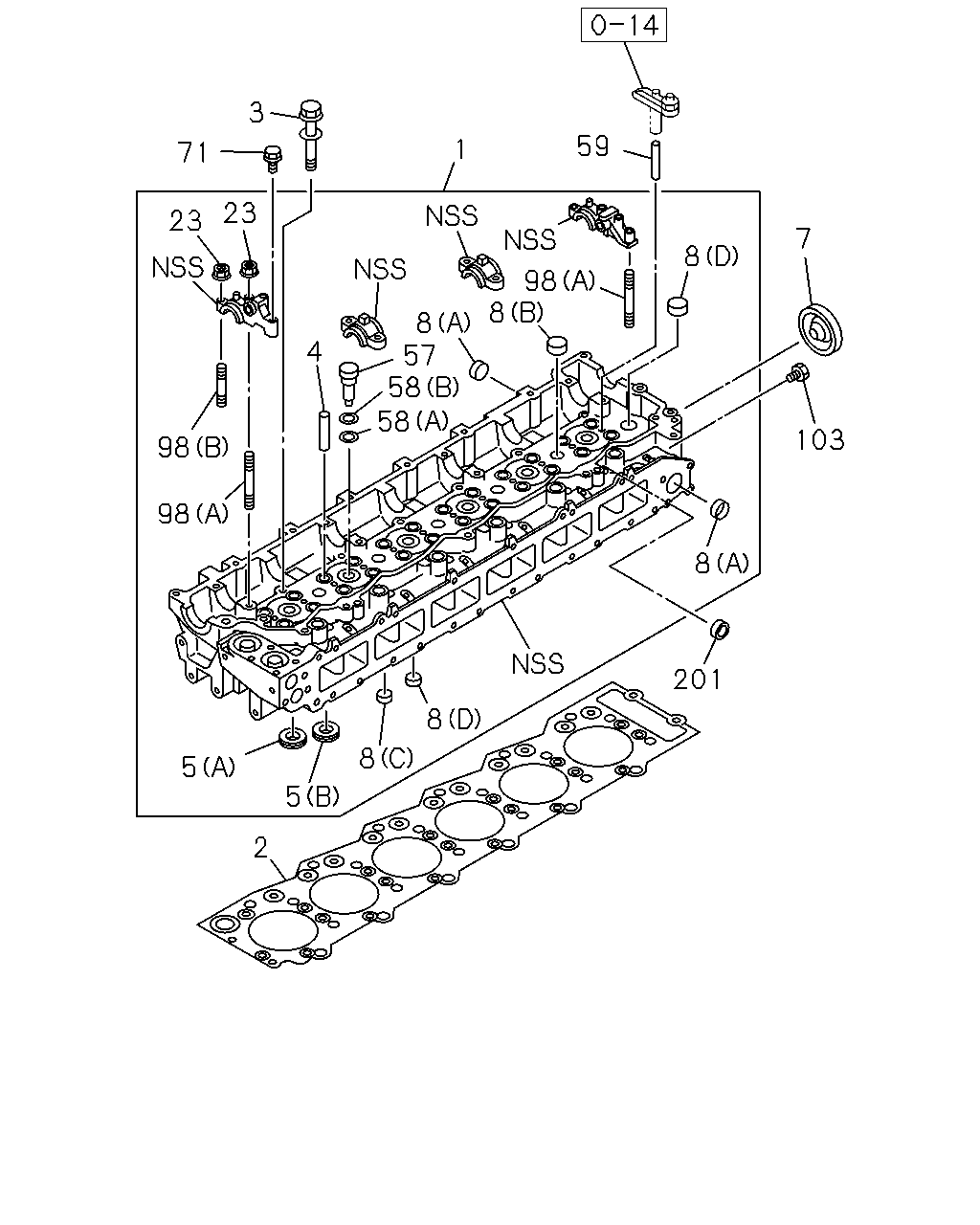

çizim 26919
3 59 1 71 23 23 7 8 98 8 8 57 58 58 4 103 98 98 8 201 8 8 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-94392-449-9 01 1 9905-0211 ● ●
1 HEAD ASM; CYL 8-97602-686-1 01 1 0212-0406 ● ●
1 HEAD ASM; CYL 8-97605-004-2 01 1 0407-0507 ● ●
1 HEAD ASM; CYL 8-97606-991-6 01 1 0508- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-787-4 01 1 9905-0407 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97605-228-0 01 1 0408- ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9905- ● ●
4 GUIDE; VLV 8-94390-780-0 24 1 9905- ● ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=38 		8-94395-625-0 12 1 9905-0106 ● ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=38 		8-97216-511-0 12 1 0107- ● ●
5 SEAT; VLV INSERT
(A) INLET OD=38 		8-94395-888-1 12 1 9905- ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9905-0303 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0304- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 0302- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 08 1 9905-9911 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 07 1 9912-0301 ● ●
8 CUP; SEALING,WATER JACKET
FRR(FR****) FSR(FS****) (A) OD=32 		1-09600-012-2 01 1 0302- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 01 1 0302- ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 9905- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 9905- ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 9905- ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9905-0602 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603- ● ●
57 SLEEVE; NOZZLE HOLDER 8-94390-869-1 06 1 9905-9910 ● ●
57 SLEEVE; NOZZLE HOLDER 8-97600-972-0 06 1 9911-0109 ● ●
57 SLEEVE; NOZZLE HOLDER 8-97602-301-1 06 1 0110-0507 ● ●
57 SLEEVE; NOZZLE HOLDER 8-97606-661-0 06 1 0508- ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=26.2 		8-98004-187-0 06 1 0508- ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=27 		1-09623-355-0 06 1 9905-0406 ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4 		8-97604-916-0 06 1 0407- ● ●
59 GUIDE; BRIDGE 8-94395-889-1 12 1 9905-0409 ● ●
59 GUIDE; BRIDGE 8-97381-603-1 12 1 0410- ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9905-0512 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601- ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9905- ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9905- ● ●
103 PLUG; HD
M8X6 		8-94399-421-0 01 1 9905-0501 ● ●
103 PLUG; HD
M8X10 		8-98003-416-0 01 1 0502- ● ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09639-034-0 06 1 9905- ● ●
