5-20 — BATTERY CARRIER (#77867) — 61 parça

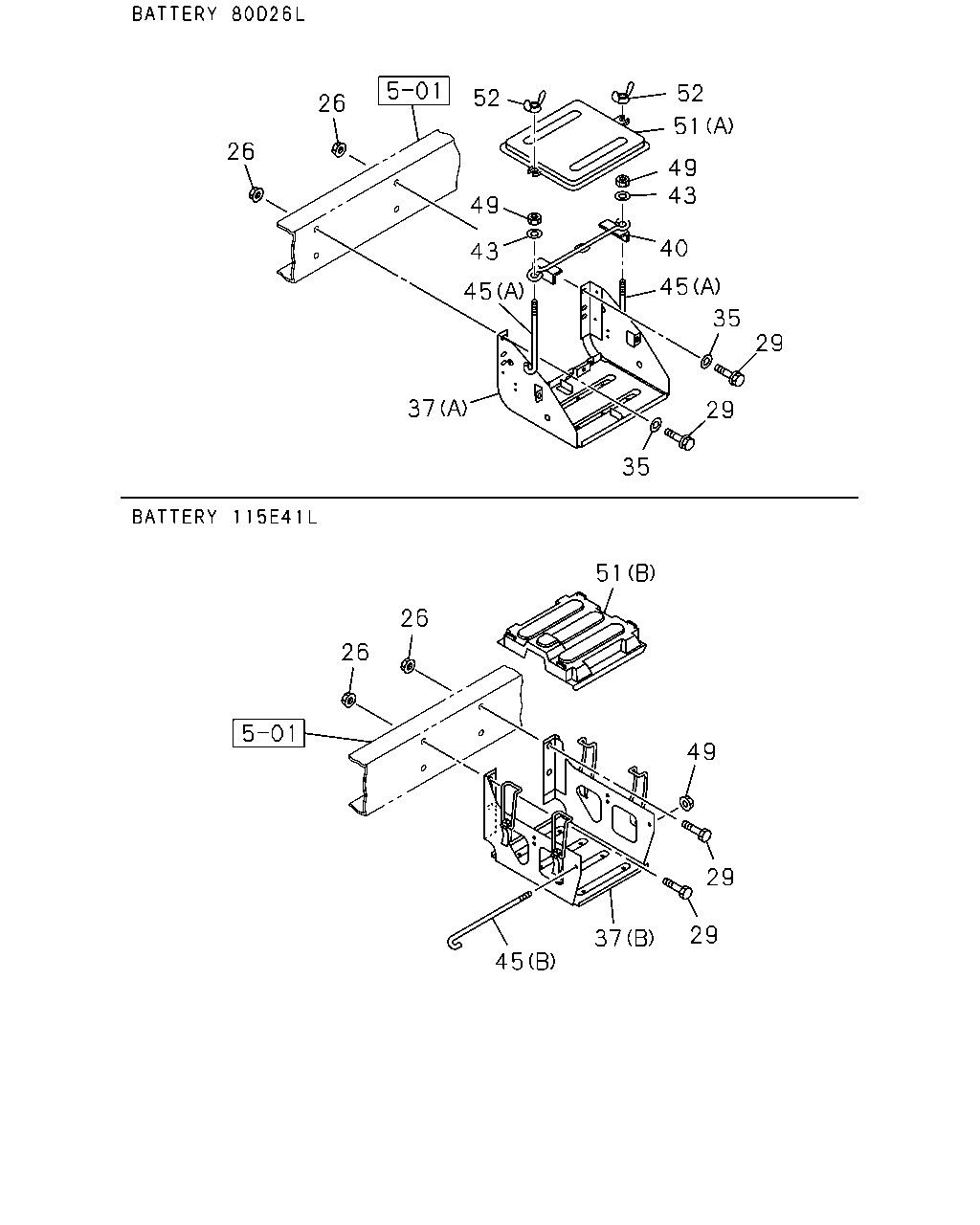

çizim 126105
26 26 52 49 43 45 40 43 49 51 52 45 35 29 29 35 37 51 26 26 49 29 29 37 45
BalonParca AdiParca NoAdetTipApplied Date A B
26 02.334 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 04 1 1010-1101 ● ●
26 02.334 NUT; BRKT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 04.085 M10 FLANGE 		0-91180-210-0 04 1 1102-1102 ●
26 02.334 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 04 1 1102-1102 ●
26 02.334 NUT; BRKT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 04.085 M10 FLANGE 		0-91180-210-0 04 1 1103-1108 ●
26 02.334 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 04 1 1103-1108 ●
26 02.334 NUT; BRKT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 04.085 M10 FLANGE 		0-91180-210-0 04 1 1109-1204 ●
26 02.334 NUT; BRKT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 04.085 M10 FLANGE 		0-91180-210-0 04 1 1109-1204 ●
26 02.334 NUT; BRKT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 04.085 M10 FLANGE 		0-91180-210-0 04 1 1205-1205 ●
26 02.334 NUT; BRKT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 04.085 M10 FLANGE 		0-91180-210-0 04 1 1205-1205 ●
26 02.334 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 04.085 M10 FLANGE 		0-91180-210-0 04 1 1206-1208 ●
26 02.334 NUT; BRKT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 04.085 M10 FLANGE 		0-91180-210-0 04 1 1206-1208 ●
26 02.334 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 04 1 1209-1410 ●
26 02.334 NUT; BRKT
WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 04 1 1209-1410 ●
26 02.334 NUT; BRKT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) 04.085 M10 FLANGE 		0-91180-210-0 04 1 1209-1410 ●
26 02.334 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 04 1 1411-1510 ●
26 02.334 NUT; BRKT
WHEEL BASE 3300MM(33W) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 04 1 1411-1510 ●
26 02.334 NUT; BRKT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 04.085 M10 FLANGE 		0-91180-210-0 04 1 1411-1510 ●
26 02.334 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 04 1 1511- ●
26 02.334 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7), MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT (CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 04 1 1511- ●
26 02.334 NUT; BRKT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 04.085 M10 FLANGE 		0-91180-210-0 04 1 1511- ●
29 02.334 BOLT; BRKT TO FRAME
03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1010-1204 ● ●
29 02.334 BOLT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1205-1205 ●
29 02.334 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1205-1205 ●
29 02.334 BOLT; BRKT TO FRAME
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1206-1208 ●
29 02.334 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1206-1208 ●
29 02.334 BOLT; BRKT TO FRAME
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1209-1510 ●
29 02.334 BOLT; BRKT TO FRAME
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1209-1510 ●
29 02.334 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1209-1510 ●
29 02.334 BOLT; BRKT TO FRAME
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1511- ●
29 02.334 BOLT; BRKT TO FRAME
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1511- ●
29 02.334 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.023 M10X35 FLANGE 		0-28661-035-0 04 1 1511- ●
35 02.334 WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1> 04.046 ID=10.5 OD=22 T=1.6 		0-91610-610-0 04 1 1010-1208 ● ●
35 02.334 WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 04.046 ID=10.5 OD=22 T=1.6 		0-91610-610-0 04 1 1209- ●
35 02.334 WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1> 04.046 ID=10.5 OD=22 T=1.6 		0-91610-610-0 04 1 1209- ●
37 02.333 BRACKET; BATTERY
RUSSIA EQUIPMENT(B12) BATTERY 80D26L<TM1> (A) 		8-98062-723-0 01 1 1103-1510 ●
37 02.333 BRACKET; BATTERY
RUSSIA EQUIPMENT(B12),PERU EQUIPMENT(E07) BATTERY 80D26L<TM1> (A) 		8-98062-723-0 01 1 1511- ●
37 02.333 BRACKET; BATTERY
BATTERY 80D26L<TM1> (A) 		8-97384-067-2 01 1 1010-1102 ● ●
37 02.333 BRACKET; BATTERY
BATTERY 80D26L<TM1> EXC. RUSSIA EQUIPMENT(B12) (A) 		8-97384-067-2 01 1 1103-1510 ● ●
37 02.333 BRACKET; BATTERY
BATTERY 80D26L<TM1> EXC. RUSSIA EQUIPMENT(B12),PERU EQUIPMENT(E07) (A) 		8-97384-067-2 01 1 1511- ● ●
37 02.333 BRACKET; BATTERY
BATTERY 115E41L<8MA> (B) 		8-98091-497-0 01 1 1010- ● ●
37 02.333 BRACKET; BATTERY
BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A) 		8-97384-068-2 01 1 1209- ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L<TM1> 		5-53615-004-1 01 1 1010-1208 ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 		5-53615-004-1 01 1 1209- ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L<TM1> 		5-53615-004-1 01 1 1209- ●
43 02.334 WASHER; PL,CLAMP
BATTERY 80D26L<TM1> 02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 1010-1208 ● ●
43 02.334 WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 1209- ●
43 02.334 WASHER; PL,CLAMP
BATTERY 80D26L<TM1> 02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 1209- ●
45 02.334 ROD; TENSION,BATTERY
BATTERY 80D26L<TM1> (A) L=120 		9-53616-615-0 02 1 1010-1208 ● ●
45 02.334 ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A) L=120 		9-53616-615-0 02 1 1209- ●
45 02.334 ROD; TENSION,BATTERY
BATTERY 80D26L<TM1> (A) L=120 		9-53616-615-0 02 1 1209- ●
45 02.334 ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (B) L=430 		8-97134-740-0 02 1 1010- ● ●
49 02.334 NUT; ROD,BATTERY
BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1010-1208 ● ●
49 02.334 NUT; ROD,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1209- ●
49 02.334 NUT; ROD,BATTERY
BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1209- ●
51 02.335 COVER; BATTERY
BATTERY 80D26L<TM1> (A) 		8-97120-747-0 01 1 1010-1208 ● ●
51 02.335 COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A) 		8-97120-747-0 01 1 1209- ●
51 02.335 COVER; BATTERY
BATTERY 80D26L<TM1> (A) 		8-97120-747-0 01 1 1209- ●
51 02.335 COVER; BATTERY
BATTERY 115E41L<8MA> (B) 		1-53612-029-1 01 1 1010- ● ●
52 02.335 NUT; WING,COVER FIX
BATTERY 80D26L<TM1> M8 WING NUT 		0-91118-408-0 02 1 1010-1208 ● ●
52 02.335 NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> M8 WING NUT 		0-91118-408-0 02 1 1209- ●
52 02.335 NUT; WING,COVER FIX
BATTERY 80D26L<TM1> M8 WING NUT 		0-91118-408-0 02 1 1209- ●
