4-65B — REAR LEAF SPRING (#77861) — 64 parça

35 38 37 37 37 37 36 64 11 10 9 8 37 37 7 6 5 4 3 2 38 38 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98025-049-0, 98025049	8-98063-895-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-98025-058-0, 98025058	8-98094-332-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-98025-060-0, 98025060	8-98094-342-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98025-049-0, 98025049	8-98063-896-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-98025-058-0, 98025058	8-98094-333-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-98025-060-0, 98025060	8-98094-343-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98025-049-0, 98025049	8-98063-897-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-98025-058-0, 98025058	8-98094-334-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-98025-060-0, 98025060	8-98094-344-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98025-049-0, 98025049	8-98063-898-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-98025-058-0, 98025058	8-98094-335-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 8-98025-060-0, 98025060	8-98094-345-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-98025-049-0, 98025049	8-98063-899-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-98025-058-0, 98025058	8-98094-336-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 8-98025-060-0, 98025060	8-98094-346-0	01	1	-
7	07.505 SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 8-98025-058-0, 98025058	8-98094-337-0	01	1	-
7	07.505 SPRING; LEAF,NO 6,RR MAIN ASM PART: C = 8-98025-060-0, 98025060	8-98094-347-0	01	1	-
8	07.505 SPRING; LEAF,NO 7,RR MAIN ASM PART: B = 8-98025-058-0, 98025058	8-98094-338-0	01	1	-
8	07.505 SPRING; LEAF,NO 7,RR MAIN ASM PART: C = 8-98025-060-0, 98025060	8-98094-348-0	01	1	-
9	07.505 SPRING; LEAF,NO 8,RR MAIN ASM PART: B = 8-98025-058-0, 98025058	8-98094-339-0	01	1	-
9	07.505 SPRING; LEAF,NO 8,RR MAIN ASM PART: C = 8-98025-060-0, 98025060	8-98094-349-0	01	1	-
10	07.505 SPRING; LEAF,NO 9,RR MAIN ASM PART: B = 8-98025-058-0, 98025058	8-98094-340-0	01	1	-
10	07.505 SPRING; LEAF,NO 9,RR MAIN ASM PART: C = 8-98025-060-0, 98025060	8-98094-350-0	01	1	-
11	07.505 SPRING; LEAF,NO 10,RR MAIN ASM PART: B = 8-98025-058-0, 98025058	8-98094-341-0	01	1	-
11	07.505 SPRING; LEAF,NO 10,RR MAIN ASM PART: C = 8-98025-060-0, 98025060	8-98094-351-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=125 ASM PART: A = 8-98025-049-0, 98025049, B = 8-98025-058-0, 98025058	8-98037-584-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=140 ASM PART: C = 8-98025-060-0, 98025060	8-98041-356-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98025-049-0, 98025049, B = 8-98025-058-0, 98025058, C = 8-98025-060-0, 98025060	9-99110-512-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: B = 8-98025-058-0, 98025058, C = 8-98025-060-0, 98025060	8-98040-332-0	02	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: C = 8-98025-060-0, 98025060	8-97084-102-0	06	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: A = 8-98025-049-0, 98025049, B = 8-98025-058-0, 98025058, C = 8-98025-060-0, 98025060	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (B) ASM PART: A = 8-98025-049-0, 98025049, B = 8-98025-058-0, 98025058, C = 8-98025-060-0, 98025060	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=81 ASM PART: A = 8-98025-049-0, 98025049, B = 8-98025-058-0, 98025058, C = 8-98025-060-0, 98025060	8-97074-826-0	01	1	-
64	07.513 SUPPORT; RR SPR ASM PART: C = 8-98025-060-0, 98025060	8-97225-579-1	01	1	-

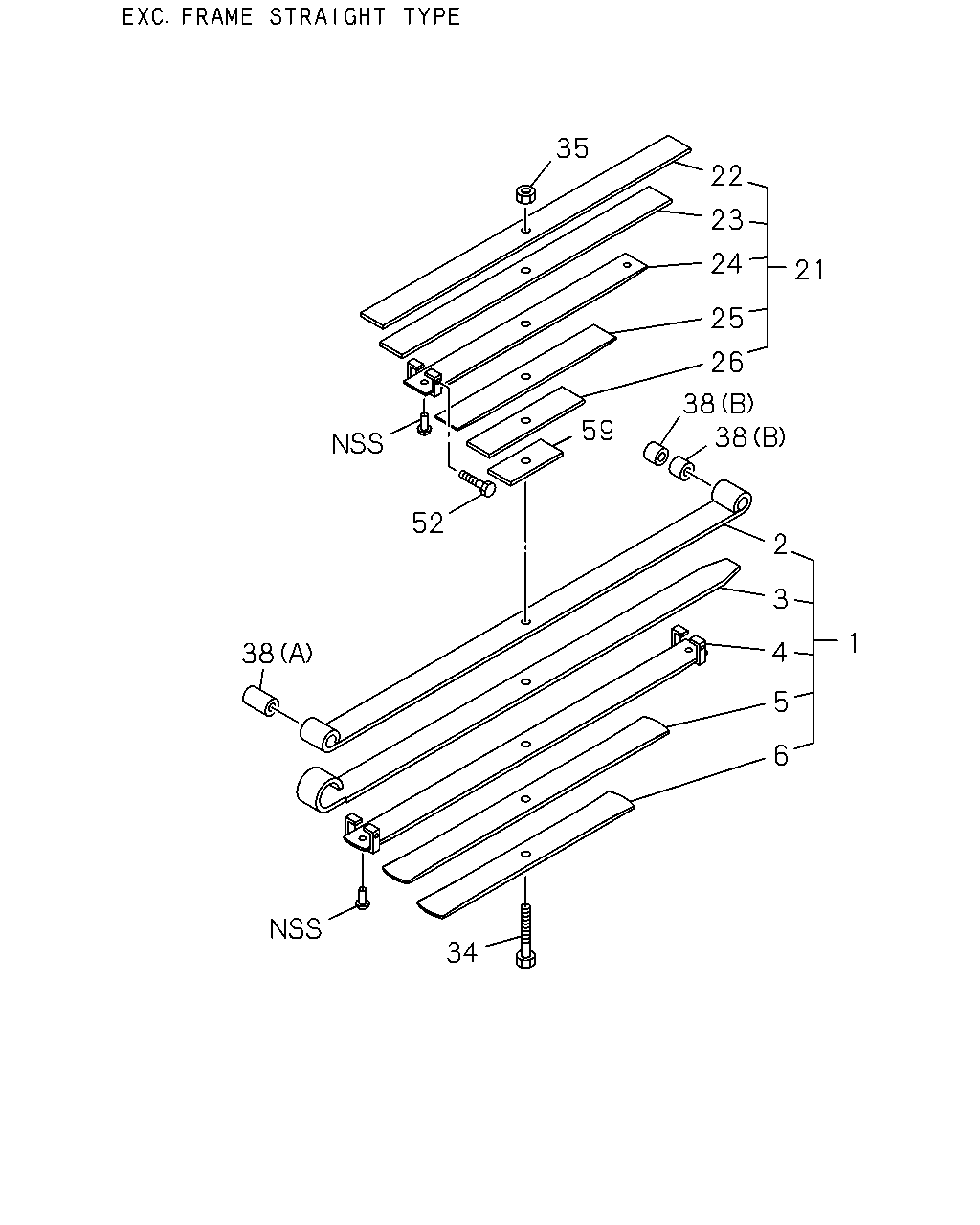

35 22 23 24 25 21 26 38 38 2 3 4 5 6 1 59 52 34 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98025-049-0, 98025049	8-98063-894-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98025-049-0, 98025049	8-98063-895-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-98025-058-0, 98025058	8-98094-332-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-98025-060-0, 98025060	8-98094-342-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98025-049-0, 98025049	8-98063-896-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-98025-058-0, 98025058	8-98094-333-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-98025-060-0, 98025060	8-98094-343-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98025-049-0, 98025049	8-98063-897-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-98025-058-0, 98025058	8-98094-334-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-98025-060-0, 98025060	8-98094-344-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98025-049-0, 98025049	8-98063-898-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-98025-058-0, 98025058	8-98094-335-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 8-98025-060-0, 98025060	8-98094-345-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-98025-049-0, 98025049	8-98063-899-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-98025-058-0, 98025058	8-98094-336-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 8-98025-060-0, 98025060	8-98094-346-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: A = 8-98025-049-0, 98025049	8-98063-900-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98025-049-0, 98025049	8-98063-901-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-98025-049-0, 98025049	8-98063-902-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: A = 8-98025-049-0, 98025049	8-98063-903-0	01	1	-
25	07.505 SPRING; LEAF,NO 4,RR SUB ASM PART: A = 8-98025-049-0, 98025049	8-98063-904-0	01	1	-
26	07.505 SPRING; LEAF,NO 5,RR SUB ASM PART: A = 8-98025-049-0, 98025049	8-98063-905-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=125 ASM PART: A = 8-98025-049-0, 98025049, B = 8-98025-058-0, 98025058	8-98037-584-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=140 ASM PART: C = 8-98025-060-0, 98025060	8-98041-356-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98025-049-0, 98025049, B = 8-98025-058-0, 98025058, C = 8-98025-060-0, 98025060	9-99110-512-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: A = 8-98025-049-0, 98025049, B = 8-98025-058-0, 98025058, C = 8-98025-060-0, 98025060	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (B) ASM PART: A = 8-98025-049-0, 98025049, B = 8-98025-058-0, 98025058, C = 8-98025-060-0, 98025060	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=81 ASM PART: A = 8-98025-049-0, 98025049, B = 8-98025-058-0, 98025058, C = 8-98025-060-0, 98025060	8-97074-826-0	01	1	-
52	07.506 BOLT; CLIP,LEAF SPR,RR SUB M8X89 ASM PART: A = 8-98025-049-0, 98025049	8-97129-689-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB 07.518, T=6 ASM PART: A = 8-98025-049-0, 98025049	8-94367-965-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
