0-10 — CYLINDER HEAD COVER (#7786) — 34 parça

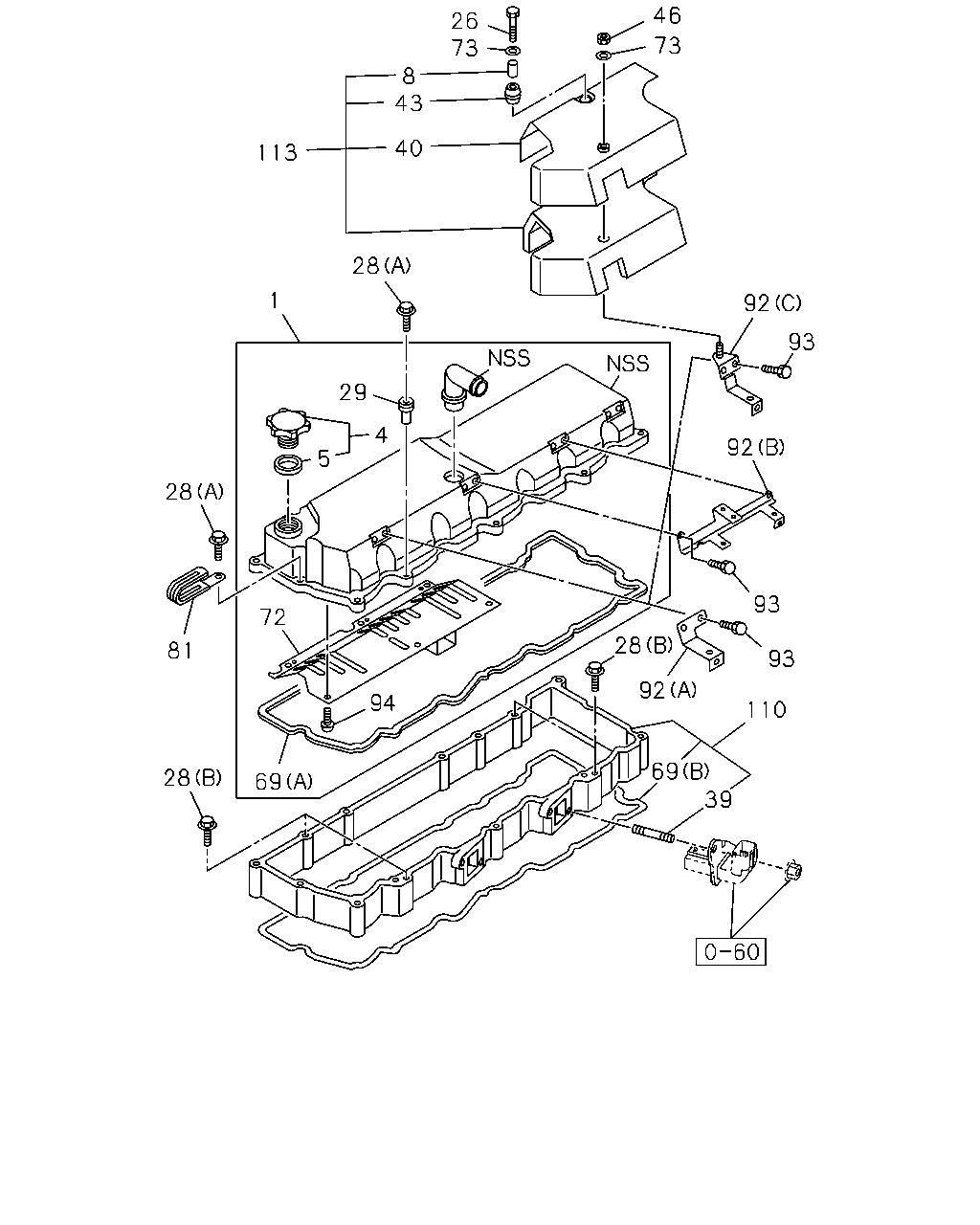

çizim 27022
46 26 73 73 8 43 40 113 28 1 92 93 29 4 92 5 28 93 72 28 81 93 92 94 110 69 39 28 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 COVER; CYL HD 8-94392-657-5 01 1 9905- ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9905- ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9905- ● ●
8 SPACER; HD COVER
ANTI NOISE EQUIPMENT ECE<SLK> OD=13 T=9.5 		8-94140-427-1 02 1 0505- ● ●
26 BOLT; CYL HD COVER
ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE 		0-28080-820-0 01 1 0505-0512 ● ●
26 BOLT; CYL HD COVER
ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
28 BOLT; HD COVER
(B) M8X45 FLANGE 		0-28080-845-0 04 1 9905-0512 ● ●
28 BOLT; HD COVER
(B) M8X45 FLANGE 		0-28050-845-0 04 1 0601- ● ●
28 BOLT; HD COVER
(A) M8X70 FLANGE 		0-28080-870-0 11 1 9905-0512 ● ●
28 BOLT; HD COVER
(A) M8X70 FLANGE 		0-28050-870-0 11 1 0601- ● ●
29 RUBBER; MTG,HD COVER 8-94392-097-0 11 1 9905- ● ●
39 STUD; COVER,HD
M8X28 L=38 		8-94396-512-0 04 1 9905- ● ●
40 COVER
ANTI NOISE EQUIPMENT ECE<SLK> 		8-97602-297-2 01 1 0505- ● ●
43 RUBBER; MTG,HD COVER,OUTER
ANTI NOISE EQUIPMENT ECE<SLK> OD=22 		8-94140-428-1 02 1 0505-0606 ● ●
43 RUBBER; MTG,HD COVER,OUTER
ANTI NOISE EQUIPMENT ECE<SLK> OD=21.8 		8-97325-051-0 02 1 0607- ● ●
46 NUT; HD COVER,OUTER
ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE 		0-91150-108-0 01 1 0505-0602 ● ●
46 NUT; HD COVER,OUTER
ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-94391-379-0 01 1 9905- ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94391-380-0 01 1 9905- ● ●
72 PLATE; INNER HD COVER 8-94392-655-0 01 1 9905- ● ●
73 WASHER; PL,HD COVER
ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=22 		9-09160-708-0 02 1 0505-0605 ● ●
73 WASHER; PL,HD COVER
ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=22 		0-91610-708-0 02 1 0606- ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 9905- ● ●
81 CLIP; HARNESS
ID=18 L=44 		8-94225-185-0 01 1 9905- ●
92 BRACKET; CLIP
ANTI NOISE EQUIPMENT ECE<SLK> (C) 		8-97602-299-1 01 1 0505- ● ●
92 BRACKET; CLIP
(A) 		8-94391-313-0 01 1 9905-0504 ● ●
92 BRACKET; CLIP
EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A) 		8-94391-313-0 01 1 0505- ● ●
92 BRACKET; CLIP
(B) 		8-94392-143-3 01 1 9905- ● ●
93 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 04 1 9905-0512 ● ●
93 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 0601- ● ●
94 SCREW; BAFFLE PLATE,CYL HD COVER
M4X8 		9-03800-408-0 06 1 9905-0604 ● ●
94 SCREW; BAFFLE PLATE,CYL HD COVER
M4X8 		0-35050-408-0 06 1 0605- ● ●
110 COVER; CYL HEAD LWR 8-94390-862-3 01 1 9905- ● ●
113 COVER; CYL HEAD COVER
ANTI NOISE EQUIPMENT ECE<SLK> 		8-97602-296-3 01 1 0505- ● ●
