4-60 — REAR SUSPENSION (#77858) — 150 parça

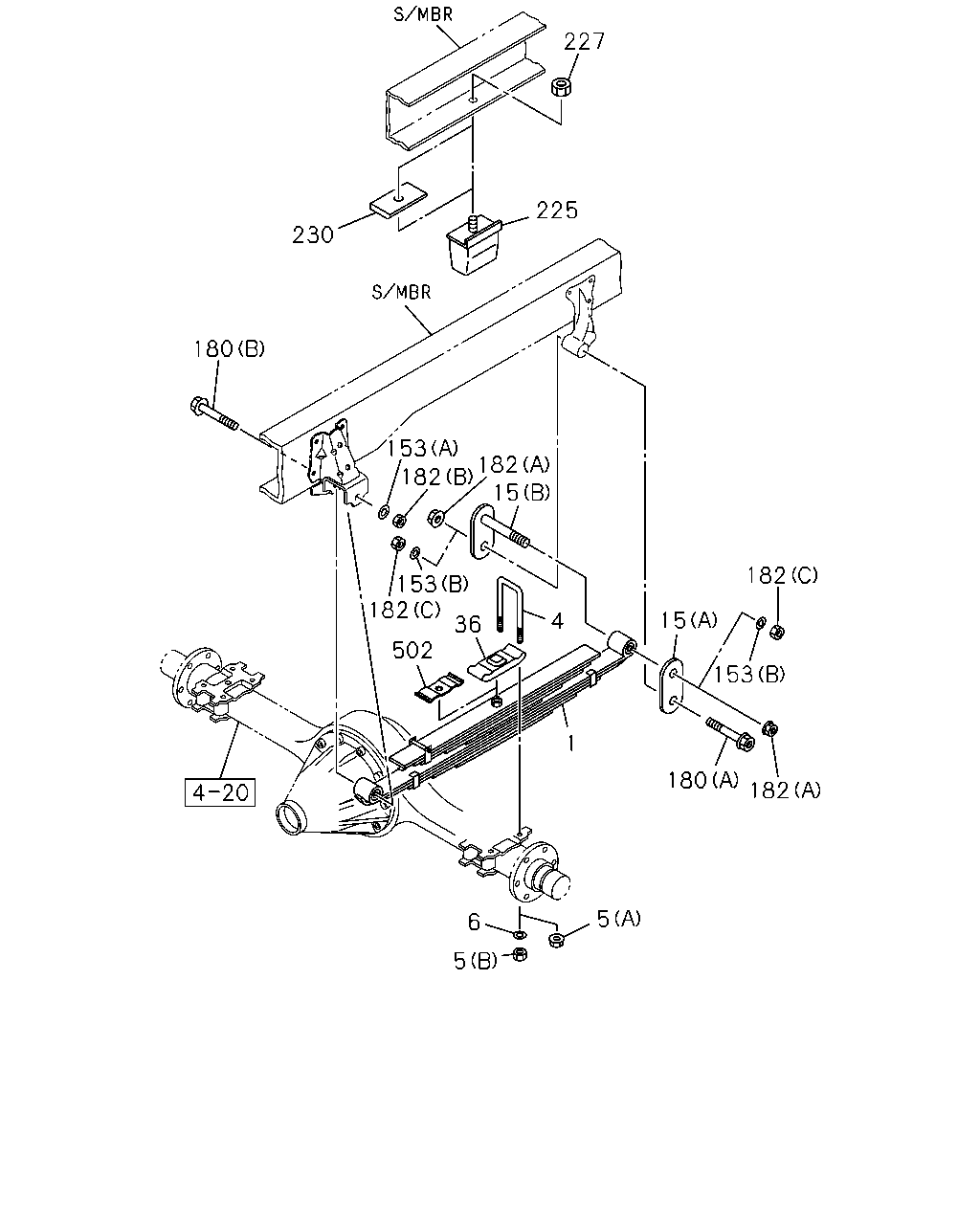

çizim 124735
227 225 230 180 153 182 182 153 182 502 6 5 5 180 182 153 15 182 36 4 15 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. PHILIPPINE ISLANDS EQUIPMENT(B15) G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 12-LEAF 		8-98025-051-0 02 1 1511- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. PHILIPPINE ISLANDS EQUIPMENT(B15) TIRE SIZE 8.25-16<7QP> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 13-LEAF 		8-98072-396-0 02 1 1511- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FRAME STRAIGHT TYPE<7KJ> 10-LEAF 		8-98025-049-0 02 1 1209-1408 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FRAME STRAIGHT TYPE<7KJ> 10-LEAF 		8-98025-049-0 02 1 1409-1510 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FRAME STRAIGHT TYPE<7KJ> 10-LEAF 		8-98025-049-0 02 1 1511- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> 10-LEAF 		8-98025-060-0 02 1 1010-1102 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) 10-LEAF 		8-98025-060-0 02 1 1103-1105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) 9-LEAF 		8-98190-548-0 02 1 1106-1108 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) 9-LEAF 		8-98190-548-0 02 1 1109-1205 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 9-LEAF 		8-98190-548-0 02 1 1206-1208 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> 9-LEAF 		8-98190-548-0 02 1 1209-1408 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 9-LEAF 		8-98190-548-0 02 1 1409- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> 9-LEAF 		8-98190-548-0 02 1 1409- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98025-058-0 02 1 1010-1102 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98025-058-0 02 1 1103-1105 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. STABILIZER REAR<GN1> 9-LEAF 		8-98190-547-0 02 1 1106-1108 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) EXC. STABILIZER REAR<GN1> 9-LEAF 		8-98190-547-0 02 1 1109-1205 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. STABILIZER REAR<GN1> 9-LEAF 		8-98190-547-0 02 1 1206-1208 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 9-LEAF 		8-98190-547-0 02 1 1209-1408 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 9-LEAF 		8-98190-547-0 02 1 1409- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 9-LEAF 		8-98190-547-0 02 1 1409- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> 13-LEAF 		8-98079-903-0 02 1 1010-1108 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) 13-LEAF 		8-98079-903-0 02 1 1109-1510 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) EXC. TIRE SIZE 8.25-16<7QP> 13-LEAF 		8-98079-903-0 02 1 1511- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. STABILIZER REAR<GN1> 13-LEAF 		8-98079-902-0 02 1 1010-1102 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 13-LEAF 		8-98079-902-0 02 1 1103-1108 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. STABILIZER REAR<GN1> 13-LEAF 		8-98079-902-0 02 1 1103-1108 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12) G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 13-LEAF 		8-98079-902-0 02 1 1109-1204 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. CHILE EQUIPMENT(KE1) G.V.W. 7.0-7.5TON(RPX) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 13-LEAF 		8-98079-902-0 02 1 1109-1204 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. CHILE EQUIPMENT(KE1) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 13-LEAF 		8-98079-902-0 02 1 1109-1204 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. STABILIZER REAR<GN1> 13-LEAF 		8-98079-902-0 02 1 1109-1204 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 13-LEAF 		8-98079-902-0 02 1 1205-1205 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. CHILE EQUIPMENT(KE1) G.V.W. 7.0-7.5TON(RPX) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 13-LEAF 		8-98079-902-0 02 1 1205-1205 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. CHILE EQUIPMENT(KE1) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 13-LEAF 		8-98079-902-0 02 1 1205-1205 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. STABILIZER REAR<GN1> 13-LEAF 		8-98079-902-0 02 1 1205-1205 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 13-LEAF 		8-98079-902-0 02 1 1206-1208 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. CHILE EQUIPMENT(KE1) G.V.W. 7.0-7.5TON(RPX) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 13-LEAF 		8-98079-902-0 02 1 1206-1208 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. CHILE EQUIPMENT(KE1) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 13-LEAF 		8-98079-902-0 02 1 1206-1208 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. STABILIZER REAR<GN1> 13-LEAF 		8-98079-902-0 02 1 1206-1208 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 13-LEAF 		8-98079-902-0 02 1 1209-1408 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. CHILE EQUIPMENT(KE1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 13-LEAF 		8-98079-902-0 02 1 1209-1408 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. CHILE EQUIPMENT(KE1) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 13-LEAF 		8-98079-902-0 02 1 1209-1408 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. STABILIZER REAR<GN1> 13-LEAF 		8-98079-902-0 02 1 1209-1408 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 13-LEAF 		8-98079-902-0 02 1 1409-1410 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. CHILE EQUIPMENT(KE1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 13-LEAF 		8-98079-902-0 02 1 1409-1410 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. CHILE EQUIPMENT(KE1) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 13-LEAF 		8-98079-902-0 02 1 1409-1410 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. STABILIZER REAR<GN1> 13-LEAF 		8-98079-902-0 02 1 1409-1410 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 13-LEAF 		8-98079-902-0 02 1 1411-1510 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 13-LEAF 		8-98079-902-0 02 1 1411-1510 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 13-LEAF 		8-98079-902-0 02 1 1411-1510 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. STABILIZER REAR<GN1> 13-LEAF 		8-98079-902-0 02 1 1411-1510 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 13-LEAF 		8-98079-902-0 02 1 1511- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 13-LEAF 		8-98079-902-0 02 1 1511- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. PHILIPPINE ISLANDS EQUIPMENT(B15), AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> 13-LEAF 		8-98079-902-0 02 1 1511- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. STABILIZER REAR<GN1>,TIRE SIZE 8.25-16<7QP> 13-LEAF 		8-98079-902-0 02 1 1511- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) MOROCCO EQUIPMENT(CGA) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FRAME STRAIGHT TYPE<7KJ> L=285 		8-97141-874-0 04 1 1504- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FRAME STRAIGHT TYPE<7KJ> L=265 		8-94127-923-3 04 1 1209-1408 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FRAME STRAIGHT TYPE<7KJ> L=265 		8-94127-923-3 04 1 1409-1503 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FRAME STRAIGHT TYPE<7KJ> L=265 		8-94127-923-3 04 1 1504-1510 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FRAME STRAIGHT TYPE<7KJ> L=265 		8-94127-923-3 04 1 1511- ●
4 07.516 U-BOLT; RR SPR
L=315 		1-51371-194-2 04 1 1010-1102 ●
4 07.516 U-BOLT; RR SPR
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) L=315 		1-51371-194-2 04 1 1103-1108 ●
4 07.516 U-BOLT; RR SPR
COLOMBIA EQUIPMENT(CB7) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) L=315 		1-51371-194-2 04 1 1109-1205 ●
4 07.516 U-BOLT; RR SPR
COLOMBIA EQUIPMENT(CB7) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) L=315 		1-51371-194-2 04 1 1206-1208 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 1209-1408 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 1409- ●
4 07.516 U-BOLT; RR SPR
L=345 		1-51371-195-2 04 1 1010-1102 ●
4 07.516 U-BOLT; RR SPR
RUSSIA EQUIPMENT(B12) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 1103-1108 ●
4 07.516 U-BOLT; RR SPR
L=345 		1-51371-195-2 04 1 1103-1108 ●
4 07.516 U-BOLT; RR SPR
RUSSIA EQUIPMENT(B12) G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 1109-1204 ●
4 07.516 U-BOLT; RR SPR
CHILE EQUIPMENT(KE1) G.V.W. 7.0-7.5TON(RPX) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 1109-1204 ●
4 07.516 U-BOLT; RR SPR
CHILE EQUIPMENT(KE1) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 1109-1204 ●
4 07.516 U-BOLT; RR SPR
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 1109-1204 ●
4 07.516 U-BOLT; RR SPR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 1205-1205 ●
4 07.516 U-BOLT; RR SPR
CHILE EQUIPMENT(KE1) G.V.W. 7.0-7.5TON(RPX) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 1205-1205 ●
4 07.516 U-BOLT; RR SPR
CHILE EQUIPMENT(KE1) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 1205-1205 ●
4 07.516 U-BOLT; RR SPR
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 1205-1205 ●
4 07.516 U-BOLT; RR SPR
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) L=345 		1-51371-195-2 04 1 1206-1208 ●
4 07.516 U-BOLT; RR SPR
CHILE EQUIPMENT(KE1) G.V.W. 7.0-7.5TON(RPX) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) L=345 		1-51371-195-2 04 1 1206-1208 ●
4 07.516 U-BOLT; RR SPR
CHILE EQUIPMENT(KE1) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 1206-1208 ●
4 07.516 U-BOLT; RR SPR
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 1206-1208 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) L=345 		1-51371-195-2 04 1 1209-1408 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) CHILE EQUIPMENT(KE1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) L=345 		1-51371-195-2 04 1 1209-1408 ●
4 07.516 U-BOLT; RR SPR
CHILE EQUIPMENT(KE1) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 1209-1408 ●
4 07.516 U-BOLT; RR SPR
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 1209-1408 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) L=345 		1-51371-195-2 04 1 1409-1410 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) CHILE EQUIPMENT(KE1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) L=345 		1-51371-195-2 04 1 1409-1410 ●
4 07.516 U-BOLT; RR SPR
CHILE EQUIPMENT(KE1) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 1409-1410 ●
4 07.516 U-BOLT; RR SPR
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 1409-1410 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) L=345 		1-51371-195-2 04 1 1411-1510 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) L=345 		1-51371-195-2 04 1 1411-1510 ●
4 07.516 U-BOLT; RR SPR
AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 1411-1510 ●
4 07.516 U-BOLT; RR SPR
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 1411-1510 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) L=345 		1-51371-195-2 04 1 1511- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) L=345 		1-51371-195-2 04 1 1511- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) PHILIPPINE ISLANDS EQUIPMENT(B15) G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) L=345 		1-51371-195-2 04 1 1511- ●
4 07.516 U-BOLT; RR SPR
PHILIPPINE ISLANDS EQUIPMENT(B15), AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> L=345 		1-51371-195-2 04 1 1511- ●
4 07.516 U-BOLT; RR SPR
PHILIPPINE ISLANDS EQUIPMENT(B15) TIRE SIZE 8.25-16<7QP> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 1511- ●
4 07.516 U-BOLT; RR SPR
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. TIRE SIZE 8.25-16<7QP> L=345 		1-51371-195-2 04 1 1511- ●
5 07.529 NUT; U-BOLT,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> 07.417 (B) M16 		8-97360-121-0 08 1 1209- ●
5 07.529 NUT; U-BOLT,RR SPR
(A) M18 FLANGE 		1-09440-039-1 08 1 1010-1208 ● ●
5 07.529 NUT; U-BOLT,RR SPR
FRAME STRAIGHT TYPE<7KJ> (A) M18 FLANGE 		1-09440-039-1 08 1 1209- ●
5 07.529 NUT; U-BOLT,RR SPR
(A) M18 FLANGE 		1-09440-039-1 08 1 1209- ●
6 07.516 WASHER; PL,U-BOLT
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-97360-118-0 08 1 1209- ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 1010- ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1010- ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
07.518 		1-51372-059-0 02 1 1010-1208 ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 1209-1510 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
07.518 		1-51372-059-0 02 1 1209-1510 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 1511- ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
07.518 		1-51372-059-0 02 1 1511- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 04 1 1010- ● ●
153 07.529 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 1010- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 1010- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 1010- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 1010- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1010- ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (C) M16 		0-91110-516-0 04 1 1010- ● ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1010- ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 1010- ● ●
225 07.535 RUBBER; CUSHION,RR SPR
TIRE SIZE 8.25-16<7QP> 		8-98021-554-0 02 1 1511- ●
225 07.535 RUBBER; CUSHION,RR SPR 8-94379-470-1 02 1 1010-1103 ● ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98187-342-0 02 1 1104-1510 ● ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98187-342-0 02 1 1511- ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. TIRE SIZE 8.25-16<7QP> 		8-98187-342-0 02 1 1511- ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 1010- ● ●
230 07.518 SPACER; CUSHION RUBBER
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) TIRE SIZE 8.25-16<7QP> 		8-97136-852-0 02 1 1511- ●
502 07.506 CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 292MM(G73) MOROCCO EQUIPMENT(CGA) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=140 T=4.5 		8-94118-509-1 02 1 1409-1510 ●
502 07.506 CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 292MM(G73) PHILIPPINE ISLANDS EQUIPMENT(B15), MOROCCOEQUIPMENT(CGA) G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=140 T=4.5 		8-94118-509-1 02 1 1511- ●
502 07.506 CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=130 T=4.5 		8-94119-069-2 02 1 1209-1408 ●
502 07.506 CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. MOROCCO EQUIPMENT(CGA),FRAME STRAIGHT TYPE<7KJ> 07.518 L=130 T=4.5 		8-94119-069-2 02 1 1409-1510 ●
502 07.506 CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15), MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07), FRAME STRAIGHT TYPE<7KJ> 07.518 L=130 T=4.5 		8-94119-069-2 02 1 1511- ●

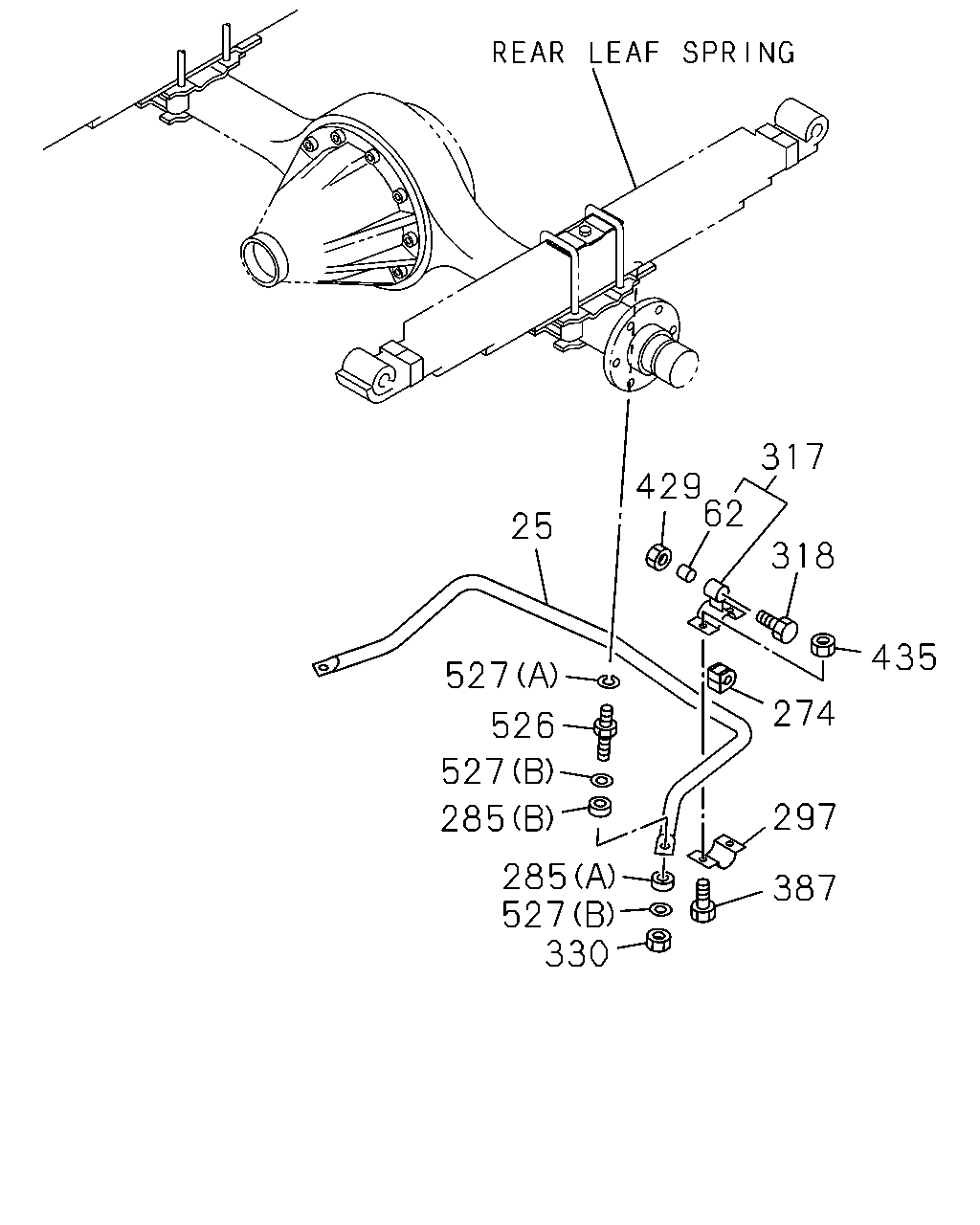

çizim 125053
317 429 62 318 25 274 435 297 387 330 527 285 285 527 526 527
BalonParca AdiParca NoAdetTipApplied Date A B
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98025-630-0 01 1 1209- ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-98067-239-0 01 1 1010-1208 ● ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> 		8-98067-239-0 01 1 1209- ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-98067-239-0 01 1 1209- ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-97239-911-0 02 1 1010- ● ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 1010- ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (A) L=18 		8-97089-556-0 02 1 1010- ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (B) L=29 		8-97089-557-0 02 1 1010- ● ●
297 07.242 CAP; STAB BAR
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 1010- ● ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-97239-907-0 02 1 1010- ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> M14X70 FLANGE 		0-28851-470-0 02 1 1010- ● ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> M12 LOCK NUT 		0-91370-012-0 02 1 1010- ● ●
387 07.242 BOLT; CAP FIX,STAB BAR
STABILIZER REAR<GN1> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 1010- ● ●
429 07.242 NUT; LINK
STABILIZER REAR<GN1> 06.174 M14 FLANGE 		8-97360-124-0 02 1 1010- ● ●
435 07.242 NUT; CAP
STABILIZER REAR<GN1> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1010- ● ●
526 07.535 STUD; STABILIZER
STABILIZER REAR<GN1> 07.242 		8-97360-120-0 02 1 1010- ● ●
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> 05.605 (A) ID=14.2 		0-91510-514-0 02 1 1010- ● ●
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> (B) ID=12.5 		8-97360-055-0 04 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
