4-36 — POWER STEERING CONTROL; ENGINE SIDE (#77853) — 52 parça

23 24 7 1 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) (C)	8-98043-204-4	01	1	1209-	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. (A)	8-98006-793-2	01	1	1010-1102	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98006-793-2	01	1	1103-1108	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98006-793-2	01	1	1109-1204	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98006-793-4	01	1	1205-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. (B)	8-98055-007-2	01	1	1010-1102		●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-007-2	01	1	1103-1108	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. (B)	8-98055-007-2	01	1	1103-1108		●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-007-2	01	1	1109-	●	●
7	09.181 BOLT; OIL PUMP,P/S 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1010-1204	●	●
7	09.181 BOLT; OIL PUMP,P/S 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1205-	●	●
23	06.660 GEAR; OIL PUMP	8-97114-550-1	01	1	1010-1102		●
23	06.660 GEAR; OIL PUMP HYDRO BRAKE BOOSTER(7QQ)	8-97114-550-1	01	1	1103-1108	●
23	06.660 GEAR; OIL PUMP	8-97114-550-1	01	1	1103-1108		●
23	06.660 GEAR; OIL PUMP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ)	8-97114-550-1	01	1	1109-	●	●
24	06.673 NUT; GEAR,P/S PUMP 05.816 M12 FLANGE	0-91180-212-0	01	1	1010-1102		●
24	06.673 NUT; GEAR,P/S PUMP HYDRO BRAKE BOOSTER(7QQ) 05.816 M12 FLANGE	0-91180-212-0	01	1	1103-1108	●
24	06.673 NUT; GEAR,P/S PUMP 05.816 M12 FLANGE	0-91180-212-0	01	1	1103-1108		●
24	06.673 NUT; GEAR,P/S PUMP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 05.816 M12 FLANGE	0-91180-212-0	01	1	1109-	●	●
42	06.672 NUT; ADJ PLATE 01.062 M8 FLANGE	0-91180-108-0	01	1	1010-1204	●	●
42	06.672 NUT; ADJ PLATE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1205-	●	●

29 42 1 7 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) (C)	8-98043-204-4	01	1	1209-	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. (A)	8-98006-793-2	01	1	1010-1102	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98006-793-2	01	1	1103-1108	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98006-793-2	01	1	1109-1204	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98006-793-4	01	1	1205-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. (B)	8-98055-007-2	01	1	1010-1102		●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-007-2	01	1	1103-1108	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. (B)	8-98055-007-2	01	1	1103-1108		●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-007-2	01	1	1109-	●	●
7	09.181 BOLT; OIL PUMP,P/S 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1010-1204	●	●
7	09.181 BOLT; OIL PUMP,P/S 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1205-	●	●
29	09.171 BOLT; BRKT,POWER STRG M14X20 FLANGE	0-28851-420-0	01	1	1010-1102	●
29	09.171 BOLT; BRKT,POWER STRG EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE	0-28851-420-0	01	1	1103-1108	●
29	09.171 BOLT; BRKT,POWER STRG EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE	0-28851-420-0	01	1	1109-1204	●	●
29	09.171 BOLT; BRKT,POWER STRG 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE	0-28851-420-0	01	1	1205-	●	●
36	06.606 BRACKET; PLATE,P/S PUMP	8-98036-532-0	01	1	1010-1102	●
36	06.606 BRACKET; PLATE,P/S PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98036-532-0	01	1	1103-1108	●
36	06.606 BRACKET; PLATE,P/S PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98036-532-0	01	1	1109-1204	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98036-532-0	01	1	1205-	●	●
42	06.672 NUT; ADJ PLATE 01.062 M8 FLANGE	0-91180-108-0	01	1	1010-1204	●	●
42	06.672 NUT; ADJ PLATE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1205-	●	●

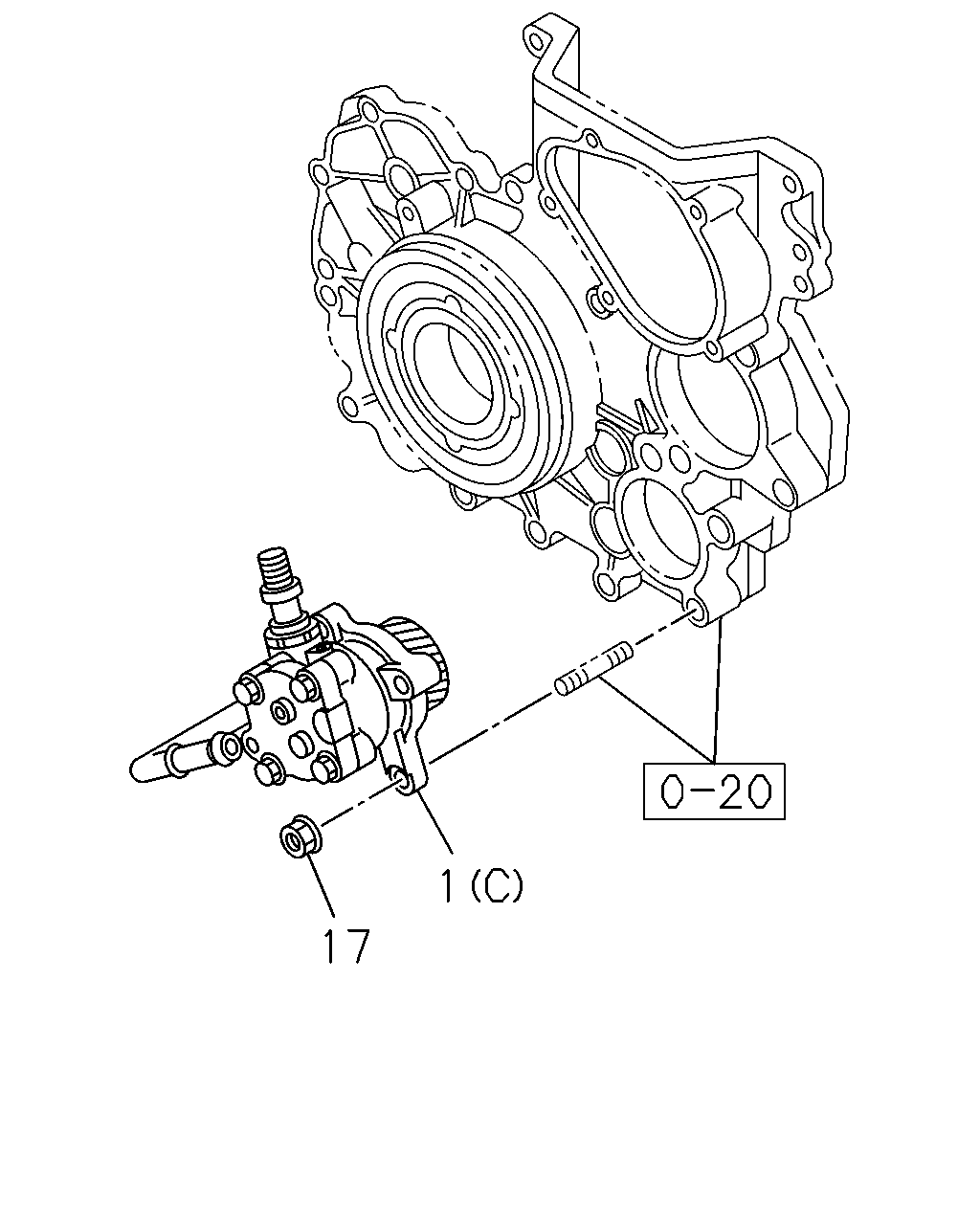

17 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) (C)	8-98043-204-4	01	1	1209-	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. (A)	8-98006-793-2	01	1	1010-1102	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98006-793-2	01	1	1103-1108	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98006-793-2	01	1	1109-1204	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98006-793-4	01	1	1205-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. (B)	8-98055-007-2	01	1	1010-1102		●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-007-2	01	1	1103-1108	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. (B)	8-98055-007-2	01	1	1103-1108		●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-007-2	01	1	1109-	●	●
17	06.606 NUT; POWER STRG PUMP 4JJ1-TCC ENG(RDU) 01.540 M8 FLANGE	0-91180-208-0	03	1	1209-	●
