1 |

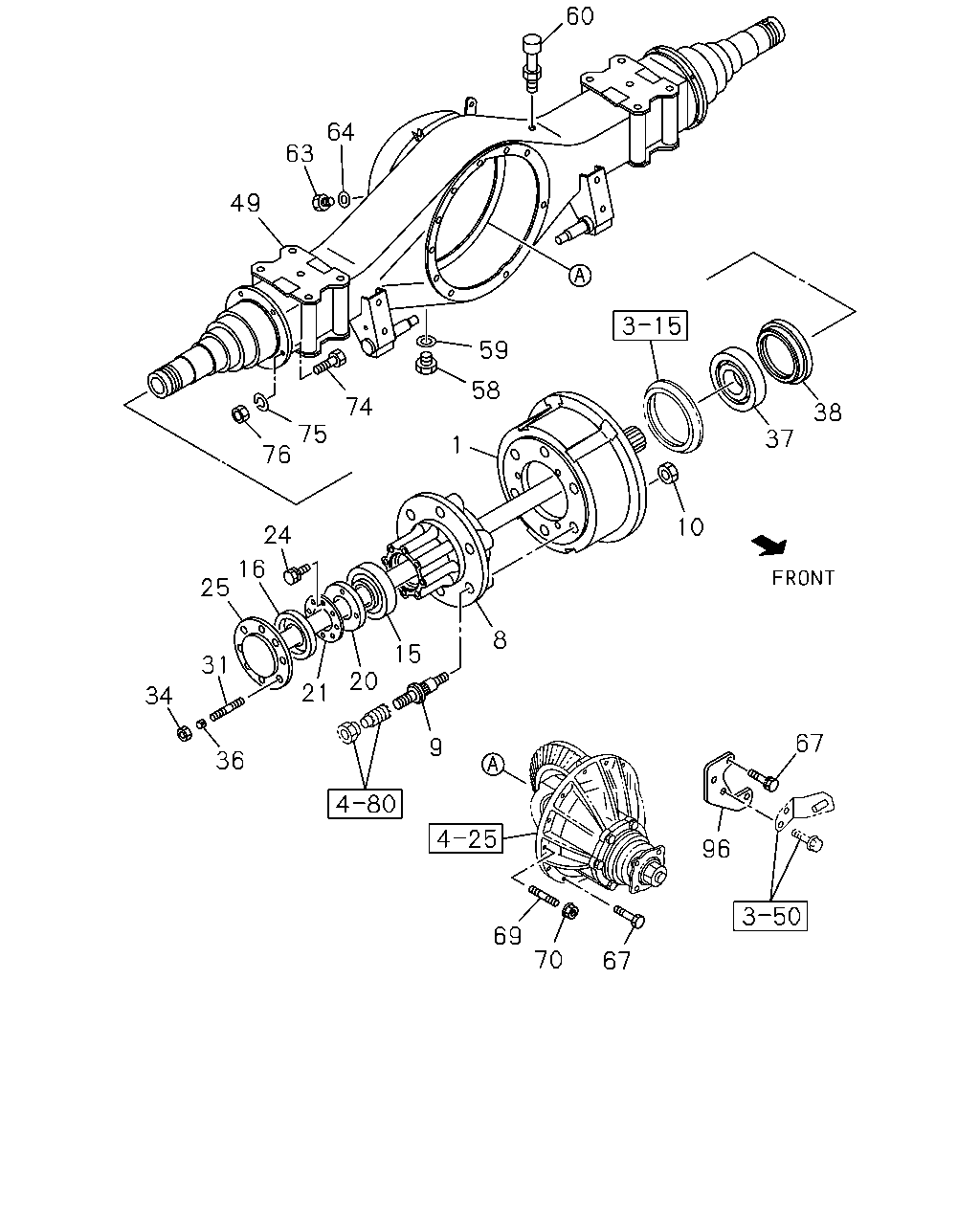

05.809 DRUM; BRK,RR
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97034-770-3 |
02 |
1 |
1209-1310 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98248-900-0 |
02 |
1 |
1311-1410 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR
RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98248-900-0 |
02 |
1 |
1411-1507 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98248-900-0 |
02 |
1 |
1508- |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97081-219-2 |
02 |
1 |
1010-1102 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97081-219-2 |
02 |
1 |
1103-1208 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97081-219-2 |
02 |
1 |
1209-1507 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97081-219-2 |
02 |
1 |
1508-1510 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
|
8-97081-219-2 |
02 |
1 |
1508-1510 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 6.5-7.0TON(RPW)
|
8-97081-219-2 |
02 |
1 |
1511- |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97081-219-2 |
02 |
1 |
1511- |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
|
8-97081-219-2 |
02 |
1 |
1511- |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97102-001-3 |
02 |
1 |
1010-1102 |
|
● |
| |
1 |
05.809 DRUM; BRK,RR
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97102-001-3 |
02 |
1 |
1103-1507 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97102-001-3 |
02 |
1 |
1103-1507 |
|
● |
| |
1 |
05.809 DRUM; BRK,RR
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97102-001-3 |
02 |
1 |
1508-1510 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97102-001-3 |
02 |
1 |
1508-1510 |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97102-001-3 |
02 |
1 |
1508-1510 |
|
● |
| |
1 |
05.809 DRUM; BRK,RR
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.5-8.0TON(RPY)
|
8-97102-001-3 |
02 |
1 |
1511- |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97102-001-3 |
02 |
1 |
1511- |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97102-001-3 |
02 |
1 |
1511- |
|
● |
| |
8 |
05.809 HUB; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 6.5-7.0TON(RPW)
|
8-97172-164-0 |
02 |
1 |
1511- |
● |
|
| |
8 |
05.809 HUB; RR AXLE
FINAL GEAR RATIO 41/9(HC6)
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
|
8-94382-893-4 |
02 |
1 |
1411-1510 |
● |
|
| |
8 |
05.809 HUB; RR AXLE
PHILIPPINE ISLANDS EQUIPMENT(B15),
MOROCCOEQUIPMENT(CGA)
G.V.W. 6.0-6.5TON(RPV)
|
8-94382-893-4 |
02 |
1 |
1511- |
● |
|
| |
8 |
05.809 HUB; RR AXLE
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97026-139-3 |
02 |
1 |
1209-1410 |
● |
|
| |
8 |
05.809 HUB; RR AXLE
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHLLK CONT LSPV<6PH>
|
8-97026-139-3 |
02 |
1 |
1411-1507 |
● |
|
| |
8 |
05.809 HUB; RR AXLE
FINAL GEAR RATIO 41/7(R41)
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
|
8-97026-139-3 |
02 |
1 |
1508- |
● |
|
| |
8 |
05.809 HUB; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97250-321-1 |
02 |
1 |
1103-1510 |
● |
|
| |
8 |
05.809 HUB; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.5-8.0TON(RPY)
|
8-97250-321-1 |
02 |
1 |
1511- |
● |
|
| |
8 |
05.809 HUB; RR AXLE
|
8-97081-323-2 |
02 |
1 |
1010-1102 |
● |
|
| |
8 |
05.809 HUB; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97081-323-2 |
02 |
1 |
1103-1208 |
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97081-323-2 |
02 |
1 |
1209-1507 |
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97081-323-2 |
02 |
1 |
1508-1510 |
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
|
8-97081-323-2 |
02 |
1 |
1508-1510 |
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97081-323-2 |
02 |
1 |
1511- |
● |
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
|
8-97081-323-2 |
02 |
1 |
1511- |
● |
|
| |
8 |
05.809 HUB; RR AXLE
|
8-97107-549-2 |
02 |
1 |
1010-1507 |
|
● |
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97107-549-2 |
02 |
1 |
1508- |
● |
|
| |
8 |
05.809 HUB; RR AXLE
|
8-97107-549-2 |
02 |
1 |
1508- |
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
1209-1410 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR
RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
1411-1507 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
1508- |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
1209-1410 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR
RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
1411-1507 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
1508- |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD
|
8-97081-584-4 |
06 |
1 |
1010-1208 |
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
M20X28,M22X57 RH THREAD
|
8-97081-584-4 |
06 |
1 |
1209-1510 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD
|
8-97081-584-4 |
06 |
1 |
1209-1510 |
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
M20X28,M22X57 RH THREAD
|
8-97081-584-4 |
06 |
1 |
1511- |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD
|
8-97081-584-4 |
06 |
1 |
1511- |
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-4 |
06 |
1 |
1010-1208 |
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-4 |
06 |
1 |
1209-1510 |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-4 |
06 |
1 |
1209-1510 |
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-4 |
06 |
1 |
1511- |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-4 |
06 |
1 |
1511- |
|
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
05.812
M20
|
0-91110-520-0 |
10 |
1 |
1209-1410 |
● |
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR
RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
05.812
M20
|
0-91110-520-0 |
10 |
1 |
1411-1507 |
● |
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
05.812
M20
|
0-91110-520-0 |
10 |
1 |
1508- |
● |
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
07.172
M22
|
0-91110-522-0 |
12 |
1 |
1010-1208 |
● |
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
07.172
M22
|
0-91110-522-0 |
12 |
1 |
1209-1510 |
● |
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
07.172
M22
|
0-91110-522-0 |
12 |
1 |
1209-1510 |
|
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
07.172
M22
|
0-91110-522-0 |
12 |
1 |
1511- |
● |
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
07.172
M22
|
0-91110-522-0 |
12 |
1 |
1511- |
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
NSK
|
9-00093-082-0 |
02 |
1 |
1209-1410 |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHLLK CONT LSPV<6PH>
NSK
|
9-00093-082-0 |
02 |
1 |
1411-1507 |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
FINAL GEAR RATIO 41/7(R41)
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
NSK
|
9-00093-082-0 |
02 |
1 |
1508- |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-607-0 |
02 |
1 |
1010-1208 |
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
NSK
|
9-00093-607-0 |
02 |
1 |
1209-1410 |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-607-0 |
02 |
1 |
1209-1410 |
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
NSK
|
9-00093-607-0 |
02 |
1 |
1411-1510 |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
NSK
|
9-00093-607-0 |
02 |
1 |
1411-1510 |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-607-0 |
02 |
1 |
1411-1510 |
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
PHILIPPINE ISLANDS EQUIPMENT(B15),
MOROCCOEQUIPMENT(CGA)
NSK
|
9-00093-607-0 |
02 |
1 |
1511- |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
NSK
|
9-00093-607-0 |
02 |
1 |
1511- |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-607-0 |
02 |
1 |
1511- |
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS
|
5-87610-139-0 |
02 |
1 |
1010-1208 |
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BEST VALUE PARTS
|
5-87610-139-0 |
02 |
1 |
1209-1410 |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS
|
5-87610-139-0 |
02 |
1 |
1209-1410 |
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
BEST VALUE PARTS
|
5-87610-139-0 |
02 |
1 |
1411-1510 |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BEST VALUE PARTS
|
5-87610-139-0 |
02 |
1 |
1411-1510 |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS
|
5-87610-139-0 |
02 |
1 |
1411-1510 |
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
PHILIPPINE ISLANDS EQUIPMENT(B15),
MOROCCOEQUIPMENT(CGA)
BEST VALUE PARTS
|
5-87610-139-0 |
02 |
1 |
1511- |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
BEST VALUE PARTS
|
5-87610-139-0 |
02 |
1 |
1511- |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS
|
5-87610-139-0 |
02 |
1 |
1511- |
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
BEST VALUE PARTS
|
5-87610-140-0 |
02 |
1 |
1209-1410 |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHLLK CONT LSPV<6PH>
BEST VALUE PARTS
|
5-87610-140-0 |
02 |
1 |
1411-1507 |
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
FINAL GEAR RATIO 41/7(R41)
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
BEST VALUE PARTS
|
5-87610-140-0 |
02 |
1 |
1508- |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
NOK
|
8-98202-911-0 |
02 |
1 |
1209-1410 |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHLLK CONT LSPV<6PH>
NOK
|
8-98202-911-0 |
02 |
1 |
1411-1507 |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
FINAL GEAR RATIO 41/7(R41)
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
NOK
|
8-98202-911-0 |
02 |
1 |
1508- |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
TKK
|
8-94336-317-2 |
02 |
1 |
1010-1207 |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-98202-912-0 |
02 |
1 |
1208-1208 |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
NOK
|
8-98202-912-0 |
02 |
1 |
1209-1410 |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-98202-912-0 |
02 |
1 |
1209-1410 |
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
NOK
|
8-98202-912-0 |
02 |
1 |
1411-1510 |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
NOK
|
8-98202-912-0 |
02 |
1 |
1411-1510 |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-98202-912-0 |
02 |
1 |
1411-1510 |
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV)
PHILIPPINE ISLANDS EQUIPMENT(B15),
MOROCCOEQUIPMENT(CGA)
NOK
|
8-98202-912-0 |
02 |
1 |
1511- |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
NOK
|
8-98202-912-0 |
02 |
1 |
1511- |
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-98202-912-0 |
02 |
1 |
1511- |
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-94367-960-1 |
02 |
1 |
1010-1106 |
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M52
|
8-97137-092-0 |
02 |
1 |
1209-1303 |
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M52
|
8-98236-850-0 |
02 |
1 |
1304-1410 |
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHLLK CONT LSPV<6PH>
M52
|
8-98236-850-0 |
02 |
1 |
1411-1507 |
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
FINAL GEAR RATIO 41/7(R41)
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
M52
|
8-98236-850-0 |
02 |
1 |
1508- |
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
M55
|
8-97137-094-0 |
02 |
1 |
1010-1208 |
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
M55
|
8-97137-094-0 |
02 |
1 |
1209-1410 |
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
M55
|
8-97137-094-0 |
02 |
1 |
1209-1410 |
|
● |
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
M55
|
8-97137-094-0 |
02 |
1 |
1411-1510 |
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
M55
|
8-97137-094-0 |
02 |
1 |
1411-1510 |
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
M55
|
8-97137-094-0 |
02 |
1 |
1411-1510 |
|
● |
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 6.0-6.5TON(RPV)
PHILIPPINE ISLANDS EQUIPMENT(B15),
MOROCCOEQUIPMENT(CGA)
M55
|
8-97137-094-0 |
02 |
1 |
1511- |
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
M55
|
8-97137-094-0 |
02 |
1 |
1511- |
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
M55
|
8-97137-094-0 |
02 |
1 |
1511- |
|
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
ID=52
|
9-09853-214-0 |
02 |
1 |
1209-1410 |
● |
|
| |
21 |
05.830 WASHER; LK,BRG NUT
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHLLK CONT LSPV<6PH>
ID=52
|
9-09853-214-0 |
02 |
1 |
1411-1507 |
● |
|
| |
21 |
05.830 WASHER; LK,BRG NUT
FINAL GEAR RATIO 41/7(R41)
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
ID=52
|
9-09853-214-1 |
02 |
1 |
1508- |
● |
|
| |
21 |
05.830 WASHER; LK,BRG NUT
ID=55
|
9-09653-002-0 |
02 |
1 |
1010-1208 |
● |
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
ID=55
|
9-09653-002-0 |
02 |
1 |
1209-1410 |
● |
|
| |
21 |
05.830 WASHER; LK,BRG NUT
ID=55
|
9-09653-002-0 |
02 |
1 |
1209-1410 |
|
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
ID=55
|
9-09653-002-0 |
02 |
1 |
1411-1510 |
● |
|
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
ID=55
|
9-09653-002-0 |
02 |
1 |
1411-1510 |
● |
|
| |
21 |
05.830 WASHER; LK,BRG NUT
ID=55
|
9-09653-002-0 |
02 |
1 |
1411-1510 |
|
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 6.0-6.5TON(RPV)
PHILIPPINE ISLANDS EQUIPMENT(B15),
MOROCCOEQUIPMENT(CGA)
ID=55
|
9-09653-002-1 |
02 |
1 |
1511- |
● |
|
| |
21 |
05.830 WASHER; LK,BRG NUT
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
ID=55
|
9-09653-002-1 |
02 |
1 |
1511- |
● |
|
| |
21 |
05.830 WASHER; LK,BRG NUT
ID=55
|
9-09653-002-1 |
02 |
1 |
1511- |
|
● |
| |
24 |
05.830 BOLT; LK WASHER
03.671
M6X10 FLANGE
|
0-28050-610-0 |
04 |
1 |
1010-1508 |
● |
● |
| |
24 |
05.830 BOLT; LK WASHER
03.162
M6X12 FLANGE
|
0-28050-612-0 |
04 |
1 |
1509- |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/9(HC6)
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
L=830
|
8-94341-974-1 |
02 |
1 |
1411-1510 |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
PHILIPPINE ISLANDS EQUIPMENT(B15),
MOROCCOEQUIPMENT(CGA)
L=830
|
8-94341-974-1 |
02 |
1 |
1511- |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
L=804.5
|
8-97032-497-0 |
02 |
1 |
1209-1410 |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHLLK CONT LSPV<6PH>
L=804.5
|
8-97032-497-0 |
02 |
1 |
1411-1507 |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/7(R41)
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
L=804.5
|
8-97032-497-0 |
02 |
1 |
1508- |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
L=885
|
8-97134-439-0 |
02 |
1 |
1010-1208 |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
L=885
|
8-97134-439-0 |
02 |
1 |
1209-1510 |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
L=885
|
8-97134-439-0 |
02 |
1 |
1209-1510 |
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
L=885
|
8-97134-439-0 |
02 |
1 |
1511- |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
L=885
|
8-97134-439-0 |
02 |
1 |
1511- |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
L=885
|
8-97134-439-0 |
02 |
1 |
1511- |
|
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
8-97359-803-0 |
16 |
1 |
1010- |
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
04.085
M10 FLANGE
|
0-91180-210-0 |
16 |
1 |
1010- |
● |
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
8-97360-004-0 |
16 |
1 |
1010- |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
NSK
|
9-00093-081-0 |
02 |
1 |
1209-1410 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHLLK CONT LSPV<6PH>
NSK
|
9-00093-081-0 |
02 |
1 |
1411-1507 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
FINAL GEAR RATIO 41/7(R41)
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
NSK
|
9-00093-081-0 |
02 |
1 |
1508- |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-624-0 |
02 |
1 |
1010-1102 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
NSK
|
9-00093-624-0 |
02 |
1 |
1103-1208 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
NSK
|
9-00093-624-0 |
02 |
1 |
1209-1410 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
NSK
|
9-00093-624-0 |
02 |
1 |
1411-1507 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
NSK
|
9-00093-624-0 |
02 |
1 |
1411-1507 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
NSK
|
9-00093-624-0 |
02 |
1 |
1508-1510 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
NSK
|
9-00093-624-0 |
02 |
1 |
1508-1510 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
NSK
|
9-00093-624-0 |
02 |
1 |
1511- |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
PHILIPPINE ISLANDS EQUIPMENT(B15),
MOROCCOEQUIPMENT(CGA)
NSK
|
9-00093-624-0 |
02 |
1 |
1511- |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B),MINI BUS
CHASSIS VAR.2(6GQ)
NSK
|
9-00093-624-0 |
02 |
1 |
1511- |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
8-97122-938-0 |
02 |
1 |
1010-1102 |
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
NSK
|
8-97122-938-0 |
02 |
1 |
1103-1507 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
8-97122-938-0 |
02 |
1 |
1103-1507 |
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
NSK
|
8-97122-938-0 |
02 |
1 |
1508-1510 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
NSK
|
8-97122-938-0 |
02 |
1 |
1508-1510 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
8-97122-938-0 |
02 |
1 |
1508-1510 |
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.5-8.0TON(RPY)
NSK
|
8-97122-938-0 |
02 |
1 |
1511- |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
NSK
|
8-97122-938-0 |
02 |
1 |
1511- |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
8-97122-938-0 |
02 |
1 |
1511- |
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
JTEKT
|
8-97123-119-0 |
02 |
1 |
1010-1102 |
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
JTEKT
|
8-97123-119-0 |
02 |
1 |
1103-1507 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
JTEKT
|
8-97123-119-0 |
02 |
1 |
1103-1507 |
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
JTEKT
|
8-97123-119-0 |
02 |
1 |
1508-1510 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
JTEKT
|
8-97123-119-0 |
02 |
1 |
1508-1510 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
JTEKT
|
8-97123-119-0 |
02 |
1 |
1508-1510 |
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.5-8.0TON(RPY)
JTEKT
|
8-97123-119-0 |
02 |
1 |
1511- |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
JTEKT
|
8-97123-119-0 |
02 |
1 |
1511- |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
JTEKT
|
8-97123-119-0 |
02 |
1 |
1511- |
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS
|
5-87610-141-0 |
02 |
1 |
1010-1102 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
BEST VALUE PARTS
|
5-87610-141-0 |
02 |
1 |
1103-1208 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
BEST VALUE PARTS
|
5-87610-141-0 |
02 |
1 |
1209-1410 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
BEST VALUE PARTS
|
5-87610-141-0 |
02 |
1 |
1411-1507 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
BEST VALUE PARTS
|
5-87610-141-0 |
02 |
1 |
1411-1507 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
BEST VALUE PARTS
|
5-87610-141-0 |
02 |
1 |
1508-1510 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
BEST VALUE PARTS
|
5-87610-141-0 |
02 |
1 |
1508-1510 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
BEST VALUE PARTS
|
5-87610-141-0 |
02 |
1 |
1511- |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
PHILIPPINE ISLANDS EQUIPMENT(B15),
MOROCCOEQUIPMENT(CGA)
BEST VALUE PARTS
|
5-87610-141-0 |
02 |
1 |
1511- |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B),MINI BUS
CHASSIS VAR.2(6GQ)
BEST VALUE PARTS
|
5-87610-141-0 |
02 |
1 |
1511- |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
BEST VALUE PARTS
|
5-87610-142-0 |
02 |
1 |
1209-1410 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHLLK CONT LSPV<6PH>
BEST VALUE PARTS
|
5-87610-142-0 |
02 |
1 |
1411-1507 |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
FINAL GEAR RATIO 41/7(R41)
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
BEST VALUE PARTS
|
5-87610-142-0 |
02 |
1 |
1508- |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
TKK
|
8-94336-314-1 |
02 |
1 |
1209-1410 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHLLK CONT LSPV<6PH>
TKK
|
8-94336-314-1 |
02 |
1 |
1411-1507 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
FINAL GEAR RATIO 41/7(R41)
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
TKK
|
8-94336-314-1 |
02 |
1 |
1508- |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
NOK
|
8-94367-959-0 |
02 |
1 |
1209-1410 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHLLK CONT LSPV<6PH>
NOK
|
8-94367-959-0 |
02 |
1 |
1411-1507 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
FINAL GEAR RATIO 41/7(R41)
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
NOK
|
8-94367-959-0 |
02 |
1 |
1508- |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
TKK
|
8-94336-316-1 |
02 |
1 |
1109-1410 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
TKK
|
8-94336-316-1 |
02 |
1 |
1411-1510 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
TKK
|
8-94336-316-1 |
02 |
1 |
1411-1510 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
PHILIPPINE ISLANDS EQUIPMENT(B15),
MOROCCOEQUIPMENT(CGA)
TKK
|
8-94336-316-1 |
02 |
1 |
1511- |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
TKK
|
8-94336-316-1 |
02 |
1 |
1511- |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
NOK
|
8-94367-958-0 |
02 |
1 |
1109-1410 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
NOK
|
8-94367-958-0 |
02 |
1 |
1411-1510 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
NOK
|
8-94367-958-0 |
02 |
1 |
1411-1510 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.0-6.5TON(RPV)
PHILIPPINE ISLANDS EQUIPMENT(B15),
MOROCCOEQUIPMENT(CGA)
NOK
|
8-94367-958-0 |
02 |
1 |
1511- |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
NOK
|
8-94367-958-0 |
02 |
1 |
1511- |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
|
8-97023-977-1 |
02 |
1 |
1010-1102 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97023-977-1 |
02 |
1 |
1103-1108 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97023-977-1 |
02 |
1 |
1109-1507 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
|
8-97023-977-1 |
02 |
1 |
1508- |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-97122-937-0 |
02 |
1 |
1010-1102 |
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4 WHEEL ANTI LOCK BRAKE<JE5>
NOK
|
8-97122-937-0 |
02 |
1 |
1103-1507 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-97122-937-0 |
02 |
1 |
1103-1507 |
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4 WHEEL ANTI LOCK BRAKE<JE5>
NOK
|
8-97122-937-0 |
02 |
1 |
1508-1510 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
NOK
|
8-97122-937-0 |
02 |
1 |
1508-1510 |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-97122-937-0 |
02 |
1 |
1508-1510 |
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.5-8.0TON(RPY)
NOK
|
8-97122-937-0 |
02 |
1 |
1511- |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
NOK
|
8-97122-937-0 |
02 |
1 |
1511- |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-97122-937-0 |
02 |
1 |
1511- |
|
● |
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 6.5-7.0TON(RPW)
|
8-97302-439-2 |
01 |
1 |
1511- |
● |
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 6.5-7.0TON(RPW)
|
8-97321-626-4 |
01 |
1 |
1511- |
● |
|
| |
49 |
05.387 CASE; RR AXLE
COLOMBIA EQUIPMENT(CB7)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.5-8.0TON(RPY)
|
8-98321-761-0 |
01 |
1 |
1508- |
● |
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6)
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
|
8-97036-560-6 |
01 |
1 |
1411-1510 |
● |
|
| |
49 |
05.387 CASE; RR AXLE
PHILIPPINE ISLANDS EQUIPMENT(B15),
MOROCCOEQUIPMENT(CGA)
G.V.W. 6.0-6.5TON(RPV)
|
8-97036-560-6 |
01 |
1 |
1511- |
● |
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97036-556-6 |
01 |
1 |
1209-1410 |
● |
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK
WHLLK CONT LSPV<6PH>
|
8-97036-556-6 |
01 |
1 |
1411-1507 |
● |
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/7(R41)
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
|
8-97036-556-6 |
01 |
1 |
1508- |
● |
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97222-080-3 |
01 |
1 |
1109-1510 |
● |
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97222-080-3 |
01 |
1 |
1511- |
● |
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6)
|
8-97222-079-4 |
01 |
1 |
1109-1410 |
|
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR
RATIO 43/9(S2J)
|
8-97222-079-4 |
01 |
1 |
1411-1510 |
|
● |
| |
49 |
05.387 CASE; RR AXLE
PHILIPPINE ISLANDS EQUIPMENT(B15),
AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
|
8-97222-079-4 |
01 |
1 |
1511- |
|
● |
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97250-319-3 |
01 |
1 |
1103-1507 |
● |
|
| |
49 |
05.387 CASE; RR AXLE
RUSSIA EQUIPMENT(B12),MOROCCO
EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.5-8.0TON(RPY)
|
8-97250-319-3 |
01 |
1 |
1508- |
● |
|
| |
49 |
05.387 CASE; RR AXLE
|
8-97262-091-2 |
01 |
1 |
1010-1102 |
● |
|
| |
49 |
05.387 CASE; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97262-091-2 |
01 |
1 |
1103-1108 |
● |
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97262-091-2 |
01 |
1 |
1109-1507 |
● |
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
|
8-97262-091-2 |
01 |
1 |
1508- |
● |
|
| |
49 |
05.387 CASE; RR AXLE
|
8-97287-599-3 |
01 |
1 |
1010-1108 |
|
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/8(RU1)
|
8-97287-599-3 |
01 |
1 |
1109-1507 |
|
● |
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97287-599-3 |
01 |
1 |
1508-1510 |
● |
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/8(RU1)
|
8-97287-599-3 |
01 |
1 |
1508-1510 |
|
● |
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97287-599-3 |
01 |
1 |
1511- |
● |
|
| |
49 |
05.387 CASE; RR AXLE
COLOMBIA EQUIPMENT(CB7)
|
8-97287-599-3 |
01 |
1 |
1511- |
|
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97307-060-0 |
01 |
1 |
1010- |
● |
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
1010- |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=29
|
8-98006-960-0 |
01 |
1 |
1010- |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5
|
8-98009-333-0 |
01 |
1 |
1010- |
● |
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
1010- |
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
FINAL GEAR RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
11 |
1 |
1209-1410 |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR
RATIO 41/7(R41)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
11 |
1 |
1411-1507 |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
11 |
1 |
1508-1510 |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
11 |
1 |
1511- |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
11 |
1 |
1511- |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
07 |
1 |
1010-1208 |
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
07 |
1 |
1209-1510 |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
07 |
1 |
1209-1510 |
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
07 |
1 |
1511- |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
07 |
1 |
1511- |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
07 |
1 |
1511- |
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER
|
0-50561-050-0 |
04 |
1 |
1010-1208 |
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
M10X50 W/LK WASHER
|
0-50561-050-0 |
04 |
1 |
1209-1510 |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER
|
0-50561-050-0 |
04 |
1 |
1209-1510 |
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
M10X50 W/LK WASHER
|
0-50561-050-0 |
04 |
1 |
1511- |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.5-7.0TON(RPW)
M10X50 W/LK WASHER
|
0-50561-050-0 |
04 |
1 |
1511- |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER
|
0-50561-050-0 |
04 |
1 |
1511- |
|
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97359-802-0 |
02 |
1 |
1010- |
● |
● |
| |
70 |
05.387 NUT; CARRIER
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1010- |
● |
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
8-97359-819-0 |
12 |
1 |
1010-1102 |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M12X32
|
8-97359-819-0 |
12 |
1 |
1103-1507 |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M12X32
|
8-97359-819-0 |
12 |
1 |
1508-1510 |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
M12X32
|
8-97359-819-0 |
12 |
1 |
1508-1510 |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX)
M12X32
|
8-97359-819-0 |
12 |
1 |
1511- |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
M12X32
|
8-97359-819-0 |
12 |
1 |
1511- |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M14X40
|
8-98007-879-0 |
12 |
1 |
1010-1102 |
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4 WHEEL ANTI LOCK BRAKE<JE5>
M14X40
|
8-98007-879-0 |
12 |
1 |
1103-1507 |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M14X40
|
8-98007-879-0 |
12 |
1 |
1103-1507 |
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4 WHEEL ANTI LOCK BRAKE<JE5>
M14X40
|
8-98007-879-0 |
12 |
1 |
1508-1510 |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M14X40
|
8-98007-879-0 |
12 |
1 |
1508-1510 |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M14X40
|
8-98007-879-0 |
12 |
1 |
1508-1510 |
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.5-8.0TON(RPY)
M14X40
|
8-98007-879-0 |
12 |
1 |
1511- |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M14X40
|
8-98007-879-0 |
12 |
1 |
1511- |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M14X40
|
8-98007-879-0 |
12 |
1 |
1511- |
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
1010-1102 |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
1103-1507 |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
1508-1510 |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
1508-1510 |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX)
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
1511- |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
1511- |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.174
ID=14.2
|
0-91510-814-0 |
12 |
1 |
1010-1102 |
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4 WHEEL ANTI LOCK BRAKE<JE5>
06.174
ID=14.2
|
0-91510-814-0 |
12 |
1 |
1103-1507 |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.174
ID=14.2
|
0-91510-814-0 |
12 |
1 |
1103-1507 |
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4 WHEEL ANTI LOCK BRAKE<JE5>
06.174
ID=14.2
|
0-91510-814-0 |
12 |
1 |
1508-1510 |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
06.174
ID=14.2
|
0-91510-814-0 |
12 |
1 |
1508-1510 |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.174
ID=14.2
|
0-91510-814-0 |
12 |
1 |
1508-1510 |
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.5-8.0TON(RPY)
06.174
ID=14.2
|
0-91510-814-0 |
12 |
1 |
1511- |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
06.174
ID=14.2
|
0-91510-814-0 |
12 |
1 |
1511- |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.174
ID=14.2
|
0-91510-814-0 |
12 |
1 |
1511- |
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
M12
|
0-91110-512-0 |
12 |
1 |
1010-1102 |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M12
|
0-91110-512-0 |
12 |
1 |
1103-1507 |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
M12
|
0-91110-512-0 |
12 |
1 |
1508-1510 |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
M12
|
0-91110-512-0 |
12 |
1 |
1508-1510 |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX)
M12
|
0-91110-512-0 |
12 |
1 |
1511- |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI
BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
M12
|
0-91110-512-0 |
12 |
1 |
1511- |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
07.833
M14
|
0-91110-514-0 |
12 |
1 |
1010-1102 |
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4 WHEEL ANTI LOCK BRAKE<JE5>
07.833
M14
|
0-91110-514-0 |
12 |
1 |
1103-1507 |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
07.833
M14
|
0-91110-514-0 |
12 |
1 |
1103-1507 |
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4 WHEEL ANTI LOCK BRAKE<JE5>
07.833
M14
|
0-91110-514-0 |
12 |
1 |
1508-1510 |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
07.833
M14
|
0-91110-514-0 |
12 |
1 |
1508-1510 |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
07.833
M14
|
0-91110-514-0 |
12 |
1 |
1508-1510 |
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.5-8.0TON(RPY)
07.833
M14
|
0-91110-514-0 |
12 |
1 |
1511- |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
07.833
M14
|
0-91110-514-0 |
12 |
1 |
1511- |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
07.833
M14
|
0-91110-514-0 |
12 |
1 |
1511- |
|
● |
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
G.V.W. 7.5-8.0TON(RPY)
MINI BUS CHASSIS(V4B),MINI BUS CHASSIS
VAR.2(6GQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98037-102-0 |
01 |
1 |
1508- |
● |
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
FINAL GEAR RATIO 41/9(HC6)
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
|
8-98030-956-0 |
01 |
1 |
1411- |
● |
|
