Sayfa 4-01 - Isuzu EPC

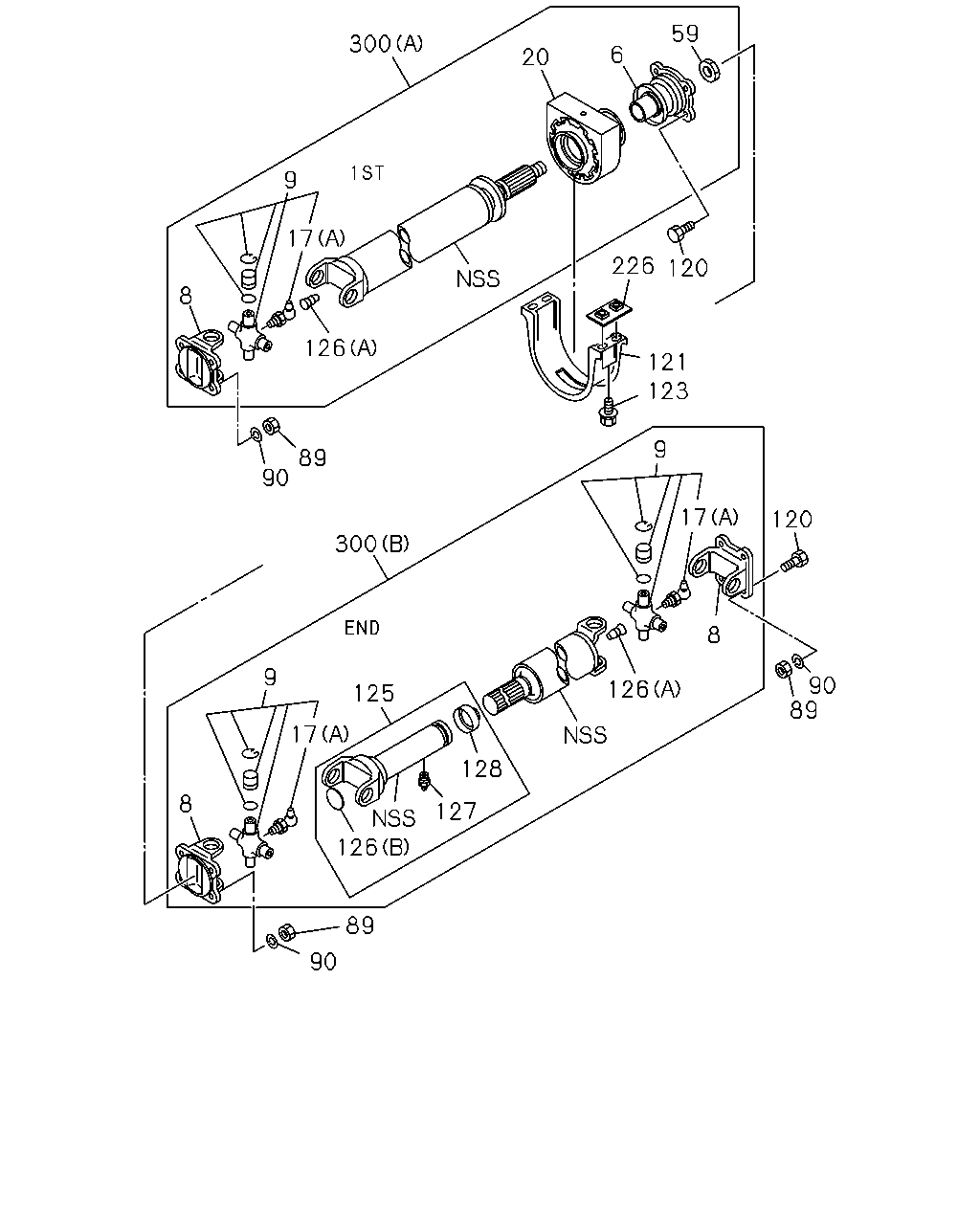

4-01 — PROPELLER SHAFT (#77844) — 188 parça

123 121 120 226 6 59 20 300 9 17 126 89 90 8 9 17 120 90 89 8 126 128 127 126 89 90 17 9 8 125 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT	8-98020-796-0	01	1	1010-1205	●	●
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98020-796-0	01	1	1206-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCC ENG(RDU) D=80	8-97322-663-0	01	1	1209-	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCC ENG(RDU) D=80	8-97322-663-0	01	1	1209-	●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	1010-1205	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) D=80	1-37211-037-4	01	1	1206-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	1010-1205	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) D=80	1-37211-037-4	02	1	1206-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCC ENG(RDU)	8-98033-605-1	02	1	1209-	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCC ENG(RDU)	8-98033-605-1	01	1	1209-	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	01	1	1010-1205	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98020-789-1	01	1	1206-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	1010-1205	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98020-789-1	02	1	1206-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JJ1-TCC ENG(RDU) (B) M6 STRAIGHT	0-90301-406-0	02	1	1209-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1010-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1010-	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JJ1-TCC ENG(RDU)	8-98033-936-0	01	1	1209-	●
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-98020-880-0	01	1	1010-1205	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98020-880-0	01	1	1206-	●	●
59	05.586 NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	1010-1205	●	●
59	05.586 NUT; RET TO SUPPORT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M30	8-97160-857-0	01	1	1206-	●	●
89	05.586 NUT; YOKE TO RR AXLE 4JJ1-TCC ENG(RDU) M12	8-97365-450-1	08	1	1209-	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	12	1	1010-1205	●	●
89	05.586 NUT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M12	8-97365-450-1	12	1	1206-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JJ1-TCC ENG(RDU) 07.347 ID=12.2	0-91510-812-0	08	1	1209-	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	12	1	1010-1205	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.347 ID=12.2	0-91510-812-0	12	1	1206-	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4JJ1-TCC ENG(RDU) M12X35	8-97365-451-1	04	1	1209-	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	08	1	1010-1205	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M12X35	8-97365-451-1	08	1	1206-	●	●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	1010-	●	●
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1010-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCC ENG(RDU) L=183	8-98033-647-2	01	1	1209-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=224	8-98044-229-0	01	1	1010-1205	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) L=224	8-98044-229-0	01	1	1206-	●	●
126	05.556 PLUG; SPLINED YOKE 4JJ1-TCC ENG(RDU) (A)	1-09600-023-0	02	1	1209-	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1010-1102	●	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 4400MM(44W) (A)	1-09600-023-0	01	1	1010-1102	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1010-1102		●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1103-1205	●	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (A)	1-09600-023-0	01	1	1103-1205	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1103-1205		●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1206-1208	●	●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	1-09600-023-0	01	1	1209-	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1010-1205	●	●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-94366-900-0	01	1	1206-1208	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1209-	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1010-1205	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1206-1208	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1209-1304	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-	●	●
128	05.586 SEAL; SLEEVE	8-97145-746-0	01	1	1010-1205	●	●
128	05.586 SEAL; SLEEVE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97145-746-0	01	1	1206-	●	●
226	05.586 PLATE; LK,CENTER BRG	8-97371-572-0	02	1	1010-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) (B) L=1066	8-97387-806-4	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) (A) L=785	8-98039-655-1	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (A) L=630	8-98024-913-1	01	1	1206-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1206-1208	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1206-1208	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B) L=1001	8-98024-923-1	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B) L=1001	8-98024-923-1	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) (A) L=683	8-98006-982-1	01	1	1206-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) (B) L=1011	8-98040-477-1	01	1	1103-1108	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) (B) L=1011	8-98040-477-1	01	1	1109-1208	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) (B) L=1011	8-98040-477-1	01	1	1109-1208	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) L=1011	8-98040-477-1	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) L=1011	8-98040-477-1	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (A) L=1127	8-98040-793-1	01	1	1010-1102	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=1127	8-98040-793-1	01	1	1103-1108	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=1127	8-98040-793-1	01	1	1109-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=1127	8-98040-793-1	01	1	1109-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (A) L=1127	8-98040-793-1	01	1	1109-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 4100MM(41W) (A) L=1127	8-98040-793-1	01	1	1109-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (B) L=1252	8-98063-805-1	01	1	1010-1108	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (B) L=1252	8-98063-805-1	01	1	1109-1208	●	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) (B) L=1252	8-98063-805-1	01	1	1109-1208	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 4100MM(41W) (B) L=1252	8-98063-805-1	01	1	1109-1208		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) L=1252	8-98063-805-1	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) L=1252	8-98063-805-1	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (B) L=1252	8-98063-805-1	01	1	1209-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 4100MM(41W) (B) L=1252	8-98063-805-1	01	1	1209-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (A) L=1367	8-98019-423-1	01	1	1010-1108	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A) L=1367	8-98019-423-1	01	1	1010-1108		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (A) L=1367	8-98019-423-1	01	1	1109-	●	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) (A) L=1367	8-98019-423-1	01	1	1109-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) (A) L=1367	8-98019-423-1	01	1	1109-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (B) L=1302	8-98024-925-1	01	1	1010-1108	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) L=1302	8-98024-925-1	01	1	1010-1108		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (B) L=1302	8-98024-925-1	01	1	1109-1208	●	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) (B) L=1302	8-98024-925-1	01	1	1109-1208	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) (B) L=1302	8-98024-925-1	01	1	1109-1208		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) L=1302	8-98024-925-1	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) L=1302	8-98024-925-1	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (B) L=1302	8-98024-925-1	01	1	1209-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) (B) L=1302	8-98024-925-1	01	1	1209-		●

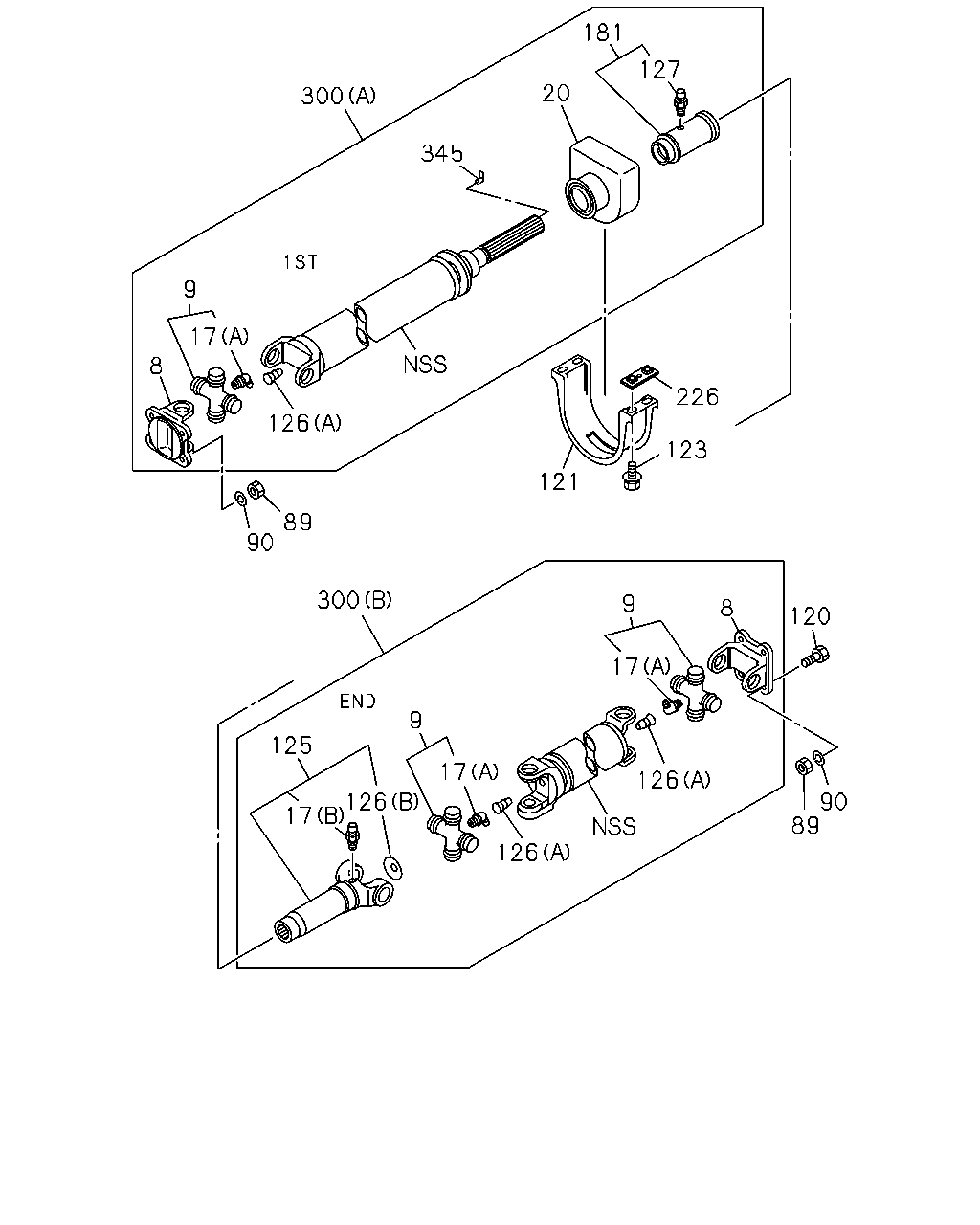

120 8 123 226 121 9 17 126 89 90 126 17 9 126 125 17 89 126 90 300 17 9 8 345 300 20 181 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCC ENG(RDU) D=80	8-97322-663-0	01	1	1209-	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCC ENG(RDU) D=80	8-97322-663-0	01	1	1209-	●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	1010-1205	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) D=80	1-37211-037-4	01	1	1206-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	1010-1205	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) D=80	1-37211-037-4	02	1	1206-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCC ENG(RDU)	8-98033-605-1	02	1	1209-	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCC ENG(RDU)	8-98033-605-1	01	1	1209-	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	01	1	1010-1205	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98020-789-1	01	1	1206-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	1010-1205	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98020-789-1	02	1	1206-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JJ1-TCC ENG(RDU) (B) M6 STRAIGHT	0-90301-406-0	02	1	1209-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1010-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1010-	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JJ1-TCC ENG(RDU)	8-98033-936-0	01	1	1209-	●
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-98020-880-0	01	1	1010-1205	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98020-880-0	01	1	1206-	●	●
89	05.586 NUT; YOKE TO RR AXLE 4JJ1-TCC ENG(RDU) M12	8-97365-450-1	08	1	1209-	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	12	1	1010-1205	●	●
89	05.586 NUT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M12	8-97365-450-1	12	1	1206-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JJ1-TCC ENG(RDU) 07.347 ID=12.2	0-91510-812-0	08	1	1209-	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	12	1	1010-1205	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.347 ID=12.2	0-91510-812-0	12	1	1206-	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4JJ1-TCC ENG(RDU) M12X35	8-97365-451-1	04	1	1209-	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	08	1	1010-1205	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M12X35	8-97365-451-1	08	1	1206-	●	●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	1010-	●	●
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1010-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCC ENG(RDU) L=183	8-98033-647-2	01	1	1209-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=224	8-98044-229-0	01	1	1010-1205	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) L=224	8-98044-229-0	01	1	1206-	●	●
126	05.556 PLUG; SPLINED YOKE 4JJ1-TCC ENG(RDU) (A)	1-09600-023-0	02	1	1209-	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1010-1102	●	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 4400MM(44W) (A)	1-09600-023-0	01	1	1010-1102	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1010-1102		●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1103-1205	●	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (A)	1-09600-023-0	01	1	1103-1205	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1103-1205		●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1206-1208	●	●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	1-09600-023-0	01	1	1209-	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1010-1205	●	●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-94366-900-0	01	1	1206-1208	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1209-	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1010-1205	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1206-1208	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1209-1304	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-	●	●
181	05.586 COVER; BRG,PROP SHAFT 4JJ1-TCC ENG(RDU)	8-98046-526-0	01	1	1209-	●
226	05.586 PLATE; LK,CENTER BRG	8-97371-572-0	02	1	1010-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) (B) L=1066	8-97387-806-4	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) (A) L=785	8-98039-655-1	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (A) L=630	8-98024-913-1	01	1	1206-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1206-1208	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1206-1208	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B) L=1001	8-98024-923-1	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B) L=1001	8-98024-923-1	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) (A) L=683	8-98006-982-1	01	1	1206-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) (B) L=1011	8-98040-477-1	01	1	1103-1108	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) (B) L=1011	8-98040-477-1	01	1	1109-1208	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) (B) L=1011	8-98040-477-1	01	1	1109-1208	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) L=1011	8-98040-477-1	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) L=1011	8-98040-477-1	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (A) L=1127	8-98040-793-1	01	1	1010-1102	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=1127	8-98040-793-1	01	1	1103-1108	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=1127	8-98040-793-1	01	1	1109-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=1127	8-98040-793-1	01	1	1109-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (A) L=1127	8-98040-793-1	01	1	1109-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 4100MM(41W) (A) L=1127	8-98040-793-1	01	1	1109-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (B) L=1252	8-98063-805-1	01	1	1010-1108	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (B) L=1252	8-98063-805-1	01	1	1109-1208	●	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) (B) L=1252	8-98063-805-1	01	1	1109-1208	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 4100MM(41W) (B) L=1252	8-98063-805-1	01	1	1109-1208		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) L=1252	8-98063-805-1	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) L=1252	8-98063-805-1	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (B) L=1252	8-98063-805-1	01	1	1209-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 4100MM(41W) (B) L=1252	8-98063-805-1	01	1	1209-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (A) L=1367	8-98019-423-1	01	1	1010-1108	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A) L=1367	8-98019-423-1	01	1	1010-1108		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (A) L=1367	8-98019-423-1	01	1	1109-	●	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) (A) L=1367	8-98019-423-1	01	1	1109-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) (A) L=1367	8-98019-423-1	01	1	1109-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (B) L=1302	8-98024-925-1	01	1	1010-1108	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) L=1302	8-98024-925-1	01	1	1010-1108		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (B) L=1302	8-98024-925-1	01	1	1109-1208	●	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) (B) L=1302	8-98024-925-1	01	1	1109-1208	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) (B) L=1302	8-98024-925-1	01	1	1109-1208		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) L=1302	8-98024-925-1	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) L=1302	8-98024-925-1	01	1	1209-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (B) L=1302	8-98024-925-1	01	1	1209-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) (B) L=1302	8-98024-925-1	01	1	1209-		●
345	05.600 PLUG; PROP SHAFT 4JJ1-TCC ENG(RDU)	8-98042-692-0	01	1	1209-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
