◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#77841) — 226 parça

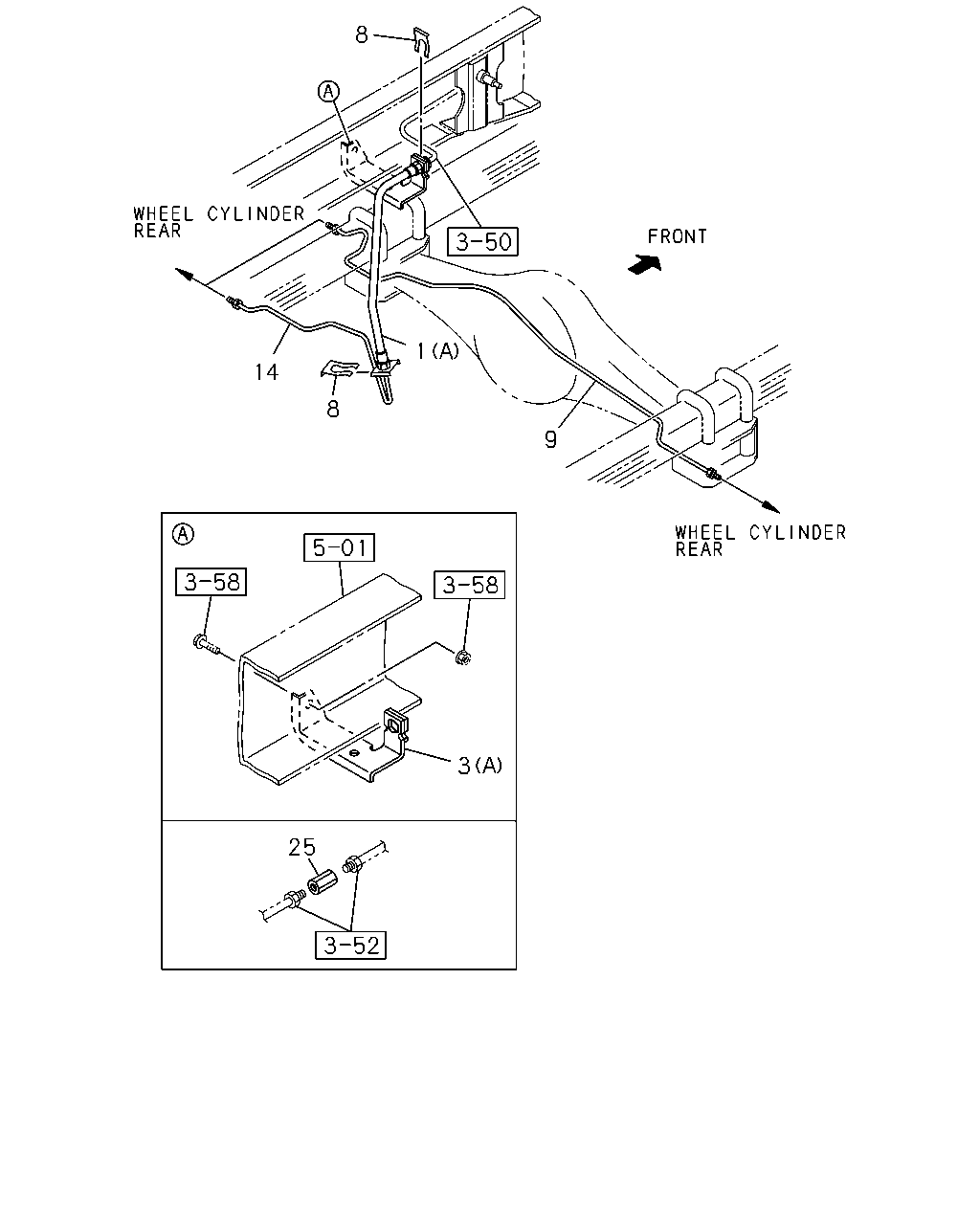

çizim 119732
8 14 8 9 1 3 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 1209- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 1209- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97253-569-0 01 1 1103-1208 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97253-569-0 01 1 1209- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97253-570-0 01 1 1103-1208 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97253-570-0 01 1 1209- ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=405 		8-97089-061-0 01 1 1010-1102 ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405 		8-97089-061-0 01 1 1103-1208 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=405 		8-97089-061-0 01 1 1103-1208 ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405 		8-97089-061-0 01 1 1209- ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=405 		8-97089-061-0 01 1 1209- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98117-514-1 01 1 1209- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (B) 		8-97205-199-1 01 1 1209- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 1010-1102 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 1103-1208 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97205-714-1 01 1 1103-1208 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 1209- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 1209- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 1209- ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 1103- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1010-1102 ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 1103- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1103- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) MOROCCO EQUIPMENT(CGA) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-056-0 01 1 1411-1510 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) PHILIPPINE ISLANDS EQUIPMENT(B15), MOROCCOEQUIPMENT(CGA) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-056-0 01 1 1511- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98039-603-0 01 1 1209-1410 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. MOROCCO EQUIPMENT(CGA),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98039-603-0 01 1 1411-1510 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15), MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07), 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98039-603-0 01 1 1511- ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 1010-1102 ● ●
9 04.685 PIPE; BRK,RR AXLE
COLOMBIA EQUIPMENT(CB7) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 1103-1108 ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 1103-1108 ●
9 04.685 PIPE; BRK,RR AXLE
COLOMBIA EQUIPMENT(CB7) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 1109-1208 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5> 		8-98026-057-0 01 1 1109-1208 ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 1109-1208 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 1209-1507 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5> 		8-98026-057-0 01 1 1209-1507 ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 1209-1507 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 1508-1510 ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 1508-1510 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 1511- ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) PHILIPPINE ISLANDS EQUIPMENT(B15), MOROCCOEQUIPMENT(CGA) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97202-212-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) PHILIPPINE ISLANDS EQUIPMENT(B15), MOROCCOEQUIPMENT(CGA) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-98026-043-1 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-747-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) MOROCCO EQUIPMENT(CGA) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-041-0 01 1 1411-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) PHILIPPINE ISLANDS EQUIPMENT(B15), MOROCCOEQUIPMENT(CGA) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-041-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 1209-1410 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. MOROCCO EQUIPMENT(CGA),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 1411-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15), MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07), 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-749-0 01 1 1103-1108 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 1109-1208 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 1209- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-746-0 01 1 1010-1102 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1103-1108 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1109-1208 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5> 		8-97359-746-0 01 1 1109-1208 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1209-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5> 		8-97359-746-0 01 1 1209-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-97359-746-0 01 1 1508-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MI NI BUS CHASSIS VAR.2(6GQ) 		8-97359-746-0 01 1 1508-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1508-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-97359-746-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MI NI BUS CHASSIS VAR.2(6GQ) 		8-97359-746-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1010-1102 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 1103-1108 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1103-1108 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1109-1208 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1109-1208 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1209-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1209-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1508- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MI NI BUS CHASSIS VAR.2(6GQ) 		8-97359-748-0 01 1 1508- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 1508- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1508- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1010-1102 ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1103-1408 ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 1103-1408 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1409- ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1409- ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1409- ●

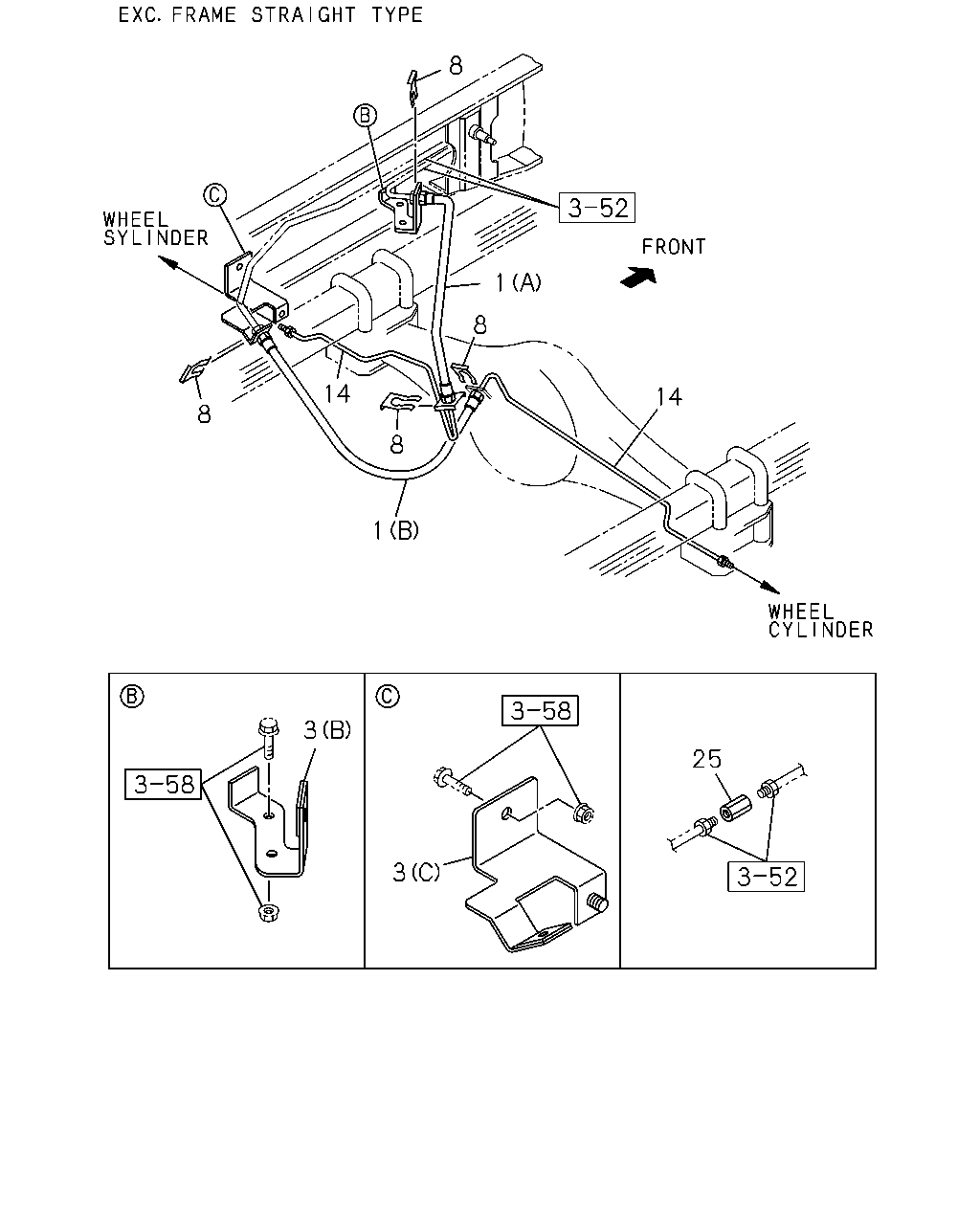

çizim 121104
3 25 14 1 8 14 8 1 8 8 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 1209- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 1209- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97253-569-0 01 1 1103-1208 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97253-569-0 01 1 1209- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97253-570-0 01 1 1103-1208 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97253-570-0 01 1 1209- ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=405 		8-97089-061-0 01 1 1010-1102 ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405 		8-97089-061-0 01 1 1103-1208 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=405 		8-97089-061-0 01 1 1103-1208 ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405 		8-97089-061-0 01 1 1209- ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=405 		8-97089-061-0 01 1 1209- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98117-514-1 01 1 1209- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (B) 		8-97205-199-1 01 1 1209- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 1010-1102 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 1103-1208 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97205-714-1 01 1 1103-1208 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 1209- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 1209- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 1209- ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 1103- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1010-1102 ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 1103- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1103- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) PHILIPPINE ISLANDS EQUIPMENT(B15), MOROCCOEQUIPMENT(CGA) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97202-212-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) PHILIPPINE ISLANDS EQUIPMENT(B15), MOROCCOEQUIPMENT(CGA) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-98026-043-1 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-747-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) MOROCCO EQUIPMENT(CGA) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-041-0 01 1 1411-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) PHILIPPINE ISLANDS EQUIPMENT(B15), MOROCCOEQUIPMENT(CGA) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-041-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 1209-1410 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. MOROCCO EQUIPMENT(CGA),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 1411-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15), MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07), 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-749-0 01 1 1103-1108 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 1109-1208 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 1209- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-746-0 01 1 1010-1102 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1103-1108 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1109-1208 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5> 		8-97359-746-0 01 1 1109-1208 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1209-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5> 		8-97359-746-0 01 1 1209-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-97359-746-0 01 1 1508-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MI NI BUS CHASSIS VAR.2(6GQ) 		8-97359-746-0 01 1 1508-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1508-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-97359-746-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MI NI BUS CHASSIS VAR.2(6GQ) 		8-97359-746-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1010-1102 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 1103-1108 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1103-1108 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1109-1208 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1109-1208 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1209-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1209-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1508- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MI NI BUS CHASSIS VAR.2(6GQ) 		8-97359-748-0 01 1 1508- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 1508- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1508- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1010-1102 ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1103-1408 ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 1103-1408 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1409- ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1409- ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1409- ●
çizim 121139
25 14 8 135 1 8 3 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 1209- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 1209- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97253-569-0 01 1 1103-1208 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97253-569-0 01 1 1209- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97253-570-0 01 1 1103-1208 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97253-570-0 01 1 1209- ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=405 		8-97089-061-0 01 1 1010-1102 ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405 		8-97089-061-0 01 1 1103-1208 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=405 		8-97089-061-0 01 1 1103-1208 ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405 		8-97089-061-0 01 1 1209- ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=405 		8-97089-061-0 01 1 1209- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98117-514-1 01 1 1209- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (B) 		8-97205-199-1 01 1 1209- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 1010-1102 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 1103-1208 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97205-714-1 01 1 1103-1208 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 1209- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 1209- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 1209- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1103-1208 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1209- ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 1103- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1010-1102 ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 1103- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1103- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) PHILIPPINE ISLANDS EQUIPMENT(B15), MOROCCOEQUIPMENT(CGA) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97202-212-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) PHILIPPINE ISLANDS EQUIPMENT(B15), MOROCCOEQUIPMENT(CGA) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-98026-043-1 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-747-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) MOROCCO EQUIPMENT(CGA) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-041-0 01 1 1411-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) PHILIPPINE ISLANDS EQUIPMENT(B15), MOROCCOEQUIPMENT(CGA) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-041-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 1209-1410 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. MOROCCO EQUIPMENT(CGA),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 1411-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15), MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07), 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-749-0 01 1 1103-1108 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 1109-1208 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 1209- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-746-0 01 1 1010-1102 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1103-1108 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
COLOMBIA EQUIPMENT(CB7) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1109-1208 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5> 		8-97359-746-0 01 1 1109-1208 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1209-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5> 		8-97359-746-0 01 1 1209-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-97359-746-0 01 1 1508-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MI NI BUS CHASSIS VAR.2(6GQ) 		8-97359-746-0 01 1 1508-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1508-1510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) COLOMBIA EQUIPMENT(CB7) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-97359-746-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.5-7.0TON(RPW) 		8-97359-746-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MI NI BUS CHASSIS VAR.2(6GQ) 		8-97359-746-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-746-0 01 1 1511- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1010-1102 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 1103-1108 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1103-1108 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1109-1208 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1109-1208 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1209-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1209-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1508- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5>,MINI BUS CHASSIS(V4B),MI NI BUS CHASSIS VAR.2(6GQ) 		8-97359-748-0 01 1 1508- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 1508- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1508- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1010-1102 ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1103-1408 ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 1103-1408 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1409- ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1409- ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1409- ●
135 04.686 CLIP; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97207-699-0 04 1 1103-1208 ●
135 04.686 CLIP; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97207-699-0 04 1 1209- ●

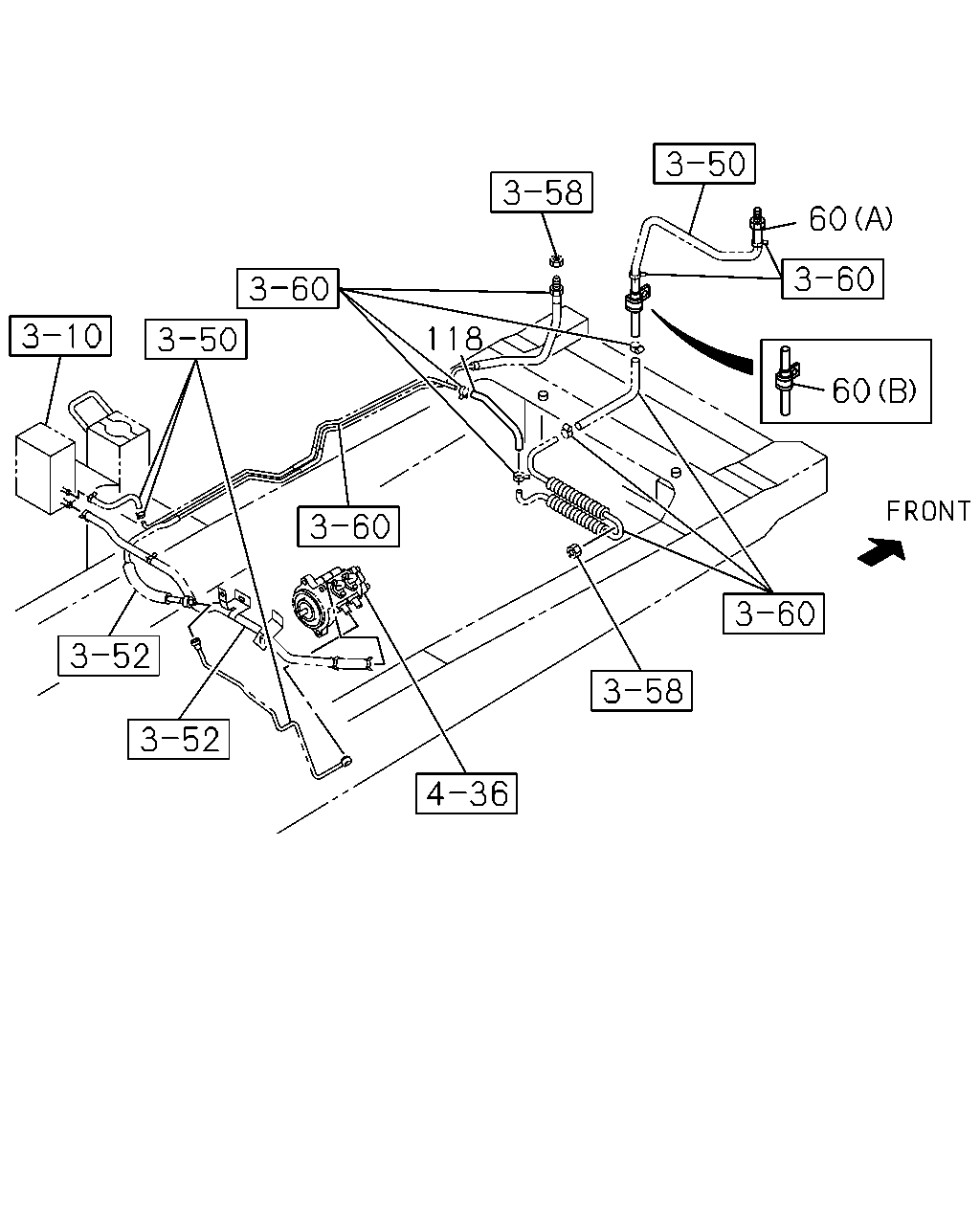

çizim 292156
118 60 60
BalonParca AdiParca NoAdetTipApplied Date A B
60 04.685 PIPE ASM; BRK
(A) 		8-98080-549-0 01 1 1010-1102 ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 1103-1108 ●
60 04.685 PIPE ASM; BRK
(A) 		8-98080-549-0 01 1 1103-1108 ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 1109- ● ●
60 04.685 PIPE ASM; BRK
(B) 		8-98127-815-0 01 1 1010-1102 ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98127-815-0 01 1 1103-1108 ●
60 04.685 PIPE ASM; BRK
(B) 		8-98127-815-0 01 1 1103-1108 ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98127-815-0 01 1 1109- ● ●
118 04.680 HOSE; PIPE TO PIPE 8-98158-200-0 01 1 1010-1102 ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 		8-98158-200-0 01 1 1103-1108 ●
118 04.680 HOSE; PIPE TO PIPE 8-98158-200-0 01 1 1103-1108 ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 		8-98158-200-0 01 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
