Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#77839) — 310 parça

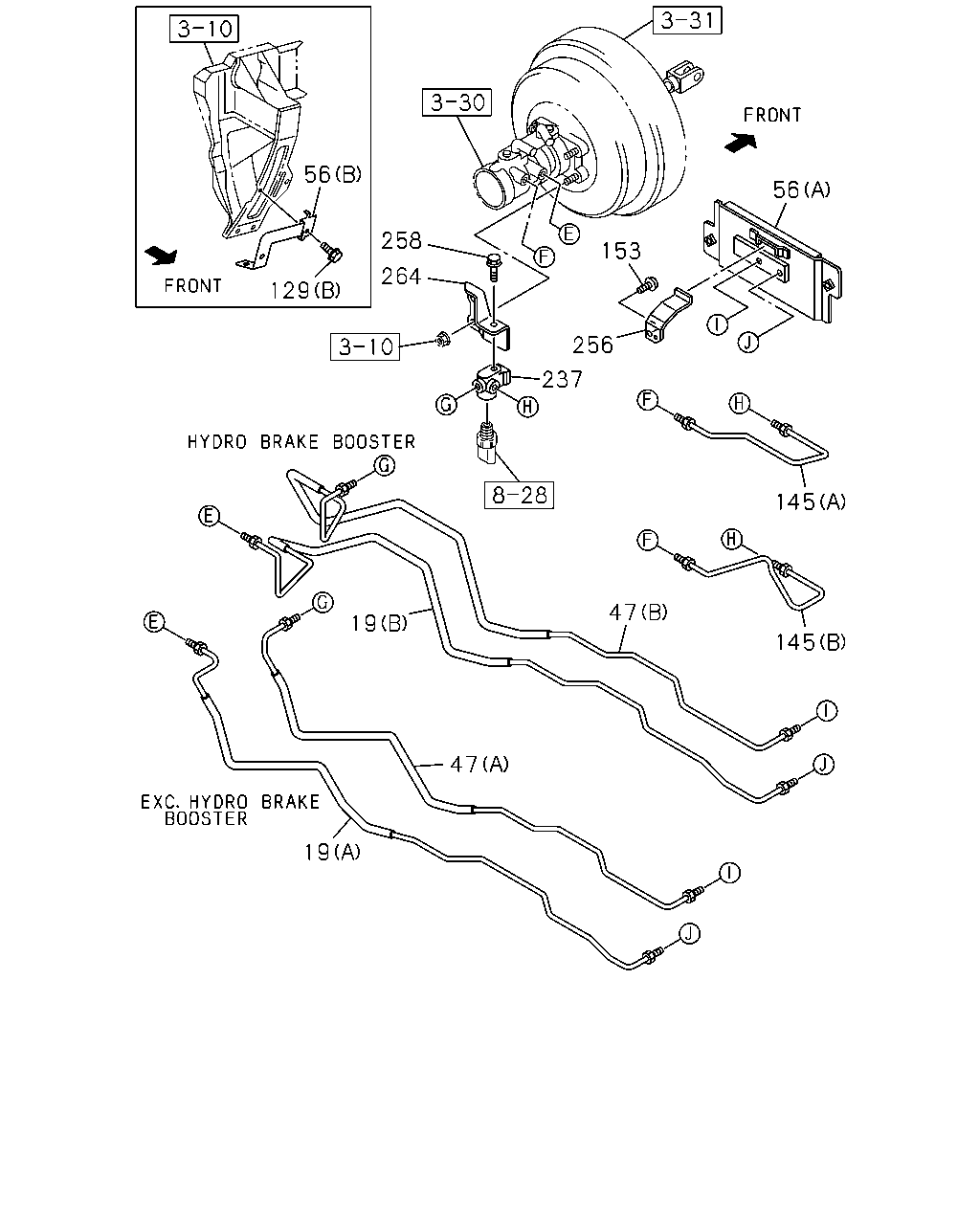

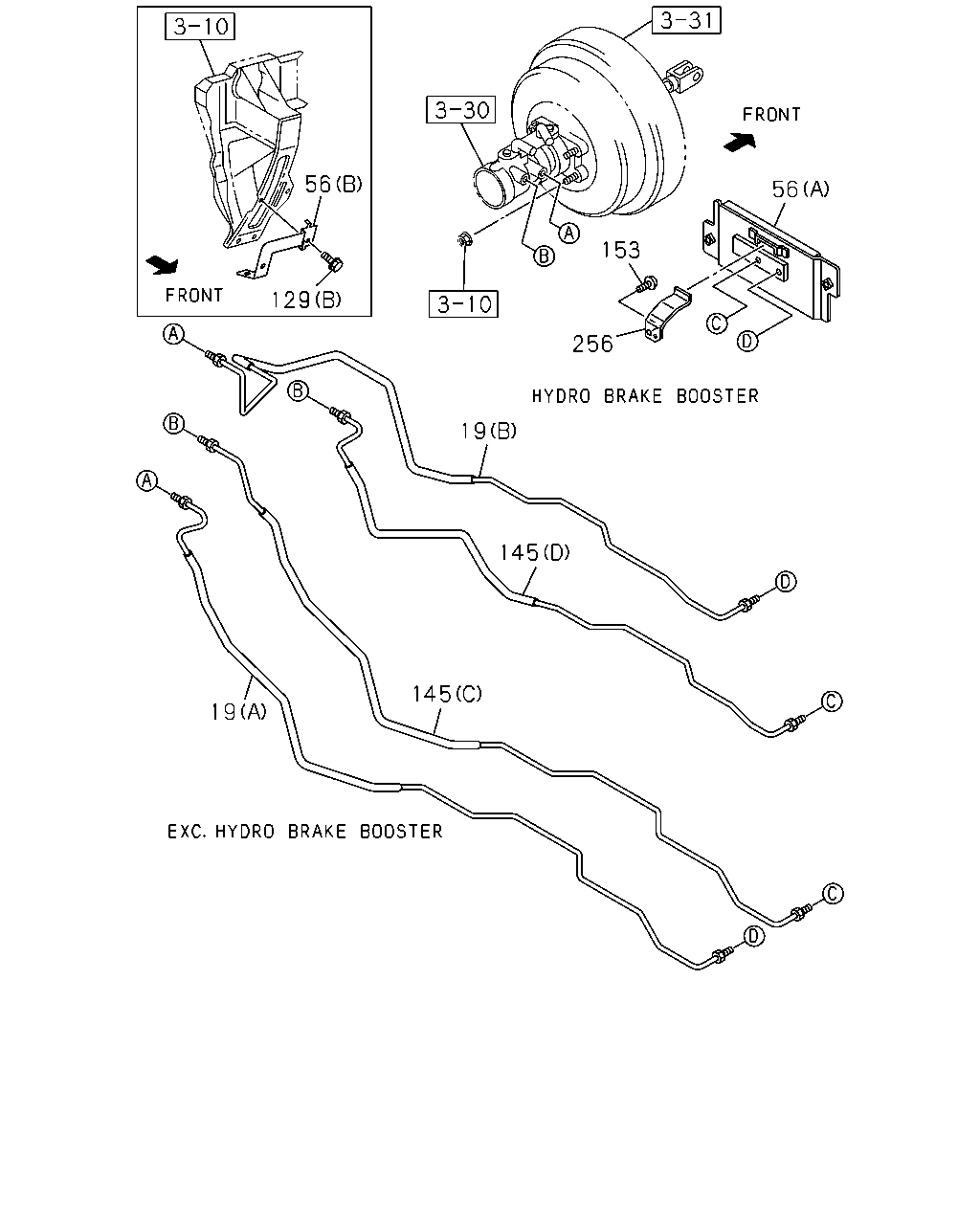

56 129 153 256 56 19 145 145 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98056-155-1	02	1	1010-1102	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98056-155-1	02	1	1103-1108	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98056-155-1	02	1	1109-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98076-015-0	01	1	1010-1102	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98076-015-0	01	1	1103-1108	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98076-015-0	01	1	1109-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98055-945-2	01	1	1010-1102		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-945-2	01	1	1103-1108	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98055-945-2	01	1	1103-1108		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-945-2	01	1	1109-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98080-579-1	02	1	1010-1102		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98080-579-1	02	1	1103-1108	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98080-579-1	02	1	1103-1108		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98080-579-1	02	1	1109-	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1010-1102	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1103-1108	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1109-	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	1010-	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1010-1102		●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1103-1108	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1103-1108		●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1109-	●	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1010-	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1010-	●	●
129	04.710 BOLT; BRKT 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1010-1102		●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1103-1108	●
129	04.710 BOLT; BRKT 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1103-1108		●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1109-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) L=228	8-98133-411-0	01	1	1103-1507	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. COLOMBIA EQUIPMENT(CB7) (B) L=228	8-98133-411-0	01	1	1508-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=247	8-98133-410-0	01	1	1103-1507	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7),HYDRO BRAKE BOOSTER(7QQ) (A) L=247	8-98133-410-0	01	1	1508-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98070-477-1	01	1	1010-1102	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	1103-1108	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	1109-1507	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	1109-1507		●
145	04.685 PIPE; BRK,METERING VLV TO UNION COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	1508-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	1508-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	1508-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION (D)	8-98070-483-0	01	1	1010-1102		●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98070-483-0	01	1	1103-1108	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (D)	8-98070-483-0	01	1	1103-1108		●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98070-483-0	01	1	1109-1507	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98070-483-0	01	1	1109-1507		●
145	04.685 PIPE; BRK,METERING VLV TO UNION COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (D)	8-98070-483-0	01	1	1508-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98070-483-0	01	1	1508-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98070-483-0	01	1	1508-		●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1010-1102	●	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1103-1108	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1103-1108		●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1109-	●	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1010-1102	●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1103-1108	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1103-1108		●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1109-	●	●

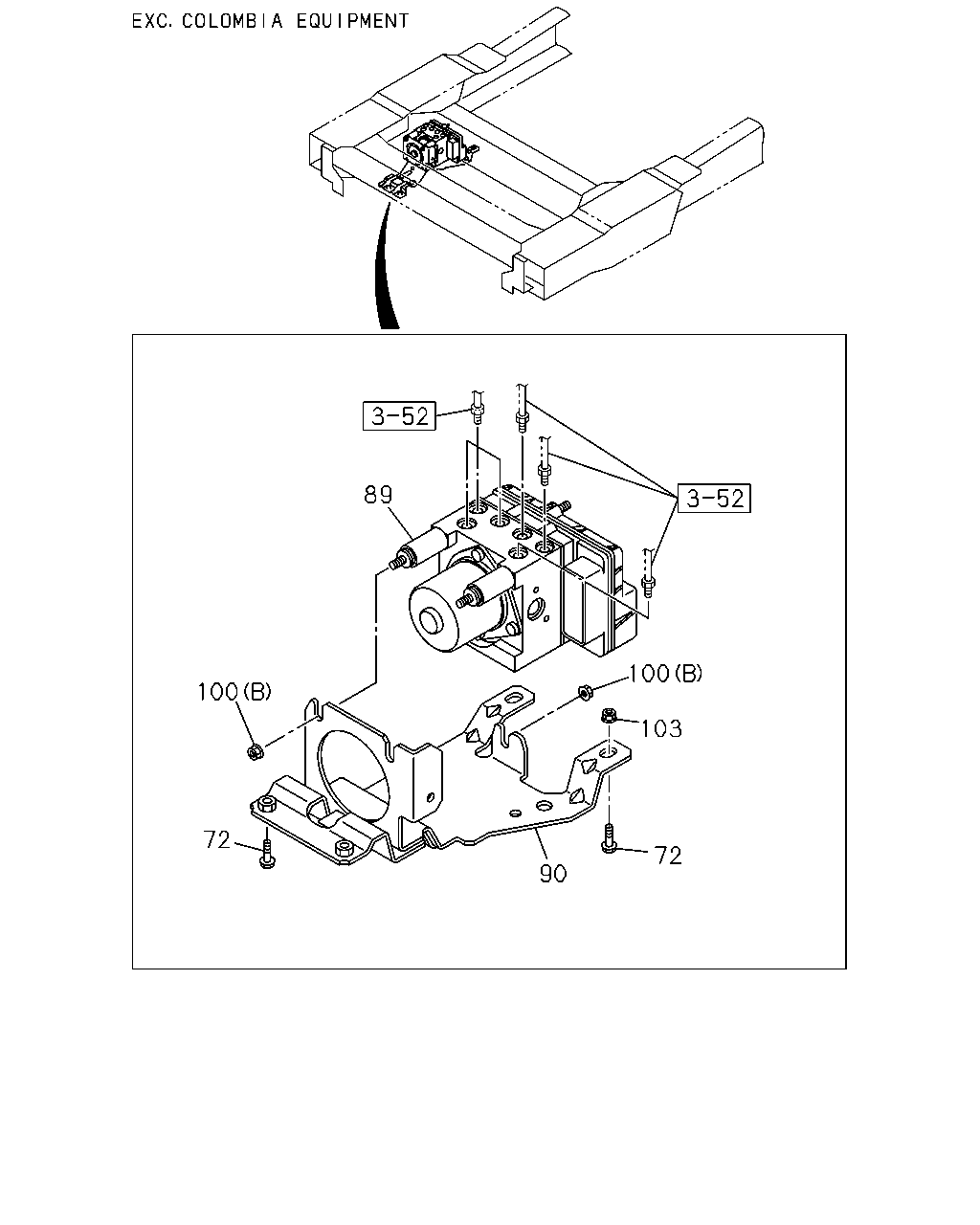

89 103 72 179 197 94 72 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1103-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-826-0	01	1	1505-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-006-1	01	1	1103-1504	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-006-1	01	1	1505-	●
94	04.730 BRACKET; ABS CONT UNIT COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT>	8-98131-875-2	01	1	1508-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	02	1	1103-1208	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1209-1507	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
179	04.685 SPACER; BRKT COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT>	8-98130-134-0	03	1	1508-	●
184	04.681 BOLT; CLIP COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT> M6X27 W/PL WASHER	8-98131-461-0	03	1	1508-	●
184	04.681 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1010-1102		●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1103-1108	●
184	04.681 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1103-1108		●
184	04.681 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1109-	●	●
197	04.730 RUBBER; DAMPER COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT>	8-98130-133-0	03	1	1508-	●

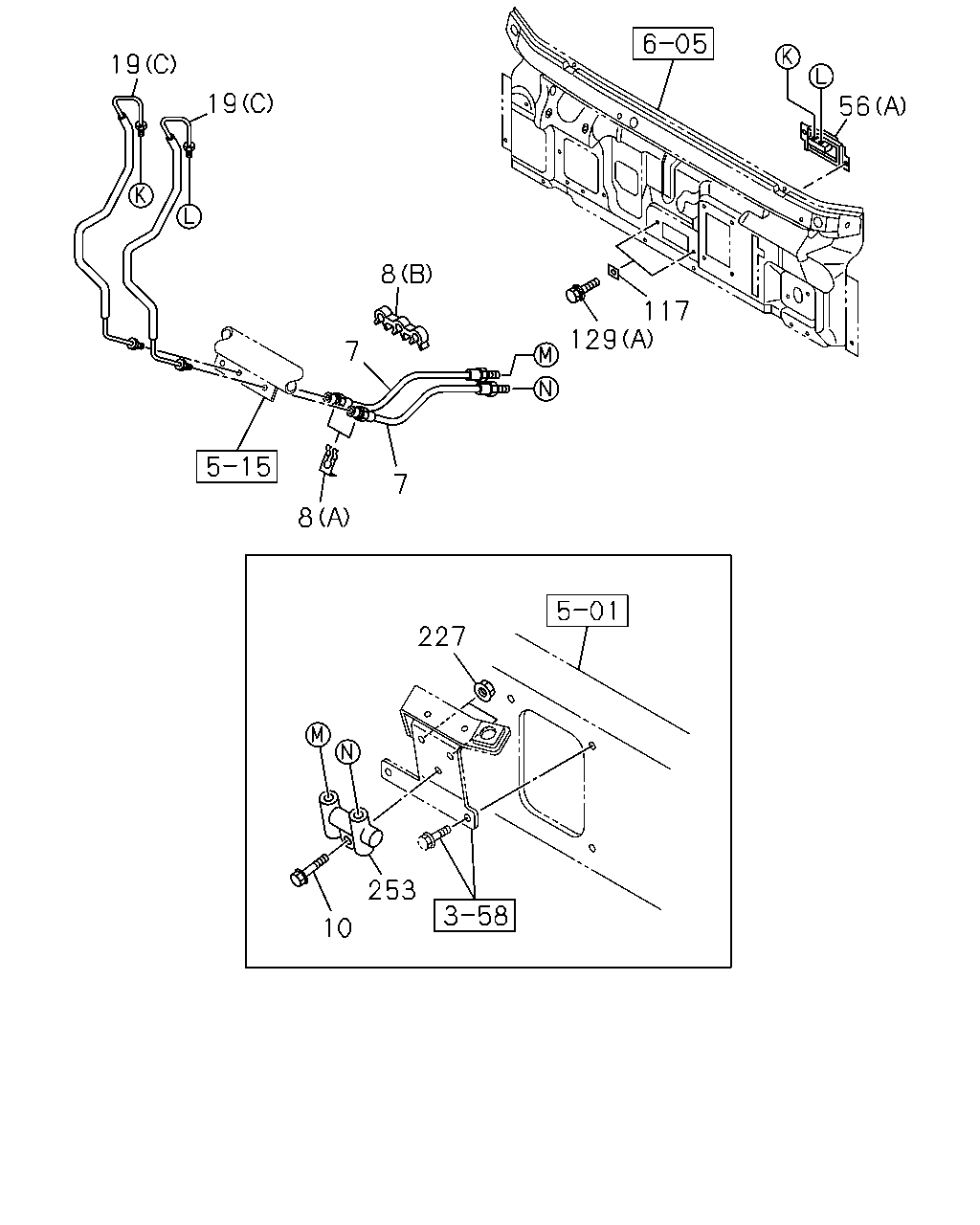

19 19 8 7 7 8 129 117 227 253 10 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	1010-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	1010-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1010-	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1010-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98056-155-1	02	1	1010-1102	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98056-155-1	02	1	1103-1108	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98056-155-1	02	1	1109-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98076-015-0	01	1	1010-1102	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98076-015-0	01	1	1103-1108	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98076-015-0	01	1	1109-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98055-945-2	01	1	1010-1102		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-945-2	01	1	1103-1108	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98055-945-2	01	1	1103-1108		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-945-2	01	1	1109-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98080-579-1	02	1	1010-1102		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98080-579-1	02	1	1103-1108	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98080-579-1	02	1	1103-1108		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98080-579-1	02	1	1109-	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1010-1102	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1103-1108	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1109-	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	1010-	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1010-1102		●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1103-1108	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1103-1108		●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1109-	●	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	1010-	●	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1010-	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1010-	●	●
129	04.710 BOLT; BRKT 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1010-1102		●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1103-1108	●
129	04.710 BOLT; BRKT 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1103-1108		●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1109-	●	●
227	04.685 NUT; JOINT 01.062 M8 FLANGE	0-91180-108-0	02	1	1010-1208	●	●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1209-	●
227	04.685 NUT; JOINT EXC. AIR BAG DRIVER<AJ3>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1209-	●
227	04.685 NUT; JOINT 01.062 M8 FLANGE	0-91180-108-0	02	1	1209-		●
253	04.840 JOINT BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	8-97120-033-2	01	1	1409-	●
253	04.840 JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-1	01	1	1103-	●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	1010-1102	●	●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	5-47456-009-1	01	1	1103-1408	●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	1103-1408		●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH> 04.686	5-47456-009-1	01	1	1409-	●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	1409-		●

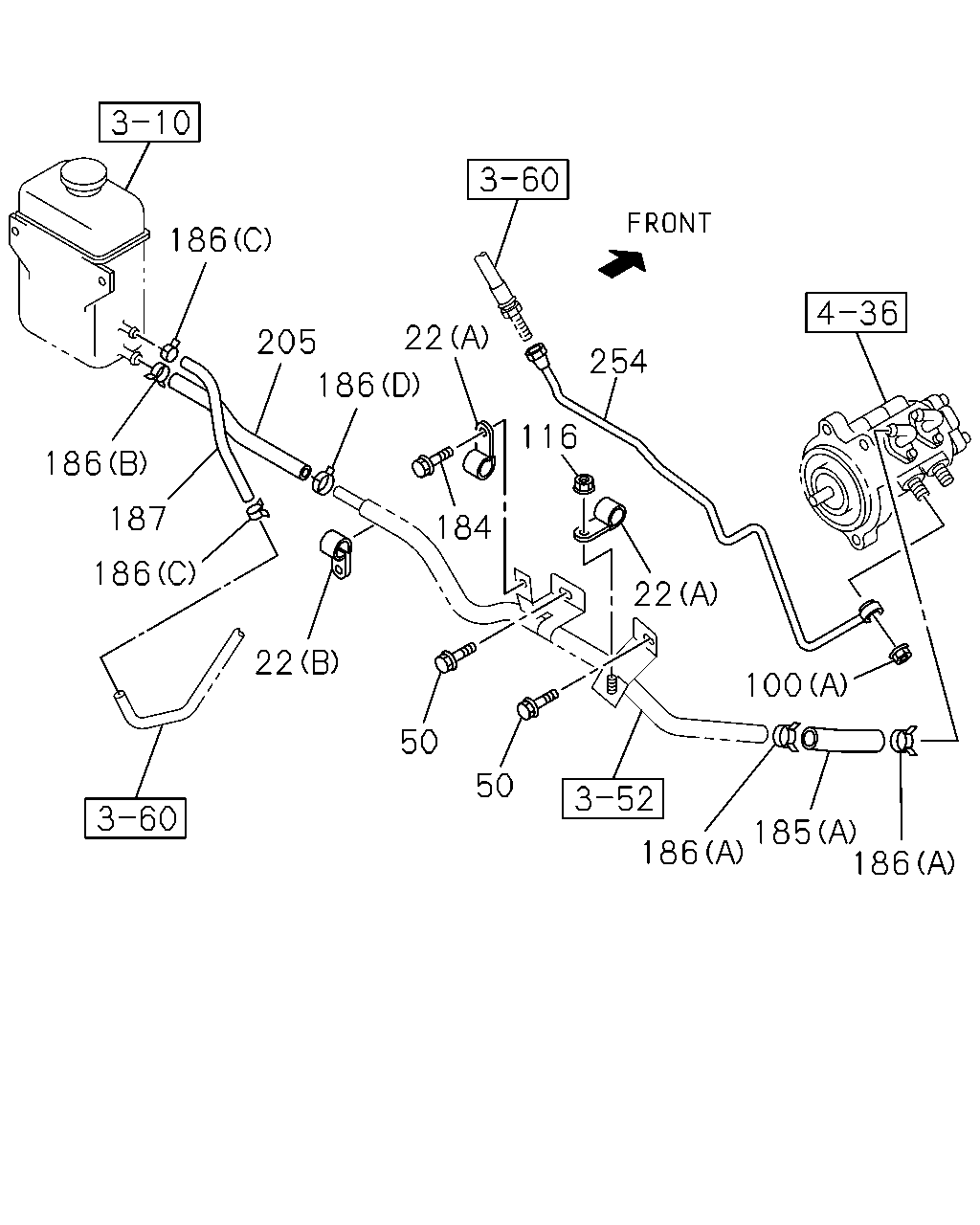

186 185 100 22 116 254 22 186 205 186 186 187 186 22 50 50 186 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	04.685 CLIP (A) ID=10 L=16.5	8-98082-034-0	02	1	1010-1102		●
22	04.685 CLIP HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5	8-98082-034-0	02	1	1103-1108	●
22	04.685 CLIP (A) ID=10 L=16.5	8-98082-034-0	02	1	1103-1108		●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5	8-98082-034-0	02	1	1109-	●	●
22	04.685 CLIP (B) ID=17 L=21	8-98082-035-0	01	1	1010-1102		●
22	04.685 CLIP HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21	8-98082-035-0	01	1	1103-1108	●
22	04.685 CLIP (B) ID=17 L=21	8-98082-035-0	01	1	1103-1108		●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21	8-98082-035-0	01	1	1109-	●	●
50	04.710 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1010-1102		●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1103-1108	●
50	04.710 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1103-1108		●
50	04.710 BOLT; PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1109-	●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	1103-1507	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7) 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	1508-	●
100	04.730 NUT; HYDRAULIC UNIT (A)	8-97358-958-0	01	1	1010-1102		●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER(7QQ) (A)	8-97358-958-0	01	1	1103-1108	●
100	04.730 NUT; HYDRAULIC UNIT (A)	8-97358-958-0	01	1	1103-1108		●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97358-958-0	01	1	1109-	●	●
116	04.686 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1010-1102		●
116	04.686 NUT HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-1108	●
116	04.686 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1103-1108		●
116	04.686 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●	●
184	04.681 BOLT; CLIP COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT> M6X27 W/PL WASHER	8-98131-461-0	03	1	1508-	●
184	04.681 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1010-1102		●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1103-1108	●
184	04.681 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1103-1108		●
184	04.681 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1109-	●	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1010-1102		●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1103-1108	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1103-1108		●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1109-	●	●
185	04.681 HOSE; RUBBER,SUCTION (B)	8-98082-497-0	01	1	1010-1102		●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	1103-1108	●
185	04.681 HOSE; RUBBER,SUCTION (B)	8-98082-497-0	01	1	1103-1108		●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	1109-	●	●
186	04.681 CLIP; HOSE 06.672 (A) ID=21	8-94242-034-0	02	1	1010-1102		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 06.672 (A) ID=21	8-94242-034-0	02	1	1103-1108	●
186	04.681 CLIP; HOSE 06.672 (A) ID=21	8-94242-034-0	02	1	1103-1108		●
186	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 06.672 (A) ID=21	8-94242-034-0	02	1	1109-	●	●
186	04.681 CLIP; HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1010-1102		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.278 (B) ID=22	8-97359-141-0	01	1	1103-1108	●
186	04.681 CLIP; HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1103-1108		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.278 (B) ID=22	8-97359-141-0	01	1	1109-	●	●
186	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	02	1	1010-1102		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=16	8-98008-098-0	02	1	1103-1108	●
186	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	02	1	1103-1108		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=16	8-98008-098-0	02	1	1109-	●	●
186	04.681 CLIP; HOSE (D) ID=21	8-98150-355-0	01	1	1010-1102		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (D) ID=21	8-98150-355-0	01	1	1103-1108	●
186	04.681 CLIP; HOSE (D) ID=21	8-98150-355-0	01	1	1103-1108		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (D) ID=21	8-98150-355-0	01	1	1109-	●	●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1010-1102		●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1103-1108	●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1103-1108		●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1109-	●	●
205	04.681 HOSE; TANK TO PIPE 06.670 SERVICED BY L=300	0-09814-300-0	01	1	1010-1102		●
205	04.681 HOSE; TANK TO PIPE HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300	0-09814-300-0	01	1	1103-1108	●
205	04.681 HOSE; TANK TO PIPE 06.670 SERVICED BY L=300	0-09814-300-0	01	1	1103-1108		●
205	04.681 HOSE; TANK TO PIPE HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300	0-09814-300-0	01	1	1109-	●	●
254	04.685 PIPE; BRAKE,2WAY 4HK1-TCN ENG(RDQ)	8-98036-161-0	01	1	1010-1102		●
254	04.685 PIPE; BRAKE,2WAY HYDRO BRAKE BOOSTER(7QQ)	8-98036-161-0	01	1	1103-1108	●
254	04.685 PIPE; BRAKE,2WAY	8-98036-161-0	01	1	1103-1108		●
254	04.685 PIPE; BRAKE,2WAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ)	8-98036-161-0	01	1	1109-	●	●

56 129 258 264 56 145 153 256 237 19 47 145 47 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98056-155-1	02	1	1010-1102	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98056-155-1	02	1	1103-1108	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98056-155-1	02	1	1109-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98076-015-0	01	1	1010-1102	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98076-015-0	01	1	1103-1108	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98076-015-0	01	1	1109-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98055-945-2	01	1	1010-1102		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-945-2	01	1	1103-1108	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98055-945-2	01	1	1103-1108		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-945-2	01	1	1109-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98080-579-1	02	1	1010-1102		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98080-579-1	02	1	1103-1108	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98080-579-1	02	1	1103-1108		●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98080-579-1	02	1	1109-	●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) L=1054	8-98133-416-0	01	1	1103-1507	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. COLOMBIA EQUIPMENT(CB7) (B) L=1054	8-98133-416-0	01	1	1508-	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=876	8-98133-415-0	01	1	1103-1507	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7),HYDRO BRAKE BOOSTER(7QQ) (A) L=876	8-98133-415-0	01	1	1508-	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1010-1102	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1103-1108	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1109-	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	1010-	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1010-1102		●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1103-1108	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1103-1108		●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1109-	●	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1010-	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1010-	●	●
129	04.710 BOLT; BRKT 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1010-1102		●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1103-1108	●
129	04.710 BOLT; BRKT 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1103-1108		●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1109-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) L=228	8-98133-411-0	01	1	1103-1507	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. COLOMBIA EQUIPMENT(CB7) (B) L=228	8-98133-411-0	01	1	1508-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=247	8-98133-410-0	01	1	1103-1507	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7),HYDRO BRAKE BOOSTER(7QQ) (A) L=247	8-98133-410-0	01	1	1508-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98070-477-1	01	1	1010-1102	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	1103-1108	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	1109-1507	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	1109-1507		●
145	04.685 PIPE; BRK,METERING VLV TO UNION COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	1508-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	1508-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	1508-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION (D)	8-98070-483-0	01	1	1010-1102		●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98070-483-0	01	1	1103-1108	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (D)	8-98070-483-0	01	1	1103-1108		●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98070-483-0	01	1	1109-1507	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98070-483-0	01	1	1109-1507		●
145	04.685 PIPE; BRK,METERING VLV TO UNION COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (D)	8-98070-483-0	01	1	1508-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98070-483-0	01	1	1508-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98070-483-0	01	1	1508-		●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1010-1102	●	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1103-1108	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1103-1108		●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1109-	●	●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98111-748-1	01	1	1103-1507	●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7)	8-98111-748-1	01	1	1508-	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1010-1102	●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1103-1108	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1103-1108		●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1109-	●	●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1103-1507	●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1508-	●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	1103-1507	●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7)	8-97387-683-2	01	1	1508-	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> L=674	8-98159-735-0	01	1	1409-	●
	35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-97389-541-2	01	1	1409-	●

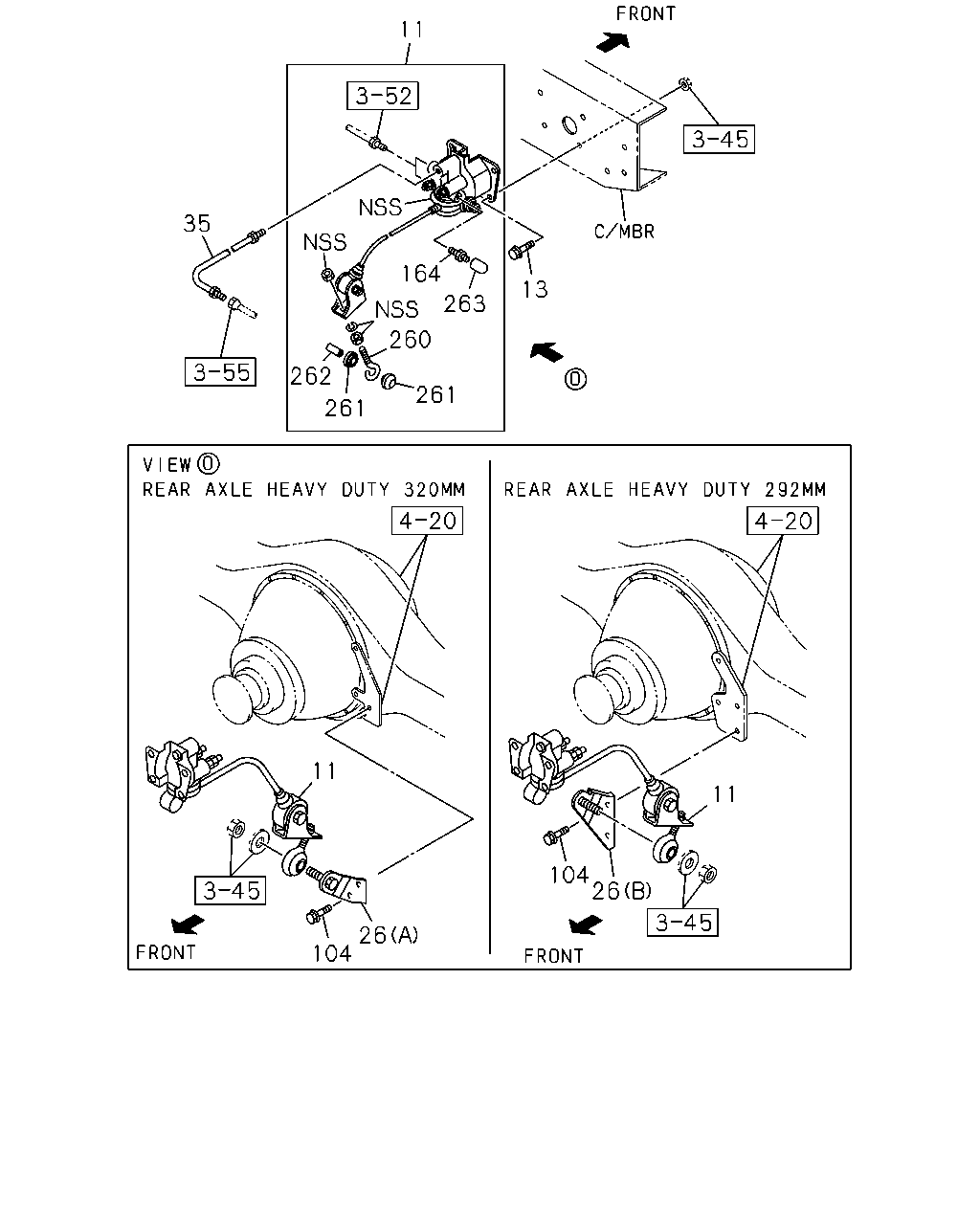

13 263 164 11 35 262 261 261 260 11 26 104 11 26 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
11	04.686 VALVE; BRK CONT BRK WHL LK CONT LSPV<6PH> 04.730	8-94427-224-2	01	1	1409-	●
13	04.686 BOLT; VLV TO BRKT BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1409-	●
26	04.730 BRACKET; PROPORTIONING VLV REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH> (B)	8-98029-822-0	01	1	1409-	●
26	04.730 BRACKET; PROPORTIONING VLV REAR AXLE HEAVY DUTY 320MM(6CP) BRK WHL LK CONT LSPV<6PH> (A)	8-98029-821-0	01	1	1409-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> L=674	8-98159-735-0	01	1	1409-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-97389-541-2	01	1	1409-	●
104	04.730 BOLT; BRKT TO BODY BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1409-	●
164	04.730 SCREW; BLEEDER BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-663-0	01	1	1409-	●
260	04.685 SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH> 04.710	8-97173-366-0	01	1	1409-	●
261	04.685 BUSHING; LSPV BRK WHL LK CONT LSPV<6PH> 04.710	8-97145-631-0	02	1	1409-	●
262	04.685 COLLAR; LSPV BRK WHL LK CONT LSPV<6PH> 04.710	8-97139-186-0	01	1	1409-	●
263	04.685 CAP; BLEEDER BRK WHL LK CONT LSPV<6PH>	8-97093-662-0	01	1	1409-	●

89 100 72 100 103 72 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1103-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98270-826-0	01	1	1505-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-006-1	01	1	1103-1504	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT(CX0),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-006-1	01	1	1505-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97385-320-0	01	1	1103-1507	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7)	8-97385-320-0	01	1	1508-	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	1103-1507	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. COLOMBIA EQUIPMENT(CB7) 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	1508-	●
100	04.730 NUT; HYDRAULIC UNIT (A)	8-97358-958-0	01	1	1010-1102		●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER(7QQ) (A)	8-97358-958-0	01	1	1103-1108	●
100	04.730 NUT; HYDRAULIC UNIT (A)	8-97358-958-0	01	1	1103-1108		●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97358-958-0	01	1	1109-	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	02	1	1103-1208	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1209-1507	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●

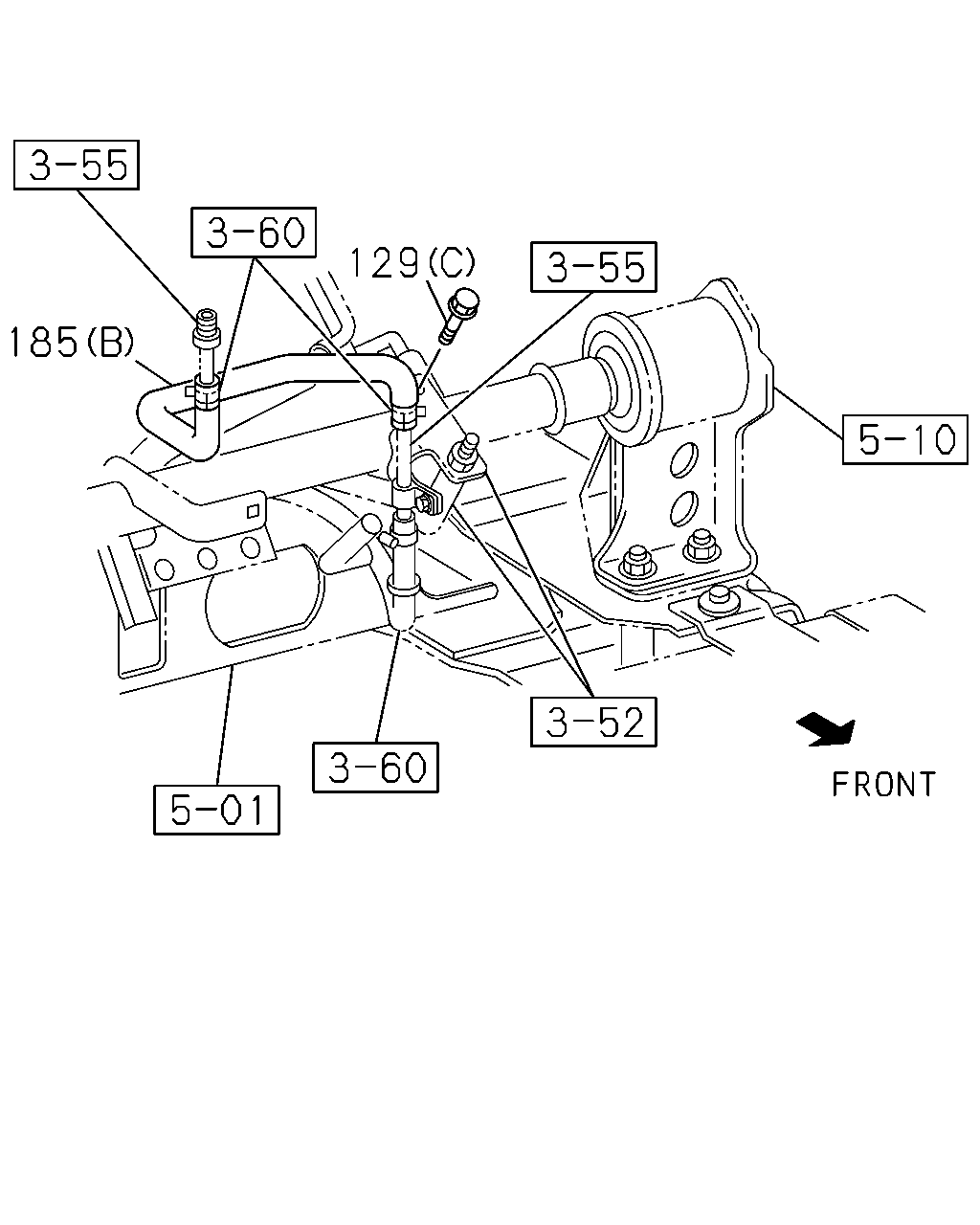

129 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1010-	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1010-	●	●
129	04.710 BOLT; BRKT 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1010-1102		●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1103-1108	●
129	04.710 BOLT; BRKT 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1103-1108		●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1109-	●	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1010-1102		●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1103-1108	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1103-1108		●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1109-	●	●
185	04.681 HOSE; RUBBER,SUCTION (B)	8-98082-497-0	01	1	1010-1102		●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	1103-1108	●
185	04.681 HOSE; RUBBER,SUCTION (B)	8-98082-497-0	01	1	1103-1108		●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	1109-	●	●

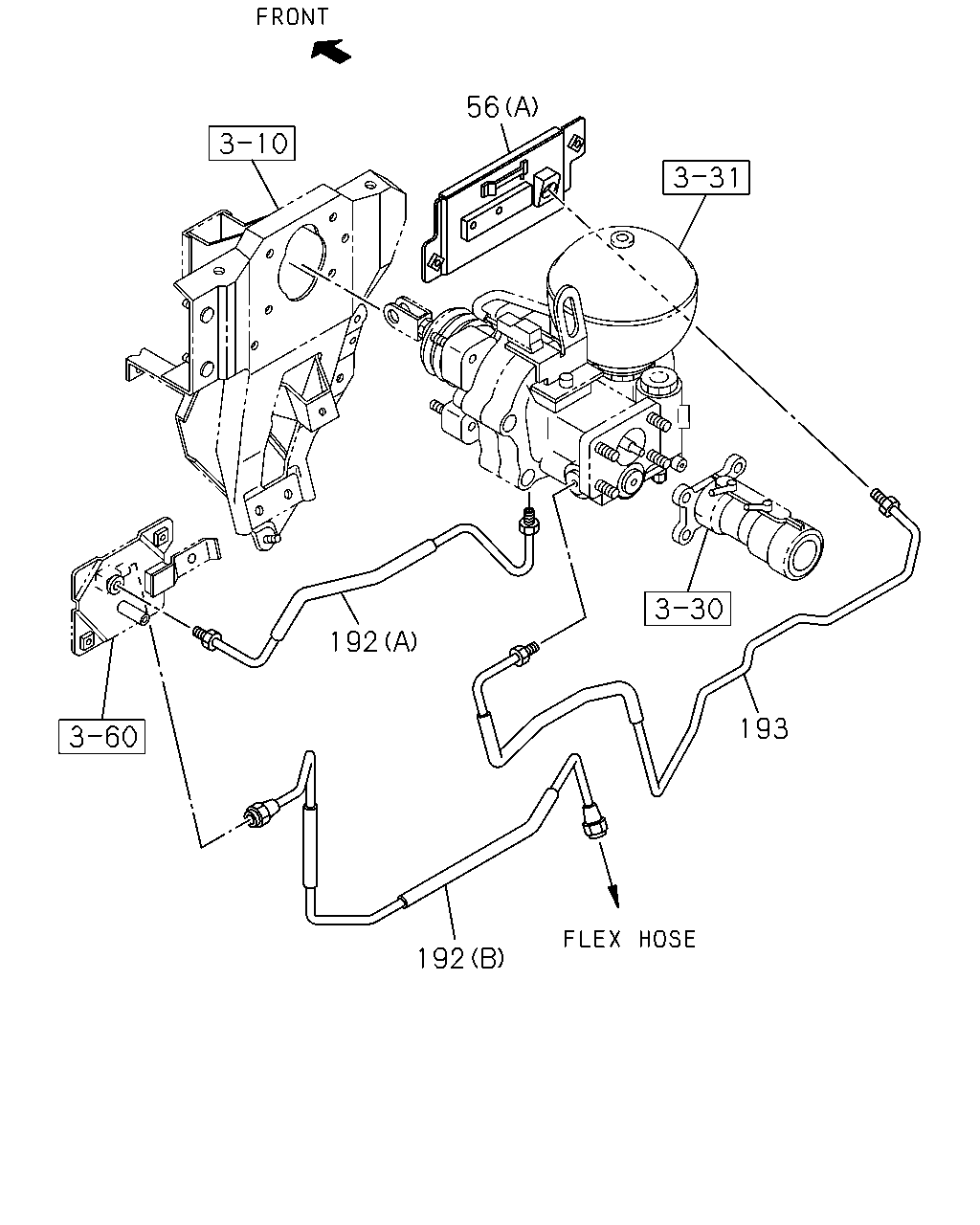

56 193 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1010-1102	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1103-1108	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1109-	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	1010-	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1010-1102		●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1103-1108	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1103-1108		●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1109-	●	●
192	04.685 PIPE; PRESSURE (A)	8-98033-960-0	01	1	1010-1102		●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98033-960-0	01	1	1103-1108	●
192	04.685 PIPE; PRESSURE (A)	8-98033-960-0	01	1	1103-1108		●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98033-960-0	01	1	1109-	●	●
192	04.685 PIPE; PRESSURE (B)	8-98033-961-3	01	1	1010-1102		●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98033-961-3	01	1	1103-1108	●
192	04.685 PIPE; PRESSURE (B)	8-98033-961-3	01	1	1103-1108		●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98033-961-3	01	1	1109-	●	●
193	04.685 PIPE; RETURN	8-98090-257-0	01	1	1010-1102		●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98090-257-0	01	1	1103-1108	●
193	04.685 PIPE; RETURN	8-98090-257-0	01	1	1103-1108		●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98090-257-0	01	1	1109-	●	●

130 131 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97080-060-2	02	1	1103-	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98141-581-0	02	1	1103-	●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1103-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
