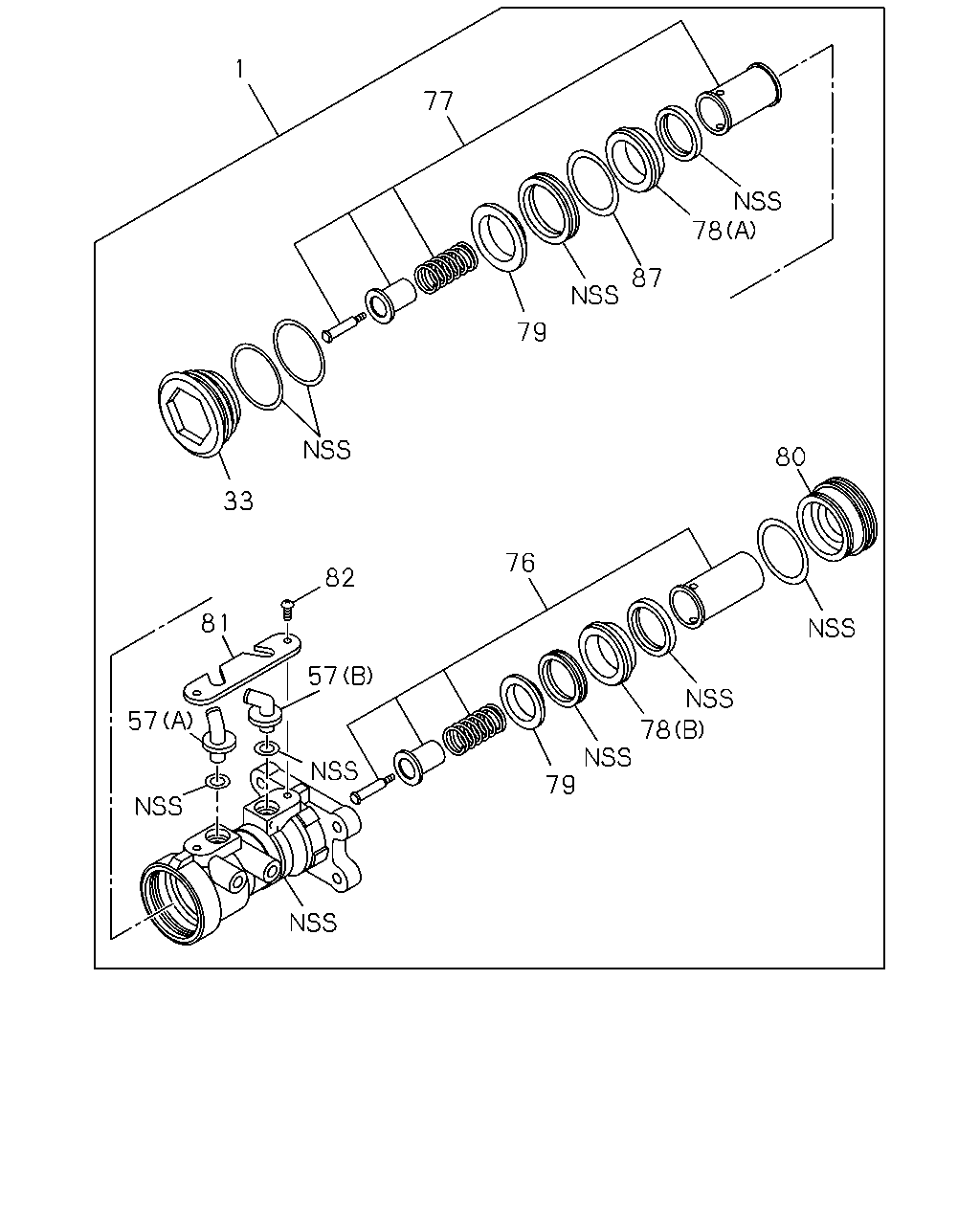

3-30 — BRAKE MASTER CYLINDER (#77837) — 124 parça

1 77 78 87 79 33 81 82 57 57 76 79 78 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.650 CYLINDER ASM; BRK MASTER G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98032-617-0	01	1	1209-	●
1	04.650 CYLINDER ASM; BRK MASTER	8-98032-602-0	01	1	1010-1102	●
1	04.650 CYLINDER ASM; BRK MASTER EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98032-602-0	01	1	1103-1108	●
1	04.650 CYLINDER ASM; BRK MASTER G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98032-602-0	01	1	1109-1510	●
1	04.650 CYLINDER ASM; BRK MASTER EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98032-602-0	01	1	1109-1510		●
1	04.650 CYLINDER ASM; BRK MASTER PERU EQUIPMENT(E07) G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98032-602-0	01	1	1511-	●
1	04.650 CYLINDER ASM; BRK MASTER G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98032-602-0	01	1	1511-	●
1	04.650 CYLINDER ASM; BRK MASTER EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98032-602-0	01	1	1511-		●
1	04.650 CYLINDER ASM; BRK MASTER	8-98032-603-0	01	1	1010-1102		●
1	04.650 CYLINDER ASM; BRK MASTER HYDRO BRAKE BOOSTER(7QQ)	8-98032-603-0	01	1	1103-1108	●
1	04.650 CYLINDER ASM; BRK MASTER	8-98032-603-0	01	1	1103-1108		●
1	04.650 CYLINDER ASM; BRK MASTER HYDRO BRAKE BOOSTER(7QQ)	8-98032-603-0	01	1	1109-	●	●
33	04.661 PLUG; END,M/CYL G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97186-696-0	01	1	1209-	●
33	04.661 PLUG; END,M/CYL	8-97186-697-0	01	1	1010-1102	●
33	04.661 PLUG; END,M/CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97186-697-0	01	1	1103-1108	●
33	04.661 PLUG; END,M/CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97186-697-0	01	1	1109-1510	●
33	04.661 PLUG; END,M/CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97186-697-0	01	1	1109-1510		●
33	04.661 PLUG; END,M/CYL PERU EQUIPMENT(E07) G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97186-697-0	01	1	1511-	●
33	04.661 PLUG; END,M/CYL G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97186-697-0	01	1	1511-	●
33	04.661 PLUG; END,M/CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97186-697-0	01	1	1511-		●
33	04.661 PLUG; END,M/CYL	8-97186-699-0	01	1	1010-1102		●
33	04.661 PLUG; END,M/CYL HYDRO BRAKE BOOSTER(7QQ)	8-97186-699-0	01	1	1103-1108	●
33	04.661 PLUG; END,M/CYL	8-97186-699-0	01	1	1103-1108		●
33	04.661 PLUG; END,M/CYL HYDRO BRAKE BOOSTER(7QQ)	8-97186-699-0	01	1	1109-	●	●
57	04.651 NIPPLE; BRK M/CYL (A)	8-97130-441-0	01	1	1010-	●	●
57	04.651 NIPPLE; BRK M/CYL (B)	8-97130-442-0	01	1	1010-	●	●
76	04.653 PISTON ASM; PRIMARY G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-636-0	01	1	1209-	●
76	04.653 PISTON ASM; PRIMARY	8-97224-643-0	01	1	1010-1102	●
76	04.653 PISTON ASM; PRIMARY EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-643-0	01	1	1103-1108	●
76	04.653 PISTON ASM; PRIMARY G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-643-0	01	1	1109-1510	●
76	04.653 PISTON ASM; PRIMARY EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-643-0	01	1	1109-1510		●
76	04.653 PISTON ASM; PRIMARY PERU EQUIPMENT(E07) G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-643-0	01	1	1511-	●
76	04.653 PISTON ASM; PRIMARY G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-643-0	01	1	1511-	●
76	04.653 PISTON ASM; PRIMARY EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-643-0	01	1	1511-		●
76	04.653 PISTON ASM; PRIMARY	8-97224-641-0	01	1	1010-1102		●
76	04.653 PISTON ASM; PRIMARY HYDRO BRAKE BOOSTER(7QQ)	8-97224-641-0	01	1	1103-1108	●
76	04.653 PISTON ASM; PRIMARY	8-97224-641-0	01	1	1103-1108		●
76	04.653 PISTON ASM; PRIMARY HYDRO BRAKE BOOSTER(7QQ)	8-97224-641-0	01	1	1109-	●	●
77	04.653 PISTON ASM; SECONDARY G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-635-0	01	1	1209-	●
77	04.653 PISTON ASM; SECONDARY	8-97224-642-0	01	1	1010-1102	●
77	04.653 PISTON ASM; SECONDARY EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-642-0	01	1	1103-1108	●
77	04.653 PISTON ASM; SECONDARY G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-642-0	01	1	1109-1510	●
77	04.653 PISTON ASM; SECONDARY EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-642-0	01	1	1109-1510		●
77	04.653 PISTON ASM; SECONDARY PERU EQUIPMENT(E07) G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-642-0	01	1	1511-	●
77	04.653 PISTON ASM; SECONDARY G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-642-0	01	1	1511-	●
77	04.653 PISTON ASM; SECONDARY EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97224-642-0	01	1	1511-		●
77	04.653 PISTON ASM; SECONDARY	8-97224-640-0	01	1	1010-1102		●
77	04.653 PISTON ASM; SECONDARY HYDRO BRAKE BOOSTER(7QQ)	8-97224-640-0	01	1	1103-1108	●
77	04.653 PISTON ASM; SECONDARY	8-97224-640-0	01	1	1103-1108		●
77	04.653 PISTON ASM; SECONDARY HYDRO BRAKE BOOSTER(7QQ)	8-97224-640-0	01	1	1109-	●	●
78	04.651 BUSHING; MASTER CYL G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97130-454-0	01	1	1209-	●
78	04.651 BUSHING; MASTER CYL G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97217-310-0	01	1	1209-	●
78	04.651 BUSHING; MASTER CYL (A)	8-97130-455-0	01	1	1010-1102	●
78	04.651 BUSHING; MASTER CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97130-455-0	01	1	1103-1108	●
78	04.651 BUSHING; MASTER CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97130-455-0	01	1	1109-1510	●
78	04.651 BUSHING; MASTER CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97130-455-0	01	1	1109-1510		●
78	04.651 BUSHING; MASTER CYL PERU EQUIPMENT(E07) G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97130-455-0	01	1	1511-	●
78	04.651 BUSHING; MASTER CYL G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97130-455-0	01	1	1511-	●
78	04.651 BUSHING; MASTER CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97130-455-0	01	1	1511-		●
78	04.651 BUSHING; MASTER CYL (B)	8-97217-312-0	01	1	1010-1102	●
78	04.651 BUSHING; MASTER CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97217-312-0	01	1	1103-1108	●
78	04.651 BUSHING; MASTER CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97217-312-0	01	1	1109-1510	●
78	04.651 BUSHING; MASTER CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97217-312-0	01	1	1109-1510		●
78	04.651 BUSHING; MASTER CYL PERU EQUIPMENT(E07) G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97217-312-0	01	1	1511-	●
78	04.651 BUSHING; MASTER CYL G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97217-312-0	01	1	1511-	●
78	04.651 BUSHING; MASTER CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97217-312-0	01	1	1511-		●
78	04.651 BUSHING; MASTER CYL (A)	8-97170-695-0	01	1	1010-1102		●
78	04.651 BUSHING; MASTER CYL HYDRO BRAKE BOOSTER(7QQ) (A)	8-97170-695-0	01	1	1103-1108	●
78	04.651 BUSHING; MASTER CYL (A)	8-97170-695-0	01	1	1103-1108		●
78	04.651 BUSHING; MASTER CYL HYDRO BRAKE BOOSTER(7QQ) (A)	8-97170-695-0	01	1	1109-	●	●
78	04.651 BUSHING; MASTER CYL (B)	8-97207-685-0	01	1	1010-1102		●
78	04.651 BUSHING; MASTER CYL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97207-685-0	01	1	1103-1108	●
78	04.651 BUSHING; MASTER CYL (B)	8-97207-685-0	01	1	1103-1108		●
78	04.651 BUSHING; MASTER CYL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97207-685-0	01	1	1109-	●	●
79	04.651 SUPPORTER; CUP G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-462-0	02	1	1209-	●
79	04.651 SUPPORTER; CUP	8-97130-463-0	02	1	1010-1102	●
79	04.651 SUPPORTER; CUP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-463-0	02	1	1103-1108	●
79	04.651 SUPPORTER; CUP G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-463-0	02	1	1109-1510	●
79	04.651 SUPPORTER; CUP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-463-0	02	1	1109-1510		●
79	04.651 SUPPORTER; CUP PERU EQUIPMENT(E07) G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-463-0	02	1	1511-	●
79	04.651 SUPPORTER; CUP G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-463-0	02	1	1511-	●
79	04.651 SUPPORTER; CUP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-463-0	02	1	1511-		●
79	04.651 SUPPORTER; CUP	8-97170-698-0	02	1	1010-1102		●
79	04.651 SUPPORTER; CUP HYDRO BRAKE BOOSTER(7QQ)	8-97170-698-0	02	1	1103-1108	●
79	04.651 SUPPORTER; CUP	8-97170-698-0	02	1	1103-1108		●
79	04.651 SUPPORTER; CUP HYDRO BRAKE BOOSTER(7QQ)	8-97170-698-0	02	1	1109-	●	●
80	04.651 COVER; MASTER CYL G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-448-0	01	1	1209-	●
80	04.651 COVER; MASTER CYL	8-97130-449-0	01	1	1010-1102	●
80	04.651 COVER; MASTER CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-449-0	01	1	1103-1108	●
80	04.651 COVER; MASTER CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-449-0	01	1	1109-1510	●
80	04.651 COVER; MASTER CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-449-0	01	1	1109-1510		●
80	04.651 COVER; MASTER CYL PERU EQUIPMENT(E07) G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-449-0	01	1	1511-	●
80	04.651 COVER; MASTER CYL G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-449-0	01	1	1511-	●
80	04.651 COVER; MASTER CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-449-0	01	1	1511-		●
80	04.651 COVER; MASTER CYL	8-97170-692-0	01	1	1010-1102		●
80	04.651 COVER; MASTER CYL HYDRO BRAKE BOOSTER(7QQ)	8-97170-692-0	01	1	1103-1108	●
80	04.651 COVER; MASTER CYL	8-97170-692-0	01	1	1103-1108		●
80	04.651 COVER; MASTER CYL HYDRO BRAKE BOOSTER(7QQ)	8-97170-692-0	01	1	1109-	●	●
81	04.651 HOLDER; NIPPLE	8-97315-168-0	01	1	1010-	●	●
82	04.651 SCREW; HOLDER	8-97130-446-0	02	1	1010-	●	●
87	04.662 SPACER; CUP G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-458-0	01	1	1209-	●
87	04.662 SPACER; CUP	8-97130-459-0	01	1	1010-1102	●
87	04.662 SPACER; CUP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-459-0	01	1	1103-1108	●
87	04.662 SPACER; CUP G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-459-0	01	1	1109-1510	●
87	04.662 SPACER; CUP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-459-0	01	1	1109-1510		●
87	04.662 SPACER; CUP PERU EQUIPMENT(E07) G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-459-0	01	1	1511-	●
87	04.662 SPACER; CUP G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-459-0	01	1	1511-	●
87	04.662 SPACER; CUP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-459-0	01	1	1511-		●
87	04.662 SPACER; CUP	8-97170-696-0	01	1	1010-1102		●
87	04.662 SPACER; CUP HYDRO BRAKE BOOSTER(7QQ)	8-97170-696-0	01	1	1103-1108	●
87	04.662 SPACER; CUP	8-97170-696-0	01	1	1103-1108		●
87	04.662 SPACER; CUP HYDRO BRAKE BOOSTER(7QQ)	8-97170-696-0	01	1	1109-	●	●

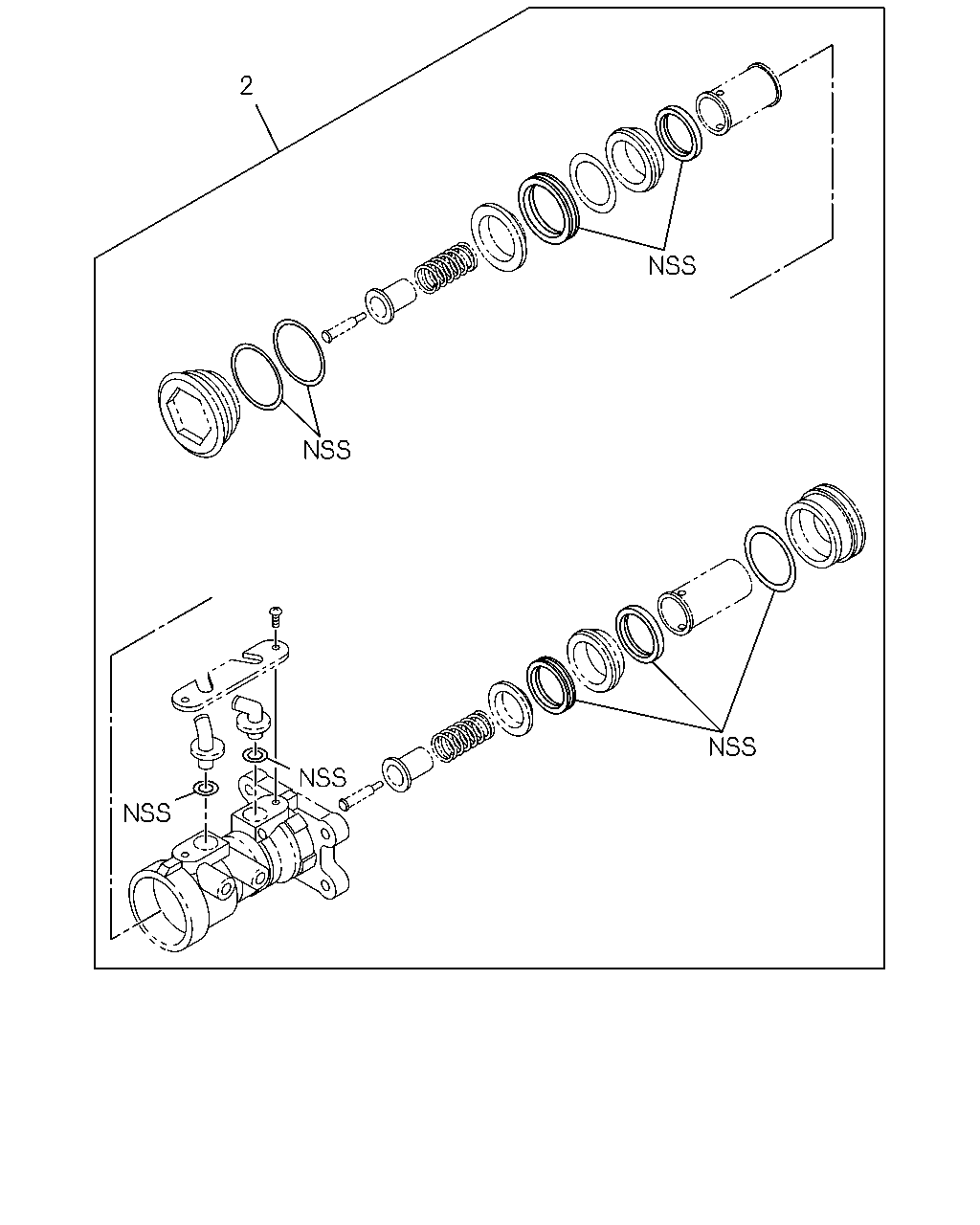

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	04.649 REPAIR KIT; BRK,M/CYL G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-470-0	01	1	1209-	●
2	04.649 REPAIR KIT; BRK,M/CYL	8-97130-471-0	01	1	1010-1102	●
2	04.649 REPAIR KIT; BRK,M/CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-471-0	01	1	1103-1108	●
2	04.649 REPAIR KIT; BRK,M/CYL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-471-0	01	1	1109-1510	●
2	04.649 REPAIR KIT; BRK,M/CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-471-0	01	1	1109-1510		●
2	04.649 REPAIR KIT; BRK,M/CYL PERU EQUIPMENT(E07) G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-471-0	01	1	1511-	●
2	04.649 REPAIR KIT; BRK,M/CYL G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-471-0	01	1	1511-	●
2	04.649 REPAIR KIT; BRK,M/CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97130-471-0	01	1	1511-		●
2	04.649 REPAIR KIT; BRK,M/CYL	8-97254-775-0	01	1	1010-1102		●
2	04.649 REPAIR KIT; BRK,M/CYL HYDRO BRAKE BOOSTER(7QQ)	8-97254-775-0	01	1	1103-1108	●
2	04.649 REPAIR KIT; BRK,M/CYL	8-97254-775-0	01	1	1103-1108		●
2	04.649 REPAIR KIT; BRK,M/CYL HYDRO BRAKE BOOSTER(7QQ)	8-97254-775-0	01	1	1109-	●	●
