◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#77834) — 259 parça

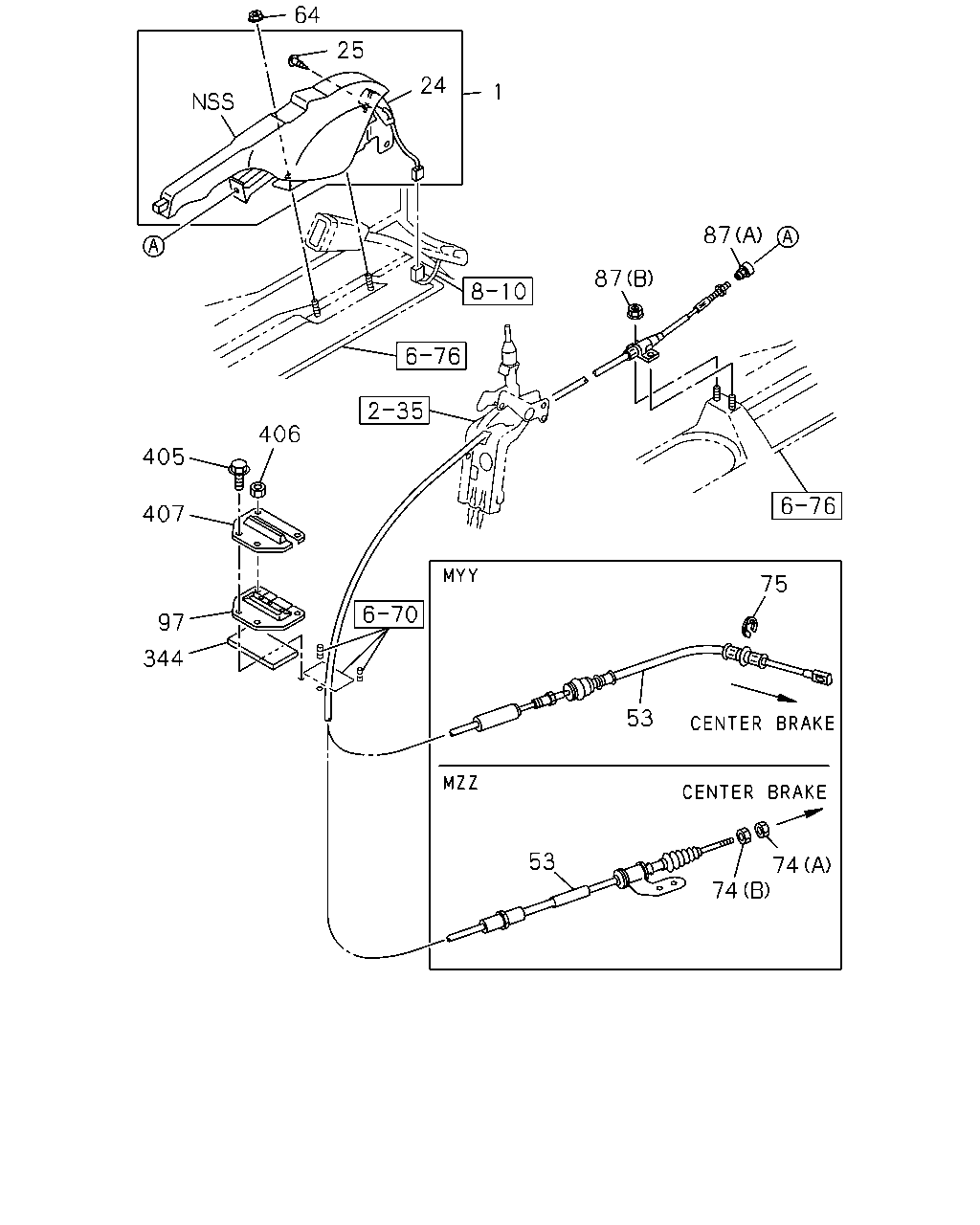

çizim 115531
64 24 25 1 405 406 87 87 407 97 344 75 53 53 74 74
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97406-006-0 01 1 1010-1303 ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1304- ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 1010-1303 ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304- ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1010- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98049-096-1 01 1 1209- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) 		8-98057-441-3 01 1 1109-1208 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6U(RSF) 		8-98057-441-3 01 1 1109-1208 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 		8-98057-441-3 01 1 1209- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6U(RSF) 		8-98057-441-3 01 1 1209- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) 		8-98060-996-3 01 1 1010-1208 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 		8-98060-996-3 01 1 1209- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) 		8-98060-996-3 01 1 1209- ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1010- ● ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) 02.334 (A) M8 		0-91110-508-0 01 1 1109-1208 ●
74 04.785 NUT; CONT WIRE
M/T MZZ6U(RSF) 02.334 (A) M8 		0-91110-508-0 01 1 1109-1208 ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 02.334 (A) M8 		0-91110-508-0 01 1 1209- ●
74 04.785 NUT; CONT WIRE
M/T MZZ6U(RSF) 02.334 (A) M8 		0-91110-508-0 01 1 1209- ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) (B) M8 FLANGE 		9-46259-016-0 01 1 1109-1208 ●
74 04.785 NUT; CONT WIRE
M/T MZZ6U(RSF) (B) M8 FLANGE 		9-46259-016-0 01 1 1109-1208 ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE 		9-46259-016-0 01 1 1209- ●
74 04.785 NUT; CONT WIRE
M/T MZZ6U(RSF) (B) M8 FLANGE 		9-46259-016-0 01 1 1209- ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1010-1108 ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
M/T MYY6S(RST) ID=12 		0-91805-512-0 01 1 1109- ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1010- ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 1010- ● ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 1103-1108 ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 1109- ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1010- ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1010- ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 1010- ● ●
çizim 186964
237 235 53 236 74 74
BalonParca AdiParca NoAdetTipApplied Date A B
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98049-096-1 01 1 1209- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) 		8-98057-441-3 01 1 1109-1208 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6U(RSF) 		8-98057-441-3 01 1 1109-1208 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 		8-98057-441-3 01 1 1209- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6U(RSF) 		8-98057-441-3 01 1 1209- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) 		8-98060-996-3 01 1 1010-1208 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 		8-98060-996-3 01 1 1209- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) 		8-98060-996-3 01 1 1209- ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) 02.334 (A) M8 		0-91110-508-0 01 1 1109-1208 ●
74 04.785 NUT; CONT WIRE
M/T MZZ6U(RSF) 02.334 (A) M8 		0-91110-508-0 01 1 1109-1208 ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 02.334 (A) M8 		0-91110-508-0 01 1 1209- ●
74 04.785 NUT; CONT WIRE
M/T MZZ6U(RSF) 02.334 (A) M8 		0-91110-508-0 01 1 1209- ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) (B) M8 FLANGE 		9-46259-016-0 01 1 1109-1208 ●
74 04.785 NUT; CONT WIRE
M/T MZZ6U(RSF) (B) M8 FLANGE 		9-46259-016-0 01 1 1109-1208 ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE 		9-46259-016-0 01 1 1209- ●
74 04.785 NUT; CONT WIRE
M/T MZZ6U(RSF) (B) M8 FLANGE 		9-46259-016-0 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98034-410-3 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (C) 		8-98033-907-0 01 1 1109-1208 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6U(RSF) (C) 		8-98033-907-0 01 1 1109-1208 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98033-907-0 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6U(RSF) (C) 		8-98033-907-0 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(B) 		8-98087-322-0 01 1 1010-1108 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) (B) 		8-98087-322-0 01 1 1109-1208 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98087-322-0 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) (B) 		8-98087-322-0 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98074-995-0 01 1 1010-1208 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98074-995-0 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98074-995-0 01 1 1209- ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6F(RSR) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1109-1208 ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6U(RSF) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1109-1208 ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1209- ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6U(RSF) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1209- ●
236 04.785 BOLT; BRKT TO FRAME
00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1010-1108 ● ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1109- ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1010-1102 ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1010-1102 ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1103-1108 ● ●
237 04.785 NUT; BRKT TO FRAME
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1103-1108 ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1109- ● ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1109- ● ●

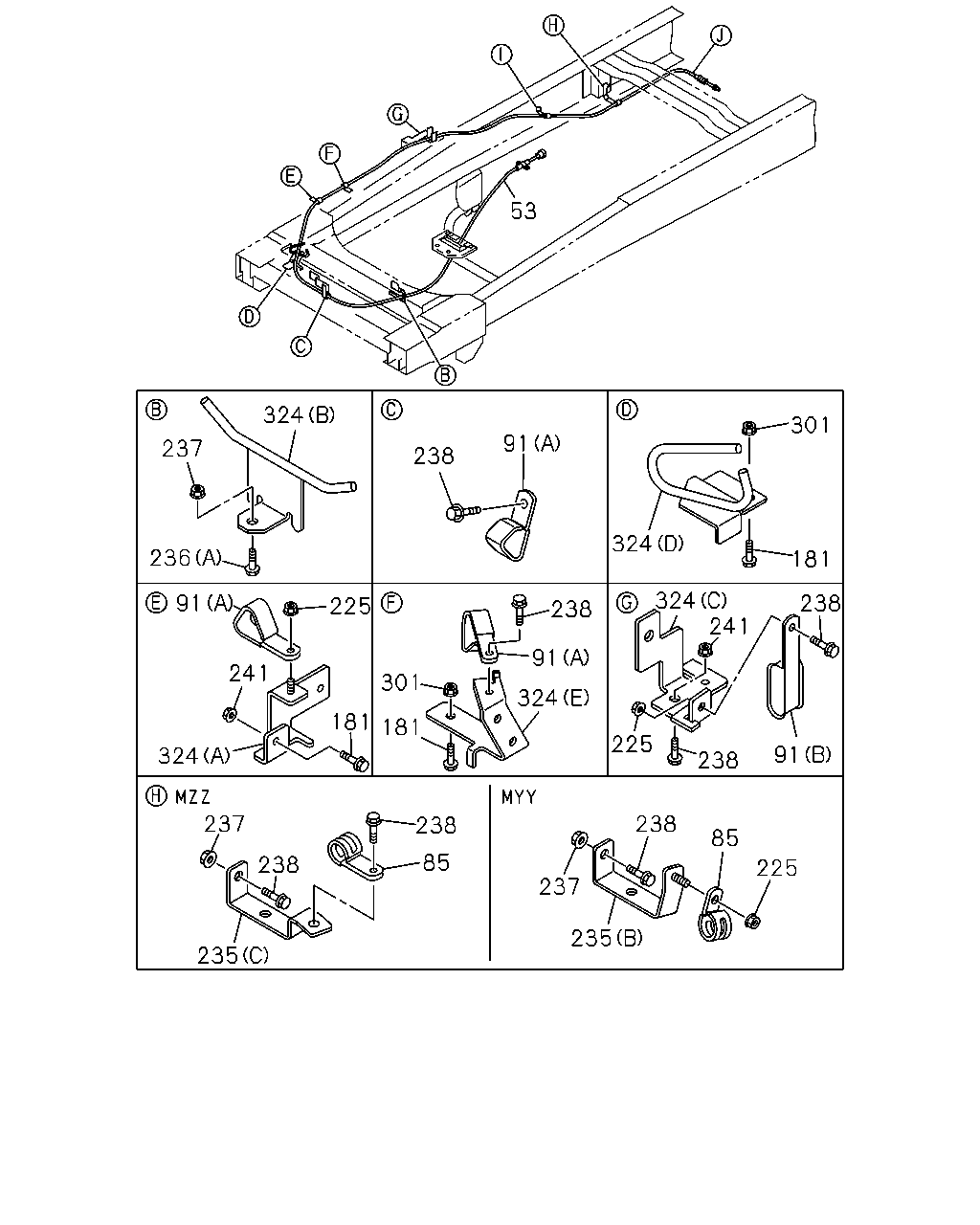

çizim 186971
53 237 324 238 91 324 301 181 238 91 225 91 236 301 181 181 241 324 324 241 238 91 238 225 324 238 85 225 237 235 85 238 237 238 235
BalonParca AdiParca NoAdetTipApplied Date A B
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98049-096-1 01 1 1209- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) 		8-98057-441-3 01 1 1109-1208 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6U(RSF) 		8-98057-441-3 01 1 1109-1208 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 		8-98057-441-3 01 1 1209- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6U(RSF) 		8-98057-441-3 01 1 1209- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) 		8-98060-996-3 01 1 1010-1208 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 		8-98060-996-3 01 1 1209- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) 		8-98060-996-3 01 1 1209- ●
85 04.785 CLIP; BRKT
M/T MZZ6F(RSR) ID=13 L=20 		0-95235-236-0 01 1 1109-1208 ●
85 04.785 CLIP; BRKT
M/T MZZ6U(RSF) ID=13 L=20 		0-95235-236-0 01 1 1109-1208 ●
85 04.785 CLIP; BRKT
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> ID=13 L=20 		0-95235-236-0 01 1 1209- ●
85 04.785 CLIP; BRKT
M/T MZZ6U(RSF) ID=13 L=20 		0-95235-236-0 01 1 1209- ●
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1010- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-97036-332-1 01 1 1209- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1010-1208 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1010-1208 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1010-1208 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1209- ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1209- ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 04.047 (A) 		8-97036-333-1 01 1 1209- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1209- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (B) 		8-98023-697-0 01 1 1010-1208 ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-98023-697-0 01 1 1209- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (B) 		8-98023-697-0 01 1 1209- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1010- ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1010-1208 ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1209- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1209- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1010-1208 ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1209- ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1209- ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1209- ●
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1209- ●
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1209- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1010-1208 ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1209- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98034-410-3 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (C) 		8-98033-907-0 01 1 1109-1208 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6U(RSF) (C) 		8-98033-907-0 01 1 1109-1208 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98033-907-0 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6U(RSF) (C) 		8-98033-907-0 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(B) 		8-98087-322-0 01 1 1010-1108 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) (B) 		8-98087-322-0 01 1 1109-1208 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98087-322-0 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) (B) 		8-98087-322-0 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98074-995-0 01 1 1010-1208 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98074-995-0 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98074-995-0 01 1 1209- ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6F(RSR) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1109-1208 ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6U(RSF) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1109-1208 ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1209- ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6U(RSF) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1209- ●
236 04.785 BOLT; BRKT TO FRAME
00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1010-1108 ● ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1109- ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1010-1102 ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1010-1102 ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1103-1108 ● ●
237 04.785 NUT; BRKT TO FRAME
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1103-1108 ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1109- ● ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1109- ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109-1208 ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6U(RSF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109-1208 ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1209- ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1209- ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6U(RSF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1209- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1010-1208 ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1209- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1209- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1010-1208 ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1209- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1209- ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1010-1208 ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1209- ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1209- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1010-1208 ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1010-1208 ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1209- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1209- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1209- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (F) 		8-98091-693-0 01 1 1209- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) 04.047 (G) 		8-98189-805-0 01 1 1209- ●
324 04.785 BRACKET
04.047 (B) 		8-98061-626-1 01 1 1010-1108 ● ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.047 (B) 		8-98061-626-1 01 1 1109- ● ●
324 04.785 BRACKET
(D) 		8-98094-197-0 01 1 1010-1108 ● ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-98094-197-0 01 1 1109-1110 ● ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.010 (D) 		8-98189-804-0 01 1 1111- ● ●
324 04.785 BRACKET
04.047 (E) 		8-98034-185-1 01 1 1010-1208 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (E) 		8-98034-185-1 01 1 1209- ●
324 04.785 BRACKET
04.047 (E) 		8-98034-185-1 01 1 1209- ●
324 04.785 BRACKET
(C) 		8-98087-330-1 01 1 1010-1208 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98087-330-1 01 1 1209- ●
324 04.785 BRACKET
(C) 		8-98087-330-1 01 1 1209- ●
324 04.785 BRACKET
(A) 		8-98099-516-0 01 1 1010-1208 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-516-0 01 1 1209-1508 ●
324 04.785 BRACKET
(A) 		8-98099-516-0 01 1 1209-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
(A) 		8-98216-763-1 01 1 1509- ●

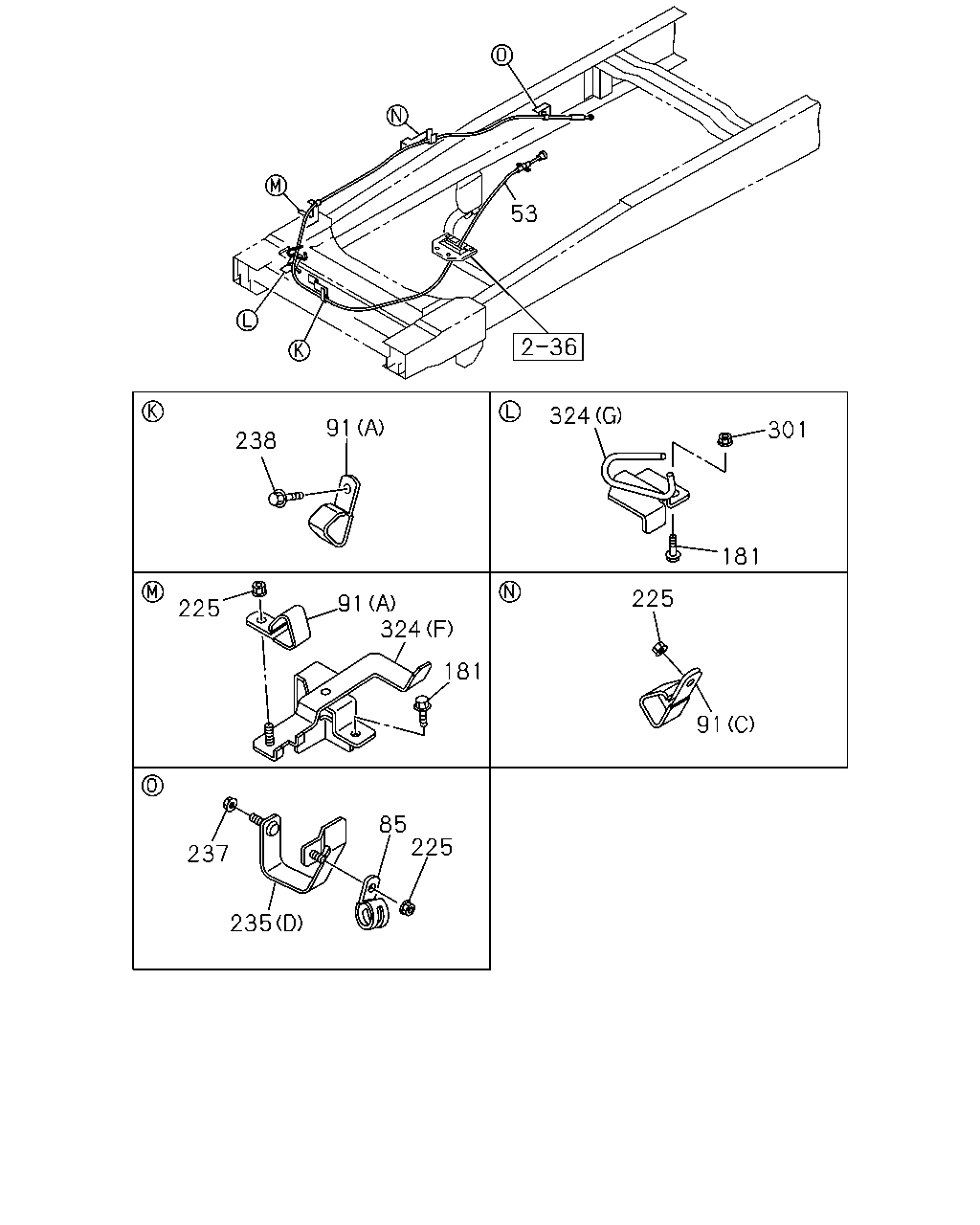

çizim 292056
53 238 91 91 225 324 181 91 225 324 301 181 85 225 237 235
BalonParca AdiParca NoAdetTipApplied Date A B
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98049-096-1 01 1 1209- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) 		8-98057-441-3 01 1 1109-1208 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6U(RSF) 		8-98057-441-3 01 1 1109-1208 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 		8-98057-441-3 01 1 1209- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6U(RSF) 		8-98057-441-3 01 1 1209- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) 		8-98060-996-3 01 1 1010-1208 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 		8-98060-996-3 01 1 1209- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) 		8-98060-996-3 01 1 1209- ●
85 04.785 CLIP; BRKT
M/T MZZ6F(RSR) ID=13 L=20 		0-95235-236-0 01 1 1109-1208 ●
85 04.785 CLIP; BRKT
M/T MZZ6U(RSF) ID=13 L=20 		0-95235-236-0 01 1 1109-1208 ●
85 04.785 CLIP; BRKT
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> ID=13 L=20 		0-95235-236-0 01 1 1209- ●
85 04.785 CLIP; BRKT
M/T MZZ6U(RSF) ID=13 L=20 		0-95235-236-0 01 1 1209- ●
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1010- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-97036-332-1 01 1 1209- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1010-1208 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1010-1208 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1010-1208 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1209- ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1209- ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 04.047 (A) 		8-97036-333-1 01 1 1209- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1209- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (B) 		8-98023-697-0 01 1 1010-1208 ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-98023-697-0 01 1 1209- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (B) 		8-98023-697-0 01 1 1209- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1010- ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1010-1208 ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1209- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1209- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1010-1208 ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1209- ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1209- ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1209- ●
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1209- ●
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1209- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1010-1208 ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1209- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98034-410-3 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (C) 		8-98033-907-0 01 1 1109-1208 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6U(RSF) (C) 		8-98033-907-0 01 1 1109-1208 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98033-907-0 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6U(RSF) (C) 		8-98033-907-0 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(B) 		8-98087-322-0 01 1 1010-1108 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) (B) 		8-98087-322-0 01 1 1109-1208 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98087-322-0 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) (B) 		8-98087-322-0 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98074-995-0 01 1 1010-1208 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98074-995-0 01 1 1209- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98074-995-0 01 1 1209- ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1010-1102 ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1010-1102 ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1103-1108 ● ●
237 04.785 NUT; BRKT TO FRAME
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1103-1108 ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1109- ● ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1109- ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109-1208 ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6U(RSF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109-1208 ●
238 04.785 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1209- ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1209- ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6U(RSF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1209- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1010-1208 ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1209- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1209- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1010-1208 ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1209- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1209- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1010-1208 ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1010-1208 ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1209- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1209- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1209- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (F) 		8-98091-693-0 01 1 1209- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) 04.047 (G) 		8-98189-805-0 01 1 1209- ●
324 04.785 BRACKET
04.047 (B) 		8-98061-626-1 01 1 1010-1108 ● ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.047 (B) 		8-98061-626-1 01 1 1109- ● ●
324 04.785 BRACKET
(D) 		8-98094-197-0 01 1 1010-1108 ● ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-98094-197-0 01 1 1109-1110 ● ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.010 (D) 		8-98189-804-0 01 1 1111- ● ●
324 04.785 BRACKET
04.047 (E) 		8-98034-185-1 01 1 1010-1208 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (E) 		8-98034-185-1 01 1 1209- ●
324 04.785 BRACKET
04.047 (E) 		8-98034-185-1 01 1 1209- ●
324 04.785 BRACKET
(C) 		8-98087-330-1 01 1 1010-1208 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98087-330-1 01 1 1209- ●
324 04.785 BRACKET
(C) 		8-98087-330-1 01 1 1209- ●
324 04.785 BRACKET
(A) 		8-98099-516-0 01 1 1010-1208 ● ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-516-0 01 1 1209-1508 ●
324 04.785 BRACKET
(A) 		8-98099-516-0 01 1 1209-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
(A) 		8-98216-763-1 01 1 1509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
