◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 3 - Brakes, Brake System ▶ 3-08 - PARKING BRAKE ▶
3-08 — PARKING BRAKE (#77832) — 88 parça

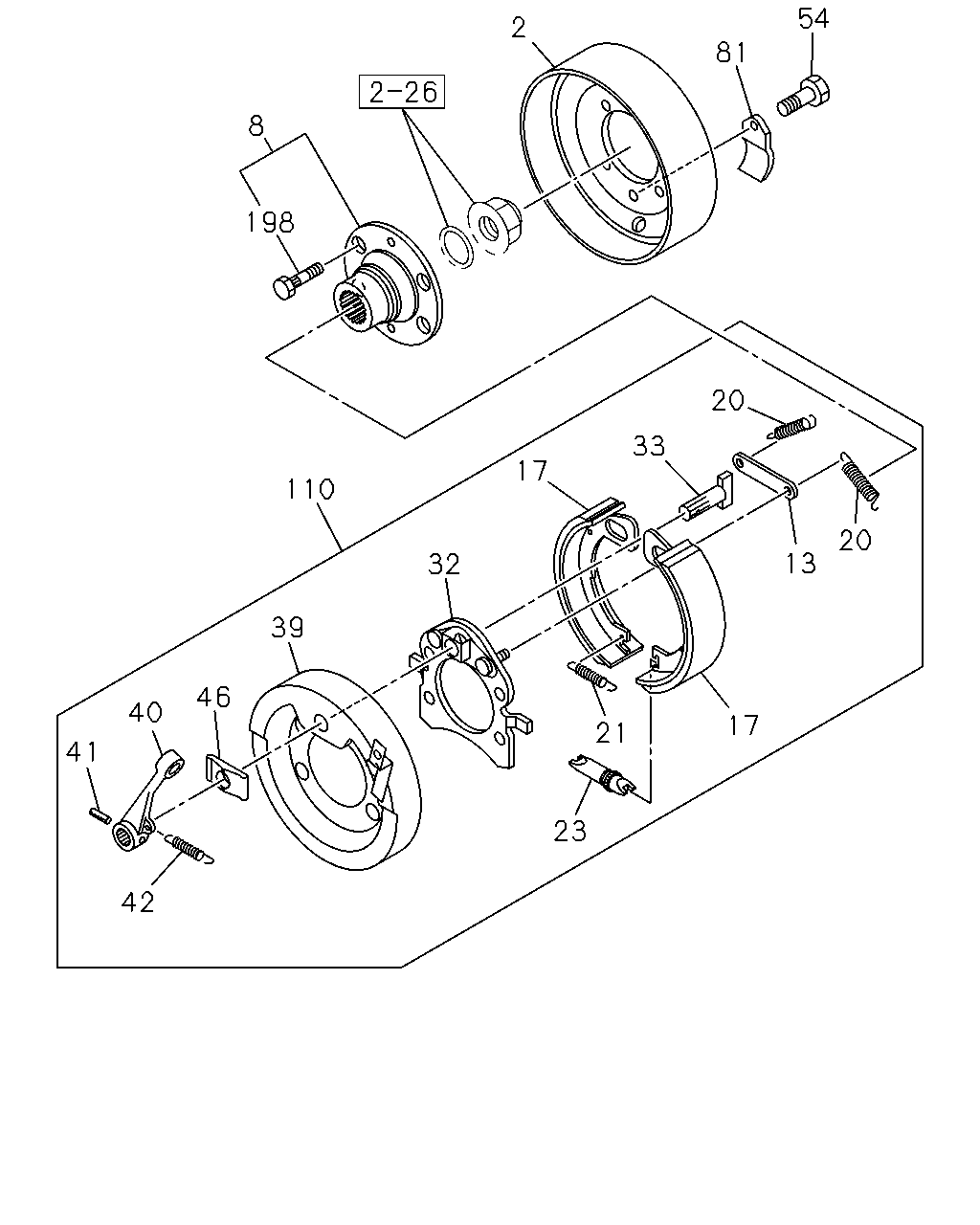

çizim 115102
23 21 17 13 20 20 33 17 32 39 46 40 41 42 110 198 8 2 81 54
BalonParca AdiParca NoAdetTipApplied Date A B
2 05.605 DRUM; PARKING BRK
4JJ1-TCC ENG(RDU) M/T MYY6S(RST) 		8-97033-989-1 01 1 1209- ●
2 05.605 DRUM; PARKING BRK
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		1-46211-057-1 01 1 1109- ● ●
2 05.605 DRUM; PARKING BRK 8-97334-107-0 01 1 1010-1108 ● ●
2 05.605 DRUM; PARKING BRK
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-97334-107-0 01 1 1109-1506 ● ●
2 05.605 DRUM; PARKING BRK
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98308-289-0 01 1 1507- ● ●
8 05.605 FLANGE; PARKING BRK
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-98044-142-0 01 1 1109- ● ●
13 05.615 BRACE; PARKING BRK
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		1-46239-003-0 01 1 1109- ● ●
17 05.606 SHOE; PARKING BRK
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-97042-934-1 02 1 1109- ● ●
17 05.606 SHOE; PARKING BRK 8-97020-250-2 02 1 1010-1108 ● ●
17 05.606 SHOE; PARKING BRK
M/T MYY6S(RST) 		8-97020-250-2 02 1 1109- ● ●
20 05.606 SPRING; RETURN,SECONDARY,PARKING
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		1-09586-002-0 02 1 1109- ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		1-09583-280-0 01 1 1109- ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
05.605 		8-94132-157-0 02 1 1010-1108 ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MYY6S(RST) 05.605 		8-94132-157-0 02 1 1109- ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-98043-963-0 01 1 1109- ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 8-98043-954-0 01 1 1010-1108 ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MYY6S(RST) 		8-98043-954-0 01 1 1109- ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		1-46213-069-0 01 1 1109- ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK 8-97308-176-0 01 1 1010-1108 ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MYY6S(RST) 		8-97308-176-0 01 1 1109- ● ●
33 05.605 SHAFT; CAM,PARKING BRK
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-98043-961-0 01 1 1109- ● ●
39 05.610 COVER; DUST,PARKING BRK
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		1-46213-075-0 01 1 1109- ● ●
40 05.605 LEVER; CM/SHF,PARKING BRK
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-98047-550-0 01 1 1109- ● ●
41 05.605 PIN; KNOCK,LEVER
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		9-09878-594-0 01 1 1109- ● ●
42 05.605 SPRING; RETURN,LEVER
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		1-09583-041-0 01 1 1109- ● ●
46 05.605 WASHER; LEVER
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		1-09509-057-0 01 1 1109- ● ●
54 05.606 BOLT; COVER
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 03.403 M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1109- ● ●
81 05.606 COVER; CHECK HOLE,PARKING BRK
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-98031-861-0 02 1 1109- ● ●
110 05.610 BRAKE ASM; PARKING
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-98034-305-0 01 1 1109- ● ●
198 05.605 BOLT; KNURL
M/T MZZ6U(RSF),M/T MZZ6F(RSR) M12X39 		8-97365-446-0 04 1 1109- ● ●

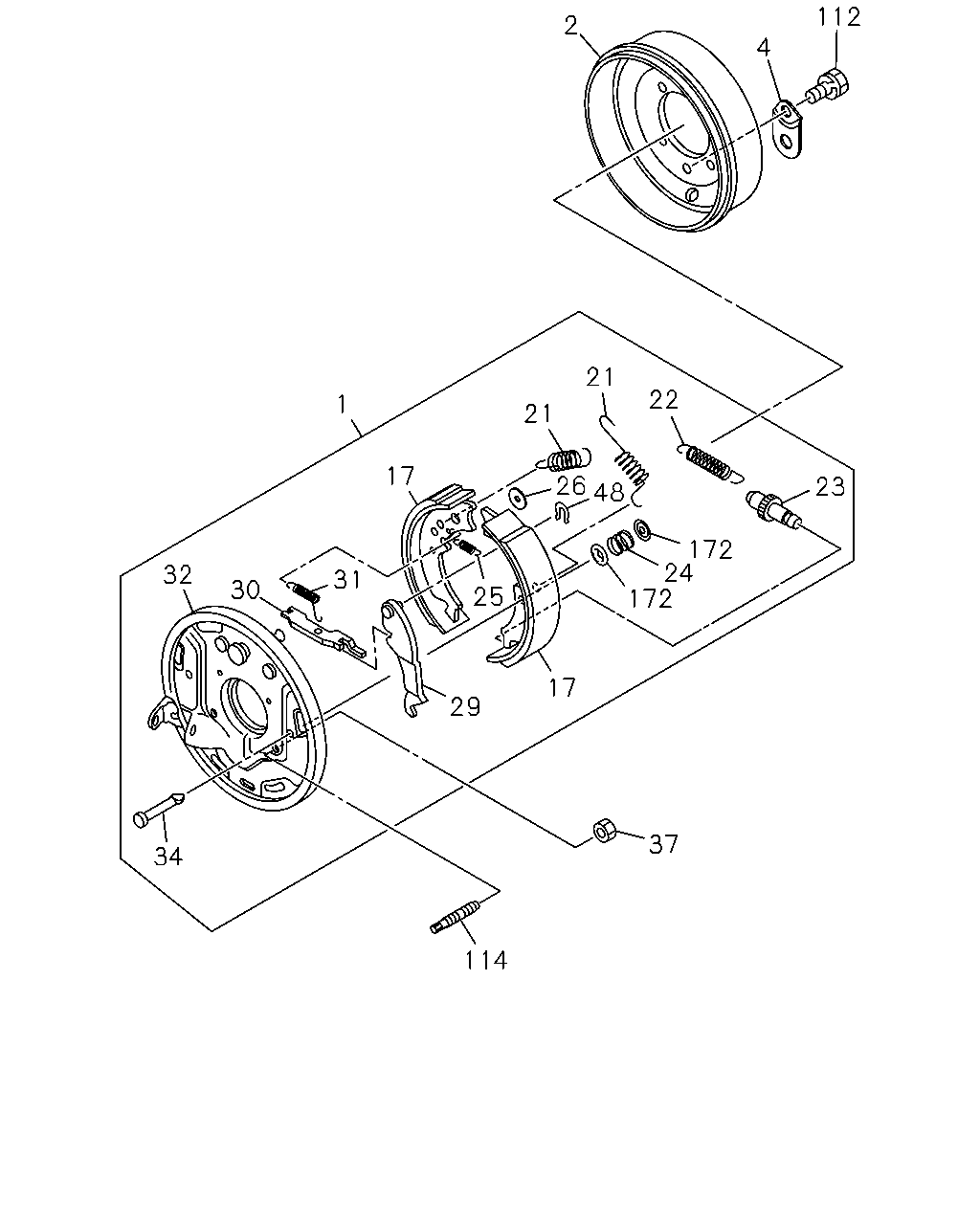

çizim 115124
114 37 17 29 25 172 24 172 23 22 21 21 26 48 17 1 31 30 32 34 4 2 112
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.610 BRAKE ASM; CENTER,PARKING 8-98029-922-0 01 1 1010-1108 ● ●
1 05.610 BRAKE ASM; CENTER,PARKING
M/T MYY6S(RST) 		8-98029-922-0 01 1 1109- ● ●
2 05.605 DRUM; PARKING BRK
4JJ1-TCC ENG(RDU) M/T MYY6S(RST) 		8-97033-989-1 01 1 1209- ●
2 05.605 DRUM; PARKING BRK
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		1-46211-057-1 01 1 1109- ● ●
2 05.605 DRUM; PARKING BRK 8-97334-107-0 01 1 1010-1108 ● ●
2 05.605 DRUM; PARKING BRK
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-97334-107-0 01 1 1109-1506 ● ●
2 05.605 DRUM; PARKING BRK
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98308-289-0 01 1 1507- ● ●
4 05.606 COVER; ADJ HOLE 8-98029-820-0 01 1 1010-1108 ● ●
4 05.606 COVER; ADJ HOLE
M/T MYY6S(RST) 		8-98029-820-0 01 1 1109- ● ●
17 05.606 SHOE; PARKING BRK
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-97042-934-1 02 1 1109- ● ●
17 05.606 SHOE; PARKING BRK 8-97020-250-2 02 1 1010-1108 ● ●
17 05.606 SHOE; PARKING BRK
M/T MYY6S(RST) 		8-97020-250-2 02 1 1109- ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		1-09583-280-0 01 1 1109- ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
05.605 		8-94132-157-0 02 1 1010-1108 ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MYY6S(RST) 05.605 		8-94132-157-0 02 1 1109- ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
05.605 		8-94107-618-0 01 1 1010-1108 ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
M/T MYY6S(RST) 05.605 		8-94107-618-0 01 1 1109- ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-98043-963-0 01 1 1109- ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 8-98043-954-0 01 1 1010-1108 ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MYY6S(RST) 		8-98043-954-0 01 1 1109- ● ●
24 05.605 SPRING; BRK SHOE 8-94132-155-1 02 1 1010-1108 ● ●
24 05.605 SPRING; BRK SHOE
M/T MYY6S(RST) 		8-94132-155-1 02 1 1109- ● ●
25 05.605 SPRING; SHOE ALIGNMENT 8-94132-156-0 01 1 1010-1108 ● ●
25 05.605 SPRING; SHOE ALIGNMENT
M/T MYY6S(RST) 		8-94132-156-0 01 1 1109- ● ●
26 05.605 PLATE; SHOE GUIDE 8-98043-959-0 01 1 1010-1108 ● ●
26 05.605 PLATE; SHOE GUIDE
M/T MYY6S(RST) 		8-98043-959-0 01 1 1109- ● ●
29 04.591 LEVER; PARKING BRK 8-98043-949-0 01 1 1010-1108 ● ●
29 04.591 LEVER; PARKING BRK
M/T MYY6S(RST) 		8-98043-949-0 01 1 1109- ● ●
30 05.605 STRUT; PARKING BRK 8-98043-953-0 01 1 1010-1108 ● ●
30 05.605 STRUT; PARKING BRK
M/T MYY6S(RST) 		8-98043-953-0 01 1 1109- ● ●
31 05.605 SPRING; SHOE TO STRUT 8-94132-158-0 01 1 1010-1108 ● ●
31 05.605 SPRING; SHOE TO STRUT
M/T MYY6S(RST) 		8-94132-158-0 01 1 1109- ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		1-46213-069-0 01 1 1109- ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK 8-97308-176-0 01 1 1010-1108 ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MYY6S(RST) 		8-97308-176-0 01 1 1109- ● ●
34 05.605 PIN; BRK SHOE 8-98043-955-0 02 1 1010-1108 ● ●
34 05.605 PIN; BRK SHOE
M/T MYY6S(RST) 		8-98043-955-0 02 1 1109- ● ●
37 05.610 NUT; SUPPORT PLATE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) M14 FLANGE 		8-97365-444-0 04 1 1109- ● ●
37 05.610 NUT; SUPPORT PLATE
M12 LOCK NUT 		8-98029-927-0 04 1 1010-1108 ● ●
37 05.610 NUT; SUPPORT PLATE
M/T MYY6S(RST) M12 LOCK NUT 		8-98029-927-0 04 1 1109- ● ●
48 05.605 RETAINER; PIN,PARKING BRK 8-98043-958-0 01 1 1010-1108 ● ●
48 05.605 RETAINER; PIN,PARKING BRK
M/T MYY6S(RST) 		8-98043-958-0 01 1 1109- ● ●
112 05.606 BOLT; COVER TO BRK DRUM
00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 1010-1108 ● ●
112 05.606 BOLT; COVER TO BRK DRUM
M/T MYY6S(RST) 00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 1109- ● ●
114 05.605 STUD; SUPPORT PLATE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) M14X22.5 L=42.5 		8-97365-445-0 04 1 1109- ● ●
114 05.605 STUD; SUPPORT PLATE 8-98029-929-0 04 1 1010-1108 ● ●
114 05.605 STUD; SUPPORT PLATE
M/T MYY6S(RST) 		8-98029-929-0 04 1 1109- ● ●
172 05.605 CUP; SHOE HOLD 8-98043-956-0 04 1 1010-1108 ● ●
172 05.605 CUP; SHOE HOLD
M/T MYY6S(RST) 		8-98043-956-0 04 1 1109- ● ●

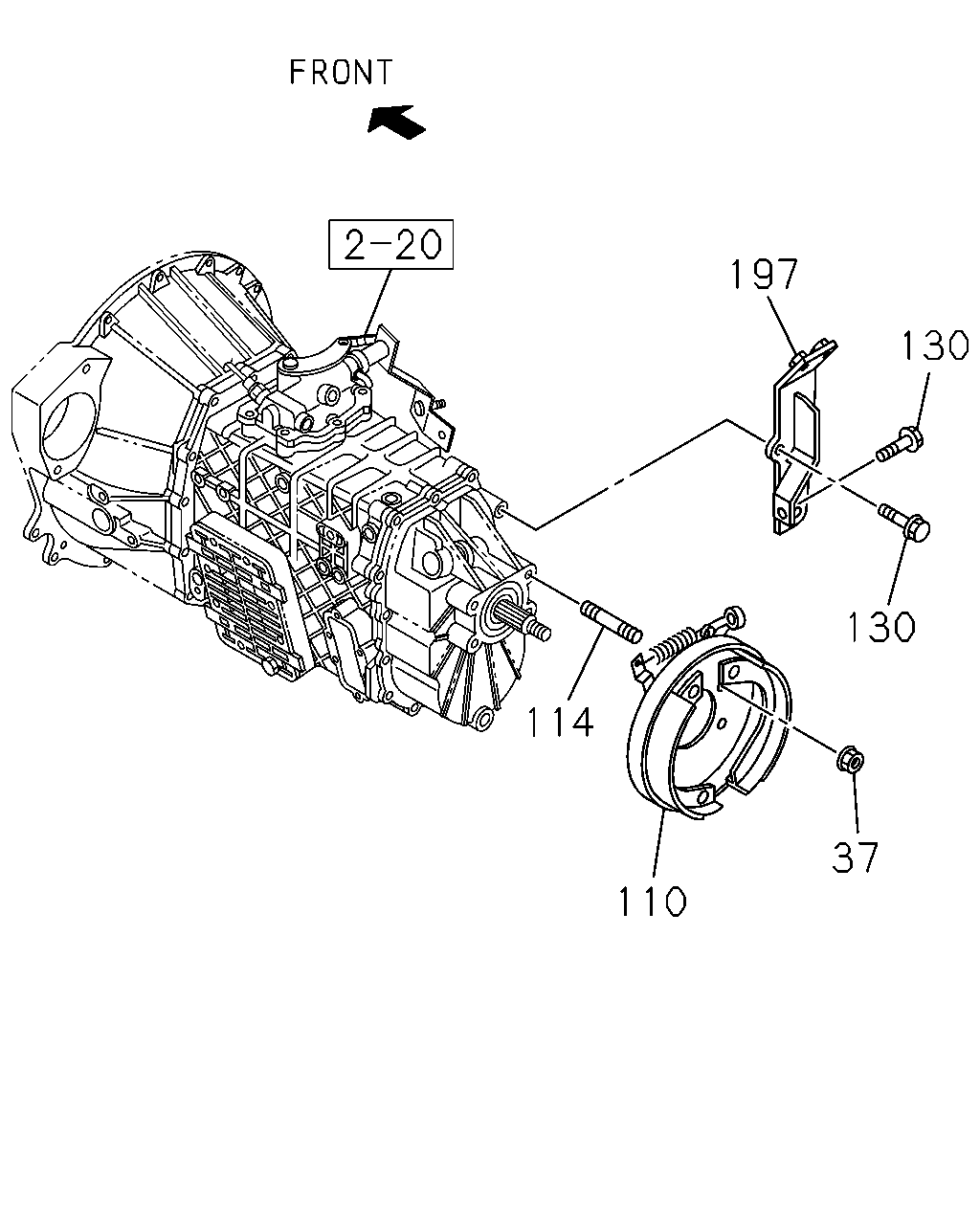

çizim 115251
110 114 37 130 130 197
BalonParca AdiParca NoAdetTipApplied Date A B
37 05.610 NUT; SUPPORT PLATE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) M14 FLANGE 		8-97365-444-0 04 1 1109- ● ●
37 05.610 NUT; SUPPORT PLATE
M12 LOCK NUT 		8-98029-927-0 04 1 1010-1108 ● ●
37 05.610 NUT; SUPPORT PLATE
M/T MYY6S(RST) M12 LOCK NUT 		8-98029-927-0 04 1 1109- ● ●
110 05.610 BRAKE ASM; PARKING
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-98034-305-0 01 1 1109- ● ●
114 05.605 STUD; SUPPORT PLATE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) M14X22.5 L=42.5 		8-97365-445-0 04 1 1109- ● ●
114 05.605 STUD; SUPPORT PLATE 8-98029-929-0 04 1 1010-1108 ● ●
114 05.605 STUD; SUPPORT PLATE
M/T MYY6S(RST) 		8-98029-929-0 04 1 1109- ● ●
130 05.605 BOLT; BRKT
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 02.042 M10X25 FLANGE 		0-28151-025-0 03 1 1109- ● ●
197 05.605 BRACKET; CENTER BRAKE CABLE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-97244-812-0 01 1 1109- ● ●
